BEJLX5450Tri-Mode Dual-Band Analog/PCS Phone(AMPS/CDMA/GPS)

- 1 - LG-LX5450 User Guide Ver. 0.1 2002.11.04 - 2 - Unlocking Your Phone.............................................................................4 View of Phone..........................................................................................4 Installing and Removing the Battery.......................................................5 Turning Your Phone On and Off.............................................................5 Main Menu...............................................................................................6 Power Save Mode....................................................................................6 Menu Navigation.....................................................................................6 Entering Characters Using the Keypad(T9)............................................7 Display Icons...........................................................................................8 Antenna....................................................................................................8 Signal Strength.........................................................................................9 Battery Capacity......................................................................................9 Using the AC Adapter.............................................................................9 Using Your Phone.........................................................................................................................................9 Placing a Call.........................................................................................10 Roaming With Your Sprint PCS Phone TM .............................................10 Calling Experience.................................................................................10 Correcting Dialing Mistakes..................................................................11 In Call Options.......................................................................................12 Incoming Call Notification....................................................................12 Answering Calls.....................................................................................13 Displaying Your Sprint PCS Phone Number(phone book – not functioning)............................................................................................13 Setting the Ring Volume to Vibrate.......................................................14 Getting the Most From Sprint PCS Service................................................................................................14 New Massage Alerts..............................................................................14 Retrieving Page/Text Messages.............................................................15 Page/Text Message Storage...................................................................16 Roaming on to Other Service Providers................................................16 (Call History- not functioning)..............................................................17 Page/Text Messages...............................................................................17 Erasing Page/Text Messages..................................................................17 Sounds....................................................................................................17 Adjusting the Volume............................................................................17 Selecting Ring Types for Voice Calls....................................................18 - 3 - Tone Length...........................................................................................19 Display Menu.............................................................................................................................................20 Security..................................................................................................20 Locking Your Phone..............................................................................20 Unlocking Your Phone...........................................................................20 Changing the Lock Code.......................................................................21 Answering Your Phone with the Hands-Free Car Kit...........................21 For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure requirements, and should be avoided. WARNING! Read this information before using your phone - 4 - Unlocking Your Phone If yo…

Text truncated - open the document above for the full version.

November 15. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 In re : LG Electronics Inc.. Tri-band Quad-mode CDMA Phone (AMPS/Cellular/PCS/GPS) Part 22, 24 Certification Request for Confidentiality Gentlemen: In accordance with 0.459 of CFR 47, LG Electronics, Inc. hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams & Circuit Description attachment, Operational Description attachment, and Parts List/Tune-Up Procedure attachment for the above-referenced Type Acceptance application. These documents contain detailed system and equipment description and related information about the product which LG Electronics Inc. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers this information to be of benefit to its competitors, such that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the LGE Handheld Portable Cellular Telephone(FCC ID: BEJLX5450) is so designed that it complies with all the requirements for ESN protection specified in section 22.919 of the FCC Rules. A) The transmitter in service has a unique ESN. B) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. C) The ESN is factory-set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc. Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE Tel : 82-2-850-3850 Fax : 82-2-850-3861 [email protected] 459-9, Kasan-dong,Kemchun-ku Seoul 153-023, Korea LG Electronics Inc. LGE November 15. 2002 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Subject : LG Electronics Inc.. FCC ID: BEJLX5450 User’ s Manual RF Exposure Warning Statement Gentlemen: LG Electronics, Inc. hereby conforms that the attached RF exposure warning page will be ready visible to the user, and will be placed at a prominent location in the front of user’ s manual. If you have any questions or comments concerned the above, please do not hesitate to contact PCTEST Lab. or me at (410)290-6652 Sincerely, E.S.Park Research Engineer CDMA Handset Lab LG Electronics Inc.

December 6, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJLX5450 Part 22 & 24 Certification Gentlemen: Attached herewith, on behalf of LG ELECTRONICS, INC. is an application for Part 22/24 Certification of the Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA/GPS). Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams (confidential), circuit description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

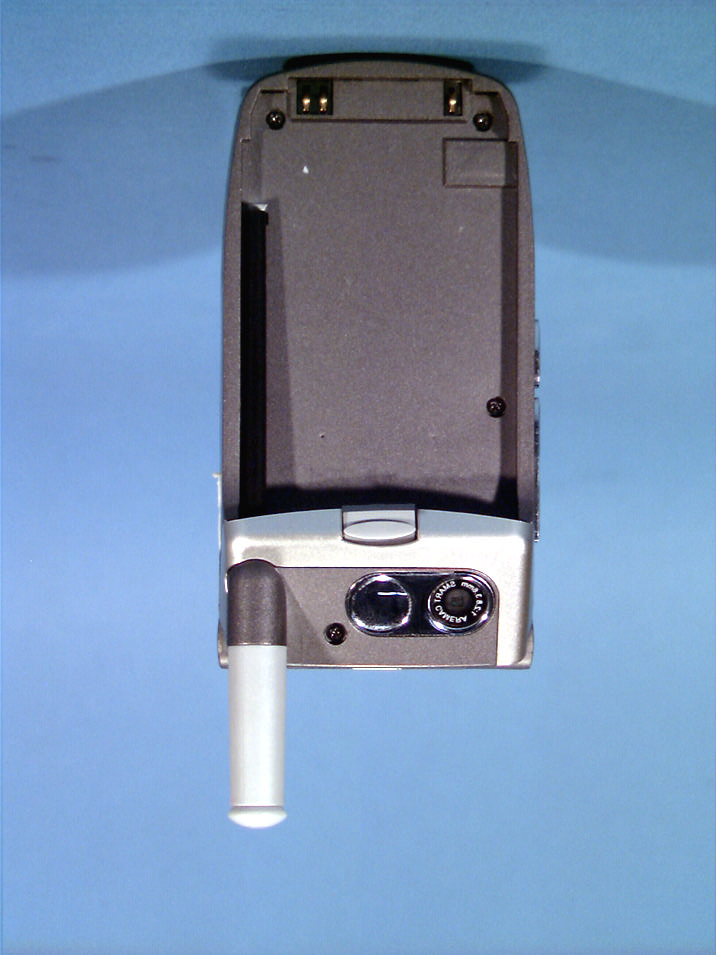

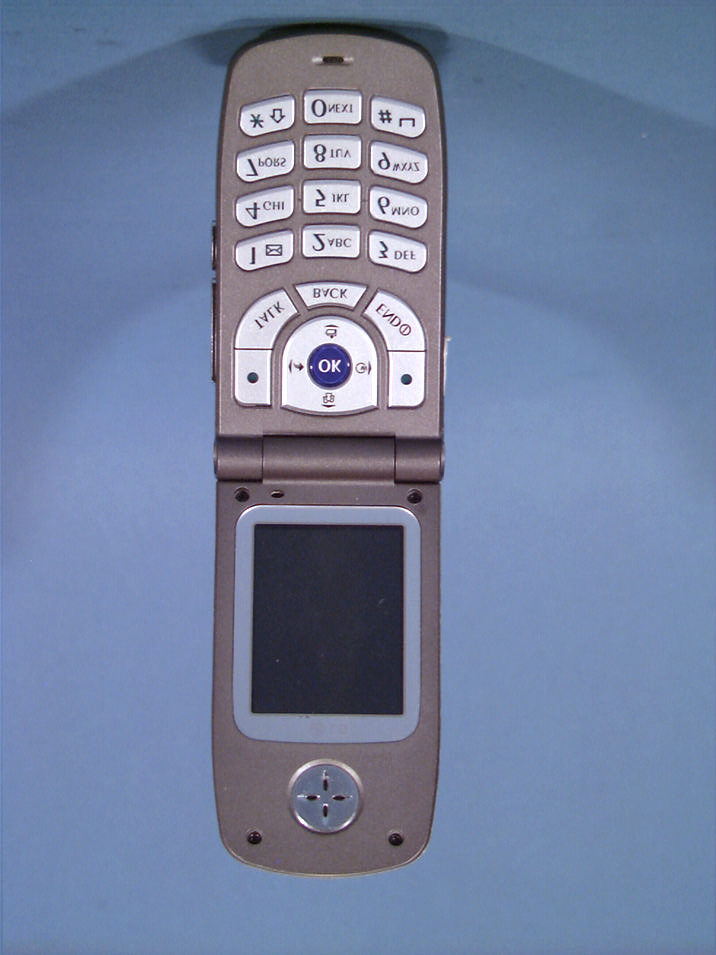

© 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450)

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics. Equipment Identification: LG Electronics, Inc. LGE Model No. : LG-LX5450 FCC ID : BEJLX5450 S/N : Made in Korea

© 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450)

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-.221119606.BEJ Test Dates: November 19-26, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: BEJLX5450 Page 1 of 35 © 2002 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, Inc. Dates of Tests: November 19-26, 2002 Communication Terminal Research Lab Test Report S/N: SAR.221119606.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul, KOREA 153-023 Attn: E.S. Park, Research Engineer FCC ID: BEJLX5450 APPLICANT: LG ELECTRONICS, INC. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA/GPS) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.307 W ERP AMPS (24.873 dBm) / 0.233 W ERP CDMA (23.673 dBm) 0.260 W EIRP PCS CDMA (24.151 dBm) Max. SAR Measurement: 1.110W/kg AMPS Head SAR; 0.975W/kg AMPS Body SAR; 0.699W/kg CDMA Head SAR; 0.646W/kg CDMA Body SAR; 0.835W/kg PCS CDMA Head SAR; 0.634W/kg PCS CDMA Body SAR Trade Name/Model(s): LG- LX5450 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype (S/N: #1) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.5, Jan. 15, 2002). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221119606.BEJ PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-.221119606.BEJ Test Dates: November 19-26, 2002 Phone Type: Tri-Mode Dual-Band FCC ID: BEJLX5450 Page 2 of 35 © 2002 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION .................................................................................................. 3 SAR DEFINITION ................................................................................................. 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware ................................................................................................... 4 System Electronics .................................................................................................. 4 3. DASY3 E-FIELD PROBE SYSTEM ............................................................................ 5 Probe Measurement System.................................................................................... 5 Probe Specifications ............................................................................................... 5 4. Probe Calibration Process....................................................................................... 6 Dosimetric Assessment Procedure .......................................................................... 6 Free Space Assessment ........................................................................................... 6 Temperature Assessment ........................................................................................ 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ........................................................................................................ 7 Brain & Muscle Simulating Mixture Characterization ............................................. 7 Device Holder for Transmitters............................................................................... 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications .................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................. 9 Measurement Procedure......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications.................................. 9 8. DEFINITION OF REFERENCE POINTS ................................................................. 10 EAR Reference Point............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS .................................................................. 11 Positioning for Cheek/Touch ..........…

Text truncated - open the document above for the full version.

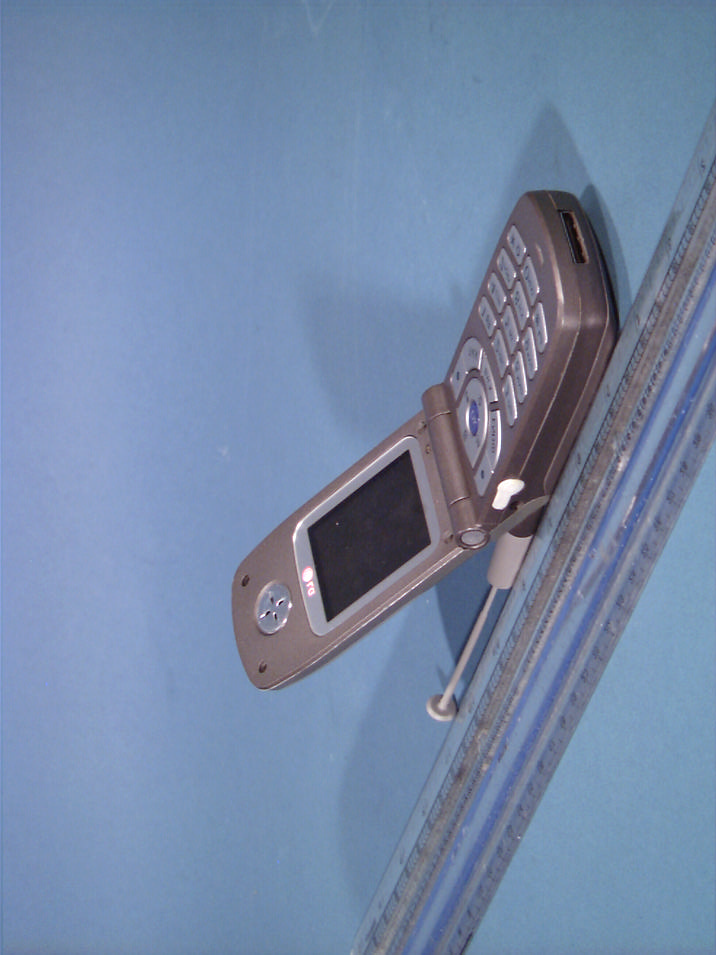

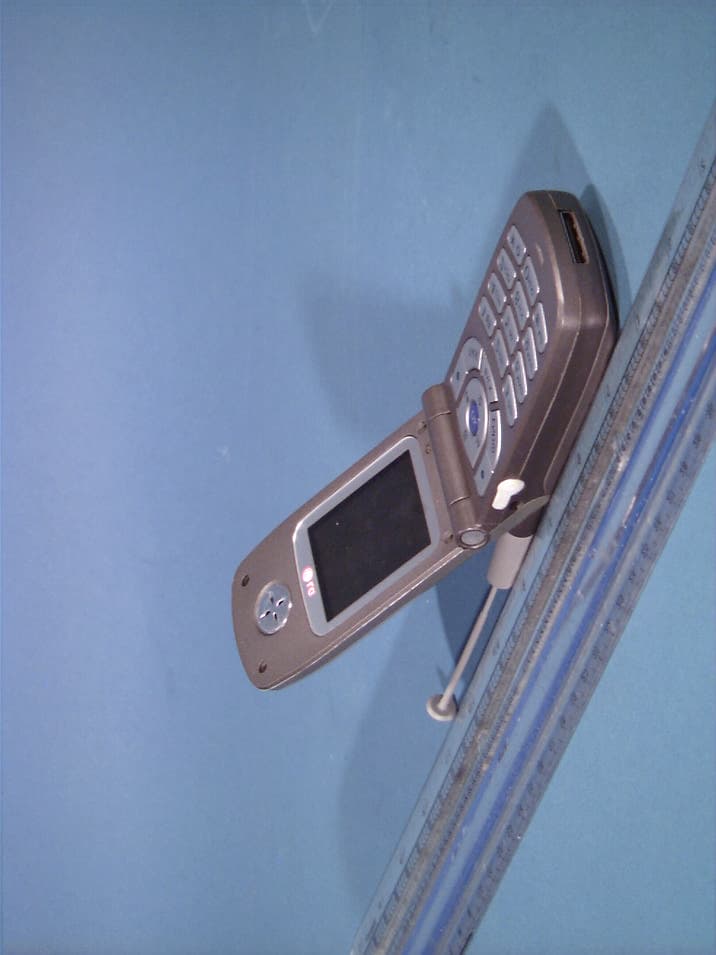

LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.11 mW/g, SAR (10g): 0.744 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna AMPS Mode, Ch.0991 [824.04MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 26.0dBm; Right Head Phantom, Cheek/Touch position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.08E-1 3.25E-1 5.41E-1 7.57E-1 9.74E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.291 mW/g, SAR (10g): 0.219 mW/g LGE TriMode Phone Model:LG-LX5450 with Centurion antenna AMPS Mode, Ch.0991 [824.04MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 26.0dBm; Right Head Phantom, Ear/15 degree Tilt position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.00E-2 9.00E-2 1.50E-1 2.10E-1 2.70E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 1.07 mW/g, SAR (10g): 0.707 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna AMPS Mode, Ch.0991 [824.04MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 26.0dBm; Left Head Phantom, Cheek/Touch position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.03E-1 3.09E-1 5.15E-1 7.21E-1 9.27E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.322 mW/g, SAR (10g): 0.241 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna AMPS Mode, Ch.0991 [824.04MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 26.0dBm; Left Head Phantom, Ear/15 degree Tilt position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 3.26E-2 9.78E-2 1.63E-1 2.28E-1 2.93E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.699 mW/g, SAR (10g): 0.478 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 24.0dBm; Right Head Phantom, Cheek/Touch position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 7.18E-2 2.15E-1 3.59E-1 5.03E-1 6.46E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.179 mW/g , SAR (10g): 0.136 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 24.0dBm; Right Head Phantom, Ear/15 degree Tilt position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.80E-2 5.40E-2 9.00E-2 1.26E-1 1.62E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.644 mW/g, SAR (10g): 0.425 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 24.0dBm; Left Head Phantom, Cheek/Touch position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 6.01E-2 1.80E-1 3.00E-1 4.21E-1 5.41E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 835MHz. Head SAR w/ Centurion Antenna SAM Phantom; Left Hand Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 0.190 mW/g, SAR (10g): 0.142 mW/g LGE TriMode Phone Model: LG-LX5450 with Centurion antenna Cellular CDMA Mode, Ch.1013 [824.70MHz]; Standard Battery; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C Conducted Power = 24.0dBm; Left Head Phantom, Ear/15 degree Tilt position: Flip = open Test Date --11/20/2002 [FCC/OET Bulletin 65 - Supplement C, July 2001] SAR Tot [mW/g] 1.97E-2 5.91E-2 9.85E-2 1.38E-1 1.77E-1 PCTEST Engineering Laboratory, Inc. LG Electronics FCC: BEJLX5450 -- 1900MHz. Head SAR w/ Centurion Antenna SAM Phantom; Right Hand Section; Probe:ET3DV6 - SN1677; ConvF(5.30,5.30,5.30) Med. Parameters 1900 MHz Brain: σ = 1.36 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna …

Text truncated - open the document above for the full version.

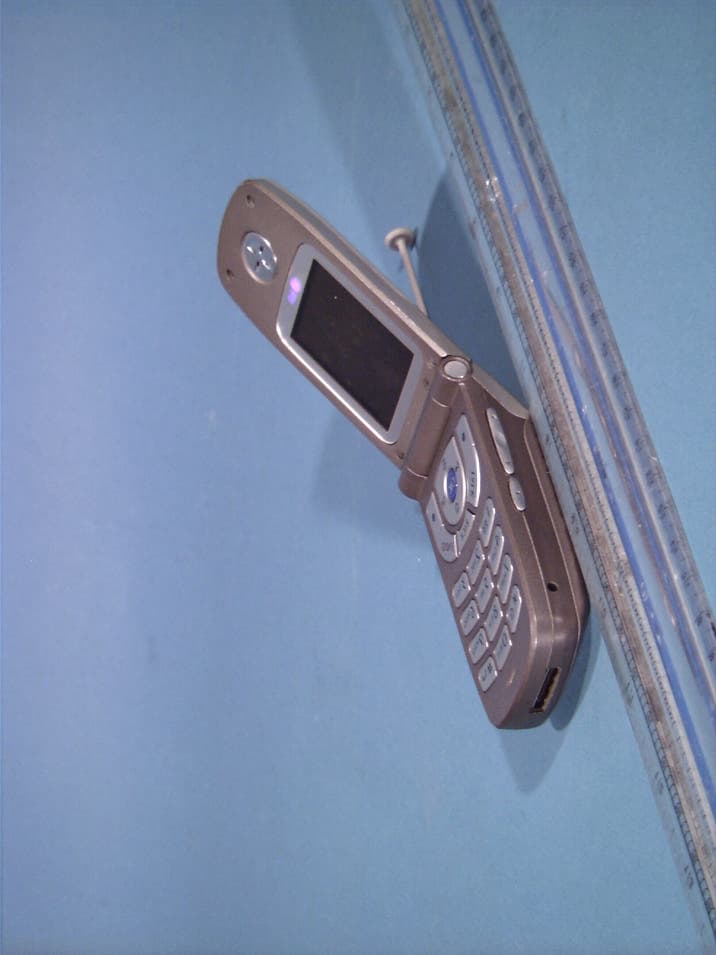

© 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450) © 2002 PCTEST Lab LGE FCC ID: BEJLX5450 Tri-Mode Dual-Band Phone (Model: LG-LX5450)

835MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(6.70,6.70,6.70) Med. Parameters 835 MHz Brain: σ = 0.93 mho/m ε r = 42.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.43 mW/g , SAR (10g): 1.56 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 20.4°C / Meas. Tissue Temp. = 19.1°C PCTEST Brain Tissue Simulating Liquid [11/20/2002] SAR Tot [mW/g] 2.51E-1 7.67E-1 1.22E+0 1.74E+0 2.25E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation SAM Phantom; Flat Section; Probe:ET3DV6 - SN1677; ConvF(4.30,4.30,4.30) Med. Parameters 1900 MHz Brain: σ = 1.36 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.83/g, SAR (10g): 5.37 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW]; Ambient Temp. = 20.0°C / Meas. Tissue Temp. = 19.4°C PCTEST Brain Tissue Simulating Liquid [11/21/2002] SAR Tot [mW/g] 9.70E-1 2.79E+0 4.76E+0 6.74E+0 8.71E+0 PCTEST Engineering Laboratory, Inc.

PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.221119605.A3L Test Dates: November 19-26, 2002 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5450 Page 1 of 29 © 2002 PCTEST ENGINEERING LABORATORY, INC. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 24 & 22 Certification LG ELECTRONICS INC. Dates of Tests: November 19-26, 2002 Communication Terminal Research Lab Test Report S/N: 22/24.221119605.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia MD Seoul 153-023, Korea Attn: E.S. Park, Research Engineer FCC ID BEJLX5450 APPLICANT LG ELECTRONICS INC. Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §24(E), §22(H), §22.901(d); §2 EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA/GPS) Model: LG-LX5450 Tx Frequency Range: 824.04MHz — 848.97MHz (AMPS) / 824.70 — 848.31MHz (CDMA) 1851.25MHz — 1908.75MHz (PCS CDMA) Rx Frequency Range: 869.04MHz — 893.97MHz (AMPS) / 869.70 — 893.31MHz (CDMA) 1931.25MHz — 1988.75MHz (PCS CDMA) Max. RF Output Power: 0.307 W ERP AMPS (24.873 dBm) / 0.233 W ERP CDMA (23.673 dBm) 0.260 W EIRP PCS CDMA (24.151 dBm) Max. SAR Measurement: 1.110W/kg AMPS Head SAR; 0.975W/kg AMPS Body SAR; 0.699W/kg CDMA Head SAR; 0.646W/kg CDMA Body SAR; 0.835W/kg PCS CDMA Head SAR; 0.634W/kg PCS CDMA Body SAR Emission Designator(s): 40K0F8W / 40K0F1D (AMPS), 1M25F9W (CDMA) Test Device Serial No.: identical prototype (S/N: #1) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. This transmitter has been tested for SAR compliance for head and body-worn configurations. SAR compliance for body-worn operating configurations is limited to the specific belt-clip tested for this filing. Users must be informed of the operating requirements for satisfying body-worn RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 221119605.BEJ PCTEST PT. 22/24 REPORT FCC CERTIFICATION Reviewed By: Quality Manager Test Report S/N: 22/24.221119605.A3L Test Dates: November 19-26, 2002 EUT Type: Tri-Mode Dual-Band Phone FCC ID: BEJLX5450 Page 2 of 29 © 2002 PCTEST ENGINEERING LABORATORY, INC. TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 3 2.1 INTRODUCTION 4 3.1 INSERTS 5 4.1 DESCRIPTION OF TESTS 6-9 5.1 EFFECTIVE RADIATED POWER OUTPUT 10-11 6.1 EQUIVALENT ISOTROPIC RADIATED POWER 12 7.1 RADIATED MEASUREMENTS 13-21 8.1 FREQUENCY STABILITY 22-25 9.1 PLOTS OF EMISSIONS 26 10.1 LIST OF TEST EQUIPMENT 27 11.1 SAMPLE CALCULATIONS 28 12.1 CONCLUSION 29 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL / LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAP…
