BEJM173WAB17" LCD TV/MONITOR

LG Electronics USA, Inc.
17" LCD TV/MONITOR - FCC ID BEJM173WAB - LG Electronics USA, Inc.
Click to zoom

Application Details

Equipment Class
JBP - Part 15 Class B Computing Device Peripheral
Date of Grant
Jan 09, 2005
Application Purpose
Original Equipment
Date of Application
Jan 09, 2005
Equipment Note
17" LCD TV/MONITOR
Company
LG Electronics USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗
↗

Block Diagram

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX H : USER’S MANUAL WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi- cient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appli- ance. WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. NOTE TO CABLE/TV INSTALLER: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as prac- tical. REGULATORY INFORMATION This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CAUTION: Do not attempt to modify this product in any way without written authorization from Mitsubishi Digital Electronics America. Unauthorized modification could void the user’s authority to operate this product. COMPLIANCE: The responsible party for this product’s compliance is: Mitsubishi Digital Electronics America 9351 Jeronimo Road Irvine, CA 92618 Phone: (949) 465-6000 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN W W arning arning Please read these safety precautions carefully before using the product. Precautions in installing the Product If you ignore the caution message, you may be slightly injured or the product may be damaged If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. Keep away from heat sources like electrical heaters. - Electrical shock, fire, malfunction or deformation may occur. Keep the packing anti-moisture material or vinyl packing out of the reach of children. - Anti-moisture material is harmful if swallowed. If swallowed by mistake, force the patient to vomit and visit the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. Do not put heavy objects on the product or sit upon it. - If the product collapses or is dropped, you may be injured. Children must pay particular attention. Do not leave the power or signal cable unattended on the pathway. - The passerby can falter, which can cause electrical shock, fire, product breakdown or injury. Install the product in a neat and dry place. - Dust or moisture can cause electrical shock, fire or product damage. If you can smell smoke or other odors or hear a strange sound unplug the power cord and contact the service center. - If you continue to use without taking proper measures, electrical shock or fire can occur. If you dropped the product or the case is broken, turn off the product and unplug the power cord. - If you continue to use without taking proper measures, electrical shock or fire can occur. Contact the service center. Do not drop metallic objects such as coins, hair pins, chopsticks or wire into the product, or inflammable objects such as paper and matches. Children must pay particular attention. - Electrical shock, fire or injury can occur. If a foreign object is dropped into the product, unplug the power cord and contact the service center. Make sure the product ventilation hole is not blocked. Install the product in a suitably wide place (more than 10cm from the wall) - If you install the product too close to the wall, it may be deformed or fire can break out due to internal heat. Do not block the ventilation hole of the product by a tablecloth or curtain. - The product can be deformed or fire can break out due to overheating inside the product. Install the product on a flat and stable place that has no risk of dropping the product. - If the product is dropped, you may be injured or the product may be broken. Install the product where no EMI occurs. Keep the product away from direct sunlight. - The product can be damaged. Safety Precautions Warning Warning Caution Caution Electrical Power Related Precautions Make sure to connect the power cable to the grounded current. - You may be electrocuted or injured. Use the rated voltage only. - The product can be damaged, or you may be electrocuted. During a thunder or lightning storm, unplug the power cable or signal cable. - You may be electrocuted or a fire can break out. Do not connect several extension cords,…

Text truncated - open the document above for the full version.

Users Manual

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX I : USER’S MANUAL (II) Connecting to External Devices AUDIO OUT VIDEO OUT S-Video Connect the video cable as shown in the below figure and then connect the power cord. When watching Video / DVD When connecting with an RCA cable. •Connect the input terminal with a proper colour match.(Video – Yellow, Sound (left) – White, Sound (right) – Red) B Red White Yellow RCA Cable R W Y A Rear side of the Product Video / DVD When connecting with an S-Video cable. •Connect to the S-Video input terminal to watch high image quality movies. AUDIO OUT VIDEO OUT S-Video RCA Cable S-Video Cable Video / DVD Rear side of the Product Red White R W I/II TV/AV * /SSM CH VOLVOL CH SET SET Select an input signal. Press the SOURCE button on the remote controller to select the input signal. Or, press the SOURCE button at the front side of the product. When connecting with a RCA cable. •Select AV2 (Video) When connecting with a S-Video cable. •S-Video B A TV Video S-Video Component RGB DVI Card Reader * Card Reader : Optional (SELECT) * ENGLISH Connect the video cable as shown in the below figure and then connect the power cord. (See page A18) When connecting with an RCA cable. • Connect the input terminal with a proper colour match.(Video – Yellow, Sound (left) – White, Sound (right) – Red) Red White Green HDTV Cable R B G Rear side of the Product HDTV Receiver I/II TV/AV * /SSM CH VOLVOL CH SET SET Select an input signal. Press the SOURCE button on the remote controller to select the input signal. Or, press the SOURCE button at the front side of the product. When connecting with a RCA cable. •Select Component TV Video S-Video Component RGB DVI Card Reader * Card Reader : Optional (SELECT) * Blue Red R W Audio Cable When watching HDTV Connecting to External Devices S - V id e o S -V id e o Rear side of the Product Antenna Cable (Not Included) •Select TV Select an input signal. Press the SOURCE button on the remote controller to select the input signal. Or, press the SOURCE button at the front side of the product. I/II TV/AV * /SSM CH VOLVOL CH SET See if the antenna cable is connected at the rear side of the product and then, connect the power cord. When watching TV 20.1 inch 17 inch SET TV Video S-Video Component RGB DVI Card Reader * Card Reader : Optional (SELECT) * Specifications Screen Type17 inches (432.7mm) TFT (Thin Film Transistor) LCD (Liquid Crystal Display) Panel Visible diagonal size: 432.7mm Pixel Pitch0.264mm Max. ResolutionD-Sub :1280X1024 @60Hz DVI-D : 1280X1024 @60Hz Recommended ResolutionD-SUB : WXGA 1280X768 @60Hz DVI-D : WXGA 1280X768 @60Hz Horizontal FrequencyD-SUB : 30 - 66 kHz DVI-D : 30 - 66 kHz Vertical Frequency56 - 75 Hz Synchronization TypeSeparate/Composite/SOG (Sync On Green)/Digital 15-pin D-Sub type, DVI-D (digital), S-Video, composite video, Component, TV Rated Voltage AC 100-240V~ 50/60Hz 1.0A Power ConsumptionOn Mode : 70W Sleep Mode : ≤4W Off Mode : ≤2W Tilt Range-5 ̊~20 ̊ Tilt StandAttached Size (WxLxH) 438.2mm x 241.4 mm x 378.9mm 438.2mm x 139.2 mm x 403.5mm Weight (excl. package)7.1 kg (15.6 lbs) Operational ConditionTemperature: 10 ̊C ~ 35 ̊C , Humidity: 10% ~ 80% Storage ConditionTemperature: -20 ̊C ~ 60 ̊C , Humidity: 5% ~ 95% LCD Panel Video Signal Input Connector Power Tilt Dimension/Weight Environmental Conditions [17inches] Specifications PC Mode – Preset Mode Power LED Mode Product On Mode Sleep Mode Off Mode Blue Amber - Preset mode Horizontal Frequency (kHz) Vertical Frequency (kHz) Preset mode Horizontal Frequency (kHz) Vertical Frequency (kHz) 1 2 3 4 5 6 7 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 1024 x 768 1024 x 768 31.468 31.469 37.500 37.897 46.875 48.363 60.123 70 59 75 60 75 60 75 VGA VGA VGA VESA VESA VESA VESA 8 9 10 11 1152 x 864 1280 x 1024 1280 x 1024 1680 x 1050 67.500 63.981 79.976 65.290 VESA MAC VESA VESA 75 60 75 59 [20.1inches] [17inches] Preset mode Horizontal Frequency (kHz) Vertical Frequency (kHz) Preset mode Horizontal Frequency (kHz) Vertical Frequency (kHz) 1 2 3 4 5 6 7 640 x 350 720 x 400 640 x 480 640 x 480 800 x 600 800 x 600 832 x 624 31.469 31.468 31.469 37.500 37.879 46.875 49.725 70 70 60 75 60 75 75 VGA VGA VGA VESA VESA VESA MAC 8 9 10 11 1024 x 768 1024 x 768 1280 x 1024 1280 x 768 48.363 60.123 63.981 47.7 VESA VESA VESA VESA 60 75 60 60

Block Diagram

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX D : BLOCK DIAGRAM Block Diagram

External Photos

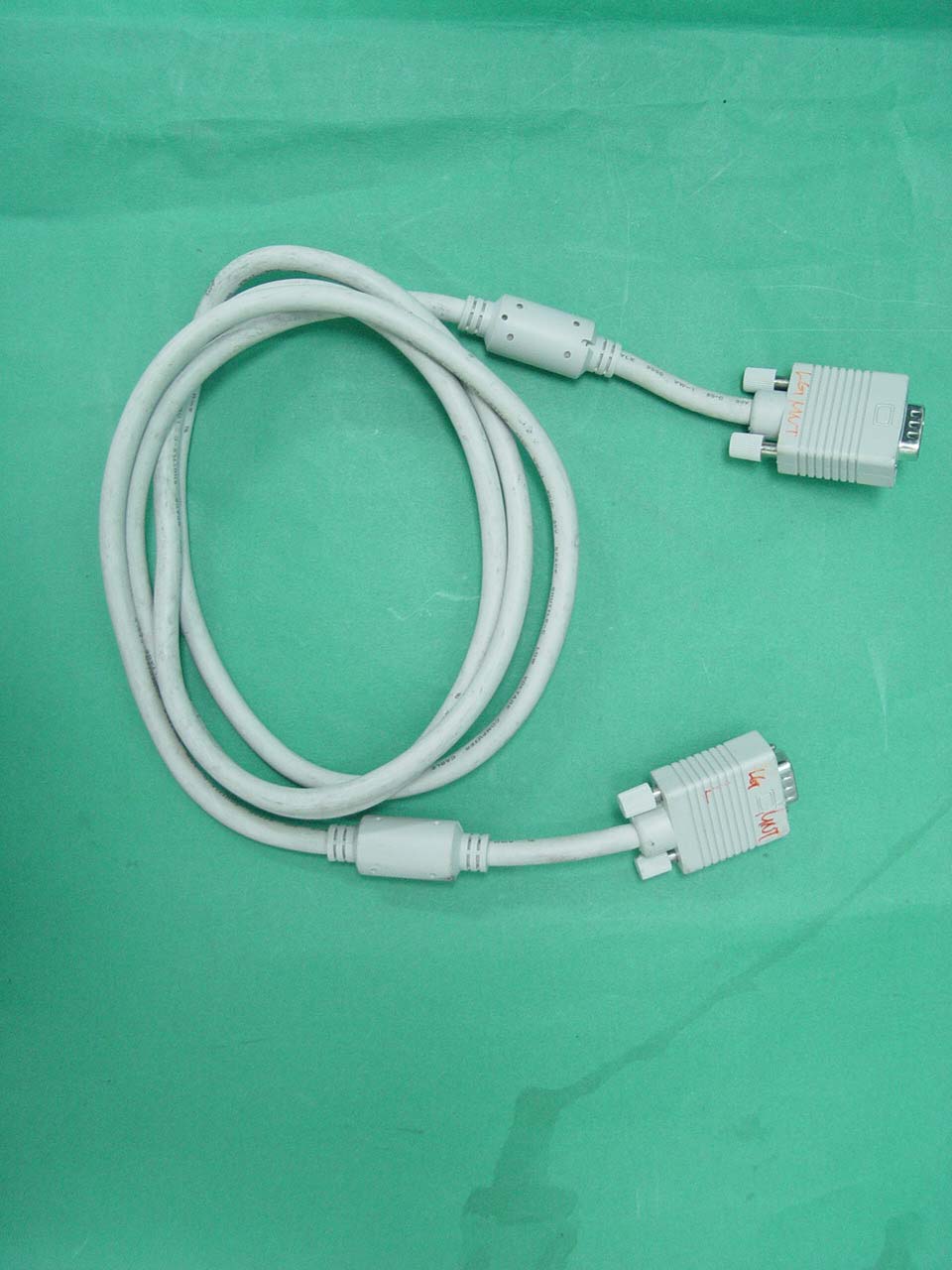

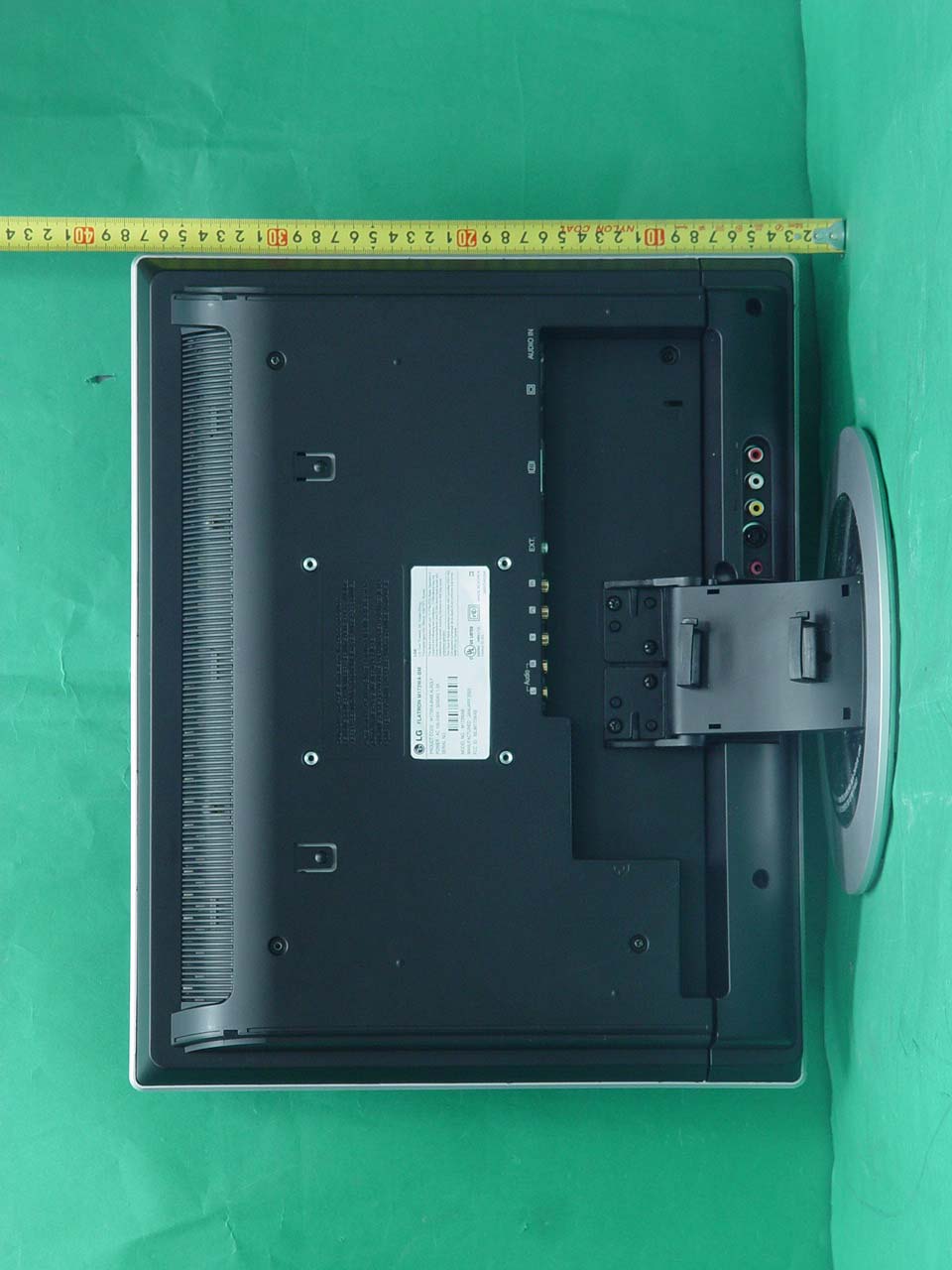

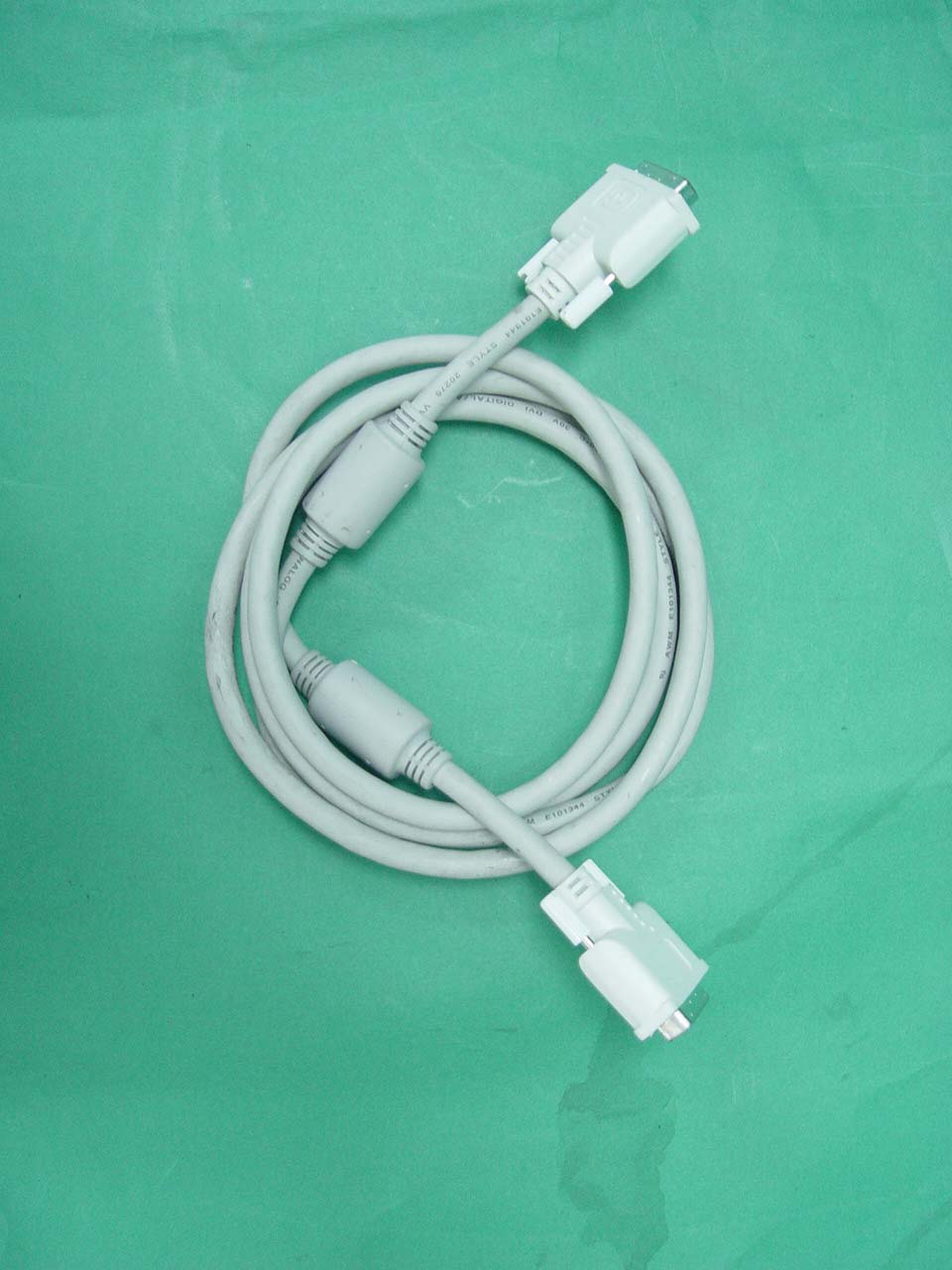

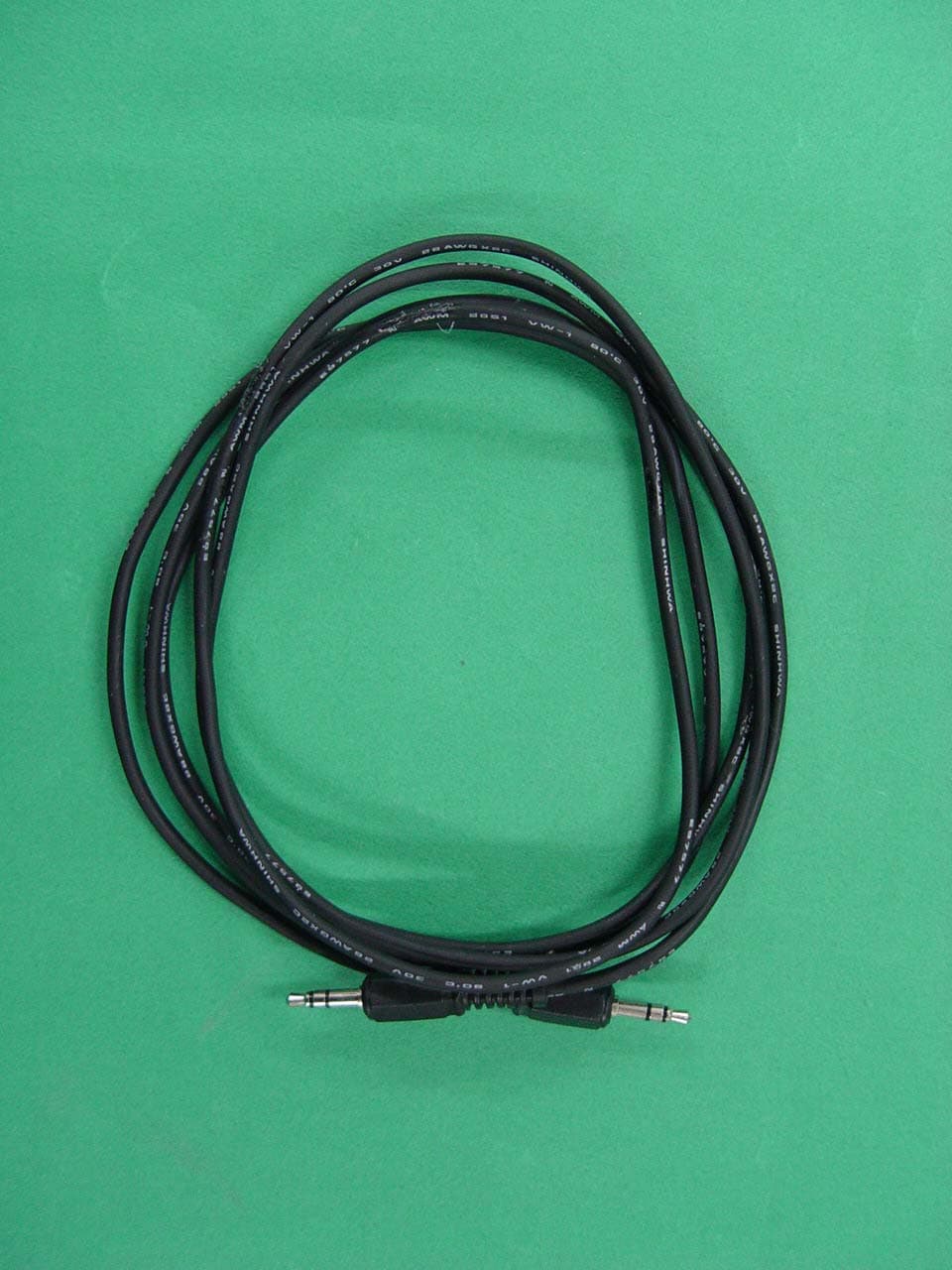

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX F : EXTERNAL PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification

ID Label/Location Info

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX C : ID SAMPLE LABEL & LOCATION EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification LABELLING REQUIREMENTS The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. „ ID Label „ ID Label Location of EUT I.D Label

Internal Photos

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX G : INTERNAL PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification

Test Report

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Page 2 of 21 Test Report No.: GETEC-E3-05-001 FCC Class B Certification CONTENTS 1. SCOPE...........................................................................................................................................................................3 2. INTRODUCTION ........................................................................................................................................................4 3. TEST CONDITIONS & EUT INFORMATION........................................................................................................5 3.1 DESCRIPTION OF EUT..............................................................................................................................................5 3.2 SUPPORT EQUIPMENT USED.....................................................................................................................................6 4. DESCRIPTION OF TESTS.........................................................................................................................................7 4.1 CONDUCTED EMISSION............................................................................................................................................7 4.2 RADIATED EMISSION................................................................................................................................................8 5. CONDUCTED EMISSION..........................................................................................................................................9 5.1 OPERATING ENVIRONMENT.....................................................................................................................................9 5.2 TEST SET-UP..............................................................................................................................................................9 5.3 MEASUREMENT UNCERTAINTY................................................................................................................................9 5.4 LIMIT......................................................................................................................................................................10 5.5 TEST EQUIPMENT USED..........................................................................................................................................10 5.6 TEST DATA FOR POWER LINE CONDUCTED EMISSION............................................................................................ 11 6. RADIATED EMISSION ............................................................................................................................................14 6.1 OPERATING ENVIRONMENT...................................................................................................................................14 6.2 TEST SET-UP............................................................................................................................................................14 6.3 MEASUREMENT UNCERTAINTY..............................................................................................................................14 6.4 LIMIT......................................................................................................................................................................15 6.5 TEST EQUIPMENT USED..........................................................................................................................................15 6.6 TEST DATA FOR RADIATED EMISSION.....................................................................................................................16 7. SAMPLE CALCULATIONS.....................................................................................................................................20 7.1 EXAMPLE 1 : ...........................................................................................................................................................20 7.2 EXAMPLE 2 : ...........................................................................................................................................................20 8. RECOMMENDATION & CONCLUSION..............................................................................................................21 APPENDIX A – ATTESTATION STATEMENT APPENDIX B – PLOTS OF CONDUCTED EMISSIONS APPENDIX C – ID SAMPLE LABEL & LOCATION APPENDIX D – BLOCK DIAGRAM APPENDIX E – TEST SET-UP PHOTOGRAPHS APPENDIX F – EXTERNAL PHOTOGRAPHS APPENDIX G –INTERNAL PHOTOGRAPHS APPENDIX H – USER’S MANUAL (I) APPENDIX I – USER’S MANUAL (II) EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Page 3 of 21 Test Report No.: GETEC-E3-05-001 FCC Class B Certification 1. Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and / or unintentional radiators for compliance with technical rules and regulations of the Federal Communications Commission . z FCC ID BEJM173WAB z EUT Type 17” LCD TV/Monitor z Model No. M173WAB z Tra de Na me LG z Rule Part(s) FCC Part 15 Subpart B z Test Procedure(s) ANSI C63.4 (1992) / Canadian standard ICES-003 z Dates of Test January 5 ~ 6, 2005 z Place of Test Gumi College EMC Center z Test Report No. GETET-E3-05-001 Responsible Party: LG Electronics Inc. Contact Person: Mr. Yeong Hur, EMC & SAFETY Manager Product Engineering Dept., Safety & EMC Team Digital Information Display Division Manufacturer: 642, Jinpyoung-dong, Gumi-city, Gyeongsangbuk-do, Korea Tel No.: +82-54-470-2933 EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Page 4 of 21 Test Report No.: GETEC-E3-05-001 FCC Class B Certification 2. Introduction The measurement procedure described in American National Standard for Methods of Measurement of Radio-Nose Emissions From Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ASNI C63.4- 1992) was used in de…

Text truncated - open the document above for the full version.

Test Setup Photos

EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification APPENDIX E : TEST SET UP PHOTOGRAPHS EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification The Conducted Test Picture and Radiated Test Picture show the worst-case configuration and cable placement. „ Conducted Test Picture (Front) „ Conducted Test Picture (Rear) EUT Type: 17” LCD TV/Monitor FCC ID: BEJM173WAB Test Report No.: GETEC-E3-05-001 FCC Class B Certification „ Radiated Test Picture (Front) „ Radiated Test Picture (Rear)
