BEJNT-14Z90RSNotebook Computer

LG EASY GUIDE NOTEBOOK 14Z90RS Series www.lg.com Copyright © 202 LG Electronics Inc. All rights reserved. 2 Instruction/Safety Information Instruction/Safety Information UsingLG Easy Guide, LG TroubleShooting LG Electronics Inc. providesLG Easy Guide(User's Guide) andLG TroubleShooting(TroubleShooting Guide) to users for their easy and convenient use of the product. 1Select the Start button [] > [All apps] and run[LG PC Manuals]. 2Select the[LG Easy Guide]or the[LG TroubleShooting]. ENGLISH Instruction/Safety Information 3 Information/Precautions Before Using Before readingLG Easy Guide, first check the following information. •ThisLG Easy Guidehas been written for the Windows 11 operating system. •The screen and menu configurations may differ from this manual depending on the status of the Windows and software update. •Representative images are used inLG Easy Guide. Product purchased may differ in appearance and color. •LG Easy Guideincludes instruction about optional products.There may be information about products you did not purchase. •The contents ofLG Easy Guideare subject to change without prior notice. •Use, duplication, or reproduction of any part ofLG Easy Guidewithout prior permission from LG Electronics Inc. is strictly prohibited. •LG Electronics Inc. does not provide warranty for data loss. In order to minimize damage from data loss, please make backup copies of important data. •The optical disk drive (DVD, CD-ROM, etc.) is optional and may not be provided upon purchasing the product. Safety Precaution Notations The below symbols are to inform you of dangers and safety concerns that you must be aware of. Read the symbol-indicated instructions with caution to avoid any possible mishap. WARNING Appears in the case of noncompliance with the instruction that may cause serious physical damage or fatal injuries. CAUTION Appears in the case of noncompliance with the instruction that may cause minor damage to the body or the machine. Text Notations The symbols below are used to display information required to use the product. Familiarize yourself with the instructions marked by the symbols to ensure proper operation of the product. TIP Indicates that the following information is added to help the user utilize the machine more conveniently. ENGLISH 4 Instruction/Safety Information OPTION The Option symbol indicates that the concerned device is not included in the product package and thus has to be purchased separately, or the device may not be applied to the user's machine depending on model type. Manufacturer and Copyright Microsoft™, MS™, WinPE™, and Windows ® are the registered trademarks of Microsoft Corporation™. USB Type-C™and USB-C™are the trademarks of USB Implementers Forum. Thunderbolt™is a trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries. NVMe™is a trademark of NVM Express, Inc Wi-Fi ® is a registered trademark of Wi-Fi Alliance Corporation. The Bluetooth ® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by LG Electronics is under license. Other trademarks and trade names are those of their respective owners. Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. Google, Android, Google Play, Google Play logo, and other marks are the trademarks of Google LLC. iPhone is the trademark of Apple Inc. registered in U.S.A. and other countries. App Store is the service mark of Apple Inc. Manufacturer and Copyright represent the logo and trademark of the manufacturer, and bear no relationship to the functions supported by the product. LG logo is a registered trademark of LG Electronics Inc. microSD ® and the microSD logo are trademarks or registered trademarks of SD-3C, LLC. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade Dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. LG Easy Guidemay contain undetectable errors despite our dedicated efforts to provide users with reliable information. We ask for your understanding. ENGLISH Instruction/Safety Information 5 The illustrated figures inLG Easy Guidemay differ in appearance with the actual products. Unauthorized reproduction or duplication of any part ofLG Easy Guideis strictly prohibited. LG Electronics Inc. reserves the right to modify any part of this manual for quality purposes, without prior notice. Copyright (C) 2022 LG Electronics Inc. Digitalmate Co., LTD Country of OriginChina ManufacturerLG Electronics Inc. Open Source Software Notice Information To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and other relevant documents please visit https://opensource.lge.com. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product. System Protection Feature If the system becomes too hot, the system protection feature automatically stops recharging and switches the power mode to Hibernate or Off. The PC system has to cool down before it can be reactivated. Information on Hard Drive/Memory Capacity Information on Hard Drive (HDD, SSD, eMMC) Capacity The hard drive capacity shown by Windows is lower than that stated by the hard drive manufacturer due to a difference in calculation. Manufacturer Hard drive manufacturers use a decimal definition of 1 KB = 1,000 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,000 Bytes = 100 GB WindowsWindows use the binary definition of 1 KB = 1,024 Bytes. 100 GB Storage Device (HDD, SSD, eMMC): 100,000 MB / 1,024 Bytes = 97.6 GB …

Text truncated - open the document above for the full version.

Date: November 23, 2022 Subject: Family model declaration letter Product: Notebook Computer Model: 14Z90RS, 14ZD90RS FCC ID: BEJNT-14Z90RS We hereby declare that models 14Z90RS, 14ZD90RS, we apply for are totally identical except to the sales customers and color difference. Sincerely, _______________________________________ Sung Soo Kim Director, Regulatory and Environmental Affairs LG Electronics Inc.

Authority to Act as Agent Date: November 23, 2022 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ AUDIX Technology Corporation ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____November 23 2023_____ By: __________________________ _Sung Soo Kim__________________ (Signature 1 ) (Print name) Title: ___Director, Regulatory and Environmental Affairs_ On behalf of: _____LG Electronics USA______ (Company Name) Telephone: _____201-266-2215_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

050222-31a Request for Confidentiality Date: November 22, 2022 Subject: Confidentiality Request for: ______FCC ID: BEJNT-14Z90RS, IC: 2703H-14Z90RS_____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☒ Short Term --------------------------- External Photos ☒ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☒ Short Term --------------------------- Test Setup Photos ☒ Short Term ☐ Permanent * 3 User’s Manual ______ LG Electronics USA ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ 2023/04/20 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: 2023/04/20. Sincerely, By: __________________________ _______Sung Soo Kim __________________ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

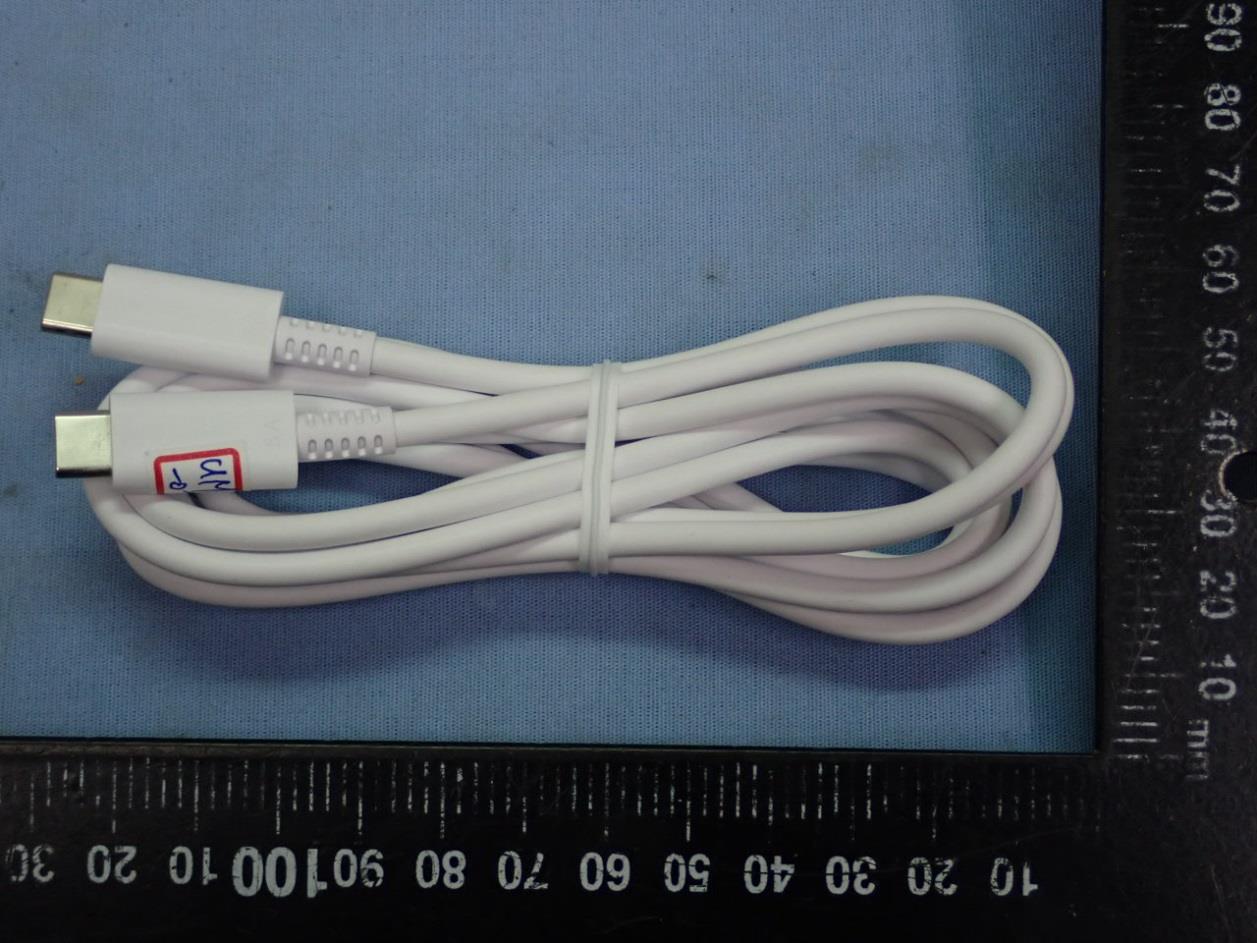

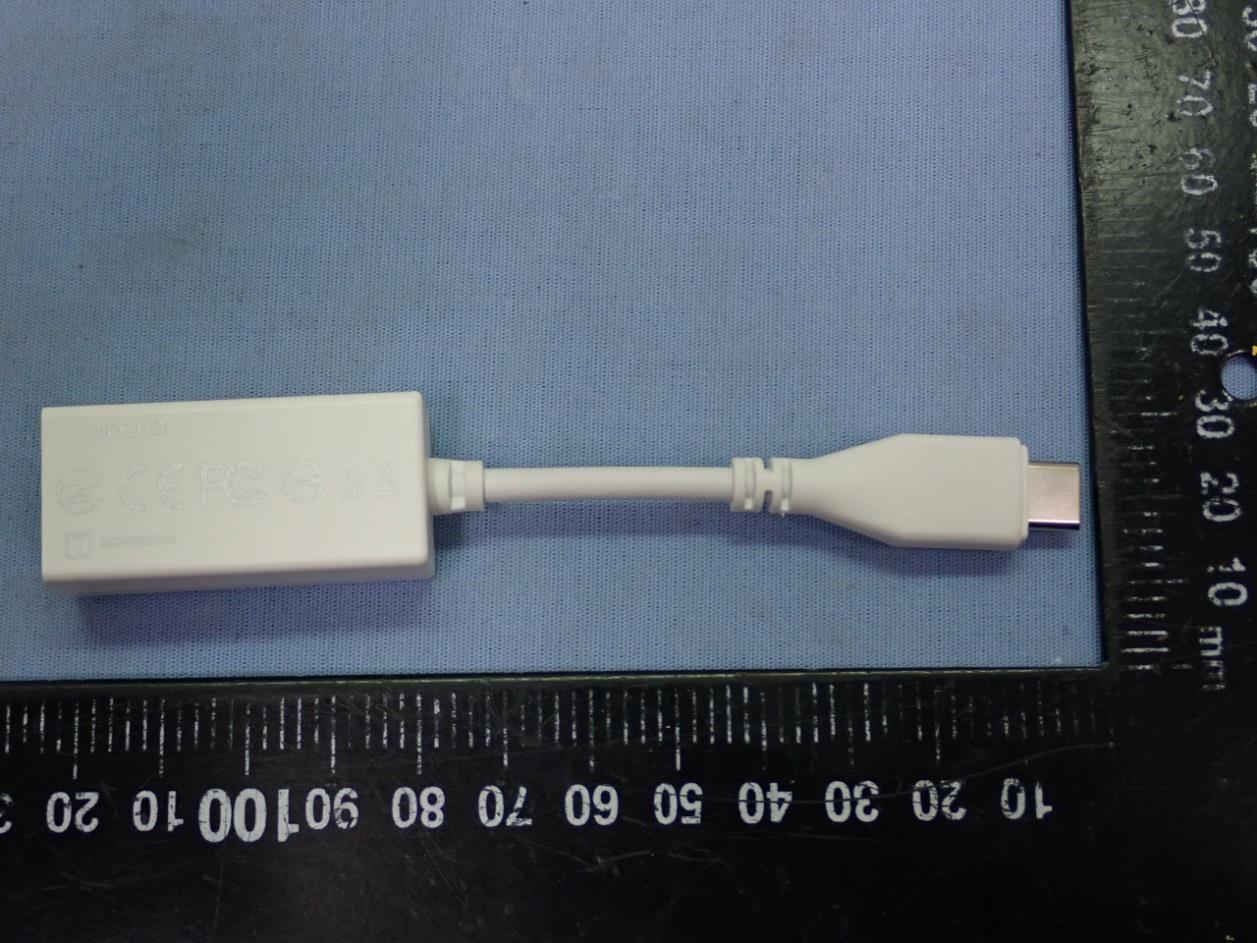

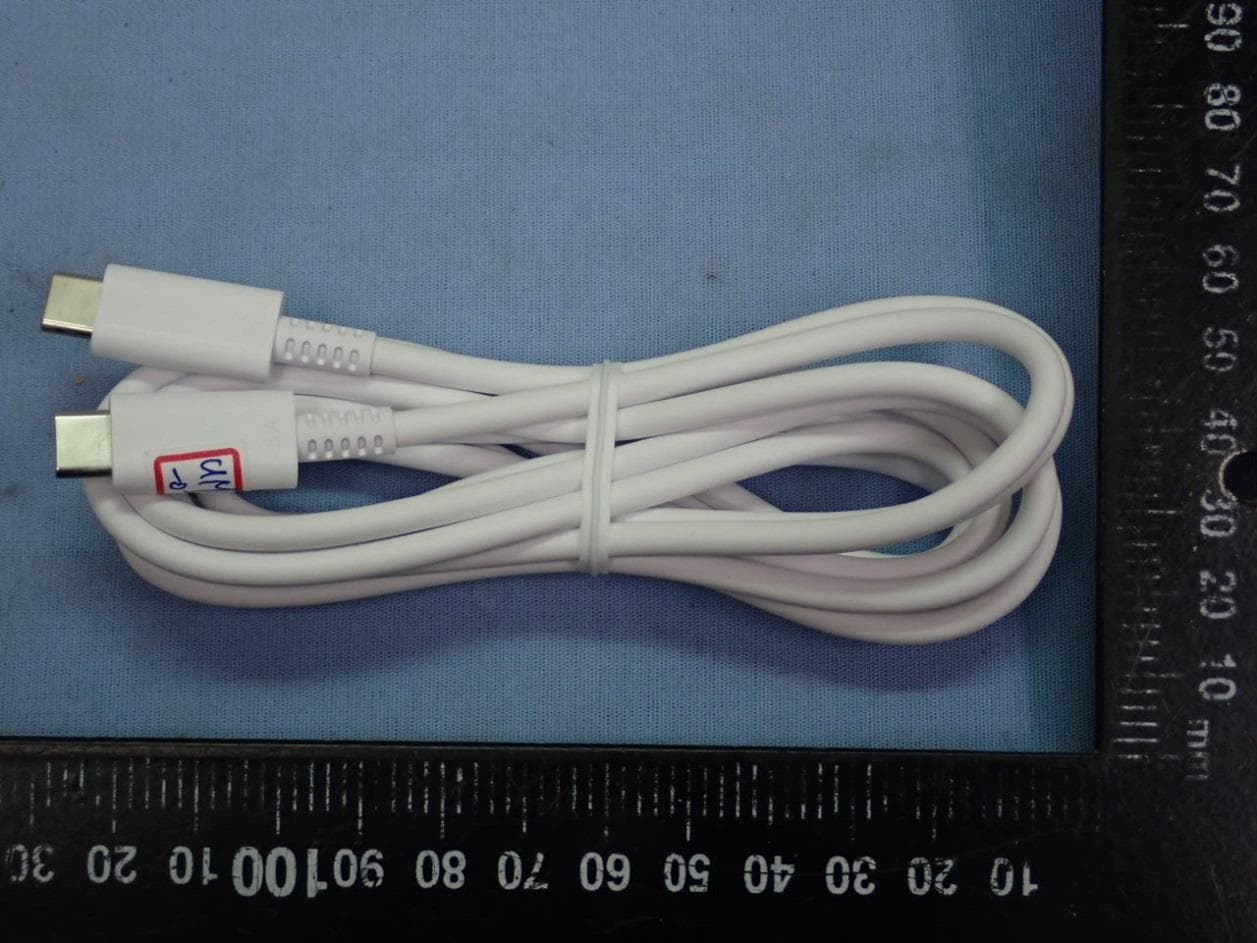

LG Electronics Inc. Notebook Computer Model : 14Z90RS Series EUT External Photos Figure 1 General Appearance (White), Front View Figure 2 General Appearance (White), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 3 General Appearance (White),Top View Figure 4 General Appearance (White), Bottom View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 5 General Appearance (White), Side View Figure 6 General Appearance (White), Side View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 7 General Appearance (Blue), Front View Figure 8 General Appearance (Blue), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 9 General Appearance (Blue),Top View Figure 10 General Appearance (Blue), Bottom View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 11 General Appearance (Blue), Side View Figure 12 General Appearance (Blue), Side View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 13 General Appearance (Mint), Front View Figure 14 General Appearance (Mint), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 15 General Appearance (Mint),Top View Figure 16 General Appearance (Mint), Bottom View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 17 General Appearance (Mint), Side View Figure 18 General Appearance (Mint), Side View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 19 LAN Gender View, Front View Figure 20 LAN Gender View, Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 21 LAN Gender View, Port View Figure 22 LAN Gender View, USB-C View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 23 AC Adapter, Front and Side View Figure 24 AC Adapter, Back and Side View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 25 AC Adapter, Label View Figure 26 USB C Cable

LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Label Location  Label Placement Location FCC ID Label Placement Location (EUT Bottom View)  Label Format

LG Electronics Inc. Notebook Computer Model : 14Z90RS Series EUT Internal Photos Figure 27 General Appearance, Internal View Figure 28 Internal View (Removed Cover) LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 29 Internal View (Removed Components) Figure 30 DC FAN LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 31 Main Board, Front View Figure 32 Main Board, Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 33 WLAN SUB Board, Front View Figure 34 WLAN SUB Board, Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 35 WLAN Combo Card, Front View Figure 36 WLAN Combo Card, Without Shield and Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 37 Battery Pack, Front View Figure 38 Battery Pack, Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 39 SSD, SK hynix, (1TB), Front View Figure 40 SSD, SK hynix, (1TB), Back View Figure 41 SSD, SK hynix, (512GB), Front View Figure 42 SSD, SK hynix, (512GB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 43 SSD, SK hynix, (256GB), Front View Figure 44 SSD, SK hynix, (256GB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 45 SSD, Samsung (1TB), Front View Figure 46 SSD, Samsung (1TB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 47 SSD, Samsung (512GB), Front View Figure 48 SSD, Samsung (512GB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 49 SSD, Samsung (256GB), Front View Figure 50 SSD, Samsung (256GB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 51 SSD, Samsung (128GB), Front View Figure 52 SSD, Samsung (128GB), Back View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 53 LCD Panel, Front View Figure 54 LCD Panel, Back & Label View LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 55 WLAN Combo Antenna Position Figure 56 WLAN Combo Antenna Position AUX Antenna Main Antenna AUX Antenna Main Antenna LG Electronics Inc. Notebook Computer Model : 14Z90RS Series Figure 57 WLAN Combo Antenna Main Antenna AUX Antenna

Page 1 of 48 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2210139 Report Number: EM-SR220101 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 2.1093 SAR Test Report for LG Electronics Inc. 222, LG-ro, Jinwi-myeon Pyeongtaek-Si, Gyeonggi-Do, 17709 Republic of Korea Product Name : Notebook PC Model Name : (1)14Z90RS (2)14ZD90RS Brand LG FCC ID : BEJNT-14Z90RS Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. Page 2 of 48 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2210139 Report Number: EM-SR220101 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 3 1. REVISION RECORD OF TEST REPORT ............................................................................ 4 2. SUMMARY OF TEST RESULTS ........................................................................................... 5 3. GENERAL INFORMATION ................................................................................................... 6 3.1. Description of Application .............................................................................................................. 6 3.2. Description of EUT ......................................................................................................................... 7 3.3. Reference Test Guidance ................................................................................................................. 8 3.4. Antenna Information ....................................................................................................................... 8 3.5. EUT Specifications Assessed in Current Report ............................................................................. 9 3.6. Description of Key Components ................................................................................................... 11 3.7. Test Environment .......................................................................................................................... 13 3.8. Description of Test Facility ........................................................................................................... 13 3.9. Measurement Uncertainty ............................................................................................................. 14 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 16 5. SAR MEASUREMENT SYSTEM ......................................................................................... 17 5.1. Definition of Specific Absorption Rate (SAR) .............................................................................. 17 5.2. SPEAG DASY System .................................................................................................................. 17 5.3. SAR System Verification .............................................................................................................. 25 5.4. SAR Measurement Procedure ....................................................................................................... 31 6. SAR MEASUREMENT EVALUATION .............................................................................. 34 6.1. Test Configuration and EUT setting .............................................................................................. 34 6.2. EUT Testing Position .................................................................................................................... 35 6.3. Tissue Calibration Result .............................................................................................................. 36 6.4. SAR Exposure Limits .................................................................................................................... 37 6.5. Conducted Power Measurement .................................................................................................... 38 6.6. SAR Test Result ............................................................................................................................ 46 APPENDIX A TEST DATA AND PLOTS APPENDIX B TEST PHOTOGRAPHS Page 3 of 48 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2210139 Report Number: EM-SR220101 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TEST REPORT Applicant : LG Electronics Inc. Manufacturer : LG Electronics Inc. Factory : LG Electronics Nanjing New Technology Co., Ltd. EUT Description (1) Product : Notebook PC (2) Model : (1)14Z90RS (2)14ZD90RS (3) Brand : LG (4) Power Supply : DC 20V, 3.25A Applicable Standards: 47 CFR FCC Part 2(§2.1093) Audix Technology Corp. tested the equipment mentioned in accordance with the requirements set forth in the above standards. Test results indicate that the equipment tested is capable of demonstrating compliance with the requirements as documented within this report. Audix Technology Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other …

Text truncated - open the document above for the full version.

APPENDIX C Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2210139 Report Number: EM-SR220101 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. APPENDIX C Test Equipment Calibration Data

Dipole Verified Data Model Name: D2450V2 SN:888 Pursuant to KDB 865664 D01 V01r04 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Plot for Antenna Parameters with Head Tissue Antenna Parameters with Head Tissue Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 50.791Ω-8.7802Ω 53.8Ω+2.8jΩ < 5Ω Return Loss -25.117 dB -26.8 dB -6.279% Dipole Verified Data Model Name: D5GHzV2 SN:1124 Pursuant to KDB 865664 D01 V01r04 section 3.2.2 that the reference dipole calibration can be extended to 3 years if Lab. does a confirmation on return loss and impedance annually, and compliance with following conditions, 1. Return loss deviates by less than 20% from the previous measurement and have 20 dB minimum return-loss requirement 2. The real or imaginary parts of the impedance, measured at least annually, deviates by less than 5 Ω from the previous measurement. Antenna Parameters with Head Tissue 5200 MHz Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 50.882Ω-6.9745Ω 50.5Ω-3.9jΩ < 5Ω Return Loss -26.744 dB -28.1 dB -4.825% Antenna Parameters with Head Tissue 5300 MHz Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 48.257Ω-4.4523Ω 50.0Ω-3.4jΩ < 5Ω Return Loss -23.753 dB -29.3 dB -18.93% Antenna Parameters with Head Tissue 5500 MHz Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 50.821Ω+13.783Ω 52.6Ω+2.1jΩ < 5Ω Return Loss -24.002 dB -29.7 dB -19.18% Antenna Parameters with Head Tissue 5600 MHz Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 52.386Ω+11.596mΩ 54.2Ω+4.2jΩ < 5Ω Return Loss -29.233 dB -24.9 dB 17.4% Antenna Parameters with Head Tissue 5800 MHz Item Verified on 9/27, 2022 Original Cal. Result Deviation Impedance, transformed to feed point 57.088Ω+16.446Ω 56.9Ω+1.0jΩ < 5Ω Return Loss -20.380 dB -23.7 dB -14.00% Plot for Antenna Parameters with Head Tissue 5200 MHz & 5300 MHz Plot for Antenna Parameters with Head Tissue 5500,5600MHz Plot for Antenna Parameters with Head Tissue 5800 MHz

APPENDIX A-Page 94 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. A.3 DTS/OCCUPIED BANDWIDTH Test Date 2022/10/17 ~ 18 Temp./Hum. 23-24°C/71-76% Cable Loss 0.5dB Tested By Kuper Hsu Test Voltage AC 120V, 60Hz (via AC Adapter) A.3.1 DTS/Occupied Bandwidth Result Mode Centre Frequency (MHz) DTS (6dB) Bandwidth (MHz) Occupied (99%) Bandwidth (MHz) Limit AUX Main AUX Main 802.11b 2412 8.577 8.088 13.638 12.400 >500kHz 2442 9.085 9.070 13.513 13.519 2462 9.084 9.082 13.592 13.511 2472 9.083 9.083 13.463 13.379 802.11g 2412 15.13 15.15 16.784 16.735 2442 15.16 15.15 16.894 16.910 2462 15.16 15.35 16.717 16.950 2472 16.36 16.38 16.408 16.399 802.11n-HT20 2412 15.72 16.33 17.745 17.786 2442 15.47 16.30 17.858 17.849 2462 15.13 16.30 17.769 17.779 2472 17.58 17.60 17.557 17.575 802.11n-HT40 2422 35.14 35.15 35.936 35.860 2442 33.83 35.15 35.949 35.894 2452 35.13 35.16 35.936 35.836 2462 36.36 36.41 36.123 36.059 802.11ax-HE20 2412 16.05 17.93 18.943 18.950 2442 16.46 17.24 18.993 18.905 2462 15.95 17.90 18.948 18.893 2472 18.27 18.25 18.744 18.672 802.11ax-HE40 2422 35.17 35.95 37.419 37.423 2442 35.15 36.12 37.452 37.399 2452 35.51 36.91 37.475 37.456 2462 37.60 37.78 37.538 37.502 APPENDIX A-Page 95 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. Mode Centre Frequency (MHz) DTS (6dB) Bandwidth (MHz) Occupied (99%) Bandwidth (MHz) Limit BLE (1Mbps) 2402 0.6755 1.0495 >500kHz 2440 0.6747 1.0477 2480 0.6841 1.0468 BLE (2Mbps) 2402 1.128 2.0365 >500kHz 2440 1.142 2.0334 2480 1.147 2.0330 BLE (PHY Coded S2) 2402 0.6742 1.0358 >500kHz 2440 0.6821 1.0346 2480 0.6797 1.0331 BLE (PHY Coded S8) 2402 0.6119 1.0661 >500kHz 2440 0.6118 1.0622 2480 0.6147 1.0637 APPENDIX A-Page 96 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. A.3.2 Measurement Plots  DTS (6dB) Bandwidth 802.11b AUX Main APPENDIX A-Page 97 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. 802.11g AUX Main APPENDIX A-Page 98 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. 802.11n-HT20 AUX Main APPENDIX A-Page 99 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. 802.11n-HT40 AUX Main APPENDIX A-Page 100 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. 802.11ax-HE20 AUX Main APPENDIX A-Page 101 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. 802.11ax-HE40 AUX Main APPENDIX A-Page 102 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. BLE 1Mbps 2Mbps APPENDIX A-Page 103 of 159 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2210139 Report Number: EM-F220769 This test report may be reproduced in full only. The document may only be updated by Audix Technology C…

Text truncated - open the document above for the full version.
