Federal Communications Commission Authorization and Evaluation Division Date: August 25, 2022 ATTESTATION FCC ID: BEJNT-15ZB90Q Product descriotion: Notebook Computer We,LG Electronics USA attest that this device under FCC ID: BEJNT-15ZB90Q complies with device protocol requirements and operational restrictions for Indoor Client 6XD : 1. Device Protocol Attestation Statement: a. Contention-Based Protocol, as demonstrated in the test report, is permanently embedded in the module and is not host-dependent. b. The device will only associate and connect with a low-power indoor accesspoint or subordinate device and never directly connect to other client devices. c. This device will always initiate transmission under the control of a low-powerindoor AP or subordinate except for brief transmissions before joining a network.These short messages will only occur if the client has detected an indoor AP orsubordinate operating on a channel. These brief messages will have a time- outmechanism such that if it does not receive a response from an AP it will notcontinually repeat the request. d. Transmissions will be lower or equal to the power advertised by the indoorlow- power access point or subordinate and never above the maximum output powerallowed by the FCC grant for equipment class 6XD. e. Contention-based protocol as demonstrated in the test report is permanentlyembedded in the module and is not host-dependent. 2. This device is prohibited for control of or communications with unmanned aircraft systems, including drones. Best regards _______________________________________ Sung Soo Kim Director, Regulatory and Environmental Affairs e LG Electronics Inc.

102920 – 13 Authority to Act as Agent Date: August 25, 2022 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ AUDIX Technology Corporation ______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____25 August, 2023_____ By: __________________________ _Sung Soo Kim__________________ (Signature 1 ) (Print name) Title: ___Director, Regulatory and Environmental Affairs_ On behalf of: _____LG Electronics USA______ (Company Name) Telephone: _____201-266-2215_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Date: August 25, 2022 Subject: Family model declaration letter Product: Notebook Computer Model: 15ZB90Q, 15ZG90Q FCC ID: BEJNT-15ZB90Q We hereby declare that models 15ZB90Q, 15ZG90Q, we apply for are totally identical except to the sales customers Sincerely, _______________________________________ Sung Soo Kim Director, Regulatory and Environmental Affairs LG Electronics Inc.

102920 – 13 Request for Confidentiality Date: August 25, 2022 Subject: Confidentiality Request for: ______ FCC ID: BEJNT-15ZB90Q / IC: 2703H-15ZB90Q ______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term Permanent Block Diagrams  Short Term External Photos  Short Term ☐Permanent * 2 Internal Photos ☐ Short Term Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term  Permanent Schematics  Short Term Test Setup Photos  Short Term ☐Permanent * 3 User’s Manual ______ LG Electronics USA ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of _11/30/2022_ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _______Sung Soo Kim_________________ (Signature/ Director, Regulatory and Environmental Affairs 3 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will beextended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Request for adding equipment class 6XD To: American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Date: Aug. 25, 2022 Subject: To add equipment class 6XD for FCC ID: BEJNT-15ZB90Q To whom it may concern: According to 178919 D01 V) E) and Q7 of 178919 D02, we hereby request to add the additional equipment class “6XD” to the existing FCC ID: BEJNT-15ZB90Q granted on 08/22/2022. There is no changes in hardware and RF circuit. Best regards _______________________________________ Sung Soo Kim Director, Regulatory and Environmental Affairs e LG Electronics Inc.

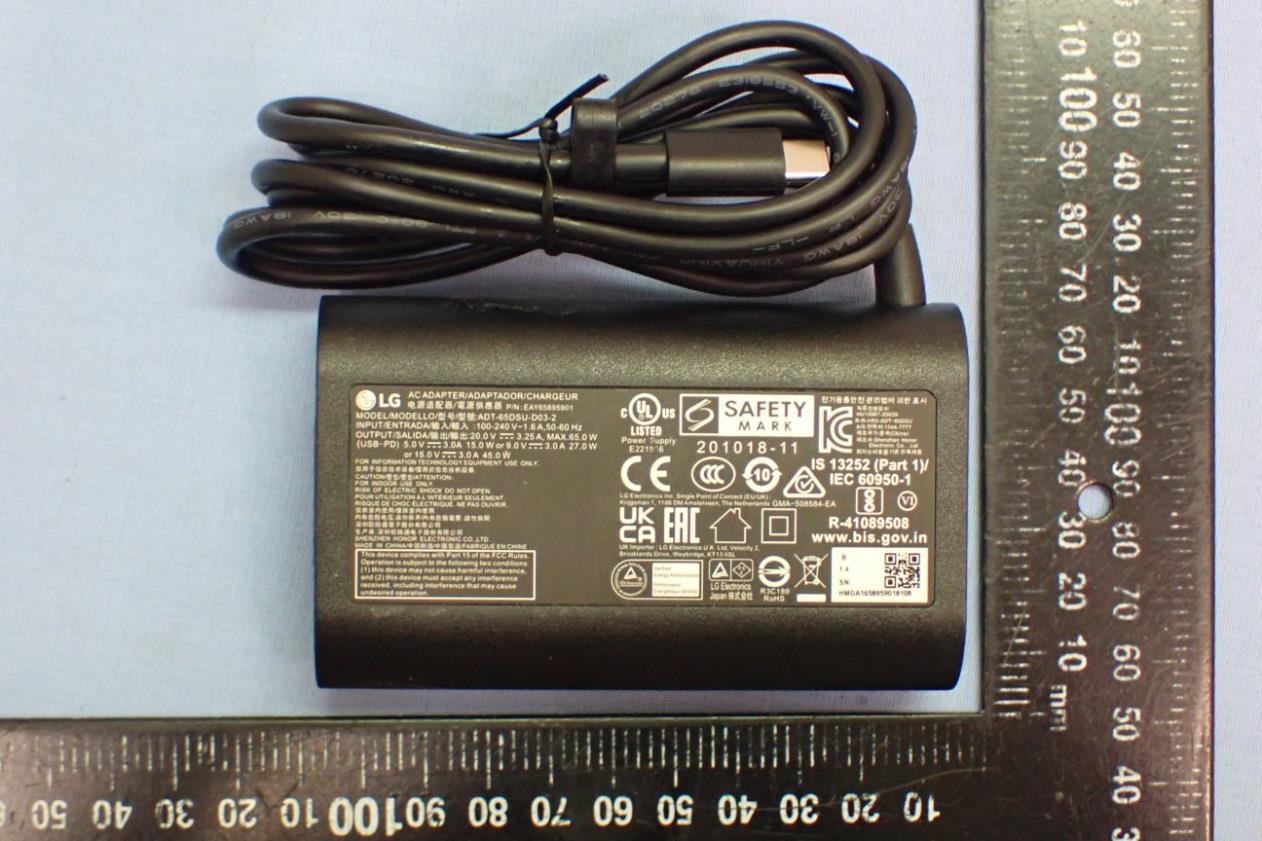

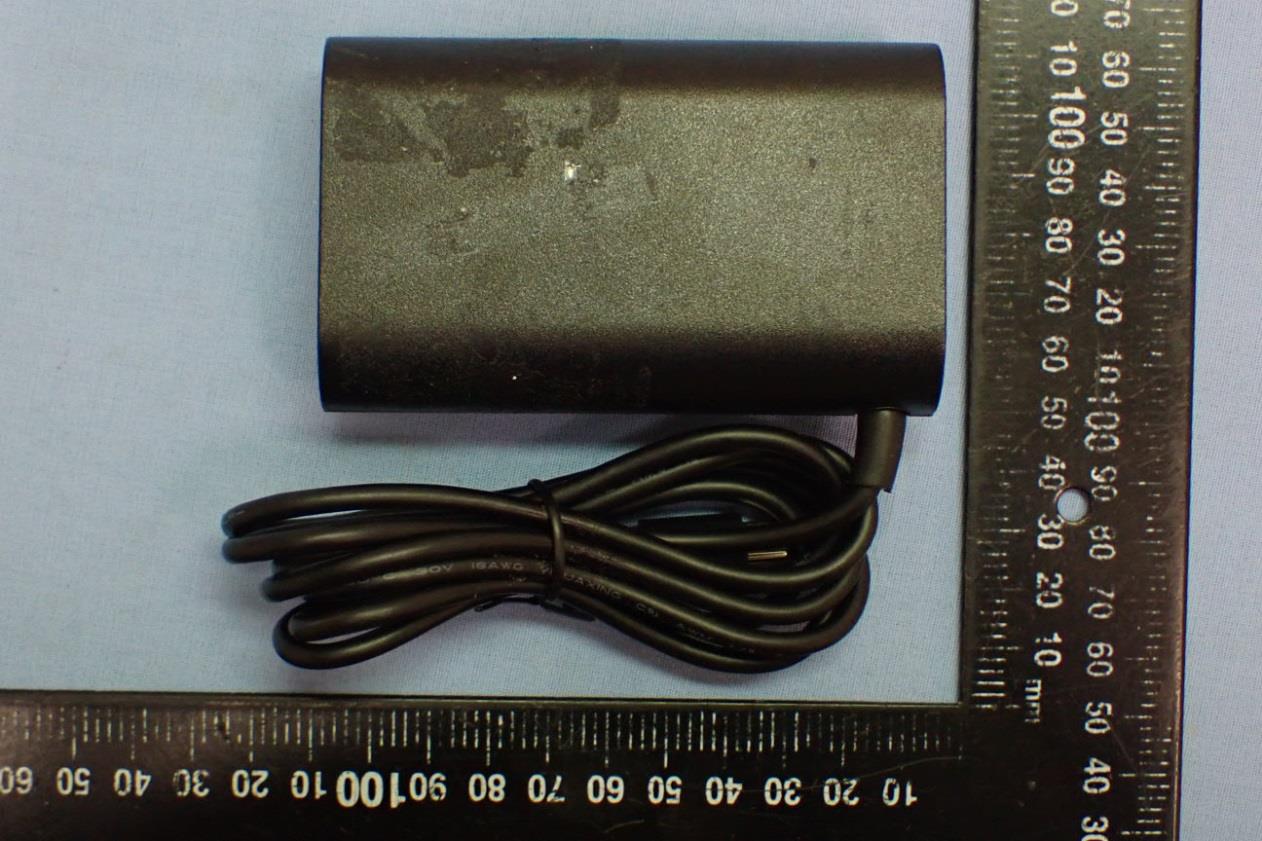

LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series EUT External Photos Figure 1 General Appearance, Front View Figure 2 General Appearance, Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 3 General Appearance, Top View Figure 4 General Appearance, Bottom View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 5 General Appearance, Side View Figure 6 General Appearance, Side View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 7 LAN Gender View, Front View Figure 8 LAN Gender View, Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 9 AC Adapter (Black), Front View Figure 10 AC Adapter (Black), Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 11 AC Adapter (Black), AC Inlet View Figure 12 AC Adapter, Label View

LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Label Location  Label Placement Location FCC ID Label Placement Location (EUT Bottom View)  Label Format

LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series EUT Internal Photos Figure 13 General Appearance, Internal View Figure 14 Internal View (Removed Cover) LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 15 Internal View (Removed Components) Figure 16 DC FAN LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 17 Main Board, Front View Figure 18 Main Board, Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 19 WLAN SUB Board, Front View Figure 20 WLAN SUB Board, Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 21 WLAN Combo Card, Front View Figure 22 WLAN Combo Card, Without Shield and Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 23 Battery Pack (80Wh), Front View Figure 24 Battery Pack (80Wh), Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 25 SSD, Samsung (1TB), Front View Figure 26 SSD, Samsung (1TB), Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 27 SSD, Samsung (256GB), Front View Figure 28 SSD, Samsung (256GB), Back View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 29 Touch Pad (Front View) Figure 30 Touch Pad (Back View) LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 31 LCD Panel, Front View Figure 32 LCD Panel, Back & Label View LG Electronics Inc. Notebook Computer Model : 15ZB90Q Series Figure 33 WA-P-LELE-04-026, WLAN Combo Antenna Position Figure 34 WA-P-LELE-04-026, WLAN Combo Antenna Main Antenna AUX Antenna

APPENDIX C Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2207002 Report Number: EM-SR220061 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. APPENDIX C Test Equipment Calibration Data

Page 1 of 45 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2207002 Report Number: EM-SR220061 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 2.1093 Power Density Evaluation Report for LG Electronics Inc. 222, LG-ro, Jinwi-myeon Pyeongtaek-Si, Gyeonggi-Do, 17709 Republic of Korea Product Name : Notebook Computer Model Name : (1)15ZB90Q (2)15ZG90Q Brand : LG FCC ID : BEJNT-15ZB90Q Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the U.S. Government. TESTING NVLAP LAB CODE 200077-0 Page 2 of 45 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2207002 Report Number: EM-SR220061 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 3 1. REVISION RECORD OF TEST REPORT ............................................................................ 4 2. SUMMARY OF TEST RESULTS ........................................................................................... 5 3. GENERAL INFORMATION ................................................................................................... 6 3.1. Description of Application .............................................................................................................. 6 3.2. Description of EUT ......................................................................................................................... 7 3.3. Reference Test Guidance ................................................................................................................. 8 3.4. Antenna Information ....................................................................................................................... 9 3.5. EUT Specifications Assessed in Current Report ........................................................................... 10 3.6. Description of Key Components ................................................................................................... 11 3.7. Description of Test Facility ........................................................................................................... 13 3.8. Measurement Uncertainty ............................................................................................................. 14 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 15 5. SAR MEASUREMENT SYSTEM ......................................................................................... 16 5.1. Definition of Specific Absorption Rate (SAR) .............................................................................. 16 5.2. SPEAG DASY System .................................................................................................................. 16 5.3. SAR System Verification .............................................................................................................. 24 5.4. SAR Measurement Procedure ....................................................................................................... 27 6. POWER DENSITY MEASUREMENT SYSTEM ............................................................... 30 6.1. Definition of Power Density .......................................................................................................... 30 6.2. Measurement Setup ....................................................................................................................... 31 6.3. Power Density System Verification .............................................................................................. 34 6.4. Power Density Measurement Procedure ........................................................................................ 37 7. SAR MEASUREMENT EVALUATION .............................................................................. 38 7.1. EUT Configuration and Setting ..................................................................................................... 38 7.2. EUT Testing Position .................................................................................................................... 38 7.3. Tissue Calibration Result .............................................................................................................. 39 8. SAR EXPOSURE LIMITS ..................................................................................................... 40 8.1. RF Exposure Limits for Frequencies Blow 6GHz ......................................................................... 40 8.2. RF Exposure Limits for Frequencies Above 6GHz ....................................................................... 41 9. CONDUCTED POWER MEASUREMENT ......................................................................... 42 10. TEST RESULT ........................................................................................................................ 44 10.1. SAR Test Result ............................................................................................................................ 44 10.2. Power Density Test Result ............................................................…

Text truncated - open the document above for the full version.

Page 1 of 45 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2207002 Report Number: EM-F220525 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. FCC 15.407 WLAN 6GHz Test Report for LG Electronics Inc. 222, LG-ro, Jinwi-myeon Pyeongtaek-Si, Gyeonggi-Do, 17709 Republic of Korea Product Name : Notebook Computer Model Name : (1)15ZB90Q (2)15ZG90Q Brand LG FCC ID : BEJNT-15ZB90Q Prepared by: : AUDIX Technology Corporation, EMC Department The test report is based on a single evaluation of one sample of the above-mentioned products. It does not imply an assessment of the whole production and does not permit the use of the test lab logo. Page 2 of 45 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244,Taiwan File Number: C1M2207002 Report Number: EM-F220525 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. TABLE OF CONTENTS Description Page TEST REPORT ................................................................................................................................... 4 1. REVISION RECORD OF TEST REPORT ............................................................................ 5 2. SUMMARY OF TEST RESULTS ........................................................................................... 6 3. GENERAL INFORMATION ................................................................................................... 7 3.1. Description of Application .............................................................................................................. 7 3.2. Description of EUT ......................................................................................................................... 8 3.3. Reference Test Guidance ................................................................................................................. 9 3.4. Antenna Information ..................................................................................................................... 10 3.5. EUT Specifications Assessed in Current Report ........................................................................... 11 3.6. Description of Key Components ................................................................................................... 14 3.7. Test Configuration ......................................................................................................................... 16 3.8. Output Power Setting .................................................................................................................... 22 3.9. Tested Supporting System List ...................................................................................................... 23 3.10. Setup Configuration ....................................................................................................................... 23 3.11. Operating Condition of EUT ......................................................................................................... 24 3.12. Description of Test Facility ........................................................................................................... 24 3.13. Measurement Uncertainty ............................................................................................................. 25 4. MEASUREMENT EQUIPMENTLIST ................................................................................. 26 4.1. Conducted Emission Measurement ............................................................................................... 26 4.2. Radiated Emission Measurement .................................................................................................. 27 4.3. RF Conducted Measurement ......................................................................................................... 28 4.4. Contention Based Protocol Measurement ..................................................................................... 28 5. CONDUCTED EMISSION ..................................................................................................... 29 5.1. Block Diagram of Test Setup ........................................................................................................ 29 5.2. Conducted Emission Limit ............................................................................................................ 29 5.3. Test Procedure ............................................................................................................................... 29 5.4. Test Results ................................................................................................................................... 29 6. RADIATED EMISSION ......................................................................................................... 30 6.1. Block Diagram of Test Setup ........................................................................................................ 30 6.2. Radiated Emission Limits .............................................................................................................. 32 6.3. Test Procedure ............................................................................................................................... 33 6.4. Measurement Result Explanation .................................................................................................. 35 6.5. Test Results ................................................................................................................................... 35 7. MAXIMUM POWER SPECTRAL DENSITY ..................................................................... 36…

Text truncated - open the document above for the full version.

APPENDIX A-Page 75 of 162 Audix Technology Corp. Tel: +886 2 26099301 No. 491, Zhongfu Rd., Linkou Dist., Fax: +886 2 26099303 New Taipei City244, Taiwan File Number: C1M2207002 Report Number: EM-F220525 This test report may be reproduced in full only. The document may only be updated by Audix Technology Corp. personnel. Any changes will be noted in the Document History section of the report. A.3 MAXIMUM POWER SPECTRAL DENSITY Test Date 2022/07/13 ~ 14 Temp./Hum. 24-26°C/48-49% Cable Loss 1.50dB Tested By Kuper Hsu Test Voltage AC 120V 60Hz (Via AC Adapter) A.3.1 Power Spectral Density Result  OFDM Modulation AUXMain 5955-10.791-10.7192.150-5.595 6175-10.512-10.5622.150-5.377 6415-10.552-10.7492.050-5.589 6435-10.417-10.3132.050-5.304 6475-10.611-10.4202.050-5.454 6515-10.616-10.5022.050-5.498 6535-13.762-13.2562.050-8.441 6695-14.037-13.1222.050-8.495 6855-13.069-13.0812.000-8.065 6875-13.103-13.3412.000-8.210 6995-13.507-13.1922.000-8.336 7115-16.781-16.3712.000-11.561 5965-9.973-10.0202.150-4.836 6165-10.027-9.8992.150-4.802 6405-9.787-9.9252.050-4.795 6445-9.467-10.1252.050-4.723 6485-9.970-9.7792.050-4.813 6525-10.073-9.7482.050-4.847 6685-10.747-10.5782.050-5.601 6845-10.317-10.4072.000-5.351 6885-10.379-10.3372.000-5.348 7005-10.451-10.4962.000-5.463 7085-10.421-10.7532.000-5.574 6 N/A 802.11ax- HE40 7 8 N/A 802.11ax- HE20 Modulation Type Limit (dBm/MHz) Total Power Spectral Density (dBm/1MHz) No te 2 Power Spectral Density (dBm/MHz) U-NII Band Duty Cycle Factor (dB) 10log(1/X) Centre Frequency (MHz) Directional Gain (dBi) No te3 -1 5 6 7 8 5 Note: 1. All results have been included cable loss [Please refer to KDB 662911 E 2) c)] 2. According to KDB 662911 D01 E)2)a), Total Power Spectral Density (dBm/1MHz) = Sum to individual PSD (dBm/1MHz) + Duty Cycle Factor (dB) when duty cycle is less than 98%. + Directional Gain. 3. According to KDB 662911 D01 d) ii), transmit signals are completel…

Text truncated - open the document above for the full version.
