BEJNT-24CN670LG Cloud Device All-in-One Thin Client

Please read this manual carefully before operating your set and retain it for future reference. 24CN670N 24CN670W 24CN670NK 24CN670WK www.lg.com Copyright 2020 LG Electronics Inc. All Rights Reserved. OWNER’S MANUAL 2 ENGLISH TABLE OF CONTENTS ON CLEANING ..............................................................................2 LICENSE .......................................................................................3 IMPORTANT NOTES ON INSTALLING AN OPERATING SYSTEM .....3 ASSEMBLY AND PREPARING ........................................................4 USING THE MONITOR .................................................................17 USER SETTINGS .........................................................................20 TROUBLESHOOTING ..................................................................26 PRODUCT SPECIFICATION ..........................................................28 3 ENGLISH ON CLEANING Recommended Cleaning Chemicals •Isopropanol 70 % •Ethanol 70 % •Cidex ® O PA •0.9 % NaCl solution How to Use Cleaner •Prior to cleaning, turn off the monitor and remove the power cable. •Soak a soft cloth in a recommended cleaner, then lightly rub the screen with no more than 1 N of force. •The cleaner could cause serious damage if it leaks inside the monitor while cleaning. •The display could be damaged, so only clean the parts of the monitor other than the screen's LCD panel. •Do not use benzene, thinner, acids or alkaline cleaners or other such solvents. •Cleaning guidelines for displays must only be carried out by medical professionals (doctors or nurses) and must not be handled by patients. LICENSE Each model has different licenses. Visit www.lg.com for more information on the license. The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. (Wi-Fi/Bluetooth supported models only.) * 4 ENGLISH OPEN SOURCE SOFTWARE NOTICE INFORMATION Only 24CN670W, 24CN670WK To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to opensource@lge. com. This offer is valid for a period of three years after our last shipment of this product. This offer is valid to anyone in receipt of this information. BEFORE READING THE OWNER’S MANUAL For models equipped with SSD (solid state disk), stored data may be lost in the event of a malfunction due to the nature of SSD. You must back up important user data in external storage devices (USB HDD, memory, etc.). By the nature of this product, a malfunction in the mainboard may lead to the loss of stored data. Accordingly, you must back up important user data in external storage devices (USB HDD, memory, etc.). If you shut down the product before system loading is complete, it may not shut down properly. Shut down the product once system loading is complete. (System loading takes about 1 to 2 minutes to complete, but it may vary depending on the user environment.) 5 ENGLISH IMPORTANT NOTES ON INSTALLING AN OPERATING SYSTEM Only 24CN670N, 24CN670NK This product does not provide an operating system to run the product. Please note that LG Electronics does not sell an operating system such as Windows, and users are required to purchase and install an operating system to run the product. For more information on purchasing Windows operating systems, please contact Microsoft directly. Due to the characteristics of the product, only Windows 10 IoT Enterprise LTSB 2016 (RS1) is available for installation. LG Electronics will not be liable for any issues caused by installing and using an operating system other than Windows 10 IoT Enterprise LTSB 2016 (RS1). How to install Windows 10 IoT Enterprise LTSB 2016 (RS1) Only 24CN670N, 24CN670NK Follow the steps below to install Windows when you purchase and install Windows 10 IoT Enterprise LTSB 2016 (RS1). For more information on installing Windows, refer to the manual or guide provided with Windows. 123 Install Windows Install Drivers Update Windows Complete Installing Windows 6 ENGLISH ASSEMBLY AND PREPARING Product Composition Please check whether all the components are included in the box before using the product. If there are any missing components, contact the retailer where you purchased the product. Note that the product and related components may look different from those shown here. CD (Owner's Manual)/Regulatory Manual/ Cards Power CordAC/DC AdaptorCable Holder Stand Body/Stand Base Mouse (Only 24CN670WK, 24CN670NK) Keyboard (Only 24CN670WK, 24CN670NK) 7 ENGLISH CAUTION • Always use genuine LG components to ensure safety and product performance. •The product warranty will not cover damage or injury caused by the use of unauthorized components. •It is recommend that use the supplied components. •If you use generic cables not certified by LG, the screen may not display or there may be image noises. •Need to use the authorized components about the below accessories. Unauthorized components may be cause of the damage and malfunction of the product. ComponentStandard Power CordUS – Approved Medical grade regulation Others – Approved country safety regulation •The AC/DC adaptors and etc. except the upper components need to be used only supplied by manufacturer. NOTE • The components may look different from those illustrated here. •Without prior notice, all product information and specifications contained in this manual are subject to change to improve the performance of the product. •To purchase optional accessories, visit an electronics store or an online shopping site, or contact the r…

Text truncated - open the document above for the full version.

Please read this manual carefully before operating your set and retain it for future reference. 24CN670N 24CN670W 24CN670NK 24CN670WK www.lg.com Copyright 2020 LG Electronics Inc. All Rights Reserved. SAFETY AND REGULATORY INFORMATION *MFL71742201* (2008-REV01) 2 ENGLISH • Be sure to see the owner's manual provided with the CD for more information about the product and its use. -The CD manual can be read on a computer with Adobe Reader installed. -You can download Adobe Reader free from the Adobe website. • Do not modify or copy arbitrarily the owner's manual provided on CD. • If you need a printed owner's manual, please contact the manufacturer. -When requested, The manufacturer will provide a hard copy manual without an additional cost within 7 days. • If you need a further copy of Manual, please contact the manufacturer. -On request, the manufacturer will provide a hard copy of the manual without an additional cost. Where multiple devices are supplied to a single user and/or location, a single copy of the instructions for use may be provided if so agreed by the purchaser who in any case may request further copies to be provided free of charge. Please note that this information is for proper use and safety of the equipment. The following symbols may indicate a hazardous situation in which, if not heeded, may result in serious injury or even death to the user or others, or damage to the equipment. WARNING Indicates warning and safety instructions. If not adhered to, it could result in death or serious injury to the user or others. CAUTION Indicates a hazardous situation which, if not heeded, may result in minor or moderate injury to the user or others, or damage to the equipment. For users in the United States • United State federal law restricts this equipment to be used by or on the order of a physician. For users in other countries • This equipment is to be used by or on the order of a licensed person under the related laws for each country. WARNING • To avoid the risk of electric shock, this equipment must only be connected to a supply mains with protective earth. • Do not modify this equipment without authorization of the manufacturer. Intended use • This product is intended to provide color displays and images from various medical imaging systems. ECREP Authorized representative in the European community. LG Electronics European Shared Service Center B.V. Krijgsman 1, 1186 DM Amstelveen, The Netherlands Tel: +31-20-456-3132 LG Electronics Inc. 77, Sanho-daero, Gumi-si, Gyeongsangbuk-do, 39381, Republic of Korea Tel: +82-1544-8777 3 ENGLISH SAFETY INFORMATION Safety Standard Medical Device Classification Classification by protection type against Electric Shock Class equipment. No applied parts. Mode of operationContinuous Operation Environment of Use This equipment is not suitable for use in the presence of flammable anesthetic or oxygen. Regulations Safety and Electromagnetic Compatibility Information This equipment has been tested and found to comply with the limits for medical devices in IEC 60601-1-2. These limits are designed to provide reasonable protection against harmful interference in a typical medical installation. This equipment generates, uses and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause harmful interference to other devices in the vicinity. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to other devices, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • Reorient or relocate the equipment. • Increase the separation between the equipment. • Connect the equipment into an outlet on a circuit different from that to which the other devices are connected. • Contact manufacturer or authorized agent for help. Radio Frequency compliance FCC (For USA) FCC NOTICE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 4 ENGLISH FCC CAUTION Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter. FCC WARNING This equipment may generate or use radio frequency energy changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance of this equipment in a residential area is likely to cause harmful interference in which cause the user will be required to correct the interference at his own expense. For Europe DECLARATION OF CONFORMITY The complete Declaration of Conformity may be requested through the following postal address: LG Electronics European Shared Service Center B.V., Krijgsman 1, 1186 DM Amstelveen, The Netherlands or can be requested at our dedicated DoC website: http://www.lg.com/global/support/cedoc/cedoc# Electro-Magnetic Compatibility Information Electro-Magnetic Emissions This EUT is intended for use in the electromagnetic environment specified below. The customer or the user of the EUT should ass…

Text truncated - open the document above for the full version.

053019 – 12 Authority to Act as Agent Date: July 31, 2020 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______ AUDIX Technology Corporation_______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b) , to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____Jul. 31, 2021_____ By: __________________________ _KyungSu Han________ (Signature 1 ) (Print name) Title: ___Director, Standards & Compliance _ On behalf of: _____ LG Electronics USA______ (Company Name) Telephone: _____201-472-2623_______ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

053019 – 12 Request for Confidentiality Date: August 6, 2020 Subject: Confidentiality Request for: ______ FCC ID: BEJNT-24CN670______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 9.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term Permanent Block Diagrams  Short Term External Photos  Short Term ☐Permanent * 2 Internal Photos ☐ Short Term Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term  Permanent Schematics  Short Term Test Setup Photos  Short Term ☐Permanent * 3 User’s Manual ______ LG Electronics USA______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___45 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: __________________________ _______ KyungSu Han _________________ (Signature/Director, Standards & Compliance 4 ) (Print name) 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will beextended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 -Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

-Cover Letter- Subject: Family model declaration letter Product:LG Cloud Device All-in-One Thin Client Model:24CN670N, 24CN670W, 24CN670NK, 24CN670WK TO WHOM IT MAY CONCERN Wehereby declare that difference between models is as following list, other includes RF schematic are identical. Model Item 24CN670N 24CN670W 24CN670NK 24CN670WK Windows OS No Yes No No Packing Keyboard/Mouse No No Yes Yes Sincerely, _______________________________________ KyungSu Han Director, Standards & Compliance LG Electronics Inc .

Cover Letter July 31, 2020 Subject: Statement for Product Contains FCC ID: PD99560NG Product: LG Cloud Device All-in-One Thin Client Model: 24CN670N, 24CN670W, 24CN670NK, 24CN670WK FCC ID: BEJNT-24CN670 To whom it may concern: Hereby we declare that this device embedded with radio module Intel, 9560NGWwith FCC ID: PD99560NG. The radio transmitter has RF parameters involved radio power, channels, electric circuit, antenna type/gain are totally identical. Sincerely, _______________________________________ KyungSu Han Director, Standards & Compliance LG Electronics Inc.

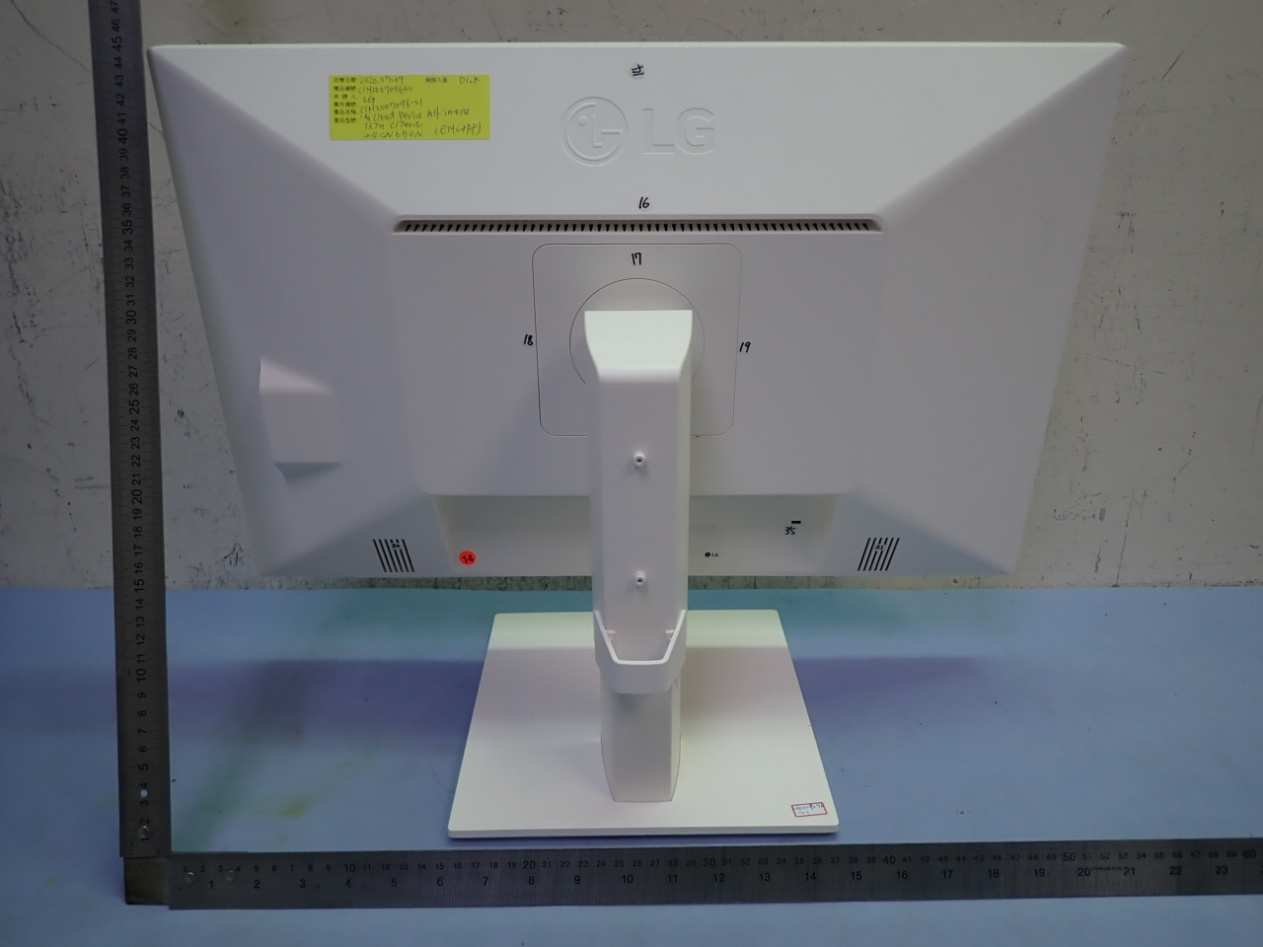

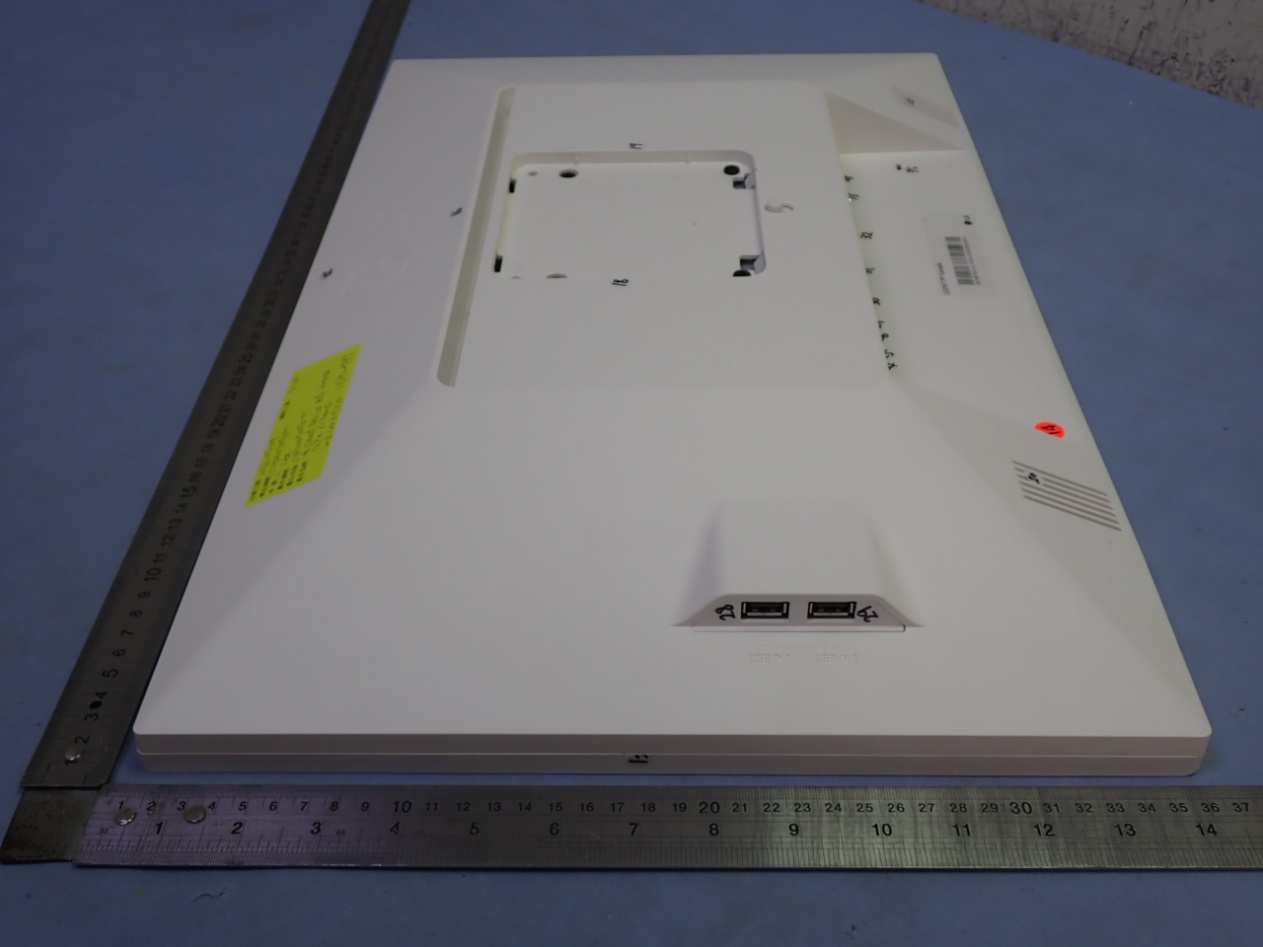

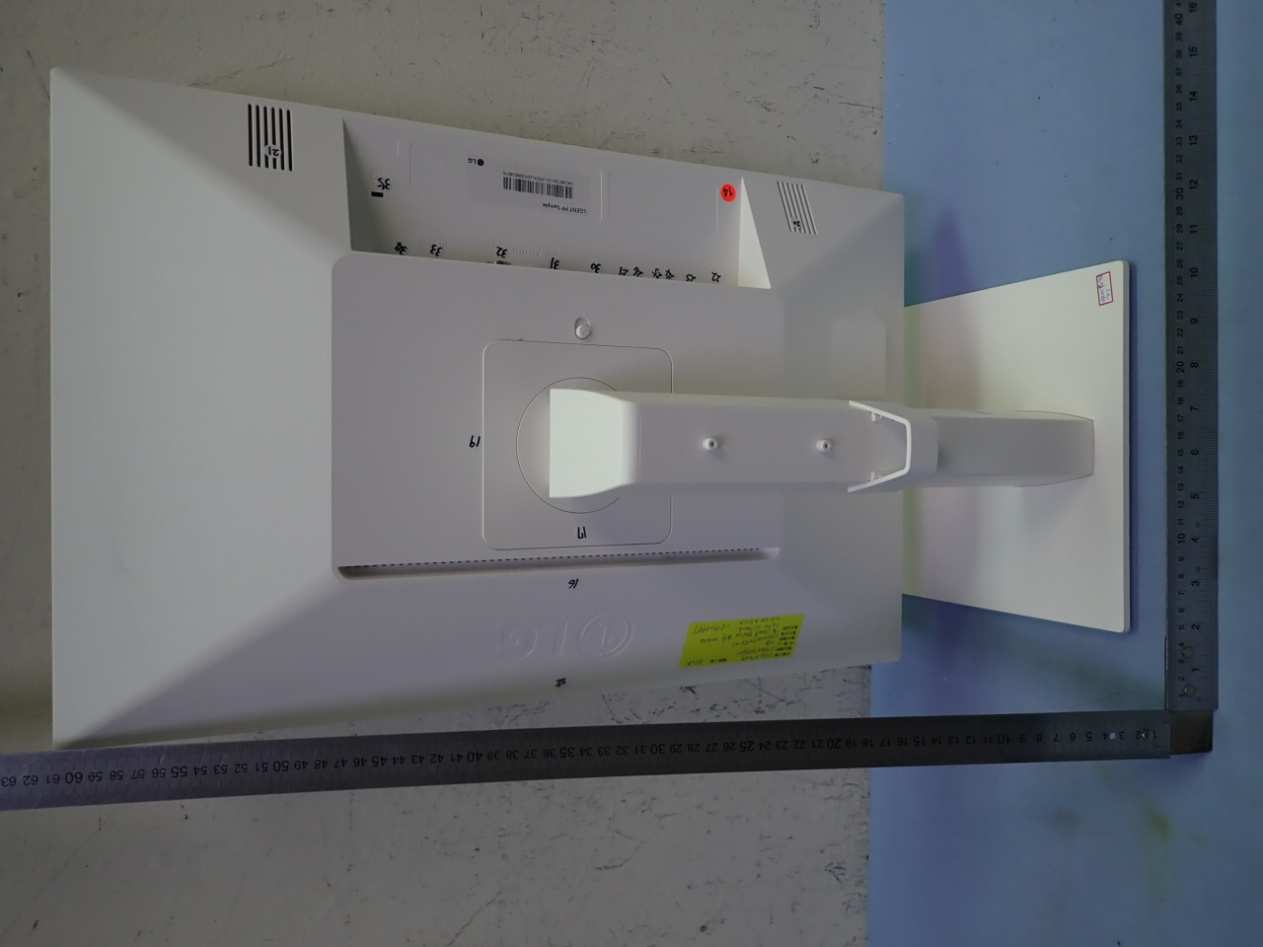

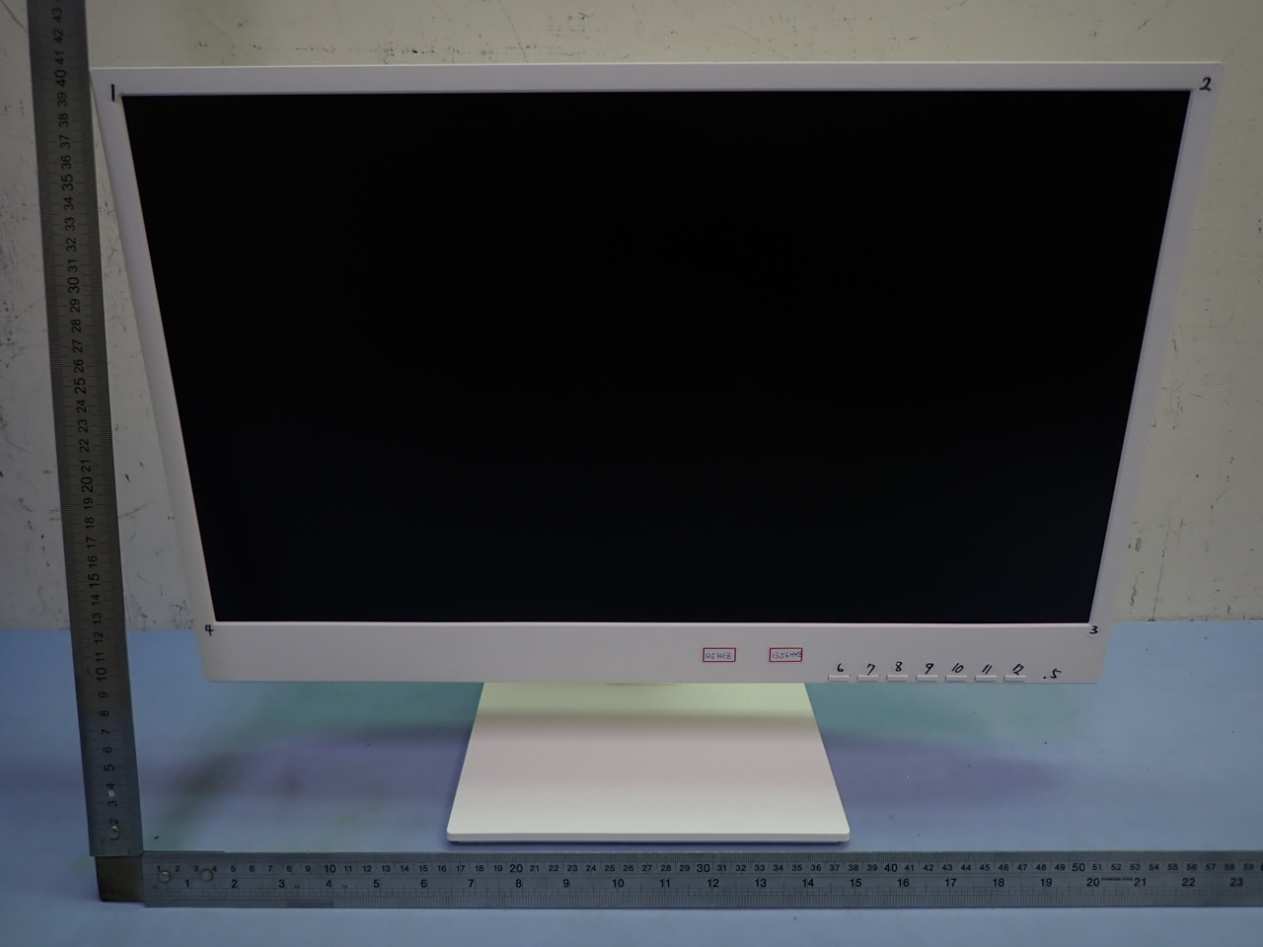

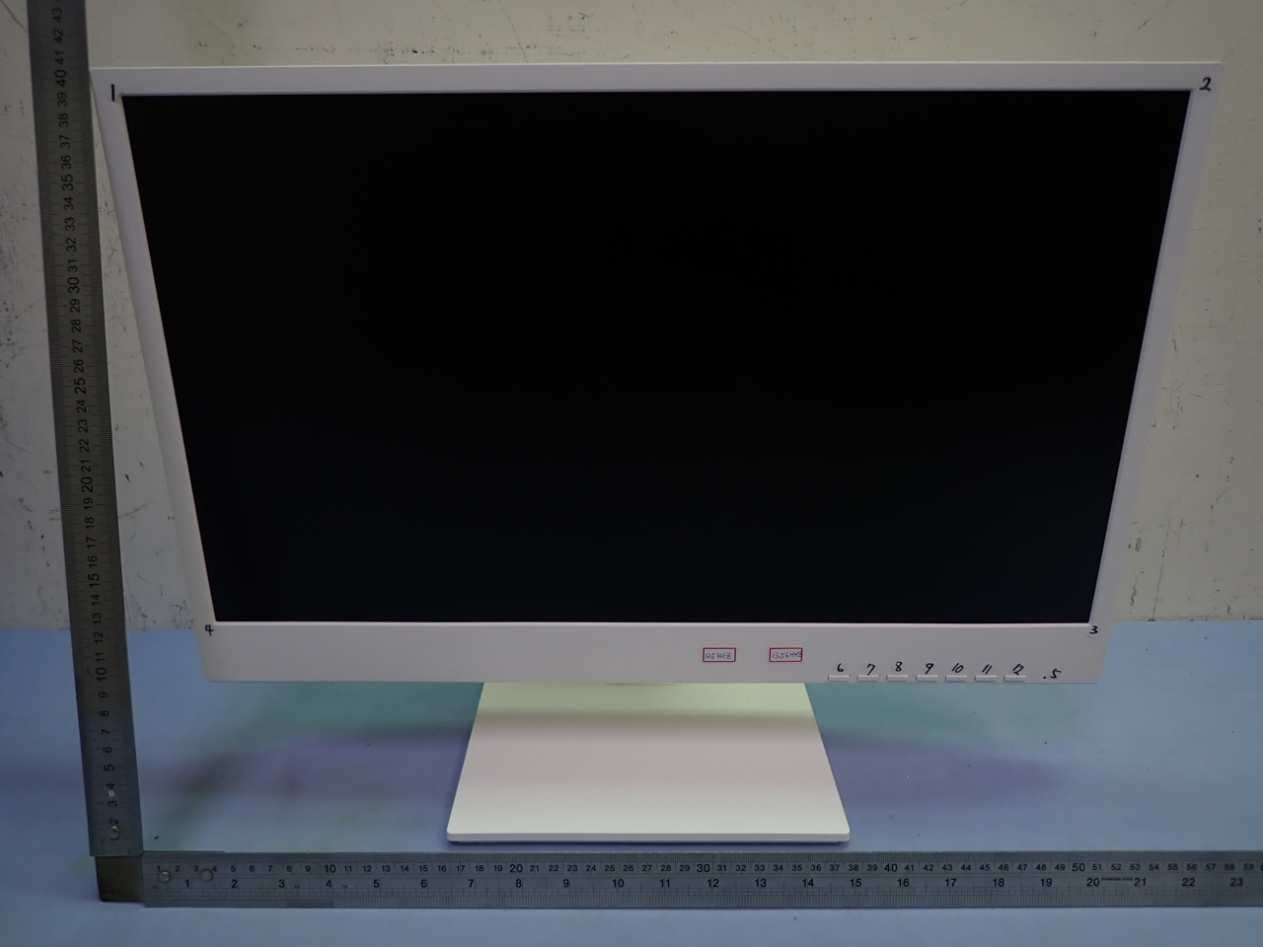

LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series EUT External Photos Figure 1 General Appearance, Front and Figure 2 General Appearance, Back and Side LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 3 General Appearance, Front and Side View Figure 4 General Appearance, Back and Side View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 5 General Appearance, I/O View Figure 6 General Appearance, I/O View

LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Label Location  Label Placement Location Label Placement Location (EUT Back View)  Label Format

LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series EUT Internal Photos Figure 7 Internal View (Removed Cover) Figure 8 Internal View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 9 Internal View Figure 10 Internal View (Removed Components) LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 11 Internal View (Removed Cover) Figure 12 Main Board, Front View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 13 Main Board, Back View Figure 14 Control Board, Front View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 15 Control Board, Back View Figure 16 Memory, Front View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 17 Memory, Back View Figure 18 CPU LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 19 WLAN Combo Card, Front View Figure 20 WLAN Combo Card, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 21 Internal View Figure 22 Internal View (WLAN Antenna Position) LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 23 WLAN Combo AUX Antenna Figure 24 WLAN Combo Main Antenna LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 25 USB Control Board, Front View Figure 26 USB Control Board, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 27 Internal View (Integrated RFID Reader) Figure 28 Integrated RFID Reader LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 29 Integrated RFID Reader, Front View and RFID Antenna Figure 30 Integrated RFID Reader, Front View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 31 Integrated RFID Reader, Back View Figure 32 Integrated RFID Reader, RF Chip View Chip for 125kHz Chip for 13.56Hz Chip for 125kHz Chip for 13.56Hz LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 33 RFID Antenna, Front View Figure 34 RFID Antenna, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 35 OSD Board, Front View Figure 36 OSD Board, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 37 LCD Panel, Front View Figure 38 LCD Panel, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 39 USB Mouse, Front View Figure 40 USB Mouse, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 41 USB Keyboard, Front View Figure 42 USB Keyboard, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 43 AC Adapter, Front View Figure 44 AC Adapter, Back View LG Electronics Inc. LG Cloud Device All-in-One Thin Client Model : 24CN670N Series Figure 45 AC Adapter, AC Inlet View Figure 46 AC Adapter, Label View

Maximum Permissive Exposure FCC ID: BEJNT-24CN670 Product Name: LG Cloud Device All-in-One Thin Client Model No: (1)24CN670N (2)24CN670W (3)24CN670NK (4)24CN670WK 1. According to FCC CFR 47 §1.1310, the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b). Table 1 Limits for Maximum Permissible Exposure Samsung Electronics Co Ltd declares that the product described above has been evaluated and found to comply with the RF exposure limits for humans, as specified based on ANSI/FCC recommendation. 2. MPE Calculation 2.1. BT MPE Based on safety distance (r) 20cm, the antenna gain (G) is 2.366Numerical, and the highest power output (P) is 13.996mW, the power density (S) is 0.006588mW/cm 2. RF Exposure Calculations: S = (P * G) / (4* π * r 2 ) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r)= 20 cm Highest Power Output (P)= 11.46 dBm = 13.996 mW Antenna Gain (G)= 3.74 dBi = 2.366 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = = (13.996*2.366)/(4*π*20 2 )= 0.006588 mW/cm 2 2.2. WIFI 2.4G MPE Based on safety distance (r) 20cm, the antenna gain (G) is 2.366Numerical, and the highest power output (P) is 984.011mW., the power density (S) is 0.463175mW/cm 2. RF Exposure Calculations: S = (P * G) / (4* π * r 2 ) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r)= 20 cm Highest Power Output (P)= 29.93 dBm = 984.011 mW Antenna Gain (G)= 3.74 dBi = 2.366 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = = (984.011*2.366)/(4*π*20 2 )= 0.463175 mW/cm 2 2.3. WIFI 5G MPE Based on safety distance (r) 20cm, the antenna gain (G) is 2.541Numerical, and the highest power output (P) is 244.906mW, the power density (S) is 0.123804mW/cm 2. . RF Exposure Calculations: S = (P * G) / (4* π * r 2 ) or r = (P * G) / (4 * π * S) Where : Based on safety distance (r)= 20 cm Highest Power Output (P)= 23.89 dBm = 244.906 mW Antenna Gain (G)= 4.05 dBi = 2.541 Numerical MPE (S) = (P*G) / (4*π*r 2 ) = = (244.906*2.541)/(4*π*20 2 )= 0.123804 mW/cm 2 Sincerely Yours, ____________________________________ Mr. Ben Cheng Manager AUDIX Technology Corporation
