BEJP509Cellular/ PCS GSM/ EDGE and AWS/ WCDMA Phone with Bluetooth and WLAN

LG-P509 User Guide • Some of the contents of this manual may not apply to your phone depending on your phone’s software or your service provider. • This handset is not recommended for the visually impaired because of its touch-screen keypad. • Copyright ©2010 LG Electronics, Inc. All rights reserved. LG and the LG logo are registered trademarks of LG Group and its related entities. All other trademarks are the property of their respective owners. • Google™, the Google logo, Google Maps™, Google Mail™, YouTube™, Google Talk™, Android™, and Android Market™ are trademarks of Google, Inc. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. For example, this device must be maintained from the user's body with an appropriate belt-clip accessory.[More than 0.79inches(2.0cm)] Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 20 Getting to know your phone Menu key - Opens application menu and check what options are available. Send key - Dials a phone number and answers incoming calls. Home key - Returns to home screen from any screen. Microphone Earpiece Back key - Returns to the previous screen. End/Power/Lock key - Ends or rejects a call. - Po wers your phone on/off by pressing and holding the key. - Tu rns off the screen and locks. 21 Back cover Battery SIM card slot Camera key Search key Charger, micro USB cable connector microSD memory card slot Camera lens Stereo earphone connector Volume keys - On the home screen: controls ringer volume. - Du ring a call: controls your earpiece volume. - Wh en playing a track: controls volume continuously. Charger, micro USB cable connector Search key - Search the web and contents in your phone. Camera key - Go to the camera menu directly by pressing and holding the key. 22 Installing the SIM card and battery Before you can start exploring your new phone, you’ll need to set It up. To insert the SIM card and battery: 1 With the back of the phone facing you, remove the back cover. To remove the back cover, firmly press your thumbs on either side of the back cover, and slide the cover below the camera lens. 2 Slide the SIM card into the SIM card holder. Make sure the gold contact area on the card is facing downwards. Getting to know your phone 2 3 Insert the battery into place by aligning the gold contacts on t he phone and the battery, then gently press the battery until it snaps into space. 4 Replace the back cover of the phone and slide it down into place until the latch clicks. NOTE: If your phone does not connect to a network when you insert a SIM card and turn it on, please contact your service carrier to obtain the details of its access point name. Charging your phone Slide back the cover of the charger connector on the side of your LG-P509. Insert the charger, and plug it into an electrical outlet. Your LG-P509 must be charged until you can see . NOTE: The battery must be fully charged initially to improve battery lifetime. 24 NOTE: The LG-P509 has an internal antenna. Be careful not to scratch or damage this rear area, as that will cause loss of performance. Installing the memory card To store additional multimedia files such as captured images by using a built-in camera, you must insert a memory card to your phone. To insert a memory card: 1 Turn the phone off before inserting or removing the memory card. Remove the back cover. Getting to know your phone 25 2 Open the slot protection and insert the memory card into the slot. Make sure the gold contact area is facing downwards. 3 Close the slot protection. WARNING! Do not insert or remove the memory card when the phone is on. Otherwise, it may damage the memory card as well as your phone, and the data stored on the memory card may be corrupted. Formatting the memory card Your memory card may already be formatted. If it isn’t, you must format it before you can use it. NOTE: All files on the card are deleted when you format the card. 1 On the home screen, touch Applications tab to open the applications menu. 2 Scroll and touch Settings. 3 Scroll to and touch SD card & phone storage > Format SD Card . 4 Touch Format SD card, then confirm your choice. 26 Touch-screen t…

Text truncated - open the document above for the full version.

Date: July 30, 2010 Fe deral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJP50 9 Eq uipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

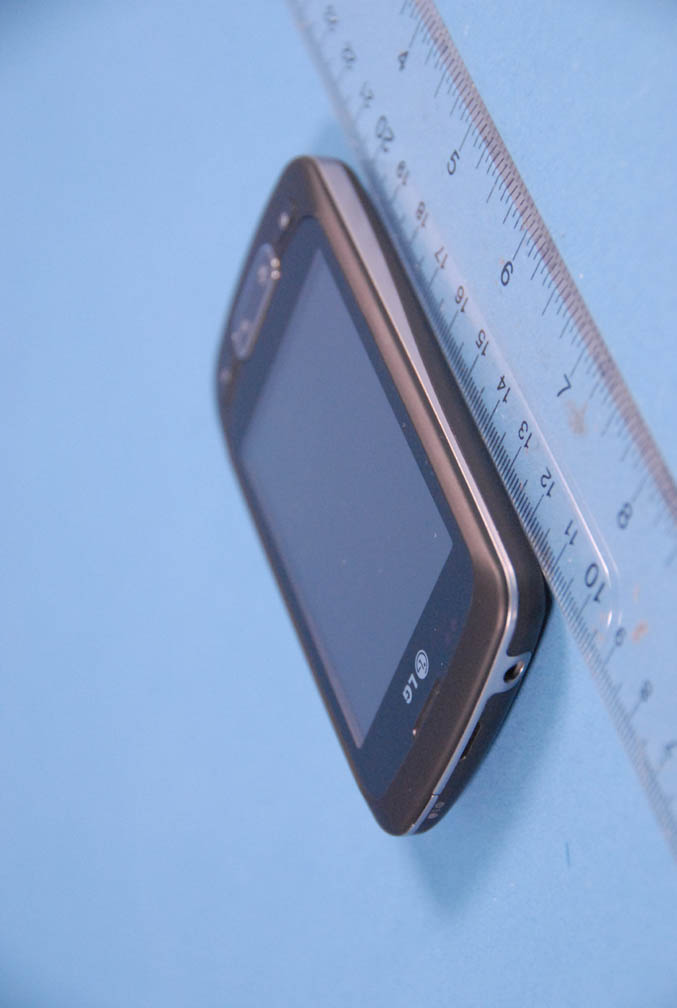

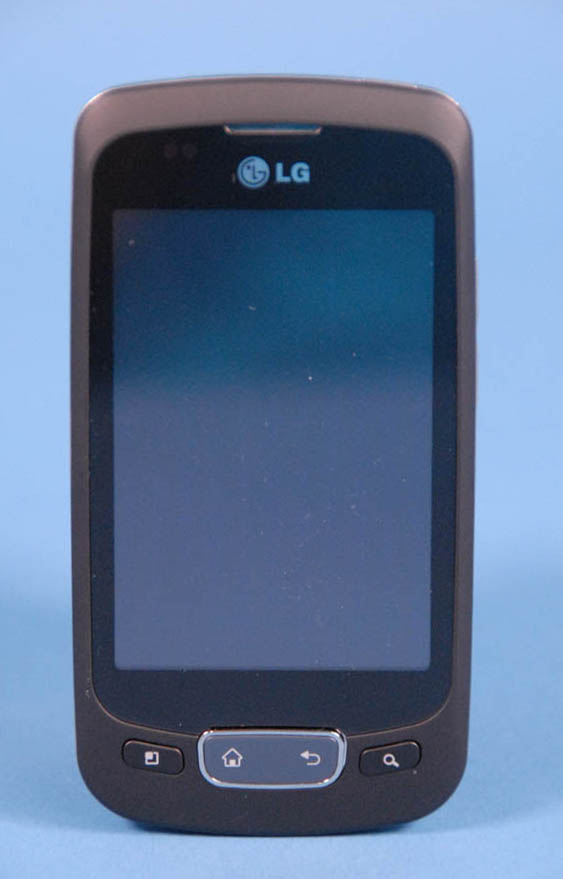

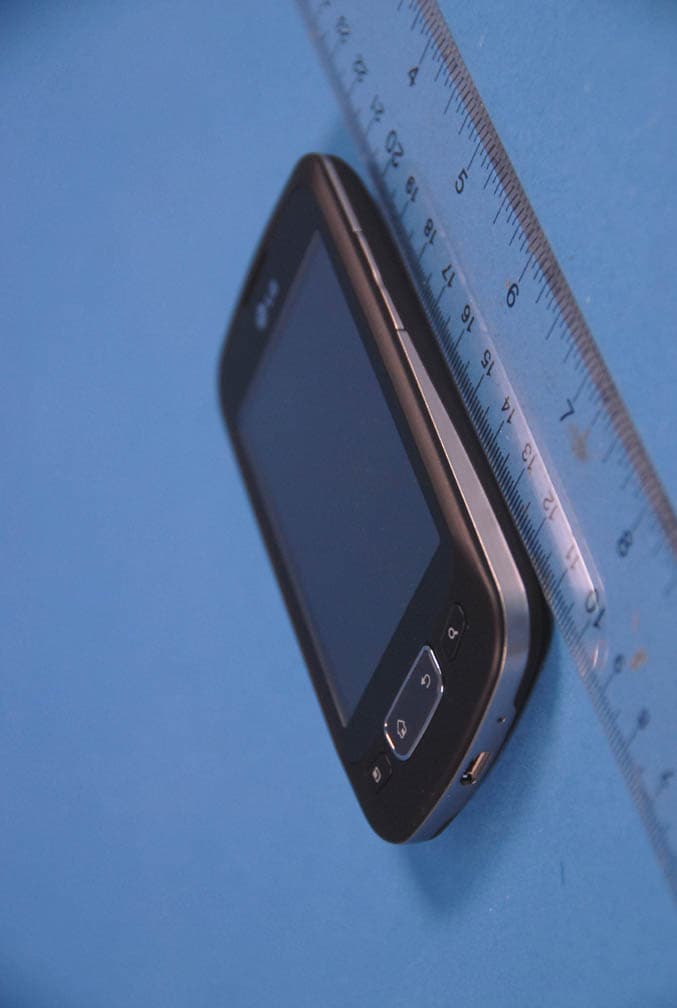

LG Electronics, USA FCC ID: BEJP509 Model: P509 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics, USA FCC ID: BEJP509 Model: P509 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 External Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Model No: LG-P509 FCC ID : BEJP509 S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 1 of 11 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 2 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 3 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 4 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 5 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 6 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 7 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 8 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 9 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 10 of 11 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Internal Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 11 of 11 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 1 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 Applicant Name: Date of Testing: LG Electronics USA 07/16/10 - 07/26/10 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1007141180.BEJ F C C I D : BE J P 5 0 9 AP P L I C AN T : LG E LE CT RO N ICS US A EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Digital Transmission System (DTS) Model(s): LG-P509, P509, LGP509TN, LGP509MZ, LGP509BK, LGP509RD Tx Frequency: 824.20 - 848.80 MHz (GSM 850) 1850.20 - 1909.80 MHz (GSM 1900) 1712.4 - 1752.5 MHz (AWS WCDMA) 2412 - 2462 MHz (WLAN) Conducted Power: 32.87 dBm GSM 850 29.76 dBm GSM 1900 23.12 dBm UMTS IV 16.96 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.49 W/kg GSM 850 Head SAR 0.36 W/kg GSM 850 Body SAR 0.88 W/kg GSM 1900 Head SAR 0.48 W/kg GSM 1900 Body SAR 1.14 W/kg UMTS IV Head SAR 0.43 W/kg UMTS IV Body SAR 0.06 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: SAR] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 2 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 RF EXPOSURE LIMITS .................................................................................................................16 11 MEASUREMENT UNCERTAINTIES .............................................................................................17 12 SYSTEM VERIFICATION...............................................................................................................18 13 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS..........................................................20 14 FCC 3G MEASUREMENT PROCEDURES ...................................................................................21 15 SAR DATA SUMMARY ..................................................................................................................24 16 EQUIPMENT LIST..........................................................................................................................29 17 CONCLUSION................................................................................................................................30 18 REFERENCES ...............................................................................................................................31 19 SAR TEST SETUP PHOTOGRAPHS ............................................................................................33 Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 3 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJP509 FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1007141179.BEJ July 15 - 23, 2010 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 1 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3WBGNFI 07/08/2010 Applicant Name: Date of Testing: LG Electronics USA July 15 - 23, 2010 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1007141179.BEJ FCC ID: BEJP509 APPLICANT: LG Electronics USA Application Type: Certification Model(s): P509, LG-P509, LGP509TN, LGP509MZ, LGP509BK, LGP509RD EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Max. RF Output Power: 49.66 mW (16.96 dBm) Conducted (b) 27.16 mW (14.34 dBm) Conducted (g) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 7 Test Device Serial No.: 006KPKN788405 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g Reviewed by: FCC ID: BEJP509 FCC Pt. 15.247 WLAN 802.11b/g TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1007141179.BEJ July 15 - 23, 2010 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 2 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.3WBGNFI 07/08/2010 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G.................................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 14 6.4 OUTPUT POWER MEASUREMENT – 802.11G...................................................................................... 15 6.5 POWER SPECTRAL DENSITY (802.11B/G) ........................................................................................... 16 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 19 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 22 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 26 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 30 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 32 7.0 CONCLUSION .........................................................................................…

Text truncated - open the document above for the full version.

LG Electronics, USA FCC ID: BEJP509 Model: P509 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG Electronics, USA FCC ID: BEJP509 Model: P509 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics, USA FCC ID: BEJP509 Model: P509 Test Set-Up Photos EUT Type: 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 33 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 19 SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 34 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 Figure 19-1 SAR Test Setup Photo 1 Figure 19-2 SAR Test Setup Photo 2 Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 35 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 Figure 19-3 SAR Test Setup Photo 3 Figure 19-4 SAR Test Setup Photo 4 Reviewed by: FCC ID: BEJP509 SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1007141180.BEJ 07/16/10 - 07/26/10 850/1900 GSM/GPRS/EDGE and AWS WCDMA Phone with Bluetooth and WLAN Page 36 of 36 © 2010 PCTEST Engineering Laboratory, Inc. REV 8.4M 7/12/2010 Figure 19-5 SAR Test Setup Photo 5
