LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Seong San-Gu, Changwon City, Gyeong Nam, 642-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-268-4530 PCTEST Engineering Laboratory Inc. Ref. No.: 15-EMUS-0139 6660-B Dobbin Road Date: March 18, 2015 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJQ172NXA Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJQ172NXA 2. Application Model no.: MQ1724ASDL(Metal Touch) , MQ1724FSDL(Glass Touch) (Buyer model No.: UPMC3084ST, LSMC3086ST) (RF Power Output: 950 W) 3. Magnetron: 2M246 (LG) 4. Applied model is for household use. We have performed all tests using model MQ1724ASDL with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Jongchul Lee at LG Electronics New Jersey Office or Mr. Dae-Woong, Kim at LG Electronics, Changwon EMC Center. Best regards, Kim Dae Woong, Principal Research Engineer Jongchul Lee, General Manager Changwon EMC Center Product Regulatory Complaince Team. LG Electronics Inc. LG Electronics New Jersey Office E-Mail: [email protected] E-Mail: [email protected] LG Electronics Inc.

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 1 / 2 LG Electronics Inc. FCC ID: BEJQ172NXA APPENDIX. Block Diagram / Schematics <Fig. 1-1. Block Diagram>

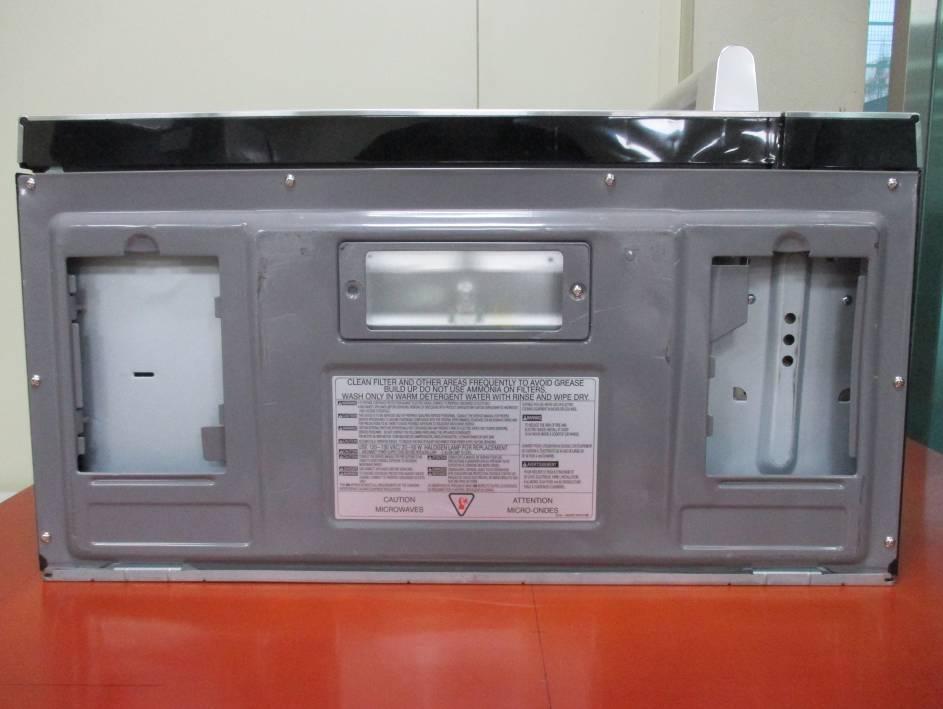

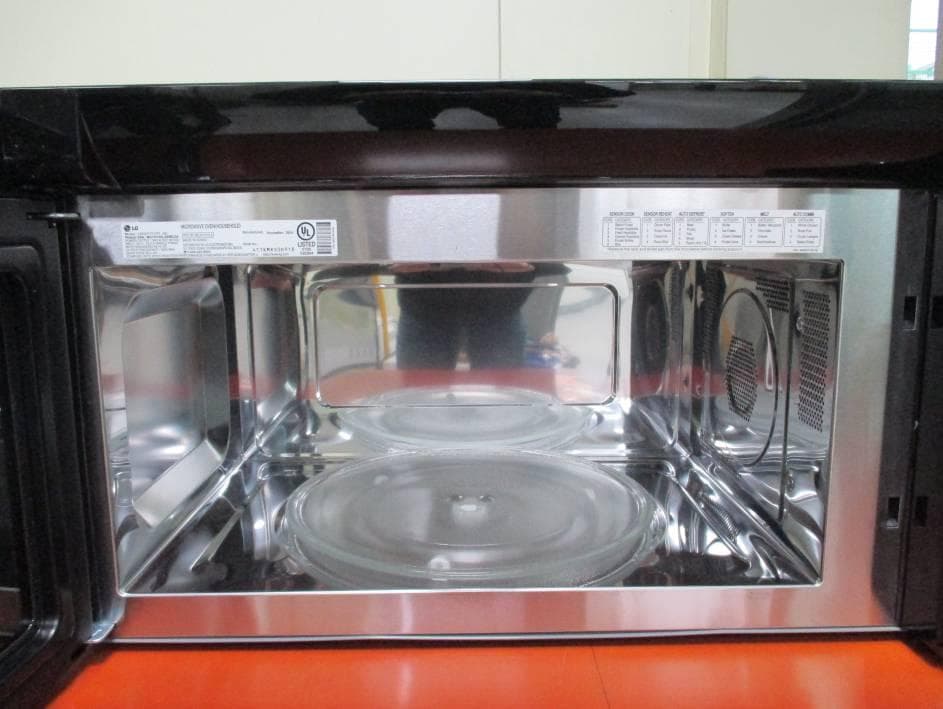

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 1 / 7 LG Electronics Inc. FCC ID: BEJQ172NXA APPENDIX. EUT Photos <Front View> <Rear View> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 2 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <Bottom View> <Left Side View> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 3 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <Right Side View> <Inside of Cavity>

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 1 / 1 LG Electronics Inc. FCC ID: BEJQ172NXA APPENDIX. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is permanently affixed to the front cavity of the equipment with a permanent adhesive as be- low. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label>

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 4 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <Inside of MWO> <Magnetron> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 5 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <Top of Noise filter> <Bottom of Noise filter> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 6 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <PCB – Top of Main board> <PCB – Bottom of Main board> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 7 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <PCB – Top of Control board> <PCB – Top of Control board (Dial)> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 8 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <PCB – Bottom of Control board (Dial)> <PCB – Top of Passive type NFC Module> Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 9 / 9 LG Electronics Inc. FCC ID: BEJQ172NXA <PCB – Bottom of Passive type NFC Module >

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 3 / 28 LG Electronics Inc. FCC ID: BEJQ172NXA 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Kitchen Package Division (Manufacturer) 170, Sungsanpaechongro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 642-711, Korea Name of contact: Mi Ran Park Telephone: +82-55-260-3463 Fax: +82-55-268-4783 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MQ1724ASDL(Metal Touch), MQ1724FSDL(Glass Touch) (Buyer model No.: UPMC3084ST, LSMC3086ST) Brand name: LG or GE Serial number: N/A Magnetron: 2M246 by LG RF Frequency: 2,450 ± 50 MHz RF Power Output: 950 W Power Consumption Microwave Mode: 1650 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 14.0 A Cavity Volume: 1.7 Cu.ft Oven Type: Over the range / Household Mode Stirrer: Turntable and Stirrer Power Cord: Shielded Outer Dimensions (inch) 29-3/4 X 15-7/8 X 15-5/8 (W x H x D) EMI suppression device(s) installed in production: See schematics (Appendix. EUT photos) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 2 / 2 LG Electronics Inc. FCC ID: BEJQ172NXA <Fig. 1-2. Schematic Diagram – Main board>

LG Electronics Inc. Home Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Seongsan – Gu, Changwon City, Gyeong Nam 642-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 268 4530 CERTIFICATION OF COMPLIANCE Date of Issue: March 18, 2015 Test Report No: 15-EMUS-0139 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1986 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246(LG) Brand Name(s): LG or GE Model No.: MQ1724ASDL(Metal Touch), MQ1724FSDL(Glass Touch) (Buyer model No.:UPMC3084ST, LSMC3086ST) FCC ID: BEJQ172NXA This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1986. I assure full responsibility for the completeness of these measurements and vouch for the qualifica- tions of all persons taking them. Kim Dae Woong / Principal Research Engineer Changwon EMC Center LG Electronics Inc. Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 1 / 28 LG Electronics Inc. FCC ID: BEJQ172NXA REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio fre- quency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MQ1724ASDL(Metal Touch), MQ1724FSDL(Glass Touch) (Buyer model No.: UPMC3084ST, LSMC3086ST) FCC ID: BEJQ172NXA Rule Part: FCC Part 18 Test Procedure: MP-5: 1986 Date of Test: February 01, 2015 – February 03, 2015 Date of Issue: March 18, 2015 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entire- ty. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufactur- er’s responsibilities to assure that additional production unit of this model are manufactured with identical elec- trical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Hyeon Soo Jung / Senior Research Engineer. Changwon EMC Center LG Electronics Inc. Son Kwang Mu / Chief Research Engineer Changwon EMC Center LG Electronics Inc. Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 2 / 28 LG Electronics Inc. FCC ID: BEJQ172NXA CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT)................................................................................................................ 3 3. TEST SITE .......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT ................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT ............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA...................................................................................................................................................... 10 7.1 INPUT POWER ................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 FREQUENCY MEASUREMENTS ....................................................................................................................... 11 7.4 POWER DENSITY SAFETY CHECK .................................................................................................................. 12 7.5 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 12 7.6 RADIATED EMISSIONS (SECTION 18.305) ....................................................................................................... 13 APPENDIX A. TEST PLOT ................................................................................................................................ 14 APPENDIX B. TEST PHOTOS .......................................................................................................................... 18 Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 3 / 28 LG Electronics Inc. FCC ID: BEJQ172NXA 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Kitchen Package Division (Manufacturer) 170, Sungsanpaechongro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 642-711, Korea Name of contact: Mi Ran Park Telephone: +82-55-260-3463 Fax: +82-55-268-4783 2. EQUIPMENT UNDER TES…

Text truncated - open the document above for the full version.

Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 18 / 19 LG Electronics Inc. FCC ID: BEJQ172NXA APPENDIX B. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. - Conducted Emission Test Report No.: 15-EMUS-0139 FCC Part 18 (ISM) Test Date: February 01, 2015 Certification 19 / 19 LG Electronics Inc. FCC ID: BEJQ172NXA - Radiated Emission
