BEJS154FVMicrowave Oven

LCRT1513ST www.lg.com OWNER’S MANUAL MICROWAVE OVEN PLEASE READ THIS OWNER’S MANUAL THOROUGHLY BEFORE OPERATING. MFL38260004 TABLE OF CONTENTS SAFETY....................................................................................................................................................................... 3-4 Precautions to Avoid Possible Exposure To Excessive Microwave Energy .............................................................................. 3 Grounding Instructions ....................................................................................................................................................... 3 Important Safety Instructions .............................................................................................................................................. 4 UNDERSTANDING YOUR MICROWAVE OVEN .................................................................................................... 5-9 Specifications..................................................................................................................................................................... 5 Installation.......................................................................................................................................................................... 5 Parts and Accessories ........................................................................................................................................................ 6 Control Panel ..................................................................................................................................................................... 7 Cookware Guide ................................................................................................................................................................. 8 Tips for Microwave Cooking ................................................................................................................................................ 9 Cleaning............................................................................................................................................................................ 9 USING YOUR MICROWAVE OVEN ..................................................................................................................... 10-19 Clock................................................................................................................................................................................ 10 Child Lock ........................................................................................................................................................................ 10 Timer............................................................................................................................................................................... 10 EZ-ON ............................................................................................................................. ................................................ 10 Sensor Touch Operation Instruction .................................................................................................................................. 11 Potato (Example) .............................................................................................................................................................. 11 Quick Sensor Touch Table ................................................................................................................................................ 11 Sensor Touch P opcorn ..................................................................................................................................................... 12 Auto Cook...................................................................................................................................................................... 13 Auto Cook Chart ................................................................................................................................................................... 13 Auto Defrost ................................................................................................................................................................ 14 Quick Defrost ............................................................... ........................................................................................................ 14 Defrosting Tips ................................................................................................................................................................ 15 Multi-stage Cooking ........................................................................................................................................................ 15 Soften............................................................................................................................................................................. 16 Melt .................................................................................................................................................................................. 16 Cook Time ....................................................................................................................................................................... 17 Microwave Power Levels ................................................................................................................................................... 17 Cooking Tips .............................................................................................................................................................. 18-19 MEAT .............................................................................................................................................................................. 18 Meat Cooking Table ........…

Text truncated - open the document above for the full version.

LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R.China Tel: + 86 22 2690 3808, Fax: +86 22 2690 3643 PCTEST Engineering Laboratory Inc. Ref. No.: 13-LTE-B006 6660-B Dobbin Road Date: January 29, 2013 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJS154FV Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJS154FV 2. Model no.: MS1542X (RF Power Output – IEC 60705: 1100 W) 3. Magnetron: 2M246 (LG) 4. Noise Filter: EAM35001896 (YunLu) 5. Applied model is for household use. We have performed all tests using model MS1542X with Magnetron (2M246, LG) and Noise Filter (EAM35001896) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Dae-Woong Kim at LG Electronics Home Appliance Company or Jacob Cho, Director of Standards & Compliance at LG Electronics USA, Inc. Best regards, Dae-Woong Kim, Chief Research Engineer Jacob Cho, Director Home Appliance Company, EMC Center Standards & Environmental Affairs. LG Electronics Inc. LG Electronics USA Inc. LG Electronics Inc.

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 24 / 33 LG Electronics FCC ID: BEJS154FV Requirements per section 2.1033 (5) of CFR Title 47. <Fig. 4. PCB Circuit Diagram>

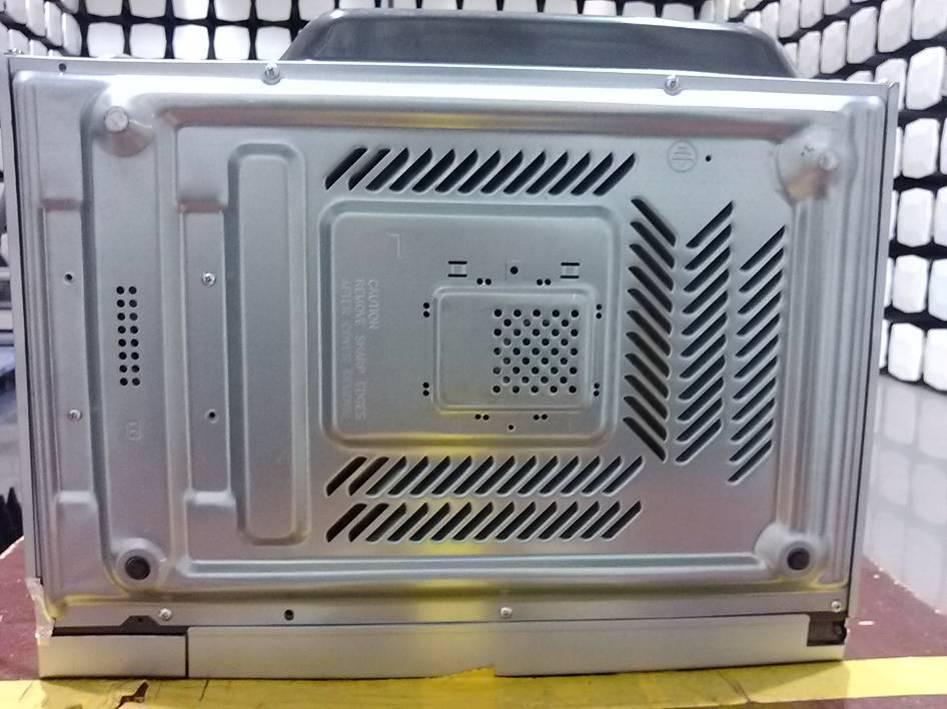

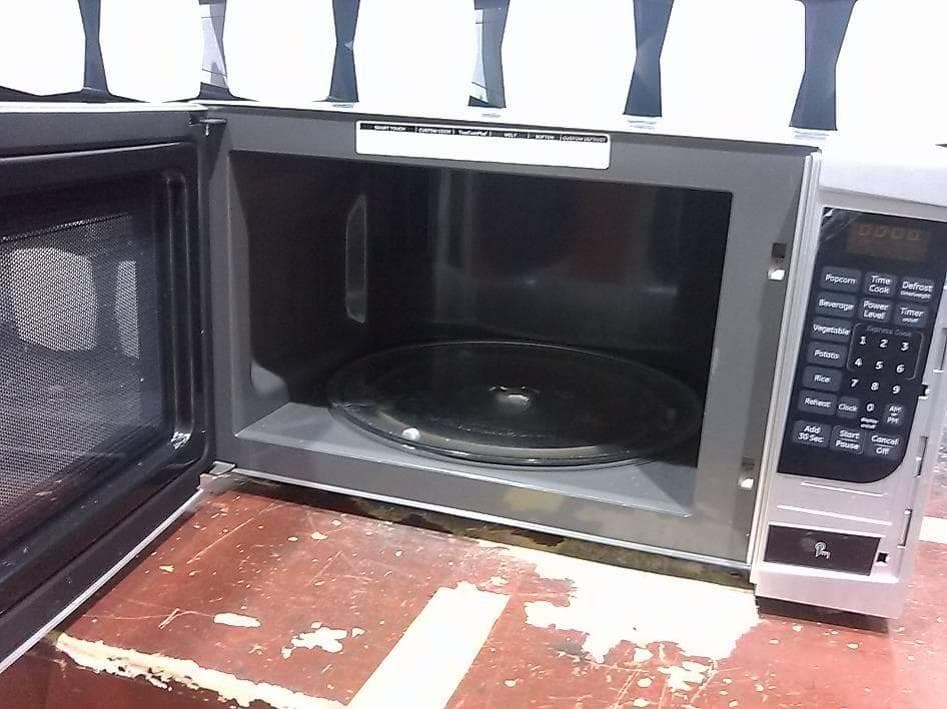

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 27 / 33 LG Electronics FCC ID: BEJS154FV APPENDIX E. EUT Photos Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 28 / 33 LG Electronics FCC ID: BEJS154FV Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 29 / 33 LG Electronics FCC ID: BEJS154FV Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 30 / 33 LG Electronics FCC ID: BEJS154FV

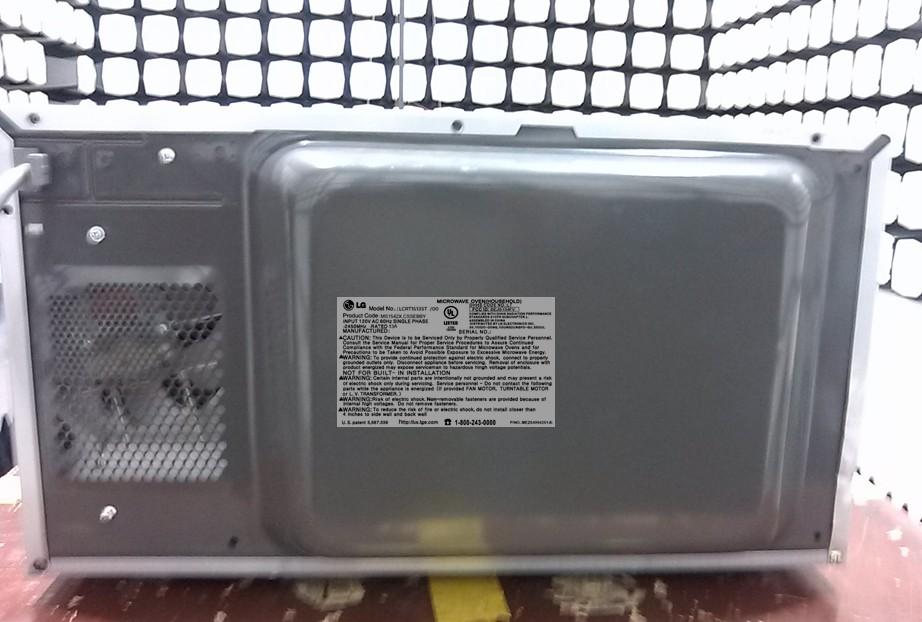

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 22 / 33 LG Electronics FCC ID: BEJS154FV APPENDIX B. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. < Fig. 2. Photo of the physical location of the label> * Alternate location: The nameplate may be alternatively affixed on the left side of control panel or internal surface of oven cavity or rear surface of oven.

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 31 / 33 LG Electronics FCC ID: BEJS154FV Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 32 / 33 LG Electronics FCC ID: BEJS154FV

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 3 / 33 LG Electronics FCC ID: BEJS154FV 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Cooking & Cleaning Division (Manufacturer) 170, Sungsanpaechongro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 642-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact: Feng Xinliang Telephone: +86-22-2690-3308 Fax: +86-22-2690-3643 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MS1541FRCL, MS1541FRS, MS1541FRSL, MS1542X Brand name: LG or Sears or GE Serial number: N/A Magnetron: 2M246 by LG Noise Filter: EAM35001896 RF Frequency: 2450 +/- 50 MHz RF Power Output (IEC 60705): 1100 W Power Consumption Microwave Mode: 1500 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 13.0 A Cavity Volume: 1.5 Cu.ft Oven Type: Household Mode Stirrer: Turntable Power Cord: Unshielded Outer Dimensions (inch) 21 7/8 (W) * 12 1/2 (H) * 17 7/32 (D) EMI suppression device(s) installed in production: See schematics (Appendix C) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 23 / 33 LG Electronics FCC ID: BEJS154FV APPENDIX C. Block Diagram / Schematics <Fig. 3. Schematic Diagram>

LG Electronics Tianjin Appliance Co., Ltd. EMC Center Xing Dian Road, Bei Chen Distr., Tianjin 300402, P.R.China Tel: + 86 22 2690 3808, Fax: +86 22 2690 3643 CERTIFICATION OF COMPLIANCE Date of Issue: January 29, 2013 Test Report No: 13-LTE-B006 Test Site: LG Electronics Tianjin Appliance Co., Ltd. EMC Laboratory Applicant: LG Electronics Tianjin Appliance Co., Ltd. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1986 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG) Noise Filter: EAM35001896 Brand Name(s): LG or Sears or GE Model No.: MS1541FRCL, MS1541FRS, MS1541FRSL, MS1542X FCC ID: BEJS154FV This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1986. I assure full responsibility for the completeness of these measurements and vouch for the qualifica- tions of all persons taking them. Dae-Woong Kim, Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 1 / 33 LG Electronics FCC ID: BEJS154FV REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MS1541FRCL, MS1541FRS, MS1541FRSL, MS1542X FCC ID: BEJS154FV Rule Part: FCC Part 18 Test Procedure: MP-5: 1986 Date of Test: January 23, 2013 – January 29, 2013 Date of Issue: January 29, 2013 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entire- ty. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufactur- er’s responsibility to assure that additional production unit of this model is manufactured with identical electric- al and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and our- selves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for t he FCC Part 15 and 18 of the Commission’s Rules under Registration Number 728166. Reviewed by: Approved by: Kwang-Mu Son / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Dae-Woong Kim / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Prepared by: Li Hong / Research Engineer LGETA EMC Laboratory LG Electronics Tianjin Appliance Co., Ltd. Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 2 / 33 LG Electronics FCC ID: BEJS154FV CONTENTS Page 1. CLIENT INFORMATION ................................................................................................................................ 3 2. EQUIPMENT UNDER TEST (EUT)................................................................................................................ 3 3. TEST SITE .......................................................................................................................................................... 4 4. CALIBRATIONS OF MEASURING INSTRUMENT ................................................................................... 4 5. DESCRIPTION OF TEST CONDITION ........................................................................................................ 4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS ..................................................................................... 4 5.2 RADIATED EMISSIONS MEASUREMENT ............................................................................................................. 5 6. MEASURING INSTRUMENT ......................................................................................................................... 9 7. TEST DATA...................................................................................................................................................... 10 7.1 INPUT POWER ................................................................................................................................................ 10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5........................................................................... 10 7.3 RF POWER OUTPUT MEASUREMENT ACCORDING TO IEC 60705. ................................................................. 11 7.4 FREQUENCY MEASUREMENTS ....................................................................................................................... 12 7.5 POWER DENSITY SAFETY CHECK .................................................................................................................. 13 7.6 CONDUCTED EMISSIONS (SECTION 18.307) ................................................................................................... 13 7.7 RADIATED EMISSIONS (SECTION 18.305) ....................................................................................................... 14 APPENDIX A. TEST PLOT ................................................................................................................................ 15 APPENDIX B. LABELING REQUIREMENTS ............................................................................................... 22 APPENDIX C. BLOCK DIAGRAM / SCHEMATICS ..................................................................................... 23 APPENDIX D. TEST PHOTOS .......................................................................................…

Text truncated - open the document above for the full version.

Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 25 / 33 LG Electronics FCC ID: BEJS154FV APPENDIX D. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. Test Report No.: 13-LTE-B006 FCC Part 18 (ISM) Report Issued date: January 29, 2013 Certification 26 / 33 LG Electronics FCC ID: BEJS154FV
