BEJSD510CDMA Cellular Phone

@ LG Electronics Inc.& October 1, 2000 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A. To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory, Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to the application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, General Manager of New York Office LG Electronics Inc. LGE LG Electronics Inc.& 459-9,Kasan-dong,Kemchun-ku Seoul 153-023,Korea Tel: 82-2-850-3861 Fax:82-2-850-3861 E-mail :[email protected] October 7, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG Information & Communications, Ltd. FCC ID: BEJSD510 FCC E911 Requirements Per S22.921 Gentlemen: LG Information & Communications, Ltd. hereby certifies that the analog cellular telephone (FCC ID:BEJSD510), using the Automatic A/B Roaming - Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a "9-l-l" call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. E.S.Park Research Engineer Communication Terminal Research Lab LG Electronics Inc.

October 12, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS INC. FCC ID: BEJSD510 Part 22 Certification Gentlemen: Submitted herewith, on behalf of LG Electronics Inc., is an application for Part 22 Certification of the following Single-Mode CDMA Phone: FCC ID: BEJSD510 TRADE/MODEL(s): LGE LG-SD510 EUT TYPE: Single-Mode CDMA Phone Tx Freq. Range(s): 824.70 – 848.31 MHz (CDMA) Max. RF Output Power: 0.308 W ERP CDMA (24.88 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, User’s Manual RF Warning page, User’s Manual Location of RF Warning page statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Harris Ahn Principal Engineer LG Electronics, Inc.

© 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

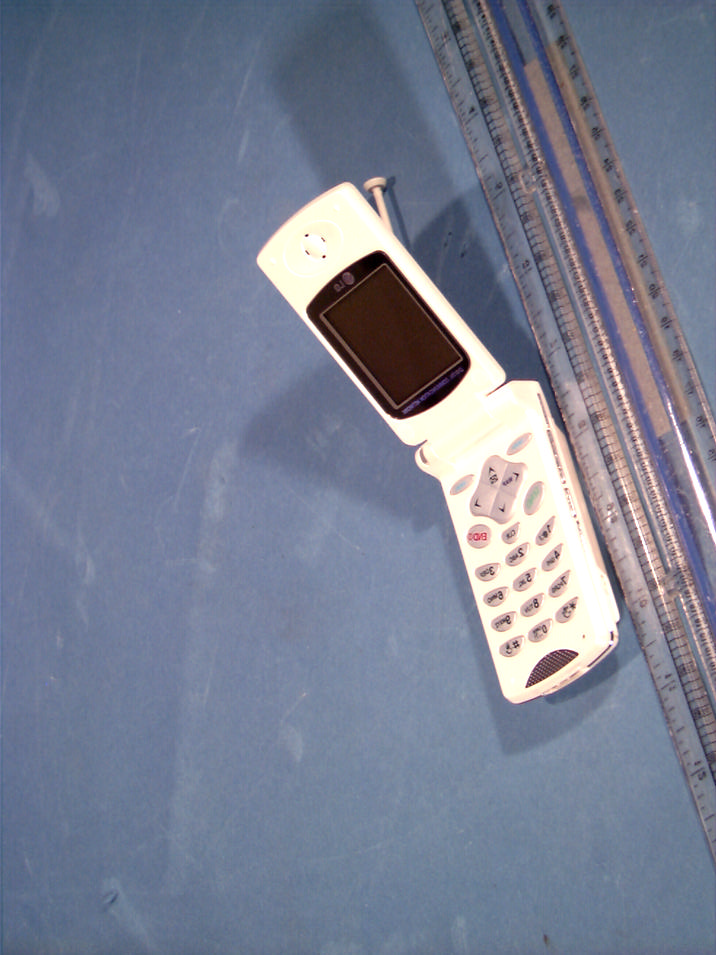

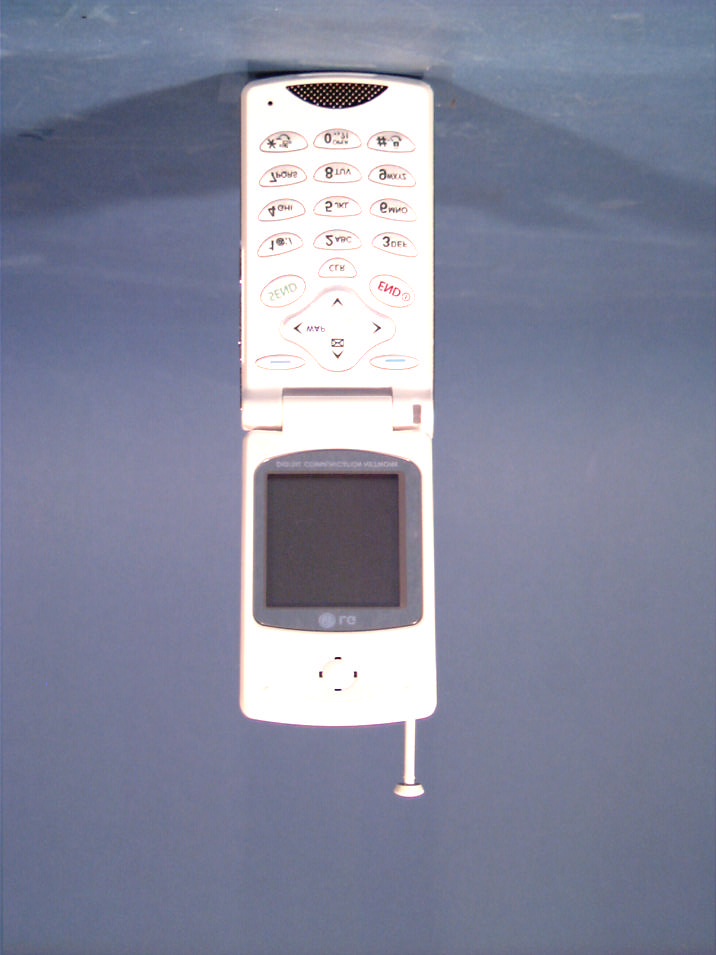

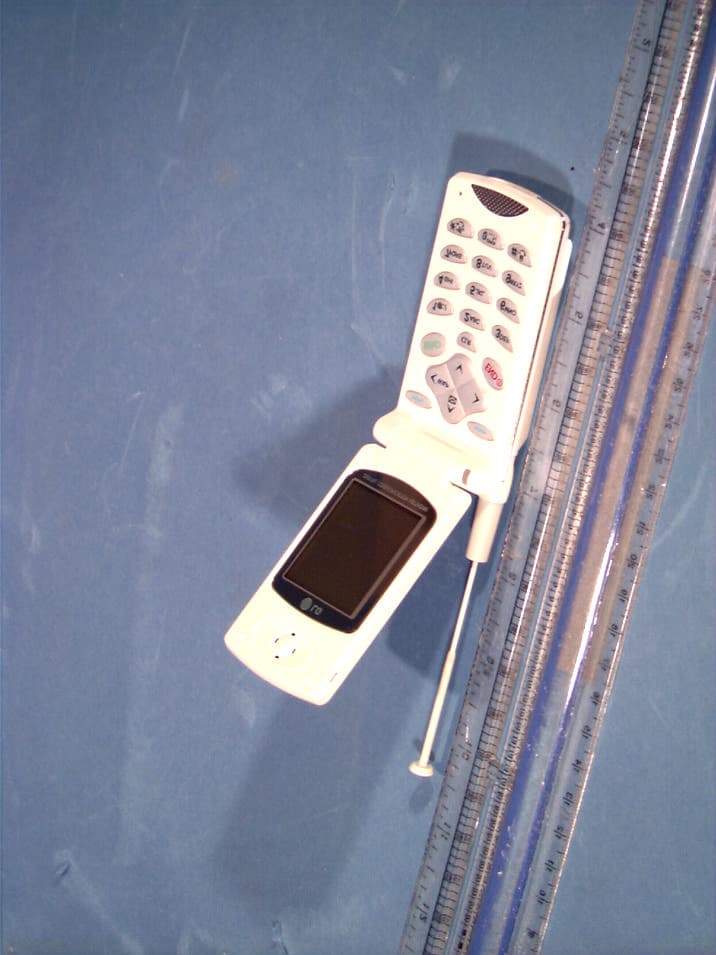

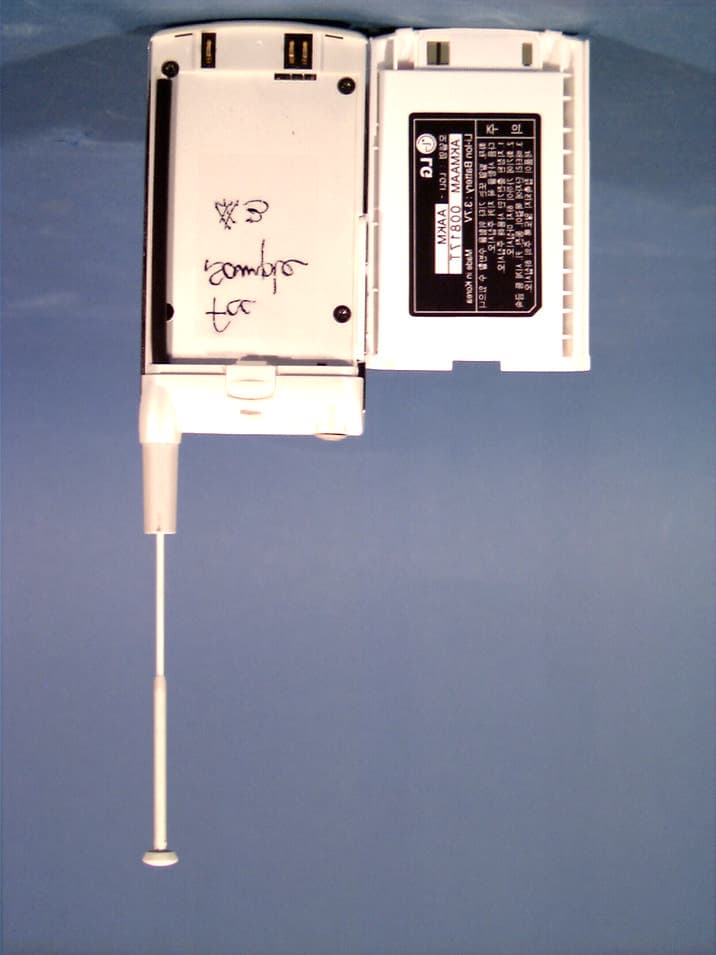

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) LG Electronics Inc. Dates of Tests: October 3-6 & 12, 2000 Communication Terminal Research Lab Test Report S/N: SAR.201002493.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJSD510 APPLICANT LG ELECTRONICS, INC. EUT Type: Single-Mode Cellular CDMA Phone Tx Frequency: 824.70 – 848.31 MHz Rx Frequency: 869.70 – 893.31 MHz Max. RF Output Power: 0.308W ERP (24.88 dBm) Trade Name/Model(s): LGE LG-SD510 FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) Application Type: Certification FCC Rule Part(s): 2.1093; ET Docket 96.326 Peak SAR Measurement: 1.2310 W/kg (Head); 1.2606 W/kg (Body); 0.8936 W/kg (Hand) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.862. 201003486.A3L SAR Measurement Report FCC Part 22 Certification © 2000 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 ISOTROPIC E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE SYSTEM 5-6 6.1 PHANTOM & EQUIVALENT TISSUES 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY-WORN TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-16 14.1 SAR TEST EQUIPMENT LIST 17 15.1 CONCLUSION / REFERENCES 18 Test Report S/N: SAR.201003486.A3L SAR Measurement Report Test Dates: October 3-6 & 12, 2000 FCC Part 22 Certification LGE FCC ID: BEJSD510 (Model: LG-SD510) © 2000 PCTEST Lab Single-Mode CDMA Cellular Phone 1 Figure 1. SAR Test Set-up SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant: LG ELECTRONICS INC.. Address: 459-9, Kasan-dong, Keumchun-Ku Seoul 153-023, KOREA Attention: Harris Ahn, Principal Engineer Samsung Electronics America (QA Lab) • EUT Type: Single-Mode Cellular CDMA Phone • FCC Rule Part(s): §2.1093, Docket 96-326 • Trade Name: LGE • FCC IDENTIFIER: BEJSD510 • Model(s): LG-SD510 • Tx Frequency: 824.70 ~ 848.31 MHz • Rx Frequency: 869.70 ~ 893.31 MHz • Application Type: Certification • FCC Classification: Non-Broadcast Transmitter Held to Ear (TNE) • Max. RF Output Power: 0.308W ERP (24.88 dBm) • Modulation: CDMA • Dates of Tests: October 3-6 & 12, 2000 • Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.201003486.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Test Report S/N: SAR.201003486.A3L SAR Measurement Report Test Dates: October 3-6 & 12, 2000 FCC Part 22 Certification LGE FCC ID: BEJSD510 (Model: LG-SD510) © 2000 PCTEST Lab Single-Mode CDMA Cellular Phone 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 2.2 SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (ρ). It is also …

Text truncated - open the document above for the full version.

Peak SAR Location © 2000 PCTEST Lab LGE FCC ID: BEJSD510 NVLAP Lab Code: 1004310 Single-Mode CDMAPhone (CDMA) Head SAR File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00100526_ZOOM.VLT Start : 5-Oct-100 05:07:18 pm End : 5-Oct-100 05:18:47 pm Radio Type : LGE Model Number : LG-SD510 Serial Number : 0001 Frequency : 824.70 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE CDMA CHAN 1013 Conducted 23.0 dB LGE SINGLE MODE CDMA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 3.250, Y = -0.750, Z = 0.000 (cm) Value = 10.528 Measured Values (volts) = 1.028E-002 8.995E-003 7.525E-003 6.307E-003 5.244E-003 4.280E-003 3.392E-003 2.642E-003 2.128E-003 1.787E-003 1.612E-003 1.620E-003 1.714E-003 1.852E-003 1.964E-003 1.952E-003 1.744E-003 1.223E-003 7.969E-004 6.946E-004 3.077E-004 Calc. Voltage @ Surface (Vs) = 0.0120 Voltage @ 1.00 cm (Vt) = 0.0063 Ave. Voltage (Vs+Vt)/2 = 0.0092 Ave. SAR over 1 g (mW/g) = 0.6686 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 mW/g -1012345 Z centimeters SAR Scan File : 00100526_ZOOM Start : 5-Oct-100 05:07:18 pm End : 5-Oct-100 05:18:47 pm LGE/LG-SD510/0001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00100526_ZOOM Start : 5-Oct-100 05:07:18 pm End : 5-Oct-100 05:18:47 pm LGE/LG-SD510/0001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.768 0.698 0.629 0.559 0.489 0.419 0.349 0.279 0.210 0.140 File : 00100526_ZOOM Start : 5-Oct-100 05:07:18 pm End : 5-Oct-100 05:18:47 pm LGE/LG-SD510/0001;824.70MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 0.768 0.698 0.629 0.559 0.489 0.419 0.349 0.279 0.210 0.140 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00100518_ZOOM.VLT Start : 5-Oct-100 03:32:11 pm End : 5-Oct-100 03:45:03 pm Radio Type : LGE Model Number : LG-SD510 Serial Number : 0003 Frequency : 824.70 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : Out Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE CDMA CHAN 1013 Conducted 23.0 dB LGE SINGLE MODE CDMA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -0.500, Z = 0.000 (cm) Value = 20.064 Measured Values (volts) = 1.842E-002 1.472E-002 1.223E-002 1.047E-002 8.807E-003 7.413E-003 5.997E-003 4.730E-003 3.830E-003 3.111E-003 2.696E-003 2.572E-003 2.676E-003 2.893E-003 3.156E-003 3.294E-003 3.140E-003 2.687E-003 1.935E-003 1.900E-003 8.301E-004 Calc. Voltage @ Surface (Vs) = 0.0226 Voltage @ 1.00 cm (Vt) = 0.0105 Ave. Voltage (Vs+Vt)/2 = 0.0165 Ave. SAR over 1 g (mW/g) = 1.2070 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 mW/g -1012345 Z centimeters SAR Scan File : 00100518_ZOOM Start : 5-Oct-100 03:32:11 pm End : 5-Oct-100 03:45:03 pm LGE/LG-SD510/0003;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00100518_ZOOM Start : 5-Oct-100 03:32:11 pm End : 5-Oct-100 03:45:03 pm LGE/LG-SD510/0003;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.46 1.35 1.24 1.13 1.02 0.91 0.80 0.69 0.58 0.47 File : 00100518_ZOOM Start : 5-Oct-100 03:32:11 pm End : 5-Oct-100 03:45:03 pm LGE/LG-SD510/0003;824.70MHz;W;Helical/Out; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.46 1.35 1.24 1.13 1.02 0.91 0.80 0.69 0.58 0.47 File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00100512_ZOOM.VLT Start : 5-Oct-100 01:37:10 pm End : 5-Oct-100 01:48:36 pm Radio Type : LGIC Model Number : LG-SD510 Serial Number : 0003 Frequency : 835.89 MHz Peak Trans. Pwr : 0.200 W Start Trans. Pwr: 0.200 W Antenna Type : Helical Antenna Posn. : In Phantom Type : Head Phantom Posn. : Left Ear Scan Type : ZOOM/SAR Probe Name : PCTEST Field Type : E Field Orientation : 0 Degrees Mixture Type = Brain Mixture Dielectric Constant = 43.400 Mixture Conductivity = 0.900 Comment : LGE SINGLE MODE CDMA CHAN 0363 Conducted 23.0 dB LGE SINGLE MODE CDMA Robot : PCTEST Probe Offset = 0.25 cm Sensor Factor = 0.0108 Conversion Factor = 0.788 PCTEST Amplifier Channel Settings : 0.166 0.135 0.132 Max Location : X = 2.500, Y = -0.500, Z = 0.000 (cm) Value = 17.935 Measured Values (volts) = 1.797E-002 1.460E-002 1.234E-002 1.057E-002 9.041E-003 7.592E-003 6.179E-003 4.927E-003 3.958E-003 3.202E-003 2.797E-003 2.619E-003 2.715E-003 2.965E-003 3.155E-003 3.246E-003 3.102E-003 2.685E-003 1.882E-003 1.701E-003 7.230E-004 Calc. Voltage @ Surface (Vs) = 0.0217 Voltage @ 1.00 cm (Vt) = 0.0106 Ave. Voltage (Vs+Vt)/2 = 0.0161 Ave. SAR over 1 g (mW/g) = 1.1771 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 mW/g -1012345 Z centimeters SAR Scan File : 00100512_ZOOM Start : 5-Oct-100 01:37:10 pm End : 5-Oct-100 01:48:36 pm LGE/LG-SD510/0003;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 File : 00100512_ZOOM Start : 5-Oct-100 01:37:10 pm End : 5-Oct-100 01:48:36 pm LGE/LG-SD510/0003;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.309 1.213 1.117 1.021 0.925 0.829 0.733 0.637 0.541 0.444 File : 00100512_ZOOM Start : 5-Oct-100 01:37:10 pm End : 5-Oct-100 01:48:36 pm LGE/LG-SD510/0003;835.89MHz;W;Helical/In; Head/Left Ear;ZOOM/SAR;PCTEST/E Field/0 DegreesBrain/43.400/0.900 1.309 1.213 1.117 1.021 0.925 0.829 0.733 0.637 0.541 0.444 File : c:/idx3/SYSTEM/SARMEAS3/d…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone

FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation For body-worn operation, to maintain compliance with FCC RF exposure guidelines, use only LG Electronics approved accessories. When carrying the phone while it is on, the back of the phone including the antenna must be placed at a distance of least 1.5 cm from the body. The use of non - LG Electronics approved accessories may violate FCC RF exposure guidelines and should be avoided. For more information about RF exposure, please visit the FCC website at www.fcc.gov WARNING! Read this information before using your

November 20, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Ms. Errol Chang SUBJECT: LG Electronics Inc. FCC ID: BEJSD510 731 Confirmation No.: EA99105 Correspondence Reference No.: 16979 Request for Tech. Info.: 11/7/00 Dear Errol: Transmitted herewith, on behalf of LG Electronics Inc., is an amendment provided in response to the request for technical information dated November 7, 2000. 1. According to LG Electronics Inc., there will be no belt-clip accessory that are applicable for this device. 2. Attached is the revised RF Exposure statement, which will be placed towards the front location in the users manual. We trust this information is sufficient to issue the grant ASAP. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics Inc.

LG Electronics Inc. November 20, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 2 IO46 SUBJECT: LG Electronics Inc. FCC ID: BEJSDSlO Users Manual RF Exposure Warning Statement Gentlemen: LG Electronics Inc., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (4 10) 290-6652. Sincerely, General Manager of New York Office LG Electronics Inc. For more information about RF exposure, please visit the FCC website at www.fcc.gov FCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure guidelines, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user’s body and the back of the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these requirements may not comply with FCC RF exposure guidelines, and should be avoided. WARNING! Read this information before using your phone

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 www.pctestlab.comwww.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 22 Certification LG Electronics Inc. Dates of Tests: October 3-6 & 12, 2000 Communication Terminal Research Lab Test Report S/N: SAR.201002494.BEJ 459-9, Kasan-dong, Keumchun-Ku Test Site: PCTEST Lab, Columbia, MD USA Seoul 153-023, Korea Attn: Harris Ahn, Principal Engineer FCC ID BEJSD510 APPLICANT LG Electronics, Inc. Classification: Non-Broadcast Transmitter held to ear (TNE) FCC Rule Part(s): §22.901(d), §2 EUT Type: CDMA Cellular Phone Trade Name/Model(s): LGE LG-SD510 Tx Frequency Range: 824.70 ~ 848.31 MHz Rx Frequency Range: 869.70 ~ 893.31 MHz Max. RF Output Power: 0.308W ERP (24.88 dBm) Frequency Tolerance: 0.00025% (2.5 ppm) Emission Designators: 1M25F9W This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 201002494.A3L FCC Part 22 Certification © 2000 PCTEST Engineering Laboratory, Inc. FCC Part 22 TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1 SCOPE 1 2.1 INTRODUCTION 2 3.1 INSERTS PER §2.1033(d) 3 4.1 DESCRIPTION OF TESTS 4-6 5.1 EFFECTIVE RADIATED POWER OUTPUT 7-8 6.1 RADIATED MEASUREMENTS 9-14 7.1 FREQUENCY STABILITY 15-16 8.1 PLOTS OF EMISSIONS 17 9.1 LIST OF TEST EQUIPMENT 18 10.1 SAMPLE CALCULATIONS 19 11.1 CONCLUSION 20 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: TEST SETUP PHOTOGRAPHS ATTACHMENT G: EXTERNAL PHOTOGRAPHS ATTACHMENT H: INTERNAL PHOTOGRAPHS ATTACHMENT I: BLOCK DIAGRAM(S) ATTACHMENT J: CIRCUIT DIAGRAMS ATTACHMENT K: PARTS LIST/TUNE UP PROCEDURE ATTACHMENT L: OPERATIONAL DESCRIPTION ATTACHMENT M: USER’S MANUAL ATTACHMENT N: SAR MEASUREMENT REPORT ATTACHMENT O: SAR TEST DATA ATTACHMENT P: SAR TEST SETUP PHOTOGRAPHS Dates of Tests: May 916, 2000 Certification © 2000 PCTEST Lab FCC ID: BEJSD510 (M-SD510) LGE CDMA Cellular Phone MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. General Information Applicant: LG Electronics, Inc. Address: 459-9 Kasan-dong, Keumchun-Ku Seoul 153-023, KOREA Attention: Harris Ahn, Principal Engineer • FCC ID: BEJSD510 • Trade Name(s): LGE • Model(s): LG-SD510 • Quantity: Quantity production is planned • Emission Designator: 1M25F9W • Tx Freq. Range: 824.70 ~ 848.31 Rx Freq. Range: 869.70 ~ 893.31 • Equipment Class: Non-Broadcast Transmitter Held to Ear (TNE) • Equipment Type: CDMA Cellular Phone • Modulation(s): CDMA • Frequency Tolerance: ± 0.00025% (2.5 ppm) • Max. RF Output Power: 0.308W ERP (24.88 dBm) • FCC Rule Part(s): §22.901(d), §2 • AC/DC Power Adapter: 12W LGE Model: LG-P510 • Battery Pack: 3.7 VDC 800 mAh Li-Ion • Dates of Tests: October 3-6 & 12, 2000 • Place of Tests: PCTEST Lab, Columbia, MD U.S.A. Test Report S/N: 22.200508214.A3L FCC Part 22 Dates of Tests: May 9-16, 2000 Certification © 2000 PCTEST Lab FCC ID: BEJSD510 (Model: LG-SD510) LGE CDMA Cellular Phone 2 2.1 INTRODUCTION These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. Measurement Procedure The radiated and spurious measurements were made outdoors at 3-meter test range (see Figure2). The equipment under test is placed on the turntable connected to a RF wattmeter and a dummy RF load, and then its power is adjusted to its rated output. A receiving antenna located 2 meters from the turntable picks up any signal radiated from the transmitter. The turntable containing the system was rotated; the receiving antenna height was varied 1 to 4 meters and stopped at the azimuth or height producing the maximum emission. The testing procedure is repeated for both horizontal and vertical polarization of the receiving antenna. The actual radiated signal strength is obtained by substitution method with a signal generator with a calibrated output. The signal generator is adjusted in output until its reading is identical to that obtained when the receiving antenna is connected to the receiver. Signal strength is then read directly from the signal generator. Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Figure 2. 3-meter Outdoor Test Site Test Report S/N: 22.200508214.A3L FCC Part 22 Dates of Tests: May 9-16, 2000 Certification © 2000 PCTEST Lab FCC…

Text truncated - open the document above for the full version.

© 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone © 2000 PCTEST Lab LGE FCC ID: BEJSD510 (Model: LG-SD510) NVLAP Lab Code: 1004310 Single-Mode CDMA Cellular Phone
