BEJT310ICellular/PCS GSM/EDGE with Bluetooth & WLAN

LG Electronics USA, Inc.

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Aug 08, 2010
Application Purpose: Original Equipment
Date of Application: Aug 03, 2010
Equipment Note: Cellular/PCS GSM/EDGE with Bluetooth & WLAN
Frequency Range: 2412.00000000 - 2462.00000000
Company: LG Electronics USA, Inc.
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

T310i User Guide — English Some of the contents in this manual may differ from your phone depending on the software of the phone or your service provider. Disposal of your old appliance 1 When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC. 2 All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities. 3 The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health. 4 For more detailed information about disposal of your old appliance, please contact your city offi ce, waste disposal service or the shop where you purchased the product. Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. “ Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Part 15 Class B Compliance This device and its accessories comply with part15 of FCC rules. Operation is subject to the following two conditions: (1) This device & its accessories may not cause harmful interference. (2) This device & its accessories must accept any interference received, including interference that may cause undesired operation. Body-worn Operation This device has been tested for typical body-worn operations with the distance of 0.79inches (2.0cm) from the user’s body. To comply with FCC RF exposure requirements, a minimum separation distance of 0.79inches(2.0cm) must be maintained from the user's body. Additionally, Belt clips, holsters & other body-worn accessories may not contain metallic components. 2 Installing the SIM card and the handset battery Installing the SIM Card When you subscribe to a cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, any optional services available and many others. Important! › The plug-in SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting or removing the card. Keep all SIM cards out of the reach of small children. Illustrations Always switch the device off and disconnect the charger before removing the battery. 1 Remove the back cover. 2 Lift battery away. 3 Insert the SIM card. 4 Insert the battery pack. 5 Attach the back cover. 6 Charge the battery. 3 Phone Components Earpiece Call key Dials a phone number and answers incoming calls. End key Volume keys • When the screen is at the Home screen: Ring tone and touch tone volume. • During a call: Earpiece volume. • Down volume key: Press and hold to activate/ deactivate Silent mode. Handsfree or Stereo earphone connector Clear key Go back to a previous screen. Power/Lock key • Short press to turn on/off the screen. • Long press for power on/off. 4 Using your touch screen Touch screen tips • To select an item, touch the centre of the icon. • Do not press too hard. The touchscreen is sensitive enough to pick up a light, firm touch. • Use the tip of your finger to touch the option you require. Be careful not to touch any other keys. • Whenever your T310i is not in use, it will return to the lock screen. Control the touch screen The controls on the T310i touch screen change dynamically depending on the task you are carrying out. Opening Applications To open any application, simply touch its icon. Scrolling Drag from side to side to scroll. On some screens, such as the call history list, you can also scroll up or down. 5 You can drag and click what you need right away in all home screen types. Your home screen Widget home screen - When you touch on the bottom right of the screen, the mobile widget panel appears. When you register widget by dragging it, the widget is created in the spot where it was dropped. Active Speed dial home screen - When you touch , the speed dial list appears. You can call, send a message or edit the contact directly in this home screen. Active 6 Your menu screen You can drag from side to side to scroll what you need right away in all menu screen. To swap between the menu screens just wipe quickly over the display from left to right, or right to left. 1 Call screen- Send the message or make a call in this menu 2 Multimedia screen- Use Google menu or 3 Application screen- Send email or enjoy SNS. 7 Calls Making a Call 1 Touch to open the keypad. 2 Key in the number using the keypad. 3 Touch to initiate the call. TIP! To enter + for making an international call, press and hold 0 + . Press the power key to lock the touchscreen to prevent calls being made by mistake. Making a call from your contacts 1 From the home screen touch to open the Contacts. 2 Tap the Name field box on the top of the screen and enter the first few letters of the contact you would like to call using the keypad. 3 From the filtered list, touch the Ca…

Text truncated - open the document above for the full version.

Cover Letter(s)

Date: March 22, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

Cover Letter(s)

Date: July 2 7, 2010 Fed eral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJT310I Equipment Class: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

Cover Letter(s)

Chris Harvey From: Ha, Jim (Gunpo) [[email protected]] Sent: Sunday, August 08, 2010 9:00 PM To: Chris Harvey -TCB Cc: Jo, Jenny (Gunpo); Loh, Grace (Gunpo) Subject: RE: LG Electronics Inc., FCC ID: BEJT310I, Assessment NO.: AN10T0690, Notice#1 Attachments: LG-T310i Test setup photos(SAR).pdf Page 1 of 4 8/9/2010 Dear Chris, I attached SAR setup photos for the FCC ID: BEJT310I on behalf Jenny, since she is out of the office during this week. Please find the attachment. Thanks. 감사합니다. Best Regards, Jim Ha / 하지민 Wireless Div. / SGS Testing Korea Co., Ltd. SGS B/D, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone +82 31-428-5857 Mobile +82 10-2720-8556 Fax +82 31 428 5859 E-mail [email protected] homepage http://www.kr.sgs.com/ee 보낸 사람: Chris Harvey [[email protected]]이(가) Chris Harvey [[email protected]] 대신 보냄 보낸 날짜: 2010년 8월 7일 토요일 오전 4:39 받는 사람: Loh, Grace (Gunpo) 참조: [email protected]; [email protected]; Ko, Duke (Gunpo); Jo, Jenny (Gunpo); charvey- [email protected]; Jeong, Feel (Gunpo) 제목: RE: LG Electronics Inc., FCC ID: BEJT310I, Assessment NO.: AN10T0690, Notice#1 Grace, I received an out of office response from Jenny’s e-mail. Can you send the SAR setup photos fo r the FCC ID: BEJT310I? Best regards, Chris Harvey From: Chris Harvey [mailto:[email protected]] Sent: Friday, August 06, 2010 3:37 PM To: 'Jo, Jenny (Gunpo)'; '[email protected]'; 'Jeong, Feel (Gunpo)' Cc: '[email protected]'; '[email protected]'; '[email protected]'; 'Ko, Duke (Gunpo)' Subject: RE: LG Electronics Inc., FCC ID: BEJT310I, Assessment NO.: AN10T0690, Notice#1 Thank you Jenny. I can not seem to locate the SAR test photos for DTS and PCE applications. Can you please resend ASAP. Best regards, Chris Harvey From: Jo, Jenny (Gunpo) [mailto:[email protected]] Sent: Friday, August 06, 2010 3:38 AM To: [email protected]; Jeong, Feel (Gunpo) Cc: [email protected]; [email protected]; [email protected]; Ko, Duke (Gunpo) Subject: RE: LG Electronics Inc., FCC ID: BEJT310I, Assessment NO.: AN10T0690, Notice#1 Dear Chris Regarding your inquiry, our test engineer replied as below, - I double checked RF power and data pattern had similar as below table. - Then, I chose again 11 Mbps and 54 Mbps as worst case of 11b and 11g respectively. WLAN 802.11b Mode RatedMeasured PowerLimit Frequncy[MHz] Channel No. [Mbps](dBm)(dBm) 2412 1 1 15.10 30 2 15.11 30 5 15.15 30 11 15.26 30 2437 6 1 15.17 30 2 15.15 30 5 15.21 30 11 15.22 30 2462 11 1 16.17 30 2 16.16 30 5 16.24 30 11 16.28 30 802.11g Mode RatedMeasured PowerLimit Frequncy[MHz] Channel No. [Mbps](dBm)(dBm) 2412 1 6 12.13 30 9 12.14 30 12 12.15 30 18 12.15 30 24 12.16 30 36 12.17 30 48 12.32 30 54 12.32 30 2437 6 6 13.24 30 9 13.26 30 12 13.24 30 18 13.17 30 24 13.23 30 36 13.25 30 48 13.23 30 54 13.26 30 6 13.67 30 Page 2 of 4 8/9/2010 Many thanks, Jenny Jo(Ms)/조찬화 GSM Lab/Wireless Division Assistant Section Chief -----Original Message----- From: [email protected] [mailto:[email protected]] Sent: Friday, August 06, 2010 2:10 PM To: Jo, Jenny (Gunpo); Jeong, Feel (Gunpo) Cc: [email protected]; [email protected]; [email protected] Subject: LG Electronics Inc., FCC ID: BEJT310I, Assessment NO.: AN10T0690, Notice#1 Dear Jenny and Feel, You are listed as the Technical Contact for the above referenced TCB application. The following item needs to be resolved before the review can be continued: The DTS RF test report indicates that the worst case emissions are generated in the 11Mb/s and 54Mb/s modes, but typically the lower data rates tend to generate the Worst case power and emissions. Please double check the RF power and if the typical lower data rate is still not the worst case please explain why the higher data rates are worst case in this device. If the lower data rates are actually worst there may be additional testing necessary. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not 2462 11 9 13.68 30 12 13.82 30 18 13.75 30 24 13.70 30 36 13.80 30 48 13.85 30 54 13.94 30 Page 3 of 4 8/9/2010 necessarily represent those of the Company. Finally, the recipient should check this email and an y attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Page 4 of 4 8/9/2010

Cover Letter(s)

External Photos

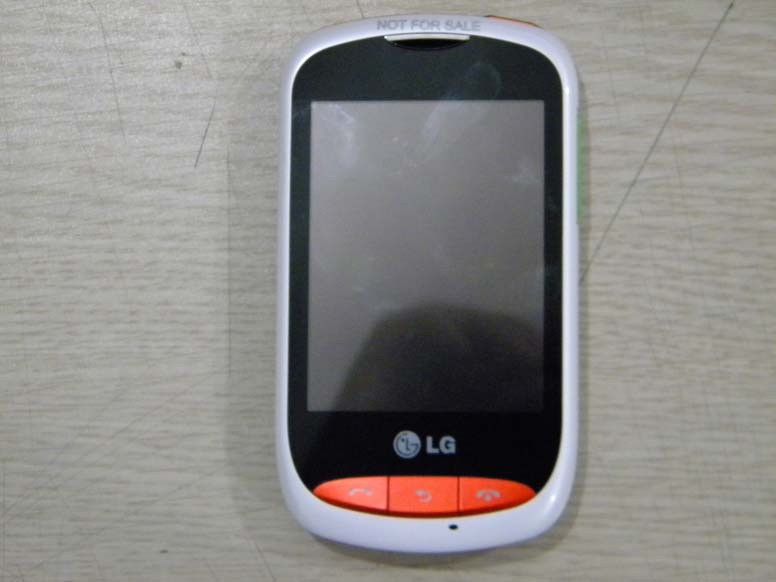

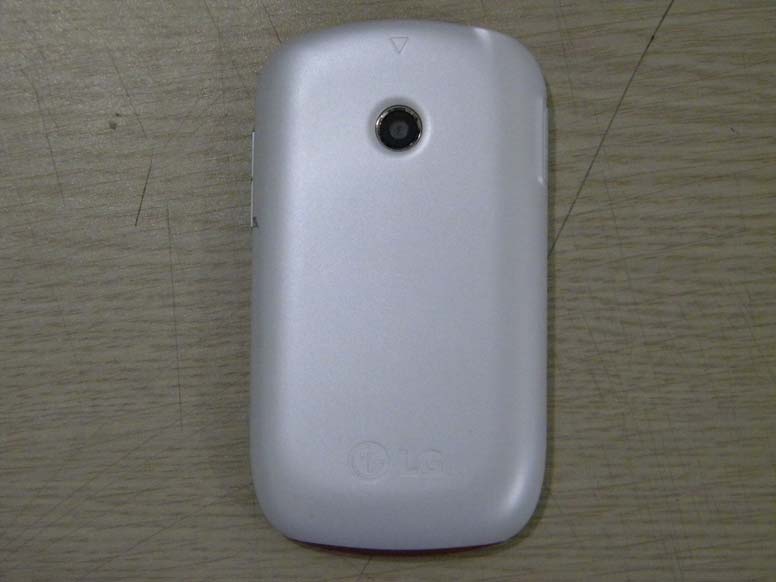

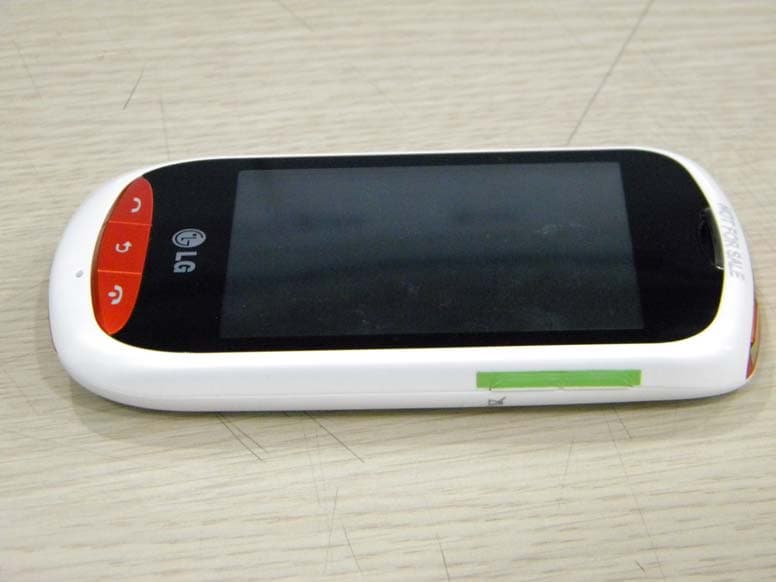

External photos of EUT Front view of EUT Rear view of EUT Left view of EUT Right view of EUT

ID Label/Location Info

Model No: LG-T310i FCC ID : BEJT310I S/N : Made in Korea LG Electronics Inc. LGE

Internal Photos

Internal photos of EUT Internal view of EUT Antenna BT and Wifi Antenna GSM Antenna Top view of Main PCB Bottom view of Main PCB Top view of LCD module Bottom view of LCD module

RF Exposure Info

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-130 Page 1 of 104 MCCL SAR TEST REPORT Specific Absorption Rate Issued under the authority of E. S. Park / Technical Manager MCCL Reviewed by H. S. Shim /Vice Technical Manager MCCL Prepared by H. S. Shim / Test Engineer MCCL This report may not be reproduced other than in full, except with the prior written approval by MCCL Test Report No : MCCL-3-10-130 Product : Cellular Cellular/PCS GSM with Bluetooth & WLAN Model Name(s) :LG-T310i, T310i Manufacturer :LG Electronics, Inc. Applicant : Application Type : LG Electronics, Inc. Certification Device Category :Licensed Portable Transmitter Held to Ear (PCE) Standards : §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Date of Sample Receipt :July 02, 2010 Date of Issue : Test Device Serial No. : July 30, 2010 Pre-Production Sample [S/N: #1] Test Result :PASS SUMMARY This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI / IEEE C95.1(2005) and had been tested in accordance with the measurement procedures specified in FCC/OET bulletin 65 Supplement C (2001) , ANSI / IEEE 1528 – Dec. 2003 and in applicable Industry Canada Radio Standards specifications (RSS) ※ The test results in this test report apply only to sample(s) tested. MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-130 Page 2 of 104 MCCL TABLE OF CONTENTS 1. TEST RESULT SUMMARY ········································································································3 2. DESCRIPTION OF THE DEVICE UNDER TEST·························································· 4 2.1 Antenna Description·································································································· 4 2.2 Device Description···································································································· 4 3. INTRODUCTION············································································································· 5 4. SAR MEASUREMENT SYSTEM ·················································································· 6 4.1 SAR Measurement Setup·························································································6 4.2 DASY4 E-Field Probe System·················································································· 7 4.3 Phantom···················································································································· 9 4.4 Brain & Muscle Simulating Mixture Characterization ···········································10 4.5 Device Holder for Transmitters··············································································· 11 4.6 Validation Dipole ···································································································· 11 5. SAR MEASUREMENT PROCEDURE········································································· 12 6. DEFINITION OF REFERENCE POINT········································································ 13 6.1 EAR Reference Point······························································································ 13 6.2 Handset Reference Points······················································································ 14 7. TEST CONFIGURATION POSITIONS········································································ 15 7.1 Positioning for Cheek/Touch··················································································· 15 7.2 Positioning for Ear / 15 ° Tilt···················································································· 16 7.3 Body Holster /Belt Clip Configuration······························································· 17 8. MEASUREMENT UNCERTAINTY··············································································· 18 9. ANSI/IEEE C95.1–2005 RF EXPOSURE LIMITS ····················································· 19 10. SYSTEM VERIFICATION··························································································· 20 11. SAR Evaluation Considerations for Handsets with Multiple Transmitters and Antennas ···································································································································· 23 12. RF CONDUCTED POWER ····················································································· 24 13. TEST CONFIGURATIONS ·····················································································26 14. MEASUREMENT RESULTS ································································································· 27 15. TEST EQUIPMENT ············································································································ 30 16. REFERENCES············································································································ 31 APPENDIX A: Validation Test Data······································································ 32 APPENDIX B: SAR Test Data··············································································· 41 APPENDIX C: Calibration Certificates································································· 73 MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-130 Page 3 of 104 MCCL 1. TEST RESULT SUMMARY Maximum Results Found During SAR Evaluation 1. Head Configuration 2. Body Worn Configuration 3. Measurement Uncertainty ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram ANSI / IEEE C95.1(2005) - SAFETY LIMIT Spatial Peak Uncontrolled Exposure/General Population 1.6 W/kg averaged over 1 gram Model Name(s) : LG-T310i, T310i Date of Test : July…

Text truncated - open the document above for the full version.

RF Exposure Info

MCCL, 60-39, Kasan-dong, Kumchon-gu, Seoul, Korea Tel:+82 2 2033 1114, Fax:+82 2 2033 1222 Test Report No: MCCL-3-10-130 Page 31 of 104 MCCL 16. REFERENCES [1] Product standard to demonstrate the compliance of mobile phone with the basic restriction related to human exposure electromagnetic(300MHz – 3GHz), CENELEC EN 50360, July 2001. [2] Basic standard for the measurement of Specific Absorption Rate related to human exposure to electromagnetic fields from mobile phone(300MHz – 3GHz), CENELEC EN 50361, July 2001. [3] Council Recommendations 1999/519/EC on the limitations of exposure of the general public to electromagnetic fields (300MHz – 3GHz) annex II [4] International Commission on Non-lonising Radiation Protection (1998), Guidelines for limiting exposure in time-varying electric, magnetic, and electromagnetic field (up to 300 GHz). Health Physical 74, 494-522. [5] IEEE Standards Coordinating Committee 34 – IEEE Std. 1528 - 2003, Draft Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques. [6] NCRP, National Council on Radiation Protection and Measurements, Biological Effects and Exposure Criteri…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)

[email protected]201-470-2696Fax: 201-816-2003

Test Firm

SGS Korea Co., Ltd.Elan Lee

[email protected]82-31-428-5702Fax: 82-31-427-2370

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	123.00 mW

Confidentiality

Long Term

Grant Notes

Power listed is conducted. This device is co-located in a handset. SAR compliance for body-worn operation is based on a separation distance of 2.0 cm between the unit and the body of the user. The antenna(s) used for this transmitter must not transmit simultaneously with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. The highest reported SAR values for this composite device are: 850 MHz band - Head: 0.52 W/kg; Body-worn: 0.78 W/kg; 1900 MHz band - Head: 1.28 W/kg; Body-worn: 0.60 W/kg. ; 2.4GHz band Body-worn: 0.06 W/kg.
