TLAHW3IU-W(H05) (Online Connectivity Unit) LG Electronics Inc. 19, December, 2019 LGE Confidential What is the OCU(Online Connectivity Unit)  The OCU stands for Online Connectivity Unit  It’s a telematics device that LGE is developing for the Volkswa gen vehicles.  It is a small box installed deep inside passenger cars, and in charge of wireless communications in GSM, WCDMA, and LTE network  It provides voice and data call functions and various online se rvices requested by VW GNSS Antenna Connector Power, CAN, Audio and other data connector GSM/WCDMA/LTE Antenna Connector WCDMA/LTE DRxAntenna Connector LGE Confidential Product Image/ Function Telematics product supporting Emergency Call/LTE service service Product Image • Emergency Call • Mobile Online Services • Positioning/Dead Reckoning-GPS/GNSS/Beidu/Galileo Function LGE Confidential Specification Supporting Bands UMTS B5LTE FDD B5/B7 Modem Chip Qualcomm MDM9240GNSS GPS/Glonass/Beidou Bluetooth No WiFi No Size 130mm x 70.14mm x 37.5mm Weight 300g Power DC12V , 2A Specification Dimension LGE Confidential The OCU3 Features • Call Services - Emergency Call- Automatic Collision Notification Call- Information Call- Road Side Assistance Call • Remote Function Services - Honking And Flashing- Speed Alert- Vehicle Disabling- Battery Charge Management- Departure Time Programming- Door Lock / Unlock- Pre-Trip Climatisation- Trip Statistics- Vehicle Status • Geo-Fencing • POI Address Import • Vehicle Health Report • Vehicle Tracking Major Services Concept GNSS Safety & Security Services Oriented Telematics Terminal Emergency Call Automatic Collision Notification Call Road Side Assistance Call Vehicle Tracking OCU Equipped Vehicles Confidential LGE Confidential OCU3 High Hardware block diagram Confidential LGE Confidential Major Services FCCChanges or modifications not expressly approved by the party re sponsible for compliance could void the user's authority to operate the equipment.This device complies with part 15 of the FCC Rules. Operation i s subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device mustaccept any interference receiv ed, including interference that m ay cause undesired operation. NOTE: This equipment has been tested and found to comply with t he limits for a Class B digital device, pursuant to par t 15 of the FCC Rules. These lim its are designed to provide reasonable protection against ha rmful interference in a residen tial installation. This equipment generates uses and can r adiate radio frequency energy and, if not installed and used in accordance with the instr uctions, may cause harmful int erference to radio communications. However, there is no guarantee that interferenc e will not occur in a particular installation. If this equipment does cause harmful i nterference to radio or television reception, which can be determined by turning the eq uipment off and on, the user is encouraged to try to correct t he interference by one or more of the following measures: - Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.- Connect the equipment into an out let on a circuit different fr om that to which the receiver is connected.- Consult the dealer or an experie nced radio/TV technician for h elp. This device complies with FCC radiation exposure limits set for th for an uncontrolled environment. This device shoul d be installed and operated with minimum distance 20cm between the radiating elemen t of this device and the user. This device complies with FCC radiation exposure limits set for th for an uncontrolled environment. This device shoul d be installed and operated with minimum distance 20cm between the radiating element of this device and the user. LGE Confidential Major Services Antenna informationThe maximum antenna gain including cable loss must not exceed t he following table; Band Frequency range Maximum antenna gain(including cable)[dBi] Band 5 824~849MHz -0.72 Band 7 2500~2570MHz 0.13

Date: Dec 27 2019 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: BEJTLAHW3IU-W To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name : Kyung-Su Han Title : Director, Standards & Compliance

Attestation Letter Company : LG Electronics USA Address : 1000 Sylvan Avenue, Englewood Cliffs, New Jersey, United States, 07632 Product Name : Telematics FCC ID : BEJTLAHW3IU-W The internal antenna is disabled by software. Signature : Date : Dec . 1 9 2019 Name : Kyung -Su Han Title : Director, Standards & Compliance Company : LG Electronics USA

Agent Authorization Company: LG Electronics USA Address: 1000 Sylvan Avenue, Engl ewood Cliffs, New Jersey, United States, 07632 Product Name: Telematics FCC ID: BEJTLAHW3IU-W We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec 27 2019 Name: Kyung-Su Han Title: Director, Standards & Compliance Company: LG Electronics USA

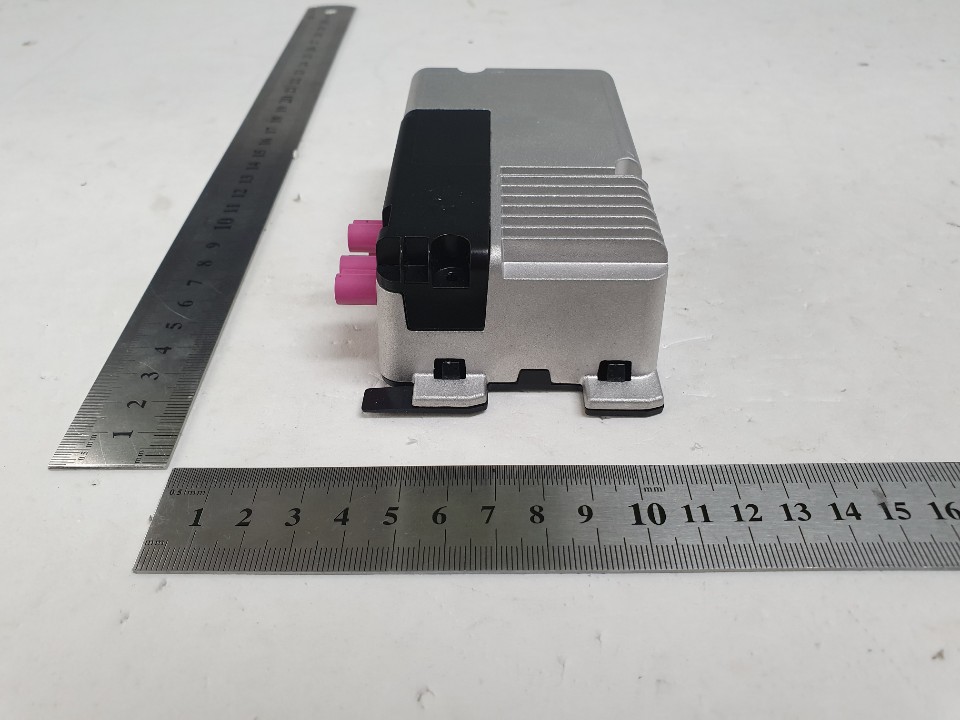

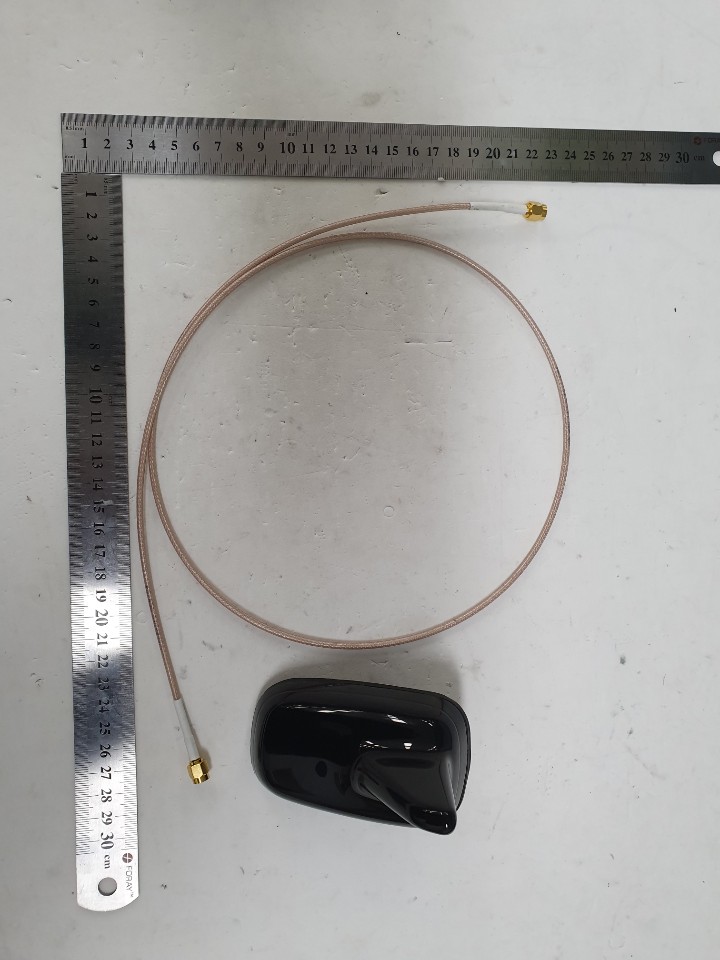

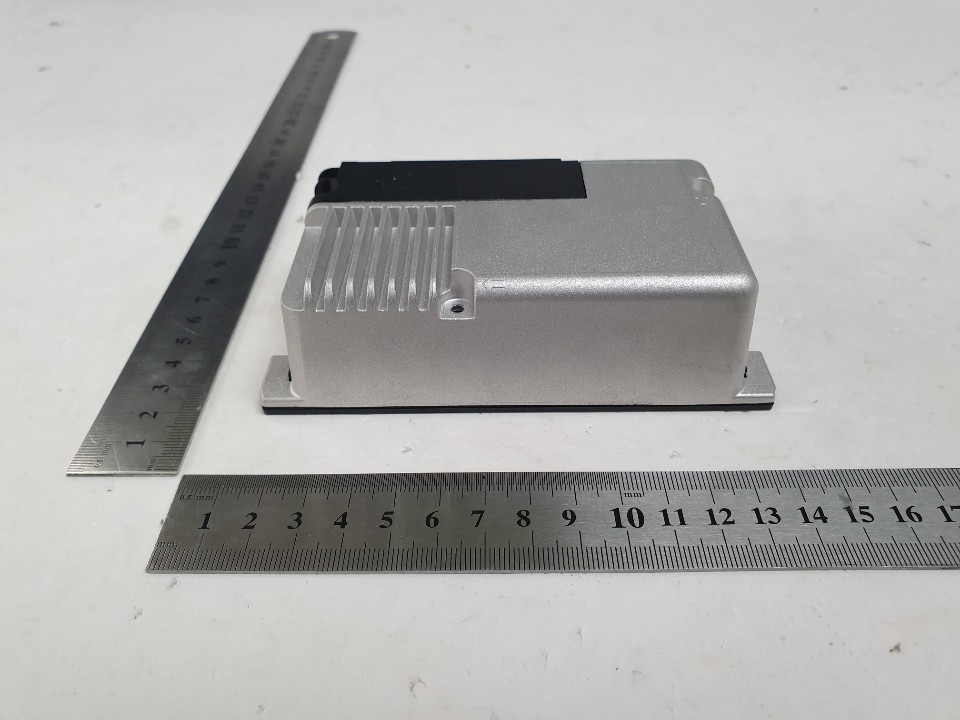

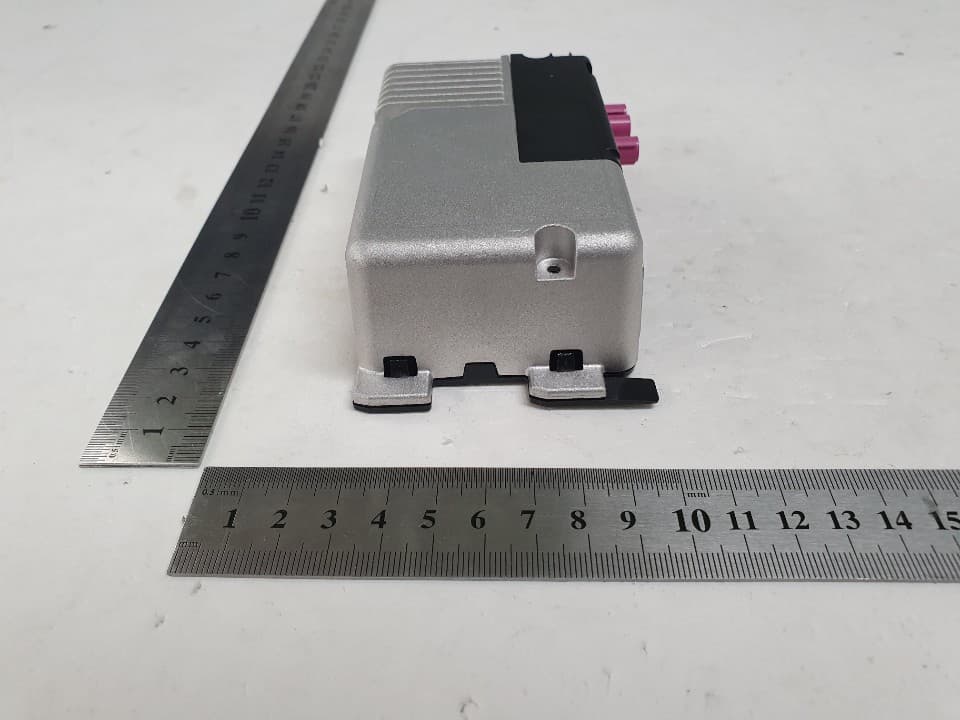

FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Page 1 / 4 View 1 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Page 2 / 4 View 2 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Page 3 / 4 View 3 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Page 4 / 4 View 4 <Antenna, Cable>

VW OCU3 MQB37W ROW (Audi) Label Location FCC ID: BEJTLAHW3IU-W

FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 1 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 2 DRX MAIN GPS FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 3 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 4 <Module> FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 5 FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. View 6 < Internal Antenna >

FCC ID: RF function or Mode Tune-up Ma x Conducted power(dBm) Measured Conducted power(dBm) Measured EIRP (dBm) Adjusted EIRP to tune-up Max(dBm) Maximum powe r density (mW/cm 2 ) Requriment (mW/cm 2 ) WCDMA850 826.40 ~ 846.60 24.00 22.77 23.17 24.40 0.0548 0.550 LTE Band 5 824.00 ~ 849.00 23.00 21.61 23.20 24.59 0.0573 0.549 LTE Band 7 2500.00 ~ 2570.00 23.00 22.08 23.65 24.57 0.0570 1.000 ~~~~~ ▪ S = - Note = / ( 4 X 20 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : BEJTLAHW3IU-W MPE Calculation : WCDMA, LTE Frequency range (MHz) The EUT will only be used with a separation of 20 centimeters o r greater between the antenna and the body of the user. The MPE sample calculation for this exposure is shown below.Note1: Please refer to the operation description for Max tune-u p power. Note2: Adjusted EIRP to tune-up Max = Measured EIRP + (Tune-up Max. Conducted power - Measured Conducted power) ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 24.4 S= Maximum power density(mW/cm 2 ) 0.0548 EIRP= Equivalent Isotropic Radiated Power(mW)R= Distance to the center of the radiation of the anten n

Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 75 ` Test Report Version Test Report No. Date Description Tested by Reviewed by DRTFCC1912-0325 Dec. 27, 2019 Initial issue InHee Bae GeunKi Son Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 75 Table of Contents 1. GENERAL INFORMATION ........................................................................ 5 2. INTRODUCTION ........................................................................................ 6 2.1 EUT DESCRIPTION ............................................................................................................. 6 2.2. EUT CAPABILITIES ............................................................................................................ 6 2.3. TESTING ENVIRONMENT .................................................................................................. 6 2.4 MEASURING INSTRUMENT CALIBRATION ....................................................................... 6 2.5. MEASUREMENT UNCERTAINTY ....................................................................................... 6 2.6. TEST FACILITY ................................................................................................................... 6 3. DESCRIPTION OF TESTS ......................................................................... 7 3.1 ERP & EIRP (Effective Radiated Power & Equivalent Isotropic Radiated Power) .......... 7 3.2 PEAK TO AVERAGE R AT I O ................................................................................................ 9 3.3 OCCUPIED BANDWIDTH. ................................................................................................. 10 3.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ....................................................... 11 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL ............................. 12 3.6 UNDESIRABLE EMISSIONS ............................................................................................. 13 3.7 FREQUENCY STABILITY .................................................................................................. 14 4. LIST OF TEST EQUIPMENT ................................................................... 15 5. SUMMARY OF TEST RESULTS .............................................................. 16 6. SAMPLE CALCULATION ........................................................................ 17 7. TEST DATA .............................................................................................. 19 7.1 CONDUCTED OUTPUT POWER ....................................................................................... 19 7.2 OCCUPIED BANDWIDTH .................................................................................................. 21 7.3 PEAK TO AVERAGE RATIO .............................................................................................. 21 7.4 BAND EDEG EMISSIONS (Conducted) ............................................................................ 21 7.5 SPURIOUS AND HARMONICS EMISSIONS (Conducted) ............................................... 21 7.6 ERP & EIRP ....................................................................................................................... 22 7.6.1 LTE Band 5 ................................................................................................................. 22 7.6.2 LTE Band 7 ................................................................................................................. 23 7.7 UNDESIRABLE EMISSIONS (Radiated) ........................................................................... 24 7.7.1 LTE Band 5 ................................................................................................................. 24 7.7.2 LTE Band 7 ................................................................................................................. 25 7.8 FREQUENCY STABILITY .................................................................................................. 26 7.8.1 LTE Band 5 ................................................................................................................. 26 7.8.2 LTE Band 7 ................................................................................................................. 27 8. TEST PLOTS ........................................................................................... 28 8.1 OCCUPIED BANDWIDTH .................................................................................................. 28 8.1.1 LTE Band 5 ................................................................................................................. 28 8.1.2 LTE Band 7 ................................................................................................................. 32 8.2 PEAK TO AVERAGE RATIO .............................................................................................. 36 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 75 8.2.1 LTE Band 5 ................................................................................................................. 36 8.2.2 LTE Band 7 ................................................................................................................. 40 8.3 BAND EDGE EMISSIONS(Conducted) ............................................................................. 44 8.3.1 LTE Band 5 ................................................................................................................. 44 8.3.2 LTE Band 7 ................................................................................................................. 52 8.4 SPURIOUS AND HARMONICS EMISSIONS(Conducted) ........................…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 36 / 75 8.2 PEAK TO AVERAGE RATIO 8.2.1 LTE Band 5 LTE Band 5 / 10 MHz / QPSK - RB Size 50 LTE Band 5 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 37 / 75 LTE Band 5 / 5 MHz / QPSK - RB Size 25 LTE Band 5 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 38 / 75 LTE Band 5 / 3 MHz / QPSK - RB Size 15 LTE Band 5 / 3 MHz / 16QAM - RB Size 15 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 39 / 75 LTE Band 5 / 1.4 MHz / QPSK - RB Size 6 LTE Band 5 / 1.4 MHz / 16QAM - RB Size 6 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 40 / 75 8.2.2 LTE Band 7 LT E Band 7 / 20 MHz / QPSK - RB Size 100 LTE Band 7 / 20 MHz / 16QAM - RB Size 100 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 41 / 75 LTE Band 7 / 15 MHz / QPSK - RB Size 75 LTE Band 7 / 15 MHz / 16QAM - RB Size 75 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 42 / 75 LTE Band 7 / 10 MHz / QPSK - RB Size 50 LTE Band 7 / 10 MHz / 16QAM - RB Size 50 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 43 / 75 LTE Band 7 / 5 MHz / QPSK - RB Size 25 LTE Band 7 / 5 MHz / 16QAM - RB Size 25 Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 44 / 75 8.3 BAND EDGE EMISSIONS(Conducted) 8.3.1 LTE Band 5 - Lower Band Edge LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (25/0) - Lower Extended Band Edge LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (25/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 45 / 75 - Upper Band Edge LTE Band 5 / 10MHz / 16QAM - RB Size/Offset (1/49) - Upper Extended Band Edge LTE Band 5 / 10MHz / QPSK - RB Size/Offset (25/25) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 46 / 75 - Lower Band Edge LTE Band 5 / 5MHz / 16QAM - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 5MHz / 16QAM - RB Size/Offset (12/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 47 / 75 - Upper Band Edge LTE Band 5 / 5MHz / 16QAM - RB Size/Offset (1/24) - Upper Extended Band Edge LTE Band 5 / 5MHz / QPSK - RB Size/Offset (25/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 48 / 75 - Lower Band Edge LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (15/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 49 / 75 - Upper Band Edge LTE Band 5 / 3MHz / 16QAM - RB Size/Offset (1/14) - Upper Extended Band Edge LTE Band 5 / 3MHz / QPSK - RB Size/Offset (15/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 50 / 75 - Lower Band Edge LTE Band 5 / 1.4MHz / QPSK - RB Size/Offset (1/0) - Lower Extended Band Edge LTE Band 5 / 1.4MHz / 16QAM - RB Size/Offset (6/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 51 / 75 - Upper Band Edge LTE Band 5 / 1.4MHz / QPSK - RB Size/Offset (3/3) - Upper Extended Band Edge LTE Band 5 / 1.4MHz / 16QAM - RB Size/Offset (6/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 52 / 75 8.3.2 LTE Band 7 - Band Edge (Low CH) LTE Band 7 / 20MHz / QPSK - RB Size/Offset (100/0) - Band Edge (MID CH) LTE Band 7 / 20MHz / QPSK- RB Size/Offset (100/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 53 / 75 - Band Edge (High CH) LTE Band 7 / 20MHz / 16QAM - RB Size/Offset (100/0) - Band Edge (Low CH) LTE Band 7 / 15MHz / 16QAM - RB Size/Offset (75/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 54 / 75 - Band Edge (MID CH) LTE Band 7 / 15MHz / QPSK - RB Size/Offset (75/0) - Band Edge (High CH) LTE Band 7 / 15MHz / 16QAM - RB Size/Offset (75/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 55 / 75 - Band Edge (Low CH) LTE Band 7 / 10MHz / 16QAM - RB Size/Offset (50/0) - Band Edge (MID CH) LTE Band 7 / 10MHz / QPSK - RB Size/Offset (50/0) Report No.: DRTFCC1912-0325 FCC ID: BEJTLAHW3IU-W TRF-RF-230(05)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 56 / 75 - Band Edge (High CH) LTE Band 7 / 10MHz / QPSK - RB Size/Offset (25/25) - Band Edge (Low CH) LTE Band 7 / 5MHz / 16QAM - RB Size/Offset (25/0) Repor…

Text truncated - open the document above for the full version.

Report No.: DRTFCC1912-0324 FCC ID: BEJTLAHW3IU-W TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 2 / 36 Test Report Version Test Report No. Date Description Tested by Reviewed by DRTFCC1912-0324 Dec. 27, 2019 Initial issue InHee Bae GeunKi Son Report No.: DRTFCC1912-0324 FCC ID: BEJTLAHW3IU-W TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 3 / 36 Table of Contents 1. GENERAL INFORMATION ........................................................ 4 2. INTRODUCTION ........................................................................ 5 2.1. EUT DESCRIPTION .......................................................................................................... 5 2.2. EUT CAPABILITIES .......................................................................................................... 5 2.3. TESTING ENVIRONMENT ............................................................................................... 5 2.4. MEASURING INSTRUMENT CALIBRATION .................................................................. 5 2.5. MEASUREMENT UNCERTAINTY .................................................................................... 5 2.6. TEST FACILITY ................................................................................................................ 5 3. DESCRIPTION OF TESTS ......................................................... 6 3.1 ERP & EIRP (Effective Radiated Power & Equivalent Isotropic Radiated Power) ..... 6 3.2 PEAK TO AVERAGE R AT I O ............................................................................................. 8 3.3 OCCUPIED BANDWIDTH (99 % Bandwidth) ................................................................ 10 3.4 SPURIOUS EMISSIONS AT ANTENNA TERMINAL ...................................................... 11 3.5 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ................................................... 12 3.6 RADIATED SPURIOUS EMISSIONS .............................................................................. 13 3.7 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................... 14 4. LIST OF TEST EQUIPMENT .................................................. 15 5. SUMMARY OF TEST RESULTS ............................................. 16 6. EMISSION DESIGNATOR AND SAMPLE CALCULATION .... 17 7. TEST DATA ............................................................................ 19 7.1 Conducted OUTPUT POWER ........................................................................................ 19 7.2 PEAK TO AVERAGE RATIO ........................................................................................... 20 7.3 OCCUPIED BANDWIDTH (99 % Bandwidth) ................................................................ 20 7.4 SPURIOUS MISSIONS AT ANTENNA TERMINAL ......................................................... 20 7.5 BAND EDGE EMISSIONS AT ANTENNA TERMINAL ................................................... 20 7.6 EFFECTIVE RADIATED POWER .................................................................................... 21 7.7 RADIATED SPURIOUS EMISSIONS .............................................................................. 22 7.8 FREQUENCY STABILITY / VARIATION OF AMBIENT TEMPERATURE ...................... 23 7.8.1 FREQUENCY STABILITY (WCDMA850) ................................................................... 23 8. TEST PLOTS ........................................................................... 24 8.1 PEAK TO AVERAGE RATIO ......................................................................................... 24 8.2 OCCUPIED BANDWIDTH (99 % Bandwidth) .............................................................. 25 8.3 SPURIOUS EMISSIONS AT ANTENNA TERMINAL .................................................... 29 8.4 BAND EDGE EMISSIONS AT ANTENNA TERMINAL.................................................. 33 Report No.: DRTFCC1912-0324 FCC ID: BEJTLAHW3IU-W TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 4 / 36 1. GENERAL INFORMATION Applicant Name : LG Electronics USA, Inc. Address : 1000 Sylvan Ave. Englewood Cliffs, New Jersey, United States 07632 FCC ID : BEJTLAHW3IU-N FCC Classification : PCS Licensed Transmitter (PCB) EUT : Telematics Model Name : TLAHW3IU-W Add Model Name : NA Supplying power : DC 12 V Antenna Type : External Antenna Mode Tx Frequency (MHz) Emission Designator ERP (Max. Power) EIRP (Max. Power) dBm W dBm W WCDMA850 826.4 ~ 846.6 4M15F9W 21.02 0.126 23.17 0.207 HSUPA850 826.4 ~ 846.6 4M15F9W 20.48 0.112 22.63 0.183 Report No.: DRTFCC1912-0324 FCC ID: BEJTLAHW3IU-W TRF-RF-210(11)171208 Prohibits the copying and re-issue of this report without DT&C approval. Pages: 5 / 36 2. INTRODUCTION 2.1. EUT DESCRIPTION The Equipment Under Test (EUT) supports WCDMA/LTE. 2.2. EUT CAPABILITIES This EUT contains the following capabilities: 850 WCDMA/HSUPA, Multi-band LTE 2.3. TESTING ENVIRONMENT Ambient Condition ▪ Temperature +22 °C ~ +24 °C ▪ Relative Humidity 43 % ~ 45 % 2.4. MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment, which is traceable to recognized national standards. 2.5. MEASUREMENT UNCERTAINTY The measurement uncertainties shown below were calculated in accordance with requirements of ANSI C63.4-2014. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. Parameter Measurement uncertainty Radiated Disturbance (Below 1 GHz) 5.1 dB (The confidence level is about 95 %, k = 2) Radiated Disturbance (1 GHz ~ 18 GHz) 5.4 dB (The confidence level is about 95 %, k = 2) Radiated Disturbance (Above 18 GHz) 5.3 dB (The confidence level is about 95 %, k = 2) 2.6. TEST FACILITY DT&C Co., L…

Text truncated - open the document above for the full version.

FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (below 1000MHz) FCC ID: BEJTLAHW3IU-W Copyright Ⓒ 2019, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz)
