BEJUN200Cellular/PCS CDMA Phone with Bluetooth

1 User Manual UN200 2 Getting Started Unlocking Your Phone If you received your UN200 in the mail, you may need to unlock it before making calls. 1. Press the END/PWR Switch for 2~3 seconds. 2. Enter your four-digit lock code. For security purposes, the code will not be visible as you type. Note: If you can’t recall your lock code, try using the last four digits of your Social Security number, the last four digits of your Phone Number or 0000. View of Phone 1. END/PWR key : Lets you power the phone on or off. 2. Antenna: Internal antenna provides optimum reception for 800 MHz & 1900 MHz frequencies. 3. Headset Jack: Provides connection for an optional headset. 4. Volume Control Keys: Adjust the Ring Volume in the Main Menu or the Voice Volume during a call. The keys also scroll through mouths in the Calendar or pages in the Mini Browser. 5. OK: select menu options. Installing and Removing the Battery To install the battery, insert the bottom of the battery into the back of the phone. Then, push the battery down until the latch clicks. To remove the battery, press up on the latch and remove the battery from the phone. Turning Your Phone On and Off 3 To turn your phone on, push the On/Off Switch [END/PWR] for 2 ~3 seconds. Your phone performs a short self-test before letting you know it is operational. If your phone does not turn on, make sure the battery is installed correctly and is adequately charged or has external power (via the AC Adapter, Cigarette Lighter Adapter). To turn your phone off, push the On/Off Switch [END/PWR] for 2 ~3 seconds. Main Menu When your phone acquires Service, the Greeting (a banner of text), the current time and date and the Main Menu are displayed. If you are in authorized cellular provider’s service area, you are ready to send and receive calls. Power Save Mode When the phone is in an area without service for 15 minutes, it stops searching for service and enters into the power Save Mode. When your phone activates this feature, Power Save is displayed on your screen. The phone automatically checks for service periodically or you can check manually by pressing any key. 4 Menu Navigation The Mouse Key lets you scroll circularly through menus quickly and easily As you navigate through a menu, the options are highlighted (Highlighted Test Example ) . Select an option by highlighting it and pressing [OK]. The scroll bar at the right of the menu keeps track of your position in the menu at all times. For example, if you want to view your last incoming call: 1. From the Main Menu, select [CALL HISTORY] press 2. (It may already be highlighted.) 2. Press the Mouse Key down to highlight and press [OK]. If you have received any calls, they are displayed on the screen. Entering Characters Using the Keypad To enter a letter, punctuation or number when creating Phone Book or Scheduler entries, press the corresponding key until the desired character appears. By default, the first letter of a word is capitalized and following letters are lowercase. Characters in the following order: 5 After a character is entered, the cursor automatically advances to the next space after two seconds. You can also advance the cursor by pressing or entering a character not on the same key. If you make a mistake, press to move the cursor left or [CLR] to erase a character. To clear the entire entry, press and hold [CLR] for two seconds. 6 Display Icons Display icons are the symbols your phone uses to communicate important information. They are as follows: ICON DESCRIPTION Alarm Battery Antenna In use No service Text + voice message Text message Vo i c e Voice Privacy Vibrate Roaming TTY SSI Ringer Ringer off Antenna The antenna on your UN200 provides maximum reception by holding the phone upper position. Signal Strength The quality of each call you make or receive depends on the signal strength on your area. The number of bars in the Signal Strength icon informs you of the current strength. The more bars, the stronger the signal. 7 Battery Capacity Your UN200 is equipped with a Lithium Polymer battery. It allows you to recharge your battery before it is fully drained. The battery provides approximately 180 minuets of continuous digital talk time or approximately 110 hours of continuous digital standby time. Note: Long backlight settings affect the battery’s talk and standby times. When the battery reaches 5% of its capacity, the battery icon blinks. When there is about one minute of talk time left, the phone sounds an audible alert every 30 seconds and then powers down. If the battery’s charge is completely run down, it takes 2 to 3 hours to fully recharge. It is not necessary to let the battery completely run down before recharging. To charge your batteries, use only approved charging accessories. 3.25 8 Using the AC Adapter To charge the battery, plug the AC Adapter into a standard wall outlet and connect it to the phone via the I/O Connector on the bottom of the phone. Alternatively, you can place the phone in the charging cradle provided with your phone and connect the AC Adapter to the back of the cradle. The battery Charge Status icon flashes during charging. When the battery is fully charged, the battery icon stops flashing. Using Your Phone Placing a Call When the phone is turned on, check the Signal Strength icon to see of you are in a Service Area or authorized PCS CDMA provider’s service area. 1. Unlock the phone. 2. Enter the phone number and press [SEND]. ☞Tip! When dialing long distance, it is not necessary to dial a “1” before the area code. 3. When you are finished with your call and press [END] Roaming With Your Phone Your Phone is you can use it to make and receive calls in many places. Setting Your Phone’s Mode Your Phone allows you to control your ability to roam. (See “Set Mode”) 9 Calling Experience When you use your phone on other PCS CDMA networks, your calling experience and call quality will be quite similar to what you experience when making calls within the Network. …

Text truncated - open the document above for the full version.

Date October 25 2010 LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:LG Electronics Inc. FCC ID: BEJUN200 Date: October 25, 2010 Part 20.19 Certification To Whom It May Concern: The following are the model designations and their associated key features for this FCC ID, according to requirement in the TCB Guidance issued on June 20, 2008. FCC ID BEJUN200 FCC ID: BEJUN200 Model(s): UN200, LG-UN200, LG501C, LG-AN200, LG200, LG-CX200B, LG-CX200, LG-JN200 Air Interfaces: CDMA Wireless Technologies: 1x Bands: CDMA835 / PCS1900 Key Features: Bluetooth Camera GPS Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA

Date: October 25, 2010 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJUN200 Part 20.19 Certification Gentlemen: We, LG Electronics USA, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: October 25, 2010 Fed eral Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJUN 200 Equip ment Class: PCE: PCS Licensed Transmitter held to ear To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure PERMANENT 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee Gener al Manager LG Electronics USA LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

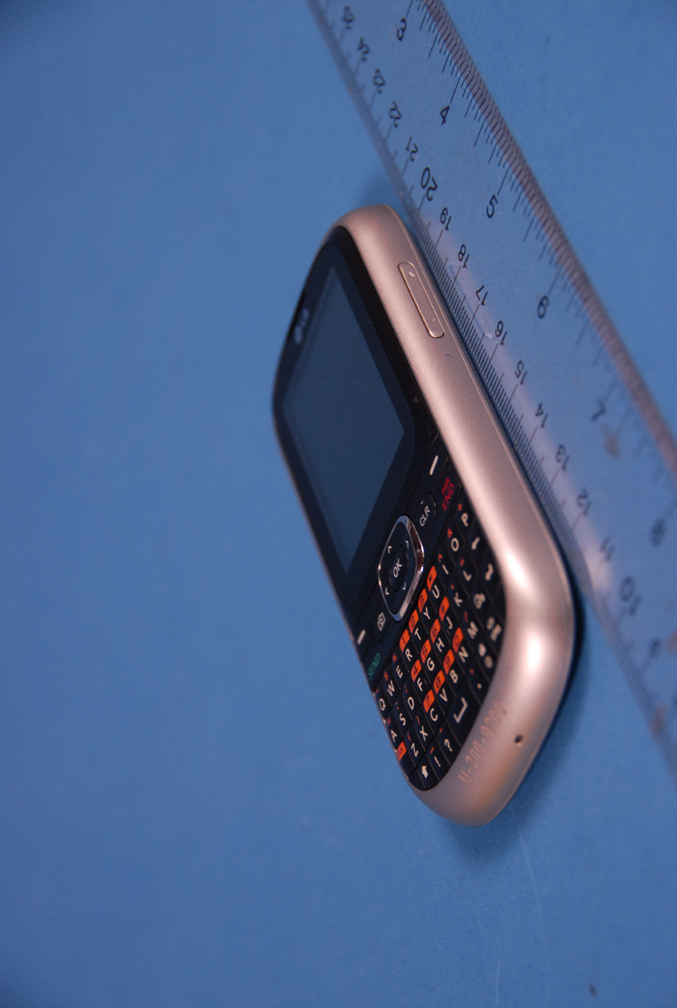

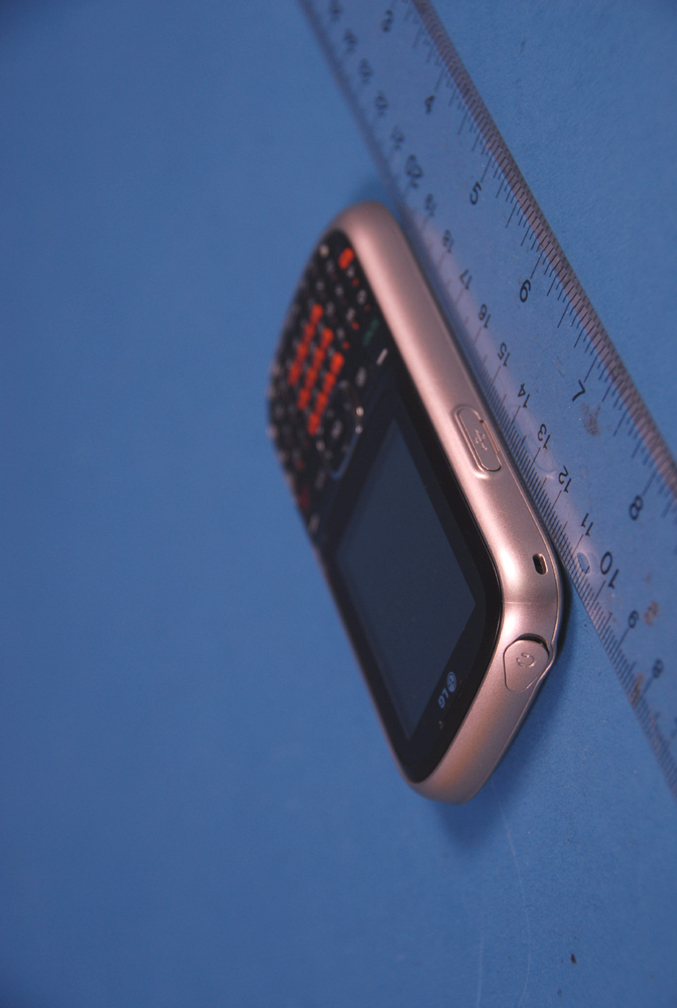

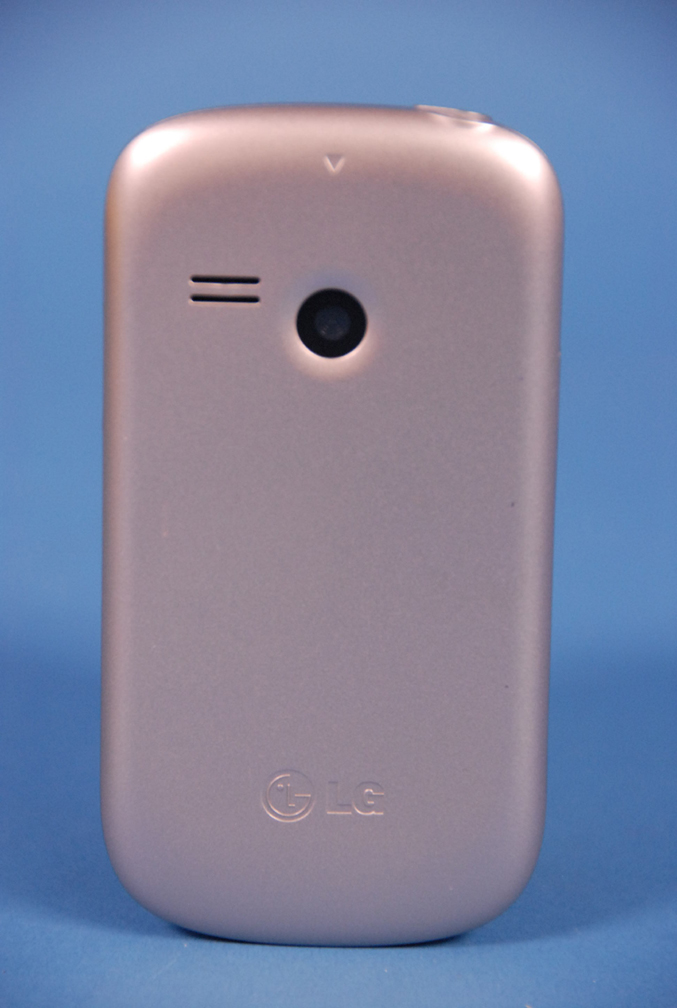

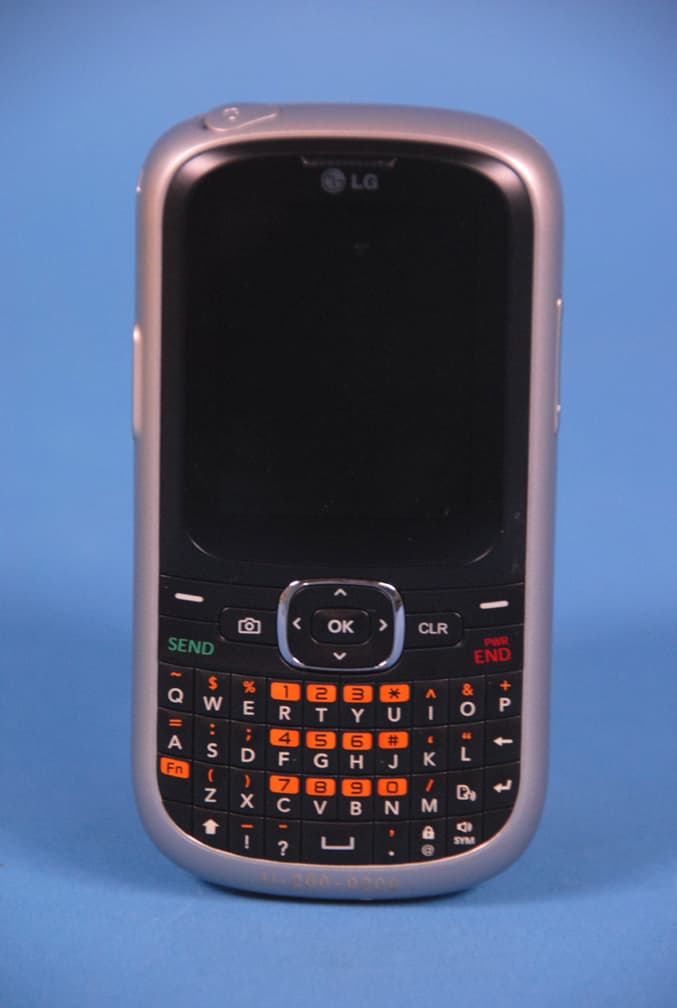

LG Electronics USA FCC ID: BEJUN200 Model: UN200 External Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJUN200 Model: UN200 External Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 External Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 External Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Model No: UN200 FCC ID : BEJUN200 S/N : Made in Korea LG Electronics Inc. LGE

LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 1 of 9 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 2 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 3 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 4 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 5 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 6 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 7 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 8 of 9 © 2010 PCTEST Engineering Laboratory Inc. LG Electronics USA FCC ID: BEJUN200 Model: UN200 Internal Photos EUT Type: Cellular/PCS CDMA Phone with Bluetooth Page 9 of 9 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: BEJUN200 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 32 0Y1010261753.BEJ 10/26/10 Cellular/PCS CDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Applicant Name: Date of Testing: LG Electronics USA 10/26/10 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1010261753.BEJ FCC ID: BEJUN200 APPLICANT: LG ELECTRONICS USA EUT Type: Cellular/PCS CDMA Phone with Bluetooth Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): UN200, LG-UN200, LG501C, LG-AN200, LG200, LG-CX200B, LG-CX200, LG-JN200 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 25.23 dBm Cell. CDMA 24.74 dBm PCS CDMA Max. SAR Measurement: 1.22 W/kg Cell. CDMA Head SAR 0.19 W/kg Cell. CDMA Body SAR 1.01 W/kg PCS CDMA Head SAR 0.79 W/kg PCS CDMA Body SAR Test Device Serial No.: Pre-Production [S/N: SAR] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: BEJUN200 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 32 0Y1010261753.BEJ 10/26/10 Cellular/PCS CDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES ...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 RF EXPOSURE LIMITS ................................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SYSTEM VERIFICATION .............................................................................................................. 18 13 SAR DATA SUMMARY ................................................................................................................. 20 14 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 23 15 EQUIPMENT LIST ......................................................................................................................... 24 16 MEASUREMENT UNCERTAINTIES ............................................................................................ 25 17 CONCLUSION ............................................................................................................................... 26 18 REFERENCES .............................................................................................................................. 27 19 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 29 FCC ID: BEJUN200 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 32 0Y1010261753.BEJ 10/26/10 Cellular/PCS CDMA Phone with Bluetooth © 2010 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz [3] and Health Canada RF Exposure Guidelines Safety Code 6 […
