BEJVS910Cellular/PCS CDMA and 700 MHz LTE Phone with WLAN and Bluetooth

When using this product, the safety precautions below must be taken to avoid possible legal liabilities and damages. Retain and follow all product safety and operating instructions. Observe all warnings in the product operating instructions. To reduce the risk of bodily injury, electric shock, fire, and damage to the equipment, observe the following precautions. ELECTRICAL SAFETY This product is intended for use when supplied with power from the designated battery or power supply unit. Other usage may be dangerous and will invalidate any approval given to this product. SAFETY PRECAUTIONS FOR PROPER GROUNDING INSTALLATION CAUTION: Connecting to improperly grounded equipment can result in an electric shock to your device. This product is equipped with a USB Cable for connecting to a desktop or notebook computer. Be sure your computer is properly grounded (earthed) before connecting this product to the computer. The power supply cord of a desktop or notebook computer has an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet which is properly installed and grounded in accordance with all local codes and ordinances. SAFETY PRECAUTIONS FOR POWER SUPPLY UNIT Use the correct external power source A product should be operated only from the type of power source indicated on the electrical ratings label. If you are not sure of the type of power source required, consult your authorized service provider or local power company. For a product that operates from battery power or other sources, refer to the operating instructions that are included with the product. 1 Important Health Information and Safety Precautions Handle battery packs carefully This product contains a Li-ion battery. There is a risk of fire and burns if the battery pack is handled improperly. Do not attempt to open or service the battery pack. Do not disassemble, crush, puncture, short external contacts or circuits, dispose of in fire or water, or expose a battery pack to temperatures higher than 60°C (140°F). WARNING: Danger of explosion if battery is incorrectly replaced. To reduce risk of fire or burns, do not disassemble, crush, puncture, short external contacts, expose to temperature above 60°C (140°F), or dispose of in fire or water. Replace only with specified batteries. Recycle or dispose of used batteries according to the local regulations or reference guide supplied with your product. Take extra precautions l Keep the battery or device dry and away from water or any liquid as it may cause a short circuit. l Keep metal objects away so they don’t come in contact with the battery or its connectors as it may lead to short circuit during operation. l The phone should be only connected to products that bear the USB-IF logo or have completed the USB-IF compliance program. l Do not use a battery that appears damaged, deformed, or discolored, or one that has any rust on its casing, overheats, or emits a foul odor. l Always keep the battery out of the reach of babies and small children, to avoid swallowing of the battery. Consult a doctor immediately if the battery is swallowed. 2 Important Health Information and Safety Precautions l Only use the battery with a charging system that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage or other hazard. l Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725-200x. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. l Avoid dropping the phone or battery. If the phone or battery is dropped, especially on a hard surface, and the user suspects damage, take it to a service center for inspection. l If the battery leaks: Do not allow the leaking fluid to come in contact with skin or clothing. If contact occurs, flush the affected area immediately with clean water and seek medical advice. Do not allow the leaking fluid to come in contact with eyes. If contact occurs, DO NOT rub; rinse with clean water immediately and seek medical advice. Take extra precautions to keep a leaking battery away from fire as there is a danger of ignition or explosion. SAFETY PRECAUTIONS FOR DIRECT SUNLIGHT Keep this product away from excessive moisture and extreme temperatures. Do not leave the product or its battery inside a vehicle or in places where the temperature may exceed 60°C (140°F), such as on a car dashboard, window sill, or behind glass that is exposed to direct sunlight or strong ultraviolet light for extended periods of time. This may damage the product, overheat the battery, or pose a risk to the vehicle. 3 Important Health Information and Safety Precautions PREVENTION OF HEARING LOSS CAUTION: Permanent hearing loss may occur if earphones or headphones are used at high volume for prolonged periods of time. SAFETY IN AIRCRAFT Due to the possible interference caused by this product to an aircraft’s navigation system and its communications network, using this device’s phone function on board an airplane is against the law in most countries. If you want to use this device when its use is restricted on board an aircraft, remember to switch to Airplane Mode which turns off RF functions that could cause interference. ENVIRONMENT RESTRICTIONS Do not use this product in gas stations, fuel depots, chemical plants or where blasting operations are in progress, or in potentially explosive atmospheres such as fueling areas, fuel storehouses, below deck on boats, chemical plants, fuel or chemical transfer or storage facilities, and areas where the air contains chemicals or particles, such as grain, dust, or metal powders. Please be aware that sparks in such areas could cause an explosion or fire resulting in bodily injury or even death. EXPLOSIVE ATMOSPHERES When in any area with a potentially explosive atmosphere or where flammable materials exist, th…

Text truncated - open the document above for the full version.

LG Electronics Inc. 1000 Sylvan Avenue Englewood Cliffs, NJ 07632 Date: Feburuary 22, 2011 PCTEST TCB/CB Div. of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 SUBJECT: LG Electronics USA FCC ID: BEJVS910 To whom it may concern: We, LG Electronics Inc., hereby attest that the wireless charger function is not available at this time. In addition, the HW doesn’t support a wireless charger function. Once the wireless charger function becomes available, we will apply a Class II permissive change for wireless charger function. A separate KDB inquiry will be filed once the wireless charger becomes available. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jae Cheon(J.C.), Lee General Manager LG Electronics USA

Date: November 6, 2010 Federa l Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJVS 910 Equipment Cl ass: DTS: Digital Transmission System To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics USA hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics USA temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jae Cheon(J.C.) Lee General Manager LG Electronics USA LG Electronics Inc. LGE LG Electronics USA 1000 Sylvan Avenue Englewood Cliffs, NJ 07632

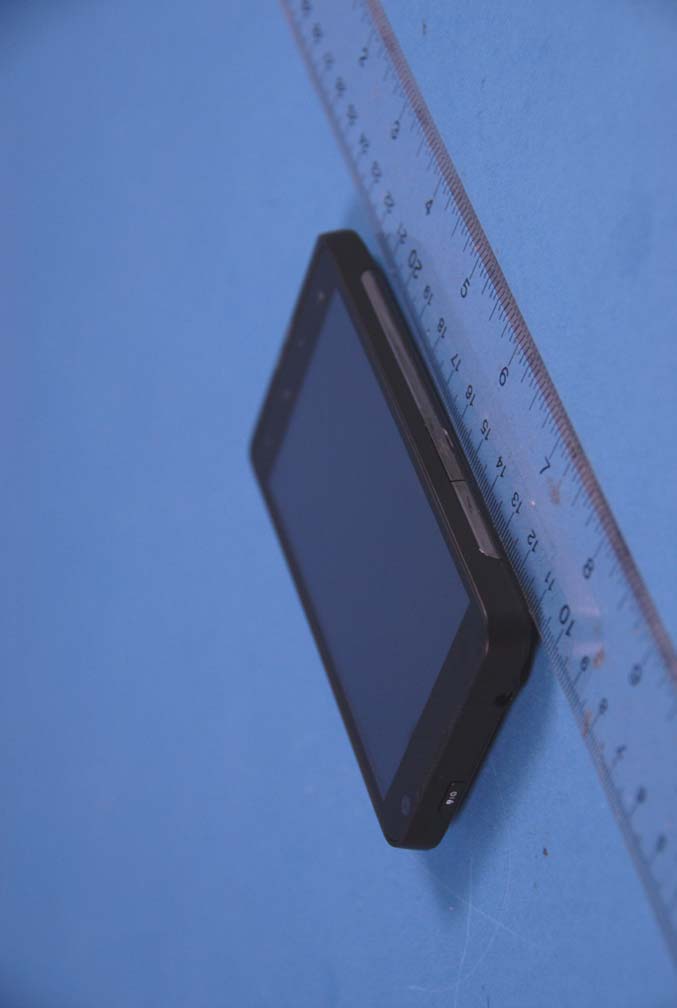

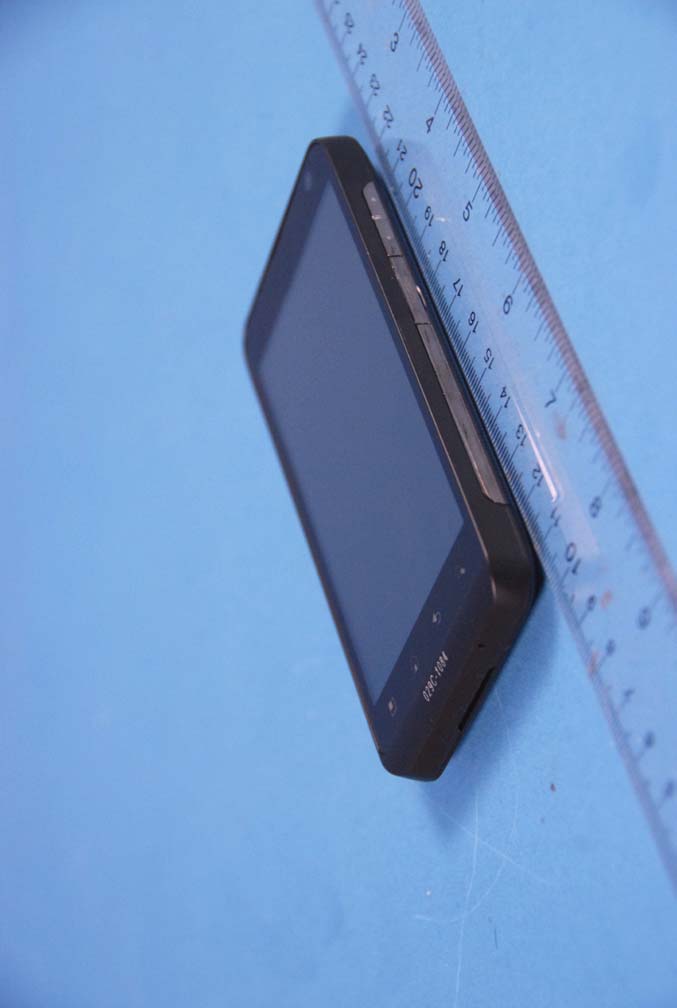

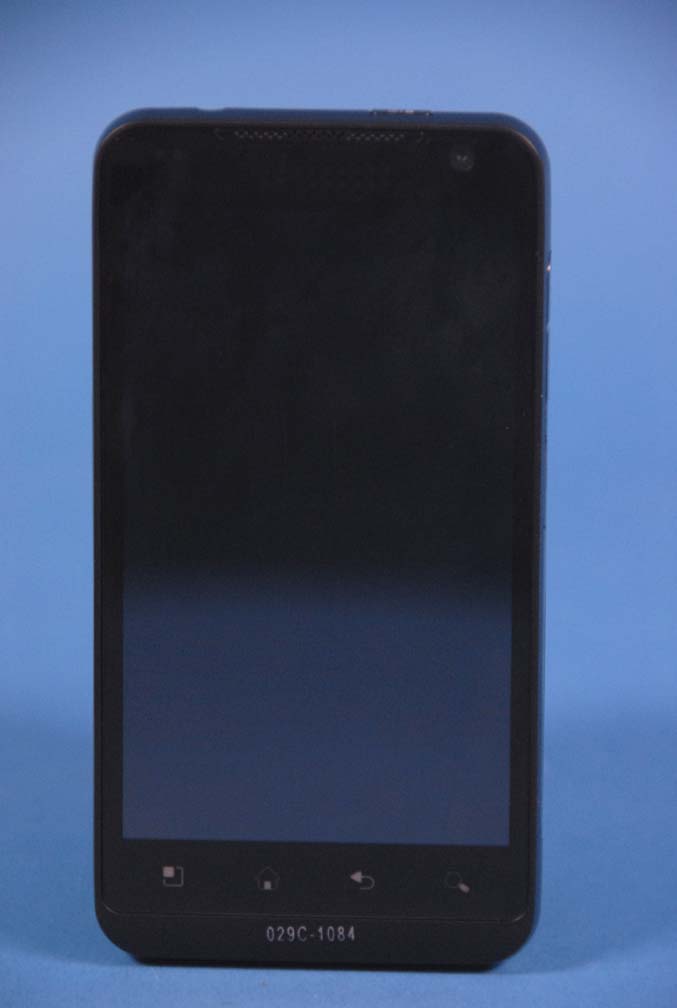

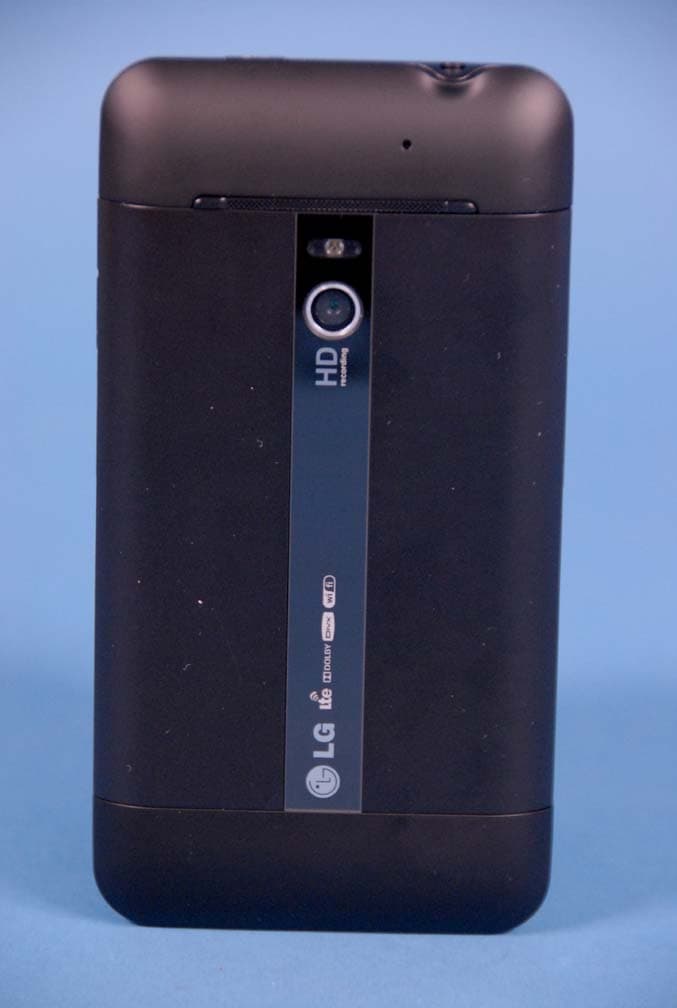

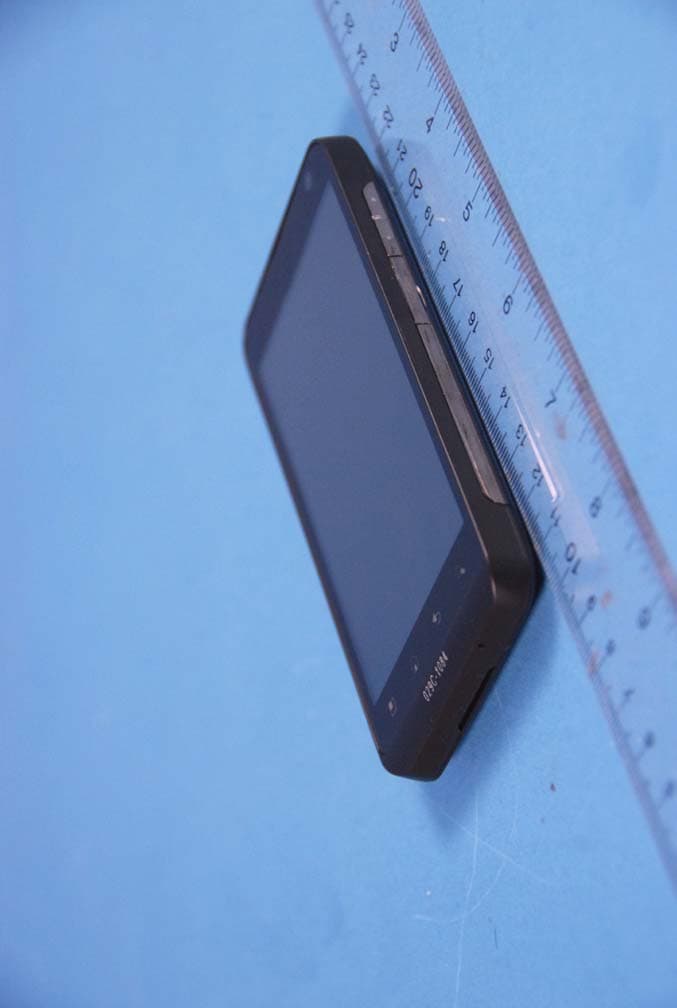

LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 External Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Model No: LG-VS910 FCC ID : BEJVS910 S/N : Made in Korea LG Electronics Inc. LGE

LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 8 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 3 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 4 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 5 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 6 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 7 of 8 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 8 of 8 © 2010 PCTEST Engineering Laboratory Inc.

APPENDIX C: PROBE CALIBRATION

FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Applicant Name: Date of Testing: LG Electronics USA 11/08/10 - 11/15/10 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1011091827-R2.BEJ FCC ID: BEJVS910 APPLICANT: LG ELECTRONICS USA EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Model(s): VS910, LG-VS910 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) 782 MHz (LTE) 2412 - 2462 MHz (WLAN) Maximum Conducted Output Power: 25.13 dBm Cell. CDMA / 24.84 dBm PCS CDMA 23.72 dBm LTE 16.26 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.57 W/kg Cell. CDMA Head SAR / 0.79 W/kg Cell. CDMA Body SAR 0.66 W/kg PCS CDMA Head SAR / 0.57 W/kg PCS CDMA Body SAR 0.51 W/kg LTE Head SAR / 0.72 W/kg LTE Body SAR 0.04 W/kg 2.4 GHz WLAN Head SAR / 0.01 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: SAR #1, SAR #2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. Note: This revised Test Report (S/N: 0Y1011091827-R2.BEJ) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report(s) and dispose of it accordingly. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 11 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 12 9 TEST CONFIGURATION POSITIONS ......................................................................................... 13 10 RF EXPOSURE LIMITS ................................................................................................................ 16 11 4G LTE TEST CONFIGURATIONS .............................................................................................. 17 12 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 19 13 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 22 14 SYSTEM VERIFICATION .............................................................................................................. 25 15 SAR DATA SUMMARY ................................................................................................................. 28 16 ANTENNA LOCATION SAR CONSIDERATIONS ........................................................................ 37 17 SIMULTANEOUS TX SAR CONSIDERATIONS ........................................................................... 38 18 EQUIPMENT LIST ......................................................................................................................... 41 19 MEASUREMENT UNCERTAINTIES ............................................................................................ 42 20 CONCLUSION ............................................................................................................................... 43 21 REFERENCES .............................................................................................................................. 44 22 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 46 FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filenam…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BEJVS910 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1011091825.BEJ November 10 - 12, 2010 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 45 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.4WBGNFI 10/22/2010 Applicant Name: Date of Testing: LG Electronics USA November 10 - 12, 2010 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1011091825.BEJ FCC ID: BEJVS910 APPLICANT: LG Electronics USA Application Type: Certification Model(s): VS910, LG-VS910 EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Max. RF Output Power: 42.27 mW (16.26 dBm) Conducted (b) 41.02 mW (16.13 dBm) Conducted (g) 19.86 mW (12.98 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 7 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: BEJVS910 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1011091825.BEJ November 10 - 12, 2010 Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 45 © 2010 PCTEST Engineering Laboratory, Inc. REV 1.4WBGNFI 10/22/2010 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 37 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 39 7.0 CONCLUSION ..........................................................…

Text truncated - open the document above for the full version.

LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. LG ELECTRONICS FCC ID: BEJVS910 Model: VS910 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO and Band 13 LTE Phone with BT and WLAN Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.

FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 46 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 22 SAR TEST SETUP PHOTOGRAPHS FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 47 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Figure 22-1 SAR Test Setup Photo 1 Figure 22-2 SAR Test Setup Photo 2 FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 48 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Figure 22-3 SAR Test Setup Photo 3 Fi gure 22-4 SAR Test Setup Photo 4 FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 49 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Figure 22-5 SAR Test Setup Photo 6: Back Side Figure 22-6 SAR Test Setup Photo 7: Front Side FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 50 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Figure 22-7 SAR Test Setup Photo 8: Right Edge Figure 22-8 SAR Test Setup Photo 9: Left Edge FCC ID: BEJVS910 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 51 of 51 0Y1011091827-R2.BEJ 11/08/10 - 11/15/10 Cellular/PCS CDMA/EvDO Phone with Bluetooth, WLAN and LTE © 2011 PCTEST Engineering Laboratory, Inc. REV 8.7M 10/28/2010 Figure 22-9 SAR Test Setup Photo 10: Bottom Edge
