BEJVX8300Dual-Band CDMA Phone with Bluetooth

- 1 - User Manual VX8300 Ver. 1.1 2005. 11. 14 - 2 - LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. - 3 - (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following telephone number from anywhere in the continental United States: LG Infocomm Inc. 201 James Record Road Huntsville, AL 35824 Tel. 1-800-793-8896 Fax. 1-800-448-4026 www.lgeservice.com DO NOT RETURN YOUR PRODUCT TO THE ABOVE ADDRESS. Please call or write for the location of the LG Electronics, Inc authorized service center nearest you and for the procedures for obtaining warranty claims. - 4 - SUBJECT The phone VX8300 has been designed to operate on the latest digital mobile communication technology, Code Division Multiple Access (CDMA). The phone VX8300 support fully Multimedia - Dual color LCDs, 64poly Audio, 1.3M pixels Digital Camera, MPEG-4, Photo album, etc. This phone is the one of tri band Quad mode - 800Mhz CDMA, 1900Mhz PCS, 1500Mhz GPS. CDMA Standard Designator Description Basic air interface TIA/EIA-95A TSB-74 ANSI J-STD-008 TIA/EIA-IS2000 CDMA Dual-Mode Air Interface 14.4kbps radio link protocol and inter-band operations IS-95 adapted for PCS frequency band CDMA2000 1xRTT Air Interface Network TIA/EIA/IS-634 TIA/EIA/IS/651 TIA/EIA/IS-41-C TIA/EIA/IS-124 MAS-BS PCSC-RS Intersystem operations Nom-signaling data comm. Service TIA/EIA/IS-96-B TIA/EIA/IS-99 TIA/EIA/IS-637 TIA/EIA/IS-657 IS-801 Speech CODEC Assign data and fax Short message service Packet data Position Determination Service (gpsOne) Performance TIA/EIA/IS-97 TIA/EIA/IS-98 ANSI J-STD-018 ANSI J-STD-019 TIA/EIA/IS-125 Cellular base station Cellular mobile station PCS personal station PCS base station Speech CODEC EVDO TIA/EIA/IS-856 TIA/EIA/IS-878 TIA/EIA/IS-866 TIA/EIA/IS-890 CDMA2000 High Rate Packet Data Air Interface 1xEV-DO Inter-Operability Specification for CDMA2000 Access Network Interfaces Recommended Minimum Performance Standards for CDMA2000 High Rate Packet Data Access Terminal Test Application Specification(TAS) for High Rate Packet Data Air Interface * TSB –74: Protocol between an IS-95A system and ANSI J-STD-008 - 5 - Table of Contents Introduction Highlights Important Information Check Accessories Before You Start Safety Instructions Getting Started .............................................................................. 11 Unlocking Your Phone ............................................................................. 11 View of Phone ........................................................................................... 11 Installing and Removing the Battery …

Text truncated - open the document above for the full version.

LG Electronics Inc. 459-9, Kasan-dong, Kemchun-ku Seoul 153-023, Korea Tel: 82-2-2033-3850, Fax: 82-2-2033-2228 Date: February 2nd, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJVX8300 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Sh ort-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, E.S.Park Chief Research Engineer CDMA Handset Lab. LG Electronics Inc.

March 3, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: LG ELECTRONICS, INC. FCC ID: BEJVX8300 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of LG ELECTRONICS, INC., is an application for Part 22/24 Certification of the Dual-Band CDMA phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG ELECTRONICS, INC.

April 18, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: LG Electronics, Inc. FCC ID: BEJVX8300 731 Confirmation No.: TC208777 Correspondence Reference No.: 27205 Request for Tech. Info.: 03/20/2006 Dear Martin: Transmitted herewith, on behalf of LG Electronics, Inc. is an amendment provided in response to the request for technical information dated March 20, 2006. 1. The manufacturer test code settings created power levels that were equal or exceeded the power levels measured with the base station simulator as shown in the attached power table. The phone was retested for body SAR compliance using the Agilent 8960 base station simulator in the EDVO mode with a data rate of 153.6 kbps. The test results are attached. The new measured SAR values are lower then those levels listed on the Grant of Authorization. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics, Inc.

May 18, 2006 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Martin Perrine SUBJECT: LG Electronics, Inc. FCC ID: BEJVX8300 731 Confirmation No.: TC208777 Correspondence Reference No.: 28136 Request for Tech. Info.: 04/24/2006 Dear Martin: Transmitted herewith, on behalf of LG Electronics, Inc. is an amendment provided in response to the request for technical information dated April 24, 2006. A. The phone was retested using Agilent 8960 base station simulator in accordance with the May 9 th , SAR Measurement Procedures for 3G Devices. The revised SAR report is attached. The applicant agrees to accept the original SAR values on the Grant of Authorization. B. The powers listed on page 18 of the new SAR report are average powers. C. A crest factor of 1:1 was used because the measurement procedure requires RC3/ SO55 for Head SAR and TDSO/ SO32 for Body SAR. D. The May SAR measurement procedure was used for the SAR testing. E. The EV-DO Rev 0 Phone does not support simultaneous voice and data. Power tables are included in the SAR report. We trust this information is sufficient to resolve FCC questions in this application. If you have any further questions, please do not hesitate to contact us. cc: LG Electronics, Inc.

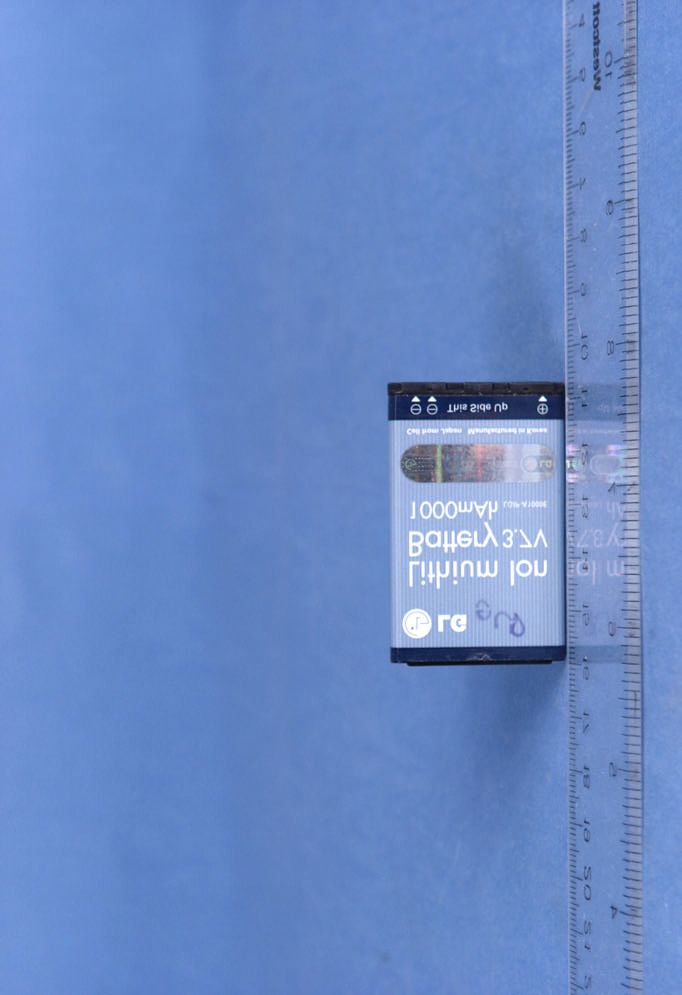

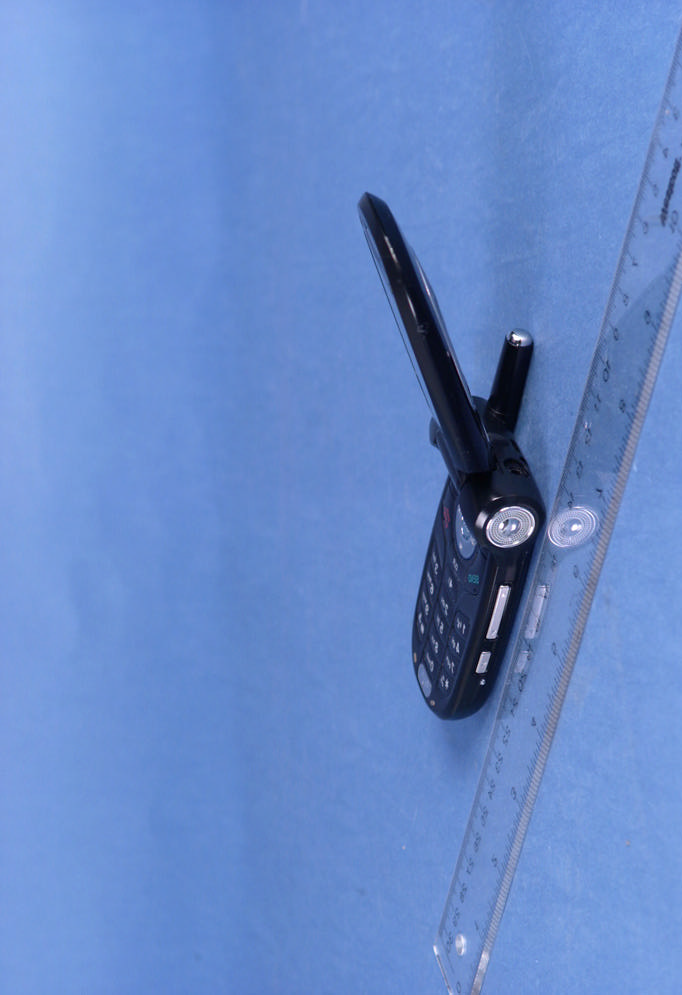

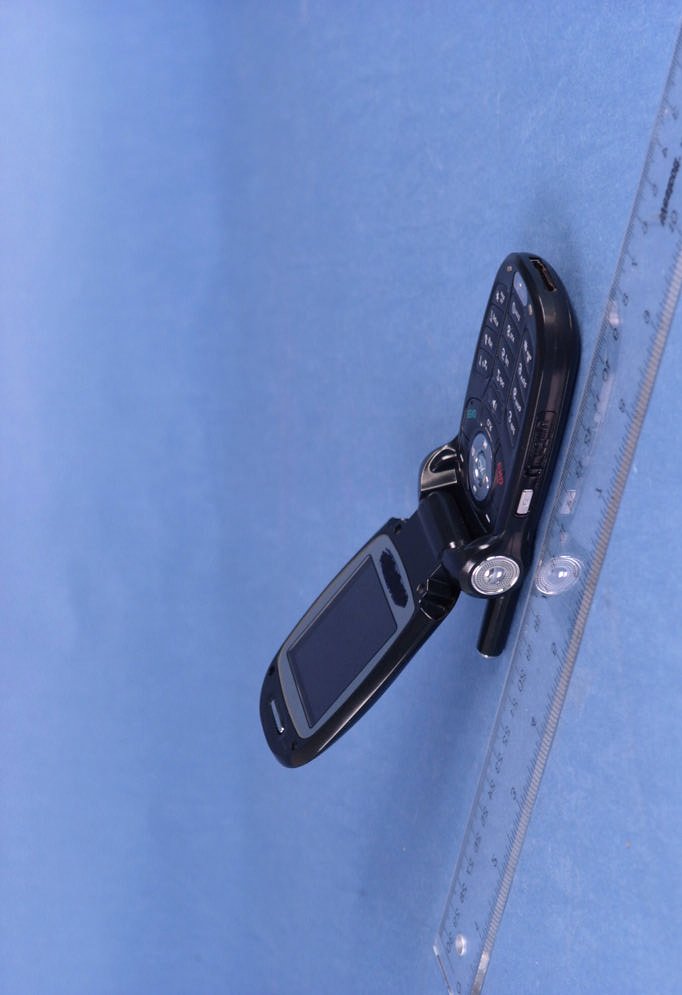

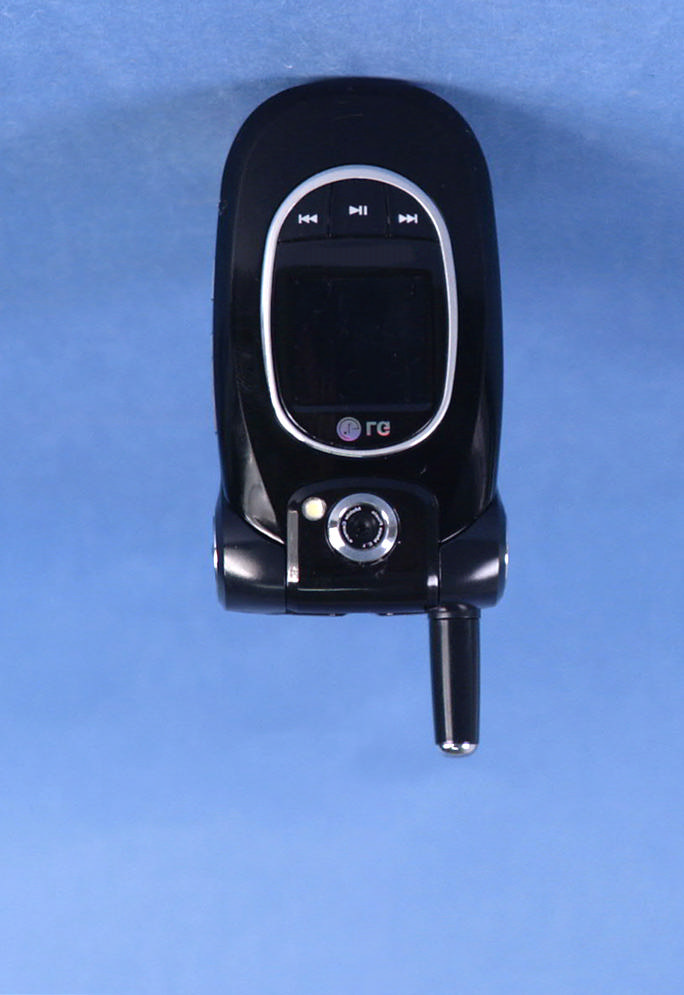

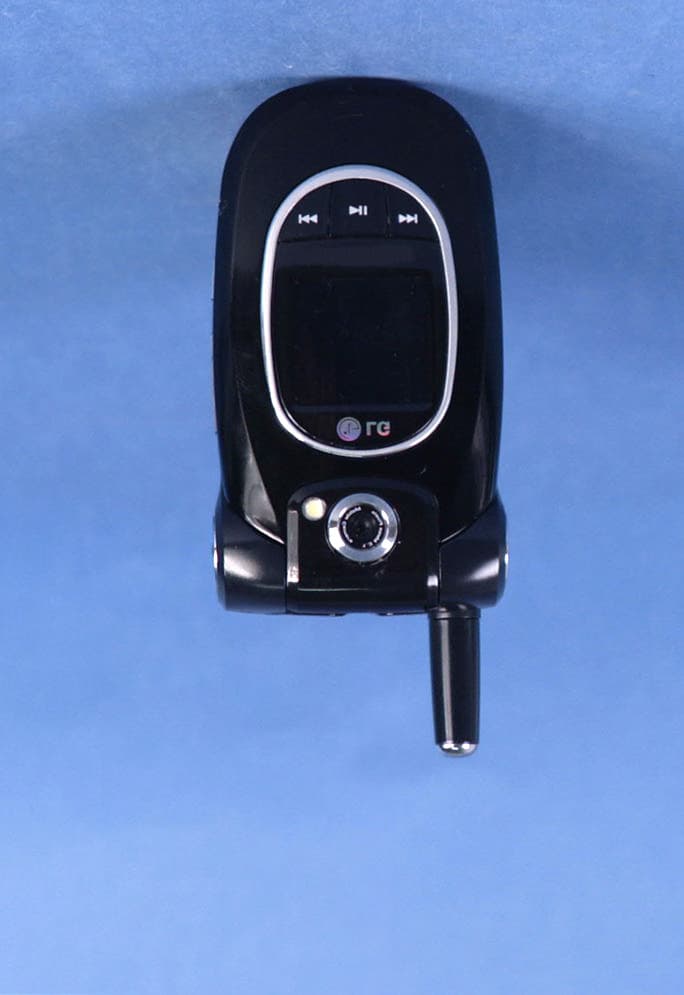

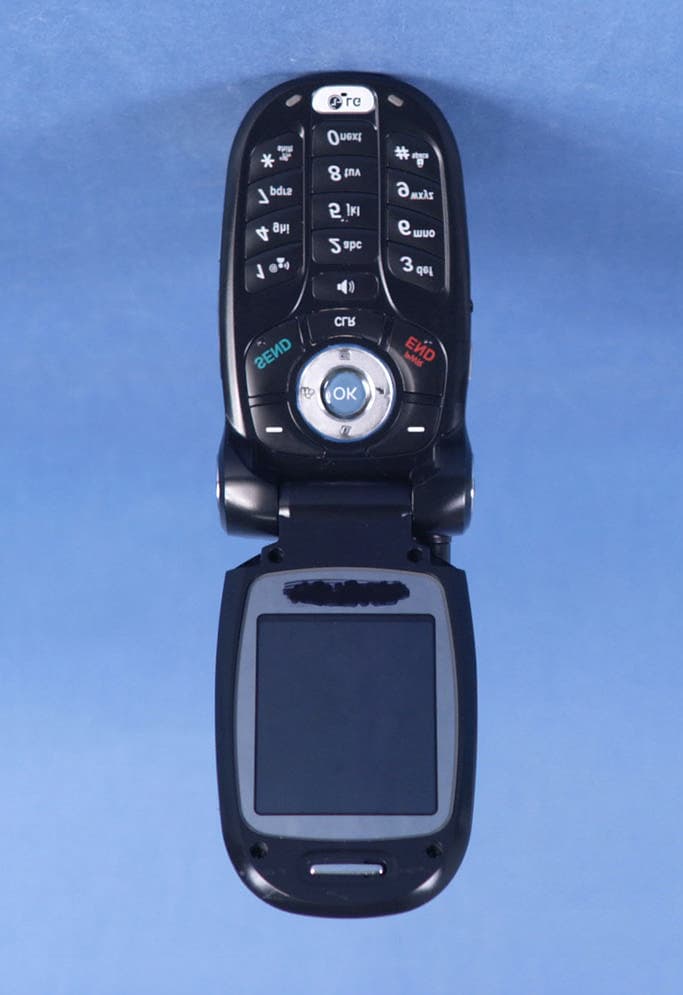

LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300

© 20 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) LG Electronics Inc. LGE Model No. : VX8300 FCC ID : BEJVX8300 S/N : Made in Korea

LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300 LG FCC ID: BEJVX8300 EUT Photographs © 2006 PCTEST Lab. Dual-Band CDMA with Bluetooth Model: VX8300

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0601270055 Test Dates: February 3-14, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8300 Page 1 of 30 © 2006 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: LG ELECTRONICS, INC. Dates of Tests: February 3-14, 2006 1000 Sylvan Avenue Test Report S/N: 0601270055 Englewood Cliffs, NJ 07632 Test Site: PCTEST Lab, Columbia MD FCC ID: BEJVX8300 APPLICANT: LG ELECTRONICS, INC. EUT Type: Dual-Band CDMA Phone with Bluetooth Tx Frequency: 824.70 – 848.31 MHz (CDMA)/ 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.70 – 893.31 MHz (CDMA)/ 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.318 W ERP CDMA (25.033 dBm) / 24.5 dBm Conducted 0.358 W EIRP PCS CDMA (25.531 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.21 W/kg CDMA Head SAR; 0.976W/kg CDMA Body SAR; 1.11 W/kg PCS CDMA Head SAR; 1.10 W/kg PCS CDMA Body SAR Trade Name/Model(s): VX8300 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528 - 2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End- users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0601270055 Test Dates: February 3-14, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8300 Page 2 of 30 © 2006 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION......................................................................................3 2. SAR MEASUREMENT SETUP.................................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.............................................................................................5 4. PROBE CALIBRATION PROCESS............................................................................................6 5. PHANTOM & EQUIVALENT TISSUES......................................................................................7 6. TEST SYSTEM SPECIFICATIONS.............................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS.......................................................................9 8. DEFINITION OF REFERENCE POINTS...................................................................................10 9. TEST CONFIGURATION POSITIONS.................................................................................11-13 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS.......................................................................14 11. MEASUREMENT UNCERTAINTIES.......................................................................................15 12. SYSTEM VERIFICATION.....................................................................................................16 13. SAR TEST DATA SUMMARY............................................................................................17-27 15. SAR TEST EQUIPMENT..........................................................................................28 16. CONCLUSION.................................................................................................................29 17. REFERENCES...................................................................................................................30 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: 0601270055 Test Dates: February 3-14, 2006 Phone Type: Dual-Band CDMA Phone with Bluetooth FCC ID: BEJVX8300 Page 3 of 30 © 2006 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous El…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: VX8300; Type: CDMA Dual Band+BT+EVDO; SN: SAR #2 Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Muscle ( σ = 0.99 mho/m, ε r = 55.24, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5cm from DUT to Flat Phantom Test Date: 04-12-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.56, 7.56, 7.56); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/8/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Body, No Beltclip, EVDO Mode, Mid.ch, 153.6kbps Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.5 V/m Peak SAR (extrapolated) =1.15 W/kg SAR(1 g) = 0.790 mW/g; SAR(10 g) = 0.529 mW/g 0 dB = 0.912mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LGE Model: VX8300; Type: CDMA Dual Band+BT+EVDO; SN: SAR #2 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Muscle ( σ = 1.58 mho/m, ε r = 52.53, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5cm from DUT to Flat Phantom Test Date: 04-12-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(6.3, 6.3, 6.3); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/8/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Body, No Beltclip, EVDO Mode, Mid ch, 153.6kbps Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.1 V/m Peak SAR (extrapolated) = 1.36 W/kg SAR(1 g) = 0.770 mW/g; SAR(10 g) = 0.421 mW/g 0 dB = 0.950mW/g APPENDIX B: DIPOLE VALIDATION PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 41.98, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 04-12-2006; Ambient Temp: 23.5° C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.71, 7.71, 7.71); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/8/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP:1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.46 mW/g; SAR(10 g) = 1.59 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = +3.57 % 0 dB = 2.88mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.38 mho/m, ε r = 40.45, ρ = 1000 kg/m 3 ) Phantom section: Flat Section Test Date: 04-12-2006; Ambient Temp: 23.5° C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(6.65, 6.65, 6.65); Calibrated: 1/18/2006 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 8/8/2005 Phantom: SAM with CRP; Type: SAM; Serial: TP:1375 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 4.13 mW/g; SAR(10 g) = 2.26 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = +4.03 % 0 dB = 5.25mW/g

Reviewed by: PCTEST™ SAR REPORT CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0601270055 May 10 - 11, 2006 Dual-Band CDMA Phone BEJVX8300 Page 1 of 25 © 2006 PCTEST Engineering Laboratory, Inc. v2.2 Applicant Name: Date of Testing: LG Electronics USA May 10 - 11, 2006 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0601270055 FCC ID: BEJVX8300 APPLICANT: LG ELECTRONICS USA EUT Type: Dual-Band CDMA Phone Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) Model(s): VX8300 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 24.5 dBm conducted (CDMA) 24.5 dBm conducted (PCS) Max. SAR Measurement: 1.101 W/kg CDMA Head SAR 0.886 W/kg CDMA Body SAR 1.01 W/kg PCS Head SAR 1.001 W/kg PCS Body SAR Test Device Serial No.: identical prototype [S/N: AD-013-A] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: PCTEST™ SAR REPORT CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0601270055 May 10 - 11, 2006 Dual-Band CDMA Phone BEJVX8300 Page 2 of 25 © 2006 PCTEST Engineering Laboratory, Inc. v2.2 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES.......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS....................................................................10 8 DEFINITION OF REFERENCE POINTS .......................................................................................11 9 TEST CONFIGURATION POSITIONS ..........................................................................................12 10 ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS........................................................................14 11 MEASUREMENT UNCERTAINTIES .............................................................................................15 12 SYSTEM VERIFICATION...............................................................................................................16 13 DEVICE TEST CONDITIONS ........................................................................................................17 14 SAR DATA SUMMARY ..................................................................................................................19 15 EQUIPMENT LIST..........................................................................................................................22 16 CONCLUSION................................................................................................................................23 17 REFERENCES ...............................................................................................................................24 Reviewed by: PCTEST™ SAR REPORT CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: FCC ID: 0601270055 May 10 - 11, 2006 Dual-Band CDMA Phone BEJVX8300 Page 3 of 25 © 2006 PCTEST Engineering Laboratory, Inc. v2.2 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement …

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST DATA PCTEST ENGINEERING LABORATORY, INC. DUT: LG Model: VX8300; Type: CDMA Dual Band + Bluetooth + EVDO; SN: SAR #2 Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.28, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-10-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn649; Calibrated: 9/13/2005 Phantom: SAM Main; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 160 Right Head, Touch, Ch.0777, Fixed Antenna, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 9.32 V/m Peak SAR (extrapolated) = 1.59 W/kg SAR(1 g) = 1.101 mW/g; SAR(10 g) = 0.706 mW/g 0 dB = 1.22mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: LG Model: VX8300; Type: CDMA Dual Band + Bluetooth + EVDO; SN: SAR #2 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 42.28, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 05-10-2006; Ambient Temp: 23.5°C; Tissue Temp: 21.6°C Probe: EX3DV4 - SN3561; ConvF(7.91, 7.91, 7.91); Calibrated: 8/24/2005 Senso…

Text truncated - open the document above for the full version.
