BEJVX8350Cellular/PCS CDMA Phone with Bluetooth

User Manual VX8350 Ver. 0.1 2006. 12. 8 - 1 - Part 15.21 statement " Change or Modifications that are not expressly approved by the manufacturer could void the user's authority to operate the equipment. " Part 15.105 statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. if this equipment does cause harmful interference or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help. LIMITED WARRANTY STATEMENT 1. WHAT THIS WARRANTY COVERS: LG offers you a limited warranty that the enclosed subscriber unit and its enclosed accessories will be free from defects in material and workmanship, according to the following terms and conditions: (1) The limited warranty for the product extends for ONE (1) year beginning on the data of purchase of the product. (2) The limited warranty extends on to the original purchaser of the product and is not assignable or transferable to any subsequent purchaser/end user. (3) This warranty is good only to the original purchaser of the product during the warranty period as long as it is in the U.S., including Alaska, Hawaii, U.S. Territories and Canada. (4) The external housing and cosmetic parts shall not be covered under these limited warranty terms. (5) Upon request from LG, the consumer must provide information to reasonably prove the date of purchase. (6) The customer shall bear the cost of shipping the product to the Customer Service Department of LG. LG shall bear the cost of shipping the product back to the consumer after the completion of service under this limited warranty. 2. WHAT THIS WARRANTY DOES NOT COVER: (1) Defects or damages resulting from use of the product in other than its normal and customary manner. (2) Defects or damages from abnormal use, abnormal conditions, improper storage, exposure to moisture or dampness, unauthorized modifications, unauthorized connections, unauthorized repair, misuse, neglect, abuse, accident, alteration, improper installation, or other acts which are not the fault of LG, including damage caused by shipping blown fuses spills of food or liquid. (3) Breakage or damage to antennas unless caused directly by defects in material or workmanship. (4) That the Customer Service Department at LG was net notified by consumer of the alleged defect or malfunction of the product during the applicable limited warranty period. (5) Products which have had the serial number removed or made illegible. (6) The limited warranty is in lieu of all other warranties, express or implied either in fact or by operations law, statutory or otherwise, including, but limited to any implied warranty of marketability or fitness for a particular use. (7) Damage resulting from use of non-LG approved accessories. (8) All plastic surfaces and all other externally exposed parts that are scratched or damaged due to normal customer use. (9) Products operated outside published maximum ratings. 3 (10) Products used or obtained in a rental program. (11) Consumables (such as fuses). 3. STATE LAW RIGHTS: No other express warranty is applicable to this product. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY, IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY HEREIN. LG INFOCOMM INC. SHALL NOT BE LIABLE FOR THE LOSS OF THE USE OF THE PRODUCT, INCONVENIENCE, LOSS OR ANY OTHER DAMAGES, DIRECT OR CONSEQUENTIAL, RISING OUT OF THE USE OF, OR INABILITY TO USE, THIS PRODUCT OR FOR ANY BREACH OF ANY EXPRESS OR IMPLIED WARRANTY, INCLUDING THE IMPLIED WARRANTY OF MARKETABILITY APPLICABLE TO THIS PRODUCT. Some states do not allow the exclusive of imitation of incidental or consequential damages or limitations on how long an implied warranty lasts; so these limitations or exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. 4. HOW TO GET WARRANTY SERVICE: To obtain warranty service, please call the following web address: www.lgeservice.com 8 For Your Safety Important Information This user guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user guide could void your warranty for this equipment. Before You Start Safety Instructions WARNING!To reduce the possibility of electric shock, do not expose your phone to high humidity areas, such as the bathroom, swimming pool, etc. Always store your phone away from heat.Never store your phone in settings that may expose it to temperatures less than 32°F or greater than 104°F, such as outside during extreme weather conditions or in your car on a hot day. Exposure to excessive cold or heat will result in malfunction, damage and/or catastrophic failure. Be careful when using your phone near other electronic devices.RF emissions from your mobile phone may affect nearby in adequately shielded electronic equipment. You should consult with manufacturers of any personal medical devices such as pacemakers and hearing aides t…

Text truncated - open the document above for the full version.

LG Electronics Inc. 60-39, Gasan-dong, Gumchon-gu Seoul 153-801, Korea Tel: 82-2-2033-1110, Fax: 82-2-2033-1222 Date: MARCH 05, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BEJVX8350 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, LG Electronics Inc. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give LG Electronics Inc. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc.

April 4, 2007 Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 SUBJECT: LG Electronics Inc. FCC ID: BEJVX8350 Gentlemen: We, LG Electronics, hereby declare the samples evaluated in this application are equivalent to production samples. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, E.S.Park Manager Mobile Handset R&D Center Mobile Communications Company LG Electronics Inc. Tel : 82-2-2033-1110 Fax : 82-2-2033-1222 [email protected] 60-39, Gasan-dong, Gumchon-gu Seoul 153-801, Korea LG Electronics Inc. LGE

PCTEST Engineering Laboratory, Inc. 6660 Dobbin Road Suite A-E Columbia, Maryland 21045-4844 Tel.: 410-290-6652 / Fax: 410-290-6654 © 2006 PCTEST Engineering Lab., Inc. April 13, 2007 PCTEST TCB/CB Division of PCTEST Engineering Laboratory Inc. 6660-B Dobbin Road, Columbia, MD 21045 SUBJECT: LG Electronics, Inc. FCC ID: BEJVX8350 Certification Original Grant Date: 4/9/07 To Whom It May Concern: Transmitted herewith, On behalf of LG Electronics, Inc., is a request to update the RF Exposure Information documents. The only difference between the original SAR Report and the updated SAR Report is the Body SAR test distance from 1.5 cm to 2.0 cm and the corresponding maximum Body SAR. Should you have any questions or comments concerning the above, please contact the undersigned. cc: LG Electronics, Inc.

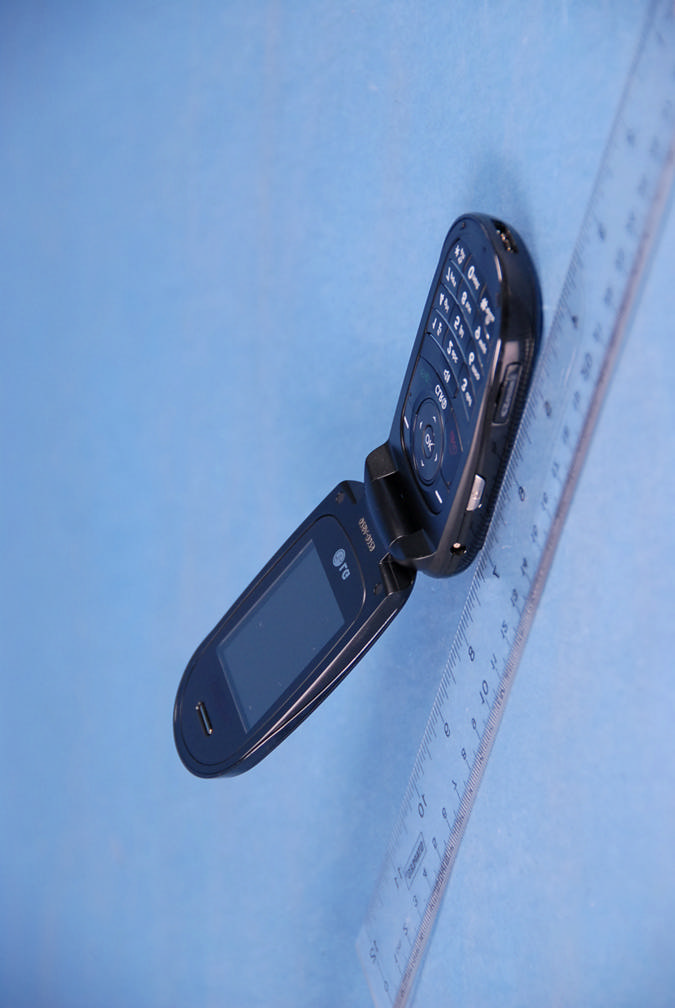

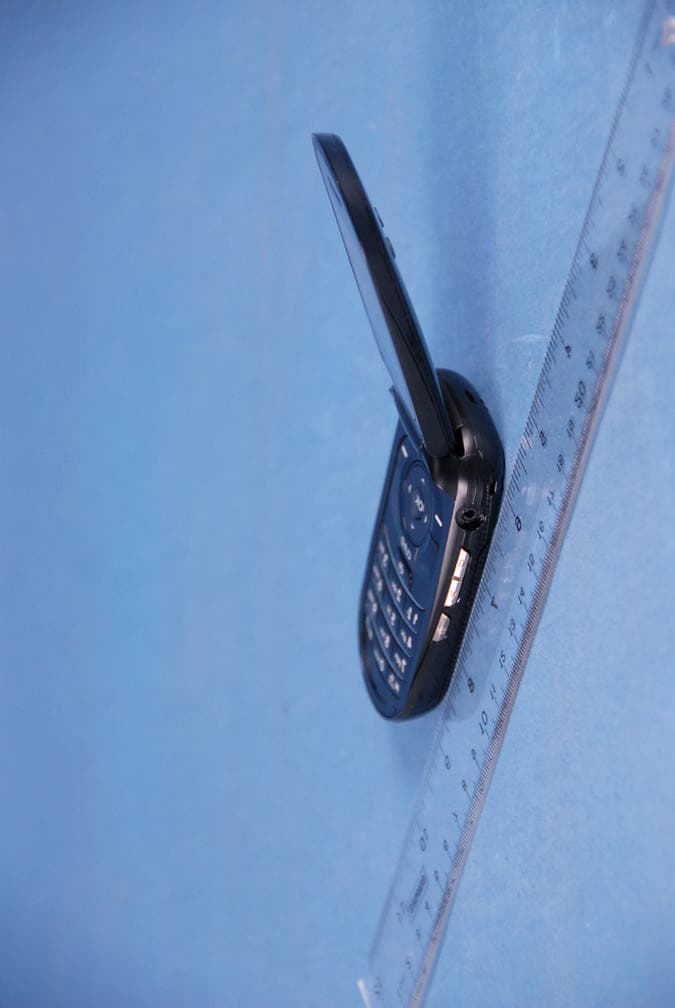

LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350

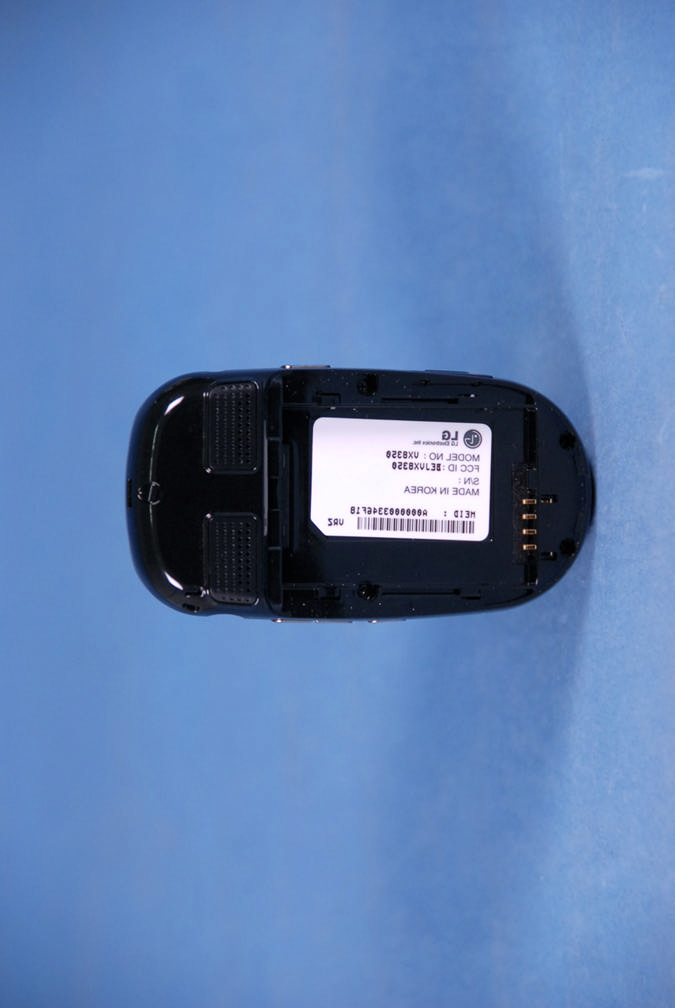

LG Electronics Inc. LGE Model No. LG-VX8350FCC ID : BEJVX8350 S/N :Made in Korea

LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350 LG FCC ID: BEJVX8350 EUT Photographs © 2007 PCTEST Lab. Cellular/PCS CDMA Phone with EVDO and Bluetooth Model: VX8350

Reviewed by: FCC ID: BEJVX8350 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0703050148.BEJ 03/06/07 - 03/07/07 Cellular/PCS CDMA Phone with Bluetooth and EvDO Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 Applicant Name: Date of Testing: LG Electronics USA 03/06/07 - 03/07/07 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0703050148.BEJ FCC ID: BEJVX8350 APPLICANT: LG ELECTRONICS USA EUT Type: Cellular/PCS CDMA Phone with Bluetooth and EvDO Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): VX8350 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 24.5 dBm CDMA / 24.5 dBm PCS Max. SAR Measurement: 1.3 W/kg CDMA850 Head SAR / 0.563 W/kg CDMA850 Body SAR 0.667 W/kg CDMA1900 Head SAR / 0.719 W/kg CDMA1900 Body SAR Test Device Serial No.: Pre-Production [MEID:A0000003346F15] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24 and ERP for Part 22. SAR compliance for body-worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJVX8350 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0703050148.BEJ 03/06/07 - 03/07/07 Cellular/PCS CDMA Phone with Bluetooth and EvDO Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 19 15 EQUIPMENT LIST......................................................................................................................... 22 16 CONCLUSION............................................................................................................................... 23 17 REFERENCES .............................................................................................................................. 24 Reviewed by: FCC ID: BEJVX8350 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0703050148.BEJ 03/06/07 - 03/07/07 Cellular/PCS CDMA Phone with Bluetooth and EvDO Page 3 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 2005 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 41.80, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-6-2007; Ambient Temp: 23.1°C; Tissue Temp: 21.7 °C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: CDMA, Right Head, Touch, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.79 V/m Peak SAR (extrapolated) = 1.96 W/kg SAR(1 g) = 1.3 mW/g; SAR(10 g) = 0.866 mW/g 0 dB = 1.48mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 41.80, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-6-2007; Ambient Temp: 23.1°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: CDMA, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.6 V/m Peak SAR (extrapolated) = 0.455 W/kg SAR(1 g) = 0.345 mW/g; SAR(10 g) = 0.256 mW/g 0 dB = 0.384mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: Cellular CDMA; Frequency: 848.31 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 41.80, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-6-2007; Ambient Temp: 23.1°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: CDMA, Left Head, Touch, High.ch, Standard Battery, with Bluetooth Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.5 V/m Peak SAR (extrapolated) = 1.89 W/kg SAR(1 g) = 1.29 mW/g; SAR(10 g) = 0.855 mW/g 0 dB = 1.48mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: Cellular CDMA; Frequency: 836.52 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 41.80, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-6-2007; Ambient Temp: 23.1°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: CDMA, Left Head, Tilt, Mid.ch, Standard Battery Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.4 V/m Peak SAR (extrapolated) = 0.440 W/kg SAR(1 g) = 0.334 mW/g; SAR(10 g) = 0.246 mW/g 0 dB = 0.374mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.43 mho/m, ε r = 39.27, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-7- 2007; Ambient Temp: 22.9°C; Tissue Temp: 21.9 °C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: PCS, Right Head, Touch, Mid.ch, Standard Battery, with Bluetooth Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.11 V/m Peak SAR (extrapolated) = 1.03 W/kg SAR(1 g) = 0.667 mW/g; SAR(10 g) = 0.373 mW/g 0 dB = 0.773mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.43 mho/m, ε r = 39.27, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 3-7- 2007; Ambient Temp: 22.9°C; Tissue Temp: 21.9 °C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 Mode: PCS, Right Head, Tilt, Mid.ch, Standard Battery Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.43 V/m Peak SAR (extrapolated) = 0.139 W/kg SAR(1 g) = 0.096 mW/g; SAR(10 g) = 0.062 mW/g 0 dB = 0.110mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: VX8350; Type: Dual Band CDMA phone; Serial: SAR #1 Communication System: PCS CDMA; Frequency: 1880 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.43 mho/m, ε r = 39.27, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 3-7- 2007; Ambient Temp: 22.9°C; Tissue Temp: 21.9 °C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 4d026 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.90 mho/m, ε r = 41.80, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 3-6-2007; Ambient Temp: 23.1°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN3550; ConvF(7.98, 7.98, 7.98); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 835MHz Dipole Validation Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.33 mW/g; SAR(10 g) = 1.51 mW/g Target SAR(1g) = 2.25 mW/g; Deviation = 3.44 % 0 dB = 2.75mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.43 mho/m, ε r = 39.27, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 3-7- 2007; Ambient Temp: 22.9°C; Tissue Temp: 21.9 °C Probe: EX3DV4 - SN3550; ConvF(6.74, 6.74, 6.74); Calibrated: 1/22/2007 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE4 Sn665; Calibrated: 9/4/2006 Phantom: SAM with CRP; Type: SAM; Serial: TP1375 Measurement SW: DASY4, V4.7 Build 53; Postprocessing SW: SEMCAD, V1.8 Build 172 1900MHz Dipole Validation Area Scan (5x7x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.71 mW/g; SAR(10 g) = 1.89 mW/g Target SAR(1g) = 3.75 mW/g; Deviation = -1.07 % 0 dB = 4.67mW/g

Reviewed by: FCC ID: BEJVX8350 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0703050148-R1.BEJ 03/06/07 - 04/11/07 Cellular/PCS CDMA Phone with Bluetooth and EvDO Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 Applicant Name: Date of Testing: LG Electronics USA 03/06/07 - 04/11/07 1000 Sylvan Avenue Test Site/Location: Englewood Cliffs, NJ 07632 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0703050148-R1.BEJ FCC ID: BEJVX8350 APPLICANT: LG ELECTRONICS USA EUT Type: Cellular/PCS CDMA Phone with Bluetooth and EvDO Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] FCC Classification: Licensed Transmitter Held to Ear (PCE) Model(s): VX8350 Additional Model(s): AX8350, UX8350, CX8350, MT8350, BP8350, LG8350, MX8350 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) / 1851.25 - 1908.75 MHz (PCS CDMA) Conducted Power: 24.5 dBm CDMA / 24.5 dBm PCS Max. SAR Measurement: 1.3 W/kg CDMA850 Head SAR / 0.321 W/kg CDMA850 Body SAR 0.667 W/kg CDMA1900 Head SAR / 0.348 W/kg CDMA1900 Body SAR Test Device Serial No.: Pre-Production [MEID:A0000003346F15] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 24 and ERP for Part 22. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters not specified in this filing may not contain metallic components. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: BEJVX8350 CERTIFICATION REPORT Quality Manager SAR Filename: Test Dates: EUT Type: 0703050148-R1.BEJ 03/06/07 - 04/11/07 Cellular/PCS CDMA Phone with Bluetooth and EvDO Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.1C 02/02/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 14 11 MEASUREMENT UNCERTAINTIES ............................................................................................ 15 12 SYSTEM VERIFICATION.............................................................................................................. 16 13 FCC 3G MEASUREMENT PROCEDURES – JUNE 2006 ........................................................... 17 14 SAR DATA SUMMARY ................................................................................................................. 19 15 EQUIPMENT LIST......................................................................................................................... 22 16 CONCLUSION.................................................................................................…

Text truncated - open the document above for the full version.
