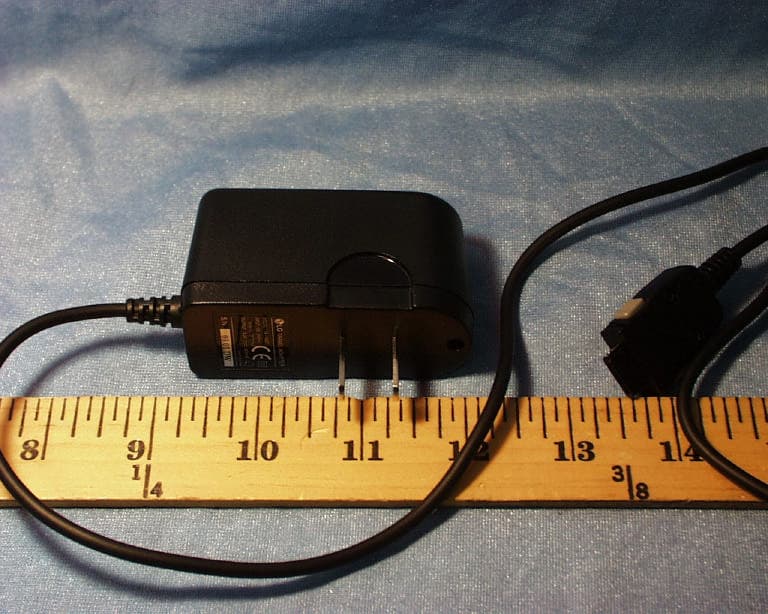

BEJW3000S1900MHz GSM Cellular Phone

WAP Phone USER’S MANUAL MODEL: W3000S Please read this manual carefully before operating your set. Retain it for future reference. ENGLISH ENGLISH 3 W3000S Phone W3000S has a polished style which provides users’ a better feel and convenience. For Your Safety ENGLISH 4 All radio transmitters carry risks of interference with electronics in close proximity. GSM Phones must be switched off at all times in an aircraft. Do not activate near petrol stations, fuel depots, chemical plants or blasting operations. Switch off the phone in any area where are forced by special regulations. For example, the phone does not allow to be used in hospital because pacemakers and hearing aids can be affected. Minor interference may affect TVs, radios, PCs, etc. Do not hold the phone in your hand while driving. Do not dismantle phone or battery. Keep the phone in a safe place out of children’s reach since it contains the detachable small parts and create a choking hazard. ENGLISH 5 Do not touch the charger with wet hands. Please note: Unusable batteries should be disposed of in accordance with relevant legislation. Only use ORIGINAL accessories to avoid damage to your phone. Emergency call may not be available under all cellular networks. Therefore, you should never depend solely on the phone for essential communications such as medical emergencies. Important Information This user's guide contains important information on the use and operation of this phone. Please read all the information carefully for optimal performance and to prevent any damage to or misuse of the phone. Any changes or modifications not expressly approved in this user's guide could void your warranty for this equipment. For your safety, use ONLY specified ORIGINAL batteries and chargers. ENGLISH 6 Overview Accessories ......................................................................... 10 Part of the Phone ................................................................ 11 • Front of the Phone ............................................................ 11 • Rear of the Phone ............................................................. 12 Key Description ................................................................... 13 • Alphanumeric Keys ........................................................... 15 Display Information Display Information ............................................................. 16 • On-Screen Icons ............................................................... 16 Getting Started Installation ........................................................................... 18 • Inserting the SIM Card ...................................................... 18 • Installing the Battery ......................................................... 18 • Charging the Battery ......................................................... 19 • Disconnecting the charger ................................................ 20 • Instructions for changing the front colour cover ................ 21 Powering On Sequence ...................................................... 22 • To get started with the phone ........................................... 22 • To turn off the phone ......................................................... 22 Access Codes ...................................................................... 23 • PIN code (4 to 8 digits) ..................................................... 23 • PIN2 code (4 to 8 digits) ................................................... 23 • PUK code (4 to 8 digits) .................................................... 23 • PUK2 code (4 to 8 digits) .................................................. 24 • Security code (4 to 8 digits) .............................................. 24 Contents ENGLISH 7 Accessing the Menu Phonebook ........................................................................... 25 • Search [Names 1] ............................................................. 26 • Add new [Names 2] ........................................................... 27 • Speed dial [Names 3] ........................................................ 29 • Voice list [Names 4] .......................................................... 29 • Caller groups [Names 5] ................................................... 30 • Copy all [Names 6] ............................................................ 31 • Delete all [Names 7] .......................................................... 31 • Settings [Names 8] ............................................................ 32 • Information [Names 9] ....................................................... 33 Menu Tree ............................................................................ 35 Messages [Menu 1] ............................................................. 38 • Write message [Menu 1-1] ................................................ 38 • Inbox [Menu 1-2] ............................................................... 43 • Outbox [Menu 1-3] ............................................................. 44 • Info Service [Menu 1-4] ..................................................... 45 • Voice messages [Menu 1-5] ............................................. 47 • Namecard [Menu 1-6] ....................................................... 48 • Templates [Menu 1-7] ....................................................... 48 • Settings [Menu 1-8] ........................................................... 48 • Check memory [Menu 1-9] ................................................ 49 Call Register [Menu 2] ........................................................ 50 • Missed calls [Menu 2-1] .................................................... 50 • Received calls [Menu 2-2] ................................................. 50 • Dialled calls [Menu 2-3] ..................................................... 50 • Clear recent calls [Menu 2-4] ............................................ 51 • Call charge [Menu 2-5] .............................…

Text truncated - open the document above for the full version.

L L G G E E l l e e c c t t r r o o n n i i c c s s I I n n c c . . GSM R&D Lab. Emerald BD, 1042 Hogye-Dong, Donan-Gu, Anyang-City Kyonggi-Do 431-080 Korea Telephone : +82-31-389-7143, Fax. :+ 82-31-389-7101 DATE: March 31,2003 Federal Communications Commission Equipment Authorization branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Confidentiality Gentlemen: In reference to the application under FCC ID: BEJW3000S, and pursuant to Sections 0.457(d)(l)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of the accompanying information as outlined below: Schematics Block Diagrams Theory of Operation . Bill of Material These documents contain detailed system and equipment description and related information about the product that LG Electronics Inc. considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, LG Electronics Inc. considers that this information would be of benefit to its competitors, and that disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Kevin Lee / Senior Approval Engineer Quality Engineer Group of GSM R&D Lab. LG Electronics Inc.

From: Claire Hoque Sent: Tuesday, May 06, 2003 4:18 PM To: Mike Kuo Subject: RE: LG Electronics USA, FCC ID:BEJW3000S, AN03T2807 Hi Mike, Pls see the answers as bellows. ------------- Question #1: Please provide instrument setting ( RBW, VBW) used during EIRP measurement. Answer: Pls see page 13-15 of revised report as attached. Question #2: The proposed FCC ID label location is pointed to the sim card. Such sim card may be removed by the end user. Please provide revised FCC ID label format and location where the label will be permanently attached to the device. Answer: Pls see revised FCC Lable Location file as attached. Question #3: Internal photos: Please provide additional internal photos by removing the keypad. Please also indicate the antenna location on the internal photos. Answer: Pls see revised internal photos as attached. Question #4: Please confirm the Bill of Material is not the requested item for confidential. Answer: Pls see revised Request for Confidentiality as attached. Question #5: In the tune up procedure attachment, there is no max. power indicated for high channel. Please provide revised tune up procedure. Answer: Pls see revised Tune up Procedure as attached. Question #6: Page 98 of user manual only indicate that this phone is capable of operating in 900GSM/DCS1800. However, the FCC part 24 test report indicates this phone is capable of 1900GSM. Please explain the difference in user manual Vs test report. Answer: LG has deleted 900GSM/DCS1800 statement(pls see page 95 of revised user's manual). Question #7:Only SAR main test report is provided. Please provide System validation plots, Sar data plots, Probe calibration file and Dipole calibration file. Answer: Pls see the SAR attachments as attached. Question #8: User manual does not contain RF exposure warning statement and instruction to user on body worn operation. Please provide revised user manual to address these requirements. Answer: Pls see page 94 of revised manual. Question #9: Please confirm in writing on the capable of this phone. Please provide the frequency range and modulation type that this phone is capable of operating. Answer: frequency range is 1850-1910MHz Modulation Type is GMSK Thanks, Claire

PROPOSED FCC ID LABEL AND LOCATION LG ELECTRONICS INC. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: BEJW3000S FCC ID LABEL LOCATION

Antenna Location Slot Antenna

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for 1900 MHz GSM Mobile MODEL: W3000S FCC ID: BEJW3000S April 2, 2003 REPORT NO: 03U1911-2 Prepared for LG Electronics USA 6133 N. River Road, Suite 1100 Rosemont, IL 60018, USA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 03U1911-2 DATE: April 2, 2003 FCC ID: BEJW3000S COMPLIANCE CERTIFICATION SERVICES Page: 2 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: April 2, 2003 REPORT NO: 03U1911-2 APPLICANT: LG Electronics USA 6133 N. River Road, Suite 1100 Rosemont, IL 60018 USA MODEL: W3000S FCC ID: BEJW3000S DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: 30.16 dBm (Conducted) Max. SAR (1g): 0.843 W/Kg (Left head - tilted position) 0.529 W/Kg (Body worn) Application Type: Certification FCC Rule Part(s): 24 (E) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 03U1911-2 DATE: April 2, 2003 FCC ID: BEJW3000S COMPLIANCE CERTIFICATION SERVICES Page: 3 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENTS 1. EUT DESCRIPTION....................................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC......................5 3. DOSIMETRIC ASSESSMENT SETUP..........................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM.......................................................................................................6 3.2. SYSTEM COMPONENTS...........................................................................................................................7 4. EVALUATION PROCEDURES.....................................................................................9 5. MEASUREMENT UNCERTAINTY..............................................................................12 6. EXPOSURE LIMIT....................................................................................................13 7. EUT ARRANGEMENT...............................................................................................14 8. MEASUREMENT RESULTS......................................................................................15 8.1. SYSTEM VALIDATION..............................................................................................................................15 8.2. TEST LIQUID CONFIRMATION................................................................................................................16 8.3. EUT TUNE-UP PROCEDURES................................................................................................................17 8.4. EUT SETUP PHOTOS..............................................................................................................................18 8.5. SAR MEASUREMENT RESULTS.............................................................................................................21 9. EUT PHOTOS...........................................................................................................22 10. EQUIPMENTS LIST & CALIBRATION STATUS.........................................................23 11. REFERENCES.........................................................................................................24 12. ATTACHMENTS......................................................................................................25 REPORT NO: 03U1911-2 DATE: April 2, 2003 FCC ID: BEJW3000S COMPLIANCE CERTIFICATION SERVICES Page: 4 of 25 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: LG Electronics USA 6133 N. River Road, Suite 1100 Rosemont, IL 60018 USA MODEL: W3000S FCC ID: BEJW3000S DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM Operating Mode: Maximum continuous output Tx Frequency: 1850.2 ~ 1909.8 MHz Max. O/P Power: 30.16 dBm (Conducted) Max. SAR (1g): 0.843 W/Kg (Left head - tilted position) 0.529 W/Kg (Body worn) Application Type: Certification FCC Rule Part(s): 24 (E) Antenna Type: Fixed Battery option: Only one model with EUT 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 03U1911-2 DATE:…

Text truncated - open the document above for the full version.

Date/Time: 03/31/03 16:43:48 Test Laboratory: Compliance Certification Services File Name: D1800V2 SN 294_8.86 mW.da4 DUT: Dipole 1800 MHz Type & Serial Number: D1800V2 SN 294 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 23 deg C, liquid temp. 21 deg C Communication System: CW_1800 MHz; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium: Head 1800 MHz ( σ = 1.3819 mho/m, ε = 38.95, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.6, 5.6, 5.6); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 90 V/m Peak SAR = 15.1 mW/g SAR(1 g) = 8.86 mW/g; SAR(10 g) = 4.64 mW/g Power Drift = 0.007 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.7 -15.1 -13.4 -11.7 -10 -8.37 -6.7 -5.02 -3.35 -1.67 0 Date/Time: 04/01/03 09:38:26 Test Laboratory: Compliance Certification Services File Name: D1800V2 SN 294_8.95 mW.da4 DUT: Dipole 1800 MHz Type & Serial Number: D1800V2 SN 294 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 23.5 deg C, liquid temp. 21.5 deg Communication System: CW_1800 MHz; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium: Head 1800 MHz ( σ = 1.3719 mho/m, ε = 39.318, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.6, 5.6, 5.6); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 90 V/m Peak SAR = 15.2 mW/g SAR(1 g) = 8.95 mW/g; SAR(10 g) = 4.69 mW/g Power Drift = 0.05 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.8 -15.1 -13.4 -11.7 -10.1 -8.38 -6.7 -5.03 -3.35 -1.68 0 Date/Time: 04/02/03 09:25:58 Test Laboratory: Compliance Certification Services File Name: D1800V2 SN 294_8.92 mW.da4 DUT: Dipole 1800 MHz Type & Serial Number: D1800V2 SN 294 Program: System Validation (ET3DV6 SN 1577); I/P Power 250 mW, Air temp. 23 deg C, liquid temp. 21 deg C Communication System: CW_1800 MHz; Frequency: 1800 MHz; Duty Cycle: 1:1 Medium: Head 1800 MHz ( σ = 1.3936 mho/m, ε = 38.74, ρ = 1000 kg/m3) Phantom section: FlatSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.6, 5.6, 5.6); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 1 - TP:1185 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 90.2 V/m Peak SAR = 15.1 mW/g SAR(1 g) = 8.92 mW/g; SAR(10 g) = 4.67 mW/g Power Drift = -0.01 dB Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.9 -15.2 -13.5 -11.8 -10.2 -8.46 -6.77 -5.08 -3.38 -1.69 0

Date/Time: 03/31/03 21:50:00 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.557 mW.da4 Left Head ( Touch position ) SAR in dB -16.4 -14.7 -13.1 -11.5 -9.82 -8.19 -6.55 -4.91 -3.27 -1.64 0 Date/Time: 03/31/03 21:50:00 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.557 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 20.5 V/m Peak SAR = 0.879 mW/g SAR(1 g) = 0.557 mW/g; SAR(10 g) = 0.32 mW/g Power Drift = -0.03 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.4 -14.7 -13.1 -11.5 -9.82 -8.19 -6.55 -4.91 -3.27 -1.64 0 Date/Time: 03/31/03 21:50:00 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.473 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21 deg C Communication System: GSM 1900; Frequency: 1850.2 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 20.5 V/m Peak SAR = 0.727 mW/g SAR(1 g) = 0.473 mW/g; SAR(10 g) = 0.296 mW/g Power Drift = -0.03 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.5 -14.8 -13.2 -11.5 -9.87 -8.23 -6.58 -4.94 -3.29 -1.65 0 Date/Time: 03/31/03 21:59:48 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.787 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21.3 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 24.5 V/m Peak SAR = 1.27 mW/g SAR(1 g) = 0.787 mW/g; SAR(10 g) = 0.447 mW/g Power Drift = -0.09 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.9 -15.2 -13.5 -11.8 -10.1 -8.44 -6.75 -5.06 -3.38 -1.69 0 Date/Time: 03/31/03 21:59:48 Test Laboratory: Compliance Certification Services File Name: 2M-CH_0.631 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21.3 deg C Communication System: GSM 1900; Frequency: 1880 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 24.5 V/m Peak SAR = 0.916 mW/g SAR(1 g) = 0.631 mW/g; SAR(10 g) = 0.388 mW/g Power Drift = -0.09 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.9 -15.2 -13.5 -11.8 -10.1 -8.45 -6.76 -5.07 -3.38 -1.69 0 Date/Time: 03/31/03 22:48:24 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.706 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21.4 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 23.4 V/m Peak SAR = 1.14 mW/g SAR(1 g) = 0.706 mW/g; SAR(10 g) = 0.403 mW/g Power Drift = -0.02 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -17.4 -15.6 -13.9 -12.1 -10.4 -8.68 -6.94 -5.21 -3.47 -1.74 0 Date/Time: 03/31/03 22:48:24 Test Laboratory: Compliance Certification Services File Name: 3H-CH_0.545 mW.da4 DUT: LG Model Name: W3000S Program: Left Head -Touch position; Air temp 23 deg C & Liquid temp 21.4 deg C Communication System: GSM 1900; Frequency: 1909.8 MHz; Duty Cycle: 1:8 Medium: Head 1900MHz ( σ = 1.3783 mho/m, ε = 40.67, ρ = 1000 kg/m3) Phantom section: LeftSection DASY4 Configuration: - Probe: ET3DV6 - SN1577; ConvF(5.3, 5.3, 5.3); Calibrated: 2/7/2003 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn427; Calibrated: 2/4/2003 - Phantom: SAM 2 - TP:1050 - Software: DASY4, V4.0 Build 51 Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm Reference Value = 23.4 V/m Peak SAR = 0.876 mW/g SAR(1 g) = 0.545 mW/g; SAR(10 g) = 0.336 mW/g Power Drift = -0.02 dB Area Scan (14x9x1): Measurement grid: dx=10mm, dy=10mm SAR in dB -16.9 -15.2 -13.5 -11.8 -10.1 -8.44 -6.75 -5.06 -3.37 -1.69 0 Date/Time: 03/31/03 23:11:28 Test Laboratory: Compliance Certification Services File Name: 1L-CH_0.558 mW.da4 Left Head ( Tilt position ) SAR …

Text truncated - open the document above for the full version.

FCC CFR47 CERTIFICATION PART 24E TEST REPORT FOR LG ELECTRONICS, INC. DESCRIPTION: 1900MHZ GSM MOBILE MODEL: W3000S FCC ID: BEJW3000S REPORT NUMBER: 03U1911-1 ISSUE DATE: APRIL 7, 2003 Prepared for LG ELECTRONICS, INC. EMERALD BD 1042 HOGYE-DONG DONGAN-GU ANYANG, KYUNGGI-DO 431-080 KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, ROUTE 2 MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 03U1911-1 DATE: APRIL 7, 2003 EUT: 1900 MHz GSM MOBILE FCC ID: BEJW3000S Page 2 of 2 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. FACILITIES, LABORATORY AND ACCREDITATION...........................................................4 3.1. FACILITIES....................................................................................................................................4 3.2. LABORATORY ACCREDITATION...................................................................................................4 3.3. LIST OF ACCREDITATIONS............................................................................................................5 4. CALIBRATION, METHODOLOGY AND UNCERTAINTY......................................................6 4.1. EQUIPMENT CALIBRATION...........................................................................................................6 4.2. TEST METHODOLOGY...................................................................................................................6 4.3. MEASUREMENT UNCERTAINTY....................................................................................................6 4.4. TEST AND MEASUREMENT EQUIPMENT.......................................................................................7 5. APPLICABLE RULES......................................................................................................................8 5.1. RF POWER OUTPUT §2.1046....................................................................................................8 5.2. MODULATION CHARACTERISTICS §2.1047........................................................................8 5.3. OCCUPIED BANDWIDTH §2.1049...........................................................................................8 5.4. SPURIOUS EMISSIONS AT ANTENNA TERMINALS §2.1051............................................9 5.5. FIELD STRENGTH OF SPURIOUS RADIATION §2.1053.....................................................9 5.6. FREQUENCY STABILITY §2.1055...........................................................................................9 5.7. FREQUENCY RANGE TO BE INVESTIGATED §2.1057.....................................................10 6. TEST SETUP, PROCEDURE AND RESULT..............................................................................11 6.1. SECTION 2.1046: RF POWER OUTPUT.................................................................................11 6.2. OCCUPIED BANDWIDTH.......................................................................................................16 6.3. SPURIOUS EMISSION AT ANTENNA TERMINAL.............................................................20 6.4. FIELD STRENGTH OF SPURIOUS RADIATION.................................................................29 6.5. FREQUENCY STABILITY.......................................................................................................35 6.6. RADIATED EMISSION............................................................................................................38 6.7. POWER LINE CONDUCTED EMISSION...............................................................................42 7. APENDIX..........................................................................................................................................47 7.1. EXTERNAL & INTERNAL PHOTOS.....................................................................................47 REPORT NO: 03U1911-1 DATE: APRIL 7, 2003 EUT: 1900 MHz GSM MOBILE FCC ID: BEJW3000S Page 3 of 3 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: …

Text truncated - open the document above for the full version.
