BEJX1241XGMicrowave Oven

LG Electronics USA, Inc.
Microwave Oven - FCC ID BEJX1241XG - LG Electronics USA, Inc.
Click to zoom

Application Details

Equipment Class
8CC - Part 18 Consumer Device
Date of Grant
Mar 16, 2000
Application Purpose
Original Equipment
Date of Application
Feb 22, 2000
Equipment Note
Microwave Oven
Frequency Range
2450.00000000 - 2450.00000000
Company
LG Electronics USA, Inc.
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Schematics

↗

Test Report

↗
↗
↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Owner Manual FCC ID : BEJX1241XG

Cover Letter(s)

February 24, 2000 Federal Communication Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Confirmation no. EA96847 Correction for FCC ID BEJX124XG Dear examiner, Please be advised that the FCC ID BEJX124XG is incorrect. The correct ID is BEJX1241XG. We have provided attachment files for BEJX1241XG. If you have further questions, please do not hesitate to contact me at 847-993-4529 or E- mail to [email protected]. Regards, Peter Byun General Manager LG Electronics, Inc. Engineering

External Photos

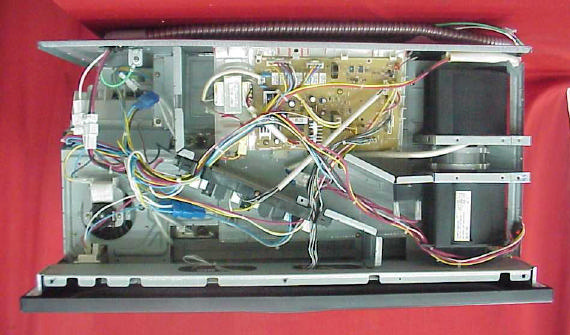

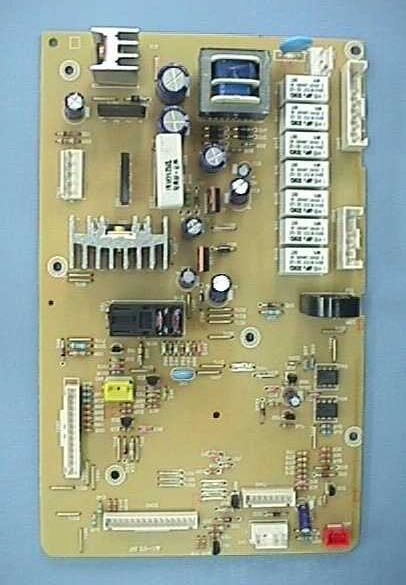

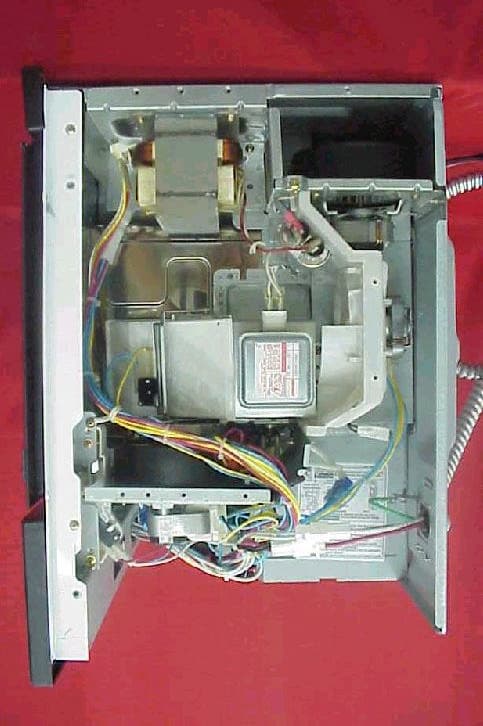

The EUT Photographs EXTERNAL VIEW FCC ID : BEJX1241XG INTERNAL VIEW FCC ID : BEJX1241XG PCB VIEW FCC ID : BEJX1241XG

ID Label/Location Info

LABEL FCC ID : BEJX1241XG Label Location

Schematics

Door SensingSwitch(Left) U.B.M T.C.O(MGT) FUSE 20A PRIMARY INTERLOCKSWITCH UPPERHEATER-OUTER LOWERHEATER L.B.M F.M . H.V.D H.V.C MGT L1L2 MONITORSWITCH  N Door is opened. U.B.M : Upper Blower Motor (for Upper Heater) L.B.M : Lower Blower Motor (for Lower Heater) O.L.R : Oven Lamp Right O.L.L : Oven Lamp Left F.M : Fan Motor(for MGT) V.C.T: Voltage Compensation Transformer RY10 RY21 RY17 RY2 LOWERHEATERT.C.O O.L.L GND   RY22 TRIAC3  POWERTRANS  RY16  RY19 UPPERHEATER-CENTER TRIAC 2 TRIAC 1 H.V.T E.M : Exhaust Motor T.T.M : Turn Table Motor D.M : Damper Motor T.C.O : Thermal Cut Off MGT : Magnetron H.V.T : High Voltage Transformer H.V.D : High Voltage Diode H.V.C : High Voltage Capacitor   RY20  Micro Computer VCT D.M   RY6  Damper SensingSwitch THERMALFUSE 10A O.L.R Door SensingSwitch(Right) RY18 134 E.M RY12 RY13  (COM) LOW HIGH T.T.M RY1   T.C.O(OVEN) Thermistor Rs Rc Humidity Sensor Schematic Diagram Model: MZ-1246MG RY23  T.C.O UPPERHEATER-OUTER T.C.O UPPERHEATER-CENTER FCC ID : BEJX1241XG L1 GND N L2 U.B.M T.T.M O.L.L F.M 4 3 2 1 RY6 RY16 RY1 RY10 RY13 1 2 21 RY18 RY19 RY21 N N RY 2 L H LH TCO H.V.T PRI. SW RELAY PCB RY23 TRIAC 1 Door SensingSwitch(Left) YL BL RY20 TRIAC 3 V.C.T 3 1 1 3 MAIN PCB 12 2 1 UHO 12 12 12 12 UHC 12 12 MGT TCO 2 11 2 2 11 2 L.B.M 1 2 1 2 RD BL WH WH BK BL WH BK YL RD YL BK BK RD YL WH BK BL BK YL BL YL RD BN RD WH GN PowerTransformer D.M RD BL 4 RD BL WH YL D.Motor SensingSwitch 5 4 3 2 1 BN BL RD BN 1 3 CN11 CN1(BL) CN12 CN13 RY17 RY12 CN2 CN4 TRIAC 2 Fuse WH BL YL WH BK YL 1 2 1 2 Thermal Fuse 10A RD E.M O.L.R WH RD Door SensingSwitch(Right) 1 2 1 2 WH RD RD OVEN TCO 12345 6 123456 HI C L RD RD WH BK BL WH BK RD YL 6 YL Note: 1. Door is opened.2. No Cooking Mode. 3. V.C.T: Voltage Compensation Transformer 4. Symbol for Wiring Color BK: Black, RD: RedYL: Yellow, WH: WhiteGY: Gray, BL: BlueBN: Brown, GN: Green Rs Humidity Sensor 1 2 3 Rc Thermistor High Voltage Diode High Voltage Capacitor Magnetron High Voltage Transformer CN6 U.B.M : Upper Blower Motor (for Upper Heater) L.B.M : Lower Blower Motor (for Lower Heater) O.L.R : Oven Lamp Right O.L.L : Oven Lamp Left F.M : Fan Motor(for MGT) E.M : Exhaust Motor T.T.M : Turn Table Motor D.M : Damper Motor T.C.O : Thermal Cut Off L.H: Lower Heater U.H.C:Upper Heater Center U.H.O:Upper Heater Outer Schematic Diagram Model: MZ-1246MG RY22 UHC TCO UHO TCO FCC ID : BEJX1241XG

Test Report

Specification FCC ID : BEJX1241XG 1Equipment ClassISM Consumer Device, Part 18 2Equipment nameMicrowave Oven 3Trade NameGoldstar 4Model NumberMZ-1246MG 5FCC IDBEJX1241XG 6Serial number & Manufacturer DateProto-Type (Not Produced yet) 7Date of Original GrantOriginal Model 8Rated RF Power Output950W 9Rated Power Consumption6300W 10Rated Current27A 11Overall Dimensions (W*H*D)29.78 × 21.86 × 18 (inch) 12Cavity Dimensions (W*H*D)18.89 × 8.62 × 13.88 (inch) 13Cavity Volume1.2 cu.ft. 14Magnetron2M248J 15Mode of StirrerTurntable 16Measurement FacilityLG 17Frequency Range in MHz2450 ±50 MHz 18Household Use

Test Report

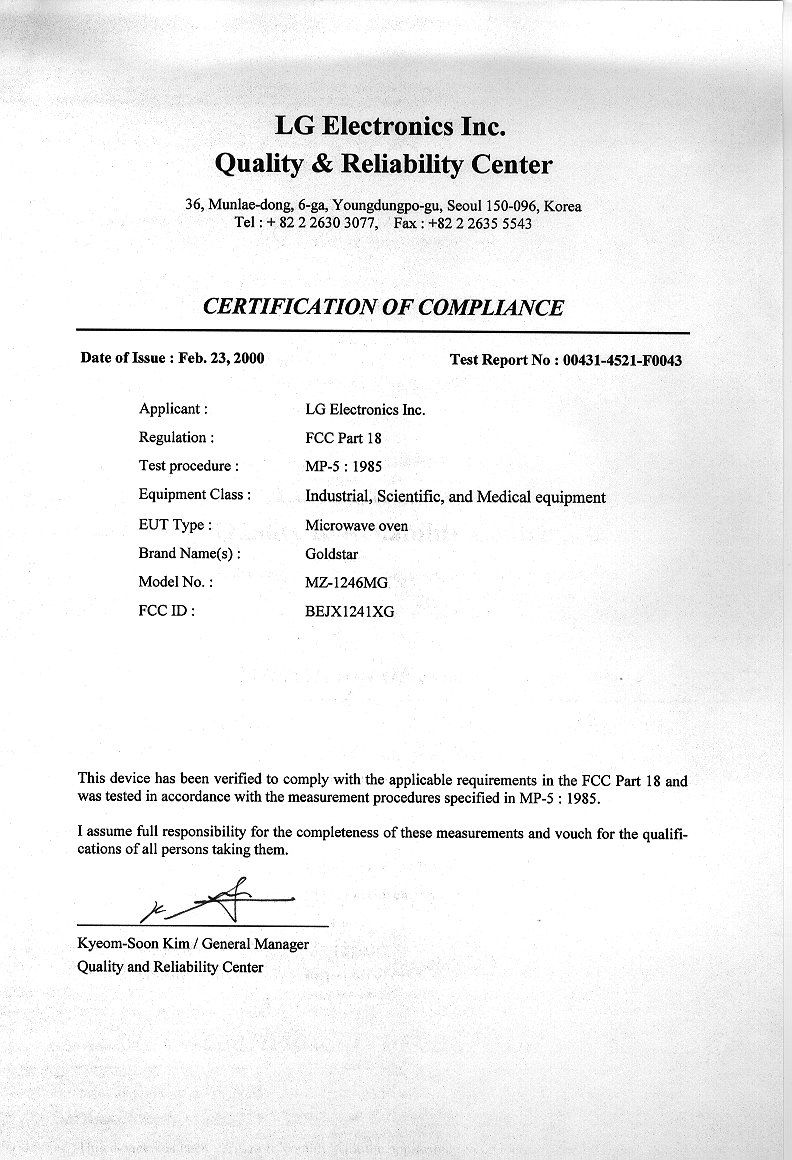

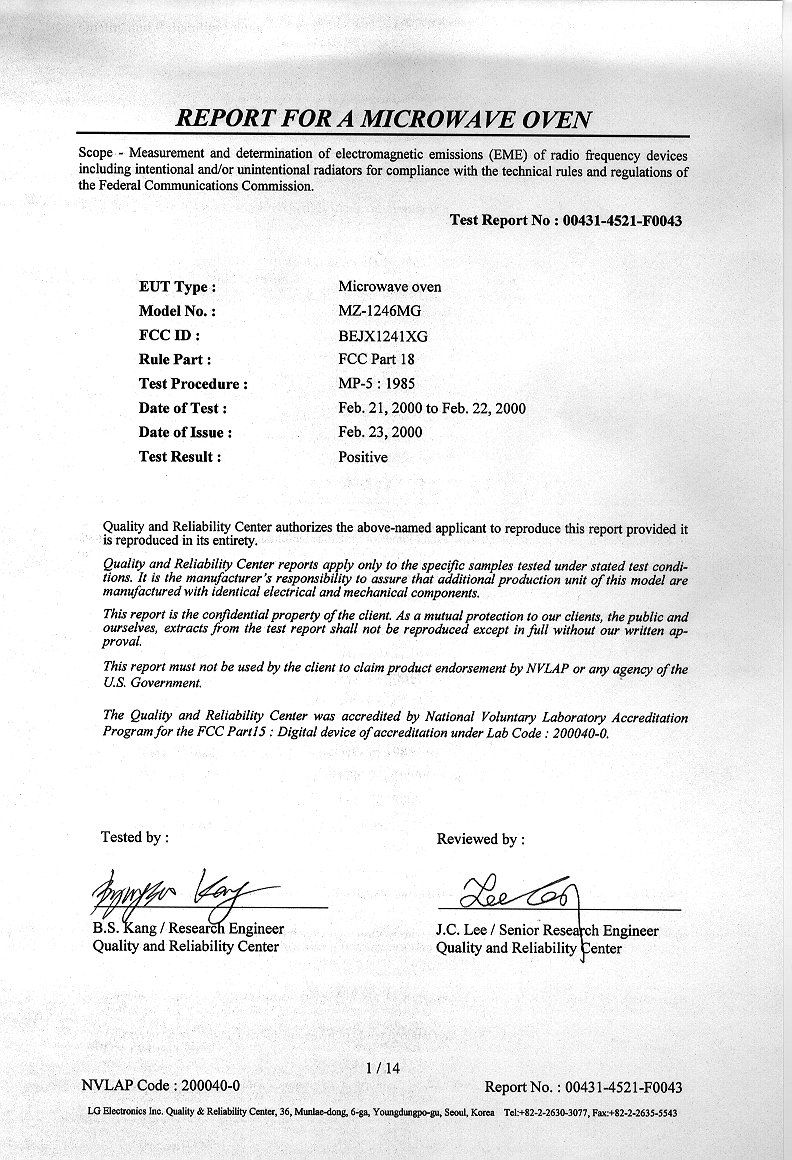

LG Electronics Inc. Quality & Reliability Center 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul 150-096, Korea Tel : + 82 2 2630 3077, Fax : +82 2 2635 5543 CERTIFICATION OF COMPLIANCE Date of Issue : Feb. 23, 2000Test Report No : 00431-4521- F0043 Applicant :LG Electronics Inc. Regulation :FCC Part 18 Test procedure :MP-5 : 1985 Equipment Class : Industrial, Scientific, and Medical equipment EUT Type :Microwave oven Brand Name(s) :Goldstar Model No. :MZ-1246MG FCC ID :BEJX1241XG This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5 : 1985. I assume full responsibility for the completeness of these measurements and vouch for the qualifi- cations of all persons taking them. Kyeom-Soon Kim / General Manager Quality and Reliability Center 1 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0043 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices in- cluding intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. Test Report No : 00431-4521- F0043 EUT Type : Microwave oven Model No. : MZ-1246MG FCC ID :BEJX1241XG Rule Part : FCC Part 18 Test Procedure : MP-5 : 1985 Date of Test : Feb. 21, 2000 to Feb. 22, 2000 Date of Issue : Feb. 23, 2000 Test Result :Positive Quality and Reliability Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. Quality and Reliability Center reports apply only to the specific samples tested under stated test condi- tions. It is the manufacturer’s responsibility to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. The Quality and Reliability Center was accredited by National Voluntary Laboratory Accreditation Program for the FCC Part15 : Digital device of accreditation under Lab Code : 200040-0. Tested by : Reviewed by : B.S. Kang / Research Engineer J.C. Lee / Senior Research Engineer Quality and Reliability Center Quality and Reliability Center 2 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0043 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-3077, Fax:+82-2-2635-5543 CONTENTS Page 1. CLIENT INFORMATION..............................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)..............................................................................................................................3 2.1 IDENTIFICATION OF THE EUT...............................................................................................................................3 2.2 ADDITIONAL INFORMATION ABOUT THE EUT..................................................................................................3 3. TEST SITE.......................................................................................................................................................................4 3.1 SEMI-ANECHOIC CHAMBER....................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENTS.............................................................................................4 5. DESCRIPTION OF TEST CONDITION....................................................................................................................4 5.1 RADIATED EMISSIONS MEASUREMENTS...............................................................................................................4 6. MEASURING INSTRUMENTS AND SET-UP...........................................................................................................6 6.1 RADIATED EMISSIONS..............................................................................................................................................6 6.2 FREQUENCY MEASUREMENTS................................................................................................................................6 7. RF POWER OUTPUT MEASUREMENT AND RESULTS......................................................................................7 8. TEST DATA.....................................................................................................................................................................8 8-1. RADIATED EMISSIONS (SECTION 18.305)............................................................................................................8 8-2. FREQUENCY MEASUREMENTS..............................................................................................................................9 9. LIST OF INSTRUMENTS USED...............................................................................................................................10 APPENDIX A THE TEST GRAPH...............................................................................................................................11 APPENDIX B THE PHOTOGRAPHS OF TEST SET-UP.......................................................................................14 3 / 14 NVLAP Code : 200040-0 Report No. : 00431-4521-F0043 LG Electronics Inc. Quality & Reliability Center, 36, Munlae-dong, 6-ga, Youngdungpo-gu, Seoul, Korea Tel:+82-2-2630-30…

Text truncated - open the document above for the full version.

Contact Information

Applicant

David Kim(Team leader, LGEUS NA Policy & Regulatory Affairs)
[email protected]201-470-2696Fax: 201-816-2003

Technical Contact

LG Electronics, Inc.Peter Byun
[email protected]847-993-4529

6133 N. River Road, Suite 1100 · Rosemont, Illinois · United States

Non-Technical Contact

LG Electronics, Inc.Peter Byun
[email protected]847-993-4529

Technical Specifications

#Rule PartsFrequency RangePower Output
1182.45 GHz - 2.45 GHz-
