BEJX169NVMicrowave Oven

PT9800 - 30" Double Wall Oven CT9800 - 30" Double Wall Oven Owner’s Manual GEAppliances.com Safety Information ...........2 Warranty .......................6 Assistance / Accessories .....7 Using The Oven Oven Controls .....................8 Special Features .................10 Oven Racks and Rack Positions . . . 11 Cookware ........................12 Cooking Modes ..................13 Cooking Guide ...................14 Care and Cleaning Control Panel ....................15 Oven Exterior ....................15 Stainless Steel Surfaces ..........15 Oven Interior .....................15 Oven Racks ......................16 Maintenance .....................17 Troubleshooting Tips ........18 Wall Oven Write the model and serial numbers here: Model # __________________ Serial # ___________________ You can find them on a label on the side trim or on the front of the (lower) oven behind the oven door. Printed in the United States Printed on Recycled Paper For a Spanish version of this manual, visit our Website at GEAppliances.com. Para consultar una version en español de este manual de instrucciones, visite nuestro sitio de internet GEAppliances.com. Built-In Advantium ® Electric Combination 49-80706 02-14 GE 2 49-80706 FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT (U.S.A. ONLY) This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following: ŶReorient the receiving antenna of radio or television. ŶRelocate the Microwave oven with respect to the receiver. ŶMove the microwave oven away from the receiver. ŶPlug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference. WARNING IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING. SAFETY INFORMATION 3 49-80706 ■ Read all instructions before using this appliance. When using electrical appliances, basic safety precautions should be followed, including the following: ■ Read and follow the specific precautions in the PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY section on page 2. ■ Be sure your appliance is properly installed and grounded by a qualified technician in accordance with the provided installation instructions. ■ Install or locate this appliance only in accordance with the provided installation instructions. ■ Some products such as whole eggs and sealed FRQWDLQHUV³IRUH[DPSOHFORVHGMDUV³DUHDEOHWRH[SORGH and should not be heated in this oven. Such use of the RYHQFRXOGUHVXOWLQLQMXU\ ■ Do not mount this appliance over a sink. ■ Do not store anything directly on top of this appliance surface when this appliance is in operation. ■ This oven is not approved or tested for marine use. ■ This oven is UL listed for standard wall installation. ■ Do not operate this appliance if it has been damaged or dropped. ■$VZLWKDQ\DSSOLDQFHFORVHVXSHUYLVLRQLVQHFHVVDU\ZKHQ used by children. ■ Use this appliance only for its intended use as described in this manual. ■ Do not use corrosive chemicals or vapors in this appliance. ■7KLVRYHQLVVSHFLILFDOO\GHVLJQHGWRKHDWGU\RUFRRNIRRG and is not intended for laboratory or industrial use. ■ This appliance must only be serviced by qualified service personnel. Contact nearest authorized service facility for H[DPLQDWLRQUHSDLURUDGMXVWPHQW ■ Do not cover or block any openings on the appliance. ■ Do not store this appliance outdoors. Do not use this SURGXFWQHDUZDWHU³IRUH[DPSOHLQDZHWEDVHPHQWQHDU DVZLPPLQJSRROQHDUDVLQNRULQVLPLODUORFDWLRQV ■ See door surface cleaning instructions in the Care and Cleaning of the Oven section of this manual. ■ To reduce the risk of fire in the oven cavity: ³'RQRWRYHUFRRNIRRG&DUHIXOO\DWWHQGDSSOLDQFHZKHQ SDSHUSODVWLFRURWKHUFRPEXVWLEOHPDWHULDOVDUHSODFHG inside the oven while microwave cooking. ³5HPRYHZLUHWZLVWWLHVDQGPHWDOKDQGOHVIURPSDSHURU plastic containers before placing them in the oven. ³'RQRWXVHWKHRYHQIRUVWRUDJHSXUSRVHV'RQRWOHDYHSDSHU SURGXFWVFRRNLQJXWHQVLOVRUIRRGLQWKHRYHQZKHQQRWLQXVH ³,IPDWHULDOVLQVLGHWKHRYHQLJQLWHNHHSWKHRYHQGRRU FORVHGWXUQWKHRYHQRIIDQGVKXWRIISRZHUDWWKHIXVHRU FLUFXLWEUHDNHUSDQHO,IWKHGRRULVRSHQHGWKHILUHPD\ spread. ³'RQRWXVHWKH6HQVRU)HDWXUHVWZLFHLQVXFFHVVLRQRQWKH same food portion. If food is undercooked after the first FRXQWGRZQXVH&22.%<7,0(IRUDGGLWLRQDOFRRNLQJWLPH PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY (a) Do Not Attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do Not Place DQ\REMHFWEHWZHHQWKHRYHQIURQW face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do Not Operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:    GRRU EHQW     KLQJHVDQGODWFKHV EURNHQRUORRVHQHG  (3) door seals and sealing su…

Text truncated - open the document above for the full version.

LG Electronics Changwon EMC Center 391-2, Ga Eum Jeong-Dong, Seong San-Gu, Changwon City, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-268-4530 PCTEST Engineering Laboratory Inc. Ref. No.: 14-EMUS-0062 6660-B Dobbin Road Date: February 24, 2014 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Application for FCC Grant on LG Microwave Oven FCC ID: BEJX169NV Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit this application letter and test report to apply for FCC grant as follows. 1. FCC ID: BEJX169NV 2. Application Model no.: MZ1693GSML (Buyer model No.: 191D7830G002) (RF Power Output – MP-5: 635 W) 3. Magnetron: 2M246 (LG) 4. Applied model is for household use. We have performed all tests using model MZ1693GSML with Magnetron (2M246, LG) at our measurement facilities as enclosed. No out-of-band frequency measurement and over-limit radiated emission was discovered. Your prompt cooperation would be appreciated. If you have any comments, please feel free to contact me, Mr. Jacob Cho at LG Electronics New Jersey Office or Mr. Dae-Woong, Kim at LG Electronics, HA EMC Center. Best regards, Kim Dae Woong, Chief Research Engineer Jacob Cho, General Manager Home Appliance Company, EMC Center Product Regulatory Complaince Team. LG Electronics Inc. LG Electronics New Jersey Office E-Mail: [email protected] E-Mail: [email protected] LG Electronics Inc.

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 1 / 5 LG Electronics Inc. FCC ID: BEJX169NV APPENDIX C. Block Diagram / Schematics <Fig. 3-1. Block Diagram>

LG Electronics Inc. LG Electronics Changwon EMC Center 391-2, Ga Eum Jeo ng-Dong, Seo ng San-Gu, Changwon Cit y, Gyeong Nam, 641-711 Korea Tel.: + 82-55-260-3966 Fax: + 82-55-268-4530 PCTEST Engineering Laboratory Inc. Ref. No.: 14-EMUS-0062 6660-B Dobbin Road Date: May 24, 2014 Columbia, MD 21045 USA Attn) Mr. Randy Ortanez, President Subject: Explanation letter for magnetron typo on FCC Grant of LG Microwave Oven FCC ID: BEJX169NV Dear Mr. Ortanez, We, LG Electronics Inc., hereby submit letter regarding typo for Magnetron on the previous grant BEJX169NV as follows. We’re politely asking for your revisi on to Correct Magnetron on grant B EJX169NV. 1. FCC ID: BEJX169NV 2. Application Model no.: MZ1693GSML (Buy er model N o.: 191D7830G002) (RF Power O ut put – MP- 5: 635 W) 3- 1. Correct Magnetron: 2M246 (LG) 3- 2. Incorrect Magnetron: 2M214 (LG) 4. Applied model is for household use. We have performed all tests using model MZ1693GSML with Magnetron (2M246, LG) at our measurement facilities. But, unfortunately, initial application was submitted decrypting magnetron as 2M214 (LG) in test report etc. So, Incorrect magnetron was shown in Grant document. Your prompt cooperation would be appreciated. If you ha ve any comments, please feel free to contact me, Mr. Jacob Cho at LG Electronics New J ersey Office or Mr. Dae-Woong, Kim at LG E lectronics, HA E MC Center. Best regards, Kim Dae Woong, Chief Research Engineer Jacob Cho, General Manager Home Appliance Company, EMC Center Product Regulatory Complaince Team. LG Electronics Inc. LG Electronics New Jersey Office E-Mail: [email protected] E-Mail: [email protected]

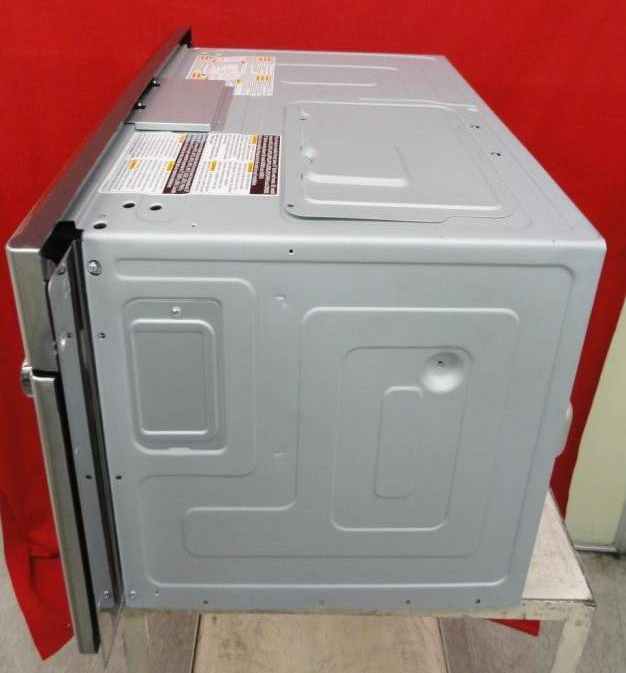

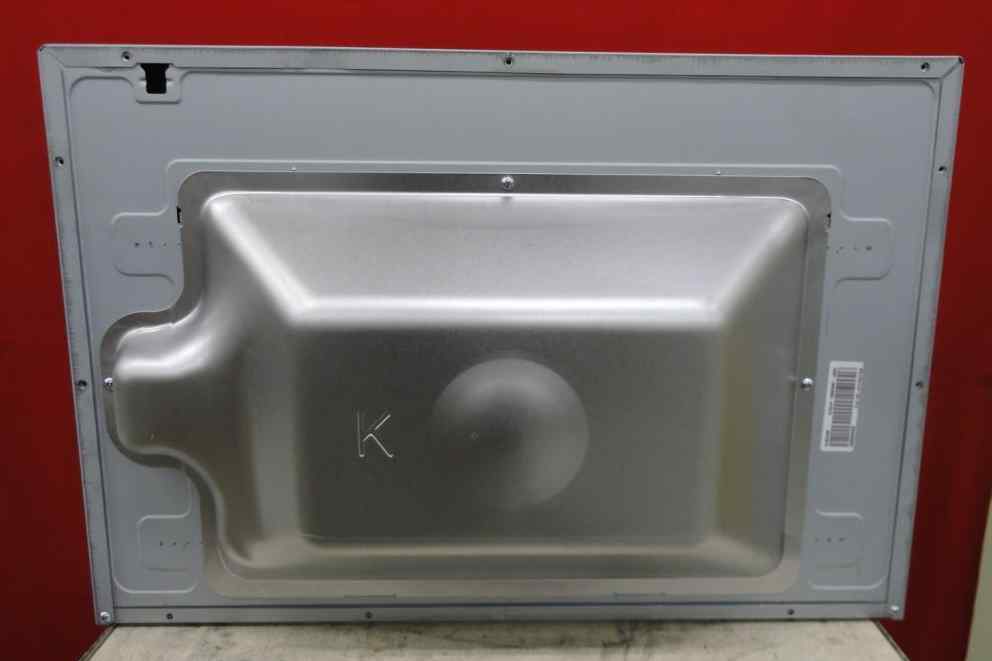

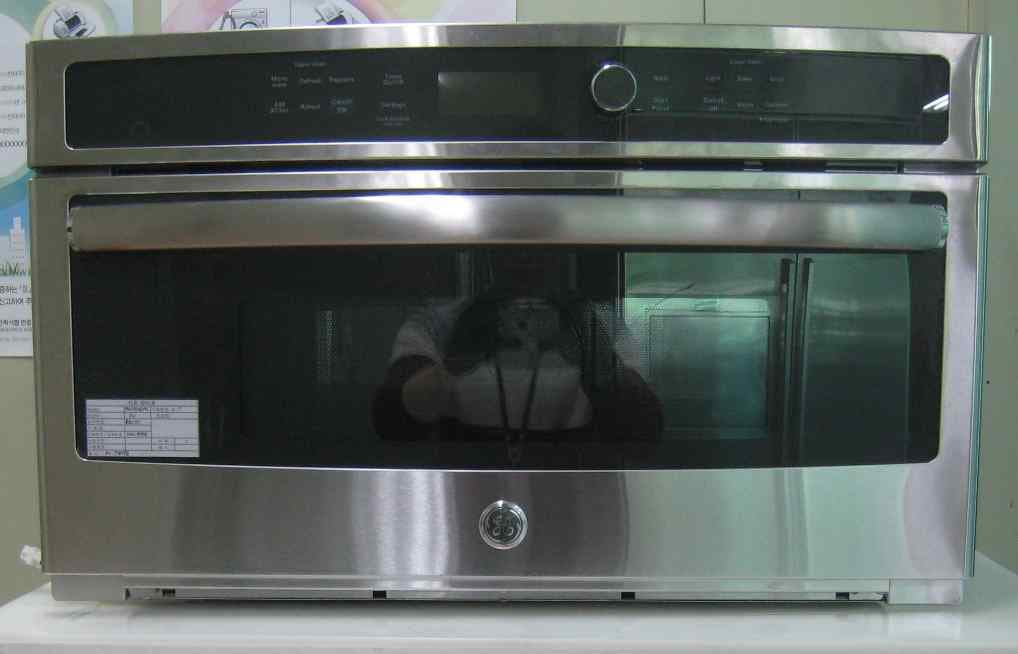

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 1 / 7 LG Electronics Inc. FCC ID: BEJX169NV APPENDIX E. EUT Photos <Front View> <Rear View> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 2 / 7 LG Electronics Inc. FCC ID: BEJX169NV <Bottom View> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 3 / 7 LG Electronics Inc. FCC ID: BEJX169NV <Left Side View> <Right Side View>

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 1 / 1 LG Electronics Inc. FCC ID: BEJX169NV APPENDIX. Labeling Requirements Labeling requirements per Section 2.925 and 15.19. The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is permanently affixed to the front cavity of the equipment with a permanent adhesive as below. <Fig. 1. Sample Label of Nameplate> < Fig. 2. Photo of the physical location of the label> * Alternate location: The nameplate may be alternatively affixed on the left side or rear surface of Oven or internal surface of oven.

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 4 / 7 LG Electronics Inc. FCC ID: BEJX169NV <Inside of Cavity> <Inside of MWO> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 5 / 7 LG Electronics Inc. FCC ID: BEJX169NV <Magnetron> <Noise filter> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 6 / 7 LG Electronics Inc. FCC ID: BEJX169NV <PCB – Main board> <PCB – SMPS board> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 7 / 7 LG Electronics Inc. FCC ID: BEJX169NV <PCB – Relay board> <Key PCB>

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 3 / 19 LG Electronics Inc. FCC ID: BEJX169NV 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Kitchen Package Division (Manufacturer) 170, Sungsanpaechongro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 642-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact: Mi Ran Park Telephone: +82-55-260-3463 Fax: +82-55-268-4783 2. EQUIPMENT UNDER TEST (EUT) EUT is the LG Electronics Inc. Microwave Oven as followings: Equipment: Microwave oven Model: MZ1693GSML (Buyer model No.: 191D7830G002) Brand name: LG Serial number: N/A Magnetron: 2M246 by LG RF Frequency: 2,450 ± 50 MHz RF Power Output (MP-5): 635 W Power Consumption Microwave Mode: 1600 W Rated Input Voltage: 120 V~, 60 Hz Rated Input Current Microwave Mode: 13.5 A Cavity Volume: 1.6 Cu.ft Oven Type: Over the range / Household Mode Stirrer: Turntable and Stirrer Power Cord: Shielded Outer Dimensions (inch) 29.7 (W) * 18.4 (H) * 21.4 (D) EMI suppression device(s) installed in production: See schematics (Appendix C & E) EMI suppression device(s) added and/or modified during test: None

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 2 / 5 LG Electronics Inc. FCC ID: BEJX169NV <Fig. 3-2. Schematic Diagram – Main board> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 3 / 5 LG Electronics Inc. FCC ID: BEJX169NV <Fig. 3-3. Schematic Diagram – SMPS board> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 4 / 5 LG Electronics Inc. FCC ID: BEJX169NV <Fig. 3-4. Schematic Diagram – Relay board> Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 5 / 5 LG Electronics Inc. FCC ID: BEJX169NV <Fig. 3-5. Schematic Diagram – Glass touch board>

LG Electronics Inc. Home Appliance Company, EMC Center 391-2, Ga Eum Jeong – Dong, Seongsan – Gu, Changwon City, Gyeong Nam 641-711, KOREA Tel: + 82 55 260 3966, Fax: +82 55 268 4530 CERTIFICATION OF COMPLIANCE Date of Issue: February 24, 2014 Test Report No: 14-EMUS-0062 Test Site: LG Electronics Changwon EMC Center Applicant: LG Electronics Inc. Regulation: FCC Part 18 – ISM Consumer Device Test Procedure: MP-5: 1985 Equipment Class: Industrial, Scientific, and Medical equipment EUT Type: Microwave oven Magnetron Type: 2M246 (LG) Brand Name(s): LG Model No.: MZ1693GSML (Buyer model No.: 191D7830G002) FCC ID: BEJX169NV This device has been verified to comply with the applicable requirements in the FCC Part 18 and was tested in accordance with the measurement procedures specified in MP-5: 1985. I assure full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Kim Dae Woong / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 1 / 19 LG Electronics Inc. FCC ID: BEJX169NV REPORT FOR A MICROWAVE OVEN Scope - Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission EUT Type: Microwave oven Model No.: MZ1693GSML (Buyer model No.: LMV1831ST) FCC ID: BEJX169NV Rule Part: FCC Part 18 Test Procedure: MP-5: 1985 Date of Test: November 27, 2013 – February 24, 2014 Date of Issue: February 24, 2014 Test Result: Pass EMC Center authorizes the above-named applicant to reproduce this report provided it is reproduced in its entirety. EMC Center reports apply only to the specific sample(s) tested under stated test conditions. It is the manufacturer’s responsibilities to assure that additional production unit of this model are manufactured with identical electrical and mechanical components. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. This report must not be used by the client to claim product endorsement by any agency of the U.S. Government. The EMC Center facilities has been placed on file and the name of our organization added to the FCC’s list for the FCC Part 15 and 18 of the Commission’s Rules under Registration Number 93197. Tested by: Reviewed by: Kim Tae Yul / Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Son Kwang Mu / Chief Research Engineer Home Appliance Company, EMC Center LG Electronics Inc. Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 2 / 19 LG Electronics Inc. FCC ID: BEJX169NV CONTENTS Page 1. CLIENT INFORMATION................................................................................................................................3 2. EQUIPMENT UNDER TEST (EUT)................................................................................................................3 3. TEST SITE..........................................................................................................................................................4 4. CALIBRATIONS OF MEASURING INSTRUMENT...................................................................................4 5. DESCRIPTION OF TEST CONDITION........................................................................................................4 5.1 POWER LINE CONDUCTED EMISSION MEASUREMENTS.....................................................................................4 5.2 RADIATED EMISSIONS MEASUREMENT.............................................................................................................5 6. MEASURING INSTRUMENT.........................................................................................................................9 7. TEST DATA......................................................................................................................................................10 7.1 INPUT POWER................................................................................................................................................10 7.2 RF POWER OUTPUT MEASUREMENT ACCORDING TO MP-5...........................................................................10 7.3 FREQUENCY MEASUREMENTS.......................................................................................................................11 7.4 POWER DENSITY SAFETY CHECK..................................................................................................................12 7.5 CONDUCTED EMISSIONS (SECTION 18.307)...................................................................................................12 7.6 RADIATED EMISSIONS (SECTION 18.305).......................................................................................................13 APPENDIX A. TEST PLOT................................................................................................................................14 APPENDIX B. TEST PHOTOS..........................................................................................................................18 Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 3 / 19 LG Electronics Inc. FCC ID: BEJX169NV 1. CLIENT INFORMATION The EUT has been tested by request of: Company: 1. LG Electronics Inc. Kitchen Package Division (Manufacturer) 170, Sungsanpaechongro, Seongsan-gu, Changwon-si, Gyeongsangnam-do, 642-711, Korea 2. LG Electronics Tianjin Appliance Co., Ltd. Xing Dian Road, Bei Chen Distr., Tianjin 300402, People’s Republic of China Name of contact: Mi Ran Park Telephone: +82-55-260-3463 Fax: +82-55-268-4783 2. EQUIPMENT UN…

Text truncated - open the document above for the full version.

Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 19 / 20 LG Electronics Inc. FCC ID: BEJX169NV APPENDIX B. Test Photos Test photos show the worst case configuration and cable placement with a minimum margin to the specifications. - Conducted Emission Test Report No.: 14-EMUS-0062 FCC Part 18 (ISM) Test Date: February 24, 2014 Certification 20 / 20 LG Electronics Inc. FCC ID: BEJX169NV - Radiated Emission
