BESFRS-1200FAMILY RADIO TRANSCEIVER

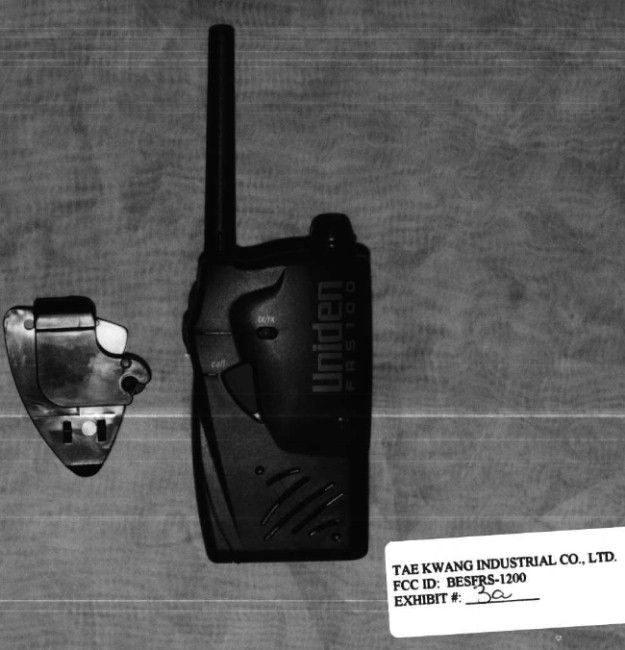

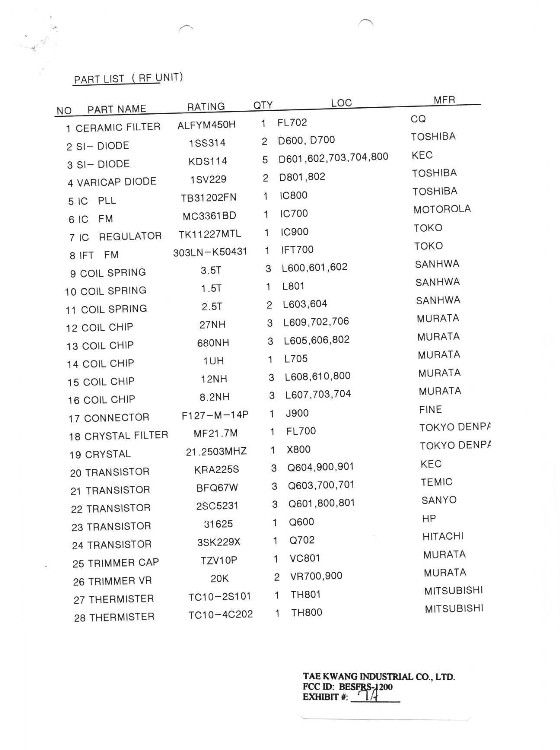

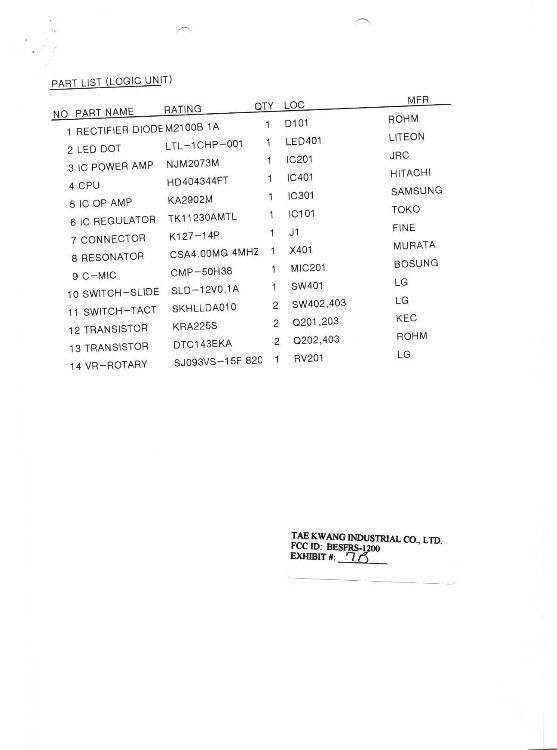

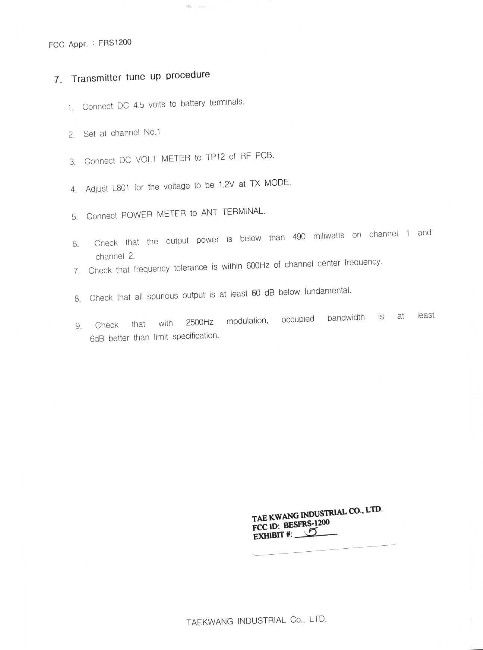

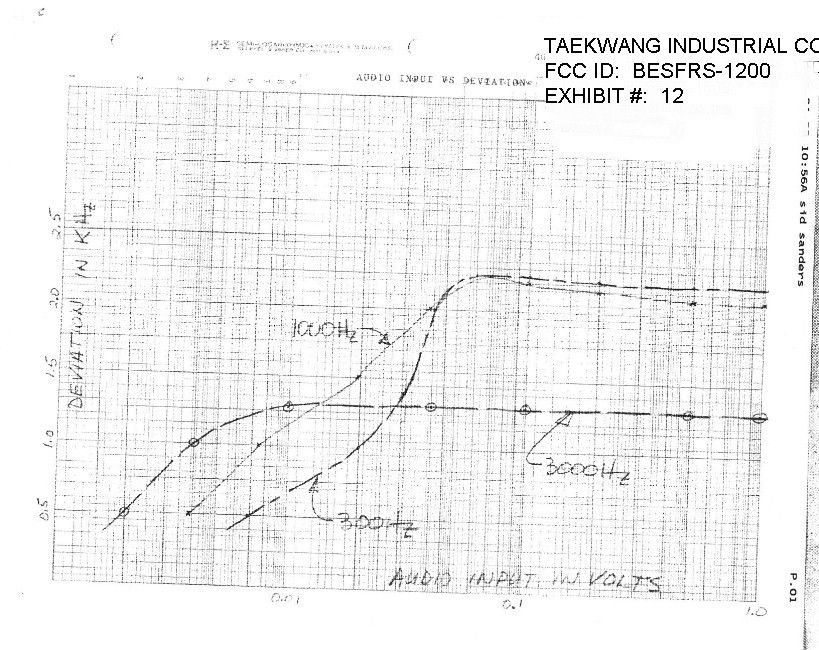

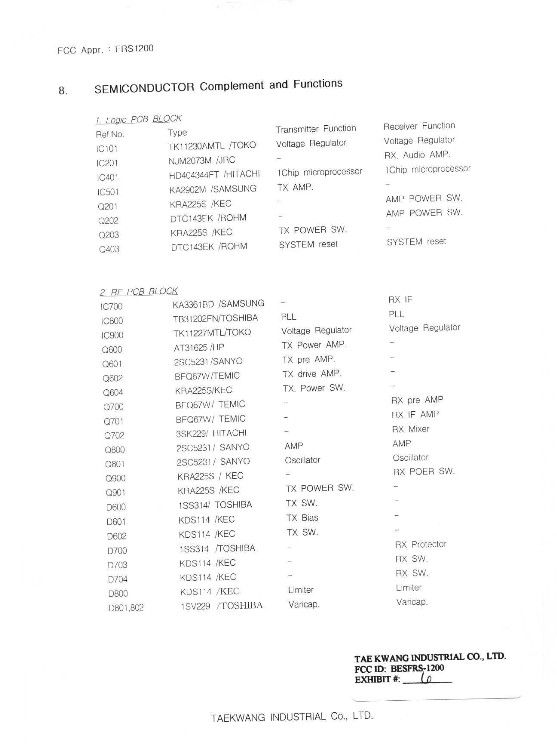

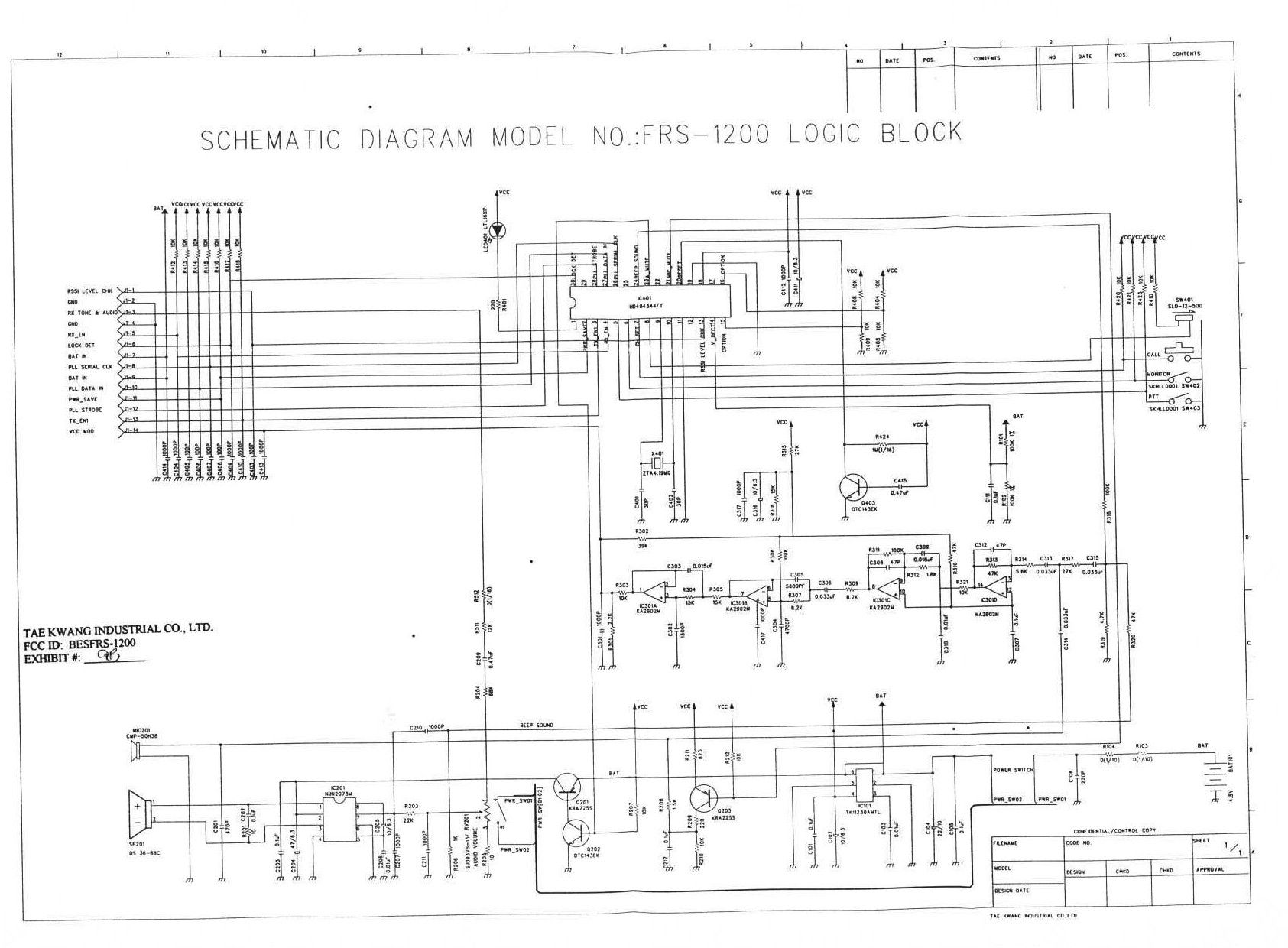

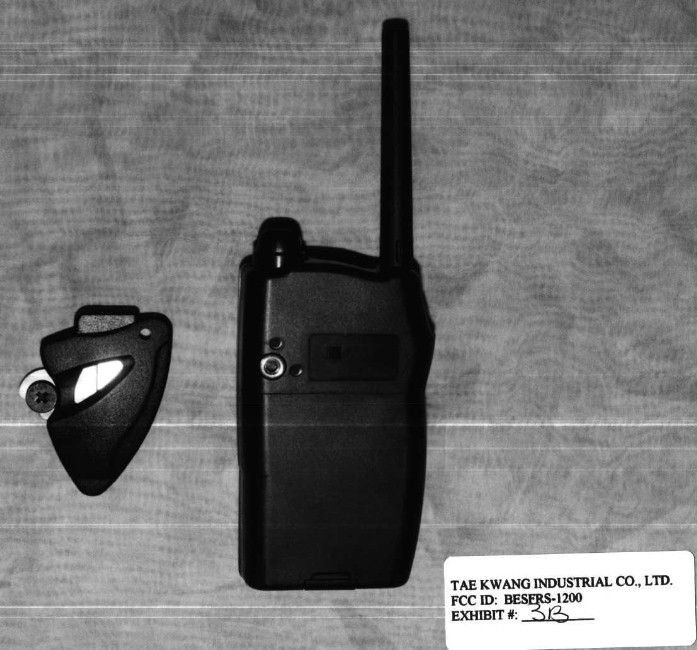

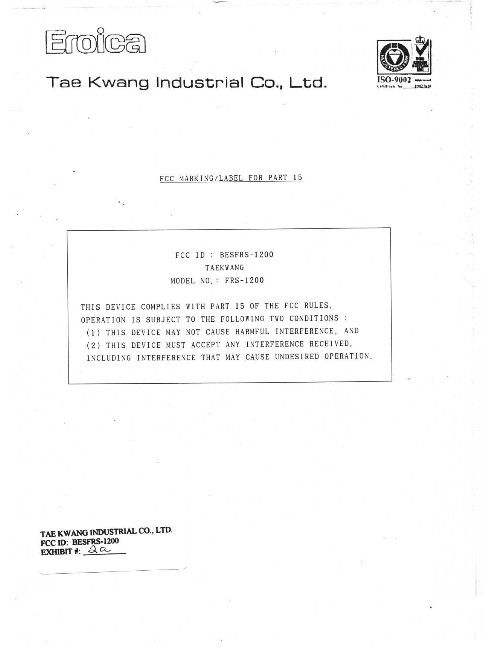

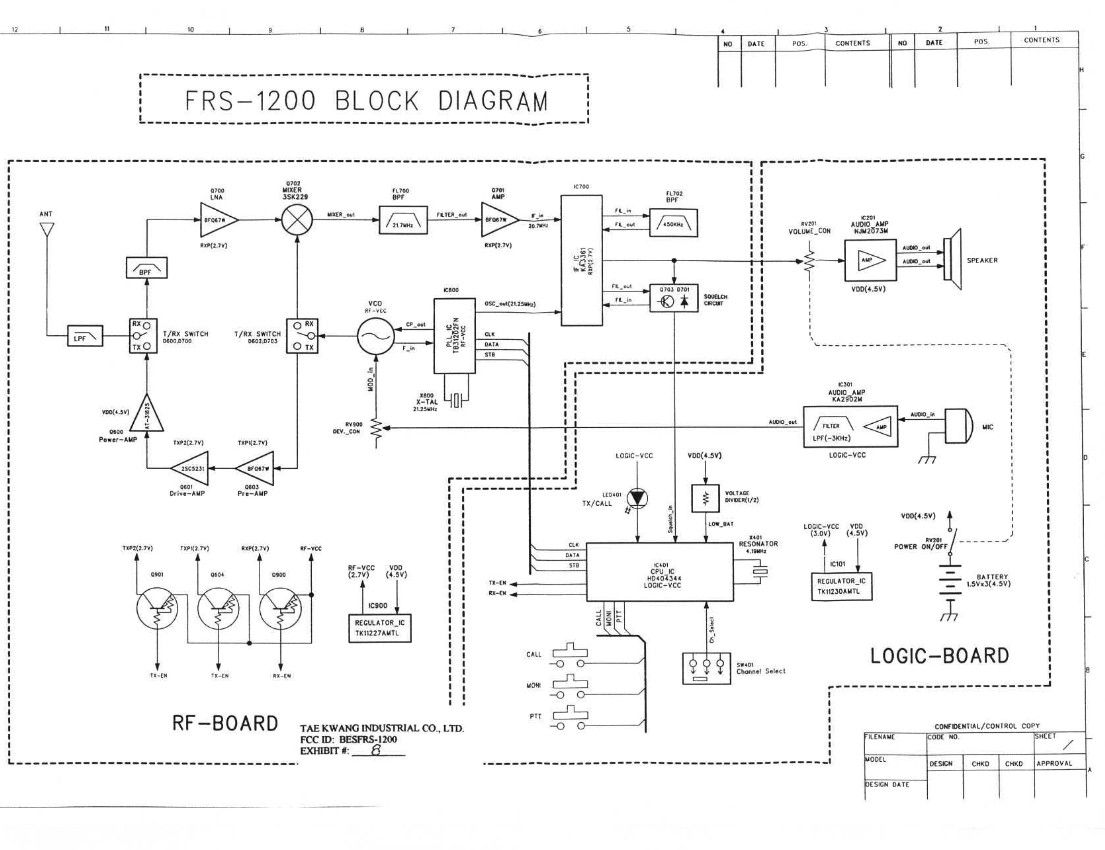

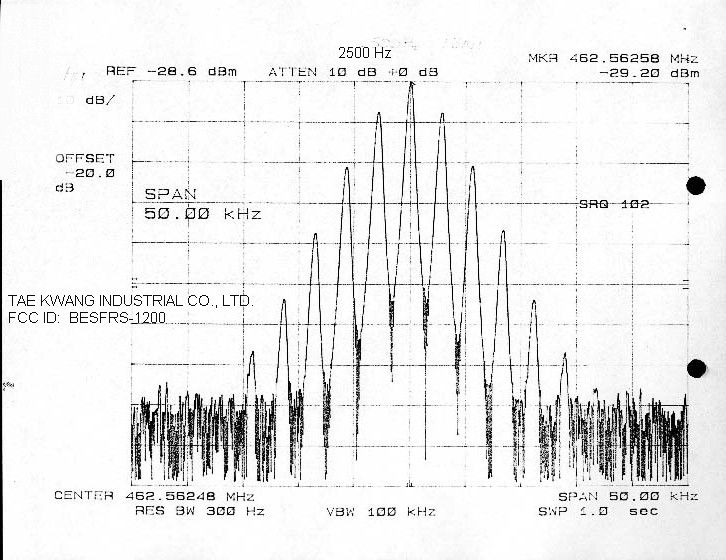

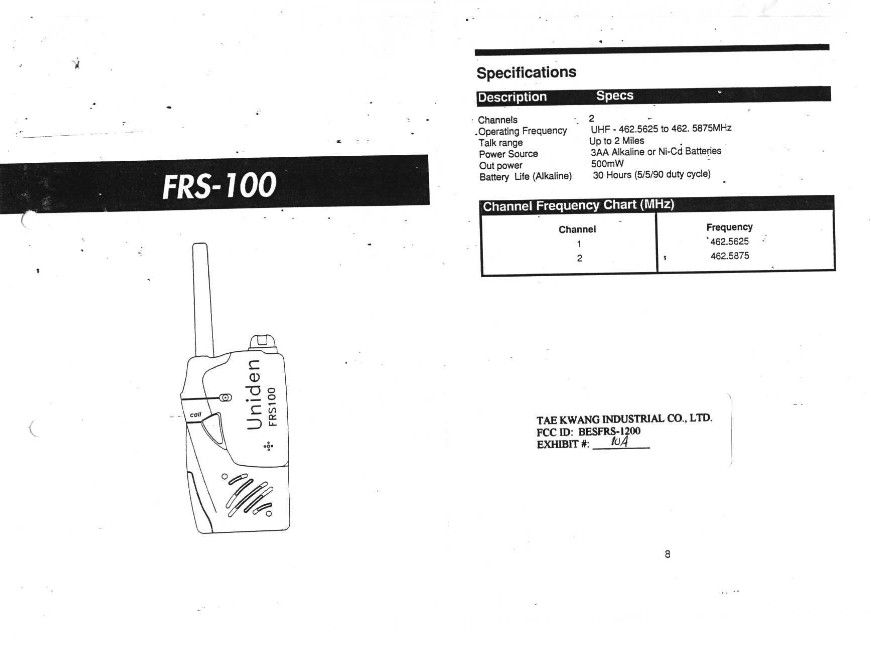

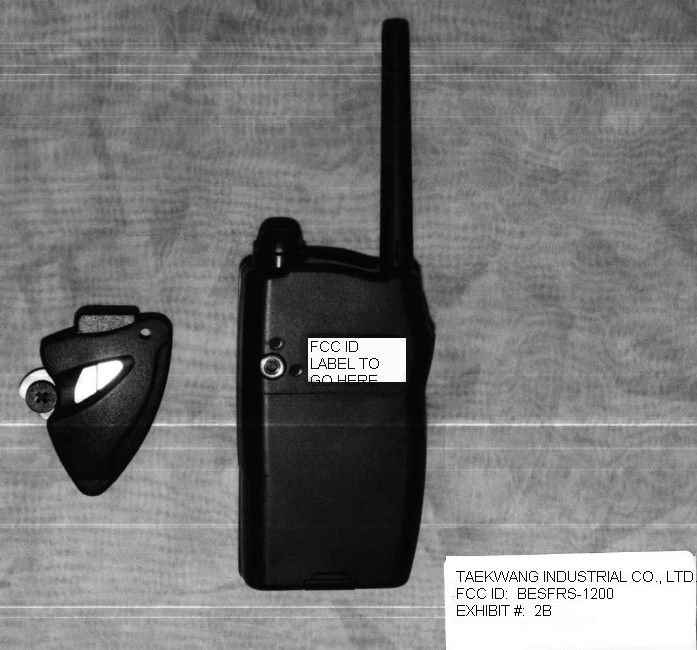

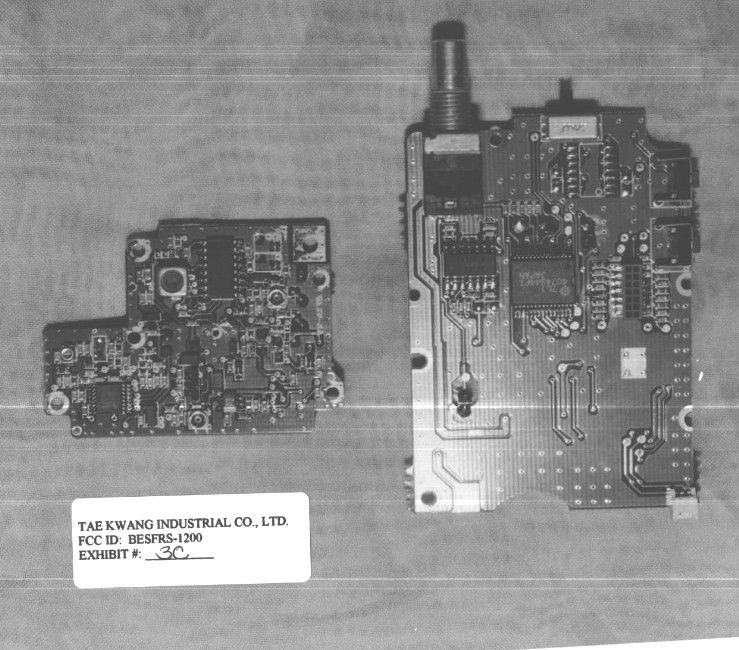

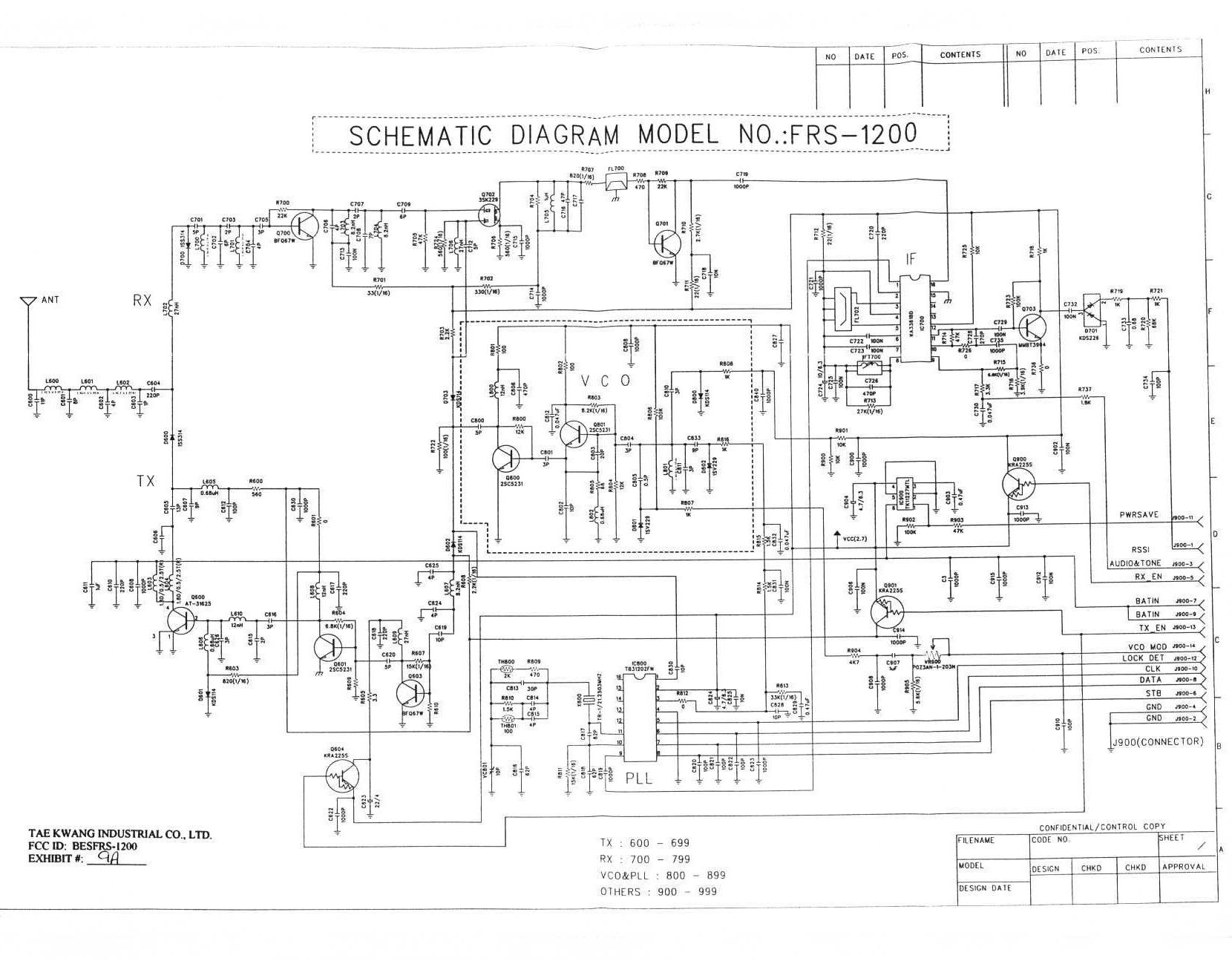

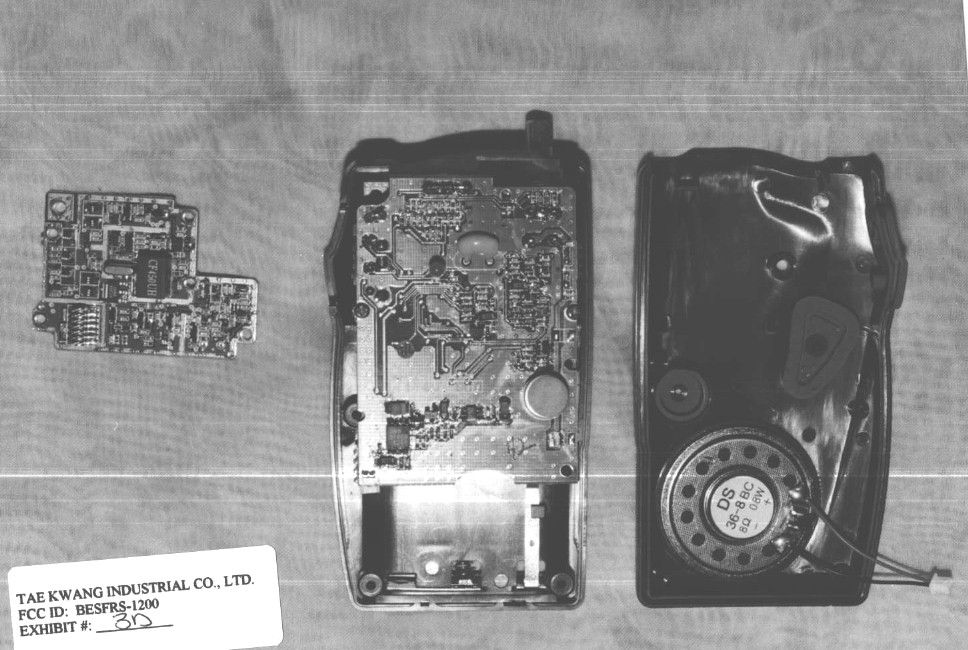

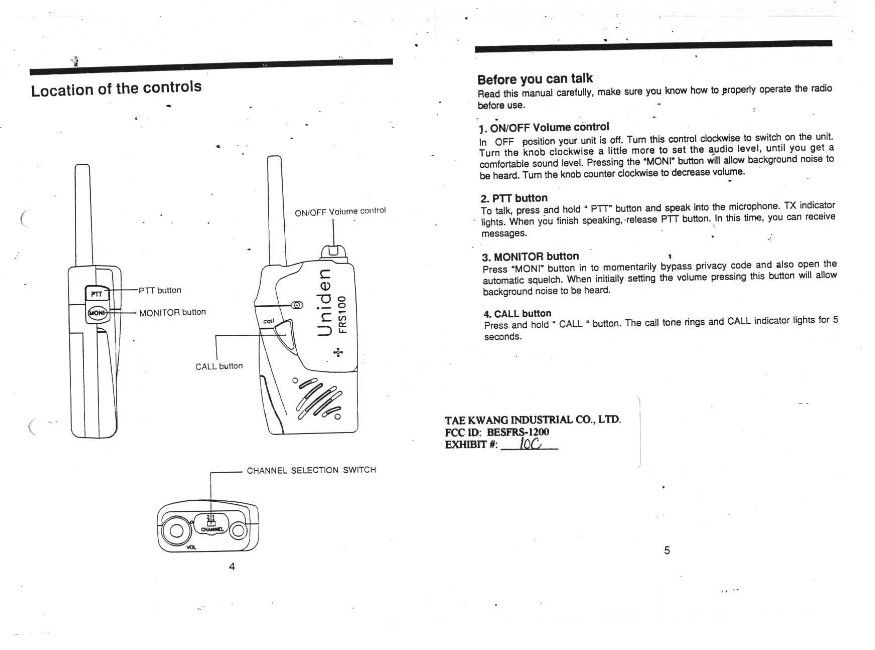

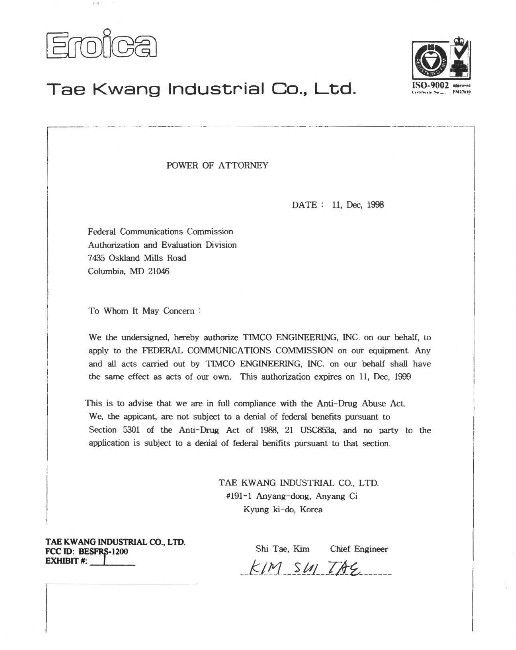

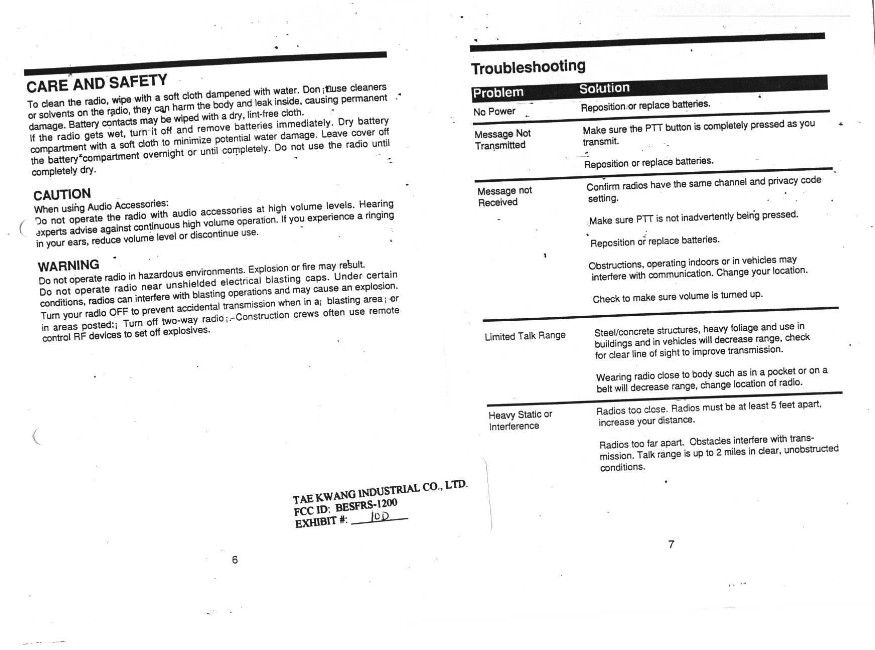

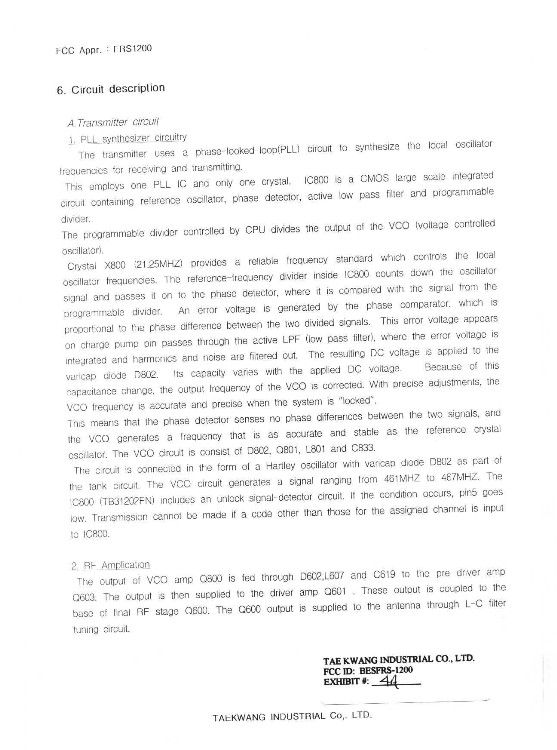

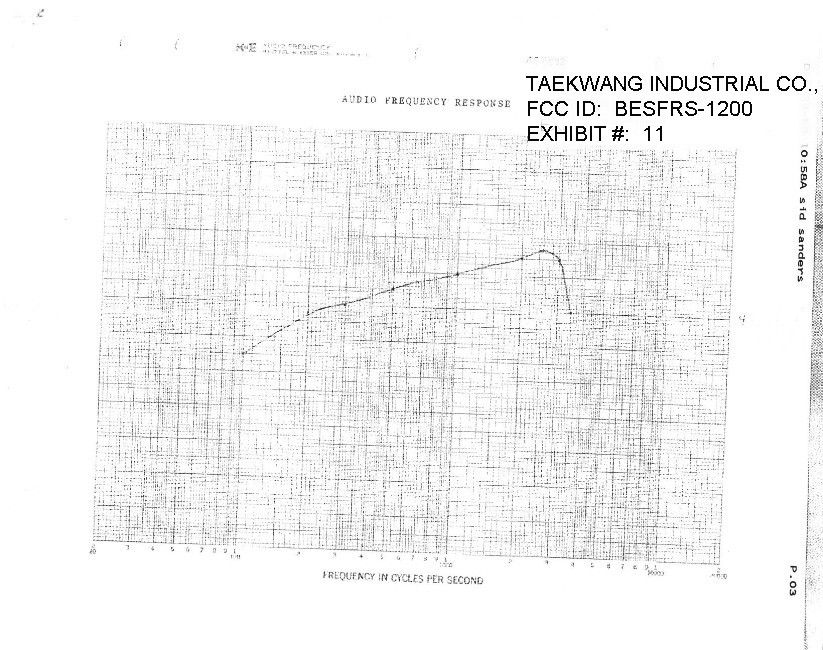

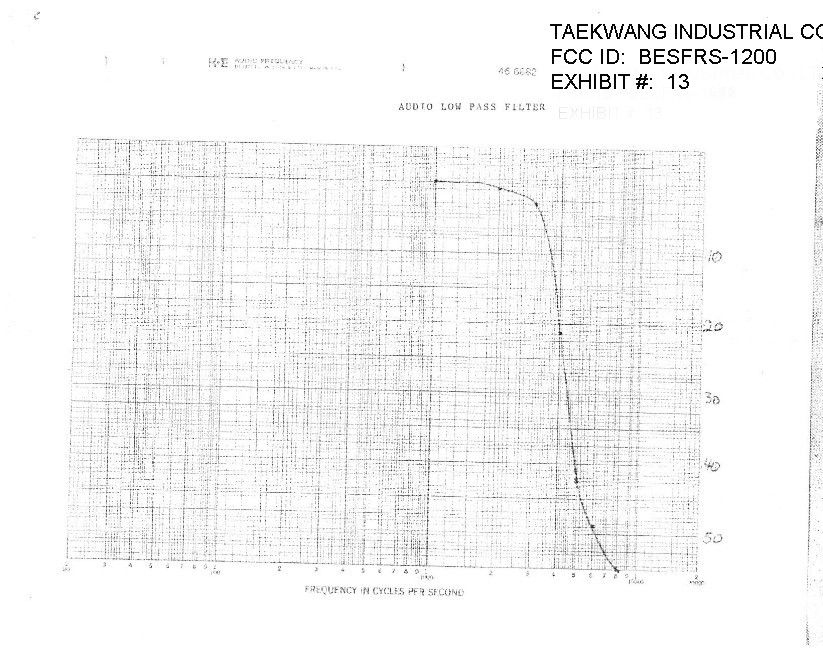

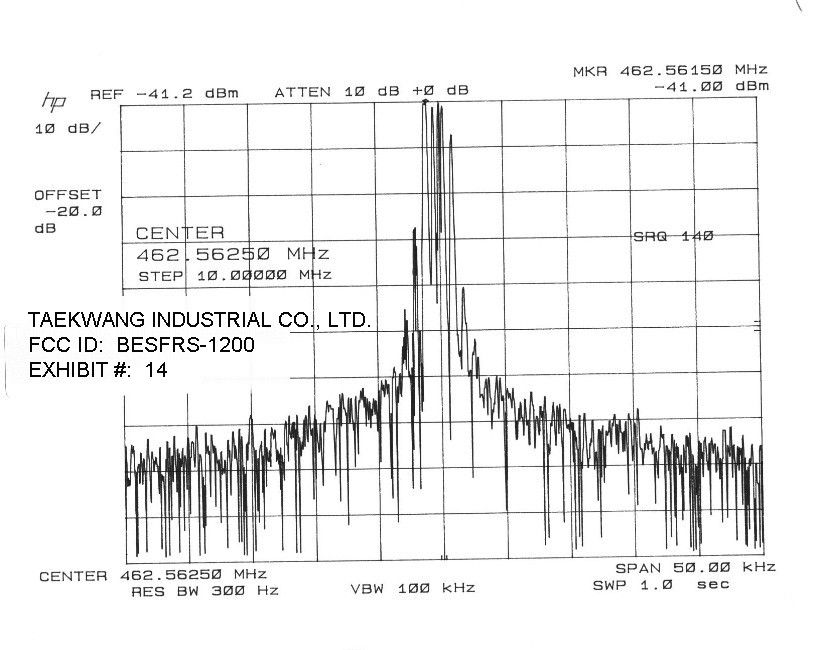

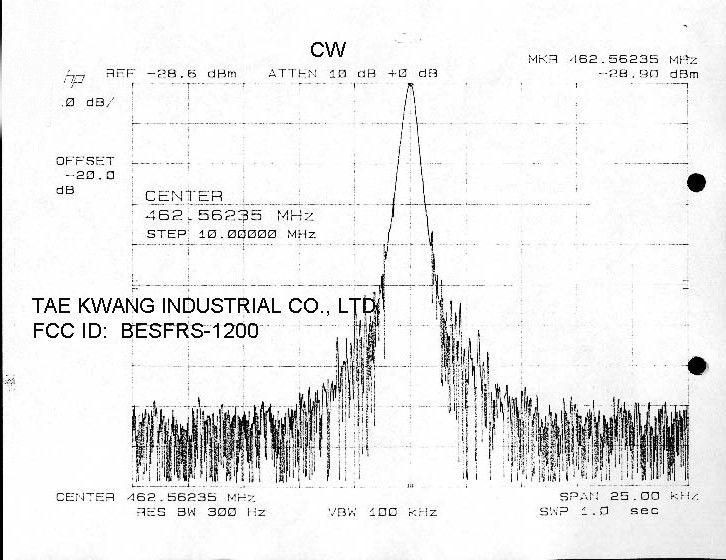

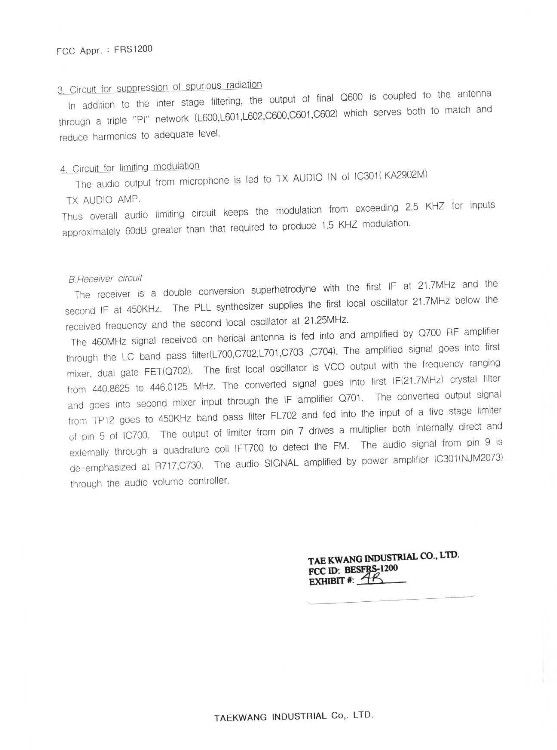

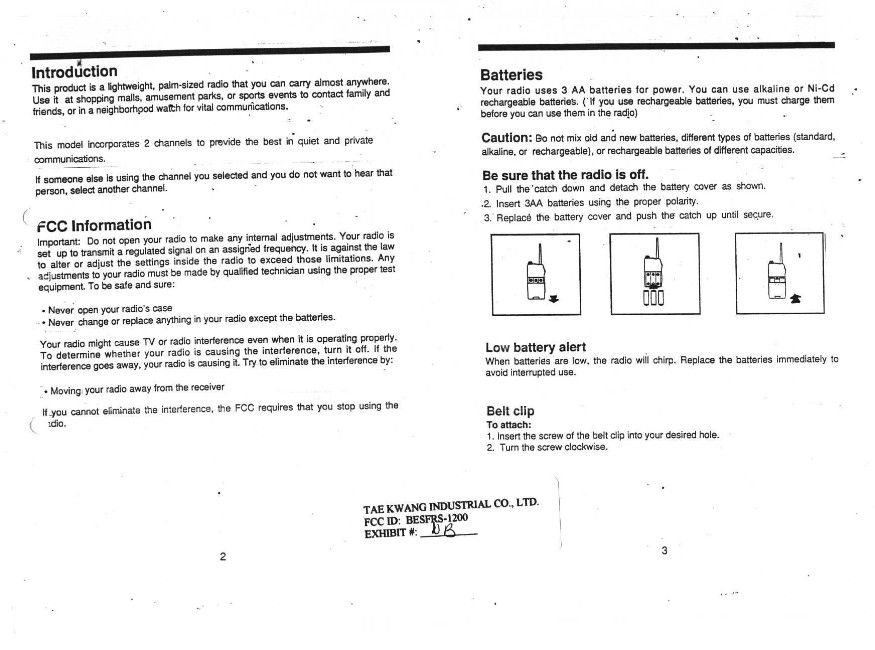

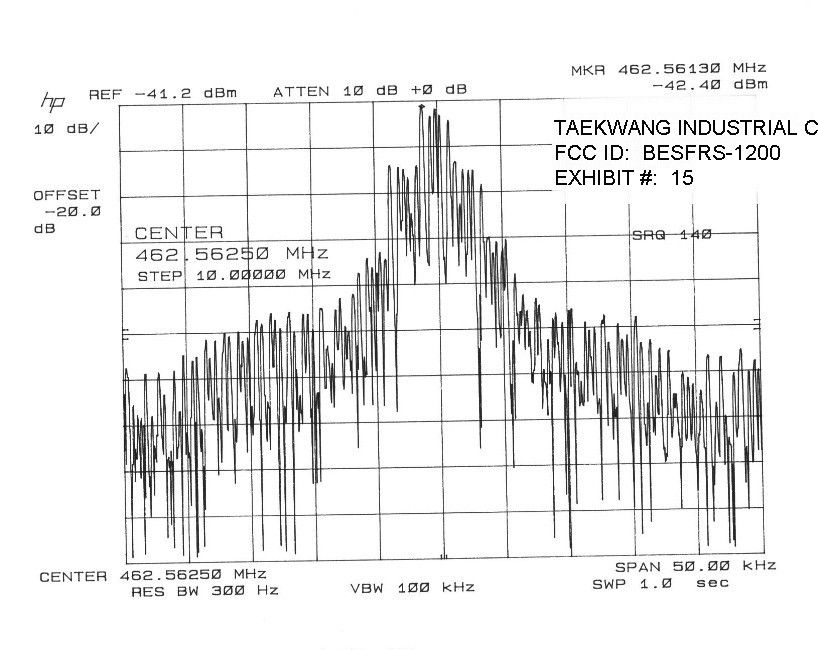

TABLE OF CONTENTS LIST APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTD. & RF POWER OUTPUT PAGE 3......RF POWER OUTPUT TEST SET UP AND MODULATION CHARACTERISTIC PAGE 4......OCCUPIED BANDWIDTH PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......CERTIFICATION OF TECHNICAL DATA AND LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........POWER OF ATTORNEY LETTER EXHIBIT 2A........FCC ID LABEL SAMPLE EXHIBIT 2B........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3A........EXTERNAL FRONT VIEW PHOTOGRAPH EXHIBIT 3B........EXTERNAL REAR VIEW PHOTOGRAPH EXHIBIT 3C........INTERNAL COMPONENT SIDE PHOTOGRAPH EXHIBIT 3D........INTERNAL SOLDER SIDE PHOTOGRAPH EXHIBIT 4A-4B.....CIRCUIT DESCRIPTION EXHIBIT 5.........TUNING PROCEDURE EXHIBIT 6.........PARTS LIST - ACTIVE DEVICES EXHIBIT 7A-7B.....PARTS LIST EXHIBIT 8.........BLOCK DIAGRAM EXHIBIT 9A........SCHEMATIC - MAIN EXHIBIT 9B........SCHEMATIC - LOGIC BLOCK EXHIBIT 10A-10D...USER'S MANUAL EXHIBIT 11........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 12........AUDIO INPUT VS DEVIATION GRAPH EXHIBIT 13........AUDIO LOW PASS FILTER GRAPH EXHIBIT 14........OCCUPIED BANDWIDTH CW PLOT EXHIBIT 15........OCCUPIED BANDWIDTH PLOT APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 REPORT #: F:\CUS\T\TIC\TIC355K8.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.983 (a,b,c) TAE KWANG INDUSTRIAL CO., LTD. will manufacture the FCCID: BESFRS-1200 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. 2.983 (d) TECHNICAL_DESCRIPTION 2.983 (d) (1) Type of Emission: 10K8F3E 95.629 Bn=2M+2DK M = 3000 D = 2.4K Bn = 2(3.0)+2(2.4) = 10.8K Authorized Bandwidth 12.5KHz 2.983 (d) (2) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.983 (d) (3) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power. 2.983 (d) (4) Maximum Output Power Rating: 500 milliWatts 95.637 effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.983 (d) (5) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = 0.12A. Pin = 0.54 Watts APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 REPORT #: F:\CUS\T\TIC\TIC355K8.RPT PAGE #: 1 2.983 (d) (6) Function of each electron tube or semiconductor device or other active circuit device: SEE EXHIBIT 6 2.983(d) (7) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 9A-9B of this report. The block diagram is included as EXHIBIT 8 of this report. 2.983(d) (8) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 10A-10D. 2.983 (d) (9) Tune-up procedure. The tune-up procedure is included as EXHIBIT 5. (10) Description of all circuitry and devices provided for determining and stabilizing frequency is given in EXHIBIT 10A-10D. The crystal specifications are included as PAGES NA. 2.983 (d)(11) Description of any circuits or devices employed for suppression of spurious radiation, for limit- ing modulation, and for limiting power will be 4A-4B. (12) Digital modulation. This unit does not use digital modulation. 2.983(e) The data required by 2.985 through 2.997 is submit ted below. 2.985(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 500 milliWatts ERP APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 REPORT #: F:\CUS\T\TIC\TIC355K8.RPT PAGE #: 2 R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ || |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. 2.987(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Exhibit 11. 2.987(b) 1 Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Exhibit 12. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater tha the attenuation at 1KHz. See Exhibit 13. APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 REPORT #: F:\CUS\T\TIC\TIC355K8.RPT PAGE #: 3 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated …

Text truncated - open the document above for the full version.

2.993(a)(b) UNWANTED_RADIATION: 95.631(b)(8)(9) Method of Measuring Radiated Spurious Emissions Hewlett Packard Spectrum Analyzer HP8566B /------------------------------------\ /----\ ||||| |TRANSMITTER INTERGRAL | \-----| | | UNDER TEST ANTENNA | | | \------------------------------------/ \----/ ||| ||| | |<- 3.0m ----->| | | Tuned, Calibrated | Antenna which may /--------------\ be raised from 4 | | to 20' above ground |POWER SUPPLY | and changed | | in polarization \--------------/ Equipment placed 4' above ground on a rotatable platform. APPLICANT: TAE KWANG INDUSTRIAL CO., LTD. FCC ID: BESFRS-1200 REPORT #: F:\CUS\T\TIC\TIC355K8.RPT PAGE #: 6
