BFLGL-T8200Low Power Transmitter for 1 and 2way wireless data

Print Date: 03/23/99Copyright © 1999 Glenayre GL-T8200 1- to 25-Watt 900-MHz Power AmplifierRev. A: 03/23/99 Specifications subject to change without notice Copyright © 1999 Glenayre All rights reserved. No part of this work may be reproduced or copied in any form or by any means—graphic, electronic, or mechanical, including photocopying, recording, taping, or information-retrieval system—without written permission of Glenayre. GL-T8200 1- to 25-Watt, 900-MHz Power Amplifier USER MANUAL PN 9110.01306 REV A GL-T8200 1- to 25-Watt 900-MHz Power AmplifierGlenayre Document Number: 9110.01306 Document Change RecordRev. A: 03/23/99 Copyright © 1999 GlenayrePrint Date: 03/23/99 Document Change Record Revision:Revision A Date:03/23/99 Changes:none, original Glenayre Document Number: 9110.01306GL-T8200 1- to 25-Watt 900-MHz Power Amplifier Rev. A: 03/23/99Table of Contents 25w82001.toc Print Date: 04/14/99Copyright © 1999 GlenayrePage: -i Table of Contents 1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1Manual Scope . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2Applicable Documents . . . . . . . . . . . . . . . . . . . . . 1-1 1.3Manual Sections . . . . . . . . . . . . . . . . . . . . . . . 1-1 2SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 3DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1Physical Description. . . . . . . . . . . . . . . . . . . . . . 3-1 3.1.1Mounting Provisions . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1.2PA Chassis Rear Connector Panel . . . . . . . . . . . . . . . . . 3-1 3.2Functional Description . . . . . . . . . . . . . . . . . . . . . 3-3 3.2.1RF Path . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.2.2Signal and Power Connections . . . . . . . . . . . . . . . . . . . 3-3 3.2.3Isolator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4 4INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1Cabinet Installation and External Cabling . . . . . . . . . . . . . 4-1 4.1.1Tools and Equipment Required . . . . . . . . . . . . . . . . . . . 4-1 4.1.2Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1.3Rack Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1.4External Cabinet Equipment Cabling . . . . . . . . . . . . . . . . 4-1 4.1.5PA I/O Connections . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 4.2Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.1Expected Exciter . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.2Setup Using VDT . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 5OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1Controls and Indicators . . . . . . . . . . . . . . . . . . . . 5-1 5.2Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.2.1Turn PA On and Off . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.2.2Turn Fan On and Off . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.2.3Key and Unkey PA . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 6THEORY OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1Power Distribution . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.1Fan Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.2High-Current Power to PA Board. . . . . . . . . . . . . . . . . . 6-1 6.1.3Metering Circuit Regulators . . . . . . . . . . . . . . . . . . . . 6-1 6.2RF Flow . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 GL-T8200 1- to 25-Watt 900-MHz Power AmplifierGlenayre Document Number: 9110.01306 Table of ContentsRev. A: 03/23/99 Page: -iiCopyright © 1999 GlenayrePrint Date: 04/14/99 6.3PA Board . . . . . . . . . . . . . . . . . . . . . . . . . 6-2 6.3.1Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3 6.3.2 Internally Generated Voltages . . . . . . . . . . . . . . . . . . 6-3 6.4Exciter Interface . . . . . . . . . . . . . . . . . . . . . . . 6-5 6.4.1Exciter Interface Connector Pinout . . . . . . . . . . . . . . . . . 6-5 6.5Analog Readings Thresholds . . . . . . . . . . . . . . . . . . 6-5 6.5.1PA Board Currents . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.2PA Forward Power . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.3PA Reflected Power . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.4PA Board RF Input Power . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.5+28-Volt External Supply . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.6+36-Volt Internal Supply . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.7+5-Volt Internal Supplies . . . . . . . . . . . . . . . . . . . . . . 6-7 6.5.8Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7 7MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 7.1Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1 7.2Power Calibration . . . . . . . . . . . . . . . . . . . . . . 7-1 8CHECKOUT AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . 8-1 8.1Introduction . . . . . . . . . . . . . . . . . . . . . . . . 8-1 8.2Checkout Procedures . . . . . . . . . . . . . . . . . . . . . 8-1 8.2.1VDT Power-Up Verification . . . . . . . . . . . . . . . . . . . . 8-1 8.2.2Dc Voltage Verification . . . . . . . . . . . . . . . . . . . . . . 8-1 8.3Troubleshooting Procedures . . . . . . . . . . . . . . . . . . 8-1 8.3.1Parameter Readings at Time of Fault . . . . . . . . . . . . . . . . 8-1 8.3.2GL-C2000 Transmitter Controller Alarms . . . . . . . . . . . . . 8-2 8.3.3Operational Checks . . . . . . . . . . . . . . . . . . . . . . . . . 8-2 8.3.4Power Amplifier Current Measurement . . . . . . . . . . . . . . 8-2 9REMOVAL AND REINSTALLATION . . . . . . . . . . . . . . . . . . . . 9-1 9.1PA . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1 9.1.1Removal . . . . . . . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Print Date: 06/10/98Copyright © 1998 Glenayre DSP ExciterRev. B: 06/11/98 Specifications subject to change without notice Copyright © 1998 Glenayre All rights reserved. No part of this work may be reproduced or copied in any form or by any means -- graphic, electronic, or mechanical, including photocopying, recording, taping, or information-retrieval system -- without written permission of Glenayre. DSP Exciter (EC) User Manual RELEASED PN 9110.01021 Revision B DSP ExciterGlenayre Document Number: 9110.01021 Document Change RecordRev. B: 06/11/98 Copyright © 1998 GlenayrePrint Date: 06/10/98 Document Change Record Issue:1, Revision A Date:11/24/97 Changes:None, Original Issue:1, Revision B Date:06/11/98 Changes:made 88-us changes to text and figures, created intdex Glenayre Document Number: 9110.01021DSP Exciter Rev. B: 06/11/98Table of Contents d1021_ti.toc Print Date: 06/10/98Copyright © 1998 GlenayrePage: -i Table of Contents 1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Manual Scope . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2 Applicable Documents . . . . . . . . . . . . . . . . . . . . 1-1 1.3 Glenayre Locations . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3.1 Product Warranty Information . . . . . . . . . . . . . . . . . . 1-2 1.3.2 Service Warranty Information . . . . . . . . . . . . . . . . . . 1-2 2 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 3 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2 Physical Description . . . . . . . . . . . . . . . . . . . . . 3-1 3.3 Simplified Block-Diagram Description . . . . . . . . . . . . . . 3-1 4 INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1 Precautions and Hazards . . . . . . . . . . . . . . . . . . . . 4-1 4.2 Test Equipment and Tools Required . . . . . . . . . . . . . . . 4-1 4.3 Component and Adjustment Locations . . . . . . . . . . . . . . 4-1 4.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.1 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.2 Power Requirement . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.3 Input/Output Connections . . . . . . . . . . . . . . . . . . . . 4-2 4.4.4 Signal Functions . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 4.4.5 Switches and Jumpers . . . . . . . . . . . . . . . . . . . . . . 4-3 4.5 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 4.6 Ultimate Disposition . . . . . . . . . . . . . . . . . . . . . 4-4 4.7 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 5 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1 Front-Panel Controls and Indicators . . . . . . . . . . . . . . . 5-1 5.2 Operating Instructions . . . . . . . . . . . . . . . . . . . . . 5-1 6 THEORY OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1 Exciter/PA Control . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.1 Reference Source . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.2 Main Circuit Frequencies . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.3 Controller Interface Functions . . . . . . . . . . . . . . . . . . 6-1 DSP ExciterGlenayre Document Number: 9110.01021 Table of ContentsRev. B: 06/11/98 Page: -iiCopyright © 1998 GlenayrePrint Date: 06/10/98 6.2 Interface to Controller . . . . . . . . . . . . . . . . . . . . 6-1 6.3 DSP Modulator . . . . . . . . . . . . . . . . . . . . . . . 6-3 6.3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3 6.3.2 DSP Modulator Signal Flow . . . . . . . . . . . . . . . . . . . 6-3 6.3.2.1 Digital Signal Modulator . . . . . . . . . . . . . . . 6-3 6.3.2.2 Digital Quadrature Modulator . . . . . . . . . . . . 6-4 6.3.2.3 Digital-to-Analog Converter . . . . . . . . . . . . . 6-4 6.3.2.4 Read-Only Memory . . . . . . . . . . . . . . . . . 6-4 6.4 IF Stage . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 6.4.1 Filter-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 6.4.2 Mixer-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.3 Filter-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.4 VCO-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.5 Synthesizer-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5 MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.1 Microcontroller Unit (MCU) . . . . . . . . . . . . . . . . . . . 6-7 6.5.2 Digital-to-Analog (D/A) Converter . . . . . . . . . . . . . . . 6-7 6.5.3 8/16-Bit Converter . . . . . . . . . . . . . . . . . . . . . . . . 6-7 6.5.4 Read-Only Memory . . . . . . . . . . . . . . . . . . . . . . . 6-8 6.5.5 VSWR-Fault Detector . . . . . . . . . . . . . . . . . . . . . . 6-8 6.5.6 Alarm Data-to-Logic Conversion . . . . . . . . . . . . . . . . 6-8 6.5.7 Alarm Data-to-Logic Conversion . . . . . . . . . . . . . . . . 6-8 6.6 RF Assemblies . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.1 RF Stage Location . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2 RF Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.1 RF Stage Description . . . . . . . . . . . . . . . . 6-14 6.6.2.2 RF Stage Bands . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.3 RF Stage Signal Flow . . . . . . . . . . . . . . . . 6-14 6.6.2.3.1 Mixer-2 . . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.3.2 Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.3 Amplifier . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.4 VCO-2 . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.5 Synthesizer-2 . . . . . . . . . . . . . . . . . . . . 6-15 6.7 Voltage Regulator Circuit . . . . . . . . . . . . . . . . . . 6-15 Glenayre Document Number: 9110.01021DSP Exciter Rev. B: 06/11/98Table of Contents …

Text truncated - open the document above for the full version.

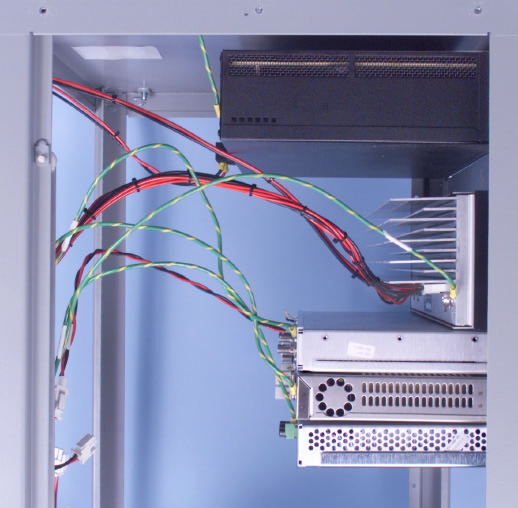

GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Page 4. 1 1 EXHIBIT 4: CONSTRUCTION PHOTOGRAPHS (EXTERNAL) GL-T8200 FRONT VIEW GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Page 4. 2 GL-T8200 SIDE VIEW GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Page 4. 3 GL-T8200 REAR VIEW WITH FCC LABEL LOCATION

1 Exhibit 1:Equipment Identification Label (FCC 2.925) AFFIXED TO REAR OF RF POWER AMPLIFIER CHASSIS ________________________________________________________________________ BFLGL-T8200 NOTES: 1. Color - Background Black. Blocks (3 Plcs) & lettering to be natural aluminum color. 2. Pressure sensitive adhesive backing to be 3m#467 or equivalent. 3. Positioned vertically on std. strip. 4. Block Sizes - (A) 0.6cm X 5.4cm (B) 0.6cm X 4.0cm 5. Label must have manufacturer’s Identifier Mark. REAR OF TRANSMITTER: LOCATION OF FCC IDENTIFIER LABEL

BFLGL-T8200 FORM 731 REF: EA94526, CORRESPONDANCE: 8534 GLENAYRE ELECTRONICS, INC. . 1 Exhibit 1:Equipment Identification Label (FCC 2.925) AFFIXED TO REAR OF RF POWER AMPLIFIER CHASSIS ________________________________________________________________________ BFLGL-T8200 NOTES: 1. Color - Background Black. Blocks (3 Plcs) & lettering to be natural aluminum color. 2. Pressure sensitive adhesive backing to be 3m#467 or equivalent. 3. Positioned vertically on std. strip. 4. Block Sizes - (A) 0.6cm X 5.4cm (B) 0.6cm X 4.0cm 5. Label must have manufacturer’s Identifier Mark. FCC ID LABEL RF OUTRF INPUT REAR OF TRANSMITTER: LOCATION OF FCC IDENTIFIER LABEL

GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 EXIBIT 4: CONSTRUCTION PHOTOGRAPHS (INTERNAL) GL-T8200 EXCITER GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 GL-T8200 EXCITER WITH BOARDS OUT GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 GL-T8200 EXCITER INTERFACE GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 GL-T8200 EXCITER VCO / RF AMP GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 GL-T8200 POWER AMPLIFIER

Glenayre Technologies Inc. BOMREPORT GL-T8200 EXCITER 20-MAY-1999 11:35:02 Identifier Description Reference Designator page 1 PART\0100.02071\ 2303.00987 ASSY,GND CBL,10/10, CABLE 3508.00009 SCR,PPH,10-32X0.375,SEMS GND 3508.02001 SCR,HEX,THRD FORM,10-32X0.75,NYLON HDW1 8101.00325 LABEL,SERIAL NUMBER LABEL PART\1000.02183\ 1000.02087-AS ASY,EXCITER,900MHZ,RACKMOUNT 2520082028 FAB VCO SHIELD PLATE MP26 2540084015 FAB BACK PANEL EXCITER MP2 2540084034 FRONT PNL EXCITER RACK MT MP28 2630082062 ASSY VCO/RF AMP 929-941MHZ A3 PART\2630082062 2630082051-AS ASSY VCO/RF AMP 900-912MHz 2850082029-SD RELEASED SCH 900 MHZ VCO 2301.00511 ASSY,COAX 900 VCO/RF AMP L11 2301.00512 ASSY,COAX,900 VCO/RF AMP L10 2540082049 FAB PCBG VCO/RF AMP PC1 3012.00063 COVER ASSY,2 X 6.5 X 1T MP1 4501.00071 CONN,SMB,PCMT,GOLD,F J4 P9 P10 4502.00012 CONN,BNC,RA,PCMT,F P3 4546.00038 SKT 6 POS VERT RECP .1SP P4 4930003000 MIXER DBL BAL +7DBM LO SM Z1 5024.00033 DIO,VVC,105,2.3PF,SOT23 CR1 CR4 5030.00004 XSTR,3904,GEN PURP NPN Q6 Q8 5030.00005 TRS,2N3906,GP,PNP,SOT23 Q2 Q7 Q9 5031.00020 MMIC,0186,18DB,ODBM,AMP,SMD Q13 5031.00022 MMIC,0386,2.4GHz,AMP,SMD Q5 5031.00023 MMIC,0886,HIGAIN,AMP,SMD Q3 5031.00025 MMIC,1105,1.3GHz,17.5Bm,SM Q11 Q12 5031.00037 TRS,NPN,41486,LO NOISE,SMD Q1 5033.00049 TRS,MRF837,870MHz,750MW,X-PK Q10 5153.00009 IC,723,2-37V,150MA,REG U1 6104.01097 RES,1206,10R0,0.125W,1% R9 R10 R11 R16 R51 6104.01151 RES,1206,36R5,0.125W,1% R19 6104.01165 RES,1206,51R1,0.125W,1% R3 6104.01177 RES,1206,68R1,0.125W,1% R12 6104.01181 RES,1206,75R0,0.125W,1% R15 6104.01193 RES,1206,100R,0.125W,1% R4 R7 R13 R23 6104.01210 RES,1206,150R,0.125W,1% R18 R20 6104.01258 RES,1206,475R,0.125W,1% R14 6104.01273 RES,1206,681R,0.125W,1% R46 6104.01325 RES,1206,2K37,0.125W,1% R45 6104.01333 RES,1206,2K87,0.125W,1% R2 R8 R37 R41 6104.01354 RES,1206,4K75,0.125W,1% R6 6104.01377 RES,1206,8K25,0.125W,1% R1 6104.01385 RES,1206,10K0,0.125W,1% R5 R17 R32 R36 R42 R44 6104.02091 RES,1206,0R00,0.125W R60 R61 6106.01139 RES,2010,27R4,0.5W,1% R47 6106.01230 RES,2010,243R,0.5W,1% +/-100PPM R38 R55 R67 6106.01258 RES,2010,475R,0.5W,1% R39 6106.01289 RES,2010,1K00,0.5W,1% +/-100PPM R49 R50 6106.02007 RES,2010,430R,0.5W,5% R30 R43 R68 6106.02009 RES,2010,4R7,0.5W,5% R48 6250.00001 CAP,0.35-3.5pF AIR TRIM RA C35 6310.00005 CAP,0805,NPO,1P0,50V,+-0P25 C18 6310.00007 CAP,0805,NPO,1P5,50V,+-0P25 C7 C8 C22 6310.00008 CAP,0805,NPO,1P8,50V,+-0P25 C10 C13 6310.00009 CAP,0805,NPO,2P2,50V,+-0P25 C62 6310.00010 CAP,0805,NPO,2P7,50V,+-0P25 C51 C52 Glenayre Technologies Inc. BOMREPORT GL-T8200 EXCITER 20-MAY-1999 11:35:02 Identifier Description Reference Designator page 2 6310.00013 CAP,1206,NPO,100P,50V,1% C12 6310.00037 CAP,1206,X7R,10N,50V,5% C1 C4 C14 C15 C17 C27 C44 C54 6310.00040 CAP,1206,X7R,2N2,50V,5% C58 6310.00047 CAP,1210,X7R,100N,50V,5% C53 6310.00049 CAP,1210,Z5U,470N,50V,20% C59 6310.00086 CAP,1206,NPO,22P,50V,+/-0P5 C2 C3 C9 C16 C19 C21 C23 C24 C25 C26 C28 C29 C38 C39 C40 C41 C42 C43 C46 C50 C55 C60 C61 6310.00119 CAP,0805,NPO,3P3,50V,+-0P25 C5 C6 C11 6310.00120 CAP,0805,NPO,4P7,50V,+-0P25 C45 6310.01000 CAP,0805,NPO,3P9,50V,+-0P25 C20 C63 6330.00002 CAP,TAN,3528,4U7,10V,10% C32 6330.00003 CAP,TAN,7343,10U,35V,10% C56 6330.00011 CAP,TAN,3528,1U0,35V,10% C30 C31 C33 6420.00004 CHOKE,SMD,100NH,3%,1.38A L1 L2 L3 L5 L9 L13 L14 L17 L18 L21 6420.00016 CHOKE,SMD,390NH,3%,710MA L19 L20 6631.00010 FLTR,880-945MHZ,TRIPLE TUNED L7 L8 L15 6632.00001 FLTR,SAW,90MHZ,RESONATOR U2 6642.00003 RESONATOR,1045MHZ,SQ COAX L6 2650082015 GL-C2000 I/F FOR GL-T8X00 EXC A2 2850082024-SD SCHEM GL-C2000 I/F BD 2801.00045 IC,HOST ADR DCDR R1.00 $CC38, U20 2801.00046 IC,HOST SRAM DCDR R1.00 $1DAF, U5 2801.00048 IC,LOCAL ADR DCDR R1.00 $37C5, U22 2801.00113 F/W,I20,V2.00 $4E56 U2 3310327003 INSUL XTAL HC-49 3 LEAD MP1 4540.00094 HDR,1X6 .1SP 0.32H GOLD J3 4546.00013 CONN,2X40 RECP .33TALL .1SP P1 4554.00006 CONN,15 POS D-SUB .32RA FILTER J2 4554.00016 CONN,37 PIN D-SUB .32RA FILTER J1 5005.00012 LED,GRN,T1.75,1.6-12MCD,50DG DS1 5005.00022 LED,RED,T1.75,1-8MCD,50DEG DS2 5005.00029 LED,YEL,T1.75,4-8MCD,50DEG DS3 6602.00064 XTAL,8MHZ 50PPM -20+70C HC49 Y1 2560082032 FAB C2000I20 INTERFACE B PC1 5023.00026 TVS,6V5,QUAD,BI-DIR,SMD D1 D3 D4 D7 5023.00027 TVS ARRAY,24V,UNI-DIR,SMD D2 D26 5023.00028 TVS ARRAY,24V,BI-DIR,SMD D5 D6 5030.00001 MOSFET,7002,60V,N-CH,SOT23 Q2 Q3 5159.00002 IC,33064,VOLT SENSE CKT U1 5159.00015 IC,6273,OCTAL D-LATCH U11 5263.00005 IC 74AC04 HEX INVERTER U28 5263.00015 IC 74AC573 OCTAL 3-ST D LATCH U3 5263.00018 IC 74AC86 QUAD 2-IN XOR GATE U26 U27 5264.00009 IC,74ACT157,QUAD 2-IN MUX SO16 U19 5264.00010 IC,74ACT273,8F/F,SO20 U25 5264.00011 IC,74ACT574,OCTAL D F/F SO20 U9 U10 U24 5280.00010 IC 65C189 QUAD RS232 LINE RX U14 U33 5280.00012 IC 75179 EIA-485 DIFF XCVR U23 5280.00020 IC,75175,4-485RX,SO16 U12 U13 5350.00004 IC 1M 128K X 8 LP SRAM 100ns U4 5350.00005 IC 256K(32KX8)CMOS SRAM U21 6104.01097 RES,1206,10R0,0.125W,1% R42 R43 R44 R45 R46 R47 R48 R49 R50 R51 R52 R53 R54 R55 R56 R57 R58 R59 R60 R61 R62 R63 R64 R65 R66 R67 R68 R69 R70 R71 R72 6104.01201 RES,1206,121R,0.125W,1% R14 6104.01204 RES,1206,130R,0.125W,1% R15 R16 R17 R18 R19 Glenayre Technologies Inc. BOMREPORT GL-T8200 EXCITER 20-MAY-1999 11:35:02 Identifier Description Reference Designator page 3 R20 6104.01222 RES,1206,200R,0.125W,1% R11 R12 R13 6104.01277 RES,1206,750R,0.125W,1% R73 R74 R75 R76 R77 R78 R79 R80 R81 R82 R83 R84 6104.01354 RES,1206,4K75,0.125W,1% R5 6104.01385 RES,1206,10K0,0.125W,1% R22 R23 R24 R30 R31 R32 R33 R34 R38 6104.01673 RES,1206,10M0,0.125W,1% R21 6153.00001 RES,NET,10RES,10K,5%,SM RN1 RN2 RN3 6310.00018 CAP,1206,NPO,18P,50V,5% C1 C2 6310.00047 CAP,1210,X7R,100N,50V,5% C3 C4 C5 C6 C7 C10 C11 C12 C16 C17 C18 C42 C43 C44 C45 C46 C47 C51 C52 C53 C54 6330.00011 CAP,TAN,3528,1U0,35V,10% C13 C14 C15 2650082024 ASSY EXCITER/CONTROL BRD 2860082004-SD SCHEM EXCITER/CONTROL BD 2050.00588 SMT ASSY,EXC/CONTROL BRD 2560082001 FAB PCBG EXCITER CONTROL PC1 4930003000 MIXER DBL BAL +7DB…

Text truncated - open the document above for the full version.

Glenayre Technologies Inc. BOMREPORT GL-T8200 POWER AMPLIFIER 20-MAY-1999 11:35:02 Identifier Description Reference Designator page 1 PART\1000.02186\ 2000.02341 PCB, GL-T8200 PA METERING DIST BD A1 2303.00116 CABLE,15 POS D SUB FEM 2 FT W2 2303.01046 ASSY,GND CA,10/10,2.0FT W1 3002.02259 FAB,PA COVER,GL-T8200 MP2 3002.02261 FAB,FRONT PANEL,GL-T8200 MP5 3002.02276 FAB,FAN PANEL,GL-T8200 MP11 3012.00019 FINGERSTK,G/L MP14 3012.00099 FINGERSTOCK,0.44X0.12,SOFT MP15 3014.02017 FAB,HEATSINK,GL-T8200 PA MP1 4502.02002 CONN,N TYPE,F RECEPTACLE,SQ FLANGE J3 J4 4541.00032 HSNG CONN,2 POS P1 4630.02005 FAN,18CFM,60MM X 60MM X 25MM,24VDC MP10 5033.02000 TRANS,RF MODULE, Q1 5035.00090 FET,RF,MRF184,60W,28V Q2 PART\2000.02341\ 2000.02341-SD Schematic Diagram 4200.02341 GL-T8200 PA METERING DIST BD PC1 4554.02003 CONN,15P,M D-SUB,FILTERED,ST PCB M J6 4580.02008 CONN,DC PWR TB1 4620.00055 FUSE,BLADE,3A,32V,VIO F3 F5 F12 4620.00056 FUSE,BLADE,5A,32V,TAN F2 F4 4621.02001 FUSE,SMD,3A,125V F1 F6 F7 5020.00002 DIO,914,100V,100UA,SOT23 D6 D7 D8 D9 D10 D11 5021.00001 DIO,2800,70V,250MW,SOT23 D14 D15 D16 5021.00023 DIO,SMT,4003 D5 5022.00003 ZNR,18V,5%,225MW,SOT23 D4 5022.00018 ZNR,10.0V D17 5023.00035 TVS ARRAY,12V,UNI-DIR,SO-8 D2 5023.00038 TVS ARRAY,5V,LO CAP,BI-DIR,SMD D3 D12 D13 5030.00002 TRS,2222,40V,600MA,NPN Q6 5030.00004 XSTR,3904,GEN PURP NPN Q5 5034.00076 FET,610,-60V,.12A,P-CH,SOT23 Q3 Q4 5150.00010 OP AMP,258,DUAL,LO PWR U3 U4 U5 U6 U7 U8 U9 U19 U18 5150.00017 OP AMP,400,QUAD,LO OFFSET U10 5152.02001 IC,REF,LM4040,5.000V,0.1%,100PPM,S D1 5153.00006 IC,7662,+V TO -V,INVERTER U11 5153.02001 IC,REG,7805,+5V,1A U12 5261.00025 IC 74HC4051 8CH ANLG MUX/DEMU U16 U17 6023.00001 NTC,1206,5K,5%,TR RT1 6103.00001 RES,0805,100R,0.1.W,0.1% R106 R88 6103.00703 RES,0805,10K,0.10W,0.1%,+/-25PPM/C R104 R105 6103.01147 RES,0805,33R2,0.1W,1% R120 R125 R126 R127 R128 R129 R130 R131 R132 R133 R135 6103.01222 RES,0805,200R,0.1W,1% R61 R84 6103.01289 RES,0805,1K00,0.1W,1% R80 R81 R82 R85 R87 R113 R123 R124 R134 R145 R146 R148 R149 6103.01318 RES,0805,2K00,0.1W,1% R77 R78 R79 R32 6103.01357 RES,0805,5K11,0.10W,1% R63 R64 R65 R66 R67 R69 R70 R71 R72 R73 R110 R111 R74 R75 R141 R142 R143 6103.01385 RES,0805,10K0,0.1W,1% R40 R33 R43 R44 R45 R46 R47 R49 R56 R59 R60 R62 R107 R108 R109 R138 R139 R140 6103.01481 RES,0805,100K,0.1W,1% R39 R50 6103.01577 RES,0805,1M00,0.1W,1% R12 R16 R17 6103.01578 RES,0805,0R00,0.1W,1% R30 R52 R53 R101 6103.01581 RES,0805,20K,0.1W,1% R28 R29 Glenayre Technologies Inc. BOMREPORT GL-T8200 POWER AMPLIFIER 20-MAY-1999 11:35:02 Identifier Description Reference Designator page 2 6104.01097 RES,1206,10R0,0.125W,1% R100 6104.01164 RES,1206,49R9,0.125W,1% R95 R97 R99 R102 6104.01181 RES,1206,75R0,0.125W,1% R34 R98 6104.01193 RES,1206,100R,0.125W,1% R24 R25 R89 R90 R170 6104.01261 RES,1206,511R,0.125W,1% R91 R92 6104.01385 RES,1206,10K0,0.125W,1% R41 R164 6104.01393 RES,1206,12K1,0.125W,1% R21 R22 R57 6104.01442 RES,1206,39K2,0.125W,1% R31 R51 6104.01474 RES,1206,84K5,0.125W,1% R18 R19 R136 6104.01489 RES,1206,121K,0.125W,1% R15 6104.01503 RES,1206,169K,0.125W,1% R14 6104.01549 RES,1206,511K,0.125W,1% R13, R150 6106.01114 RES,2010,15R0,0.5W,1% R9 R10 6106.01193 RES,2010,100R,0.5W,1% R152 R153 6106.01289 RES,2010,1K00,0.5W,1% R8 6106.01331 RES,2010,2K74,0.5W,1% R151 6108.01001 RES,SMT,PWR,0R01,2W,1% R6 R7 6162.01005 POT,S9418 QUAD 8BIT DAC,EEPROM,SER U1 U2 6310.00051 CAP,1825,X7R,1U0,50V,10% C21 C49 C50 C52 C53 6310.00120 CAP,0805,NPO,4P7,50V,+-0P25 C185 C186 C187 C189 C190 C191 C192 C193 C194 C195 C196 C197 C198 C199 C200 C201 C202 C203 C204 C188 6310.00130 CAP,0805,NPO,33P,50V,5% C24 C59 C60 C61 C64 C65 C66 C67 C68 C71 C72 C73 C96 C100 C101 C102 C103 C104 C105 C106 C107 C108 C109 C110 C111 C112 C113 C114 C115 C116 C117 C118 C119 C120 C121 C122 C138 C140 C141 C144 C145 C149 C150 C155 C156 C157 C158 C159 C160 C161 C162 C163 C173 C174 C175 C176 C177 C178 C179 C180 C181 C182 C183 C184 C205 C207 C208 C209 6310.00171 CAP,0805,X7R,10N,50V,5% C32 C33 C34 C35 C36 C37 C38 C41 C42 C43 C44 C45 C94 C131 C147 C148 C168 C169 C170 C171 C172 C206 6310.00172 CAP,0805,X7R,100N,50V,5% C15 C16 C17 C19 C22 C25 C26 C27 C28 C29 C40 C39 C128 C129 C130 C164 C165 C166 6320.00014 CAP,16P,250V,5%,MICA MC TR C13 C14 6321.00022 CAP,33P,5%,HI Q P90 CHIP C55 C56 C57 C58 6321.01000 CAP,1.5PF +/-0.10PF,500V,HI-Q,P90, C146 6330.00032 CAP,TAN,7343H,10U,50V,10% C1 C2 C3 C4 C86 C87 C88 C123 C124 C125 C126 C127 6340.01002 CAP,220UF,50V,ALUMINUM ELECTROLYTIC C151 C152 C153 C154 6420.00026 CHOKE,SMD,68NH,10%,1A,TR L7 6430.00019 FERRITE,SMD,Z=95@100MHZ,.009DCR,5A L4 L5 L15 L16 L17 L18 L19 L20 L21 L22 L23 7910.00002 COUPLER,SMT,3DB,800M-1GHZ HY1 7914.01012 ISLR,925-960MHZ,20DB,65 WATTS L1 L2 L3

GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Wireless Messaging Group One Glenayre Way Quincy, IL 62301 USA 217.221.6251 June 2, 1999 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs/Madam; Please find enclosed the application and technical exhibits for Type Certification of Glenayre Electronics' transmitter, FCC ID: BFLGL-T8200. This transmitter is a FM land mobile base unit for use in the 924 to 960 MHertz frequency range with a RF power output of 25 Watts. Digital processing (DSP) and direct digital synthesis (DDS) techniques are used at low signal levels for processing, modulation, and RF generation. This application demonstrates FCC compliance for digital modulation to 9600 bps. Glenayre requests that this transmitter be authorized to operate with three optional devices. 1. TX control (TXC) which houses a 10 MHz reference oscillator and replaces the internal 10 MHz reference oscillator in the transmitter. This optional unit has been approved for use with other Glenayre transmitters using the same exciter by the FCC under model: GL-T8600, GL-T8500, and others. 2. The GL-C2000 is also an external 10 MHz reference source and controller. The GL- C2000 uses Global Positioning Satellite (GPS) receivers for precision frequency control of the 10 MHz oven-controlled crystal oscillator and timing synchronism of the system. This optional unit has been approved for use with other Glenayre transmitters using the same exciter by the FCC under model: GL-T8600, GL-T8500, and others. 3. The Motorola C-NET™ Platinum Series controller. This controller houses the 10 MHz oscillator, which is the RF reference for the transmitter. Glenayre has characterized the performance of this oscillator over the temperature range of -30 to + 50 degrees Centigrade. The Model Number for this controller: C-NET™ Platinum. This optional unit has been approved for use with other Glenayre transmitters using the same exciter by the FCC under model: GL-T8600, GL-T8500, and others. GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 The use of the optional external 10 MHz reference oscillators in no way degrade the spectral characteristics of the BFLGL-T8200 as presented in this Type Certification submission. Sincerely, Ronald E. Lile Member Technical Staff - Compliance TEL: 217.221.6251 or [email protected] GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 TYPE CERTIFICATION APPLICATION FOR MODEL: GL – T8200 FCC ID: BFLGL-T8200 TEST DATES: MAY 10, 1999 THROUGH MAY 18, 1999 TEST REPORT PREPARED BY: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ronald E. Lile Member Technical Staff – Compliance APPROVED BY: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Joseph E. Jones Jr., PE, NCE Director, Compliance Group GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Certification of test data I hereby certify that the test data identified below were taken by myself, or under my direct supervision; that the tests were conducted according to accepted good engineering practice; and that the data are true and correct, according to my knowledge and belief. Standards used for measurements for the transmitter is TIA/EIA-603 Signed ______Date_____7 June, 1999___________ GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 TABLE OF CONTENTS Exhibit 1FCC ID Label Exhibit 2Technical Description Exhibit 3Test Procedures and Results Exhibit 4Construction Photographs Exhibit 5TXC - Frequency data Exhibit 6Motorola C-NET™ Frequency data Exhibit 7Technical Manuals Exhibit 8Schematics GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Page1.1 1 Exhibit 1:Equipment Identification Label (FCC 2.1003) AFFIXED TO REAR OF RF POWER AMPLIFIER CHASSIS ________________________________________________________________________ BFLGL-T8200 NOTES: 1. Color - Background Black. Blocks (3 Plcs) & lettering to be natural aluminum color. 2. Pressure sensitive adhesive backing to be 3m#467 or equivalent. 3. Positioned vertically on std. strip. 4. Block Sizes - (A) 0.6cm X 5.4cm (B) 0.6cm X 4.0cm 5. Label must have manufacturer’s Identifier Mark. GLENAYRE ELECTRONICS FCC ID: BFLGL-T8200 Page2.1 2 Exhibit 2:Technical Description 1Type of emission16K0F3E, 14K4FID, 9K6FID 2Frequency Range924 to 960 MHz 3Operating Power Range1 to 25 Watts; The power output is maintained by means of an automatic gain control circuit that continually monitors the power output of the transmitter and automatically adjusts the gain to hold power level. 4Maximum occupied bandwidth16 kHz [22.359 (b)(2), 90.210(g)] 5Maximum Deviation+/- 4.8 kHz 6Maximum Digital Information Rate (Bits per second) 2 level modulation - 4800 bps 4 level modulation - 9600 bps 7Final amplifier voltage and current Powered by 28 volt power supply and draws 3 amperes 8Function of each active circuitSee Technical Manual / Instruction Book 9Complete circuit diagramSee EXHIBIT 8 10Technical manualSee EXHIBIT 7 11Tune up procedureSee Technical Manual 12Frequency stabilizing deviceThe carrier frequency is controlled by a temperature controlled crystal oscillator in all modulation modes 13aSpurious suppression deviceIn all modes of operation the transmitter uses two local oscillators to convert a 100 kHz signal to the output frequency. Frequency stability is derived directly from the temperature controlled crystal oscillator. The first intermediate frequency and the second inter…

Text truncated - open the document above for the full version.
