BFLGL-T8311SAPower Service Load Management Transmitter

Print Date: 06/10/98Copyright © 1998 Glenayre DSP ExciterRev. B: 06/11/98 Specifications subject to change without notice Copyright © 1998 Glenayre All rights reserved. No part of this work may be reproduced or copied in any form or by any means -- graphic, electronic, or mechanical, including photocopying, recording, taping, or information-retrieval system -- without written permission of Glenayre. DSP Exciter (EC) User Manual RELEASED PN 9110.01021 Revision B DSP ExciterGlenayre Document Number: 9110.01021 Document Change RecordRev. B: 06/11/98 Copyright © 1998 GlenayrePrint Date: 06/10/98 Document Change Record Issue:1, Revision A Date:11/24/97 Changes:None, Original Issue:1, Revision B Date:06/11/98 Changes:made 88-us changes to text and figures, created intdex Glenayre Document Number: 9110.01021DSP Exciter Rev. B: 06/11/98Table of Contents d1021_ti.toc Print Date: 06/10/98Copyright © 1998 GlenayrePage: -i Table of Contents 1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1 Manual Scope . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2 Applicable Documents . . . . . . . . . . . . . . . . . . . . 1-1 1.3 Glenayre Locations . . . . . . . . . . . . . . . . . . . . . . 1-1 1.3.1 Product Warranty Information . . . . . . . . . . . . . . . . . . 1-2 1.3.2 Service Warranty Information . . . . . . . . . . . . . . . . . . 1-2 2 SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 3 DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2 Physical Description . . . . . . . . . . . . . . . . . . . . . 3-1 3.3 Simplified Block-Diagram Description . . . . . . . . . . . . . . 3-1 4 INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1 Precautions and Hazards . . . . . . . . . . . . . . . . . . . . 4-1 4.2 Test Equipment and Tools Required . . . . . . . . . . . . . . . 4-1 4.3 Component and Adjustment Locations . . . . . . . . . . . . . . 4-1 4.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.1 Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.2 Power Requirement . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.4.3 Input/Output Connections . . . . . . . . . . . . . . . . . . . . 4-2 4.4.4 Signal Functions . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 4.4.5 Switches and Jumpers . . . . . . . . . . . . . . . . . . . . . . 4-3 4.5 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 4.6 Ultimate Disposition . . . . . . . . . . . . . . . . . . . . . 4-4 4.7 Grounding . . . . . . . . . . . . . . . . . . . . . . . . . 4-4 5 OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1 Front-Panel Controls and Indicators . . . . . . . . . . . . . . . 5-1 5.2 Operating Instructions . . . . . . . . . . . . . . . . . . . . . 5-1 6 THEORY OF OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1 Exciter/PA Control . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.1 Reference Source . . . . . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.2 Main Circuit Frequencies . . . . . . . . . . . . . . . . . . . . . 6-1 6.1.3 Controller Interface Functions . . . . . . . . . . . . . . . . . . 6-1 DSP ExciterGlenayre Document Number: 9110.01021 Table of ContentsRev. B: 06/11/98 Page: -iiCopyright © 1998 GlenayrePrint Date: 06/10/98 6.2 Interface to Controller . . . . . . . . . . . . . . . . . . . . 6-1 6.3 DSP Modulator . . . . . . . . . . . . . . . . . . . . . . . 6-3 6.3.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3 6.3.2 DSP Modulator Signal Flow . . . . . . . . . . . . . . . . . . . 6-3 6.3.2.1 Digital Signal Modulator . . . . . . . . . . . . . . . 6-3 6.3.2.2 Digital Quadrature Modulator . . . . . . . . . . . . 6-4 6.3.2.3 Digital-to-Analog Converter . . . . . . . . . . . . . 6-4 6.3.2.4 Read-Only Memory . . . . . . . . . . . . . . . . . 6-4 6.4 IF Stage . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 6.4.1 Filter-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4 6.4.2 Mixer-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.3 Filter-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.4 VCO-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.4.5 Synthesizer-1 . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5 MCU . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-6 6.5.1 Microcontroller Unit (MCU) . . . . . . . . . . . . . . . . . . . 6-7 6.5.2 Digital-to-Analog (D/A) Converter . . . . . . . . . . . . . . . 6-7 6.5.3 8/16-Bit Converter . . . . . . . . . . . . . . . . . . . . . . . . 6-7 6.5.4 Read-Only Memory . . . . . . . . . . . . . . . . . . . . . . . 6-8 6.5.5 VSWR-Fault Detector . . . . . . . . . . . . . . . . . . . . . . 6-8 6.5.6 Alarm Data-to-Logic Conversion . . . . . . . . . . . . . . . . 6-8 6.5.7 Alarm Data-to-Logic Conversion . . . . . . . . . . . . . . . . 6-8 6.6 RF Assemblies . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.1 RF Stage Location . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2 RF Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.1 RF Stage Description . . . . . . . . . . . . . . . . 6-14 6.6.2.2 RF Stage Bands . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.3 RF Stage Signal Flow . . . . . . . . . . . . . . . . 6-14 6.6.2.3.1 Mixer-2 . . . . . . . . . . . . . . . . . . . . . . . . 6-14 6.6.2.3.2 Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.3 Amplifier . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.4 VCO-2 . . . . . . . . . . . . . . . . . . . . . . . . . 6-15 6.6.2.3.5 Synthesizer-2 . . . . . . . . . . . . . . . . . . . . 6-15 6.7 Voltage Regulator Circuit . . . . . . . . . . . . . . . . . . 6-15 Glenayre Document Number: 9110.01021DSP Exciter Rev. B: 06/11/98Table of Contents …

Text truncated - open the document above for the full version.

Copyright © 1999 Glenayre GL-T8xx1 Transmitter SystemRevision K: 08/30/99 Specifications subject to change without notice Copyright © 1999 Glenayre All rights reserved. No part of this work may be reproduced or copied in any form or by any means—graphic, electronic, or mechanical, including photocopying, recording, taping, or information-retrieval system—without written permission of Glenayre. GL-T8311, GL-T8321, GL-T8331, GL-T8411, GL-T8521, GL-T8531, and GL-T8611 Transmitters USER MANUAL PN 9110.00166 (old pn = 916-8B21-001) REV K GL-T8xx1 Transmitter SystemGlenayre Document Number: 9110.00166 Document Change RecordRevision K: 08/30/99 Copyright © 1999 Glenayre Document Change Record Issue:1, Preliminary Date: Changes:none, original Issue:1, Preliminary Date:06/19/95 Changes:front page...part number, copyright Issue:1, Released, Rev C Date:04/29/96 Changes:obtained released status Issue:1, Released, Rev D Date:07/08/96 Changes:fan control...metering board...I20 control Issue:1, Released, Rev E Date:02/26/97 Changes:changed jumper table settings on metering board functional diagram Issue:1, Released, Rev F Date:06/18/97 Changes:added new metering bd. info w/pics ... added info to specifications Issue:1, Released, Rev G Date:10/17/97 Changes:changed typical PA top view picture reflecting switching of low-pass filter and directional coupler board on GL-T8521 and GL-T8321 transmitters Issue:1, Released, Rev H Date:12/01/97 Changes:updated schematics of metering boards 2000.00116 and 2000.00513; deleted reference for using 2000.00513 on GL-T8521, GL-T8321, GL-T8531, or GL-T8331 trans- mitters; deleted reference for using 2000.00116 on GL-T8311, GL-T8411, or GL-T8611 transmitters; updated jumper settings on 2000.00116 Issue:1, Released, Rev J Date:05/14/99 Changes:Added information defining the three meter (3m) limitation on the 28Vdc power cable. Issue:1, Released, Rev K Date:8/30/99 Changes:added RF output measurement at output of PA or circulator in specifications Glenayre Document Number: 9110.00166GL-T8xx1 Transmitter System Revision K: 08/30/99Table of Contents t521.toc Copyright © 1999 GlenayrePage: -i Table of Contents 1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.1Manual Scope . . . . . . . . . . . . . . . . . . . . . . . . 1-1 1.2Applicable Documents . . . . . . . . . . . . . . . . . . . . . 1-1 1.3About Glenayre . . . . . . . . . . . . . . . . . . . . . . . 1-3 1.3.1Product Warranty Information . . . . . . . . . . . . . . . . . . . 1-4 1.3.2Service Warranty Information . . . . . . . . . . . . . . . . . . . 1-4 2SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1 3DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.1Conceptual Description . . . . . . . . . . . . . . . . . . . . 3-1 3.2Physical Description. . . . . . . . . . . . . . . . . . . . . . 3-1 3.2.1Mounting Provisions . . . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2.1.1PA and Exciter Assemblies . . . . . . . . . . . . . . . 3-1 3.2.1.2Power Supply . . . . . . . . . . . . . . . . . . . . . . 3-1 3.2.1.3Video Display Terminal. . . . . . . . . . . . . . . . . 3-2 3.3Simplified Paging-Site Functional Description . . . . . . . . . . . 3-3 3.3.1Paging Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.2Communications Equipment and Transmitter Controller. . . . . . 3-3 3.3.3Paging Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.3.1DSP Exciter . . . . . . . . . . . . . . . . . . . . . . . 3-3 3.3.3.2Power Amplifier RF Compartment . . . . . . . . . . . 3-7 3.3.3.3Metering Board . . . . . . . . . . . . . . . . . . . . . 3-7 3.3.3.4Power Supply . . . . . . . . . . . . . . . . . . . . . . 3-7 3.3.3.4.1Ac-Powered Sites . . . . . . . . . . . . . . . . . . . 3-7 3.3.3.4.2Dc-Powered Sites . . . . . . . . . . . . . . . . . . . 3-7 3.3.4Video Display Terminal. . . . . . . . . . . . . . . . . . . . . . . 3-7 3.4Site Signal Flows . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.1Site RF-Signal Flow. . . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.2Site Audio-Signal Flow . . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.3Site Control-Signal Flow . . . . . . . . . . . . . . . . . . . . . . 3-8 3.4.4Status-Signal Flow . . . . . . . . . . . . . . . . . . . . . . . . . 3-9 GL-T8xx1 Transmitter SystemGlenayre Document Number: 9110.00166 Table of ContentsRevision K: 08/30/99 Page: -iiCopyright © 1999 Glenayre 4INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.1Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.2Installation . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.2.1Tools and Equipment Required. . . . . . . . . . . . . . . . . . . 4-1 4.2.2Rack Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1 4.2.3Rack Grounding . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2 4.2.4Positioning within the Rack . . . . . . . . . . . . . . . . . . . . 4-2 4.2.5Primary Power Requirements. . . . . . . . . . . . . . . . . . . . 4-2 4.2.5.1Special Considerations . . . . . . . . . . . . . . . . . 4-3 4.2.6Equipment Cabling . . . . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.6.1Ac Connections . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.6.2Dc Connections . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.6.3Dc-Only Sites . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.7PA Chassis Connections . . . . . . . . . . . . . . . . . . . . . . 4-3 4.2.8Metering Board Connections . . . . . . . . . . . . . . . . . . . . 4-4 4.2.9System Connectors . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 4.2.10I20 Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 4.3Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7 4.4Ultimate Disposition . . . . . . . . . . . . . . . . . . . . . 4-10 5OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1 5.1Controls and Indic…

Text truncated - open the document above for the full version.

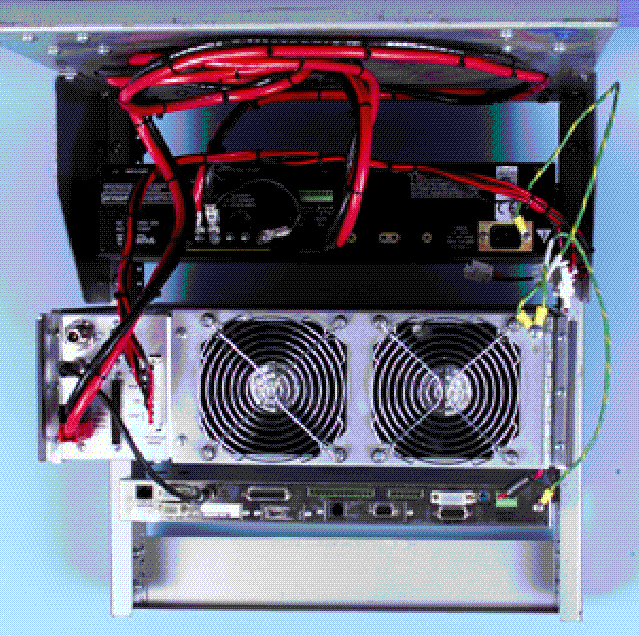

EXHIBIT 4 Construction Photographs (External) GL-T8311 Front View EXHIBIT 4 Construction Photographs (External) GL-T8311 Rear View EXHIBIT 4 Construction Photographs (External) GL-T8311 FCC ID Placement

EXHIBIT 1 Equipment Identification Label (FCC 2.925) Affixed to rear of RF Power Amplifier chassis BFLGL-T8311SA NOTES: 1. Color – Background Black. Blocks (3 Plcs) & lettering to be natural aluminum color. 2. Pressure sensitive adhesive backing to be 3M 467 or equivalent. 3. Positioned vertically on std. strip. 4. Block sizes – (A) 0.6 cm X 0.54 cm (B) 0.6 cm X 4.0 cm 5. Label must have manufacturer’s identifier mark. 6. Affixed to rear of transmitter chassis.

EXHIBIT 4 Construction Photographs (Internal) GL-T8311Exciter Boards EXHIBIT 4 Construction Photographs (Internal) Gl-T8311Exciter Control Board EXHIBIT 4 Construction Photographs (Internal) GL-T8311Exciter VCO/RF AMP Board EXHIBIT 4 Construction Photographs (Internal) C2000 Controller Boards EXHIBIT 4 Construction Photographs (Internal) C2000 Controller Main Board EXHIBIT 4 Construction Photographs (Internal) GL-T8311 PA Board EXHIBIT 4 Construction Photographs (Internal) GL-T8311 PA Metering Board

EXHIBIT 6 Schematic Dia grams GL-T8311 Final Power Amplifier EXHIBIT 6 Schematic Dia grams GL-T8311 Metering Board EXHIBIT 6 Schematic Dia grams GL-T8311 Exciter Control Board Page 1 EXHIBIT 6 Schematic Dia grams GL-T8311 Exciter Control Board Page 2 EXHIBIT 6 Schematic Dia grams GL-T8311 Exciter Control Board Page3 EXHIBIT 6 Schematic Dia grams GL-T8311 Exciter VCO/RF AMP EXHIBIT 6 Schematic Dia grams GL-C2000 Controller Board Page 1 EXHIBIT 6 Schematic Dia grams GL-C2000 Controller Board Page 2 EXHIBIT 6 Schematic Dia grams GL-C2000 Controller Board Page 3 EXHIBIT 6 Schematic Dia grams GL-C2000 Controller Board Page 4 EXHIBIT 6 Schematic Dia grams GL-C2000 Controller Board Page 5

TABLE OF CONTENTS EXHIBIT 1FCC Identification Label EXHIBIT 2Technical Description EXHIBIT 3Test Procedures and Results EXHIBIT 4Construction Photographs EXHIBIT 5Technical Manuals EXHIBIT 6Schematic Diagrams EXHIBIT 1 Equipment Identification Label (FCC 2.925) Affixed to rear of RF Power Amplifier chassis BFLGL-T8311SA NOTES: 1. Color – Background Black. Blocks (3 Plcs) & lettering to be natural aluminum color. 2. Pressure sensitive adhesive backing to be 3M 467 or equivalent. 3. Positioned vertically on std. strip. 4. Block sizes – (A) 0.6 cm X 0.54 cm (B) 0.6 cm X 4.0 cm 5. Label must have manufacturer’s identifier mark. 6. Affixed to rear of transmitter chassis . EXHIBIT 2: TECHNICAL DESCRIPTION DescriptionTransmitter Parameters Type of Emissions16K0F3E, 19K6F1D, 5K60F1D, 5K60F2D Frequency Range138 to 174 MHz Operating Power Output20 to 125 Watts Maximum Occupied Bandwidth16 kHz [22.359(b), 90.210(b)] Maximum Occupied Bandwidth5.6 kHz [90.210(e)] Maximum Deviation+/-5 kHz Ma xi mum Digital Infor ma tion Rate (Bits per Second) 2 level modulation – 4800 bps 4 level modulation – 9600 bps Final Power Amplifier voltage and current28 Vdc, 6.5 A Frequency stabilizing device10 MHz Oven controlled Crystal Oscillator (+/- 0.001 ppm) used in all modulation modes. Spurious and Harmonic suppressionIn all modes of operation the transmitter uses two local oscillators to convert a 100 kHz signal to the outp ut freque nc y. The first inter mediate a nd seco nd inter mediate freque nc y (carrier frequenc y) are filtered to remove mixing products. A low pass filter follows the final power amplifier to remove har mo nics. Modulation limiting circuitsThe DSP circuit controls limiting of the modulation for both analog and digital modes of operation. In the analog mode, the amplitude of the input signal is scaled so the desired deviation level for the signal is achieved. If the maximum scale value is reached at anytime, hard limiting occurs to clip the signal so overdeviation never occurs. In the digital mode, deviation is determined by the data state of the two TTL compatible data inputs. The exciter only recognizes two data states, (1 and 0) which represent one of four possible deviations. The DSP scales the value and never allows overdeviation. Power limiting circuitThe operating power is maintained to +/- 0.5 dB by means of an automatic gain control circuit that continually monitors the power output of the trans mi tter a nd auto ma tically adjusts the gai n to hold power level. Function of each active circuitSee Technical Manual EXHIBIT 6 Complete circuit diagramSee EXHIBIT 7 Technical ManualSee EXHIBIT 6 Tune up procedureSee Technical Manual EXHIBIT 6 Identification LabelSee EXHIBIT 1 EXHIBIT 3:TEST PROCEDURES AND RESULTS DESCRIPTION REF. FCC# PAGE Test Equipment List3.2 RF Power Output2.10463.3 Modulation Characteristics2.10473.4 - 3.9 Occupied Bandwidth2.10493.10 – 3.27 Spurious Emissions2.10513.28 – 3.29 Field Strength2.10533.30 – 3.34 Transient Frequency Behavior90.2143.35 – 3.36 Frequency Stability (Temperature)2.1055 (a)(b)(d) (1)3.36 – 3.40 Test SetupsAppendix A Page 3.1 TEST EQUIPMENT LIST InstrumentTypeManufacturerSerial No.Cal Due Modulation Analyzer8901AHewlett Packard213A014948-9-2000 Wattmeter4421Bird10143-1-2001 50ohm Load8325Bird26005-1-2000 Spectrum Analyzer8563EHewlett Packard3745A080253-16-2001 20dB Attenuator768-20NARDATE-A43012-29-2000 Variac1256DSuperior ElectricBP142090N/A EMI Receiver8546AHewlett Packard3746A004143-16-2001 RF Filter Section85460AHewlett Packard3704A003603-16-2001 Voltmeter12Fluke562100028-1-2000 Bilog Antenna3141EMCO9711-10816-17-2000 Horn Antenna3115EMCO9801-53941-20-2001 Frequency Counter53181AHewlett Packard3548A015266-1-2000 Vector Signal Analyzer 89441AHewlett Packard3416A015175-12-2000 RF Front End89441AHewlett Packard3509A06045-12-2000 Page 3.2 RF POWER OUTPUT (FCC 2.985) Tune the transmitter according to procedure in the operator’s manual. Terminate the RF OUT terminal of the transmitter into a 50-ohm resistive load. Monitor RF Power out with a calibrated RF Wattmeter. The test configuration is shown in Appendix A Figure 1. Record RF power out from wattmeter at both minimum and maximum rated power. Also measure and record DC voltage and current using a calibrated meter at minimum and maximum rated power. EXHIBIT 3-1 Frequency Range:138 – 174 MHz Rated Power:20 – 125 Watts Power setting: 125 Watts Measured RF Power:126.2 Watts Measured DC voltage: 27.9 Volts Measured DC current: 7.8 Amps Calculated DC power input:217.5 Watts Power setting: 20 Watts Measured RF Power:17.4 Watts Measured DC voltage:27.9 Volts Measured DC current:2.8 Amps Calculated DC power input:78.2 Watts Page 3.3 MODULATION CHARACTERISTICS - ANALOG (FCC 2.1047) Frequency Response Connect audio generator with variable output level to the transmitter audio input terminals. Meter audio level at input terminals. Terminate the transmitter antenna terminal with a 50-ohm resistive load. Sample transmitter RF power output with a deviation monitor. Hold constant audio input level required producing +1.5 kHz frequency deviation at 1000 Hz. Use this level as 0-dB reference level. Repeat at audio frequencies of 100, 200, 300, 500, 2000, 2500, 3000, 3500, 4000, and 5000 Hz. Results: Reference EXHIBIT 3-2 for standard audio board. Deviation Limiter Operation Connect audio generator, with variable output level to transmitter audio input terminals. Terminate the transmitter antenna terminal with a 50-ohm resistive load. Sample RF output with a deviation monitor. Set audio input level to produce 50% modulation (2.5 kHz) at 1 kHz audio frequency. Record the frequency deviation at each audio input level and frequency. Repeat at audio input levels of -6,0, +3, +6, +10, and +16 dB. Repeat each set of measurements for audio frequencies of 300, 600, 1000, and 2500 Hz. Results: Reference EXHIBIT 3-3 for standard audio board. Page 3.4 EXHIBIT 3-2 FREQUENCY RESPONSE Audio Board:Standard Audio Frequency (Hz) Audi…
