BFVGEE248T2.4 GHz Audio.Video Monitor System

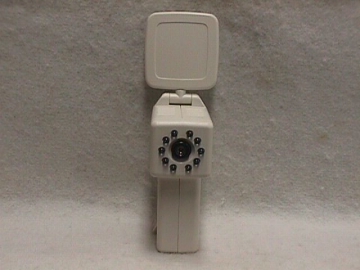

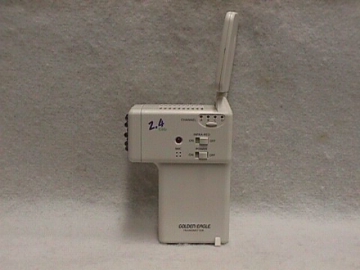

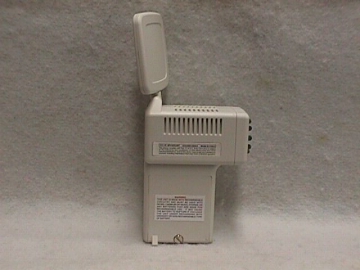

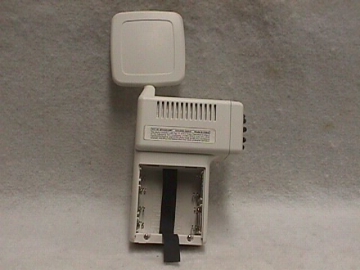

Test Report Number R-8168 APPLICANT Golden Eagle Electronics Suite 215, 2F, New East Ocean Centre 9 Science Museum Road Tsim Sha Tsui East, Kowloon, Hong Kong MANUFACTURER Golden Eagle Electronics Suite 215, 2F, New East Ocean Centre 9 Science Museum Road Tsim Sha Tsui East, Kowloon, Hong Kong TEST SPECIFICATION:FCC Rules and Regulations Part 15, Subpart C TEST PROCEDURE:ANSI C63.4:1992 TEST SAMPLE DESCRIPTION BRANDNAME:Golden Eagle Electronics MODEL:GEE248FCC ID:BFVGEE248T TYPE:FM Transmitter FREQUENCY RANGE:2400 to 2483.5 MHz POWER REQUIREMENTS: 12 VDC derived from 115 VAC, 60 Hz Ac Adapter TESTS PERFORMED - 15.249(a)Radiated Emissions, Fundamental and Harmonics - 15.249(c)/15.209Out-of-Band Radiated Emissions - 15.249(c)Occupied Bandwidth - 15.207(a)Conducted Emissions Test Report Number R-8168 REPORT OF MEASUREMENTS Applicant:Golden Eagle Electronics Device:2400 to 2483.5 MHz Audio / Video Transmitter FCC ID:BFVGEE248T Power Requirements:12 VDC derived from 115 VAC, 60 Hz Ac Adapter Applicable Rule Section:Part 15, Subpart C, Section 15.249 TEST RESULTS 15.203:The intentional radiator is designed to ensure that no antenna other than that furnished by the applicant can be used with the device. 15.207(a):The radio frequency voltage that was conducted back on to the AC power line on any frequency/frequencies within the bandwidth of 450kHz to 30MHz did not exceed 250 microvolts. 15.249(a):The unit operates in the 2400-2483.5 MHz band. The field strength of the fundamental did not exceed 50mV/M AVERAGE. The field strength of the harmonics did not exceed 500μV/M AVERAGE. 15.249(b):Field strength readings were taken at three meters unless otherwise noted. 15.249(c):Emissions radiated outside the specified frequency band were attenuated in accordance with the general radiated emissions limits of 15.209. 15.249(d):The peak field strength of any emission did not exceed the maximum permitted average field strength by more than 20dB under any condition of modulation. Test Report Number R-8168 REPORT OF MEASUREMENTS (continued) GENERAL NOTES 1.All user accessible controls were adjusted to produce maximum emissions. 2.Measurements of conducted emissions were performed utilizing a 50 ohm/50μhenry Line Impedance Stabilization Network (LISN). 3.The unit operates in the band of 2400.0 MHz to 2483.5MHz. The unit operates at four (4) discrete frequencies, 2420.0 MHz, 2440.0 MHz, 2460.0 MHz, and 2470.0 MHz. Since the unit tunes over a range greater than 10MHz, three frequencies were chosen for testing, in accordance with Section 15.31(m). It was found that Channel A (2420 MHz) had the highest emissions of the three (3) frequencies. Test data is shown for this frequency only. 4.The frequency range was scanned from 30MHz to 24.72GHz. All emissions not reported were more than 20dB below the specified limit. Test Report Number R-8168 EXHIBIT 4 Radiated Emissions, Fundamental & Harmonics Para. 15.249(a) Test Report Number R-8168 Test Method: FCC Part 15 Sub part C Radiated Emissions Paragraph 15.249 Customer: Golden Eagle Electronics Job No. R-8168 Test Sample: 2.4 GHz audio/ video transmitter FCC ID: BFVGEE248T Model No.: GEE248 Serial No. N/A Operating Mode: Continuously Transmitting a 2.4 GHz Signal Technician: Robert Ocasio Date: November 29, 1999 Notes: Test Distance: 3 Meters Temp:11C Humidity: 40% Detector: Peak Channel A Test Freq.Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Limit GHz(V/H) - MetersX / Y / Z dBuV dB dBuV/m uV/m 2.42H / 1. 2X74.4-0.374.15069.950000 2.42H / 1. 0Y73.2-0.372.94415.750000 2.42H / 1. 0Z78.5-0.378.28128.350000 2.42V / 1. 1X76.8-0.376.56683.450000 2.42V / 1. 3Y73.4-0.373.14518.550000 2.42V / 1. 0Z76.2-0.375.96237.350000 I 4.86H / 1. 0X45.82.848.6269.1500 4.86H / 1. 0Y41.42.844.2162.1500 4.86H / 1. 0Z43.92.846.7216.2500 4.86V / 1.1X44.82.847.6239.8500 4.86V / 1.0Y40.32.843.1142.8500 4.86V / 1.2Z41.22.844158.4500 I 7.26H / 1.0X44.97.652.5421.6500 7.26H / 1.0Y43.77.651.3367.2500 7.26H / 1.0Z43.67.651.2363.0500 7.26V / 1.0X43.27.650.8346.7500 7.26V / 1.0Y43.37.650.9350.7500 7.26V / 1.0Z43.27.650.8346.7500 I 9.68H / 1.0X38.17.845.9197.2 =NF500 9.68H / 1.0Y38.17.845.9197.2 =NF500 9.68H / 1.0Z38.17.845.9197.2 =NF500 9.68V / 1.0X38.17.845.9197.2 =NF500 9.68V / 1.0Y38.17.845.9197.2 =NF500 9.68V / 1.0Z38.17.845.9197.2 =NF500 I 12.01H / 1.0X33.21.534.754.3 =NF500 12.01H / 1.0Y33.21.534.754.3 =NF500 12.01H / 1.0Z33.21.534.754.3 =NF500 12.01V / 1.0X33.21.534.754.3 =NF500 12.01V / 1.0Y33.21.534.754.3 =NF500 12.01V / 1.0Z33.21.534.754.3 =NF500 The frequency range was scanned from 30 MHz to 25 GHz. Test Report Number R-8168 NF= Noise Floor Measurement (Minimum system sensitivity) Test Method: FCC Part 15 Sub part C Radiated Emissions Paragraph 15.249 Customer: Golden Eagle Electronics Job No. R-8168 Test Sample: 2.4 GHz audio/ video transmitter FCC ID: BFVGEE248T Model No.: GEE248 Serial No. N/A Operating Mode: Continuously Transmitting a 2.4 GHz Signal Technician: Robert Ocasio Date: November 29, 1999 Notes: Test Distance: 3 Meters Temp:11C Humidity: 40% Detector: Peak Channel A Test Freq.Antenna Pol./Height EUT Orientation Meter Reading Correction Factor Corrected Reading Converted Reading Limit GHz(V/H) - MetersX / Y / Z dBuV dB dBuV/m uV/m 14.5H / 1. 2X38.37.846.1201.8 =NF500 14.5H / 1. 0Y38.37.846.1201.8 =NF500 14.5H / 1. 0Z38.37.846.1201.8 =NF500 14.5V / 1. 1X38.37.846.1201.8 =NF500 14.5V / 1. 3Y38.37.846.1201.8 =NF500 14.5V / 1. 0Z38.37.846.1201.8 =NF500 16.9H / 1. 0X36.99.846.7216.3 =NF500 16.9H / 1. 0Y36.99.846.7216.3 =NF500 16.9H / 1. 0Z36.99.846.7216.3 =NF500 16.9V / 1.1X36.99.846.7216.3 =NF500 16.9V / 1.0Y36.99.846.7216.3 =NF500 16.9V / 1.2Z36.99.846.7216.3 =NF500 19.4H / 1.0X34.416.751.1358.9 =NF500 19.4H / 1.0Y34.416.751.1358.9 =NF500 19.4H / 1.0Z34.416.751.1358.9 =NF500 19.4V / 1.0X34.416.751.1358.9 =NF500 19.4V / 1.0Y34.416.751.1358.9 =NF500 19.4V / 1.0Z34.416.751.1358.9 =NF500 21.8H / 1.0X32.016.948.9278.6 =NF500 21.8…
