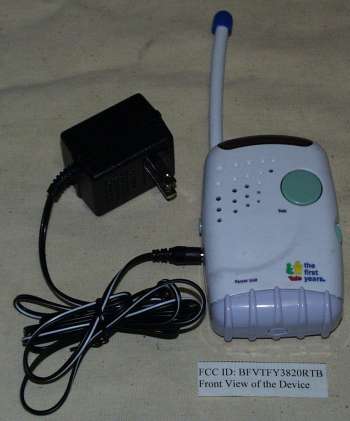

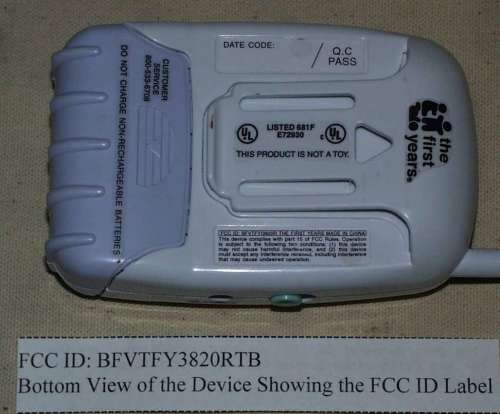

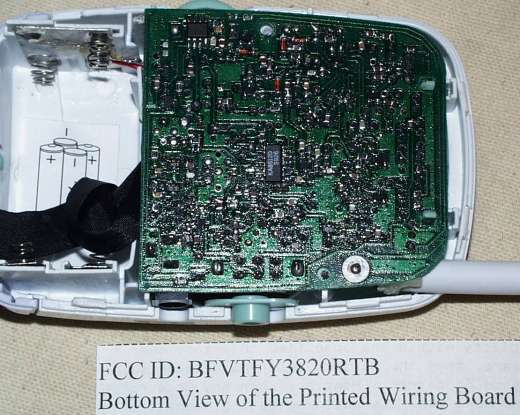

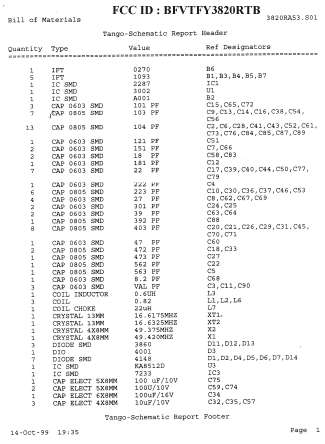

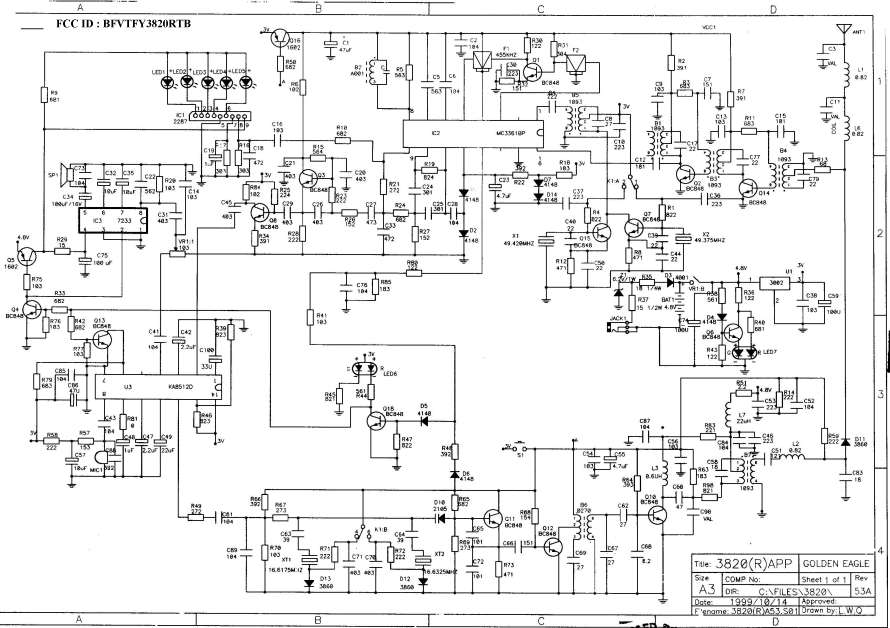

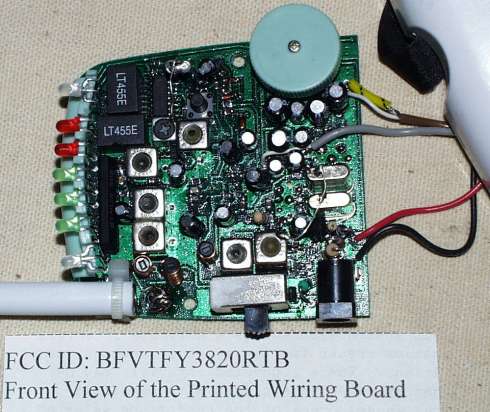

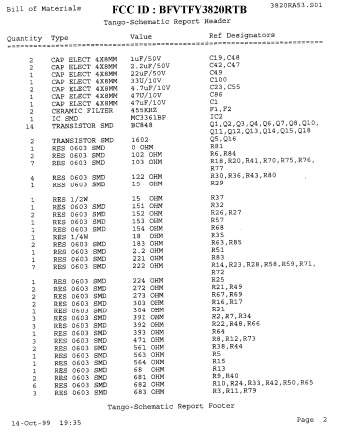

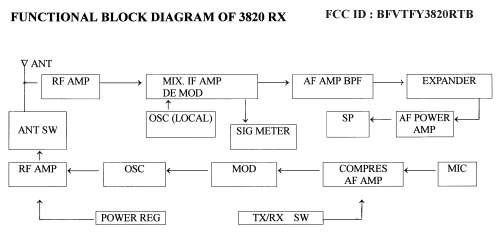

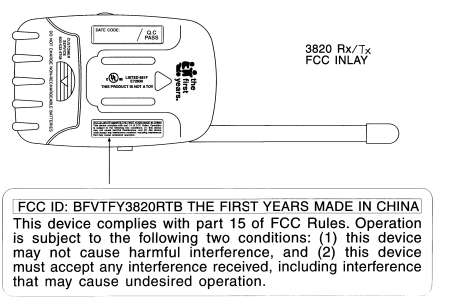

BFVTFY3820RTBTalkback Baby Monitor

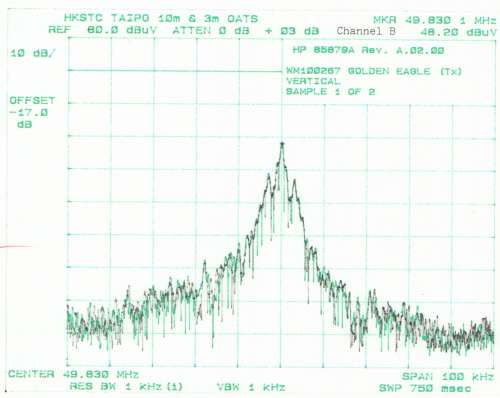

Date: 1999-11-02TEST REPORTPage 1 of 16 No.: WM100267 __Law Man Kit Kitty Choy Patrick Wong Patrick Wong Testing EngineerVerify byfor Managing Director Conditions in issuance of Test Report 1. This Report is issued in confidence to the client and it will be strictly treated as such by the Hong Kong Standards and Testing Centre Ltd. It may not be reproduced either in its entirety or in part and it may not be used for advertising. The client to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Hong Kong Standards and Testing Centre Ltd. to his customer, supplier or other persons directly concerned. The Hong Kong Standards and Testing Centre Ltd. will not, without the consent of the client, enter into any discussion or correspondence with any third party concerning the contents of the Report. 2. The report refers only to the sample tested and does not apply to the bulk, unless the sampling has been carried out by the Hong Kong Standards and Testing Centre Ltd. and is stated as such in the Report. 3. In the event of the improper use of the report, the Hong Kong Standards and Testing Centre Ltd. reserves the rights to withdraw it, and to adopt any other remedies which may be appropriate. 4. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Hong Kong Standards and Testing Centre Ltd. 5. The Hong Kong Standards and Testing Centre Ltd. will not be liable for or accept responsibility for any loss or damage howsoever arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 6. Applicants wishing to use the Report in court proceedings or arbitration shall inform the Hong Kong Standards and testing Centre Ltd. to that effect prior to submitting the sample for testing. APPLICANT: (Code : GOE003) GOLDEN EAGLE ELECTRONICS MFY. LTD. SUITE 215, 2/F, NEW EAST OCEAN CTR., 9 SCIENCE MUSEUM RD., T.S.T. EAST, KLN., HONG KONG. DATE OF SAMPLES RECEIVED: 1999-10-22 DATE OF TESTING: 1999-10-26 to 1999-10-29 DESCRIPTION OF SAMPLE(S): A sample of product said to be: Product:TALKBACK BABY MONITOR Manufacturer:DONGGUAN YIHUA ELECTRONIC CO., LTD. Model Number: 3820 Brand Name:THE FIRST YEARS Rating:6Vd.c. ("AA" size battery × 4), with jack Origin:CHINA The AC/DC adaptor used for the tests was a Winstar NA1535 Universal adaptor. INVESTIGATIONS REQUESTED: Measurement to the relevant clauses of F.C.C. Rules and Regulations Part 15 Subpart B - Unintentional Radiator and Subpart C - Intentional Radiator. RESULT/ REMARK:Please see attached sheet(s). CONCLUSION: From the measurement data obtained, the tested sample was considered to have COMPLIED after modification with the clause 15.109(a) and ANSI C63.4-1992 Section 12.1.1.1-2 for the Receiver Section and for the Transmitter Section with the clause 15.235 of Federal Communications Commission Rules and Regulations Part 15. TEST EQUIPMENT AUDIT: Please see Appendix A. MODIFICATION : Change resistor R63 to 82kΩ. Date: 1999-11-02TEST REPORTPage 2 of 16 No.:WM100267 T E S T S U M M A R Y . ***UNINTENTIONAL RADIATOR*** (A)Measurement of Radiated Emissions .......................................................Satisfactory (B) Line Conducted Voltage Test. .................................................................Satisfactory *** INTENTIONAL RADIATOR*** : (1) Measurement of Emission of RF energy on the carrier frequency.............. Satisfactory Measurement of the out-of band emissions including harmonics............... Satisfactory (2) Measurement of Emission Within Band Edges.......................................... Satisfactory (3)Measurement of Line-Conducted Voltage onto AC Power Line................ Satisfactory T E S T D A T A Please refer to the attached result sheets. Date: 1999-11-02TEST REPORTPage 3 of 16 No.:WM100267 ***UNINTENTIONAL RADIATOR*** (A) Measurement of Radiated Interference TEST REFERENCE: FCC Rules Part 15 Subpart B section 15.109(a) TEST CONDITION : Normal (Channel A & B) TEST DATE : 1999-10-26 Freq. to whichFreq of thePolarizationMeter Antenna Field StrengthFCC limit tuned emission H-V reading (at 3m) factor (at 3m) @ MHz MHz dB(μV) dB dB(μV/m) μV/m μV/m 49.860 49.9<1.0+15.0<16.0< 6100 99.7<1.0+12.2<13.2< 5150 149.6<1.0+ 9.8<10.8< 3150 199.4<1.0+11.5<12.5< 4150 249.3<1.0+15.9<16.9< 7200 299.1<1.0+17.0<18.0< 8200 349.0<1.0+17.2<18.2< 8200 398.8<1.0+18.8<19.8<10200 448.7<1.0+19.7<20.7<11200 498.6<1.0+20.6<21.6<12200 548.4<1.0+22.2<23.2<14200 598.3<1.0+23.4<24.4<17200 648.1<1.0+23.5<24.5<17200 698.0<1.0+25.0<26.0<20200 747.8<1.0+26.2<27.2<25200 797.7<1.0+27.2<28.2<25200 847.5<1.0+27.2<28.2<25200 897.5<1.0+27.2<28.2<25200 947.2<1.0+27.8<28.8<27200 997.1<1.0+28.5<29.5<27500 ==========SUMMARY========== All data is within limits =========================================================== Broad-band Antennas were used and both polarizations of emissions were measured Polarizations at highest reading indicated as: H -- HorizontalV -- Vertical ============================================================ Date: 1999-11-02TEST REPORTPage 4 of 16 No.:WM100267 NOTES FOR THE RADIATION MEASUREMENT (1) Test site facility: Open field test site located at Taipo (Hong Kong) with a metal ground plane on filed with the FCC pursuant to section 2.948 of the FCC Rules. (2) Distance between the ET and measuring antenna: 3 meters. (3) Measuring instrumentation: CISPR Quasi-peak type field strength meter (25 MHz - 1000 MHz.). 6 dB bandwidth set at 120 KHz. Also, peak level of the fundamental emissions was measured in order to determine compliance with the 20dB peak to average limit specified in Section 15.35(b) of the FCC new Rules. (4) Measuring antenna: Broad band antenna for the frequency range 25-1000 MHz, connected with 10 meters coaxial cable. Cable loss of the coaxial cable. included in the Antenna Factor for measurem…

Text truncated - open the document above for the full version.

Date:1999-11-02 APPENDIX APage A1 of A1 No.:WM100267 TEST EQUIPMENT AUDIT Radiated Emission EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM007SPECTRUM ANALYZERH PHP85660B3144A21192 11/06/99 EM008SPECTRUM ANALYZER DISPLAYH PHP85662A3144A20514 11/06/99 EM009QUASI PEAK ADAPTORH PHP85650A3303A01702 11/06/99 EM010RF PRESELECTORH PHP85685A3221A01410 11/06/99 EM011ATTENNUATOR/SWITCHH PHP11713A2508A10595 11/06/99 EM012PRE-AMPLIFIERH PHP8449B3008A00262 11/06/99 EM013CONTROLLER (COMPUTER), COLOR MONITOR, KEYBOARD & MOUSE FLOPPY DRIVE H P H P H P HP9000 HP A1097C HP9133L 6226A60314 3151J39517 2623A02468 CM EM016ANTENNAARA INC.LPB-2513/A1047 30/12/97 EM072SIGNAL GENERATORHP8640B1948A11892 30/03/98 EM083HKSTC OPEN AREA TEST SITEHKSTCN/AN/A 25/02/99 EM145EMI TEST RECEIVERR & SESCS30830245/021 10/05/99 Line Conducted EQP NO.DESCRIPTIONMANUFACTURERMODEL NO.SERIAL NO.LAST CAL EM078VARIACSHANGHAI VOLTAGETDGC-3/0.5N/ACM EM081SMALL SCREENED ROOMMIKO INST HKN/AN/A06/09/98 EM119LISNR&SESH3-Z50831.5518.5209/08/98 EM120EMI TEST RECEIVERR&SESHS101004.0401.1009/08/99 EM123NOTEBOOK PCACER350CXP007865N/A EM127ISOLATION TRANSFORMER 220 TO 300 WING SUNN/AN/ACM EM142Pluse LimiterR&SESH-Z2N/A29/01/99 EM145EMI TEST RECEIVERR&SESCS30830245/02110/05/99 ABBREVIATIONS: CM = Corrective Maintenance N/A = Not Applicable
