BGAA939A

PROPOSED FCC ID LABEL AND LOCATION AUDIOVOX CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: BGAA939A FCC ID LABEL FCC ID

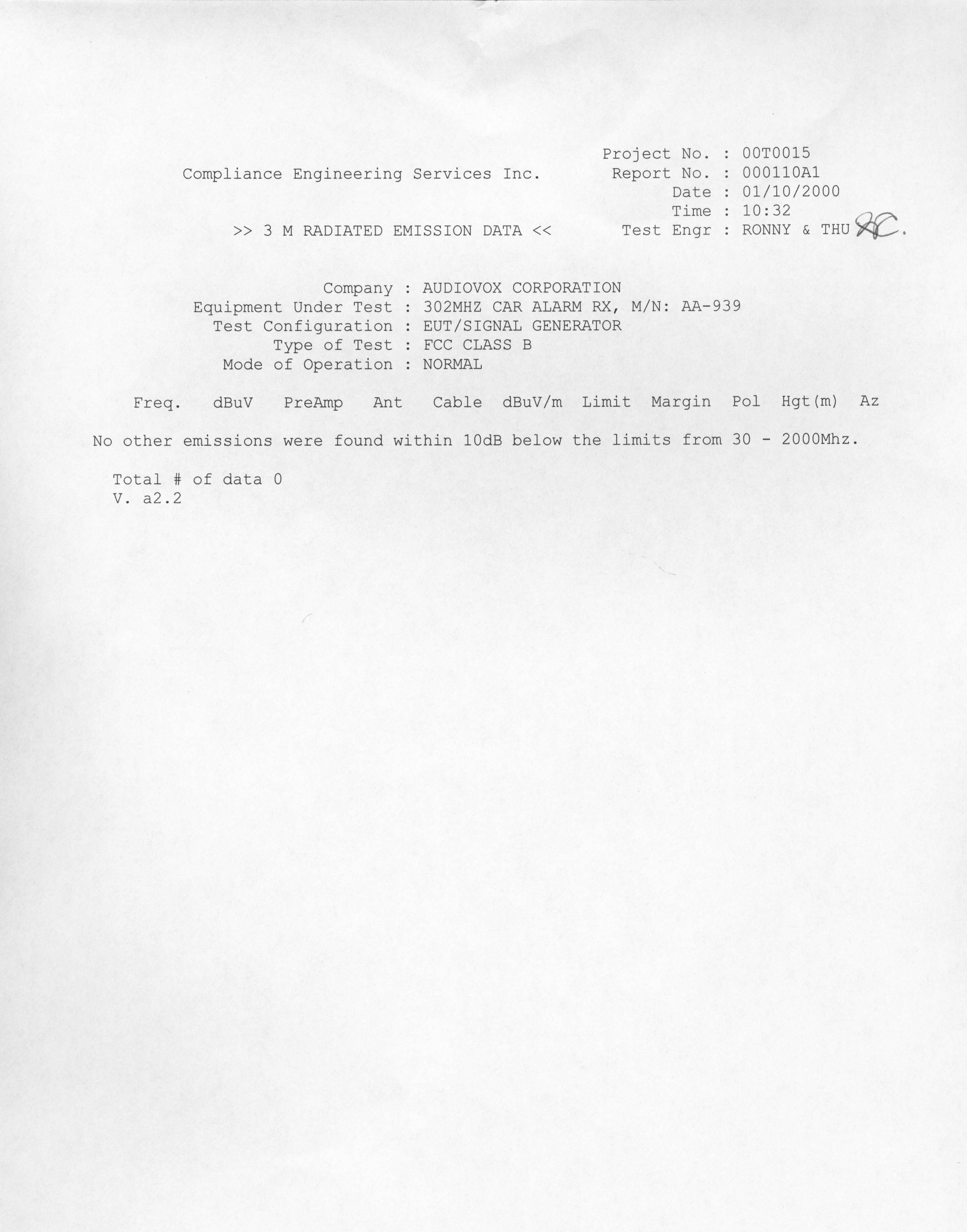

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 302 MHz RECEIVER MODEL: AA-939 FCC ID: BGAA939A REPORT NO: 00T0015-1 DATE: JANUARY 10, 2000 Prepared for AUDIOVOX CORPORATION 150 MARCUS BOULEVARD HAUPPAUGE, NY 11788 U.S.A. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE................................................................................................1 2. PRODUCT DESCRIPTION....................................................................................................................2 3. TEST FACILITY.........................................................................................................................................2 4. MEASUREMENT EQUIPMENT USED...........................................................................................2 5. TEST CONFIGURATION.......................................................................................................................3 6. TESTS CONDUCTED...............................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE..................................................................................3 8. COHERENT TESTS..................................................................................................................................3 9. EQUIPMENT MODIFICATIONS.......................................................................................................4 10. TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST).........................5 TEST DATA • Fundamental Frequency Plot • Radiated Emission Data Proposed FCC ID Label......................... Exhibit 1 Agent Authorization Letter.................... Exhibit 2 User Manual................................... Attachment A Block Diagram/Schematics...................... Attachment B REPORT NO:00T0015-1 DATE: JANUARY 10, 2000 FCC ID:BGAA939A PAGE NO: COMPLIANCE CONSULTING SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 1 1. VERIFICATION OF COMPLIANCE COMPANY NAME : AUDIOVOX CORPORATION 150 MARCUS BOULEVARD HAUPPAUGE, NY 11788 U.S.A. CONTACT PERSON : PAT LAVELLE / EXECUTIVE VICE PRESIDENT TELEPHONE NO. : (516) 231-7750 EUT DESCRIPTION : 302 MHz RECEIVER MODEL NAME/NUMBER : AA-939 FCC ID : BGAA939A DATE TESTED : JANUARY 10, 2000 REPORT NUMBER : 00T0015-1 TYPE OF EQUIPMENT SECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE 302 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992 LIMIT TYPE CERTIFICATION FCC RULE CFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE ENGINEERING SERVICES, INC. REPORT NO:00T0015-1 DATE: JANUARY 10, 2000 FCC ID:BGAA939A PAGE NO: COMPLIANCE CONSULTING SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 2 2. PRODUCT DESCRIPTION AUDIOVOX CORP., Model AA-939 is the receiving portion of a multi-purpose security device. The associated Transmitter is manufactured by Audiovox Corp., Model No: PRO94KDCF, FCC ID: BGAAVZTF. 3. TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4. MEASUREMENT EQUIPMENT USED Manufacturer Model Number Description Cal Due Date H.P. 8640B Signal Generator (0.5 - 1024 MHz) 08/00 H.P. 8566B Spectrum Analyzer (100Hz - 22GHz) 09/00 EMCO 3146 Antenna (200-1000 MHz) 10/00 H.P. 8447D Preamplifier (0.1 - 1300 MHz) 09/00 ARA DRG-18/A Antenna(1 - 18GHZ) 12/00 H.P. 8449B Preamplifier (1-26.5GHZ) 03/00 REPORT NO:00T0015-1 DATE: JANUARY 10, 2000 FCC ID:BGAA939A PAGE NO: COMPLIANCE CONSULTING SERVICES CCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089 TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without written approval from CCS. 3 5. TEST CONFIGURATION Set signal generator to transmit at 302 MHz. The receiver receives the signal. All the wires are placed on the turn table to their maximum length to simulate the worse emission condition. 6. TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TESTS CONDUCTED AT 3 METERS 7. RADIATED EMISSION TEST PROCEDURE The EUT and all other support equipment are placed on a wooden table 80 cm above the ground screen. Antenna to EUT distance is 3 meters. During the test, the table is rotated 360 degrees to maximize emissions and the antenna is positioned from 1 to 4 meters above the ground screen to further maximize emissions. The antenna is polarized in both vertical and horizontal positions. Monitor the frequency range of interest at a fixed antenna height and EUT azimuth. Frequency span should be small enough to easily differentiate between broadcast stations and intermittent ambients. Rotate EUT 360 degrees to maximize emissions received from EUT. If emission increases by more than 1 dB, or if another emission appears that is greater by 1 dB, …
