BGADF-205Family Radio Transceiver

Safety Information For FRS UNIT Your wireless handheld portable transceiver contains a low power transmitter. When the Push-to Talk (PTT) button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. WARNING: To maintain compliance with the FCC’ s RF exposure guidelines, this transmitter and antenna must maintain a separation distance of at least 2 inches (5 centimeters) from your face. Speak in a normal voice, with the antenna pointed up and away from the face at the required separation distance. The belt clip is for storage purposes only. DO NOT TRANSMIT WHILE USING THE BELT CLIP. To transmit, hold the device away from your body and ensure that the antenna is at least 2 inches (5 centimeters) from your body when transmitting. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations.

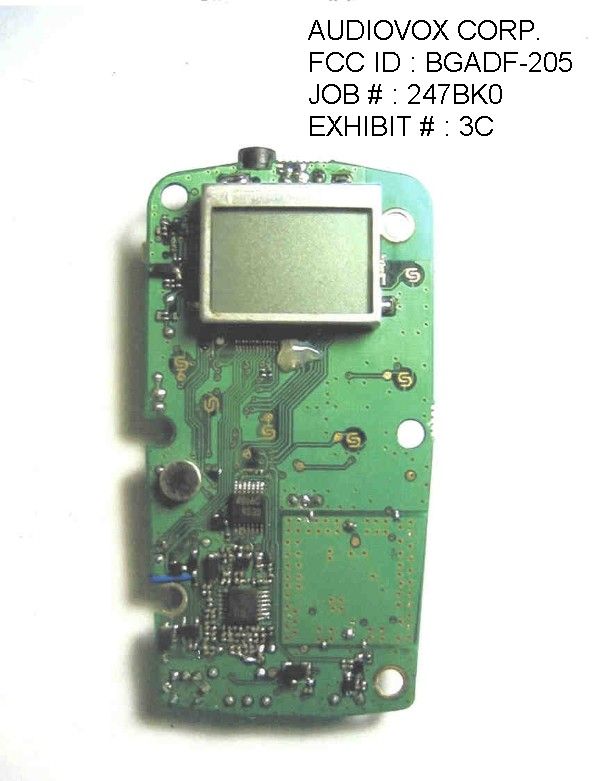

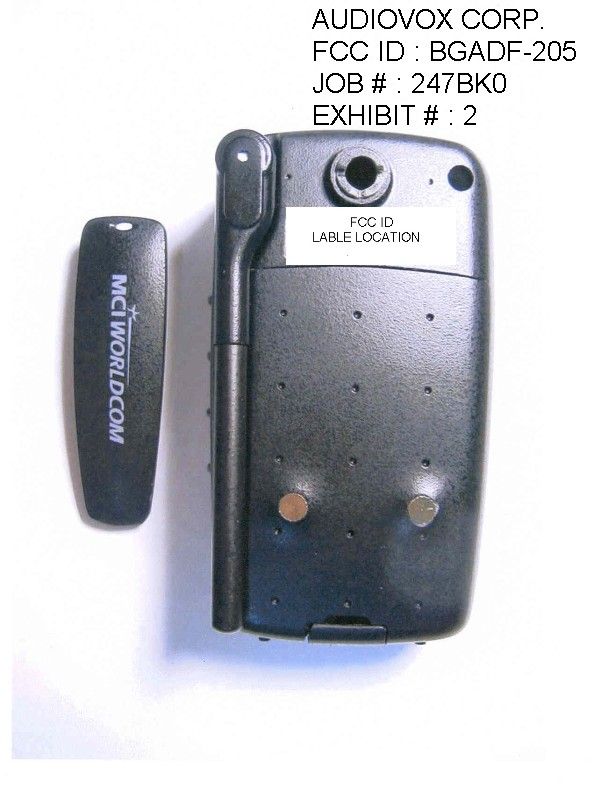

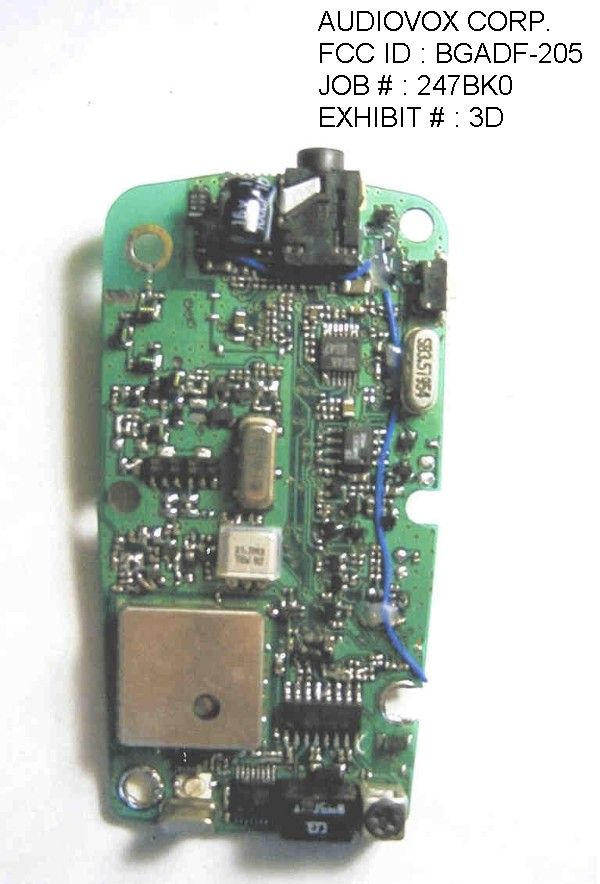

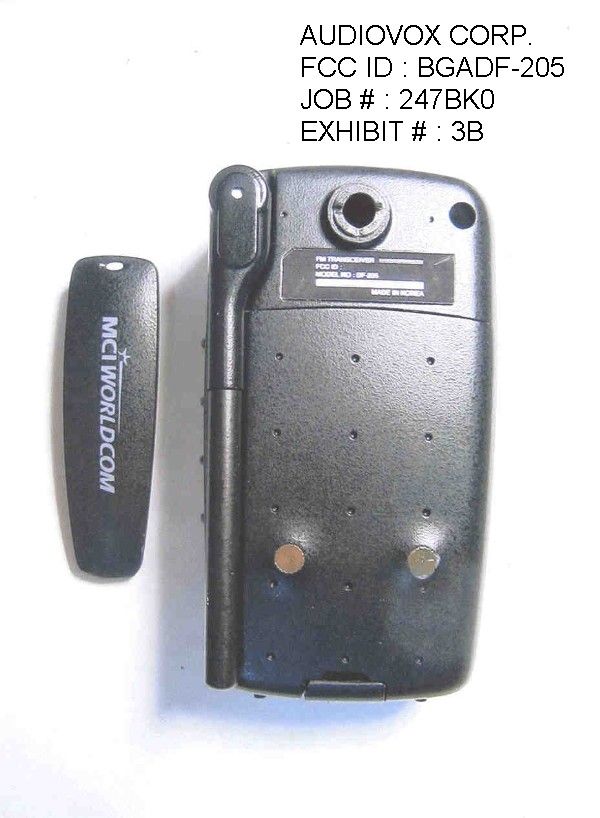

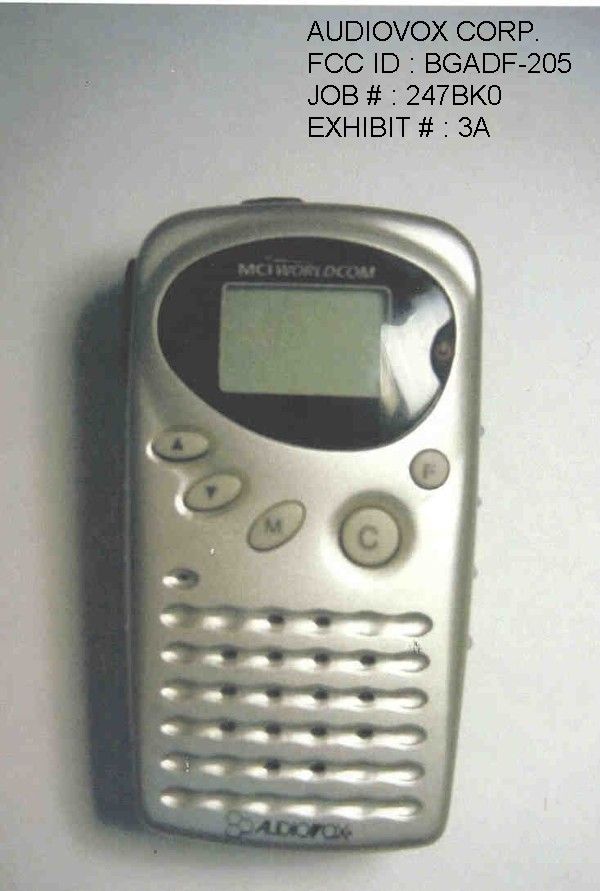

TABLE OF CONTENTS LIST APPLICANT: AUDIOVOX CORP. FCC ID: BGADF-205 TEST REPORT: PAGE 1......COVER SHEET - GENERAL INFORMATION & TECHNICAL DESCR. PAGE 2......TECHNICAL DESCRIPTION CONTINUED & RF POWER OUTPUT PAGE 3......MODULATION CHARACTERISTICS AND OCCUPIED BANDWIDTH PAGE 4......METHOD OF MEASURING OCCUPIED BANDWIDTH PAGE 5......SPURIOUS EMISSIONS AT ANTENNA TERMINALS PAGE 5......FIELD STRENGTH OF SPURIOUS EMISSIONS PAGE 6......METHOD OF MEASURING RADIATED SPURIOUS EMISSIONS PAGE 7......FREQUENCY STABILITY PAGE 8......LIST OF TEST EQUIPMENT EXHIBITS CONTAINING: EXHIBIT 1.........FCC ID LABEL SAMPLE EXHIBIT 2.........SKETCH OF FCC ID LABEL LOCATION EXHIBIT 3A........EXTERNAL PHOTO - FRONT VIEW EXHIBIT 3B........EXTERNAL PHOTO - REAR VIEW EXHIBIT 3C........INTERNAL PHOTO - SOLDER SIDE EXHIBIT 3D........INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 4.........BLOCK DIAGRAM EXHIBIT 5A........SCHEMATIC - RF EXHIBIT 5B........SCHEMATIC - LOGIC EXHIBIT 6A-6F.....USER'S MANUAL EXHIBIT 7A-7C.....THEORY OF OPERATION EXHIBIT 8.........TUNING PROCEDURE EXHIBIT 9.........LIST OF ACTIVE DEVICES EXHIBIT 10........AUDIO FREQUENCY RESPONSE GRAPH EXHIBIT 11A.......MODULATION LIMITING PLOT - 300 Hz EXHIBIT 11B.......MODULATION LIMITING PLOT - 1000 Hz EXHIBIT 11C.......MODULATION LIMITING PLOT - 3000 Hz EXHIBIT 12........AUDIO LOW PASS FILTER GRAPH EXHIBIT 13A.......OCCUPIED BANDWIDTH CW PLOT EXHIBIT 13B.......OCCUPIED BANDWIDTH PLOT - 2500 Hz TONE APPLICANT: AUDIOVOX CORP. FCC ID: BGADF-205 REPORT #: T:\CUS\A\AUDIOVOX\247BK0\247BK0.RPT PAGE: TABLE OF CONTENTS GENERAL_INFORMATION_REQUIRED FOR_TYPE_ACCEPTANCE 2.1033(c)(1)(2) AUDIOVOX CORP. will manufacture the FCCID: BGADF-205 FAMILY RADIO SERVICES 14 CHANNEL TRANSCEIVER in quantity, for use under FCC RULES PART 95. AUDIOVOX CORP. 150 MARCUS BLVD. HAUPPAUGE, NY 11787 USA 2.1033 (c) TECHNICAL_DESCRIPTION 2.1033(c)(3) Instruction book. A draft copy of the instruction manual is included as EXHIBIT 6A-6F. 2.1033(c) (4) Type of Emission: 10K0F3E 95.629 Bn = 2M + 2DK M = 3000 D = 2.0K Bn = 2(3.0)+2(2.0) = 10.0K Authorized Bandwidth 12.5KHz 2.1033(c)(5) Frequency Range: 1. 462.5625 8. 467.5625 95.627 2. 462.5875 9. 467.5875 3. 462.6125 10. 467.6125 4. 462.6375 11. 467.6375 5. 462.6625 12. 467.6625 6. 462.6875 13. 467.6875 7. 462.7125 14. 467.7125 MHz 2.1033(c)(6)(7) Power Output shall not exceed 0.500Watts effective 95.637 radiated power. There can be no provisions for 95.647 increasing the power or varing the power. The Maximum Output Power Rating: 500 milliWatts effective radiated power. 95.645 The antenna is an intergral part to the unit, it cannot be removed without rendering the unit inoperative. In order to remove the antenna the case must unscrewed, then the PCB assemblies must be removed then the antenna can be removed. 2.1033(c)(8) DC Voltages and Current into Final Amplifier: FINAL AMPLIFIER ONLY Vce = 4.5 Volts DC Ice = 0.12A. Pin = 0.54 Watts 2.1033(c)(9) Tune-up procedure. The tune-up procedure is included 8. REPORT #: T:\CUS\A\AUDIOVOX\247BK0\247BK0.RPT PAGE #: 1 2.1033(c)(10) Complete Circuit Diagrams: The circuit diagram is included as EXHIBIT 5A-5B of this report. The block diagrams are included as EXHIBIT 4 of this report. 2.1033(c)(11) A photograph or a drawing of the equipment identifica tion label is included as exhibit No. 2. 2.1033(c)(12) Photographs(8"X10") of the equipment of sufficient clarity to reveal equipment construction and layout, including meters, labels for controls, including any view under shields - See EXHIBIT 3A-3D. 2.1033(c)(13) Digital modulation is not allowed. 2.1033(c)(14) The data required by 2.1046 through 2.1057 is submitted below. 2.1046(a) RF_power_output. 95.637 RF power is measured by measuring the radiated power at 3 meters and then replacing the transmitter with a signal generator to determine the effective radiated power. The ERP shall not exceed 0.500 Watts. MEASURED POWER OUTPUT = 500 milliWatts ERP R.F. POWER OUTPUT HP TEST SET UP Spectrum Analyzer /-------\ /-----------------\ | | | | TRANSMITTER | | | | | UNDER TEST WITH | \--| | | INTERNAL ANTENNA| | | | \-----------------/ | | | | | \-------/ | | |<-- 3.0 meters-->| /-------------\ | SIGNAL | DIPOLE | Tuned, Calibrated | GENERATOR | ANTENNA | Antenna which may | |----------/ be raised from 1 \-------------/ to 4 meters above ground and changed in polarization Equipment placed 1 meter above ground on a rotatable platform. APPLICANT: AUDIOVOX CORP. FCC ID: BGADF-205 REPORT #: T:\CUS\A\AUDIOVOX\247BK0\247BK0.RPT PAGE #: 2 2.1047(a)(b) Modulation_characteristics: AUDIO_FREQUENCY_RESPONSE The audio frequency response was measured in ac- cordance with TIA/EIA Specification 603. The audio frequency response curve is shown on the next page. The audio signal was fed into a dummy microphone circuit and into the microphone connector. The input required to produce 30 percent modulation level was measured. See Exhibit 10. 2.1047(b) Audio_input_versus_modulation The audio input level needed for a particular per- percentage of modulation was measured in accor- dance with TIA/EIA Specification 603. The audio input curves versus modulation are on the following pages. Curves are provided for audio input frequen- cies of 300, 1000, and 3000 Hz. See Exhibit 11A-11C. 95.635(b) Post Limiter Filter The filter must be between the modulation limiter and the modulated stage. At any frequency between 3 & 20KHz the filter must have an attenuation of 60log (f/3) greater that the attenuation at 1KHz. See Exhibit 12. 2.989(c) EMISSION BANDWIDTH: 95.633(b)(1)(3)(7) Data in the plots shows that the sidebands from greater than 50% to 100% of the authorized bandwidth must be attenuated by at least 25dB and from 100 to 250% the sidebands must be attenuated by at least 35dB. Beyond 250% the sidebands must be attenuated by at least 43+log10(TP). The transmitter was modulated with 2500 Hz, adjusted for 50% modulation plus 16 dB. The spectrum analyzer was set with the unmodulated carrier at the top o…

Text truncated - open the document above for the full version.

Audiovox Corp. OTVDF-205 0 20 40 60 80 100 120 140 160 180 200 100100010000 Freque ncy rms mVolts audio response BGADF-205 AUDIOVOX CORP. FCC ID : BGADF-205 JOB # : 247BK0 EXHIBIT # : 10

Modulation Limiting Audiovox Corp. OTVDF-205 0 200 400 600 800 1000 1200 150200250300350 rms Volts Deviation 300 Hz BGADF-205 AUDIOVOX CORP. FCC ID : BGADF-205 JOB # : 247BK0 EXHIBIT # : 11A

Modulation Limiting Audiovox Corp. OTVDF-205 0 500 1000 1500 2000 2500 020406080 rms mVolts Deviatio n 1000 Hz BGADF-205 AUDIOVOX CORP. FCC ID : BGADF-205 JOB # : 247BK0 EXHIBIT # : 11B

Modulation Limiting Audiovox Corp. OTVDF-205 0 200 400 600 800 1000 05101520 rms mVolts Deviation 3000 Hz BGADF-205 AUDIOVOX CORP. FCC ID : BGADF-205 JOB # : 247BK0 EXHIBIT # : 11C BGADF-205
