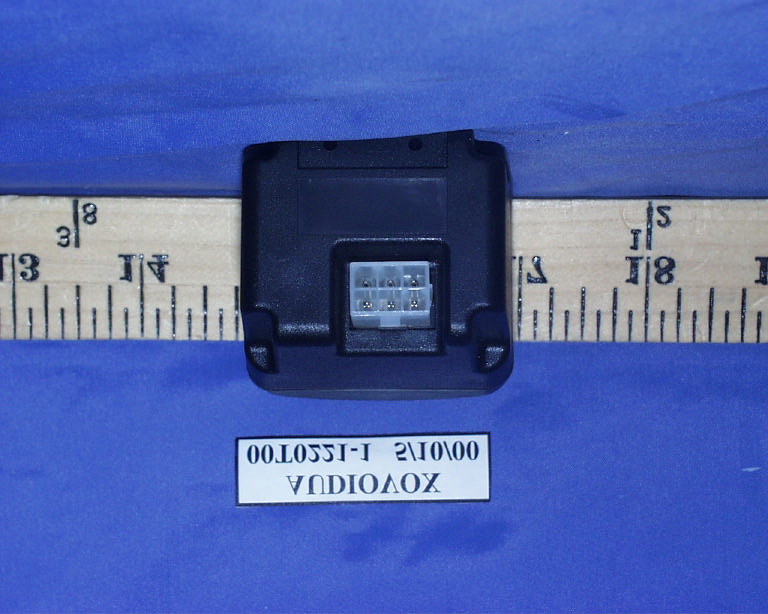

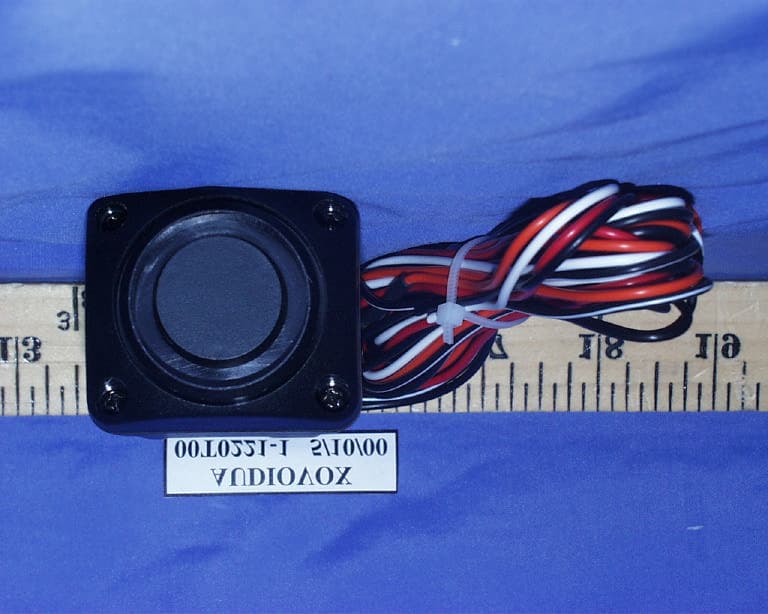

BGAMA302MHz Alarm Receiver

PROPOSED FCC ID LABEL AND LOCATION AUDIOVOX CORPORATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: BGAMA FCC ID LABEL

ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT CERTIFICATION TO FCC PART 15 REQUIREMENTS for UNINTENTIONAL RADIATOR 302 MHz RECEIVER MODEL: MA200 FCC ID: BGAMA REPORT NO: 00T0221-1 DATE: MAY 02, 2000 Prepared for AUDIOVOX CORPORATION 150 MARCUS BOULEVARD HAUPPAUGE, NY 11788 U.S.A. Prepared by COMPLIANCE ENGINEERING SERVICES, INC. 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS 1.VERIFICATION OF COMPLIANCE ................................................................................................ 1 2.PRODUCT DESCRIPTION ..................................................................................................................... 2 3.TEST FACILITY .......................................................................................................................................... 2 4.MEASUREMENT EQUIPMENT USED ............................................................................................ 2 5.TEST CONFIGURATION ....................................................................................................................... 2 6.TESTS CONDUCTED ................................................................................................................................3 7. RADIATED EMISSION TEST PROCEDURE ................................................................................... 3 8.COHERENT TESTS ................................................................................................................................... 3 9.EQUIPMENT MODIFICATIONS ........................................................................................................ 4 10.TEST CONFIGURATION PHOTOS (RADIATED EMISSION TEST) ......................... 5 TEST DATA • Fundamental Frequency Plot • Radiated Emission Data Proposed FCC ID Label.........................Exhibit 1 Agent Authorization Letter....................Exhibit 2 User Manual...................................Attachment A Block Diagram/Schematics......................Attachment B REPORT NO:00T0221-1 DATE: MAY 02, 2000FCC ID:BGAMA PAGE NO: COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1 1.VERIFICATION OF COMPLIANCE COMPANY NAME:AUDIOVOX CORPORATION 150 MARCUS BOULEVARD HAUPPAUGE, NY 11788 U. S.A. CONTACT PERSON:PAT LAVELLE / EXECUTIVE VICE PRESIDENT TELEPHONE NO.:(516) 231-7750 EUT DESCRIPTION:302 MHz RECEIVER MODEL NAME/NUMBER :MA200 FCC ID:BGAMA DATE TESTED :MAY 02, 2000 REPORT NUMBER:00T0221 TYPE OF EQUIPMENTSECURITY EQUIPMENT (UNINTENTIONAL RADIATOR) EQUIPMENT TYPE302 MHz SUPERREGENERATE RECEIVER MEASUREMENT PROCEDUREANSI 63.4 / 1992 LIMIT TYPECERTIFICATION FCC RULECFR 47, PART 15.109 The above equipment was tested by Compliance Engineering Services, Inc. for compliance with the requirements set forth in CFR 47, PART 15. This said equipment in the configuration described in this report shows that maximum emission levels emanating from equipment are within the compliance requirements. Warning : This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification will constitute fraud and shall nullify the document. T. N. COKENIAS / ENGINEERING DIRECTOR COMPLIANCE CERTIFICATION SERVICES, INC. REPORT NO:00T0221-1 DATE: MAY 02, 2000FCC ID:BGAMA PAGE NO: COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 2 2.PRODUCT DESCRIPTION AUDIOVOX CORP., Model MA200 is the receiving portion of a multi-purpose security device. The associated Transmitter is manufactured by Audiovox Corp., Model No: PRO- OE2B, FCC ID: BGAOE2BT. 3.TEST FACILITY The 3 meter open area test site and conducted measurement facility used to collect the radiated data is located at 561F Monterey Road, Morgan Hill, California, U.S.A. A detailed description of the test facilities was submitted to the Commission on May 27, 1994. The measuring instrument which was utilized in performing the tests documented herein has been calibrated in accordance with the manufacturer's recommendations for utilizing calibration equipment which is traceable to recognized national standards. 4.MEASUREMENT EQUIPMENT USED ManufacturerModel Number DescriptionCal Due Date H.P.8640BSignal Generator (0.5 - 1024 MHz) 08/00 H.P.8566BSpectrum Analyzer (100Hz - 22GHz) 09/00 EMCO3146Antenna (200-1000 MHz) 10/00 H.P.8447DPreamplifier (0.1 - 1300 MHz) 09/00 ARADRG-18/AAntenna(1 - 18GHZ)12/00 H.P.8449BPreamplifier (1-26.5GHZ)03/01 5.TEST CONFIGURATION REPORT NO:00T0221-1 DATE: MAY 02, 2000FCC ID:BGAMA PAGE NO: COMPLIANCE CONSULTING SERVICESCCS DOCUMENT NO: CCSUP4021B 1366 BORDEAUX DRIVE, SUNNYVALE CA 94089TEL:(408)752-8166 FAX:(408)752-8168 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 3 Set signal generator to transmit at 302 MHz. The receiver receives the signal. All the wires are placed on the turn table to their maximum length to simulate the worse emission condition. 6.TESTS CONDUCTED CFR 47, 15.109 RADIATED EMISSION TE…

Text truncated - open the document above for the full version.

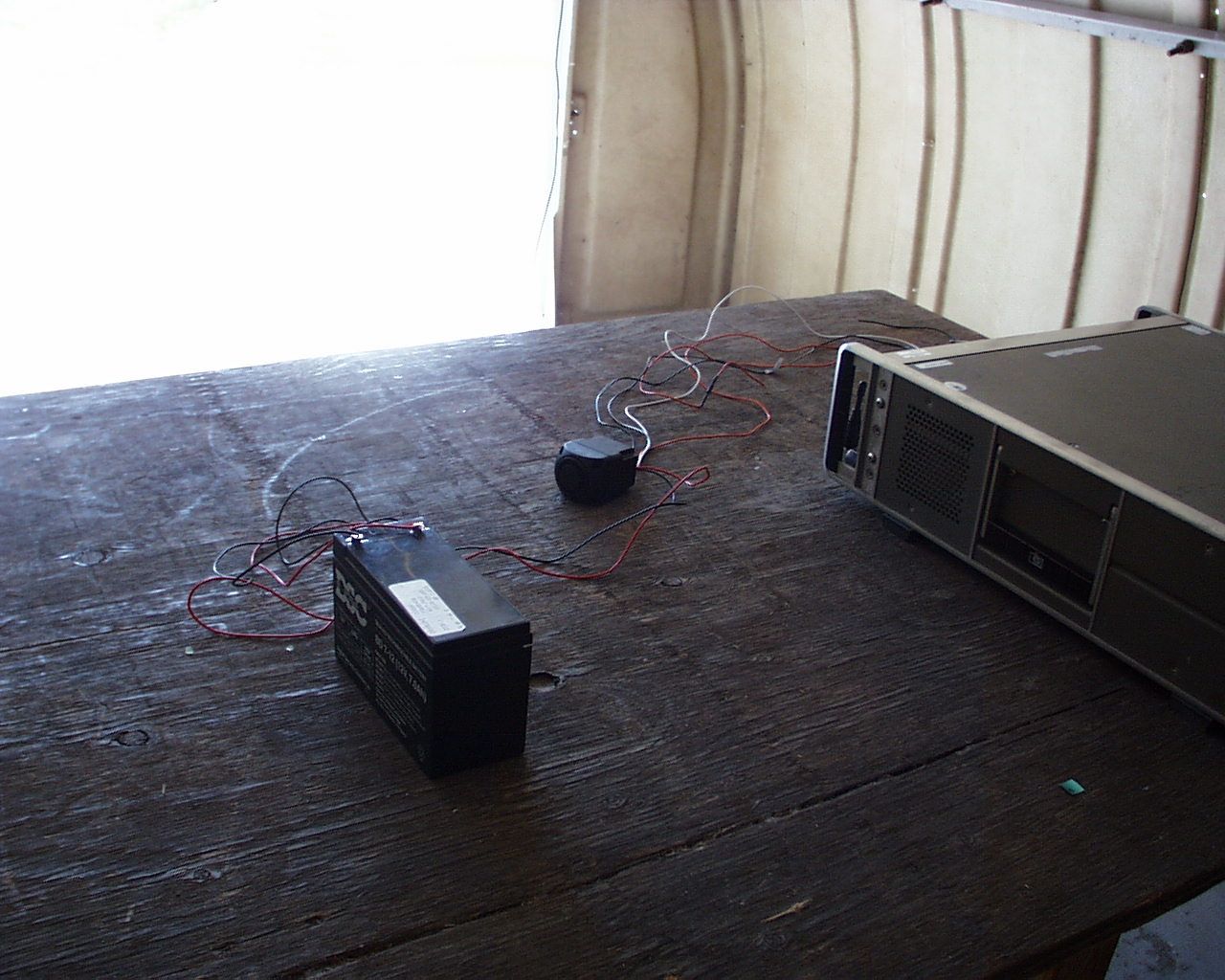

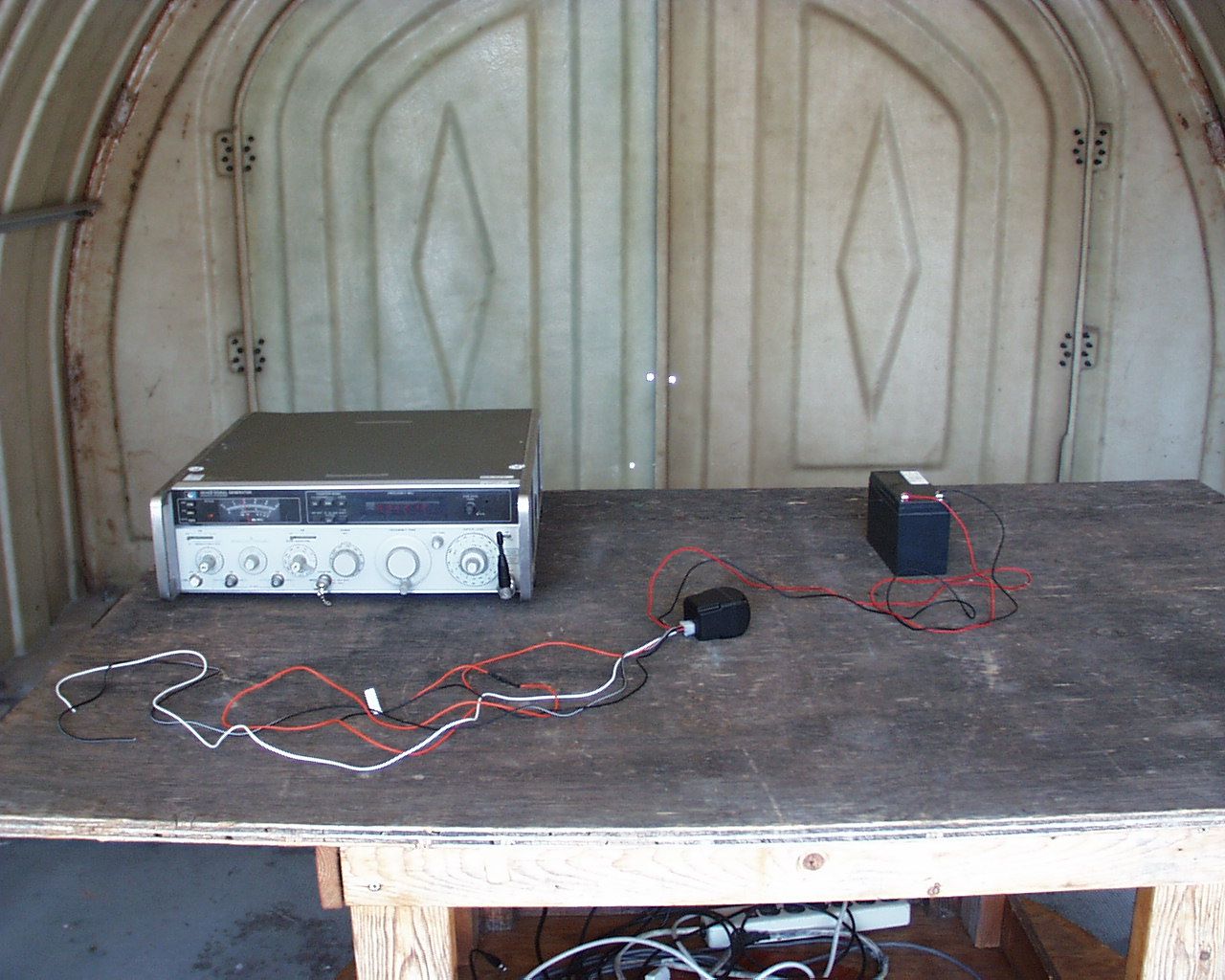

1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 1File#: 00t0221.emiDate: 05-02-2000 Time: 14:05:40 Trace:Ref Trace: Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) HORIZONTAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx 1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 4File#: 00t0221.emiDate: 05-02-2000 Time: 16:06:20 Trace: 1 Ref Trace: Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) HORIZONTAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx Page: 1 Read Probe Cable Preamp Limit Over Freq Level Factor Loss Factor Factor Level Line Limit _________ ______ ______ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dB dBuV/m dBuV/m dB 1 289.445 44.60 13.68 3.75 26.58 -9.15 35.45 46.00 -10.55 2 290.145 45.00 13.69 3.74 26.58 -9.15 35.85 46.00 -10.15 3 290.770 44.60 13.71 3.73 26.58 -9.14 35.46 46.00 -10.54 4 291.420 44.60 13.72 3.72 26.58 -9.14 35.46 46.00 -10.54 5 292.070 44.20 13.74 3.72 26.58 -9.12 35.08 46.00 -10.92 6 292.745 44.80 13.75 3.73 26.59 -9.10 35.70 46.00 -10.30 7 293.395 44.30 13.77 3.74 26.59 -9.08 35.22 46.00 -10.78 8 294.070 44.50 13.78 3.74 26.60 -9.07 35.43 46.00 -10.57 9 294.720 44.80 13.80 3.75 26.60 -9.05 35.75 46.00 -10.25 10 295.395 44.30 13.82 3.76 26.59 -9.02 35.28 46.00 -10.72 11 296.045 44.90 13.83 3.76 26.59 -8.99 35.91 46.00 -10.09 12 296.695 44.30 13.85 3.77 26.58 -8.96 35.34 46.00 -10.66 13 297.395 44.90 13.86 3.78 26.58 -8.94 35.96 46.00 -10.04 14 298.095 44.20 13.88 3.78 26.59 -8.93 35.27 46.00 -10.73 15 298.695 44.10 13.89 3.79 26.59 -8.91 35.19 46.00 -10.81 16 299.395 45.70 13.91 3.80 26.60 -8.89 36.81 46.00 -9.19 17 300.070 45.90 13.93 3.80 26.60 -8.87 37.03 46.00 -8.97 18 300.720 45.20 13.95 3.81 26.60 -8.84 36.36 46.00 -9.64 19 301.445 45.60 13.97 3.81 26.60 -8.82 36.78 46.00 -9.22 20 302.745 46.50 14.00 3.82 26.60 -8.77 37.73 46.00 -8.27 21 303.420 46.50 14.02 3.83 26.60 -8.75 37.75 46.00 -8.25 22 304.095 45.50 14.04 3.83 26.60 -8.73 36.77 46.00 -9.23 23 304.795 45.30 14.05 3.84 26.60 -8.71 36.59 46.00 -9.41 24 305.470 45.40 14.07 3.84 26.60 -8.68 36.72 46.00 -9.28 25 306.120 45.00 14.09 3.84 26.60 -8.66 36.34 46.00 -9.66 1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 2File#: 00t0221.emiDate: 05-02-2000 Time: 14:09:31 Trace:Ref Trace: Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) VERTICAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx 1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 6File#: 00t0221.emiDate: 05-02-2000 Time: 16:47:48 Trace: 2 Ref Trace: Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) VERTICAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx Page: 1 Read Probe Cable Preamp Limit Over Freq Level Factor Loss Factor Factor Level Line Limit _________ ______ ______ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dB dBuV/m dBuV/m dB 1 296.690 44.00 13.44 3.77 26.58 -9.37 34.63 46.00 -11.37 2 298.360 45.20 13.48 3.79 26.59 -9.33 35.87 46.00 -10.13 3 299.660 44.40 13.50 3.80 26.60 -9.30 35.10 46.00 -10.90 4 302.830 43.90 13.59 3.83 26.60 -9.18 34.72 46.00 -11.28 1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 3File#: 00t0221.emiDate: 05-02-2000 Time: 15:59:55 Trace: 1 Ref Trace: Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) HORIZONTAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx Page: 1 Read Probe Cable Preamp Freq Level Factor Loss Factor Factor Level _________ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dB dBuV/m 1 * 302.070 79.40 13.98 3.82 26.60 -8.80 70.60 1366 Bordeaux Drive Sunnyvale, CA 94089-1005 Tel: (408) 752-8166 Fax:(408) 752-8168 Data#: 5File#: 00t0221.emiDate: 05-02-2000 Time: 16:07:50 Compliance Condition: FCC CLASS-B 3m B_BILOG (CBL6112B) HORIZONTAL Report NO. : 00T0221 Test Engr : Thu Company : Audiovox Corp. EUT : 302MHz Car Alarm Rx Test Config: EUT/Battery/Signal Generator Test Target: FCC Class B Test Mode : Rx : 6 Worst Data Readings Page: 1 Read Probe Cable Preamp Limit Over Freq Level Factor Loss Factor Factor Level Line Limit _________ ______ ______ ______ ______ ______ ______ ______ ______ MHz dBuV dB dB dB dB dBuV/m dBuV/m dB 1 299.395 45.70 13.91 3.80 26.60 -8.89 36.81 46.00 -9.19 2 300.070 45.90 13.93 3.80 26.60 -8.87 37.03 46.00 -8.97 3 301.395 45.90 13.96 3.81 26.60 -8.82 37.08 46.00 -8.92 4 302.745 46.50 14.00 3.82 26.60 -8.77 37.73 46.00 -8.27 5 303.420 46.50 14.02 3.83 26.60 -8.75 37.75 46.00 -8.25 6 312.870 44.60 14.27 3.89 26.61 -8.45 36.15 46.00 -9.85 00T0221 000502B2 5/2/004:45 PM Thu Chan Audiovox Corp. 302MHz Car Alarm Rx EUT/Battery/Signal Generator FCC Class B Rx tt Freq.ReadingAFClossPre-ampLevelLimitMarginPolAzHeightMark (MHz)(dBuV)(dB)(dB)(dB)(dBuV/m)FCC_B(dB)(H/V)(Deg)(Meter)(P/Q/A) Except the readings from fundamental graph, no other emissions were found between 30-2000MHz. Total #:0 V.1b FCC, VCCI, CISPR, CE, AUSTEL, NZ UL, CSA, TUV, BSMI, DHHS, NVLAP 1366 BORDEAUX DRIVE, SUNNYVALE, CA 94089 PHONE: (408) 752-8166 FAX: (408) 752-8168 Project #: Report #: Date& Time: Test Engr: Company: EUT Description: Test Configuration : Type of Test: Mode of Operation: FCC_A nmlkj FCC_A nmlkj FCC_B nmlkji FCC_B nmlkji EN_A nmlkj EN_A nmlkj EN_B nmlkj EN_B nmlkj External Preamp gfedcb External Preamp gfedcb Data Entry EN11B_G2 nmlkj EN11B_G2 nmlkj Data#: 4File#: 00t0221.em…
