BJM-RSGBGaming headset

ENCSHU FRNLNO ROPT:BRPL ESRUSK TR FISV Headset features Volume control and Microphone mute button / 音量控制和麥克風靜音按鈕（繁體中文） / 音量 控制和麥克風靜音按鈕（簡體中文） / 音量調整・マイクミュートダイヤルスイッチ (JP) / 볼륨 조절 및 마이크 음소거 버튼 (KR) / Bouton de contrôle du volume et mise en sourdine du microphone (FR) / Lautstärkeregler und Taste zum Stummschalten des Mikrofons (DE) / Pulsante di controllo volume e silenziamento microfono (IT) / Botão de controle de volume e microfone mudo (PT:BR) / Регулятор громкости и кнопка отключения микрофона (RU) / Botón de control de volumen y de silencio del micrófono (ES) / Knop Volumeregeling en microfoon dempen (NL) / Ses düzeyi kontrolü ve Mikrofon kapatma düğmesi (TR) / Контроль гучності та кнопка вимкнення звуку мікрофону (UA) / Regulacja głośności i przycisk wyciszania mikrofonu (PL) / Tlačítko pro ovládání hlasitosti a ztlumení mikrofonu (CS) / Buton control volum și oprire sonor microfon (RO) / Hangerőállítás és mikrofonnémító billentyű (HU) / Volymkontroll och mikrofonavstängningsknapp (SV) / Äänenvoimakkuuden säätö - ja mikrofonin mykistys -painike (FI) /Volumkontroll og mikrofondempeknapp (NO) / بالصوت والتحكم الميكروفون صوت كتم زر (AR) / Tlačidlo na ovládanie hlasitosti a stlmenia mikrofónu (SK)/ בקרת עוצמת הקול ולחצן השתקה למיקרופון (HB) Function key / 功能鍵（繁體中文） / 功能鍵（簡體中文） / ファンクションキー (JP) / 기능 키 (KR) / Touche de fonction (FR) / Funktionstaste (DE) / Tasto funzione (IT) / Tecla de função (PT:BR) / Функциональная клавиша (RU) / Botón de función (ES) / Functietoets (NL) /İşlev tuşu (TR) / Функціональна клавіша (UA) / Przycisk funkcyjny (PL) /Funkční tlačítko (CS) / Tastă pentru funcții (RO) / Funkcióbillentyű (HU) / Funktionsknapp (SV) /Toimintonäppäin (FI) / Funksjonstast (NO) / مفتاح الوظائف (AR) / Funkčný kláves (SK)/ מקש פונקציה (HB) USB-C® charging port / USB-C® 充電連接埠（繁體中文） / USB-C® 充電接口（簡體中文） / USB-C® charging port (JP) / USB-C® 충전 포트 (KR) / Port de charge USB-C® (FR) / USB-C®-Ladeanschluss (DE) / Porta di ricarica USB-C (IT) / USB-C® Porta de carregamento (PT:BR) / Порт USB-C для зарядки (RU) / Puerto de carga USB-C® (ES) / USB-C® laadpoort (NL) / USB-C® şarj bağlantı noktası (TR) / Порт зарядження USB-C® (UA) / Port ładowania USB-C® (PL) / Nabíjecí port USB-C® (CS) / Port încărcare USB-C® (RO) / USB-C® töltőport(HU) / USB-C®-laddningsport (SV) / USB-C® -latausportti (FI) / USB-C® -ladeport (NO) / منفذ الشحنUSB-C ® (AR) / Nabíjací port USB-C® (SK)/ USB-C ® חיבור טעינה (HB) Power and ANC control button / 電源和 ANC 控制按鈕（繁體中文） / 電源和 ANC 控制按鈕 （簡體中文） / 電源・ANC ボタン (JP) / 전원 및 ANC 컨트롤 버튼 (KR) / Bouton d’alimentation et de contrôle ANC (FR) / Ein-/Aus- und ANC-Steuerungstaste (DE) / Pulsante di accensione e controllo ANC (IT) / Botão de energia e controle ANC (PT:BR) / Кнопка питания и шумоподавления (RU) / Botón de control de alimentación y ANC (ES) / Voedings- en ANC Control-knop (NL) / Güç ve ANC kontrol düğmesi (TR) / Кнопка контролю живлення і ANC (UA) / Przycisk zasilania i sterowania funkcją ANC (PL) / Tlačítko napájení a ovládání ANC (CS) / Buton control alimentare și control ANC (RO) / Áramellátás és ANC vezérlés billentyű (HU) /Strömbrytare och kontrollknapp för aktiv brusreducering (SV) / Virta- ja ANC-ohjauspainike (FI) / Strøm- og ANC-kontrollknapp (NO) / )ANCزر الطاقة والتحكم بالإلغاء الفعال للتشويش ( (AR) / Tlačidlo napájania a ovládania ANC (SK)/ לחצן בקרת הדלקה וביטול רעשים (HB) Status indicator LED / 狀態指示燈 （繁體中文） / 狀態指示燈（簡體中文） / ステータスインジ ケーター (JP) / 상태 표시 LED (KR) / Témoin d’état (FR) / LED-Statusanzeige (DE) / Indicatore LED di stato (IT) / Indicador de status LED (PT:BR) / Индикатор состояния (RU) / LED indicador de estado (ES) / LED statusindicator (NL) / Durum göstergesi LED’i (TR) / Світлодіодний індикатор статусу (UA) / Wskaźnik LED stanu (PL) / Indikátor stavu (CS) / LED indicator de stare (RO) / Állapot jelzőfény LED (HU) / Statusindikator (SV) / Tilan merkkivalo-LED (FI) / Statusindikator-LED (NO) / LEDمؤشر الحالة (AR) / LED indikátor stavu (SK)/ נורית חיווי לסטטוס (HB) 3.5mm jack / 3.5mm 音效插孔（繁體中文） / 3.5mm 音頻插孔（簡體中文） / 3.5 mm オーディ オポート (JP) / 3.5 mm 잭 (KR) / Prise jack 3,5mm (FR) / 3,5 mm-Audioanschluss (DE) / Jack 3.5mm (IT) / Plugue de 3,5mm (PT:BR) /Разъем 3,5 мм (RU) / Conector de 3,5mm (ES) / 3,5 mm aansluiting (NL) / 3,5 mm jak (TR) / Гніздо 3,5 мм (UA) / Gniazdo typu jack 3,5 mm (PL) / 3,5mm konektor (CS) / Mufă audio 3,5 mm (RO) / 3,5 mm jack dugasz (HU) / 3,5 mm uttag (SV) / 3,5 mm:n liitäntä (FI) / 3,5 mm-kontakt (NO) / مم3.5مقبس (AR) / 3,5 mm konektor (SK)/ מ"מ3.5שקע (HB) Hidden microphone / 隱藏式麥克風（繁體中文） / 隱藏式麥克風（簡體中文） / 内蔵マイク (JP) / 숨겨진 마이크 (KR) / Microphone caché (FR) / Verborgenes Mikrofon (DE) / Microfono nascosto (IT) / Microfone oculto (PT:BR) / Скрытый микрофон (RU) / Micrófono oculto (ES) / Verborgen microfoon (NL) / Gizli mikrofon (TR) / Прихований мікрофон (UA) / Ukryty mikrofon (PL) / Skrytý mikrofon (CS) / Microfon ascuns (RO) / Rejtett mikrofon (HU) / Dold mikrofon (SV) / Piilotettu mikrofoni (FI) / Skjult mikrofon (NO) / ميكروفون مخفي (AR) / Skrytý mikrofón (SK)/ מיקרופון חבוי （ HB) NFC touchpoint / NFC 感應點（繁體中文） / NFC 感應點（簡體中文） / NFC エリア (JP) / NFC 터치 포인트 (KR) / Point de contact NFC (FR) / NFC-Touchpoint (DE) / Punto di contatto NFC (IT) / Ponto de contato NFC (PT:BR) / Область NFC (RU) / Punto de contacto NFC (ES) / NFC-aanraakpunt (NL) / NFC temas noktası (TR) / Контактна точка NFC (UA) / Punkt styku NFC (PL) / Oblast NFC (CS) / Punct tactil NFC (RO) / NFC érintőpont (HU) / NFC-tryckpunkt (SV) / NFC-kosketuspiste (FI) / NFC-berøringspunkt (NO) / NFCنقطة لمس (AR) / Dotykový bod NFC (SK)/ NFCקודת מגע של (HB) Q17425a Quick Start Guide 快速使用指南（繁體中文） 快速使用指南（簡體中文） クイックスタートガイド (JP) 간단사용설명서 (KR) Guide de démarrage rapide (FR) Schnellstartanleitung (DE) Guida rapida (IT) Guia de Início Rápido (PT:BR) Краткое руководство (RU) Guía de inicio rápido (ES) Beknopte handleiding (NL) Hızlı Başlangıç Kılavuzu (TR) Стисле керівництво для початку експлуатації (UA) Przewodnik szybkiego startu (PL) Rychlý průvodce (CS) Ghid de pornire rapidă (RO) Gyors üze…

Text truncated - open the document above for the full version.

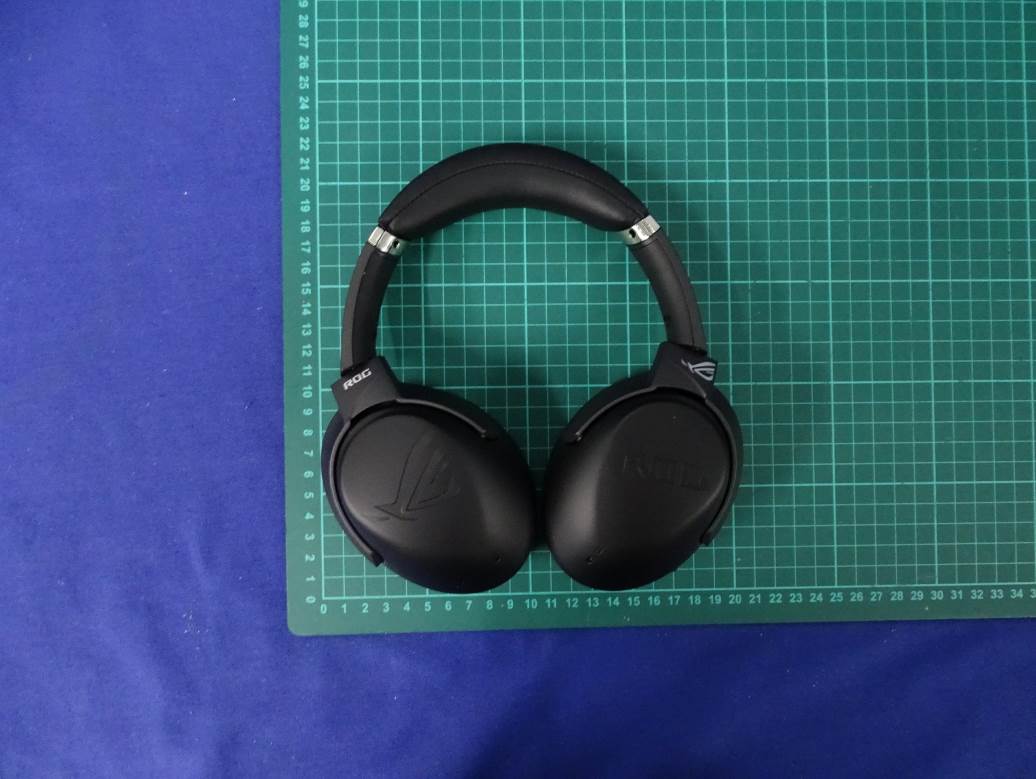

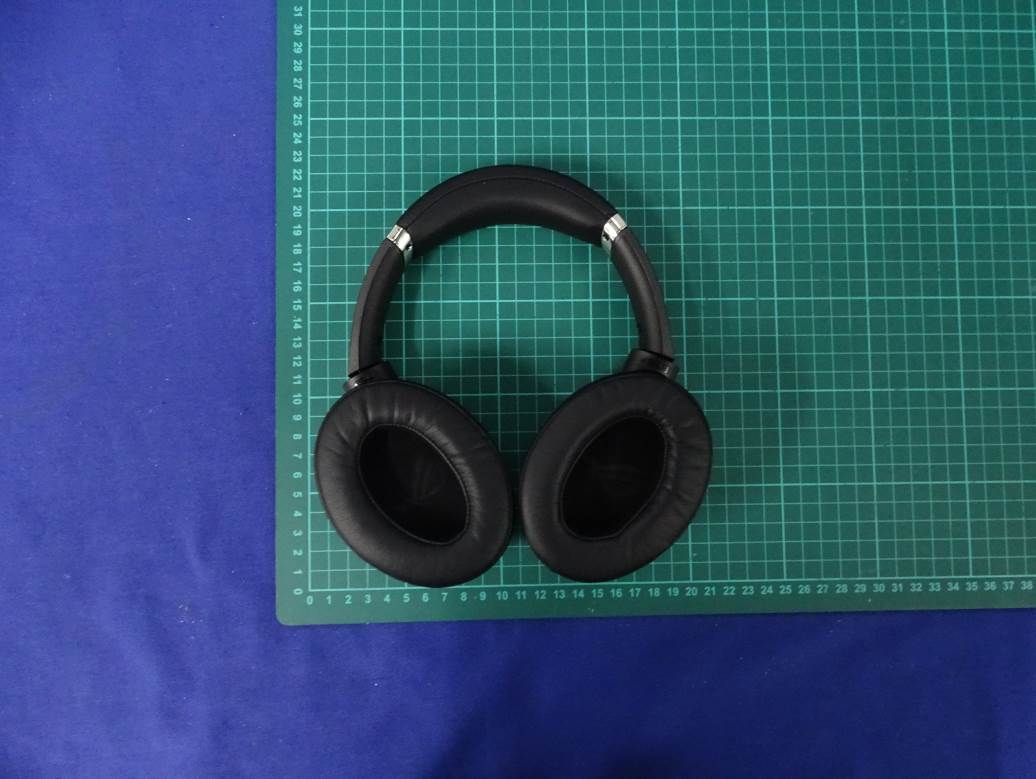

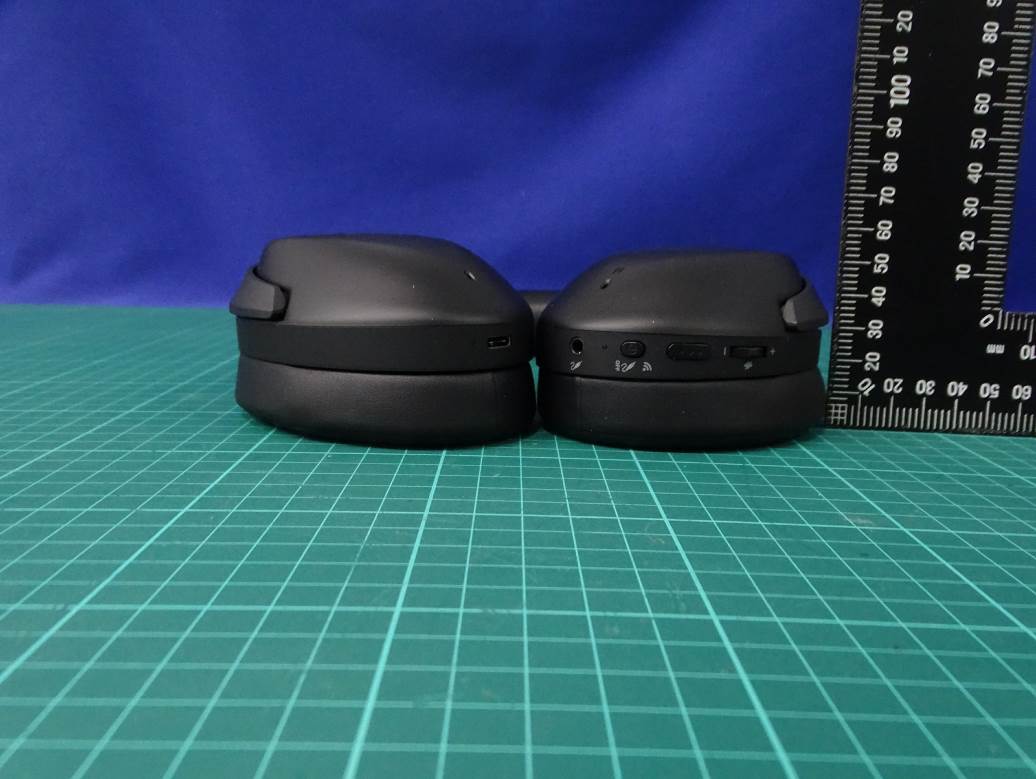

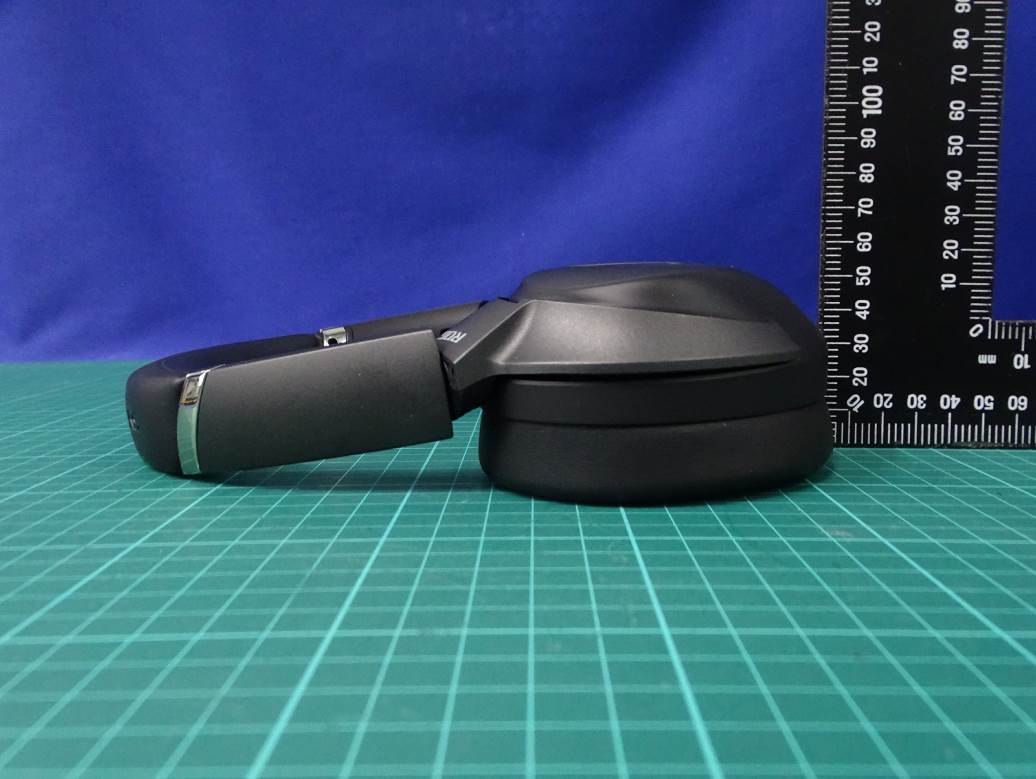

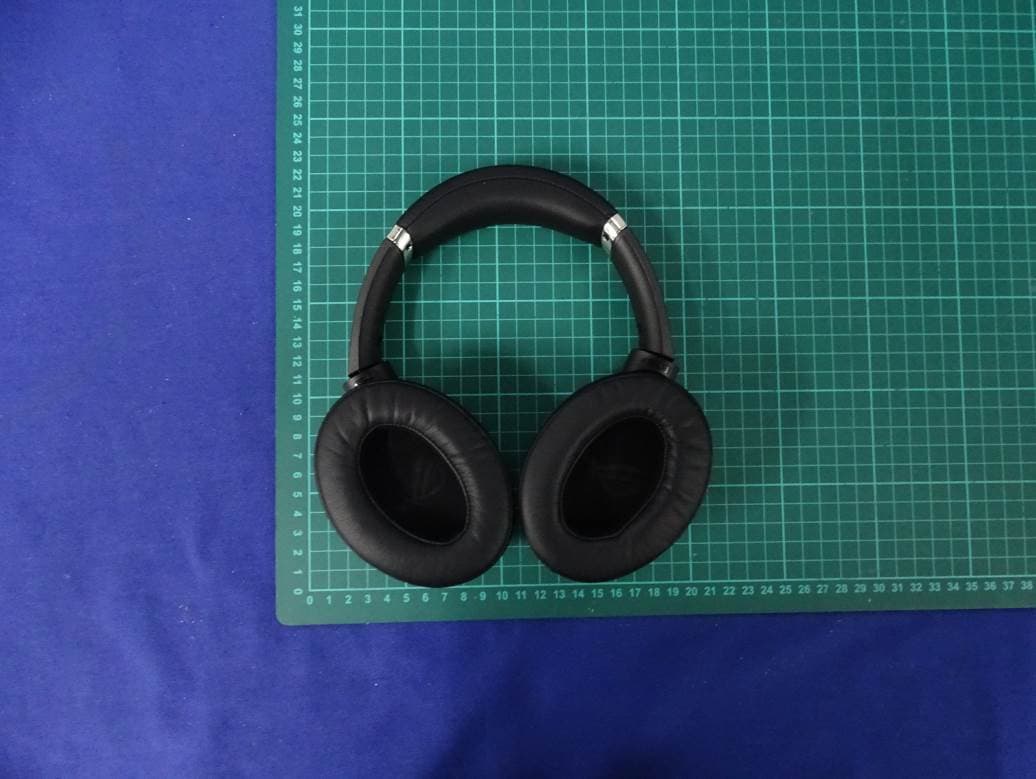

Report No.: 2091003R-E3032110111 Page : 1 of 4 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 2091003R-E3032110111 Page : 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2091003R-E3032110111 Page : 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2091003R-E3032110111 Page : 4 of 4 (7) EUT Photo

Tatung Company FCC ID: BJM-RSGB 22 Chungshan N Road Sec 3 ,Taipei 10451 ,Taiwan Tel : 886-2-2592-5252 FCC ID Label

Tatung Company FCC ID.: BJM-RSGB 22 Chungshan N Road Sec 3 ,Taipei 10451 ,Taiwan Tel : 886-2-2592-5252 The FCC ID will be placed on the equipment as shown in the photograph below.

Report No.: 2091003R-E3032110111 Page : 1 of 11 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 2091003R-E3032110111 Page : 2 of 11 (3) EUT Photo (4) EUT Photo Report No.: 2091003R-E3032110111 Page : 3 of 11 (5) EUT Photo (6) EUT Photo NFC Tag Report No.: 2091003R-E3032110111 Page : 4 of 11 (7) EUT Photo (8) EUT Photo NFC Antenna Antenna Report No.: 2091003R-E3032110111 Page : 5 of 11 (9) EUT Photo (10) EUT Photo Report No.: 2091003R-E3032110111 Page : 6 of 11 (11) EUT Photo (12) EUT Photo RF Chip Report No.: 2091003R-E3032110111 Page : 7 of 11 (13) EUT Photo (14) EUT Photo Report No.: 2091003R-E3032110111 Page : 8 of 11 (15) EUT Photo (16) EUT Photo Report No.: 2091003R-E3032110111 Page : 9 of 11 (17) EUT Photo (18) EUT Photo Report No.: 2091003R-E3032110111 Page : 10 of 11 (19) EUT Photo (20) EUT Photo Report No.: 2091003R-E3032110111 Page : 11 of 11 (21) EUT Photo

Report No.: 2091003R-E3082100014 Page: 1 of 5 RF Exposure Evaluation Report Product Name : Gaming headset Model No. : ROG STRIX GO BT FCC ID : BJM-RSGB Applicant : Tatung Company Address : 22 Chungshan N Road Sec 3 ,Taipei 10451,Taiwan Date of Receipt : Sep. 30, 2020 Date of Declaration : Dec. 18, 2020 Report No. : 2091003R-E3082100014 Report Version : V1.0 The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standard through the calibration report of the equipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2091003R-E3082100014 Page: 2 of 5 Issued Date: Dec. 18, 2020 Report No.: 2091003R-E3082100014 Product Name Gaming headset Applicant Tatung Company Address 22 Chungshan N Road Sec 3 ,Taipei 10451,Taiwan Manufacturer Tatung Company Model No. ROG STRIX GO BT FCC ID. BJM-RSGB Trade Name ASUS Applicable Standard KDB 447498 D01 v06 Minimum test separation distance ≥ 20 cm For low power devices Test Result Complied Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Senior Engineer / Wen Lee ) Approved By : ( Director / Vincent Lin ) Report No.: 2091003R-E3082100014 Page: 3 of 5 Revision History Report No. Version Description Issued Date 2091003R-E3082100014 V1.0 Initial issue of report. 2020-12-18 Report No.: 2091003R-E3082100014 Page: 4 of 5 1. GENERAL INFORMATION 1.1. EUT Description Product Name Gaming headset Trade Name ASUS Model No. ROG STRIX GO BT FCC ID. BJM-RSGB Frequency Range 2402 – 2480MHz Channel Number BT: 79CH BLE : 40CH Type of Modulation BT: FHSS: GFSK(1Mbps) /π/4DQPSK(2Mbps) / 8DPSK(3Mbps) BLE V5.1:π/4DQPSK (2Mbps) Antenna Type PCB Antenna Antenna Gain Refer to the table “Antenna List” Type C TO USB Cable ASUS, ROG STRIX GO BT Antenna List No. Manufacturer Part No. Antenna Type Peak Gain 1 ACX QEC-1907094-A PCB Antenna 3.1dBi for 2.4GHz Report No.: 2091003R-E3082100014 Page: 5 of 5 2. RF Exposure Evaluation 2.1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. 2.2. Measurement Result: According to KDB Publication 447498 D01, section 4.3.1, per the calculations of item 1 (Power(mW)/separation (mm)*sqrt(f(GHz)≤3.0), SAR is required as shown in the table below where calculated values are greater than 3.0: 1.) Operation frequency = 2450MHz and antenna separation distance = 5mm, SAR Test Exclusion Threshold = 10mW Frequency Band (MHz) Maximum True-UP AV Power Peak Gain: 3.1dBi SAR Test Exclusion Threshold Calculated Threshold Value (≦3.0 SAR is not required) True-UP EIRP EIRP (mW) (dBm) (dBm) (mW) 2402-2480 2.9 6 3.98 10 1.254 Note1: The SAR/MPE measurement is not necessary. Note2: The maximum True-UP AV power is refer to OPDes.

Report No.: 2091003R-E3032110111 Page: 1 of 129 FCC Test Report Product Name Gaming headset Model No. ROG STRIX GO BT FCC ID. BJM-RSGB Applicant Tatung Company Address 22 Chungshan N Road Sec 3 ,Taipei 10451,Taiwan Date of Receipt Sep. 30, 2020 Issued Date Dec. 18, 2020 Report No. 2091003R-E3032110111 Report Version V1.0 The test results relate only to the samples tested. The test results shown in the test repor t are traceable to the national/international standard through the calibration report of the e quipment and evaluated measurement uncertainty herein. This report must not be used to claim product endorsement by TAF or any agency of the government. The test report shall not be reproduced without the written approval of DEKRA Testing and Certification Co., Ltd. Measurement uncertainties evaluated for each testing system and associated connections are given here to provide the system information for reference. Compliance determinations do not take into account measurement uncertainties for each testing system, but are based on the results of the compliance measurement. Report No.: 2091003R-E3032110111 Page: 2 of 129 Test Report Issued Date: Dec. 18, 2020 Report No.: 2091003R-E3032110111 Product Name Gaming headset Applicant Tatung Company Address 22 Chungshan N Road Sec 3 ,Taipei 10451,Taiwan Manufacturer Tatung Company Model No. ROG STRIX GO BT FCC ID. BJM-RSGB EUT Rated Voltage DC 5V (Power by USB) or DC 3.7V (Power by battery) EUT Test Voltage DC 5V (Power by USB) Trade Name ASUS Applicable Standard FCC CFR Title 47 Part 15 Subpart C ANSI C63.4: 2014, ANSI C63.10: 2013 Test Result Complied Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Senior Engineer / Ivan Chuang ) Approved By : ( Director / Vincent Lin ) Report No.: 2091003R-E3032110111 Page: 3 of 129 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION ............................................................................................................... 6 1.1. EUT Description ...................................................................................................................................... 6 1.2. Tested System Details .............................................................................................................................. 8 1.3. Configuration of Tested System .............................................................................................................. 8 1.4. EUT Exercise Software ........................................................................................................................... 8 1.5. Test Facility ............................................................................................................................................. 9 1.6. List of Test Equipment ........................................................................................................................... 10 1.7. Uncertainty ............................................................................................................................................ 11 2. Conducted Emission ............................................................................................................................ 12 2.1. Test Setup .............................................................................................................................................. 12 2.2. Limits ..................................................................................................................................................... 12 2.3. Test Procedure ....................................................................................................................................... 13 2.4. Test Result of Conducted Emission ....................................................................................................... 14 3. Peak Power Output ............................................................................................................................. 18 3.1. Test Setup .............................................................................................................................................. 18 3.2. Limit ...................................................................................................................................................... 18 3.3. Test Procedure ....................................................................................................................................... 18 3.4. Test Result of Peak Power Output ......................................................................................................... 19 4. Radiated Emission ............................................................................................................................... 23 4.1. Test Setup .............................................................................................................................................. 23 4.2. Limits ..................................................................................................................................................... 24 4.3. Test Procedure ....................................................................................................................................... 25 4.4. Uncertainty ............................................................................................................................................ 26 4.5. Test Result of Radiated Emission .......................................................................................................... 27 5. RF Antenna Conducted Test ............................................................................................................... 61 5.1. Test Setup .............................................................................................................................................. 61 5.2. Limits ...........................................................................…

Text truncated - open the document above for the full version.

Report No.: 2091003R-E3032110111 Page: 83 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2402MHz) Test Date : 2020/11/02 Vertical No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe 1 2368.261 50.85 74.00 -23.15 40.00 10.85 PK 2 2390.000 49.52 74.00 -24.48 38.53 10.99 PK 3 2400.000 66.52 -- -- 55.48 11.04 PK ! 4 2401.739 97.63 -- -- 86.58 11.05 PK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 84 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2402MHz) Test Date : 2020/11/02 Vertical No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe 1 2381.304 40.74 54.00 -13.26 29.79 10.95 AV 2 2390.000 36.60 54.00 -17.40 25.61 10.99 AV ! 3 2400.000 54.49 -- -- 43.45 11.04 AV ! 4 2402.029 96.93 -- -- 85.87 11.06 AV Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 85 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2480MHz) Test Date : 2020/11/02 Horizontal No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe ! 1 2479.877 99.51 -- -- 87.82 11.69 PK 2 2483.500 52.73 74.00 -21.27 41.02 11.71 PK 3 2496.978 54.60 74.00 -19.40 42.81 11.79 PK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 86 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2480MHz) Test Date : 2020/11/02 Horizontal No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe ! 1 2480.022 98.81 -- -- 87.12 11.69 AV 2 2483.500 38.90 54.00 -15.10 27.19 11.71 AV Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 87 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2480MHz) Test Date : 2020/11/02 Vertical No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe ! 1 2479.732 99.84 -- -- 88.15 11.69 PK 2 2483.500 51.67 74.00 -22.33 39.96 11.71 PK 3 2492.775 61.79 74.00 -12.21 50.02 11.77 PK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 88 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 4: Transmit - 1Mbps-BLE (2480MHz) Test Date : 2020/11/02 Vertical No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe ! 1 2480.022 99.14 -- -- 87.45 11.69 AV 2 2483.500 38.92 54.00 -15.08 27.21 11.71 AV Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 89 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 5: Transmit - 2Mbps-BLE (2402MHz) Test Date : 2020/11/02 Horizontal No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe 1 2378.406 50.46 74.00 -23.54 39.53 10.93 PK 2 2390.000 48.29 74.00 -25.71 37.30 10.99 PK ! 3 2400.000 79.26 -- -- 68.22 11.04 PK ! 4 2401.594 99.82 -- -- 88.77 11.05 PK Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 90 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 5: Transmit - 2Mbps-BLE (2402MHz) Test Date : 2020/11/02 Horizontal No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe 1 2390.000 37.19 54.00 -16.81 26.20 10.99 AV ! 2 2400.000 65.68 -- -- 54.64 11.04 AV ! 3 2402.029 97.40 -- -- 86.34 11.06 AV Note: 1. All readings above 1GHz are performed with peak and/or average measurements as necessary. 2. Measurement Level = Reading Level + Correct Factor. 3. The average measurement was not performed when the peak measured data under the limit of average detection. Report No.: 2091003R-E3032110111 Page: 91 of 129 Product : Gaming headset Test Item : Band Edge Test Mode : Mode 5: Transmit - 2Mbps-BLE (2402MHz) Test Date : 2020/11/02 Vertical No Frequency (MHz) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) Reading Level (dBuV) Correct Factor (dB) Detector Ty pe 1 2381.304 49.69 74.00 -24.31 38.74 10.95 PK 2 2390.000 48.32 74…

Text truncated - open the document above for the full version.

Report No.: 2091003R-E3032110111 Page : 1 of 3 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 2091003R-E3032110111 Page : 2 of 3 Front View of Radiated Test Back View of Radiated Test Report No.: 2091003R-E3032110111 Page : 3 of 3 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
