BMTHSD-5000MMDS/ITFS/EBS/BRS Transmitter

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 17, 2007 Joe Dichoso Office of Engineering and Technology Re: FCC ID BMTHSD-5000 Dear Sir: We formally request confidentiality for the Operation and Service Manual submitted with this application. This document contains proprietary design specific information and schematic diagrams that are not released in the public domain. To publicly disclose this information would provide public disclosure of trade secrets and damage our competitive advantages. Customers of this product are provided with a copy of the manual to guide them in the safe deployment, field service, and utilization of the transmitter. Thank you in advance for your understanding and cooperation. Sincerely, James A. Yard, CEO

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 17, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Conformation #: EA246131 Dear Sir: We formally request type acceptance for the HSD-5000 S-Band transmitter under FCC Rule Parts 74 and 27. We further request certification for analog operation and digital operation under both rule parts. The OET electronic filing site does not accommodate more than one modulation, power, or frequency ranges which are applicable under multiple rule parts for a band that is in transition. This transmitter may be utilized for analog video, digital video, or data transmission in systems using both pre and post transition band plans. As such, customers desire the flexibility to adjust their systems during the transition process and desire a product with the design flexibility to do so. Said customers contemplate using the transmitter for operation in ITFS and MMDS systems under Rule Part 74, and also for EBS and BRS operations under Part 27 in the MBS, LBS, and UBS. We request that the grant include the following specifications. Rule Part Frequency Frequency Emission Output Range Tolerance Designator Power 74 2500-2686 MHz 1000 Hz 5M75C3F 400 Watts (Peak Visual)) 74 2500-2686 MHz 1000 Hz 6M00D7W 50 Watts (Average) 27 2495-2690 MHz 1000 Hz 5M75C3F 400 Watts (Peak Visual) 27 2495-2690 MHz 1000 Hz 6M00D7W 50 Watts (Average) The test report filed under this application will demonstrate that the HSD-5000 complies will all relevant rules for operation under both Part 74 and Part 27. Thank you in advance for your understanding and cooperation. Please contact me if you need additional information or clarification of items in our filing. Sincerely, James A. Yard, CEO

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 22, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Confirmation #: EA246131 Dear Sir: We formally request type acceptance for the HSD-5000 S-Band transmitter under FCC Rule Parts 21, 74 and 27. We further request certification for analog operation and digital operation under all three rule parts. The OET electronic filing site does not accommodate more than one modulation, power, or frequency ranges which are applicable under multiple rule parts for bands that are in transition. This transmitter may be utilized for analog video, digital video, or data transmission in systems using both pre and post transition band plans. As such, customers desire the flexibility to adjust their systems during the transition process and desire a product with the design flexibility to do so. Said customers contemplate using the transmitter for operation in ITFS and MMDS systems under Rule Parts 21 and 74, and also for EBS and BRS operations under Part 27 in the MBS, LBS, and UBS. We request that the grant include the following specifications. Rule Part Frequency Frequency Emission Output Range Tolerance Designator Power 21, 74 2500-2686 MHz 1000 Hz 5M75C3F 200 Watts (Peak Visual)) 21, 74 2500-2686 MHz 1000 Hz 6M00D7W 50 Watts (Average) 27 2496-2690 MHz 1000 Hz 5M75C3F 200 Watts (Peak Visual) 27 2496-2690 MHz 1000 Hz 6M00D7W 50 Watts (Average) The test report filed under this application will demonstrate that the HSD-5000 complies will all relevant rules for operation under both Part 74 and Part 27. Thank you in advance for your understanding and cooperation. Please contact me if you need additional information or clarification of items in our filing. Sincerely, James A. Yard, CEO

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 22, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Confirmation #: EA246131 Dear Sir: This letter supersedes the first cover filed with the above referenced application, and also supersedes the amended cover letter filed with the above referenced application. The first two letters asked for type acceptance to include operation under Part 21 and Part 74 which are no longer applicable. Also the first cover letter had typographical errors which improperly listed the peak visual power. This letter also adds a request for acceptance with 250KF3E aural modulation. We formally request type acceptance for the HSD-5000 S-Band transmitter under FCC Rule Part 21. We further request certification for analog operation and digital operation under all Rule Part 27. The OET electronic filing site does not accommodate more than one modulation, power, or frequency ranges which are applicable under multiple rule parts for bands that are in transition. This transmitter may be utilized for analog video, digital video, or data transmission in systems using both pre and post transition band plans. As such, customers desire the flexibility to adjust their systems during the transition process and desire a product with the design flexibility to do so. Said customers contemplate using the transmitter for operation in ITFS and MMDS systems under old Rule Parts 21 and 74, and also for EBS and BRS operations under Part 27 in the MBS, LBS, and UBS. We request that the grant include the following specifications. Rule Part Frequency Frequency Emission Output Range Tolerance Designator Power 27 2500-2686 MHz 1000 Hz 5M75C3F 200 Watts (Peak Visual)) 27 2500-2686 MHz 1000 Hz 250KF3E 10 Watts (Average Aural) 27 2500-2690 MHz 1000 Hz 6M00D7W 50 Watts (Average) The test report filed under this application will demonstrate that the HSD-5000 complies will all relevant rules for digital and analog operations Part 27. Thank you in advance for your understanding and cooperation. Please contact me if you need additional information or clarification of items in our filing. Sincerely, James A. Yard, CEO

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 October 19, 2007 Stephen Dayhoff Office of Engineering and Technology Re: FCC ID BMTHSD-5000 Confirmation #: EA246131 Dear Sir: We formally request confidentiality for the Operator Manual, Schematic Diagrams, Operational Description, Parts Lists, and Tune-Up Information exhibits submitted with this application. These documents contain proprietary design specific information that is not released in the public domain. To publicly disclose this information would provide public disclosure of trade secrets and damage our competitive advantages. Customers of this product are provided with a copy of these documents to guide them in the safe deployment, field service, and utilization of the transmitter. Thank you in advance for your understanding and cooperation. Sincerely, James A. Yard, CEO

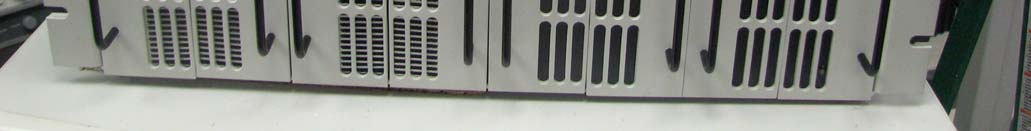

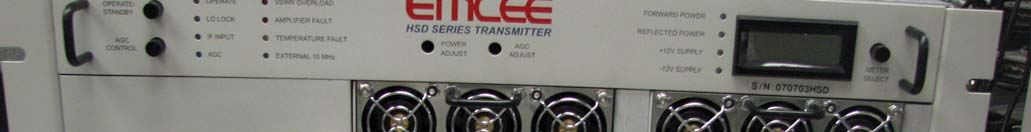

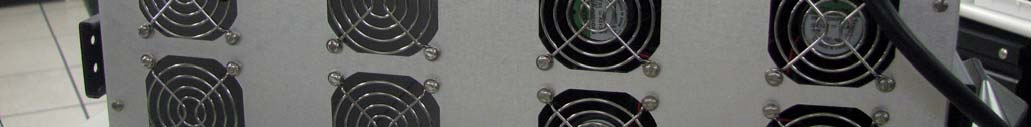

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 17, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Conformation #: EA246131 Subject: External Photos HSD-5000 Front View HSD-5000 Side View HSD-5000 Rear View

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 17, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Conformation #: EA246131 Subject: Rear Panel FCC ID and Product Information Label Photo of the FCC ID and Product Information affixed to the rear panel of the transmitter.

1635 West 12 th Place Tempe, Arizona 85281 USA 480-315-1661 August 17, 2007 Joe Dichoso Office of Engineering and Technology Federal Communications Commission Re: FCC ID: BMTHSD-5000, Form 731 Filing Confirmation #: EA246131 Subject: Internal Photos HSD-5000 Up-Converter Drawer HSD-5000 Power Amplifier Module HSD-5000 Main Chassis HSD-5000 Metering Detector Module HSD-5000 Output Converter Module HSD-5000 1 st IF Board HSD-5000 Control Board HSD-5000 Display Board HSD-5000 Up-Converter Front Panel HSD Chassis Service Access HSD-5000 Chassis Interconnection HSD-5000 12Volt Power Supply Backplane HSD-5000 Directional Coupler HSD-5000 12.5 Watt Power Amplifier HSD-5000 1 st Converter Module HSD-5000 10 MHz Reference Oscillator HSD-5000 Up-Converter Output Amplifier

FCC ID: BMTHSD-5000 Confirmation # EA246131 FCC TYPE ACCEPTANCE REPORT for the EMCEE HSD-5000 S-Band Transmitter EMCEE Communications 1635 West 12 th Place Tempe, AZ 85281 480-315-1661 Application For FCC Certification BMTHSD-5000-Test Report Page 2 TABLE OF CONTENTS 1.0 INTRODUCTION............................................................................................. 3 2.0 CERTIFICATION OF DATA .............................................................................. 3 3.0 TEST EQUIPMENT.......................................................................................... 3 4.0 MEASUREMENTS........................................................................................... 4 4.1 RF POWER MEASUREMENTS ........................................................................4 4.1.1 Analog RF Power Measurement...............................................................4 4.1.2 Digital RF Power Measurement ...............................................................5 4.2 MODULATION CHARACTERISTICS................................................................6 4.2.1.1 Analog Modulation Characteristics.......................................................6 4.2.1.2 Video Envelope Delay...........................................................................7 4.2.1.3 Video Noise..........................................................................................8 4.2.1.4 Differential Gain & Phase .....................................................................8 4.2.1.5 Audio Modulation .................................................................................9 4.2.1.6 FM Noise ............................................................................................ 10 4.2.2 Digital Modulation Characteristics......................................................... 10 4.3 OCCUPIED BANDWIDTH ............................................................................. 13 4.3.1 Modulation Channel Occupancy ............................................................ 13 4.3.2 Occupied Bandwidth in Analog Operation ............................................. 14 4.3.3 Occupied Bandwidth in Digital Operation .............................................. 14 4.4 SPURIOUS EMISSIONS AT ANTENNA TERMINALS....................................... 15 4.4.1 Spurious Emissions Tests with Digital Modulation.................................. 16 4.5 FREQUENCY STABILITY .............................................................................. 33 4.6 FIELD STRENGTH OF SPURIOUS EMISSIONS .............................................. 34 5.0 SUMMARY ..................................................................................................... 35 Application For FCC Certification BMTHSD-5000-Test Report Page 3 1.0 INTRODUCTION This test report contains the required information for type acceptance of the EMCEE Model HSD-5000 S-Band Transmitter. The data presented was taken from laboratory tests performed on a production transmitter system designed to transmit in the frequency range of 2500-2690 MHz at up to 50 Watts average power in digital mode or 200 Watts peak power in analog mode and utilized for operation in the MMDS/ITFS/EBS/BRS bands under either Part 21, Part 74 or Part 27. The transmitter system design and test data reflect the rules as prescribed in Part 2, 21, 74, and Part 27 of the Commission’s Rules. 2.0 CERTIFICATION OF DATA I certify that the testing procedures and the accumulated test data contained in this report have been personally supervised by me, and that the test results are true and correct to the best of my knowledge and belief. ___________________ James A. Yard, CEO EMCEE Communications 3.0 TEST EQUIPMENT The following is a list of major test equipment which was used in testing the HSD-5000 transmitter. Manufacturer Model # Serial Number Description HP/Agilent 89431A US39312280 VSA RF Section HP/Agilent 89441A US39313875 Vector Signal Analyzer HP/Agilent 8753ES US39171643 Vector Network Analyzer HP/Agilent E4433B US38080113 Signal Generator HP/Agilent E4402B US39010125 Spectrum Analyzer HP/Agilent E7405A US39440172 EMC/Spectrum Analyzer Tektronix VM-700A B030893 Video Measurement Test Set Tektronix 1450-1 B011060 Precision Demodulator Tektronix TSG95 B028349 Video Generator MFC 12798 9802 Output Band Pass Filter ATM C214-20 20dB Directional Coupler Narda Microwave 768-10 10dB Attenuator HP/Agilent 8903B 3514A15172 Audio Analyzer Application For FCC Certification BMTHSD-5000-Test Report Page 4 4.0 MEASUREMENTS 4.1 RF POWER MEASUREMENTS 4.1.1 Analog RF Power Measurement Figure 4-1 shows the test equipment setup for the analog RF power measurements. Figure 4-1: Test Setup for Analog Power Measurement The HSD-5000, modulated with color bars at 87.5%, was adjusted to obtain a 200 Watt Peak Visual (53dBm) and 10 Watt Aural (-13dB) measurement on the spectrum analyzer. The metering circuit was adjusted to obtain a 100% reading on the forward power meter. With the transmitter properly configured for analog operation and the peak visual power set to 200 Watts, all required tests were performed and the analog operation test data recorded in the following sections of the test report. The peak power measurement is shown in the spectrum analyzer plot in Figure 4-2. Figure 4-2: Analog Peak Power Measurement Plot Application For FCC Certification BMTHSD-5000-Test Report Page 5 4.1.2 Digital RF Power Measurement Figure 4-3 shows the test equipment setup for the digital RF power measurements. Figure 4-3: Test Setup For Digital Power Measurement The HSD-5000, modulated with a QAM modulator, was adjusted to obtain a 50 Watt average channel power (47dBm) measurement on the spectrum analyzer. The metering circuit was adjusted to obtain a 100% reading on the forward power meter. With the transmitter properly configured for digital operation and the average power set to 50 Watts, all required tests were performed and the digital operation test data reco…
