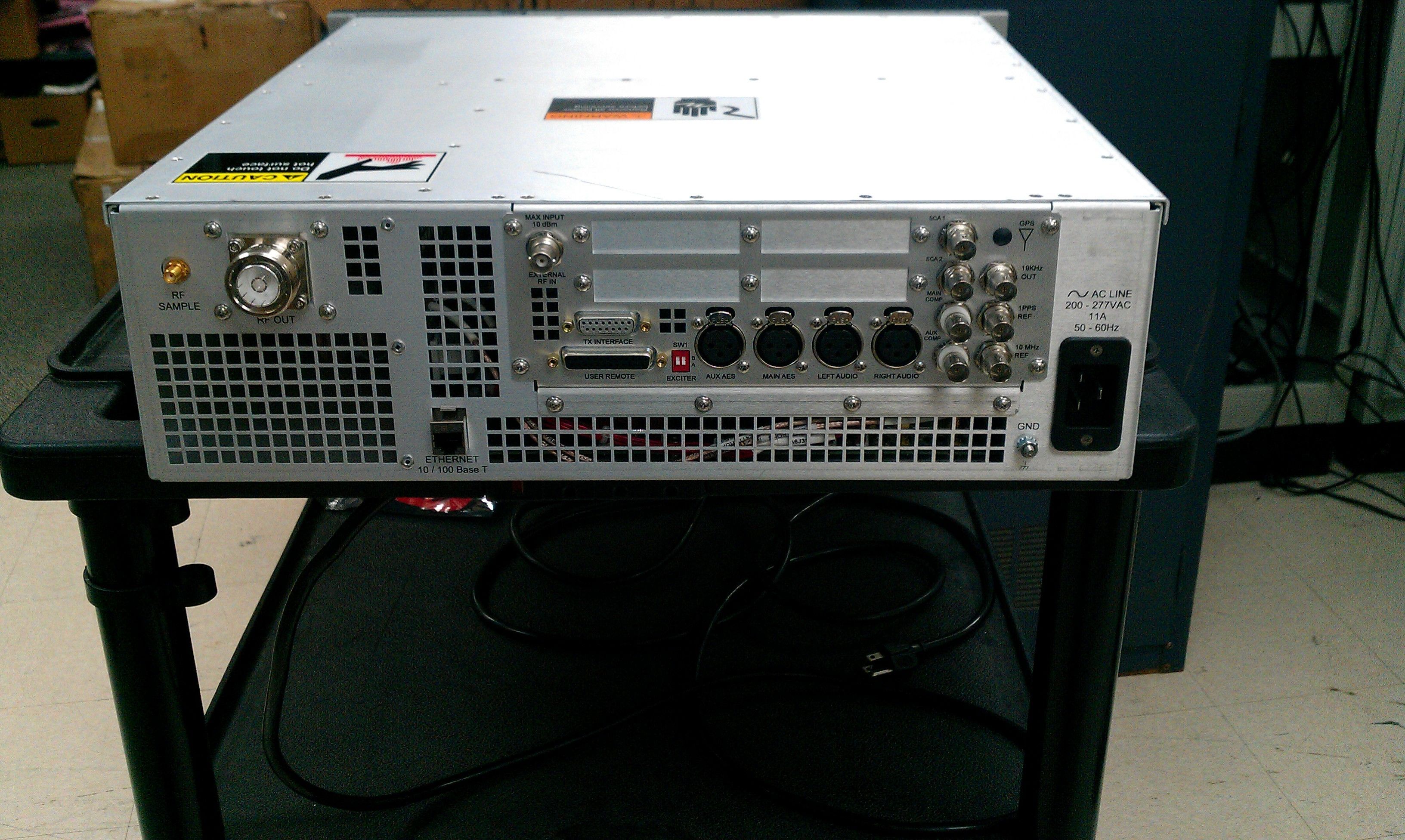

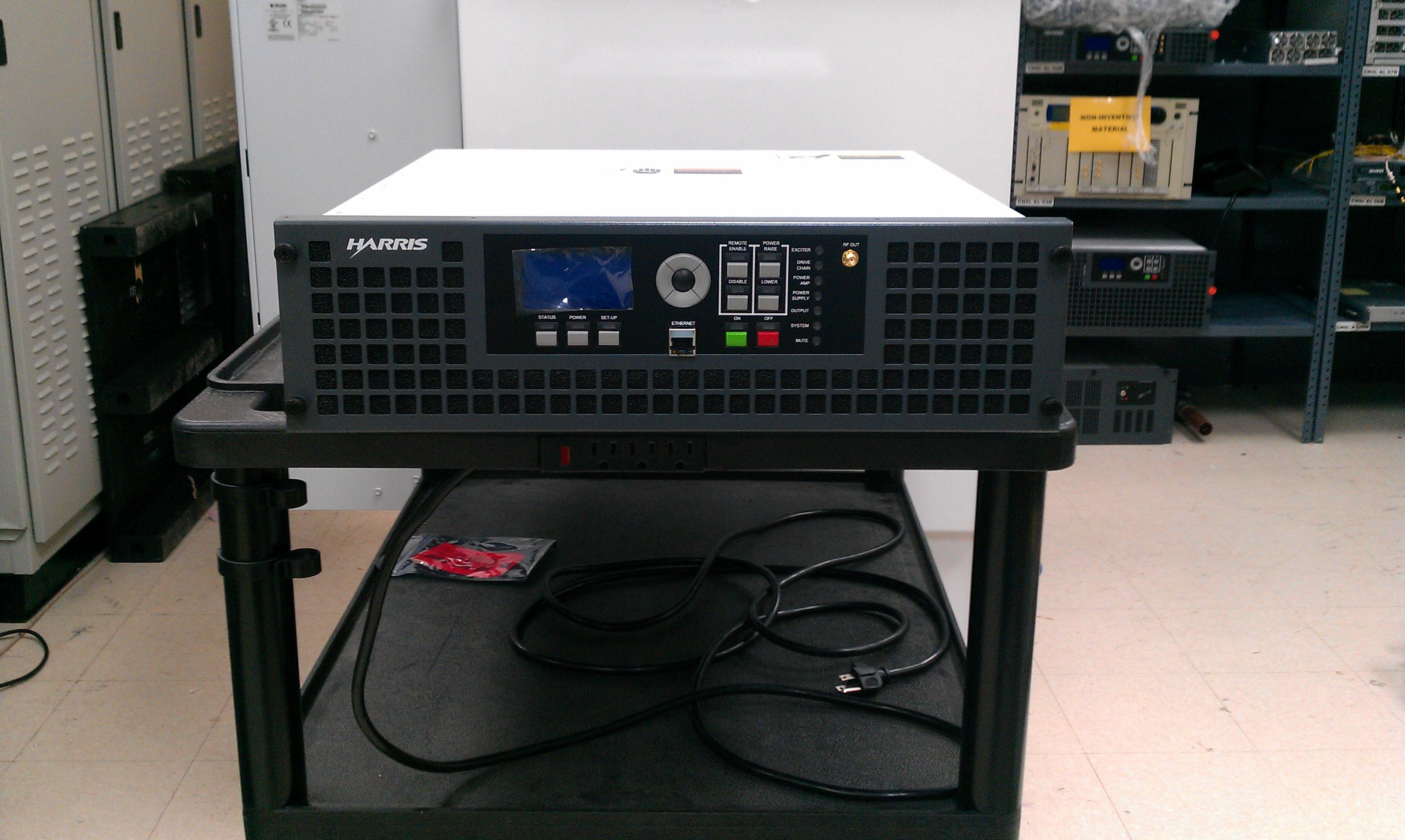

BOIFAXMPAir-Cooled FM Transmitter for Analog and Digital Standards Compact Class, Low Power

August 23, 2013 To Whom it May Concern, HARRIS CORPORATION Broadcast Communications Division 3200 Wismann Lane Post Office Box 4290 Quincy, IL USA 62305-4290 www.harris.com This letter and the accompanying test report and documents are in application for FCC Certification of a series of FM transmitters to be operated under the requirements of FCC CFR 47 Parts 2 and 73. Three models of the Flexiva FAX series of transmitters are included in this application, with power output ratings from 330 watts to 1100 watts. All models use the identical sub- assemblies, with the only significant difference between them being the number of output amplifier modules used to produce the required power. The Flexiva FAX series of transmitters are an advanced modular design, using the same components and assemblies in a building-block approach to create transmitters with output power ratings from a maximum 330 watts to a maximum 1100 watts at the cabinet output connection. The number of PA (Power Amplifier) modules used is governed by the power output of each model. 2 PA modules are used in the FAX1K transmitter and is software limited for the FAX500 (500 watts) and the FAX300 (300 watts) Our test report intends to show that however many PA modules are used, the performance of the transmitter is well within the limits imposed by CFR 47 Parts 2 and 73 Tests were conducted on a single 3300 watt model, the FAX3K. A front and rear photos shown in the exhibits and in the test report give details of the various parts of the transmitter. These data are submitted in support of the application for FCC authorization of these three models of the FLEXIVA FAX Radio Transmitter product, under the required Certification method. We respectfully request these products be certified. Yours sincerely, John Harmon Compliance Engineer Harris Broadcast Communications (513)459.3804

Flexiva FAX series Transmitter FCC Certification Application HARRIS CORPORATION Broadcast Communications Division 3200 Wismann Lane Post Office Box 4290 Quincy, IL USA 62305-4290 Application for Equipment Certification Table of Contents For: Harris Broadcast Communications Flexiva FAX Series Transmitter Family FAX series Transmitter FCC Certification Application Table of Contents Description Confidentiality Requested Cover Letter No Table of Contents No Request for Confidentiality No Equipment ID Label Plate and Location No Technical Description of Harris FAX Series Yes Installation & Operating Instructions – FAX Series Yes Tune-Up Instructions/Maintenance No Schematics and description of circuitry Yes FAX External Photos No PA Module (Final Amplifier) Description Yes Internal Photos Yes PA Module (Final Amplifier) Photos Yes Combiner Photos Yes Test Report – Includes FCC Form 731 Data No Signal Processing Board/Modulator Yes

Flexiva FAX series Transmitter FCC Certification Application Request for Confidentiality HARRIS CORPORATION Broadcast Communications Division 3200 Wismann Lane Post Office Box 4290 Quincy, IL USA 62305-4290 Pursuant to 47CFR 0.459, we hereby request that the Exhibits marked on the Table of Contents "Confidentiality Requested", and also marked as "Confidential" on their cover pages, be withheld from public inspection. Each Exhibit so-marked contains information of a proprietary nature to our company, and possibly to our customers also. Information which could be obtained from the cited Exhibits, which are commonly known as "Trade Secrets", includes printed circuit trace routing, component selection, RF circuit "broadbanding" techniques, mechanical construction layouts and modulation methods. The confidentiality of such information is carefully guarded within our company, and only shared when further disclosure is restricted by binding agreement. Additional proprietary information is contained within drawings, schematics and equipment configuration instructions, normally supplied to customers only after their purchase of the described equipment. Our customers, after having made such purchases, have no reason to share the documents with other parties and, in some cases, may be restricted from doing so by binding agreement. Additionally, those documents are normally supplied as hard copies as part of the equipment's documentation, and often in a size that is difficult to duplicate with standard office equipment. We are therefore concerned that in the event the above described information were to be made available in a public forum, particularly one as easy to access as the World Wide Web, our competitors, or those of our customers, could easily obtain and use it to compromise our ability, and that of our customers, to maintain our respective competitive positions in the marketplace worldwide. We therefore respectfully ask that you honor our request to maintain that confidentiality in regard to the selected documents. To support the requested confidentiality, we have placed the information requested to be kept confidential in Exhibits whose cover pages and whose entries in the Table of Contents are marked as described above. Sincerely, John Harmon Compliance Engineer 513.459.3804 (office) [email protected]

Harris Broadcast is an independent company not affiliated with Harris Corporation. Flexiva FAX series Transmitter FCC Certification Application FCC ID: BOIFAXMP Request for Confidentiality Harris Broadcast 3200 Wismann Lane Post Office Box 4290 Quincy, IL USA 62305-4290 Pursuant to 47CFR 0.457 and 0.459, we hereby request that the following documents be held confidential: Schematics, Block Diagram, Bill of Materials/Parts List, Technical/Operational Description and Internal Photos be withheld from public inspection. Each Exhibit so-marked contains information of a proprietary nature to our company, and possibly to our customers also. Information which could be obtained from the cited Exhibits, which are commonly known as "Trade Secrets", includes printed circuit trace routing, component selection, RF circuit "broadbanding" techniques, mechanical construction layouts and modulation methods. The confidentiality of such information is carefully guarded within our company, and only shared when further disclosure is restricted by binding agreement. Additional proprietary information is contained within drawings, schematics and equipment configuration instructions, normally supplied to customers only after their purchase of the described equipment. Our customers, after having made such purchases, have no reason to share the documents with other parties and, in some cases, may be restricted from doing so by binding agreement. Additionally, those documents are normally supplied as hard copies as part of the equipment's documentation, and often in a size that is difficult to duplicate with standard office equipment. We are therefore concerned that in the event the above described information were to be made available in a public forum, particularly one as easy to access as the World Wide Web, our competitors, or those of our customers, could easily obtain and use it to compromise our ability, and that of our customers, to maintain our respective competitive positions in the marketplace worldwide. We therefore respectfully ask that you honor our request to maintain that confidentiality in regard to the selected documents. Sincerely, John Harmon Compliance Engineer 513.459.3804 (office) [email protected] Harris Broadcast is an independent company not affiliated with Harris Corporation.

Harris Broadcast is an independent company not affiliated with Harris Corporation. Flexiva FAX series Transmitter FCC Certification Application FCC ID: BOIFAXMP September 26, 2013 Request for Confidentiality Harris Broadcast 3200 Wismann Lane Post Office Box 4290 Quincy, IL USA 62305-4290 Pursuant to 47CFR 0.457 and 0.459, we hereby request that the following documents be held confidential: Schematics, Block Diagram, Bill of Materials/Parts List, Technical/Operational Description and Internal Photos be withheld from public inspection. Each Exhibit so-marked contains information of a proprietary nature to our company, and possibly to our customers also. Information which could be obtained from the cited Exhibits, which are commonly known as "Trade Secrets", includes printed circuit trace routing, component selection, RF circuit "broadbanding" techniques, mechanical construction layouts and modulation methods. The confidentiality of such information is carefully guarded within our company, and only shared when further disclosure is restricted by binding agreement. Additional proprietary information is contained within drawings, schematics and equipment configuration instructions, normally supplied to customers only after their purchase of the described equipment. Our customers, after having made such purchases, have no reason to share the documents with other parties and, in some cases, may be restricted from doing so by binding agreement. Additionally, those documents are normally supplied as hard copies as part of the equipment's documentation, and often in a size that is difficult to duplicate with standard office equipment. We are therefore concerned that in the event the above described information were to be made available in a public forum, particularly one as easy to access as the World Wide Web, our competitors, or those of our customers, could easily obtain and use it to compromise our ability, and that of our customers, to maintain our respective competitive positions in the marketplace worldwide. We therefore respectfully ask that you honor our request to maintain that confidentiality in regard to the selected documents. Sincerely, John Harmon Compliance Engineer 513.459.3804 (office) September 26, 2013 [email protected]

Version 4.0 10252013 Harris Broadcast is an independent company not affiliated with Harris Corporation. October 29,2013 Terms of Sale and NDA. Please refer to pages 3 and 4, paragraphs 7 and 8 for NDA. The signature block is at the end of page 9. Standard Terms and Conditions of Sale for Harris Broadcast By submitting a purchase order, signing the Quote, or placing an order via the Harris Broadcast eCommerce website, the Customer agrees that these terms and conditions will govern the supply by the Seller (Note: eCommerce orders are supplied by HBC Solutions, Inc. d/b/a Harris Broadcast) and the purchase by the Customer of the Equipment, Software licenses and/or Services described in the Quote, purchase order and/or the eCommerce website. 1. Definitions In addition to the terms defined elsewhere in this Agreement, the following terms used in this Agreement have the following meanings: a. Agreement: Collectively, the Terms and Conditions of Sale, the Quote, the Order and the Order Acknowledgement. In the event of a conflict between any term of the Terms and Conditions of Sale, the Quote, the Order and the Order Acknowledgement, the terms of the Terms and Conditions of Sale will prevail. b. Component: A separately identifiable, removable part contained within the Equipment. c. Confidential Information: All information or ideas relating to Seller and/or Seller affiliates, Goods, and Services that is designated as proprietary and confidential or that Customer should reasonably know is confidential, regardless in each case of form, format, or media (including information disclosed orally). Software and Licensed Seller Materials are the Confidential Information of Seller. d. Customer: The purchaser of Equipment, Software licenses, or Services from Seller. e. Equipment: Any hardware, including Components, and excluding any Software or Services to be provided under the Agreement; f. Goods: Collectively, the Equipment and Software licenses to be provided under the Agreement. g. Order: The Customer’s purchase order and/or, if signed by the Customer, the Quote. h. Order Acknowledgement: Seller’s standard acknowledgement form, which signifies Seller’s acceptance of an Order. i. Quote: The price quotation of Seller itemizing the Goods and Services and their related purchase price being offered to the Customer, together with all its exhibits, including without limitation the technical proposal, technical specifications, scope of work and any maintenance or other agreement specifically referenced in the price quotation and included in the purchase price. j. Seller: The Harris Broadcast entity identified in the Order. k. Seller Affiliate: An entity controlling, controlled by, or under common control with Seller. l. Services: I nstallation, warranty, maintenance support, integration, or other services to be provided to the Customer as part of this Agreement. m. ServicePAK Agreement: After-warranty support Services or upgraded warranty Services during the relevant warranty period, as such ServicePAK Agreements are described in Section 10 of these Terms and Conditions of Sale. n. Software: The individual executable programs as itemized in the Order and to be provided as a part of this Agreement including the data structures accessed internally by such executable programs; any source code, custom code, file layouts, database dictionaries or other file schema that may be provided for use with such executable programs; all manuals, configuration lists and other associated documentation material procured under this Agreement including, without limitation, any computer or web-based training materials; all data and information obtained via Seller’s websites or portals; and any updates, enhancements, upgrades or subsequent versions to any of the foregoing. o. Terms and Conditions of Sale: These Standard Terms and Conditions of Sale for Harris Broadcast. 2. Quotes/Orders a. Validity of Quote. All Quotes automatically expire and become void after thirty (30) days unless Seller transmits an Order Acknowledgement to the Customer in response to an Order. Seller’s acceptance of an Order after the validity period of the Quote may be subject to changes in prices, terms and specifications, which will be reflected in the Order Acknowledgement. Upon any such change by Seller, the Customer may cancel the Order by written notice to Seller within ten (10) days after the Customer’s receipt of the Order Acknowledgement; if Seller does not receive such written notice, then changes made by Seller in the Order Acknowledgement will be deemed accepted by the Customer. If the Customer cancels the Order pursuant to this Section, Seller will refund to the Customer any advance payment made by the Customer without interest or penalty. b. Order Acceptance. Seller’s acceptance of an Order is contingent upon approval of the Customer’s credit. Any additional or conflicting terms and conditions contained in a purchase order or other document provided by the Customer are superseded by these Terms and Conditions of Sale and are void, unless expressly accepted in writing and signed by an authorized representative of Seller. Seller may within a reasonable time reject any Order with or without cause with no liability to the Customer. Upon Seller’s rejection of any Order, Seller will refund to the Customer any advance payment made by the Customer with the Order without interest or penalty. c. Changes to Orders. Seller may substitute Goods of a different model, nomenclature or design than that described in the Order without notice, provided that such substitutions do not materially adversely affect the fit, form, or function of the Goods. Prior to shipment of the Order, Seller may review requests by the Customer for changes to the Order. Acceptance of any changes requested by the Customer will be at Seller’s discretion, and any changes may result in additional charges to the Customer. d. Delivery. Seller may ship in any manner convenient to Seller unl…

Text truncated - open the document above for the full version.

October 29, 2013 Dear Edna Prado, Below are the responses to your latest inquiries for FCC ID: BOIFAXMP. The original email is attached on pages 2 and 3 for your reference. Inquiry 1: “1) The application states that the equipment is a software defined radio (SDR). However, no software security description was included. Confirm if this is in fact an SDR, if so provide the required documentation. For additional information on what constitutes an SDR, refer to KDB Publication 442812 D01 SDR Apps Guide v02r01. “ Harris Broadcast Response: This is not a software defined radio. This was a clerical error on the application – the selection was inadvertently checked. Inquiry 2: “2) The application states that this is a limited split module. However, limited split modules are not permitted for licensed devices. Please clarify. See 996369 D01 Module Certification Guide v01r03 for additional information. “ Harris Broadcast Response: This is a standalone FM transmitter. The limited split module selection should not have been selected. Inquiry 3: “3) The test report indicates that spurious emissions were measured in the FM-only mode. Provide an explanation on why the measurements were not made in the FM+HD mode and how compliance was confirmed.” Harris Broadcast Response: When measuring the level of an unmodulated signal its measured level will be unaffected by the measurement bandwidth of the spectrum analyzer. When modulation is applied (as in FM+HD) the signal spreads out wider than the measurement bandwidth, thus lowering the result. Hence measuring the level at the highest output power unmodulated will yield the worst case scenario. Thank you and regards, John Harmon October 29, 2013 FCC Home | Search | RSS | Updates | E-Filing | Initiatives | Consumers | Find People Office of Engineering and Technology To: John Harmon, Harris Broadcast [email protected] From: Edna Prado [email protected] Re: FCC ID: BOIFAXMP Applicant: HBC Solutions, Inc. Correspondence Reference Number: 44517 Form 731 Confirmation Number: EA328017 10/24/2013 The linked image cannot be displayed. The file may have been moved, renamed, or deleted. Verify that the link points to the correct file and location. Date of Original E-mail: After technical review of the application, the following items need to be addressed: 1) The application states that the equipment is a software defined radio (SDR). However, no software security description was included. Confirm if this is in fact an SDR, if so provide the required documentation. For additional information on what constitutes an SDR, refer to KDB Publication 442812 D01 SDR Apps Guide v02r01. 2) The application states that this is a limited split module. However, limited split modules are not permitted for licensed devices. Please clarify. See 996369 D01 Module Certification Guide v01r03 for additional information. 3) The test report indicates that spurious emissions were measured in the FM-only mode. Provide an explanation on why the measurements were not made in the FM+HD mode and how compliance was confirmed.

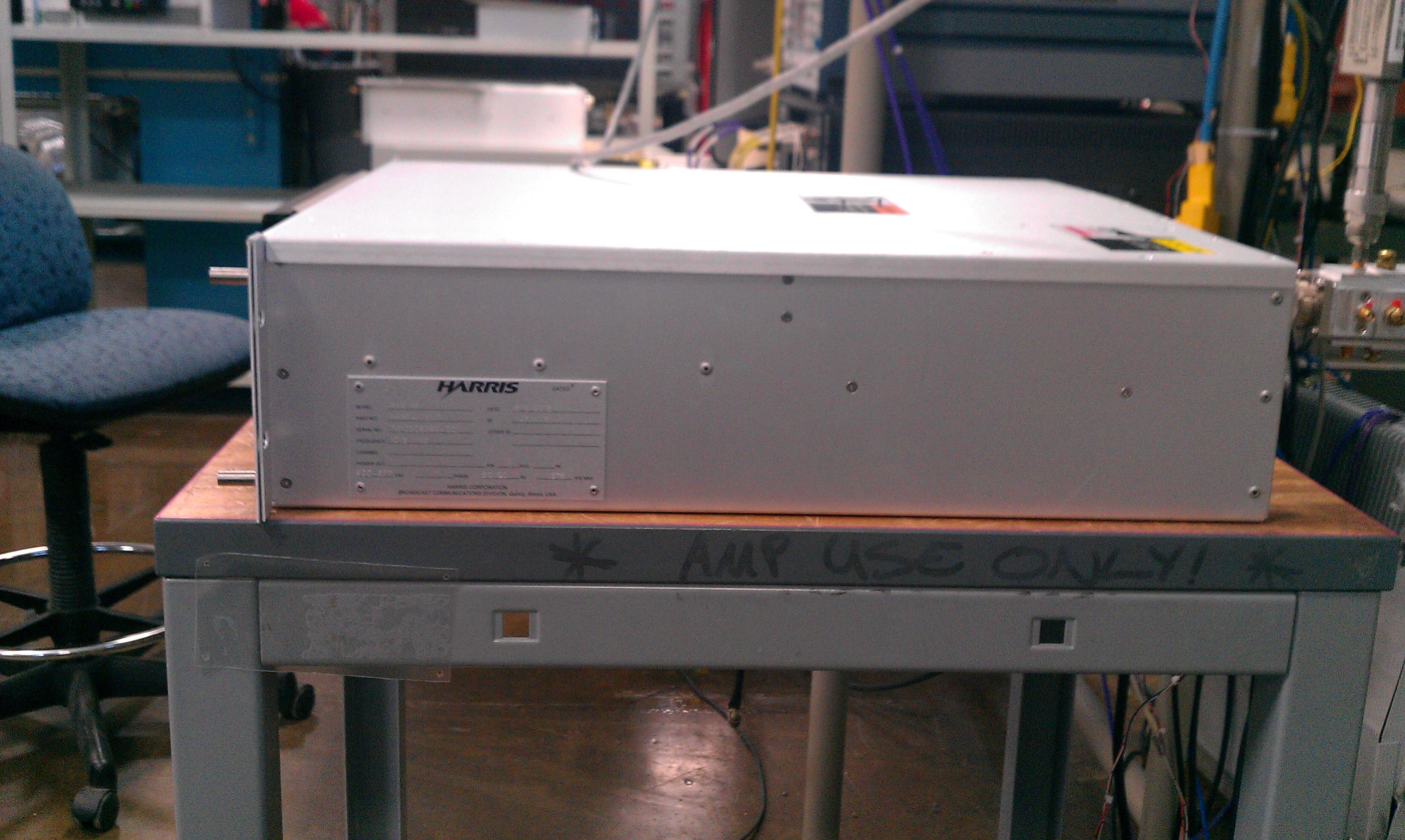

FAX300 HARFAX300IN1 KD10001443-001 98.1 MHz 251 0.33 04-02-2013 BOIFAXMP IC – 10958B-130619 200-277 1 50/60 0.503 LABEL for FAX300 FAX500 HARFAX500IN1 KD10001444-001 98.1 MHz 251 0.55 04-02-2013 BOIFAXMP IC – 10958B-130619 200-277 1 50/60 0.838 LABEL for FAX500 X X FAX1K HARFAX1KIN1 KD10001444-001 98.1 MHz 251 1.1 04-02-2013 BOIFAXMP IC – 10958B-130619 200-277 1 50/60 1.676 LABEL for FAX1K FAX2K HARFAX2KIN1 KD10001445-001 98.1 MHz 251 2.2 04-02-2013 BOIFAXMP IC – 10958B-130619 200-277 1 50/60 3.351 LABEL for FAX2K X X X FAX3K HARFAX3KIN1 KD10001446-001 98.1 MHz 251 3.3 04-02-2013 BOIFAXMP IC – 10958B-130619 200-277 1 50/60 5.026 LABEL for FAX3K X

FAX300, FAX500, FAX1K FCC Verification Measurements This document is compiled to provide the data and records supporting a Verification of Compliance with FCC rules set forth in 47CFR Parts 2 and 73. Verification as described in 2.902 applies to all subsequent identical units marketed. Use of the Verification method requires that the records identified in 2.955 are kept, and that they shall be retained for two years after the manufacture of the equipment has ceased. This document, along with certain other documents referenced herein, are the records for the verification of the equipment tested and described. These tests are representative of FAX300, FAX500, FAX1K transmitters. PERSONS PRIMARILY RESPONSIBLE FOR TESTING Name John Harmon Signature Title Engineering Specialist Address for contact purposes Harris Corporation 5300 Kings Island Drive Suite 101 Mason, OH 45040 Telephone 513-459-3804 Email [email protected] Name(s) of others who performed testing if applicable Dave Danielsons, Jacob Foote Official of Responsible Party Name Terry Cockerill Title Project Engineer Address for contact purposes Harris Corporation 3200 Wismann Lane Quincy, Il. 62305 Telephone 217-221-7399 Email Signature 1. Description of the EUT Harris® Flexiva™ is the next generation in solid state transmission for FM analog and HD Radio™ broadcasting. Page 2 of 34 The Flexiva operates on any single channel in the 88-108 MHz FM band. Power output capability ranges are: 1000W in the FM only mode, and 1590W in the FM+HD mode at -10dB injection. The emission designator is: 400KD9W Trade Name Flexiva Model Tested FAX300, FAX500, FAX1K Name and address of manufacturer or responsible party Harris Corporation 3200 Wismann Lane Quincy, Il. 62305 FCC Identifier V-FAXMP Serial Number Proto Frequency Tested 98.1MHz, 96MHz Type (AM, FM, TV, etc) FM, FM+HD RF Frequency Range 88 MHz to 108 MHz RF Power Rating 100-1000W FM Analog 530W FM+HD @-10dB injection level Date(s) on which testing was performed September 2012 – April 2013 Address of test location 5300 Kings Island Drive Suite 101 Mason, OH 45040 Page 3 of 34 EUT Front View Page 4 of 34 2. FCC Rules Reference/Checklist √ 47CFR2 47CFR73 Other Comment Measurement Procedure 2.947 Outlines acceptable standards and procedures. Measurements Required 2.1041 NA NA Lists the required measurements according to paragraph number. These are what follows. √ RF Power output. 2.1046 NA ANSI/TIA-603- C-2004 2.2.1 Record PA parameters over the range of output power. √ Modulation Characteristics. 2.1047 73.317 NA Curves must be supplied showing the frequency response. √ Occupied Bandwidth. 2.1049 73.317 ANSI/TIA-603- C-2004 2.2.13 FM multiplex mode, 15 kHz left only, 9% pilot RBW= 10kHz VBW = 30 kHz Average Detector √ Occupied Bandwidth. 2.1049 73.317 NRSC5B FM+HD mode RBW= 1 kHz VBW = 1 kHz Average Detector At least 30 sec and 100 sweeps √ Spurious Emissions at antenna terminals. 2.1051 73.317 ANSI/TIA-603- C-2004 2.2.13 RBW 10kHz < 1GHz RBW 1MHz > 1GHz VBW = 3 x RBW Average Detector √ Field Strength of spurious radiation. 2.1053 73.317 ANSI/TIA-603- C-2004 2.2.12 RBW = 10kHz < 1GHz RBW = 1MHz > 1GHz VBW = 300kHz < 1GHz VBW = 3MHz > 1GHz √ Substitution Method 2.1053 73.317 ANSI/TIA-603- C-2004 2.2.12 Dipole Substitution √ Frequency Stability. 2.1055 73.1545 ANSI/TIA-603- C-2004 2.2.2 +/- 2000 Hz limit. Use data taken in an environmental chamber √ Frequency spectrum to be investigated. 2.1057 NA Lowest generated frequency above 9 kHz to the 10 th harmonic √ Radiated Emissions Setup Photos √ Spurious and OBW Setup Photos √ Test Setup Diagrams Page 5 of 34 The information that follows is a combination of FCC references and results. 3. RF power output. 3.1.1. Rule 47CFR2.1046 2.1046 a) For transmitters other than single sideband, independent sideband and controlled carrier radiotelephone, power output shall be measured at the RF output terminals when the transmitter is adjusted in accordance with the tune-up procedure to give the values of current and voltage on the circuit elements specified in Sec. 2.1033(c)(8). The electrical characteristics of the radio frequency load attached to the output terminals when this test is made shall be stated. (c) For measurements conducted pursuant to paragraphs (a) and (b) of this section, all calculations and methods used by the applicant for determining carrier power or peak envelope power, as appropriate, on the basis of measured power in the radio frequency load attached to the transmitter output terminals shall be shown. Under the test conditions specified, no components of the emission spectrum shall exceed the limits specified in the applicable rule parts as necessary for meeting occupied bandwidth or emission limitations. 2.1033(c)(8) The dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range. 3.1.2. Criteria The parameters noted should be typical of normal operation over the range of output power that we will type verify. Page 6 of 34 3.1.3. Test Setup Figure 1, Load, Coupler, and Power sensor for conducted emissions and audio tests. 3.2. Test Equipment Used Equipment Model Serial Number Cal Due Fax 3K KD1-1446- 001 Power Meter Agilent E4416A 11988 6/29/2013 Directional Coupler Conneticut Microwave 700R NA Audio Precision Portable One Dual Domain 11872 1/21/2014 Spectrum Analyser Agilent E4402B 177870 12/28/2013 Dummy Load Bird 5KW Air Cooled NA Flexstar Exciter HDx-FM NA Power Analyser Fluke 434 20172 5/9/2013 Page 7 of 34 3.2.1. Measurement Procedure RF output power was measured using the Agilent E4419B Power meter, 8481H Power sensor, and directional coupler documented above. Bird Attenuator HAR-003-A 50 Ohm air cooled load was used. 3.2.2. Test Results: Data was taken at the nominal power output, and multiple points including values which were less than 50% of the rated transmitter power. Data was taken in both FM only, and FM+HD modes. Mode Pout(…

Text truncated - open the document above for the full version.
