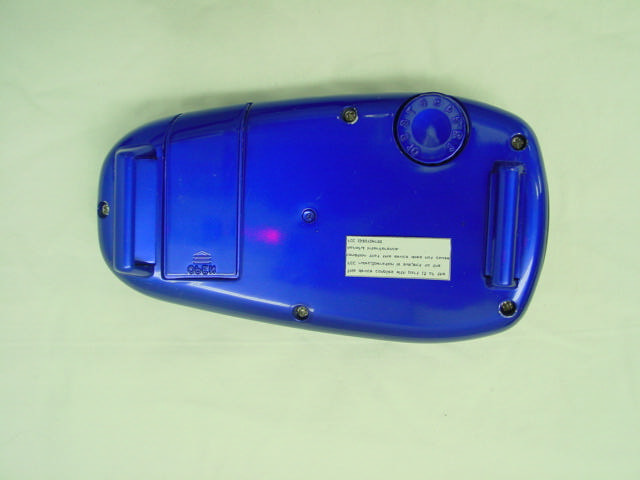

BSYGMT95Weather Receiver

WATER RESISTANT PERSONAL STEREO RADIO with DIGITAL TUNING AM/FM/TV/WEATHER BANDS HR2003 OWNER’S MANUAL Visit our web site at www.emersonradio.com HR2003_ib040903.p65 9/4/2003, 11:3619 1 Thank you for purchasing this Emerson Water-Resistant Personal stereo radio with AM/FM/TV and Weather Band digital tuner. Our engineers have included many useful and convenient features in this product. Please be sure to read this Owner’s Manual completely to make sure you are getting the maximum benefit from each feature. This product was manufactured using the highest quality components and standards of workmanship. It was tested by Emerson inspectors and found to be in perfect working order before it left our factory. However, there is always the chance that some problem may occur because of rough handling during shipment to the retail store or to the final consumer. If, after reading this Manual, you experience any problems with the operation of this product, please refer to the instructions for obtaining service at the end of this Manual. Emerson and Emerson retailers are committed to your satisfaction. Once again, thanks for purchasing this Emerson audio product. Model Number: HR2003 Serial Number: HR2003_ib040903.p659/4/2003, 11:121 2 IMPORTANT NOTES This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. •Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. HR2003_ib040903.p659/4/2003, 11:122 3 PREPARATION FOR USE POWER SOURCES This personal stereo radio with AM/FM/TV and Weather Band digital tuner is designed to operate on one alkaline “AAA” battery, not included. Attempting to operate this unit on any other power source may cause damage to the unit and such damage is not covered by your warranty. INSTALLING THE BATTERY The battery compartment is located on the back-side of the radio cabinet. 1.)Press down on the mark on the battery cover and slide the cover in the direction of the arrow. 2.)Insert one fresh “AAA” alkaline battery in the battery compartment. Be sure to follow the polarity making in the battery compartment. If the battery is inserted incorrectly the unit will not work. 3.)Replace the battery compartment cover. WHEN TO CHANGE THE BATTERY When the Battery Indicator begins to “empty” the batteries are getting weak. When the indicator starts flashing in the display the battery is almost exhausted and should be changed as soon as possible. Do not leave a weak or exhausted battery in the radio as it will eventually leak and cause corrosion inside the battery compartment. HR2003_ib040903.p659/4/2003, 11:123 4 ARM-BAND STRAP INSTALLATION This radio is supplied with an accessory arm-band strap to secure the radio on your arm while you are jogging or performing other strenuous activities. To install the arm-band strap, thread the strap through the two slots on the back cabinet as shown, and then through the buckle. Adjust the Velcro ® strap to fit comfortably but securely around your arm. HR2003_ib040903.p659/4/2003, 11:124 5 LOCATION OF CONTROLS AND INDICATORS P R E S E T U P D O W N S N O O Z E M U T E B A N D M H z k H z P O W E R C L O C K S E T M E M O R Y R H M A L A R M FRONT CABINET 1.)BAND (AM/FM/TV/Weather) Button. 2.)POWER (SLEEP) Button. 3.)MEMORY/CLOCK SET Button. 4.)SNOOZE Button. 5.)ALARM Button. 6.)MUTE Button. 7.)TUNER Display. 8.)PRESET UP Button. 9.)PRESET DOWN Button. 10.)TUNING + /CLOCK SET–H(Hour) Button. 11.)TUNING – /CLOCK SET–M(Minute) Button. 12.)HOLD Switch. S IDE CABINET 13.)VOLUME Control. 14.)PHONES Jack. 15.)BASS BOOST Button. BACK CABINET 16.)Battery Compartment. 17.)Arm-band Strap Brackets. 1 2 3 17 4 5 6 16 1413 7 15 8 9 10 11 12 17 HR2003_ib040903.p659/4/2003, 11:125 6 1.)PRESET Indicator. 2.)BASS – Bass Boost Indicator. 3.)SLEEP Indicator. 4.)HOLD “” Indicator. 5.)Alarm Indicator. 6.)Battery Level Indicator. 7.)Radio Frequency / Channel Display. 8.)AM/PM Indicators. 9.)Band Indicators – WB / TV / FM / AM. 10.)Preset Memory Number Display. MULTIFUNCTION LCD DISPLAY FM AM PRESET PM TV WB BASS SLEEP 1 2345 10987 6 HR2003_ib040903.p659/4/2003, 11:126 7 OPERATING INSTRUCTIONS •Make sure the battery is installed correctly. •Set the VOLUME control to a low level. •Fully unwind the headphone cord and connect the headphone plug to the PHONES jack. The plug must be fully inserted into the jack, otherwise the sound may be intermittent. •Make sure that the HOLD switch is in the ‘Off’ position. IMPORTANT INFORMATION This personal stereo radio is designed to be “water-resistant”. Jogging in the rain with this radio will cause no problems. However this radio is not “water-proof” and should never be fully or partially immersed in water, or any other liquid. Water should never be allowed to get inside the cabinet when changing the battery. Keep the rubber headphone jack cover in place when the unit is not in use. If the cabinet does become wet after jogging in the rain, wi…

Text truncated - open the document above for the full version.

LCD DISPLAY Ic2 CPU TC9329FA Ic3 AF BA5152F Ic1 AM/FM/TV/WB RF&IFAMP. TA2154FN FM/TV/WBANTENNA HR-2003

Operation Description of AM/FM/TV/Weather Band Stereo Radio The product is a Stereo Radio with AM/FM/TV and Weather Band Digital Tuner and to powered by one alkaline ìAAAî battery. There are front, side and back cabinet and tuner display for the function control and indicator. (details see user manual) Refer to circuit design, the circuit description is listed as follows:
 IC1, Q1, Q4, Q5 and associated circuit act as muting circuit for the AM/FM/TV and weather band RF/ OSC/IF amplifier and stereo decoder. IC1 feature: Built-in AM/FM/TV/Weather Band Digital Tuner o FM/TV/WB IF :10.7MHz o AM IF :4510kHz BAND Receiving Freq. OSC Freq. AM 530-1710kHz 980-2160kHz FM 87.5-108MHz 98.2-118.7MHz TV CH2 59.750MHz 70.450MHz TV CH3 65.750MHz 76.450MHz TV CH4 71.750MHz 82.450MHz TV CH5 81.750MHz 92.450MHz TV CH6 87.750MHz 98.450MHz TV CH7 179.750MHz 190.450MHz TV CH8 185.750MHz 196.450MHz TV CH9 191.750MHz 202.450MHz TV CH10 197.750MHz 208.450MHz TV CH11 203.750MHz 214.450MHz TV CH12 209.750MHz 220.450MHz TV CH13 215.750MHz 226.450MHz WB CH1 162.550MHz 173.250MHz WB CH2 162.400MHz 173.100MHz WB CH3 162.475MHz 173.175MHz WB CH4 162.425MHz 173.125MHz WB CH5 162.450MHz 173.150MHz WB CH6 162.500MHz 173.200MHz WB CH7 162.525MHz 173.225MHz
IC2, Q6, Q7, Q8 and associated circuit act as a programmable microprocessor to control tuner, keyboard and LCD display.
 IC3, Q2, Q3 and associated circuit act as Audio amplifier.

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD004936-1 Date : 2003 April 09 Applicant : GMT Industrial Ltd. Unit 1006, 10/F., Eastern Centre, 1065 King’s Road, Hong Kong. Sample Description : One(1) submitted sample stated to be AM/FM/TV/Weather Bands Radio . Brand Name Model No. YASAKI GMT95 EMERSON HR2003 Rating : 1 x 1.5 V AAA size battery No. of sample(s) : Three(3) pieces *** Date Received : 2003 March 25. Test Period : 2003 March 25 – 2003 April 09. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – May 2002 ANSI C63.4 – 1992 Test Result : See attached sheet(s) from page 2 to 13. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 13 Danny Chui EMC Engineer - EL. Division FCC ID : BSYGMT95 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD004936-1 Date : 2003 April 09 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test.......................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result............................................................................................................................... 6 2.3 Radiated Emission Measurement Data....................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 2.3 Radiated Emission Measurement Data....................................................................................... 9 2.3 Radiated Emission Measurement Data..................................................................................... 10 3 Description of the Line-conducted Test.......................................................................................... 11 3.1 Test Procedure....................................................................................................................... 11 3.2 Test Result............................................................................................................................. 11 3.3 Graph and Table of Conducted Emission Measurement Data.................................................... 11 4 Photograph................................................................................................................................... 12 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission........................ 12 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 12 5 Supplementary document............................................................................................................... 12 5.1 Bandwidth............................................................................................................................. 12 6 Appendices.................................................................................................................................... 13 Page 2 of 13 FCC ID : BSYGMT95 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1401-3, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AD004936-1 Date : 2003 April 09 1 General Information 1.1 General Description The equipment under test (EUT) is a Stereo Radio with AM/FM/TV and Weather Band Digital Tuner and to powered by one alkaline “AAA” battery. There are front, side and back cabinet and tuner display for the function control and indicator. (details see user manual) The brief circuit description is listed as follows : - IC1, Q1, Q4, Q5 and associated circuit act as muting circuit for the AM/FM/TV and weather band RF/OSC/IF amplifier and stereo decoder. - IC2, Q6, Q7, Q8 and associated circuit act as programmable microprocessor to control tuner, keyboard and LCD display. - IC3, Q2, Q3 and associated circuit act as Audio amplifier. All two models are the same in circuitry and components; and therefore model GMT95 was chosen to be the representative of the test sample. 1.2 Related Submittal Grants This is a single application for certification of a AM/FM/TV/Weather band receiver. Page 3 of 13 FCC ID : BSYGMT95 TEST REPORT This document shall not be reproduced either in full or in…

Text truncated - open the document above for the full version.
