INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES / MODE D' EMPLOI M O D E L # RDT6806 3 Insert headphones: Introduzca los auriculares:/ InsĂ©rez les casques: 4 Power: Encender la unidad: / Allumer l' appareil: 1 Insert batteries: Coloque las Pilas: / InsĂ©rez les Piles: visit us at www.gpx.com © Copyright 2004. GPX, Inc. No part of this material may be reproduced in any format without written authorization. • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon- zinc), or rechargeable (nickel-cadmium) batteries. • Replace the batteries when the sound becomes unstable or cannot be heard. • When you are not going to use your unit for a long time, remove the batteries to prevent damage from battery leakage and corrosion. •No coloque pilas viejas con pilas nuevas. •No coloque pilas alcalinas con pilas estándar (carbĂłn- zinc) o recargables (nĂquel-cadmiun). •Cambie las pilas cuando el sonido sea irregular o cuando no pueda oirlo. •Cuando no use su unidad por un periodo de tiempo prolongado, retire las pilas para evitar la fuga de electrolito y la corrosiĂłn. •N' insĂ©rez pas des piles anciennes avec des piles neuves. •N' insĂ©rez pas des piles alcalines avec des piles standard (charbon-zinc) ou rechargeables (nickel-cadmin). •Changez les piles quand le son est distordu ou quand il est impossible de l'entendre. •Si vous n'utilisez pas l'appareil pendant longtemps, enlevez les piles pour Ă©viter des fuites et la corrosion. •Set the Volume to a low level before putting on the headphones. Gradually adjust the Volume to a comfortable listening level. Please do not play the volume too loudly for extended periods of time. •Baje el volumen antes de utilizar los auriculares. Gradualmente ajuste el volumen a un nivel de escucha confortable. Por favor no coloque el volumen muy alto durante largos periodos de tiempo. •Baissez le volume avant d'utiliser les casques. RĂ©glez le volume graduellement jusqu'Ă atteindre le niveau d'Ă©coute souhaitĂ©. S'il-vous- plaĂ®t, ne mettez pas le volume trop fort pendant longtemps. 5 Volume: Volumen/Sonido Grave/ Volume Son Grave: 2 Set the clock: Para colocar la hora: / Pour rĂ©gler l' heure: 7 Tune: SintonizaciĂłn: / RĂ©glage: 6 Band: Banda/ Bande: 2x "AAA" (not included) •Press the BAND button to cycle between AM, FM, WB and TV bands. •Presione el botĂłn BAND para cambiar entre las bandas AM, FM, WB y TV. •Appuyez sur le bouton BAND pour changer entre les bandes AM, FM, WB et TV. NOTE: •Adjust the clock in the power off mode. NOTA: •Ajuste el reloj en el modo apagado. REMARQUE: •RĂ©glez l'heure dans le mode Ă©teint. POWER 3.5 mm Ja ck + V O L U M E - PUSH PM INDICATOR To select the 12hr or 24hr 2 1 6 4 5 3 Or Or Or To set hours To set minutes Detach: AM RADIO DISPLAY: CLOCK DISPLAY: FM RADIO DISPLAY: 12:00 . Press and hold PM INDICATOR 1 3 LISTENING TO WEATHERBAND RADIO ESCUCHA DE LA BANDA METEOROLĂ“GICA DE RADIO ÉCOUTE DE LA BANDE MÉTÉOROLOGIQUE DE RADIO 5a 2 1 POWER BAND WB Ch07 3 4 + V O L U M E - Or From the NOAA Weather Band chart, select a channel that coincides with your city. Seleccione un canal que coincida con su ciudad deacuerdo a la carta de venda del tiempo de NOAA. Du NOAA Survivez Ă au diagramme de bande, choisissent un canal qui coĂŻncide avec votre ville. LISTENING TO TV BAND Escuchando la estaciĂłn de TV Écouter la bande de TV 5b POWER BAND 1 2 TV CH 02 4 + V O L U M E - 3 Or To select TV Channels 02 to 13 NOAA WEATHER BAND CHART / TABLA DE BANDAS DE FRECUENCIAS METEOROLĂ“GICAS NOAA / TABLEAU DE BANDES DE FRÉQUENCES MÉTÉOROLOGIQUES NOAA ALABAMA ANNISTON............3 AUBURN..............7 BIRMINGHAM..........1 CULLMAN.............5 DEMOPOLIS...........3 DOZIER...............1 FLORENCE............3 FT. PAYNE.............6 HUNTSVILLE...........2 JACKSON.............6 LOUISVILLE............3 MOBILE...............1 MONTGOMERY........2 TUSCALOOSA.........2 WINFIELD.............7 ALASKA ANCHORAGE..........1 CORDOVA.............2 CRAIG................3 FAIRBANKS............1 HAINES...............2 HOMER...............2 JUNEAU..............1 KETCHIKAN...........1 KODIAK...............1 NOME................1 SEWARD..............1 SITKA................1 SOLDOTNA............3 VALDEZ...............1 WRANGELL............2 YAKUTAT..............2 ARIZONA FLAGSTAFF...........2 GILA COUNTY NORTH...4 GILA COUNTY SOUTH...6 GRAND CANYON (Hopi Point)....................3 PHOENIX..............1 PRESCOTT............7 SHOW LOW...........2 TUCSON..............2 WINDOW ROCK........1 YUMA................1 ARKANSAS FAYETTEVILLE.........3 FORT SMITH...........1 GURDON..............3 JONESBORO..........1 LITTLE ROCK..........1 MOUNTAIN VIEW.......2 RUSSELLVILLE.........7 STAR CITY.............2 TEXARKANA...........1 CALIFORNIA BAKERFIELD (P)........1 COACHELLA (P)........2 EIRELA...............2 FRESNO..............2 GRASS VALLEY........2 LOS ANGELES.........1 MONTEREY............1 MONTEREY MARINE....5 PT. ARENA/UKIAH.......1 REDDING (P)..........1 SACRAMENTO.........1 SAN DIEGO............2 SAN FRANCISCO.......2 SANLUIS OBISPO.......1 SANTA ANA............5 SANTA BARBARA MARINE3 SANTA BARBARA.......2 COLORADO ALAMOSA (P)..........3 BETHUNE.............7 COLORADO SPRINGS...3 DENVER..............1 FORT COLLINS.........5 GLENWOOD SPRINGS..6 GRAND JUNCTION......1 GREELEY.............2 LA JUNTA.............6 MEAD/LONGMOUNT....3 PUEBLO..............2 STERLING.............2 CONNECTICUT HARTFORD............3 MERIDEN.............2 NEW LONDON.........1 DELAWARE LEWES...............1 FLORIDA BELLE GLADE..........2 DAYTONA BEACH......2 EAST POINT...........6 FORT MYERS..........3 FORT PIERCE..........4 GAINESVILLE..........3 INVERNESS...........2 JACKSONVILLE........1 KEY WEST.............2 LIVE OAK..............5 MELBOURNE..........1 MIAMI................1 OCALA...............7 ORLANDO.............3 PANAMA CITY..........1 PENSACOLA...........2 SALEM...............4 SEBRING..............6 TALLAHASSEE.........2 TAMPA................1 WEST PALM BEACH.....3 GEORGIA ATHENS..............2 ATLANTA.....…
Text truncated - open the document above for the full version.

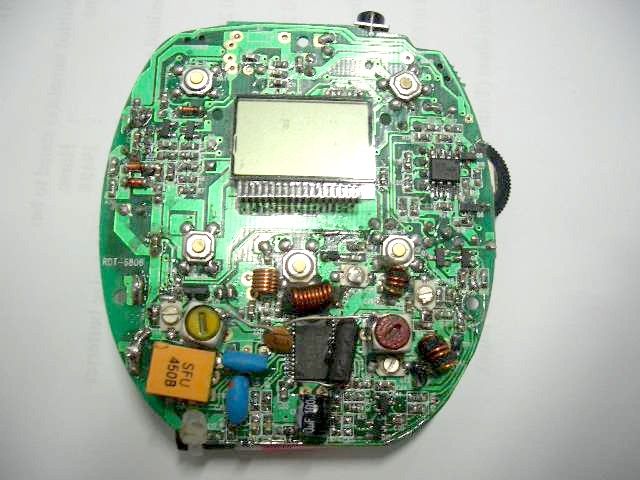

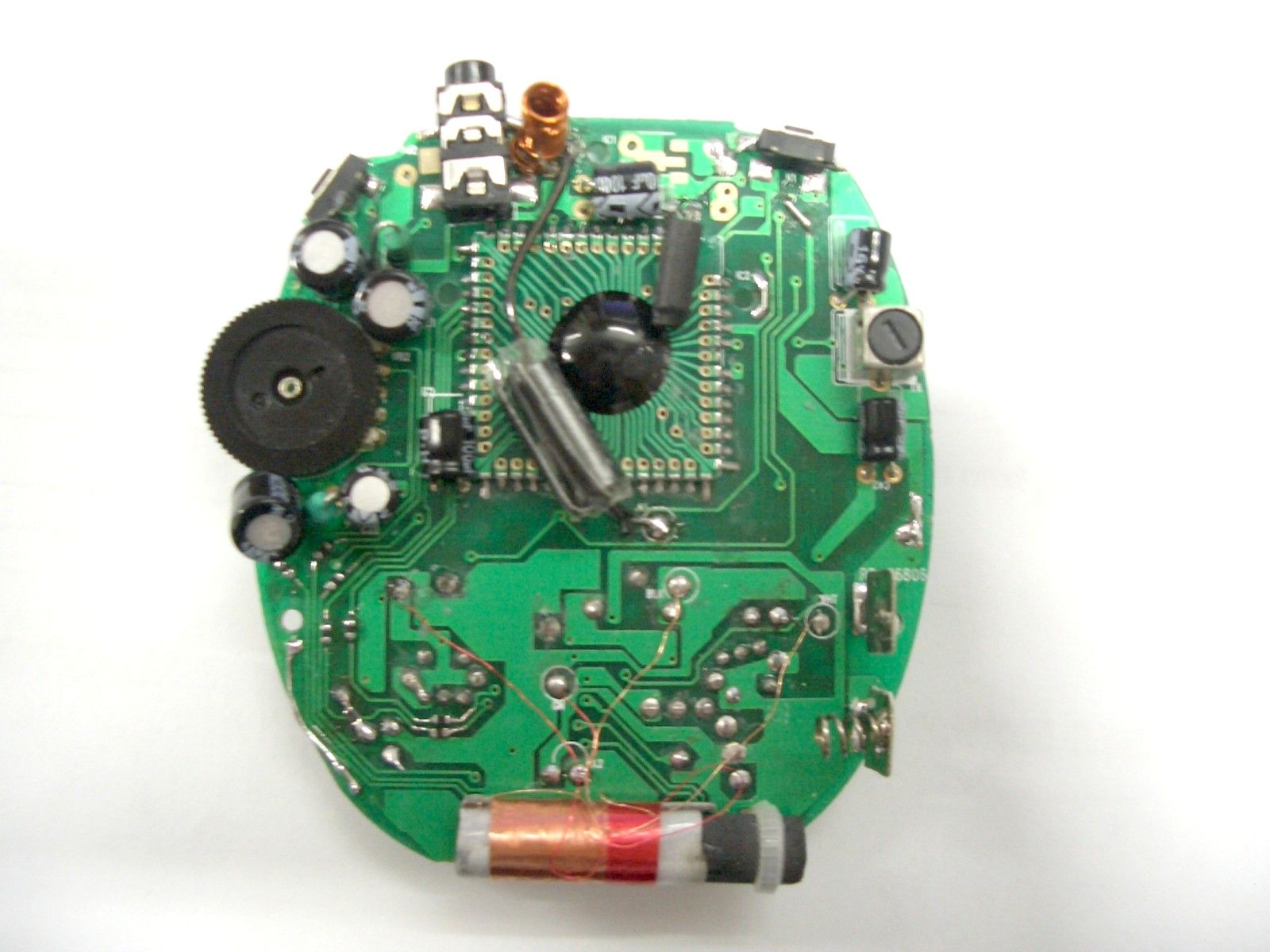

Operation Description The product is a Stereo Radio with AM/FM/TV and Weather Band Digital Tuner and powered by 2 x 1.5 V îAAAî size battery. Refer to circuit design, the circuit description is listed as follows: IC4 (TB2132FN), Q11, Q12, Q13, Q14, X2(75KHz), CF1(10.7MHz) and associated circuit act as muting circuit for the AM/FM/TV/WB, RF/ OSC/IF amplifier and decoder. IC2(GMT-618), Q8, Q9, X1(32.768KHz) and associated circuit act as a microprocessor to control tuner, key and LCD display. IC3(PT4800), Q6, Q7 and associated circuit act as Audio amplifier. IC1(ME301), L1, C7, C8, D1 and associated circuit act as a regulator.

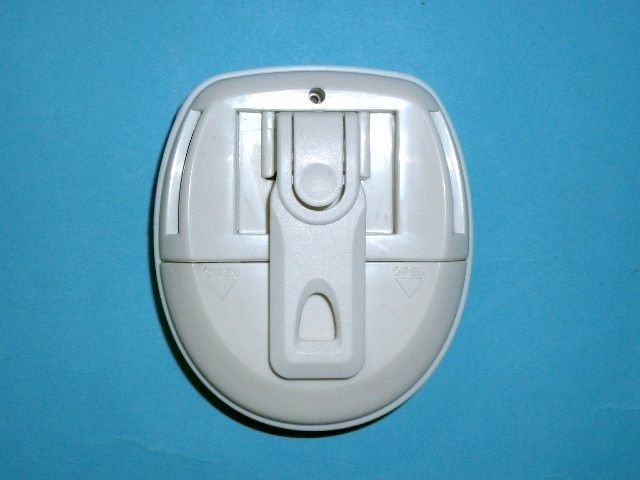

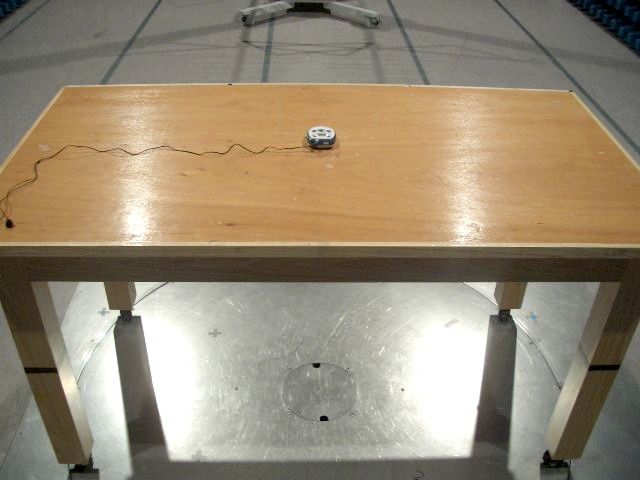

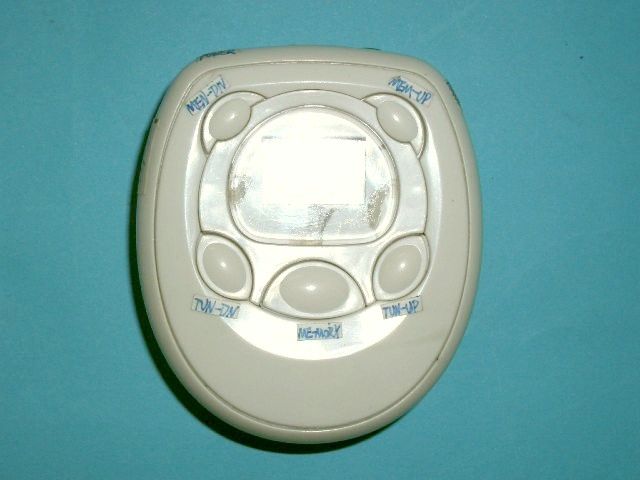

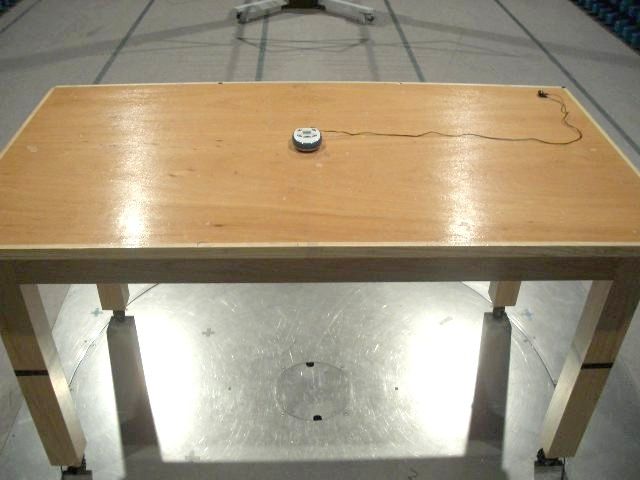

TEST REPORT Report No. : AJ031139-001 Date : 2007 October 24 Page 1 of 12 FCC ID: BSYRDT6806 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Application No. : LJ218923(3) Applicant : GMT Industrial Ltd. Unit 1006, 10/F., Eastern Centre, 1065 KingĂs Road, Hong Kong Sample Description : One(1) submitted sample(s) stated to be ARMBAND RADIO of Model No. YASAKI-RDT6806 and GPX-RDT6806 Rating : 2 x 1.5V AAA size battery No. of submitted sample : Three (3) piece(s) *** Date Received : 2007 October 05 Test Period : 2007 October 05 ñ 2007 October 24 Test Requested : FCC Part 15 Certification. Test Method : 47 CFR Part 15 (10-1-05 Edition) ANSI C63.4 ñ 2003 Test Result : See attached sheet(s) from page 2 to 12. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : ____________________________________________________ Danny Chui Deputy Manager - EL. Division TEST REPORT Report No. : AJ031139-001 Date : 2007 October 24 Page 2 of 12 FCC ID: BSYRDT6806 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Table of Contents 1 General Information ................................................................................................................................. 3 1.1 General Description ......................................................................................................................... 3 1.2 Location of the test site .................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................ 5 2 Description of the radiated emission test ................................................................................................. 6 2.1 Test Procedure.................................................................................................................................. 6 2.2 Test Result........................................................................................................................................ 6 2.3 Radiated Emission Measurement Data ............................................................................................ 7 2.3 Radiated Emission Measurement Data ............................................................................................ 8 2.3 Radiated Emission Measurement Data ............................................................................................ 9 3 Description of the Line-conducted Test................................................................................................. 10 3.1 Test Procedure................................................................................................................................ 10 3.2 Test Result...................................................................................................................................... 10 3.3 Graph and Table of Conducted Emission Measurement Data ....................................................... 10 4 Photograph ............................................................................................................................................. 11 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission ........................ 11 4.2 Photographs of the External and Internal Configurations of the EUT........................................... 11 5 Supplementary document ....................................................................................................................... 12 6 Appendices ............................................................................................................................................. 12 TEST REPORT Report No. : AJ031139-001 Date : 2007 October 24 Page 3 of 12 FCC ID: BSYRDT6806 This document shall not be reproduced except in full or with written approval by the laboratory. CMA Industrial Development Foundation Limited Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Test Result : 1 General Information 1.1 General Description The equipment under test (EUT) is a Stereo Radio with AM/FM/TV and Weather Band Digital Tuner and powered by 2 x 1.5 V Ă®AAAĂ® size batteries. Refer to circuit design, the circuit description is listed as follows: IC2(GMT-618), Q8, Q9, X1(32.768KHz) and associated circuit act as a microprocessor to control tuner, key and LCD display. IC3(PT4800), Q6, Q7 and associated circuit act as Audio amplifier. IC1(ME301), L1, C7, C8, D1 and associated circuit act as a regulator. IC4 (TB2132FN), Q11, Q12, Q13, Q14, X2(75KHz), CF1(10.7MHz) and associated circuit act as muting circuit for the AM/FM/TV/WB, RF/ OSC/IF amplifier and decoder. The brief circuit description is saved with filename: OpDes.pdf BAND Receiving Freq. OSC Freq. AM 530-1710kHz 980-2160kHz FM 87.5-108MHz 98.2-118.7MHz TV CH2 59.750MHz 70.450MHz TV CH3 65.750MHz 76.450MHz TV CH4 71.750MHz 82.450MHz TV CH5 81.750MHz 92.450MHz TV CH6 87.750MHz 98.450MHz TV CH7 179.750MHz 190.450MHz TV CH8 185.750MHz 196.450MHz TV CH9 191.750MHz 202.450MHz TV CH10 197.750MHz 208.450MHz TV CH11 203.750MHz 214.450MHz TV CH12 209.750MHz 220.450MHz TV CH13 215.750MHz 226…
Text truncated - open the document above for the full version.
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15B | 162.4 MHz - 162.55 MHz | - |
