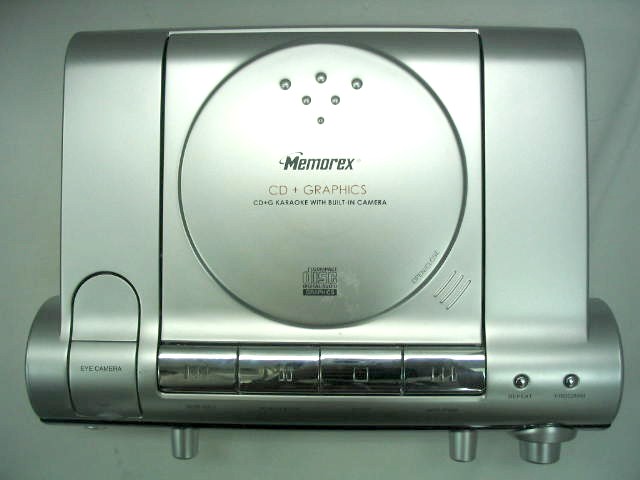

TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014516-001 Date : 2004 August 28 Application No.: LE208102(2) Applicant : GMT Industrial Ltd. Unit 1006, 10/F., Eastern Centre, 1065 King’s Road, Hong Kong. Sample Description : One(1) submitted sample stated to be : Model Name : Set Top Box with Camera Brand Name Model No. YASAKI KS359 MEMOREX MKS8002 Rating : AC 120 V No. of sample(s) : One(1) piece *** Date Received : 2004 July 23. Test Period : 2004 July 23 - 2004 August 02. 2004 August 03 – 2004 August 17. 2004 August 28. Test Requested : FCC Part 15 Certification Test Method : FCC Rules and Regulations Part 15 – Dec 2003 ANSI C63.4 – 2001 Test Result : See attached sheet(s) from page 2 to 11. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B. Remark : All two models are the same in circuitry and components; and therefore model KS359 was chosen to be the representative of the test sample. For and on behalf of CMA Testing and Certification Laboratories Authorized Signature : Page 1 of 11 Danny Chui EMC Engineer - EL. Division FCC ID : BSYKS359 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014516-001 Date : 2004 August 28 Table of Contents 1 General Information........................................................................................................................ 3 1.1 General Description.................................................................................................................. 3 1.2 Related Submittal Grants.......................................................................................................... 3 1.3 Location of the test site............................................................................................................. 4 1.4 List of measuring equipment..................................................................................................... 5 2 Description of the radiated emission test........................................................................................... 6 2.1 Test Procedure......................................................................................................................... 6 2.2 Test Result...............................................................................................................................6 2.3 Radiated Emission Measurement Data....................................................................................... 7 2.3 Radiated Emission Measurement Data....................................................................................... 8 3 Description of the Line-conducted Test............................................................................................ 9 3.1 Test Procedure......................................................................................................................... 9 3.2 Test Result...............................................................................................................................9 3.3 Graph and Table of Conducted Emission Measurement Data....................................................... 9 4 Photograph................................................................................................................................... 10 4.1 Photographs of the Test Setup for Radiated Emission and Conduction Emission......................... 10 4.2 Photographs of the External and Internal Configurations of the EUT......................................... 10 5 Supplementary document............................................................................................................... 10 6 Appendices...............................................................................................................................11 Page 2 of 11 FCC ID : BSYKS359 TEST REPORT This document shall not be reproduced either in full or in part except with written approval by the Authorized Representative of CMA Testing. Room 1302, Yan Hing Centre, 9-13 Wong Chuk Yeung St.., Fo Tan, Shatin, Hong Kong. Tel: (852) 2698 8198 Fax: (852) 2695 4177 E-mail: [email protected] Web Site: http://www.cmatcl.com Report No. : AE014516-001 Date : 2004 August 28 1 General Information 1.1 General Description The Set Top Box with Camera is a standalone multi-function product with a one channel receiver at frequency of 171.045 MHz. It has a total of 4 different features: 1. Music Player (supports CD and CDG Karaoke text graphic) 2. Microphone input for Karaoke function 3. Wireless Microphone Receiver for Karaoke function 4. Build in Video Camera (Details shall be referred to the manual) Refer to circuit design, the brief circuit description is saved with filename OpDes.pdf and listed as follows : - IC1, IC3, IC4, IC5, Q1, Q2, Q3, Q4, Q5, Q6, Q8 X1and associated circuit act as CD decoding, display and control and control and have an operation clock of 16.9 MHz. - IC501, IC502, Q501, Q502, Q503 X501and associated circuit act as Karaoke text graphic decoding and have an operation clock of 14.318 MHz. - IC603, Q302, Q601, Q602, Q603, X601and associated circuit act as RF/OSC/IF amplifier for wireless microphone receiving and as karaoke microphone control and have an operation clock of 53.448MHz.. - Q301, Q401, Q402 and associated circuit act as audio amplifier. - Camera module IC1, IC2, Z1 and associated circuit act as video camera which have an operation clock …
