BSYWT-55414A

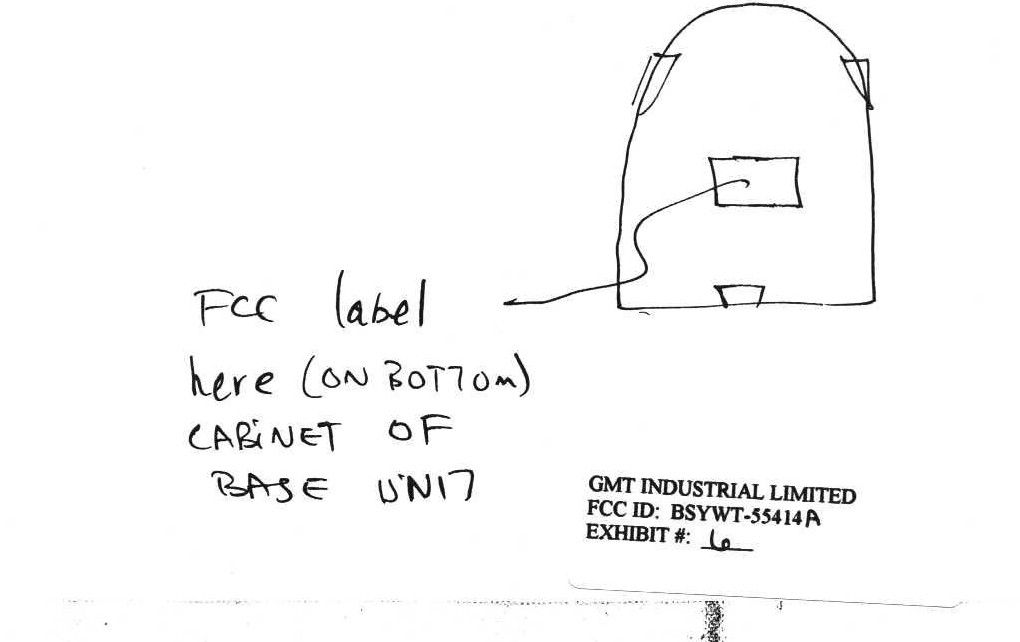

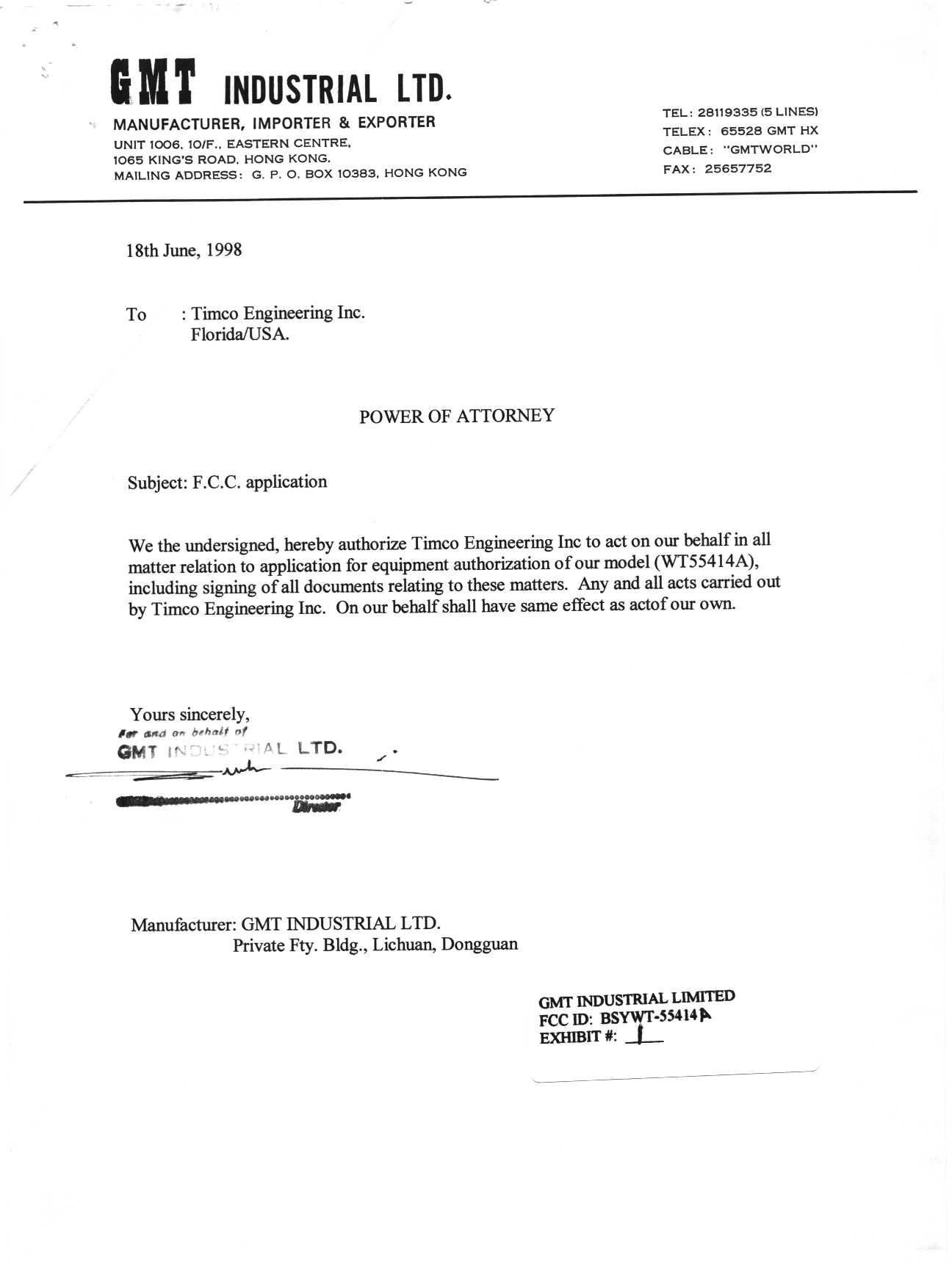

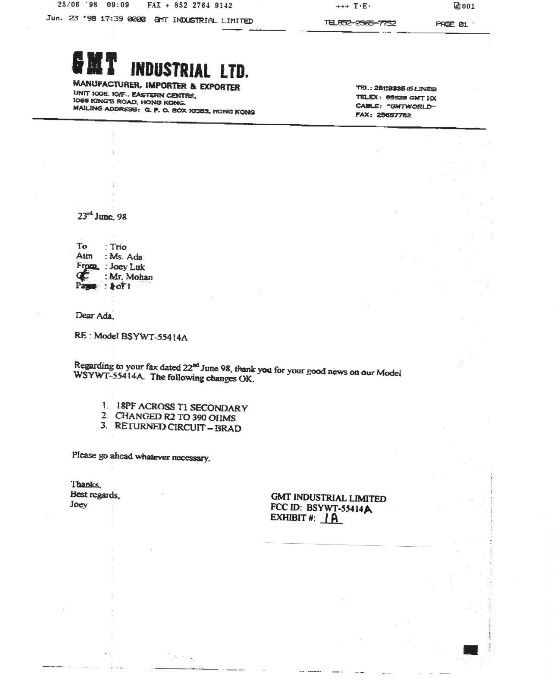

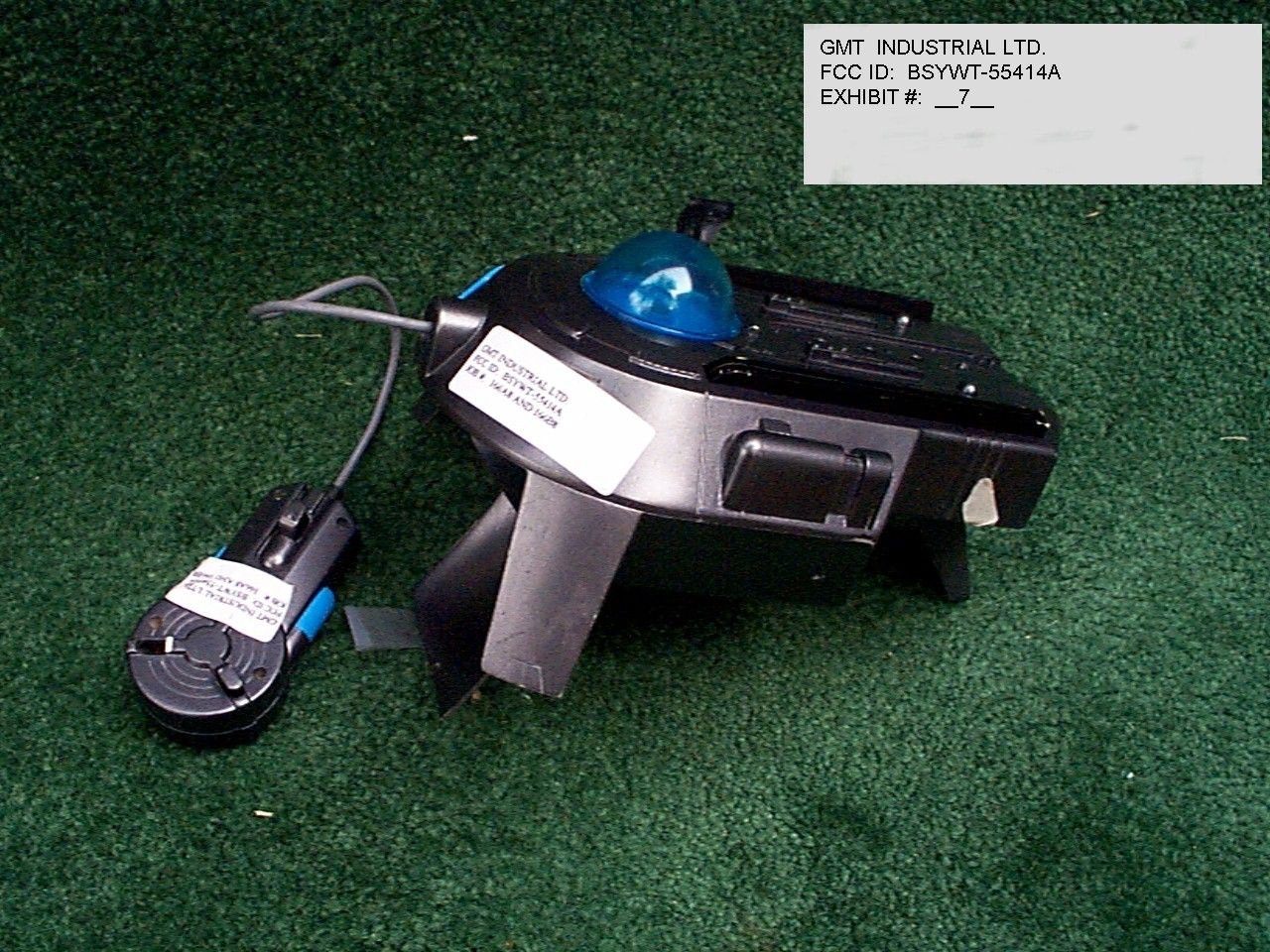

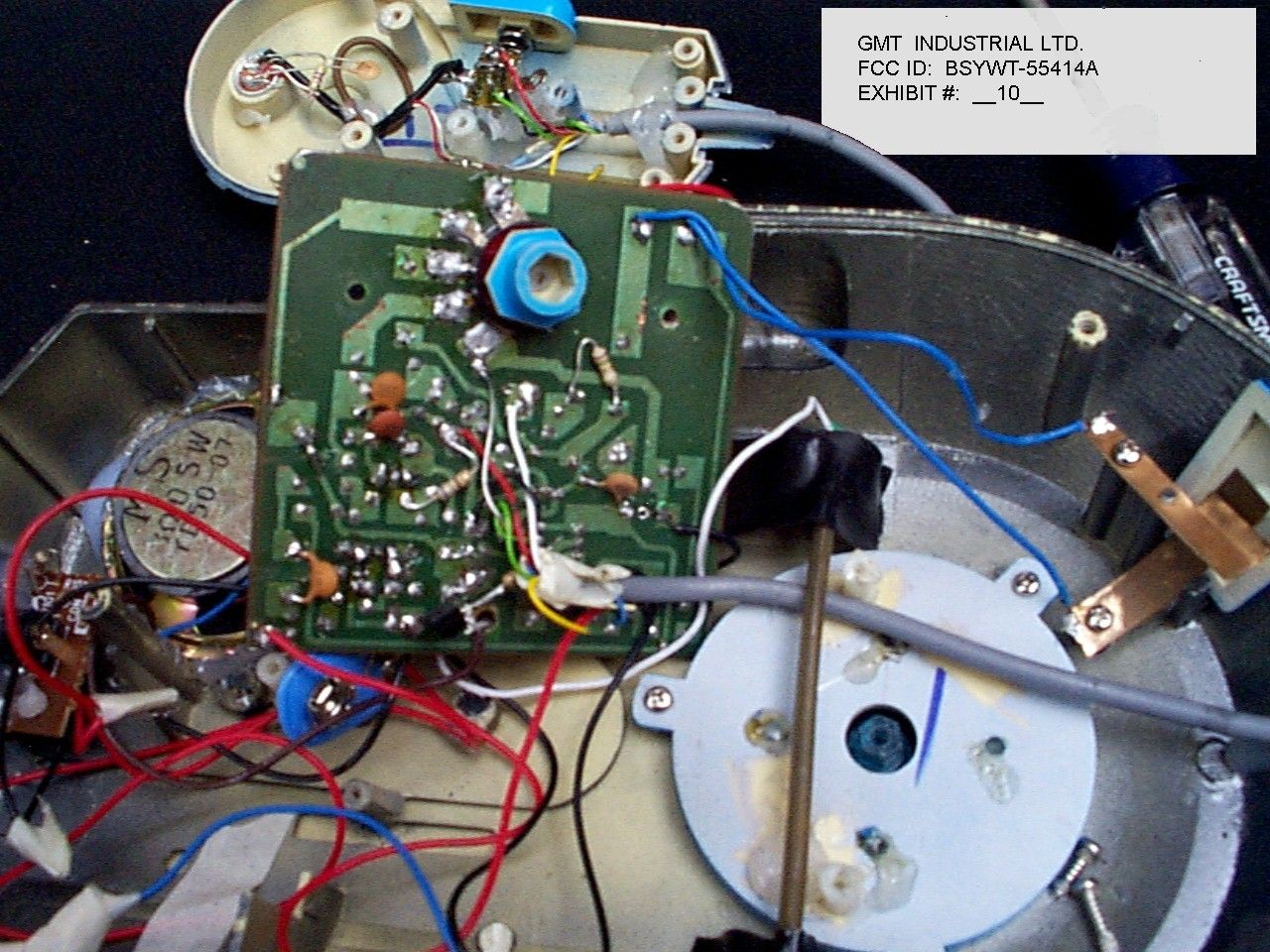

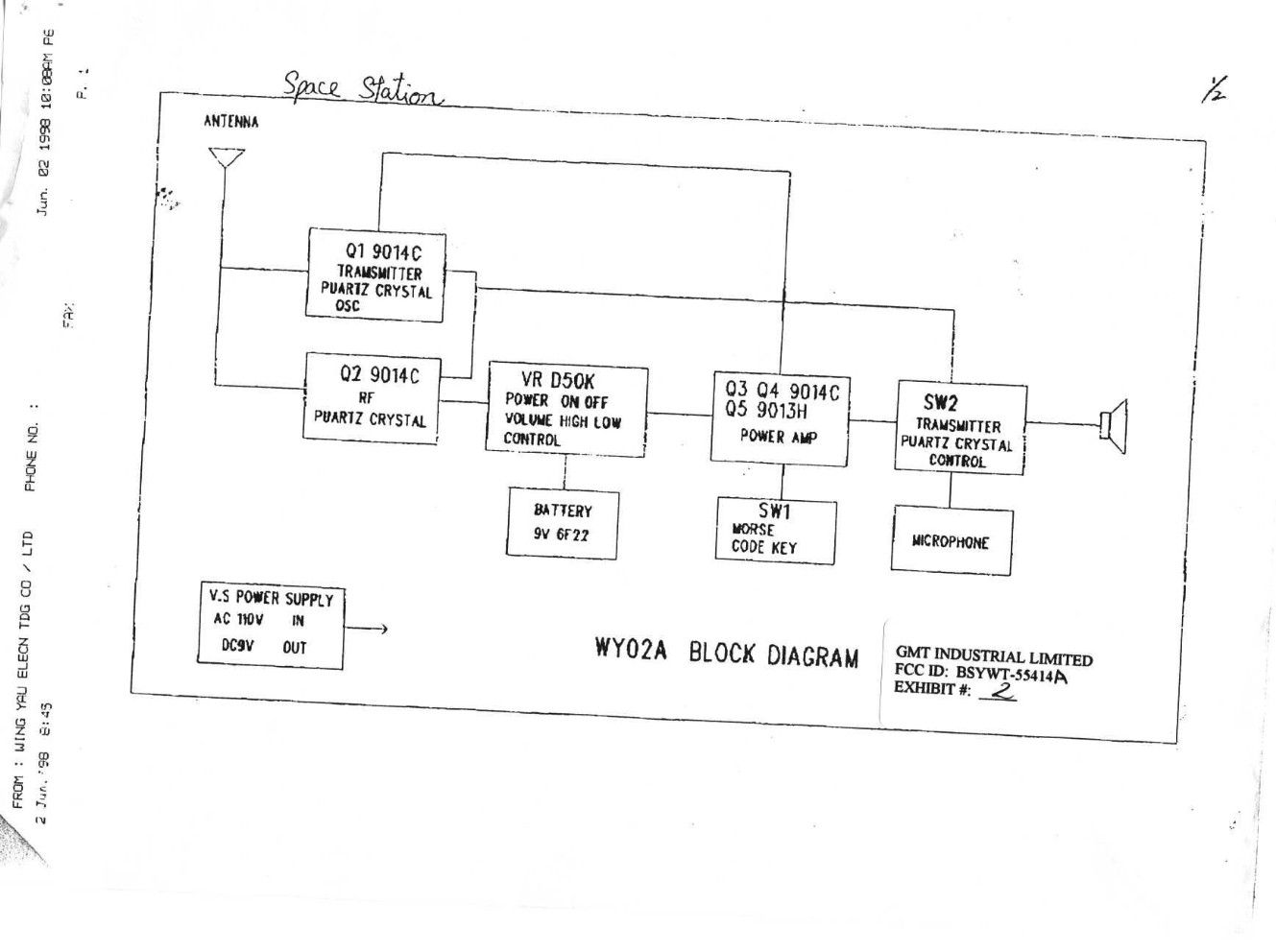

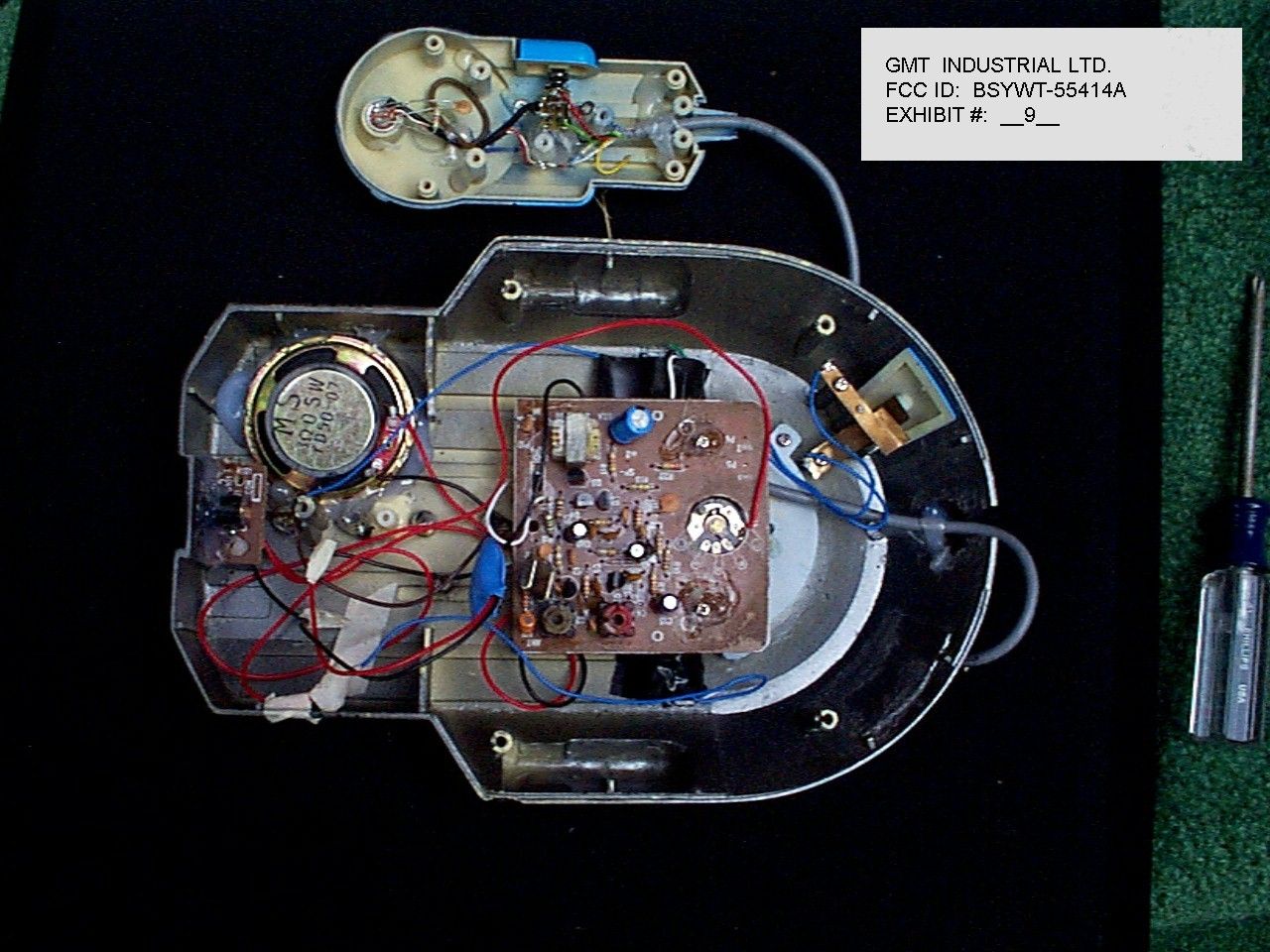

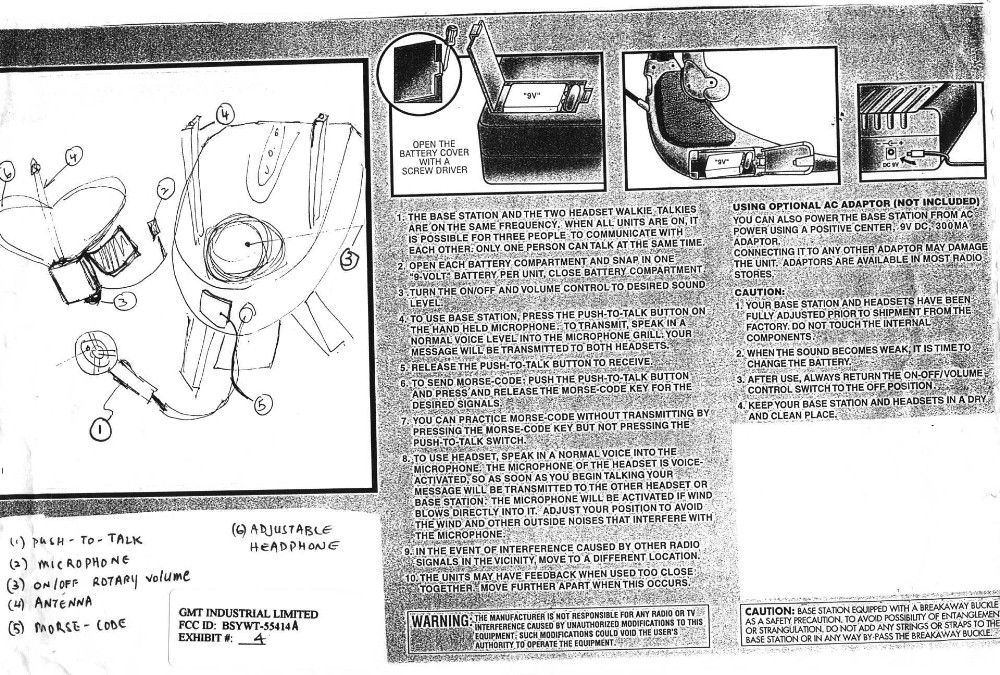

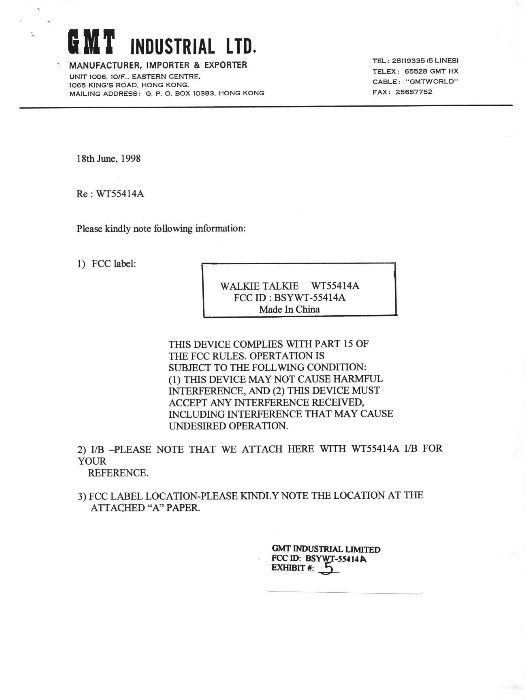

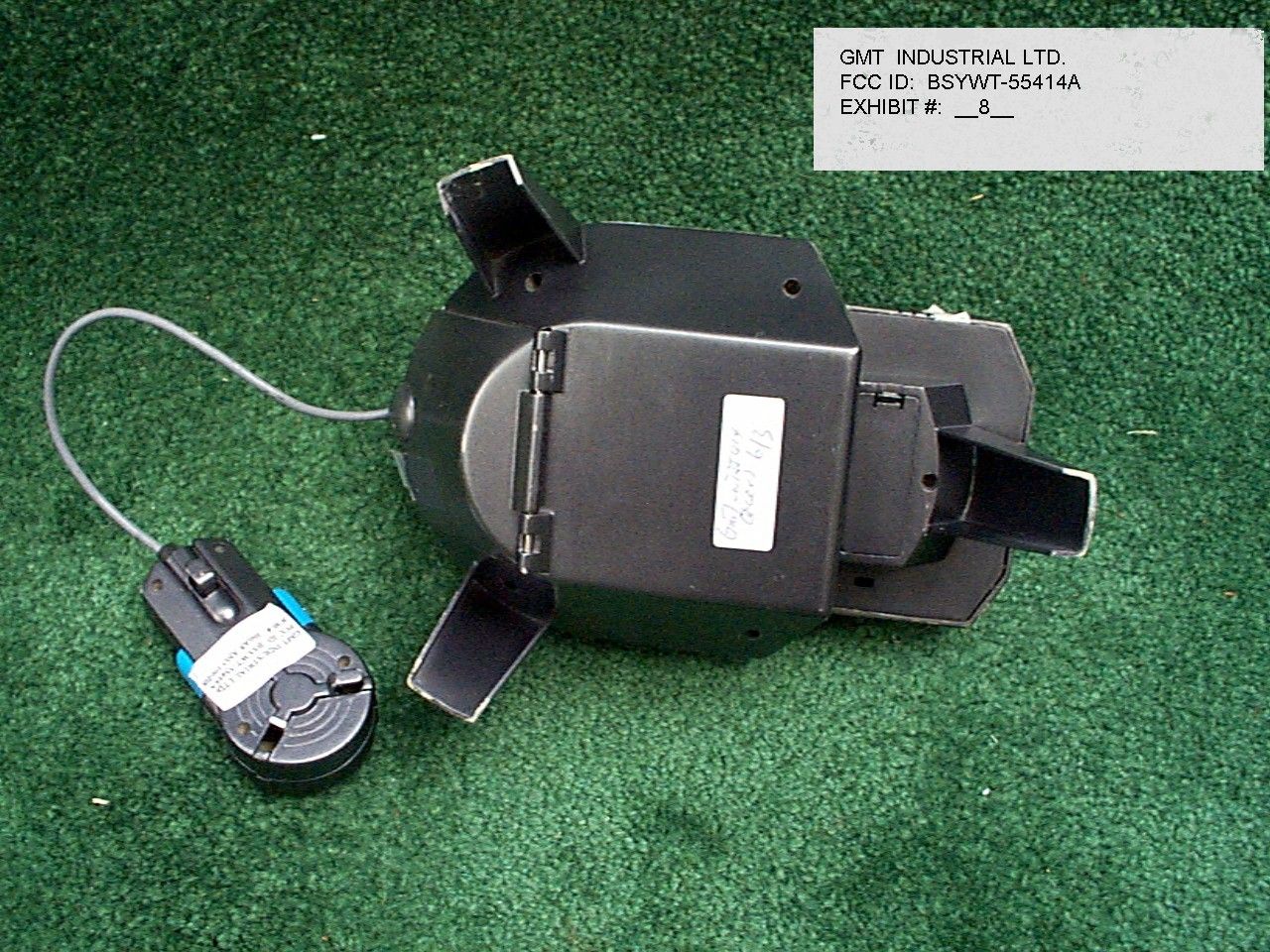

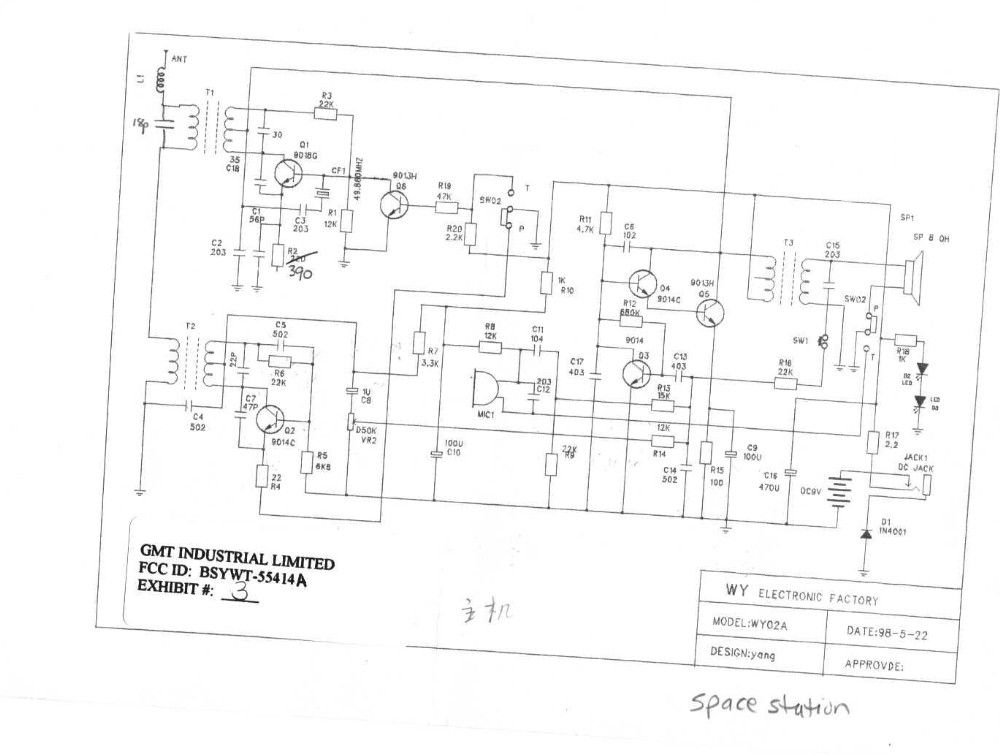

TABLE OF CONTENTS LIST APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A TEST REPORT CONTAINING: PAGE 1-2....TEST PROCEDURE PAGE 3......CIRCUIT DESCRIPTION PAGE 4......RADIATION INTERFERENCE TEST DATA EXHIBITS CONTAINING: EXHIBIT 1............POWER OF ATTORNEY LETTER EXHIBIT 1A...........LETTER CONFIRMING MODIFICATIONS EXHIBIT 2............BLOCK DIAGRAM EXHIBIT 3............SCHEMATIC EXHIBIT 4............INSTRUCTION MANUAL EXHIBIT 5............SAMPLE OF FCC ID LABEL EXHIBIT 6............LOCATON OF FCC ID LABEL EXHIBIT 7............EXTERNAL PHOTO - FRONT SIDE EXHIBIT 8............EXTERNAL PHOTO - BACK SIDE EXHIBIT 9............INTERNAL PHOTO - COMPONENT SIDE EXHIBIT 10...........INTERNAL PHOTO - COPPER SIDE APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A REPORT #: F:\CUS\G\GMT\GMT166H8.RX PAGE: TABLE OF CONTENTS LIST APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A TEST EQUIPMENT LIST 1. Spectrum Analyzer: Hewlett Packard 8566B, with preselector HP 85685A, & Quasi-Peak Adapter HP 8565OA, & HP 8449B OPT H02 Cal. 9/30/97 2. Eaton Biconnical Antenna Model 94455-1 20-200 MHz Serial No. 0997 Cal. 9/17/97 3. Electro-Metric Dipole Kit, 20-1000 MHz, Model TDA 25 cal. 5/15/97 4. Electro-Metric Horn 1-18 GHz, Model RGA-180, Cal. 9/24/97 5. Electro-Metric Antennas Model TDS-25-1, TDS-25-2, 9/3/97 6. Electro-Metric Line Impedance Stabilization Network Model No. EM-7821, Serial No. 101; 100KHz-30MHz 50uH. 9/30/97 7. Electro-Metric Line Impedance Stabilization Network Model No. EM-7820, Serial No. 2682; 10KHz-30MHz 50uH. 9/30/97 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of TIMCO ENGINEERING, INC. RADIATION INTERFERENCE: The test procedure used was ANSI STANDARD C63.4-1992 using a HEWLETT PACKARD spectrum analyzer with a prese- lector. The bandwidth of the spectrum analyzer was 100 kHz with an appropriate sweep speed. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100KHz and the video bandwidth was 300KHz. The ambient temperature of the UUT was 80oC with a humidity of 76%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was estab- lished by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor sup- plied by the antenna manufacturer. The antenna correction factors are stated in terms of dB. The gain of the Preselector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF = FS 33 20 dBuV + 10.36 dB = 30.36 dBuV/m @ 3m POWER LINE CONDUCTED INTERFERENCE: The procedure used was ANSI STAN- DARD C63.4-1992 using a 50uH LISN. Both lines were observed. The bandwidth of the spectrum analyzer was 10kHz with an appro- priate sweep speed. The ambient temperature of the UUT was 80oC with a humidity of 76%. APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A REPORT #: F:\CUS\G\GMT\GMT166H8.RX PAGE #: 1 TEST PROCEDURES CONTINUED APPLICANT: GMT INDUSTRIAL LTD. FCC ID BSYWT-55414A ANSI STANDARD C63.4-1992 10.1.7 MEASUREMENT PROCEDURES: The unit under test was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The table used for radiated measurements is capable of continuous rotation. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSIC63.4-1992 with the EUT 40 cm from the vertical ground wall. APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A REPORT #: F:\CUS\G\GMT\GMT166H8.RX PAGE #: 2 APPLICANT: GMT INDUSTRIAL LTD. FCCID: BSYWT-55414A CIRCUIT DESCRIPTION: In the receive mode the signal comes in on the receive antenna to the super-regenerative detector Q-2, where the audio is detected. From Q-2 the audio goes to the volume resistor R14 to the input of the three(3) stage audio amplification, Q3, Q4 & Q5. Q5 drives the audio output transformer T3 which is connected to the speak- er. ANTENNA AND GROUND CIRCUITRY This unit makes use of a external 5 inch antenna. The antenna is inductively coupled. This unit is powered from a 9.0V battery. No ground connection is provided. The unit relies on the ground tract of the printed circuit board. APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A REPORT #: F:\CUS\G\GMT\GMT166H8.RX PAGE #: 3 APPLICANT: GMT INDUSTRIAL LTD. FCC ID: BSYWT-55414A NAME OF TEST: RADIATION INTERFERENCE RULES PART NUMBER: 15.109 REQUIREMENTS: 30 to 80 MHz: 40.0 dBuV/M @ 3 METERS 88 to 216 MHz: 43.5 dBuV/M 216 to 960 MHz: 46.0 dBuV/M ABOVE 960 MHz: 54.0 dBuV/M TEST RESULTS: A search was made of the spectrum from 30 to 1000 MHz and the measurements indicate that the unit DOES meet the FCC requirements. TEST DATA: TUNED EMISSION METER COAX FIELD FREQ. FREQUENCY READING LOSS A.C.F. STRENGTH MARGIN MHz MHz @ 3m dBuV dB dB dBuV/m@3m dB ANT. 49.86 46.67 10.90 0.25 10.88 22.03 17.97 H 49.86 47.37 10.50 0.25 10.90 21.65 18.35 H 49.86 48.00 12.20 0.25 10.93 23.38 16.63 H 49.86 48.68 9.50 0.25 10.95 20.70 19.30 H 49.86 49.02 9.70 0.25 10.96 20.91 19.09 H 49.86 49.85 12.60 0.25 10.99 23.84 16.16 H 49.86 50.56 11.50 0.80 10.82 23.12 16.88 H 49.86 51.01 8.10 0.80 10.67 19.57 20.43 H 49.86 52.08 10.90 0.80 10.32 22.02 17.98 H 49.86 52.67 8.80 0.80 10.13 19.73 20.27 H 49.86 53.03 7.30 0.80 10.02 18.12 21.88 H SAMPLE CALCULATION: FSdBuV/m = MR(dBuV) + ACFdB. TEST PROCEDURE: ANSI STANDARD C63.4-1992 using a Hewlett Packard Model 8566B spectrum analyzer, a Hewlett Packard Model 85685A Prese- lector, a Hewlett Packard Model 85650A Quasi-Peak adapter, an Elec- tro-Metric Dipole Kit, and an Eaton Model 94455-1 Biconical Antenna. The bandwidth of spectrum analyzer was 100 kHz with an appropriate sweep speed. When an emission was found, the table was rotated to produce…
