BV8BBPBM100700 MHz LTE Wireless Module

Product Manual 14221-6200-6000 Rev. C, Jan/12 Harris ® LTE PBM-100 Band 14 PCI Express Mini Module PBM-102 Band 14/12 PCI Express Mini Module 14221-6200-6000, Rev. C 2 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE - Nov/11 Initial release. A Dec/11 Minor corrections. B Jan/12 Modified sections 2.2.2 and 2.2.3. C Jan/12 Modified Section 3.3. CREDITS Harris and assuredcommunications are registered trademarks of Harris Corporation. All other brand and product names are trademarks, registered trademarks, or service marks of their respective owners. NOTICE! The material contained herein is subject to U.S. export approval. No export or re-export is permitted without written approval from the U.S. Government. Rated: EAR99; in accordance with U.S. Dept. of Commerce regulations 15CFR774, Export Administration Regulations. Information and descriptions contained herein are the property of Harris Corporation. Such information and descriptions may not be copied or reproduced by any means, or disseminated or distributed without the express prior written permission of Harris Corporation, PSPC Business, 221 Jefferson Ridge Parkway, Lynchburg, VA 24501. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual is published by Harris Corporation without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Harris Corporation at any time and without notice. Such changes will be incorporated into new editions o f this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of Harris Corporation. Copyright © 2011, 2012 Harris Corporation. All rights reserved. 14221-6200-6000, Rev. C 3 TABLE OF CONTENTS Section Page 1 INTRODUCTION .......................................................................................................................... 4 1.1 D ESCRIPTION ......................................................................................................................... 4 1.2 S COPE .................................................................................................................................... 4 2 REGULATORY AND SAFETY INFORMATION .................................................................... 5 2.1 REGULATORY APPROVALS ............................................................................................ 5 2.1.1 Transmitter ............................................................................................................... 5 2.1.2 Receiver .................................................................................................................... 5 2.1.3 FCC Compliance ...................................................................................................... 5 2.1.4 Industry Canada ........................................................................................................ 5 2.1.5 Labeling .................................................................................................................... 6 2.2 RF ENERGY EXPOSURE INFORMATION ....................................................................... 6 2.2.1 Maximum Permissible Exposure Limits .................................................................. 6 2.2.2 MPE Calculation for Mobile Device Installation ..................................................... 7 2.2.3 Maximum Allowed Antenna Gain ........................................................................... 7 3 INSTALLATION GUIDELINES ................................................................................................. 8 3.1 I NTRODUCTION ...................................................................................................................... 8 3.2 M OBILE HOST ........................................................................................................................ 8 3.3 P ORTABLE HOST .................................................................................................................... 8 3.4 C OLLOCATED TRANSMITTERS ............................................................................................... 8 4 SPECIFICATIONS ........................................................................................................................ 9 4.1 GENERAL SPECIFICATIONS ............................................................................................ 9 4.2 TRANSMITTER SPECIFICATIONS ................................................................................... 9 4.3 RECEIVER SPECIFICATIONS ........................................................................................... 9 5 CUSTOMER SERVICE .............................................................................................................. 10 5.1 C USTOMER CARE ................................................................................................................. 10 5.2 TECHNICAL ASSISTANCE ...................................................................................................... 10 FIGURES Figure 1-1: PCI Express Mini (PEM) Module ....................................................................................... 4 Figure 2-1: FCC Labeling ...........................................................................................................…

Text truncated - open the document above for the full version.

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com PCTEST TCB/CB Division of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 November 10, 2011 Subject: Agent Authority The following organization is granted authority to act on Harris’ behalf, to file documentation for Harris equipment with FCC ID: BV8BBPBM100, as it applies to an original Grant. PCTEST Engineering Laboratory Inc. Harris certifies that it is not subject to denial of federal benefits, which includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com November 10, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: BV8BBPBM100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Harris Corporation hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby requesting Short-Term Confidentiality for 180 days after Grant issue as outlined in Public Notice DA 04-1705. This provision will give Harris Corporation temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure 4 Schematics SHORT-TERM CONFIDENTIAL 5 External Photos 6 Internal Photos 7 Test-Setup Photos 8 User’s Manual HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Daryl Popowitch Regulatory Manager

HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com December 6, 2011 PCTEST TCB/CB Division of PCTEST Engineering Lab., Inc. 6660-B Dobbin Road Columbia, MD 21045 FCC ID: BV8BBPBM100 IC: 3670A- BBPBM100 Subject: Modular Approval Cover letter. Harris seeks application approval for an original Grant and IC Technical Acceptance Certificate on the VIDA LTE module, a single modular transmitter device. Test reports, Operator manual, parts lists, schematics, block diagrams, tune up procedure, internal/external photos, label photo, and operational descriptions are included as exhibits. In accordance with KDB 996369 and FCC CFR 47 Part 15 section 15.212 the following information is provided: 1. The radio elements of the modular transmitter must have their own shielding. Response: The radio portion of this module has its own shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Response: The modulation/data inputs are buffered. 3. The modular transmitter must have its own power supply regulation. Response: The transmitter module has its own dedicated power supply regulation. 4. The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Response: Not applicable. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Response: Test in a stand-alone configuration and found compliant. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Response: The module is equipped with a permanently affixed FCC ID label. 7. The modular transmitter must comply with any specific rules or operating requirements that HARRIS CORPORATION 221 Jefferson Ridge Parkway Lynchburg, VA 24501 www.harris.com ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Response: Complies with rules and requirements that apply to a complete transmitter. Detailed instructions for maintaining compliance are given in the User’s Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Response: The final configuration modular transmitter is compliant with applicable RF exposure requirements. The module will only be integrated into other authorized devices. RF Exposure is addressed in the RF exposure exhibition. Thank you for your attention and timely review. Sincerely, Daryl Popowitch Regulatory Manager

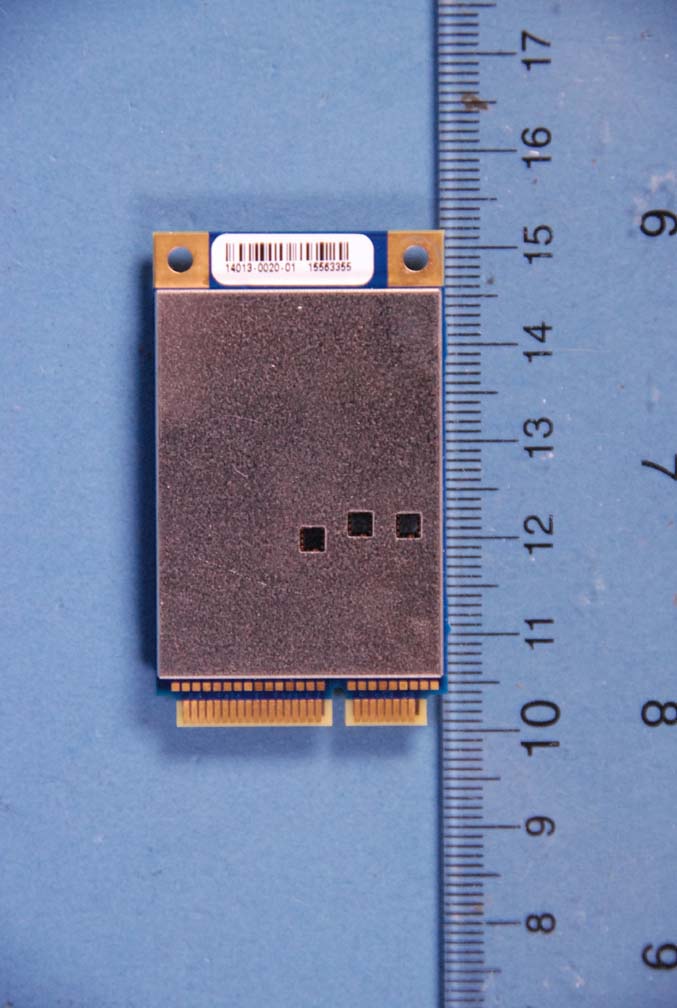

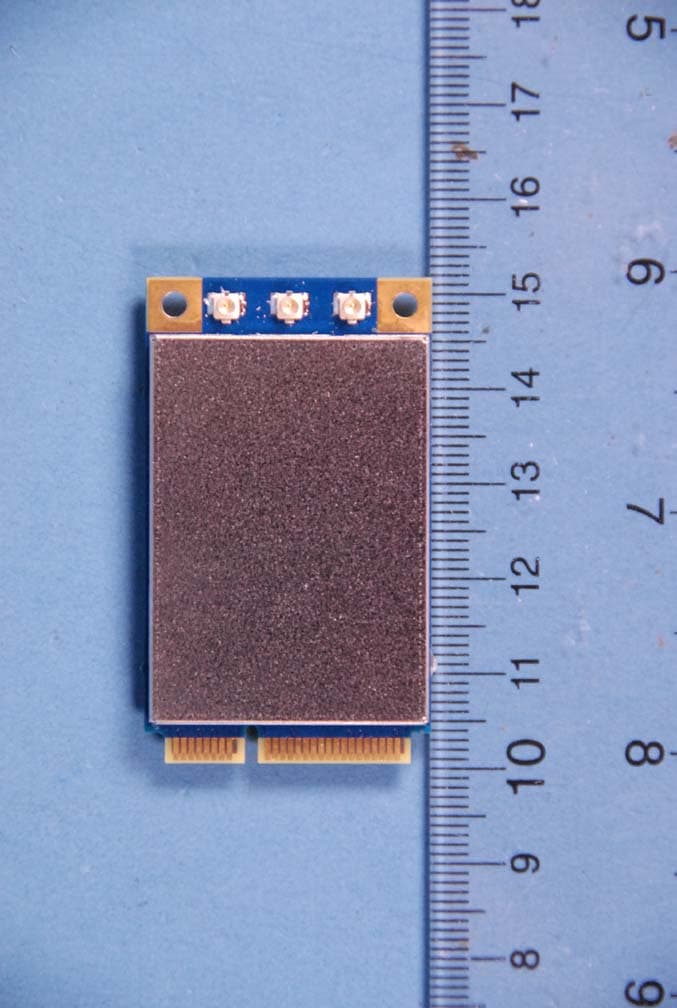

Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 1 of 8 © 2011 PCTEST Engineering Laboratory Inc. EUT PHOTOGRAPHS Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 2 of 8 © 2011 PCTEST Engineering Laboratory Inc. Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 3 of 8 © 2011 PCTEST Engineering Laboratory Inc.

Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 4 of 8 © 2011 PCTEST Engineering Laboratory Inc. Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 5 of 8 © 2011 PCTEST Engineering Laboratory Inc. Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 6 of 8 © 2011 PCTEST Engineering Laboratory Inc. Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 7 of 8 © 2011 PCTEST Engineering Laboratory Inc. Harris FCC ID: BV8BBPBM100 Model: PBM-100 External Photos EUT Type: Wireless Module Page 8 of 8 © 2011 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: BV8BBPBM100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271889-R1.BV8 October 28, 2011 Wireless Module Page 1 of 7 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Harris Corporation October 28, 2011 150 Apollo Drive Test Site/Location: Chelmsford, MA 01824 PCTEST Lab, Columbia, MD, USA USA Test Report Serial No.: 0Y1110271889-R1.BV8 FCC ID: BV8BBPBM100 APPLICANT: Harris Corporation EUT Type: Wireless Module FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: FCC Class B Digital Device Test Procedure: OET Bulletin 65 * This revised test report (S/N: 0Y1110271889-R1.BV8) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report (S/N: 0Y1110271889.BV8) and dispose of it accordingly. The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied Federal benefits that includes the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: BV8BBPBM100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271889-R1.BV8 October 28, 2011 Wireless Module Page 2 of 7 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: BV8BBPBM100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271889-R1.BV8 October 28, 2011 Wireless Module Page 3 of 7 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Harris Corporation to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Harris Model: PBM-100 is a Wireless Module containing Band 12 and Band 14 LTE. For this MPE evaluation the device is set to transmit from the main antenna of the transmitter and the RF exposure is evaluated. The antenna is not permanently attached. EUT: Model: PBM-100 Grantee: Harris Corporation FCC ID: BV8BBPBM100 Reviewed by: FCC ID: BV8BBPBM100 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271889-R1.BV8 October 28, 2011 Wireless Module Page 4 of 7 © 2012 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained …

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BV8BBPBM100 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271888-R4.BV8 October 24-28, 2011 Wireless Module Page 1 of 49 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: Harris Corporation October 24-28, 2011 150 Apollo Drive Test Site/Location: Chelmsford, MA 01824 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1110271888-R4.BV8 FCC ID: BV8BBPBM100 APPLICANT: HARRIS CORPORATION Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2; §27 EUT Type: Wireless Module Model(s): PBM-100 Test Device Serial No.: identical prototype [S/N: 15563355] Max. Power (W) Max. Power (dBm) Max ERP (dBm) Max ERP (Watts) LTE Band 1254M52G7D700.5 - 713.5QPSK0.25624.0830.651.16 LTE Band 1254M53W7D700.5 - 713.516-QAM0.26924.3030.871.22 LTE Band 12108M94G7D703 - 711QPSK0.25424.0430.611.15 LTE Band 12108M95W7D703 - 71116-QAM0.24923.9630.531.13 LTE Band 1454M53G7D790.5QPSK0.21523.3330.421.10 LTE Band 1454M53W7D790.516-QAM0.22223.4630.551.14 ERPConducted Power Mode BW (MHz) Emission Designator Tx Frequency (MHz) Modulation * This revised test report (S/N: 0Y1110271888-R4.BV8) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report (S/N: 0Y1110271888-R3.BV8) and dispose of it accordingly. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 27. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 27 LTE Reviewed by: FCC ID: BV8BBPBM100 FCC Pt. 27 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271888-R4.BV8 October 24-28, 2011 Wireless Module Page 2 of 49 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EUT CAPABILITIES............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH AND EMISSION LIMITS ............................................................................ 6 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 6 3.4 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.5 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 CONDUCTED OUTPUT POWER ...................................................................................................... 11 6.3 EFFECTIVE RADIATED POWER...................................................................................................... 13 6.4 RADIATED SPURIOUS EMISSIONS ................................................................................................ 14 6.5 RADIATED SPURIOUS EMISSIONS IN 1559 – 1610MHZ BAND .................................................... 21 6.6 FREQUENCY STABILITY.....................................................................................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: BV8BBPBM100 FCC Pt. 90 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271887-R4.BV8 Oct. 24, 2011 – Jan. 16, 2012Wireless Module Page 1 of 25 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 Applicant Name: Date of Testing: Harris Corporation Oct. 24, 2011 – Jan. 16, 2012 150 Apollo Drive Test Site/Location: Chelmsford, MA 01824 PCTEST Lab., Columbia, MD, USA USA Test Report Serial No.: 0Y1110271887-R4.BV8 FCC ID: BV8BBPBM100 APPLICANT: HARRIS CORPORATION Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2; §90 EUT Type: Wireless Module Model(s): PBM-100 Test Device Serial No.: identical prototype [S/N: 15563355] Max. Power (W) Max. Power (dBm) Max ERP (dBm) Max ERP (Watts) LTE Band 1454M52G7D795.5QPSK0.26424.21 31.31.35 LTE Band 1454M52W7D795.516-QAM0.25424.04 31.131.3 ERPConducted Power Mode BW (MHz) Emission Designator Tx Frequency (MHz) Modulation * This revised test report (S/N: 0Y1110271887-R4.BV8) supersedes and replaces the previously issued test report on the same subject EUT for the same type of testing as indicated. Please discard or destroy the previously issued test report (S/N: 0Y1110271887-R3.BV8) and dispose of it accordingly. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted for Part 90. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 90 Reviewed by: FCC ID: BV8BBPBM100 FCC Pt. 90 LTE MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110271887-R4.BV8 Oct. 24, 2011 – Jan. 16, 2012Wireless Module Page 2 of 25 © 2012 PCTEST Engineering Laboratory, Inc. REV 1.7AWSC 12/10/09 TABLE OF CONTENTS FCC PART 90 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 SCOPE ................................................................................................................................................ 4 1.2 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EUT CAPABILITIES............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.4 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 MEASUREMENT PROCEDURE......................................................................................................... 6 3.2 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.3 EMISSIONS MASK B .......................................................................................................................... 6 3.4 793-798MHZ FREQUENCY BAND......................................................................................................7 3.5 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.6 RADIATED POWER AND RADIATED SPURIOUS EMISSIONS ........................................................ 7 3.7 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 8 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................9 5.0 SAMPLE CALCULATIONS ............................................................................................................10 6.0 TEST RESULTS ..........................................................................…
