BV8M7200VTACM7200 V-TAC 700/800 MHz Mobile Radio

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 119 of 125 Appendix I: Manuals Please refer to the following pages for the operator and installation manuals. Operator’s Manual MM-011553-001 Feb/07 M7200 Series Digital Mobile Radio with Vehicular Tactical Network (V-TAC) MM-011553-001 MANUAL REVISION HISTORY REV DATE REASON FOR CHANGE - Feb/07 Initial Release. M/A-COM Technical Publications would particularly appreciate feedback on any errors found in this document and suggestions on how the document could be improved. Submit your comments and suggestions to: Wireless Systems Business Unit or fax your comments to: 1-434-455-6851 M/A-COM, Inc. Technical Publications or e-mail us at: [email protected] 221 Jefferson Ridge Parkway Lynchburg, VA 24501 CREDITS This device is made under license under one or more of the following US patents: 4,590,473; 4,636,791; 5,148,482; 5,185,796; 5,271,017; 5,377,229; 4,716,407; 4,972,460; 5,502,767; 5,146,497; 5,164,986; 5,185,795. The voice coding technology embodied in this product is protected by intellectual property rights including patent rights, copyrights, and trade secrets of Digital Voice Systems, Inc. The user of this technology is explicitly prohibited from attempting to decompile, reverse engineer, or disassemble the Object Code, or in any other way convert the Object Code into human-readable form. EDACS and OpenSky are registered trademarks of M/A-COM, Inc. ProVoice is a trademark of M/A-COM All other brand and product names are trademarks, registered trademarks or service marks of their respective holders. NOTICE! This product conforms to the European Union WEEE Directive 2002/96/EC. Do not dispose of this product in a public landfill. Take it to a recycling center at the end of its life. This manual covers M/A-COM products manufactured and sold by M/A-COM, Inc. Repairs to this equipment should be made only by an authorized service technician or facility designated by the supplier. Any repairs, alterations or substitutions of recommended parts made by the user to this equipment not approved by the manufacturer could void the user's authority to operate the equipment in addition to the manufacturer's warranty. This manual is published by M/A-COM, Inc., without any warranty. Improvements and changes to this manual necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by M/A-COM, Inc., at any time and without notice. Such changes will be incorporated into new editions of this manual. No part of this manual may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose, without the express written permission of M/A-COM, Inc. Copyright © 2007, M/A-COM, Inc. All rights reserved. 2 MM-011553-001 TABLE OF CONTENTS Page 1 SAFETY SYMBOL CONVENTION.................................................................................................... 6 2 RF ENERGY EXPOSURE INFORMATION ..................................................................................... 7 2.1 RF ENERGY EXPOSURE AWARENESS, CONTROL INFORMATION, AND OPERATION INSTRUCTIONS FOR FCC OCCUPATIONAL USE REQUIREMENTS ................................ 7 2.1.1 Federal Communications Commission Regulations........................................................ 7 2.2 COMPLIANCE WITH RF EXPOSURE STANDARDS ............................................................. 8 2.2.1 Mobile Antennas.............................................................................................................. 9 2.2.2 Approved Accessories ..................................................................................................... 9 2.2.3 Contact Information......................................................................................................... 9 3 OPERATION SAFETY RECOMMENDATIONS............................................................................ 10 3.1 TRANSMITTER HAZARDS ..................................................................................................... 10 3.2 SAFE DRIVING RECOMMENDATIONS................................................................................ 10 4 OPERATING RULES AND REGULATIONS.................................................................................. 11 4.1 OPERATING TIPS ..................................................................................................................... 11 5 PRODUCT DESCRIPTION................................................................................................................ 12 5.1 REMOTE CONTROL HEAD OPERATION ............................................................................. 12 5.2 INTERCOM OPERATION ........................................................................................................ 13 5.3 V-TAC OPERATION .................................................................................................................13 6 OPENSKY OPERATION.................................................................................................................... 14 6.1 CH721 FRONT PANEL COMPONENTS ................................................................................. 14 6.2 POWER UP AND VOLUME CONTROL ................................................................................. 16 6.2.1 Power Up .......................................................................................................................16 6.2.2 Volume Control ............................................................................................................. 16 6.3 SELF-TEST...............................................................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 110 of 125 Appendix B: Confidentiality Request Please refer to the following page. M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Telephone: 434.455.9527 FAX: 434.455.6851 [email protected] www.macom.com February 15, 2007 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: BV8M7200VTAC Original submission CONFIDENTIALITY M/A-COM, Inc. wishes to submit this confidentiality letter for the record on FCC ID: BV8M7200VTAC, M7200 VTAC mobile radio equipment. M/A-COM, Inc. is requesting that schematic diagrams, parts lists, block diagrams, tune up procedure, and operational descriptions, including operational attestations, for this original submission not be made routinely available for public inspection. M/A- COM, Inc. considers the information in these exhibits to be classified as trade secrets, pursuant to 47 CFR Section 0.457 and Section 0.459 of the FCC rules. Thank you for your attention to this matter. Daryl Popowitch Regulatory Manager Engineering Project Manager M/A-COM, Inc. – Lynchburg, VA

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 109 of 125 Appendix A: Agency Authorization Please refer to the following page. M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Telephone: 434.455.9527 FAX: 434.455.6851 [email protected] www.macom.com February 15, 2007 To Whom It May Concern: The following organization is granted authority to act on M/A-COM’s behalf, to file technical reports, measurements, and forms for M/A-COM equipment with FCC ID: BV8M7200VTAC, M7200 VTAC mobile radio, as it applies to a new EA Grant. Ms. Kathy Grzovic Rhein Tech Laboratories, Inc. 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C.862. Further, no party, as defined in 47 CFR 1.2002(b), to the application is subject to denial of federal benefits, that includes FCC benefits. Sincerely, Daryl Popowitch Regulatory Manager, Engineering Project Manager M/A-COM, Inc. – Lynchburg, VA

M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Telephone: 434.455.9527 FAX: 434.455.6851 [email protected] www.macom.com February 15, 2007 American TCB, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 Subject: FCC ID: BV8M7200VTAC IC: 3670A-M72VTAC Original submission M/A-COM seeks Equipment Authorization Grant for M7200 VTAC mobile radio equipment. Exhibits include photographs, schematics, parts list, block diagram, tune up procedure, FCC Part 90 and 15 compliance verification reports, antenna data sheets, and measurement data. An Operator’s and mobile radio installation manual is included in the exhibit submission as well as an attestation addressing AFC operation as required in the 700 MHz band rules. Modes of operation for this radio are both digital and analog, with trunked and conventional capability. Channelization assignment is provided at the time of factory configuration and over-the-air assignment. NPSPAC operation and talk around capability are included as well. This radio product operates in three methods: mobile only to the system at 1 - 10W; scene of incident repeater at .25-3W; extended system coverage at 1-13W. Confidentiality letter and Rhein Tech Laboratories, Inc. agent authorization letter to act on M/A-COM’s behalf for this original application, have been provided as exhibits also. Thank you for your kind consideration and timely review of this new product entry to the M/A-COM OpenSky Public Safety LMR product family. Sincerely, Daryl Popowitch Regulatory Manager, Engineering Project Manager M/A-COM, Inc. – Lynchburg, VA

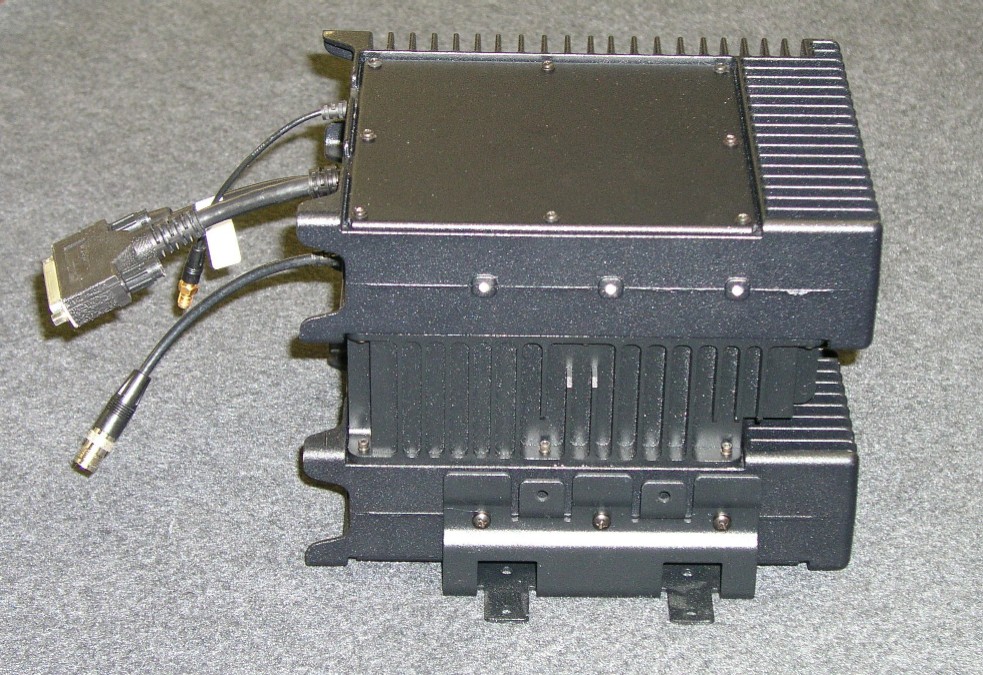

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 External Photographs Photograph 1: Front Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 2: Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 3: Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 4: Left Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 5: Right Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 6: Bottom

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 116 of 125 Appendix H: Labels and Location Photograph 1: FCC/IC Label Sample Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 117 of 125 Photograph 2: RF Safety Label and Part 15 Label Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 118 of 125 RF Safety and Pt. 15 Label ID Label Photograph 3: ID and RF Safety/Part 15 Label Placement

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Internal Photographs Photograph 1: VRM + VRB Detached Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 2: VRB and Combiner Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 3: VRB Detached Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 4: VRB (VTAC Bottom) Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 5: VRB RF XCVR Board Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 6: VRB RF XCVR Board Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 7: VRB Digital Processing Kernel Board Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 8: VRB Digital Processing Kernel Board Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 9: VRM (VTAC Top) Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 10: VRM RF XCVR Board Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 11: VRM RF XCVR Board Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 12: VRM Digital Processing Kernel Board Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 13: VRM Digital Processing Kernel Board Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 14: RF Switch Combiner Board + Triplex Filter Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 15: RF Switch Combiner Board + Triplex Filter Bottom Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 16: RF Switch Combiner Board Top Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101 Photograph 17: RF Switch Combiner Board Bottom

Engineering and Testing for EMC and Safety Compliance Accredited under NVLAP Lab Code 200061-0 RF Maximum Permissible Exposure (MPE) Assessment in Controlled and Uncontrolled Environments for M/A-COM, Inc. Model: M7200 V-TAC (Vehicular Tactical Network) 700/800 MHz Mobile Radio FCC ID: BV8M7200VTAC IC: 3670A-M72VTAC Prepared For M/A-Com, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA, 24501 USA Phone: 434-455-9527, Fax: 434-455-6851 Contact: Daryl Popowitch E-mail: [email protected] February 27, 2007 Report Number: 2007101-004 Galina Yushina February 27, 2007 Test Engineer Signature Date Richard B. McMurray February 27, 2007 Supervising Engineer Signature Date The test results reported in this document relate only to the items that were tested. No part of this report may be reproduced, except in full, without written approval of M/A-Com, Inc. and Rhein Tech Laboratories, Inc. Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway, Suite 1400 Model: M7200 V-TAC Herndon, VA 20170 Report Type: MPE Assessment www.rheintech.com Report: 2007101-004 Table of Contents 1 MPE Measurements and Applicable Regulations............................................................................... 3 2 Identification of the EUT......................................................................................................................... 4 3 Modifications........................................................................................................................................... 5 4 Test Laboratory....................................................................................................................................... 5 5 Test Duration........................................................................................................................................... 8 6 Test Equipment, Accessories and Test Setup..................................................................................... 8 7 Justification of Transmitting Modes and Frequencies..................................................................... 14 8 MPE Limits for the EUT........................................................................................................................ 15 9 Evaluating a Safe Distance for the EUT.............................................................................................. 16 10 Standard Test Conditions and Engineering Practices.................................................................. 17 11 Measurement Procedure.................................................................................................................. 17 12 Test Results....................................................................................................................................... 18 13 Conclusion......................................................................................................................................... 25 Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway, Suite 1400 Model: M7200 V-TAC Herndon, VA 20170 Report Type: MPE Assessment www.rheintech.com Report: 2007101-004 Page 3 of 25 1 MPE Measurements and Applicable Regulations This test report presents the results of Maximum Permissible Exposure (MPE) 1 measurements performed on the M/A-Com, Inc. Model M7200 V-TAC 700/800 MHz Mobile Radio, operating in the frequency ranges 764-806 MHz and 806-869 MHz. The tests were performed in accordance with TCB training material and the following parts of the FCC Rules and Regulations and Industry Canada Radio Standard Specification: • FCC OET Bulletin 65, Edition 97-01: “Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields” • FCC Supplement C to OET Bulletin 65, Edition 01-01: “Additional Information for Evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions.” • Subpart I, Part 1 of 47 CFR FCC Rules and Regulations, Edition 10-1-06: “Procedures Implementing the National Environmental Policy Act of 1969.” Specifically, Paragraph 1.1310: “Radiofrequency Radiation Exposure Limits.” • Subpart J, Part 2 of 47 CFR FCC Rules and Regulations, Edition 10-1-06: “Equipment Authorization Procedures.” Specifically, Paragraph 2.1091: “Radiofrequency Radiation Exposure Evaluation: Mobile Devices.” • RSS-102, Issue 2, November 2005: “Spectrum Management and Telecommunications Radio Standards Specification. Radiofrequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands.).” 1 By definition, maximum permissible exposure (MPE) is rms or peak electric (or magnetic) field strength, or the plane-wave equivalent power densities associated with these fields to which a person may be exposed without harmful effect and with an acceptable safety factor. Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway, Suite 1400 Model: M7200 V-TAC Herndon, VA 20170 Report Type: MPE Assessment www.rheintech.com Report: 2007101-004 Page 4 of 25 2 Identification of the EUT 2 The EUT is a system comprised of two transceivers, one of which operates in normal 700/800 MHz mobile bands, the other in standard 700/800 MHz base station bands, one roof-mount RF antenna and base, and a control unit. The antenna base has a RF cable for connecting the EUT. The GPS RX antenna base has two cables: a RF cable and a GPS cable. General information about the EUT is shown below. Manufacturer’s Name M/A-COM, Inc. Manufacturer’s Address 221 Jefferson Ridge Parkway Lynchburg, VA 24501, USA Device Type Mobile Radio with Vehicle Rooftop Antenna EUT Model M7200 V-TAC Model and Serial Numbers of Radios M7200 V-TAC, A40078000001 and A40075000002 Model Number/ Serial Number of the Control Head MACDOS0003/A4000A16FF8A EUT FCC ID BV8M7200VTAC EUT IC ID 3670A-M72VTAC Operating Frequency Ranges 764-806 MHz and 806-869 MHz RF Max Power 13 Watts TX Duty Cycle 100% Roofmount Antennas Manufacture…

Text truncated - open the document above for the full version.

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway Suite 1400 Herndon, VA 20170 Ph: 703-689-0368 Fax: 703-689-2056 T T y y p p e e C C e e r r t t i i f f i i c c a a t t i i o o n n R R e e p p o o r r t t M/A-COM, Inc. 221 Jefferson Ridge Parkway Lynchburg, VA 24501 Daryl Popowitch Phone: (434) 455-9527 E-Mail: [email protected] MODEL: M7200 V-TAC (Vehicular Tactical Network) 700/800 MHz Mobile Radio FCC ID: BV8M7200VTAC IC: 3670A-M72VTAC March 1, 2007 Standards Referenced for This Report Part 2: 2006 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations Part 15: 2006 §15.109: Radiated Emissions Limits Part 90: 2006 Private Land Mobile Radio Services ANSI TIA-603-C-2004 Land Mobile FM or PM Communications Equipment Measurement and Performance Standards ANSI/TIA/EIA – 102.CAAA; 2002 Digital C4FM/CQPSK Transceiver Measurement Methods RSS-119 Issue 7 Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz Report Prepared By Test Engineer: Daniel Biggs Document Number: 2007101/QRTL06-447 This report may not be reproduced without the full written approval of Rhein Tech Laboratories, Inc. Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway Suite 1400 Herndon, VA 20170 Ph: 703-689-0368 Fax: 703-689-2056 Frequency Range (MHz) Output Power (W) Frequency Tolerance (ppm) Mode Emission Designator 806-824 10 1.5 P25 Ph 1 Trunked/Conventional 8K4F1D 806-824 10 1.5 P25 Ph 1 Trunked/Conventional 8K4F1E 851-869 10 1.5 P25 T/A 8K4F1D 851-869 10 1.5 P25 T/A 8K4F1E 851-869 3 1.5 P25 Ph 1 Trunked/Conventional 8K4F1D 851-869 3 1.5 P25 Ph 1 Trunked/Conventional 8K4F1E 806-824 10 1.5 OTP SMR Trunked 12K8F9W 806-824 10 1.5 OTP NPSPAC Trunked 12K1F9W 851-869 3 1.5 OTP SMR Trunked 12K8F9W 851-869 3 1.5 OTP NPSPAC Trunked 12K1F9W 806-824 10 1.5 Analog FM SMR Trunked/Conventional 16K0F3E 806-824 10 1.5 Analog FM NPSPAC Trunked/Conventional 14K0F3E 851-869 10 1.5 Analog FM T/A 16K0F3E 851-869 10 1.5 Analog FM T/A 14K0F3E 806-824 10 1.5 EDACS SMR Trunked/Conventional 14K2F1D 806-824 10 1.5 EDACS SMR Trunked/Conventional 14K2F1E 806-824 10 1.5 EDACS NPSPAC Trunked/Conventional 11K9F1D 806-824 10 1.5 EDACS NPSPAC Trunked/Conventional 11K9F1E 851-869 10 1.5 EDACS SMR T/A 14K2F1D 851-869 10 1.5 EDACS SMR T/A 14K2F1E 851-869 10 1.5 EDACS NPSPAC T/A 11K9F1D 851-869 10 1.5 EDACS NPSPAC T/A 11K9F1E 764-767, 773-776 10 0.04 P25 Ph 1T/A 8K4F1D Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway Suite 1400 Herndon, VA 20170 Ph: 703-689-0368 Fax: 703-689-2056 764-767, 773-776 10 0.04 P25 Ph 1T/A 8K4F1E 764-767, 773-776 3 0.04 P25 Ph 1 Trunked/Conventional 8K4F1D 764-767, 773-776 3 0.04 P25 Ph 1 Trunked/Conventional 8K4F1E 794-797, 803-806 10 0.04 P25 Ph 1 Trunked/Conventional 8K4F1D 794-797, 803-806 10 0.04 P25 Ph 1 Trunked/Conventional 8K4F1E 794-797, 803-806 10 0.04 OTP Trunked 12K1F9W 764-767, 773-776 3 0.04 OTP Trunked 12K1F9W 764-767, 773-776 10 0.04 Analog FM (12.5 kHz spaced) T/A 11K0F3E 794-797, 803-806 10 0.04 Analog FM (12.5 kHz spaced) Trunked/Conventional 11K0F3E *Power shown is product rated power. Maximum conducted power as shown in test report, is either 12.8 W, 10.6 W or 3.1 W; operational mode dependent. For those modes shown as 3 W, power is continuously variable from .25W to 3 W. For those modes shown as 10 W, power is continuously variable from 1 W to 10W. Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 2 of 125 Table of Contents 1 General Information ................................................................................................................................................... 7 1.1 Test Facility .............................................................................................................................................................................7 1.2 Related Submittal(s)/Grant(s)..................................................................................................................................................7 1.3 Product Description .................................................................................................................................................................8 2 Tested System Details............................................................................................................................................... 9 3 FCC Rules and Regulations Part 2 §2.1033(C)(8) Voltages and Currents Through The Final Amplifying Stage .... 10 4 FCC Rules and Regulations Part 2 §2.1046 (a): RF Power Output: Conducted; RSS-119 §6.2: Output Power Test ................................................................................................................................................................................ 11 4.1 Test Procedure ......................................................................................................................................................................11 4.2 Test Data ...............................................................................................................................................................................11 5 FCC Rules and Regulations Part 2 §2.1051: Spurious Emissions at Antenna Terminals; RSS-119 §6.3: Unwanted Emissons.......................................................................................................................................................................... 14 i 5.1 Test Procedure ......................................................................................................................................................................14 5.2 Test Data .....................................................................................................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: M/A-COM, Inc. 360 Herndon Parkway Model: M7200 V-TAC Suite 1400 Standards: FCC Part 90/IC RSS-119 Herndon, VA 20170 IDs: BV8M7200VTAC/3670A-M72VTAC http://www.rheintech.com Report #: 2007101-001 14 of 125 5 FCC Rules and Regulations Part 2 §2.1051: Spurious Emissions at Antenna Terminals; RSS-119 §6.3: Unwanted Emissions 5.1 Test Procedure ANSI TIA-603-C-2004, Section 2.2.13. The transmitter was interfaced with a spectrum analyzer through an appropriate 50 ohm attenuator and a notch filter. The transmitter was operated at maximum power. Attenuator and cable losses were accounted for. Device with digital modulation: Modulated to its maximum extent using a pseudo random data sequence – 9600 bps. The EU…
