BYM1409Wireless Beltpack

User Guide FreeSpeakEdge™ User Guide Part Number: 399G304 Rev A Date: April 22, 2020 FreeSpeak Edge | User Guide Document reference FreeSpeak Edge™ User Guide 399G304 Rev A Legal disclaimers Copyright © 2020 HME Clear-Com Ltd All rights reserved Clear-Com, the Clear-Com logo, and Clear-Com Concert are trademarks or registered trademarks of HM Electronics, Inc. The software described in this document is furnished under a license agreement and may be used only in accordance with the terms of the agreement. The product described in this document is distributed under licenses restricting its use, copying, distribution, and decompilation / reverse engineering.No part of this document may be reproduced in any form by any means without prior written authorization of Clear-Com, an HME Company. Clear-Com Offices are located in California, USA; Cambridge, UK; Dubai, UAE; Montreal, Canada; and Beijing, China. Specific addresses and contact information can be found on Clear- Com’s corporate website: www.clearcom.com Clear-Com contacts: Americas and Asia-Pacific Headquarters California, United States Tel: +1 510 337 6600 Email: [email protected] Europe, Middle East, and Africa Headquarters Cambridge, United Kingdom Tel: +44 1223 815000 Email: [email protected] China Office Beijing Representative Office Beijing, P.R. China Tel: +8610 65811360/65815577 Page 2 FreeSpeak Edge | User Guide Table ofcontents 1Important Safetyinstructions6 1.1 Safetysymbols7 2Introduction to FreeSpeakEdge™8 2.1 FreeSpeakEdge5 GHz8 2.2 Systemcapacity9 3InstallingFreeSpeakEdge10 3.1 InstallingtheFreeSpeakEdgetransceiver10 3.2 Clear-Comcablerecommendations12 3.3 Daisy-chaintransceivers13 3.4 InstallingandremovinganE-IPA-HX card14 3.5 AddinganE-IPA-HX cardto thesoftware 14 3.6 ConfiguringtheE-IPA-HX cardforFreeSpeakEdge15 3.7 BeltpackroamingbetweenE-IPA-HX cards16 3.8 ConnectingtheFreeSpeakEdgetransceivers to a matrix17 3.9 Addingtransceivers to thematrix21 3.10 Beltpackroles27 3.11 Registeringthebeltpackto a matrix29 3.12 Connectthebeltpacks31 3.13 Radio Frequency(RF) channelselectionandpowersettings31 3.14 De-registerbeltpacks froma system32 4Sitesurveyfeatures34 4.1 Transceiverstandalonemode34 4.2 LocalRF scanusinga beltpack35 5RF channel selection 5GHz37 5.1 Radio Frequency(RF) channelselectionandpowersettings 39 5.2 Channelselection40 5.3 Channelre-use41 5.4 UsingDynamicFrequencySelection(DFS) channels43 5.5 RadarscanninginDFSchannels44 5.6 Transceiver-excludedchannels45 5.7 Wireless RegulatoryRegion(WRR)46 5.8 ChangeRF channels ontheEdgetransceiver47 6OperatingtheEdgebeltpack 49 6.1 Topcontrols anddisplay 49 Page 3 FreeSpeak Edge | User Guide 6.2 Frontcontrols50 6.3 Beltpackbottomconnectors50 6.4 Beltpackbatteries andpower50 6.5 Menumode52 6.6 Use/persistlocalsettings (beltpacks)52 6.7 Edgebeltpackmenuaccess53 6.8 FreeSpeakEdgebeltpackmenus55 7OperatingtheEdgetransceiver70 7.1 IPrating(ProtectionMarking)70 7.2 FreeSpeakEdgetransceiverconnectorpanel71 7.3 Poweringthetransceiver71 7.4 Edgetransceiverstatus LEDs72 7.5 Resetthetransceiverto default75 7.6 Portsecuritysettings75 7.7 Networkandsynchronization76 7.8 Generalnetworkandswitchingrules76 7.9 Spareparts77 8UpgradingFreeSpeakEdge 78 8.1 UpgradingFreeSpeakEdgetransceivers 78 8.2 UpgradingFreeSpeakEdgebeltpacks79 9Specifications 81 9.1 FreeSpeakEdgebeltpack 81 9.2 FreeSpeakEdgetransceiver83 9.3 FreeSpeakEdgebatterychargerandbattery84 9.4 Transceivermodels (regionalvariations)84 9.5 Transmissionmethod85 9.6 Noticeaboutspecifications85 10Regulatorycompliance86 10.1 Partnumbers andregulatorymodels87 10.2 FCCnotice87 10.3 FCC/IC/ECRF exposurewarning88 10.4 Industrycanada compliancestatement88 10.5 Koreannotice89 10.6 Japannotice89 10.7 Australia compliancestatement89 10.8 New Zealandcompliancestatement90 Page 4 FreeSpeak Edge | User Guide 10.9 EuropeanUnion(CE mark)90 10.10 WasteElectricalandElectronicEquipment(WEEE)91 10.11 GeneralBatterySafetyInstructions forBatteryModels:BAT41,BAT50,BAT60, BAT70,BAT8091 10.12배터리 모델에 대한 일반 배터리 안전 지침:BAT41,BAT50,BAT60,BAT70, BAT8093 10.13 BAT41,BAT50,BAT60,BAT70,BAT8095 Page 5 FreeSpeak Edge | User Guide 1Important Safetyinstructions The following safety instructions apply: lRead these instructions. lKeep these instructions. lHeed all warnings. lFollow all instructions. lDo not use this apparatus near water. lClean only with dry cloth. lDo not block any ventilation openings.Install in accordance with the manufacturer’s instructions. lDo not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. lDo not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. lProtect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. lOnly use attachments/accessories specified by the manufacturer. lUse only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. lUnplug this apparatus during lightning storms or when unused for long periods of time. lRefer all servicing to qualified service personnel.Servicing is required when the apparatus has been damaged in any way, such as power-cord supply or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. lUse only chargers provided by HME/Clear-Com to charge the battery packs or beltpacks: lBAT80 Battery pack and beltpack charger manufactured by HME/Clear-Com lThe beltpack can also be char…

Text truncated - open the document above for the full version.

HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: BYM1409 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Type of Confidentiality Requested Exhibit Type ☐Short Term ☑Permanent Block Diagrams ☐Short Term External Photos ☑Short Term ☐Permanent* Internal Photos ☐Short Term ☑Permanent Operation Description ☐Short Term ☐Permanent Parts List/BOM ☐Short Term ☑Permanent Schematics ☐Short Term Test Setup Photos ☐Short Term ☐Permanent* User manual *Requires further justification before permanent confidentiality will be allowed. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below for an initial period of 180 (ie - “45”, “90” or “180”) days. Sincerely, Client’s signature: Client’s name: Douglas Paul Sieh Client’s title: Electrical Compliance Engineering Supervisor Company Name: HM Electronics, Inc. Company Address: 2848 Whiptail Loop, Carlsbad, CA 92010, USA Main: +1-858-535-6000 Fax: +1-858-452-7207

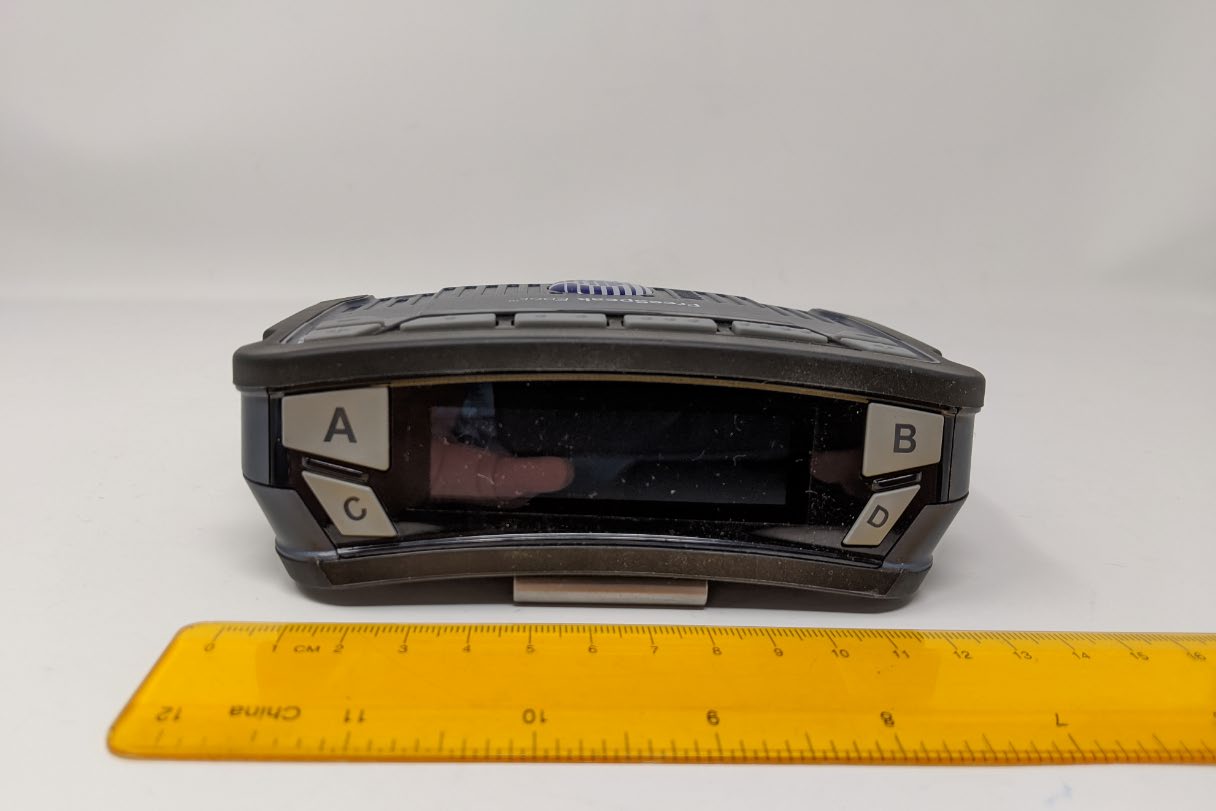

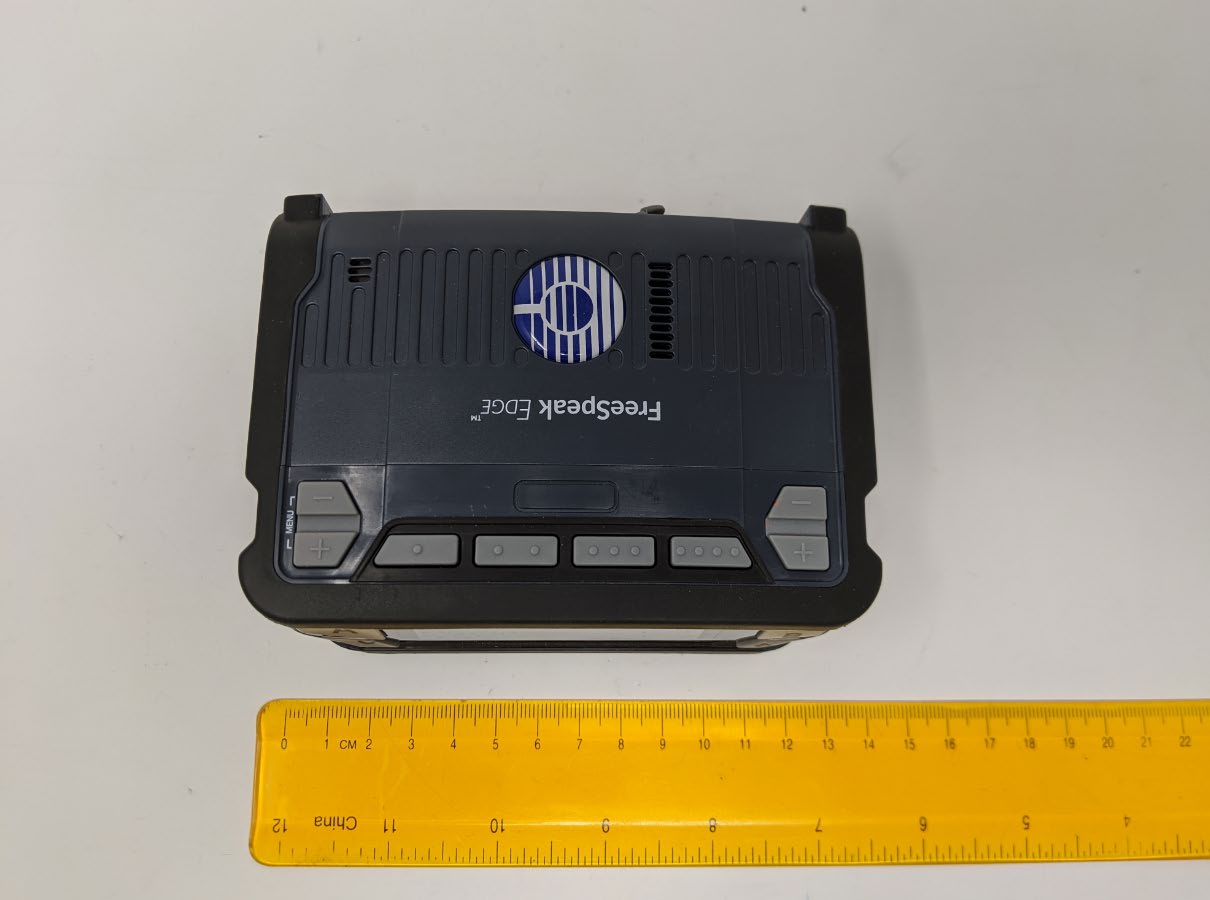

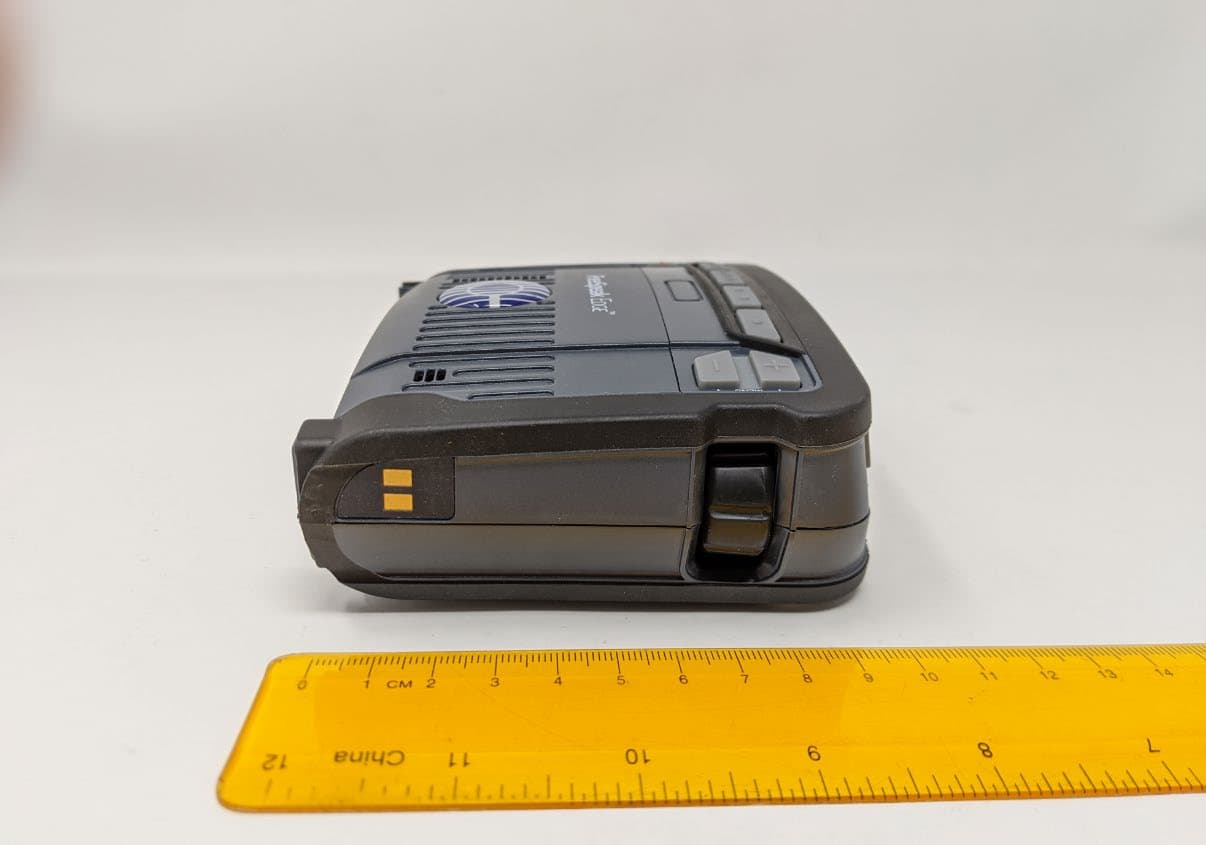

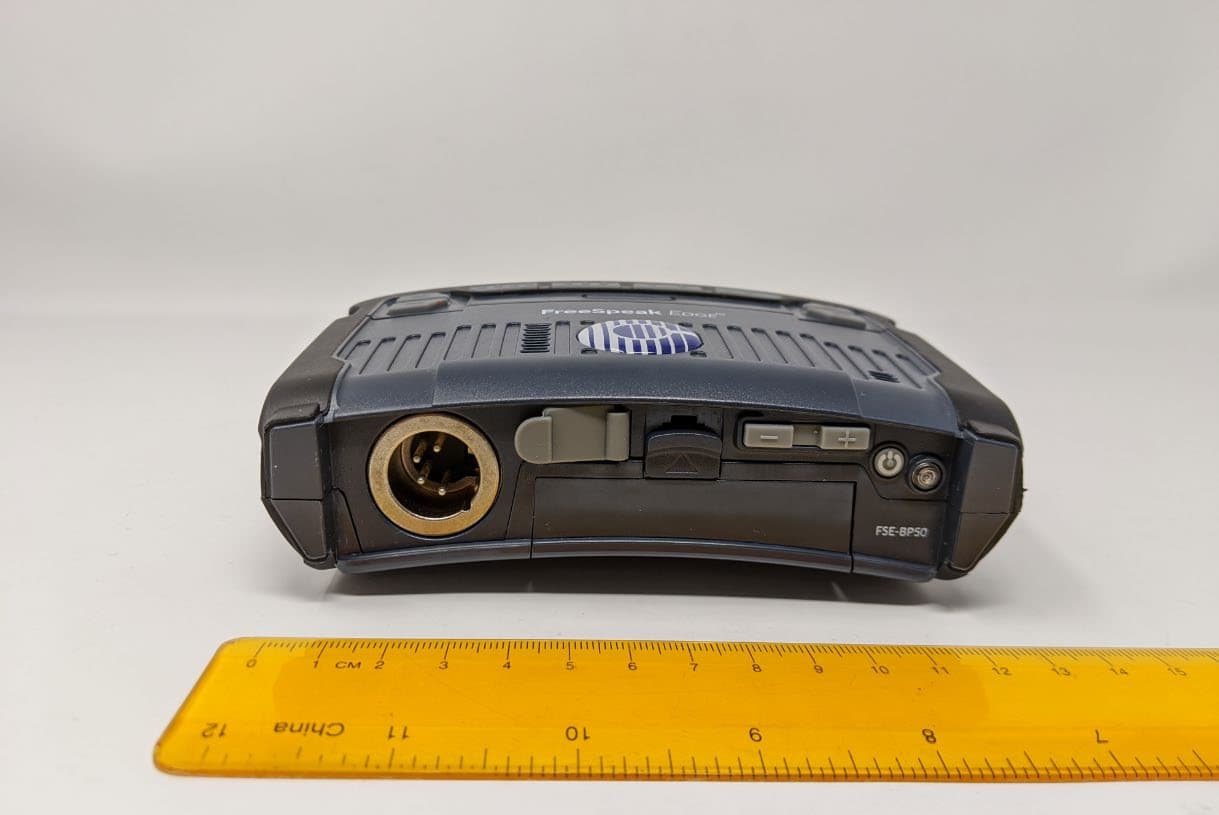

HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com External photos for model 1409 FRONT VIEW REAR VIEW HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com LEFT VIEW RIGHT VIEW HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com TOP VIEW BOTTOM VIEW WITH BATTERY PACK HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com BOTTOM VIEW WITHOUT BATTERY PACK BOTTOM VIEW WITHOUT BATTERY PACK AND WITHOUT BELT CLIP

HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com Wireless Beltpack model 1409 Label

HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com Internal photos for model 1409 MAIN BOARD – TOP VIEW MAIN BOARD – BOTTOM VIEW HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com LCD KEYPAD BOARD – TOP VIEW LCD KEYPAD BOARD – BOTTOM VIEW BUTTON KEYPAD - TOP VIEW HM Electronics, Inc. | 2848 Whiptail Loop | Carlsbad, CA 92010 800.848.4468 | www.hme.com BUTTON KEYPAD - BOTTOM VIEW 5GHZ ANTENNA BOARD – TOP VIEW 5GHZ ANTENNA BOARD – BOTTOM VIEW

FCC MPE Evaluation (FCC ID: BYM1409) RF Exposure Requirements: 47 CFR §1.1307(b) RF Radiation Exposure Limits: 47 CFR §1.1310 RF Radiation Exposure Guidelines: FCC OST/OET Bulletin Number 65 EUT Frequency Band: 2402-2480MHz 5150-5825MHz Equation: According to the procedure in KDB447498 (v05r02) section 4.3, 1g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤3.0 for 1-g SAR 10g-SAR testing is excluded if the following criteria is met. (P/d)* √f ≤7.5 for 10-g SAR Where P is the time averaged maximum conducted power in mW d minimum separation distance in mm f is the frequency in GHz ____________________________________________________________________________________________________________ The distance between the antenna and human body is 5 mm. The calculation was based on the distance of 5 mm. Radio Frequency (MHz) Max Conducted Power (dBm) Max Conducted Output Power (mW) Maximum Source- based Duty Cycle (%) Max source- based average output power (mW) Measurement distance (mm) Test Exclusion Threshold Result BLE 2402-2480 7.105 5.135 100% 5.135 5 1.617 5GHz 5180-5240 22.18 165.196 2.17 % 3.585 5 1.641 5GHz 5260-5320 22.23 167.109 2.17 % 3.626 5 1.673 5GHz 5500-5720 22.14 163.682 2.17 % 3.552 5 1.699 5GHz 5745-5825 23.42 219.786 2.17 % 4.769 5 2.302 The above results show that the device is excluded for both standalone 1g-SAR and 10g-SAR testing. Per KDB447498, section 4.3.2, b), the simultaneous transmission SAR test exclusion shall be considered. The standalone SAR value is estimated as follows, [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)]·[√f(GHz)/x] W/kg, for test separation distances ≤ 50 mm; where x = 7.5 for 1-g SAR and x = 18.75 for 10-g SAR For BLE, standalone 1g-SAR = (P/d)* (√f/7.5) = 0.216 w/kg standalone 10g-SAR = (P/d)* (√f/18.75) = 0.086 w/kg For 5GHz, standalone 1g-SAR = (P/d)* (√f/7.5) = 0.307 w/kg standalone 10g-SAR = (P/d)* (√f/18.75) = 0.123 w/kg So simultaneous 1g-SAR = 1g-SAR (BLE) + 1g-SAR (5GHz) = 0.523 w/kg < 1.6 W/kg simultaneous 10g-SAR = 10g-SAR (BLE) + 10g-SAR (5GHz) = 0.209 w/kg < 4 W/kg The above results show that the device is excluded for both simultaneous 1g-SAR and 10g-SAR testing. Completed By: David Zhang Vista Laboratories, Inc. 1261 Puerta Del Sol, San Clemente, CA 92673 Date: May 12th, 2020

FCC UNII RF TEST REPORT Test Report Number.................. HME-19081321-LC-FCC-NII Applicant...................................... HM Electronics Inc Applicant Address...................... 2848 Whiptail Loop, Carlsbad, CA 92010 USA Product Name............................. Wireless Beltpack Model Number............................ 1409 Family Product/Model.............. N/A FCC ID.......................................... BYM1409 Date of EUT received................. 09/27/2019 Date of Test.................................. 09/27/2019 – 12/30/2019 Report Issue Date........................ 05/12/2020 Test Standards............................. 47CFR Part 15.407 Test Result................................... Pass Issued By: Vista Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Tested by: Approved By: David Zhang/Test Engineer Yuna Yin/Engineering Reviewer Report Number: HME-19081321-LC-FCC-NII Product: Wireless Beltpack Model Number: 1409 Electromagnetic Compatibility Radio Frequency Product Certification International Approval 1261 Puerta Del Sol San Clemente, CA, 92673 +1 (949) 393-1123 www.vista-compliance.com Page 2 of 60 Laboratory Introduction Vista Labs is an A2LA accredited 17025 compliant regulatory compliance testing laboratories (Cert. number: 4848- 01) strategically located in Orange County, providing services in the electrical and telecommunication industries. Vista labs is also recognized testing facility for Australia (ACMA), Chinese Taipei (BSMI), Chinese Taipei (NCC), Hong Kong (OFCA), Israel (MOC), Korea (RRA), Singapore (IMDA), Vietnam (MIC), etc. Our comprehensive testing services include EMC emission and susceptibility testing, RF and wireless testing (including DFS). As your partner, Vista investigates appropriate test standards, develops test plans, performs troubleshooting & failure analysis, reviews documentation, and provides test reports for a complete compliance testing and certification package. 17025 Product Testing Accreditation Certificate 17065 Product Certification Accreditation Certificate Report Number: HME-19081321-LC-FCC-NII Product: Wireless Beltpack Model Number: 1409 Electromagnetic Compatibility Radio Frequency Product Certification International Approval 1261 Puerta Del Sol San Clemente, CA, 92673 +1 (949) 393-1123 www.vista-compliance.com Page 3 of 60 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................ 5 1.1 Applicant ................................................................................................................................................................ 5 1.2 Product information ............................................................................................................................................... 5 1.3 Test standard and method ..................................................................................................................................... 6 1.4 Test Purpose and statement .................................................................................................................................. 6 2 TEST SITE INFORMATION ............................................................................................................................................ 7 3 MODIFICATION OF EUT............................................................................................................................................... 7 4 TEST CONFIGURATION AND OPERATION ................................................................................................................... 7 4.1 EUT test configuration............................................................................................................................................ 7 4.2 EUT test channel .................................................................................................................................................... 8 4.3 Supporting Equipment ........................................................................................................................................... 8 4.4 EUT setup diagram ................................................................................................................................................. 8 4.5 EUT operation ........................................................................................................................................................ 8 4.6 Test software .......................................................................................................................................................... 8 5 EUT AND TEST SETUP PICTURES ................................................................................................................................. 9 5.1 EUT external pictures ............................................................................................................................................. 9 5.2 EUT test setup ...................................................................................................................................................... 10 6 TEST SUMMARY ........................................................................................................................................................ 10 7 UNCERTAINLY OF MEASUREMENT ........................................................................................................................... 12 8 TEST SUMMARY AND RESULT ................................................................…

Text truncated - open the document above for the full version.

FCC/ISED DFS TEST REPORT Test Report Number.................. HME-19081321-LC-FCC-IC-DFS Applicant...................................... HM Electronics Inc Applicant Address...................... 2848 Whiptail Loop, Carlsbad, CA 92010 USA Product Name............................. Wireless Beltpack Model Number............................ 1409 Family Product/Model.............. N/A FCC ID.......................................... BYM1409 ISED ID.......................................... 1860A-1409 Date of EUT received................. 10/28/2019 Date of Test.................................. 10/28/2019 – 04/12/2020 Report Issue Date........................ 05/12/2020 Test Standards............................. 47CFR Part 15.407 RSS-247 Issue 2.0: Feb 2017 Test Result................................... Pass Issued By: Vista Laboratories 1261 Puerta Del Sol, San Clemente, CA 92673 USA www.vista-compliance.com Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This report is not to be reproduced by any means except in full and in any case not without the written approval of Vista Laboratories. Tested by: Approved By: David Zhang/Test Engineer Yuna Yin/Engineering Reviewer Report Number: HME-19081321-LC-FCC-IC-DFS Product: Wireless Beltpack Model Number: 1409 Electromagnetic Compatibility Radio Frequency Product Certification International Approval 1261 Puerta Del Sol San Clemente, CA, 92673 +1 (949) 393-1123 www.vista-compliance.com Page 2 of 27 Laboratory Introduction Vista Labs is an A2LA accredited 17025 compliant regulatory compliance testing laboratories (Cert. number: 4848- 01) strategically located in Orange County, providing services in the electrical and telecommunication industries. Vista labs is also recognized testing facility for Australia (ACMA), Chinese Taipei (BSMI), Chinese Taipei (NCC), Hong Kong (OFCA), Israel (MOC), Korea (RRA), Singapore (IMDA), Vietnam (MIC), etc. Our comprehensive testing services include EMC emission and susceptibility testing, RF and wireless testing (including DFS). As your partner, Vista investigates appropriate test standards, develops test plans, performs troubleshooting & failure analysis, reviews documentation, and provides test reports for a complete compliance testing and certification package. 17025 Product Testing Accreditation Certificate 17065 Product Certification Accreditation Certificate Report Number: HME-19081321-LC-FCC-IC-DFS Product: Wireless Beltpack Model Number: 1409 Electromagnetic Compatibility Radio Frequency Product Certification International Approval 1261 Puerta Del Sol San Clemente, CA, 92673 +1 (949) 393-1123 www.vista-compliance.com Page 3 of 27 TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................................ 5 1.1 Applicant ................................................................................................................................................................ 5 1.2 Product information ............................................................................................................................................... 5 1.3 Test standard and method ..................................................................................................................................... 6 1.4 Test Purpose and statement .................................................................................................................................. 6 2 TEST SITE INFORMATION ............................................................................................................................................ 7 3 MODIFICATION OF EUT............................................................................................................................................... 7 4 TEST CONFIGURATION AND OPERATION ................................................................................................................... 7 4.1 EUT test configuration............................................................................................................................................ 7 4.2 EUT test mode ........................................................................................................................................................ 7 4.3 Supporting Equipment ........................................................................................................................................... 8 4.4 EUT operation ........................................................................................................................................................ 8 4.5 Test software .......................................................................................................................................................... 8 5 TEST SUMMARY .......................................................................................................................................................... 9 6 UNCERTAINLY OF MEASUREMENT ........................................................................................................................... 10 7 TEST SUMMARY AND RESULT .................................................................................................................................. 11 7.1 Dynamic Frequency Selection (DFS) Introduction ................................................................................................ 11 7.2 Dynamic Frequency Selection (DFS) Applicability ................................................................................................ 15 7.3 Dynamic Frequency Selection (DFS) Testing ........................................................................................................ 16 8 TEST INSTRUMENT LIST ........................…

Text truncated - open the document above for the full version.

RE Below 1GHz – Front View RE Below 1GHz – Rear View RE Above 1GHz – Front View RE Above 1GHz – Rear View AC Line CE – Front View AC Line CE – Rear View
