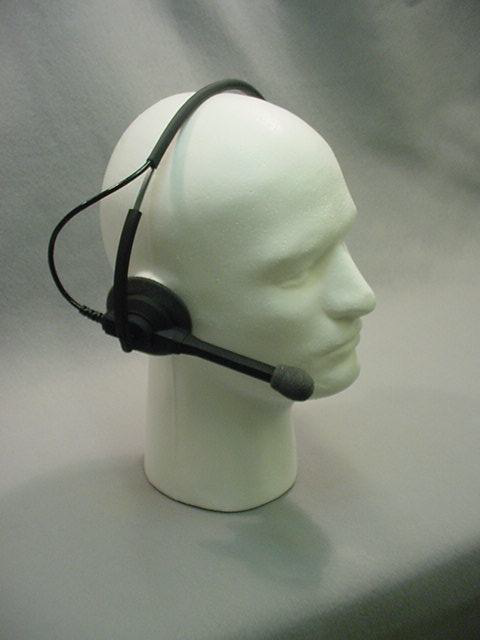

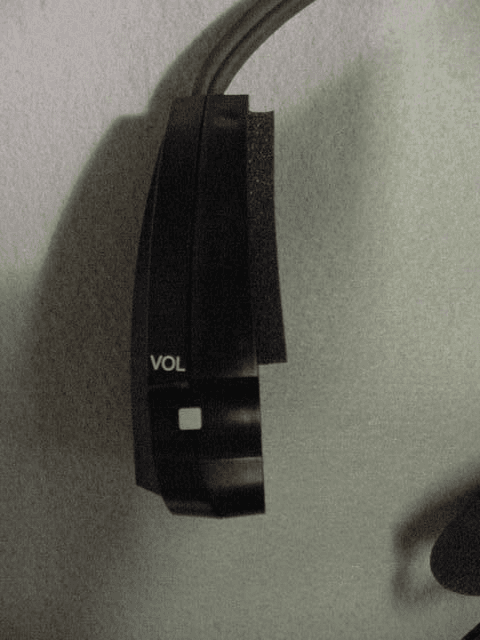

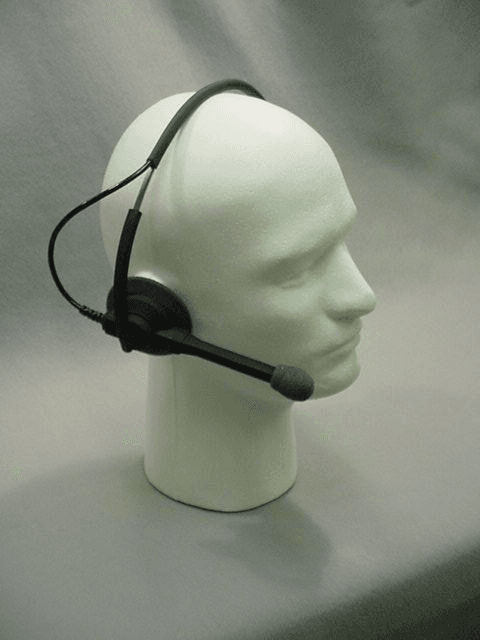

BYMAM30HHS-30 Headset, Model K24398

Page 1 Rev.No 1.0 ATTESTATION STATEMENT: All tests according to CFR 47, Part 15, Paragraphs 15.207 and 15.209 were n - Performed The Equipment Under Test n - Fulfills the general requirements of CFR 47, Part 15, Paragraphs 15.207 and 15.209. _______________________ - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

PCB ANTENNA SIDE PCB MOUNTED IN HEADSET PCB SIDE OPPOSITE ANTENNAS PCB VIEW WITH ANTENNAS REMOVED PCB VIEW WITH ANTENNAS AND CERAMIC FILTERS REMOVED

RF EXPOSURE STATEMENT: The EUT is categorically excluded from routine evaluation because it is a low power device.

TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 1 Rev.No 1.0 MEASUREMENT AND TECHNICAL REPORT HM ELECTRONICS 6675 Mesa Ridge Road San Diego, CA 92121-2937 DATE: 4 June 2001 This Report Concerns:Original Grant: XClass II Change: Equipment Type:HS-30 Headset, Model K24398 Deferred grant requested per 47 CFR 0.457(d)(1)(ii)?Yes: Defer until: No: X Company Name agrees to notify the Commission by:N/A of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37?Yes:*No: X (*) FCC Part 15, Paragraphs 15.109(a) and 15.209 Report Prepared by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 2 Rev.No 1.0 TABLE OF CONTENTS Pages 1 GENERAL INFORMATION3 1.1Product Description3 1.2Related Submittal Grant10 1.3Tested System Details10 1.4Test Methodology10 1.6Part 2 Requirements10 2 SYSTEM TEST CONFIGURATION11 2.1Justification11 2.2EUT Exercise Software11 2.3Special Accessories11 2.4Equipment Modifications11 2.5Configuration of Tested System11 3 CONDUCTED MEASUREMENT EQUIPMENT/DATA12 4RADIATED MEASUREMENTEQUIPMENT/DATA18 4.1Field Strength Calculation22 5Attestation Statement23 TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 3 Rev.No 1.0 1 GENERAL INFORMATION 1.1Product Description NAME, MODEL, SERIAL # OF EUT:HS-30 Headset, Model K24398 DESCRIPTION OF EUT:HS_30 headset with am RF link to beltpac OPERATING MODE(S):Normal POWER INTERFACE FREQUENCY/AC/DC VOLTAGE:3.6 V PHASES:1 OSCILLATOR FREQUENCIES:32.768 kHz on Y1 on AM1011H board; reference oscillator 0.48432 MHz on synthesized transmit freq. 455 kHz Intermediate freq. 1.8062 MHz Rx frequency POWER SUPPLY DESCRIPTION:U8-DC 3.0 V regulator on AM1011H board INTERFACING AND/OR SIMULATORS PERIPHERAL EQUIPMENT: DescriptionModel #Serial #FCC ID/Other RF GeneratorHP8656B3208U11176-- Interface Ports and Cables: None TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 4 Rev.No 1.0 1.2Related Submittal/Grant None 1.3Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system are: None 1.4Test Methodology Purpose of Test:To demonstrate compliance with the ANSI C63.4 setup. Test Performed:1. Conducted Emissions, FCC Part 15.207 2. Radiated Emissions, EN55022: 1992 Class B limit, 30 - 1,000 MHz, 10 meters X3. Radiated Emission per FCC Part 15.109(a) and 15.209 4. Engineering evaluations 1.5Test Facility The open area test site and conducted measurement data were tested by: TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone: 858 546 3999 Fax: 858 546 0364 The Test Site Data and performance comply with ANSI 63.4 and are registered with the FCC, 7435 Oakland Mills Rd, Columbia Maryland 21046. All Measurement Data is acquired according to the content of FCC Measurement Procedure and ANSI C63.4, unless supplemented with additional requirements as noted in the test report. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 5 Rev.No 1.0 2.SYSTEM TEST CONFIGURATION 2.1Justification The was initially tested for FCC emission in the following configuration: See Block Diagram. 2.2EUT Exercise Software None 2.3Special Accessories None 2.4Modification None 2.5Configuration of Tested System See Block Diagram. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 6 Rev.No 1.0 3CONDUCTED EMISSION DATA EUT operated on 3.6 V battery power. HME ELECTRONICS See following page(s). TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 7 Rev.No 1.0 4RADIATED MEASUREMENT EQUIPMENT LIST Emissions Test Conditions: RADIATED EMISSIONS (Electric Field) The EQUIVALENT RADIATED EMISSIONS measurements were performed at the following test location : o - Test not applicable Test Site: Canyon Site Parking Lot, Carroll Canyon, San Diego Test Equipment Used : Model No.Property No.DescriptionManufacturerSerial NumberCal Date HP8594E430Spectrum AnalyzerHewlett Packard3303A0036505/10/01 HFH2-Z2208Loop AntennaRohde & Schwarz880* HP8656B--Spectrum AnalyzerHewlett Packard3208U1117610/01 Remarks:(*) Verified prior to use. TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 8 Rev.No 1.0 RADIATED EMISSION DATA The following data lists the significant emission frequencies, measured levels, correction factor (which includes cable and antenna corrections), the corrected reading, and the limit. See following page(s). TÜV PRODUCT SERVICE 10040 Mesa Rim Road San Diego, CA 92121-2912 Phone 858 546 3999 FAX 858 546 0364 Report No. 103937-03 (FCC ID: BYMAM30H) Page 12 Rev.No 1.0 5SUMMARY: All tests according to CFR 47, Part 15, Paragraphs 15.207 and 15.209 were n - Performed The Equipment Under Test n - Fulfills the general requirements of CFR 47, Part 15, Paragraphs 15.207 and 15.209. _______________________ - TÜV PRODUCT SERVICE, INC. - Responsible Engineer: Jim Owen (EMC Engineer)

Spectrum Analyzer Loop Antenna EUT Signal Generator 1.802 MHz Test Setup 30 M (10 M)
