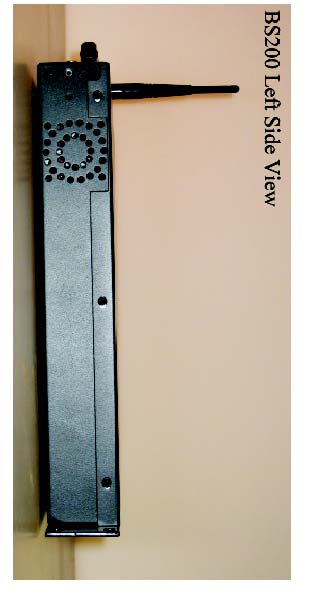

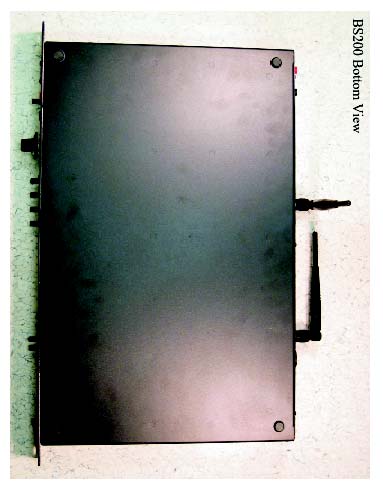

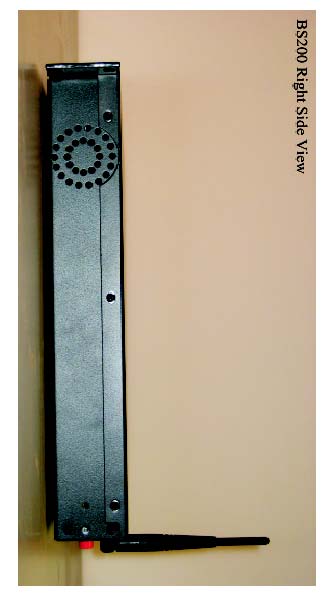

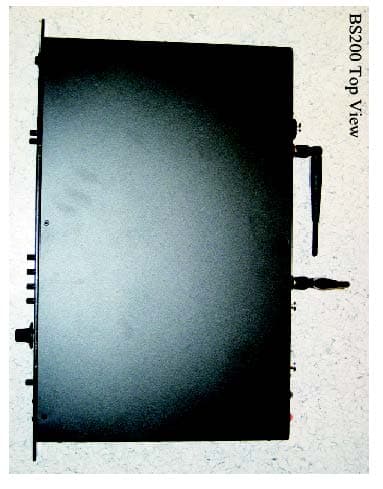

BYMBS200Wireless Intercom Base Station Transceiver

HME# 400527 Rev D 4/20/05 DX200 Wireless Intercom Operating Instructions Table of Contents SECTION 1. INTRODUCTION............................................................................................................... 1 EQUIPMENT IDENTIFICATION............................................................................................................... 2 SECTION 2. EQUIPMENT SETUP ........................................................................................................ 3 BATTERY CHARGER SETUP................................................................................................................... 3 Connect AC Adapter ................................................................................................................................ 3 Charge Batteries....................................................................................................................................... 3 BASE STATION SETUP ............................................................................................................................ 4 Equipment Connections ........................................................................................................................... 4 BELTPAC SETUP AND REGISTRATION................................................................................................. 5 Set Up Beltpacs........................................................................................................................................ 5 Register Beltpacs ..................................................................................................................................... 5 INTERCOM AND AUXILIARY EQUIPMENT SETUPS........................................................................... 7 2-Wire Intercom....................................................................................................................................... 7 4-Wire Intercom....................................................................................................................................... 7 Auxiliary Equipment................................................................................................................................ 8 8-Ohm Speaker ........................................................................................................................................ 8 Multiple DX200 Units.............................................................................................................................. 8 SECTION 3. EQUIPMENT OPERATION............................................................................................. 9 BASE STATION OPERATION .................................................................................................................. 9 Front Panel Controls, Indicators and Connector ........................................................................................ 9 BELTPAC OPERATION .......................................................................................................................... 11 Beltpac Controls and Indicator Lights..................................................................................................... 11 Batteries ................................................................................................................................................ 12 SECTION 4. TROUBLESHOOTING.................................................................................................... 13 SECTION 5. TECHNICAL DATA ........................................................................................................ 14 EQUIPMENT SPECIFICATIONS............................................................................................................. 14 Base Station ........................................................................................................................................... 14 Beltpac .................................................................................................................................................. 15 BLOCK DIAGRAM.................................................................................................................................. 16 DX200 Base Station...............................................................................................................................16 APPENDIX A: BATTERY CHARGER 230 VOLT AC ADAPTER CONNECTIONS.............................. 17 © 2005 HM Electronics, Inc. The HME logo and product names are registered trademarks of HM Electronics, Inc. All rights reserved. Illustrations in this publication are approximate representations of the actual equipment, and may not be exactly as the equipment appears. HM Electronics, Inc. is not responsible for equipment malfunctions due to erroneous translation of its publications from their original English version. FCC NOTICE This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communication. Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at his own expense. Changes or modifications not expressly approved by HM Electronics, Inc. could void the users authority to operate this equ…

Text truncated - open the document above for the full version.

Figure 1 FCC/Canada Label Figure 2 FCC/Canada Label Location

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.68 (dBm) Maximum peak output power at antenna input terminal: 73.8 (mW) Antenna gain(typical): 7 (dBi) Maximum antenna gain: 5.0 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2441 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.07 (mW/cm^2) Maximum allowable antenna gain: 18.3 (dBi) Margin of Compliance: 11.3 2 4 R PG S π =

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 CERTIFICATION TEST REPORT PART 15.247, SUBPART C RSS-210 - L OW POWER LICENSE EXEMPT RADIO- COMMUNICATION DEVICES (ALL FREQUENCY BANDS) DECLARATION OF CONFORMANCE PROCEDURES TEST REPORT For The Rack Mount System Model: DX200 PREPARED FOR: HME 14110 Stowe Drive Poway, CA 92064 PREPARED ON 4-7-05 R EPORT NUMBER: 2005 030172-FCC P ROJECT NUMBER: 25-172-HME Total Pages: 36 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE Mar 15, 2005 BS200 for the DX200 System FCC Test Report 2005 030174 FCC 2 of 36 DOCUMENT HISTORY REVISION DATE COMMENTS - 4-7-05 Prepared By: A. LAUDANI - 4-7-05 Initial Release: F. Fleury NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4 (1992) “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on March 11, 2004. Testing was performed on the unit described in this report on March 11, 2004 to March 16, 2004. o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to HME, and approval is hereby granted to HME and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE Mar 15, 2005 BS200 for the DX200 System FCC Test Report 2005 030174 FCC 3 of 36 TABLE OF CONTENTS DOCUMENT HISTORY .................................................................................................................................. 2 CERTIFICATION ............................................................................................................................................. 5 1. ADMINISTRATIVE DATA AND TEST SUMMARY ......................................................................... 6 1.1.ADMINISTRATIVE DATA.................................................................................................................................. 6 1.2.TEST SUMMARY.............................................................................................................................................. 6 2. SYSTEM CONFIGURATION ................................................................................................................ 7 2.1.SYSTEM COMPONENTS AND POWER CABLES.................................................................................................. 7 2.2.DEVICE INTERCONNECTION AND I/O CABLES................................................................................................. 7 2.3.DESIGN MODIFICATIONS FOR COMPLIANCE.................................................................................................... 8 2.4.DESIGN MODIFICATIONS FOR COMPLIANCE.................................................................................................... 8 3. DESCRIPTION OF TEST SITE AND EQUIPMENT .......................................................................... 9 3.1.DESCRIPTION OF TEST SITE............................................................................................................................. 9 4. DESCRIPTION OF TESTING METHODS ........................................................................................ 10 4.1.INTRODUCTION............................................................................................................................................. 10 4.2.CONFIGURATION AND METHODS OF MEASUREMENTS FOR CONDUCTED EMISSIONS..................................... 12 4.3.CONFIGURATION AND METHODS OF MEASUREMENTS FOR FREQUENCY IDENTIFICATION............................. 14 4.4.CONFIGURATION AND METHODS OF MEASUREMENTS FOR RADIATED EMISSIONS........................................ 16 4.5.SPREAD SPECTRUM DEVICES........................................................................................................................ 18 5. TEST RESULTS ..................................................................................................................................... 19 5.1.CONDUCTED EMISSIONS TEST DATA............................................................................................................ 19 5.2.RADIATED EMISSIONS TEST DATA................................................................................................................ 21 5.3.CFR 47 PART 15C §15.247 TEST RESULTS................................................................................................... 22 TEST SETUP DIAGRAMS Figure 1. General EUT Test Setup Diagram ....................................................................................................11 Figure 2. Conducted Emissions Test Setup Diagram.......................................................................................13 Figure 3. Frequency ID of Radiated Emissions Test Setup Diagram...............................................................15 Figure 4. Radiated Emissions Test Setup Diagram ..........................................................................................17 Nemko USA, Inc. 11696 Sorrento Valley Road, Suite F, San Diego, CA 92121 Phone (858) 755-5525 Fax (858) 452-1810 DATE DOCUMENT NAME DOCUMENT # PAGE Mar 15, 2005…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BYMBASE6000 Test report no.: G0M20306-7970-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 25.08.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 25.08.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: HM Electronics, Inc. Street: 14110 Stowe Drive Town: 92064 Poway, CA Country: USA Telephone: +1 858 535 6098 Fax: +1 858 535 6019 Contact: Mr. Thomas P. Riches Telephone: +1 858 535 6098 E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 25.06.2003 Date of receipt of test item: 25.06.2003 Date of test: 27.06.2003-04.07.2003 1.5Test item Description of test item: Wireless 6000 Type identification: Base 6000 Serial number: Test model without serial number. Photos: See annex Technical data Frequency band: 2.4 – 2.4835GHz Frequency ( ch A): 2.401920 GHz Frequency (ch B): 2.441664 GHz Frequency (ch C): 2.481408 GHz TransmitterVnom Antenna 1 Power (ch A) :Conducted: 18,24 dBm Power (ch B) :Conducted: 18,68 dBm Power (ch C) :Conducted: 18,60 dBm Antenna 1Vnom Vnom –15%Vnom +15% Power (chA) :Radiated: 18,96 dBm Radiated: 18,79 dBm Radiated: 18,81 dBm Power (ch B) :Radiated: 19,40 dBm Radiated: 19,35 dBm Radiated: 19,28 dBm Power (ch C) :Radiated: 19,41 dBm Radiated: 19,69 dBm Radiated: 19,75 dBm Antenna 2Vnom Vnom –15%Vnom +15% Power (chA) :Radiated: 13,08 dBm Radiated: 13,09 dBm Radiated: 13,20 dBm Power (ch B) :Radiated: 12,61 dBm Radiated: 12,97 dBm Radiated: 12,93 dBm Power (ch C) :Radiated: 14,62 dBm Radiated: 14,48 dBm Radiated: 14,35 dBm Antenna 1: external Antenna (see add. information)Antenna gain:2 dBi Antenna 2: external Antenna (see add. information) Power supply : 16V DCAC/DC Adaptor (HM Electronics Part No. 760117) Operating mode: duplex Type of modulation: FHSS ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The EUT uses an Antenna equipment with an unique connector (Inverser TNC-Adapter), which can not be replaced by standard antenna jack or electric connector, it uses a permanently affix external antenna. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 6 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 16 V AC Extrem conditions parameters:: test voltage - extrememin :13,6 V, AC max:18,4 V, AC ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 7 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvc…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 13 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 14 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 15 of 16 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 16 of 16

Bandwidth, Spurious Emissions at Antenna Terminals ield Strength of Spurious Radiation and RF Radiated Power Level EUTAttenuator Radio Communication Monitor Spectrum Analyzer F EUT NON-CONDUCTING TURN-TABLE 0.8 METER VARIABLE SEARCH HEIGHT (1 TO 4 m) TO TEST RECEIVER/SPECTRUM ANALYZER SEARCH ANTENNA 3 METERS Voltage - Frequency Stability Climate Chamber EUT Variable Power Supply Attenuator Counter Frequency Spectrum Analyzer Radiated Emissions Conducted Emissions
