BYMHS400HS400 Headset

Figure 2. Correct wearing of headset base of microphone boom HS400 Headset OPERATING INSTRUCTIONS The HS400 Headset is a compact, wireless headset intended for use with the HME Wireless Drive- Thru Audio System 400. The following instructions provide the proper use and care of the HS400. I. HS400 HEADSET FEATURES II. HOW TO WEAR THE HS400 HEADSET •• Wear microphone on right or left side •• Wear microphone near side of mouth •• To adjust microphone position hold microphone boom at base and pivot boom up or down HM ELECTRONICS, INC. 14110 Stowe Drive, Poway, CA 92064 USA • Phone: 1-800-848-4468 Fax: (858) 552-0172 HME# 400511 Rev Β 2/17/03 Figure 1. Headset features 2 III. ROUTINE HS400 OPERATION HS400 control buttons are touch-sensitive. Use your fingertip, not your fingernail, when touching the buttons. The HS400 can be operated in “half-duplex” or “full-duplex” modes. In the half-duplex mode, you must press and hold a button while talking to a customer, and release the button to hear the customer’s response. The HS400 push-to-talk (PTT) mode is an example of half-duplex operation. In the full-duplex mode, you can transmit and receive communication at the same time, as in a normal telephone conversation. The HS400 hands-free (HF) and auto hands-free (AHF) modes are both examples of full-duplex operation. In the HF mode, transmission and reception are activated by touching and releasing a button. In the AHF mode, transmission and reception are activated automatically when a customer drives into the drive-thru lane. A. Power On/Off 1. Power Light •• Light blinks while the headset is transmitting your voice •• Light steady ON when headset is not transmitting •• Light is red for lane 1 •• Light is green for lane 2 2. Power On •• Press and release the power ON/OFF button •• Voice message in earpiece says “Power on, lane one (or two)” •• Power light blinks green, then goes on steady red (for lane 1) or green (for lane 2) 3. Power Off •• Press and hold power ON/OFF button 3 seconds •• Voice message in earpiece says “Power off” •• Power light goes off B. Volume Up/Down 1. Single-Step Volume Adjustment •• Lightly touch and release Volume-up or Volume-down button •• Beep sounds in earpiece each time button is pressed •• Volume increases or decreases, one step at a time 2. Continuous Volume Adjustment •• Lightly press and hold Volume-up or Volume-down button •• Volume increases or decreases continuously while button is held •• Series of beeps sounds in earpiece until volume reaches maximum or minimum 3 C. Talk to Customers 1. Single-Lane Operation (one base station operating one speaker post) a. Push-To-Talk Mode •• Customer begins speaking at speaker post or menu board •• Adjust customer’s voice level in headset if necessary •• Press and hold A1 or A2 button to speak to customer — Release to listen b. Hands-Free Mode •• Customer begins speaking at speaker post or menu board •• Adjust customer’s voice level in headset if necessary •• Touch and release A1 or A2 button to speak and listen to customer •• Touch and release B button to end communication with customer •• Touch and release A1 or A2 button if you need to speak to the customer again •• If customer drives away from speaker post or menu board, headset automatically stops transmitting c. Auto Hands-Free Mode •• Headset begins transmitting automatically when customer enters drive-thru lane •• Speak and listen to customer without pressing any buttons •• Adjust customer’s voice level in headset if necessary •• Touch and release B button to end communication with customer •• Touch and release A1 or A2 button if you need to speak to the customer again •• If customer drives away from speaker post or menu board, headset automatically stops transmitting 2. Dual-Lane Operation (two base stations operating two speaker posts) a. Push-To-Talk Mode •• Customer begins speaking at speaker post or menu board •• Adjust customer’s voice level in headset if necessary •• Press and hold either the A1 button to speak to customer in Lane 1 or A2 button to speak to customer in Lane 2 — Release to listen b. Hands-Free Mode •• Customer begins speaking at speaker post or menu board in your lane •• Adjust customer’s voice level in headset if necessary •• Touch and release A1 button for Lane 1 or A2 for Lane 2, to speak and listen to customer •• Touch and release B button to end communication with customer •• Touch and release A1 button for Lane 1 or A2 for Lane 2, if you need to speak to the customer again •• If customer drives away from speaker post or menu board, headset automatically stops transmitting c. Auto Hands-Free Mode •• Headset begins transmitting automatically when customer enters your lane •• Speak and listen to customer without pressing any buttons •• Adjust customer’s voice level in headset if necessary •• Touch and release B button to end communication with customer •• Touch and release A1 button for Lane 1 or A2 for Lane 2, if you need to speak to the customer again •• If customer drives away from speaker post or menu board, headset automatically stops transmitting 4 b. Battery Replacement •• Place end of battery into battery com- partment, with metal contacts downward •• Press top of battery into battery compart- ment until it snaps in place under battery- release button D. Talk to Other Crew Members •• Press and hold B button to speak to other crew members wearing HS400s •• Release to listen E. Change and Charge Batteries If you hear “Headset Battery Low” in your headset, the battery needs to be replaced and recharged. HS400 batteries need be recharged after 8 to 9 hours of normal use. 1. Change Batteries a. Battery Removal •• Press upward on battery-release button •• Pull battery out from the top 2. Charge Batteries •• Insert battery in one of four charging ports until it clicks in place •• Battery charging time is approximately 2 hours •• Yellow light next to battery port stays on when there is no battery in that port Yellow light flashing next to b…

Text truncated - open the document above for the full version.

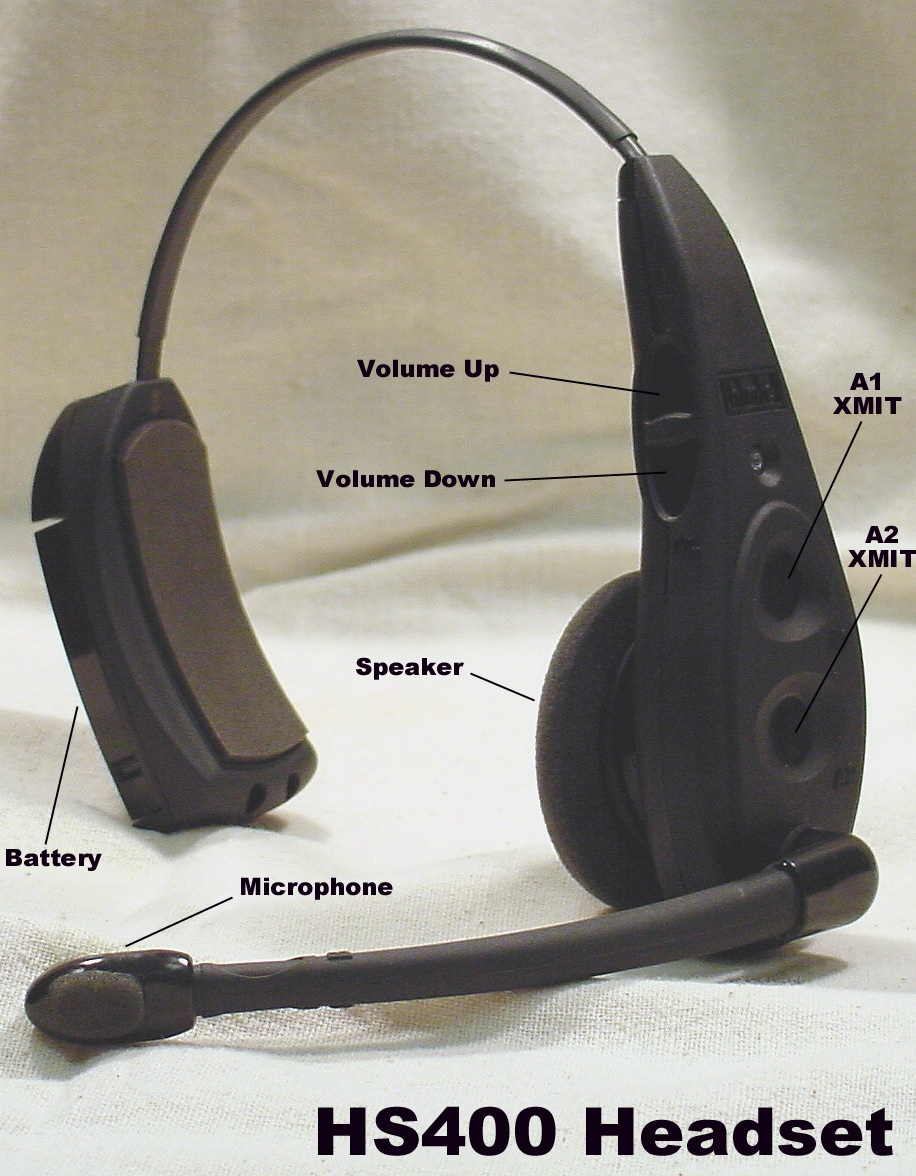

Figure 2. Correct wearing of headset base of microphone boom HS400 Headset OPERATING INSTRUCTIONS The HS400 Headset is a compact, wireless headset intended for use with the HME Wireless Drive- Thru Audio System 400. The following instructions provide the proper use and care of the HS400. I. HS400 HEADSET FEATURES II. HOW TO WEAR THE HS400 HEADSET •• Wear microphone on right or left side •• Wear microphone near side of mouth •• To adjust microphone position hold microphone boom at base and pivot boom up or down HM ELECTRONICS, INC. 14110 Stowe Drive, Poway, CA 92064 USA • Phone: 1-800-848-4468 Fax: (858) 552-0172 HME# 400511 Rev B 5/2/03 Figure 1. Headset features 2 III. ROUTINE HS400 OPERATION HS400 control buttons are touch-sensitive. Use your fingertip, not your fingernail, when touching the buttons. The HS400 can be operated in push-to-talk (PTT), hands-free (HF) or auto hands-free (AHF) modes. In the push-to-talk mode, you must press and hold a button while talking to a customer, and release the button to hear the customer’s response. The push-to-talk mode is an example of “half-duplex” operation. In the hands-free and auto hands-free modes, you can transmit and receive communication at the same time, as in a normal telephone conversation. The hands-free and auto hands- free modes are both examples of “full-duplex” operation. In the HF mode, transmission and reception are activated by touching and releasing a button. In the AHF mode, transmission and reception are activated automatically when a customer drives into the drive-thru lane. A. Power On/Off 1. Power Light •• Light blinks while the headset is transmitting your voice •• Light steady ON when headset is not transmitting •• Light is red for lane 1 •• Light is green for lane 2 2. Power On •• Press and release the power ON/OFF button •• Voice message in earpiece says “Power on, lane one (or two)” •• Power light blinks green, then goes on steady red (for lane 1) or green (for lane 2) 3. Power Off •• Press and hold power ON/OFF button 3 seconds •• Voice message in earpiece says “Power off” •• Power light goes off B. Volume Up/Down 1. Single-Step Volume Adjustment •• Lightly touch and release Volume-up or Volume-down button •• Beep sounds in earpiece each time button is pressed •• Volume increases or decreases, one step at a time 2. Continuous Volume Adjustment •• Lightly press and hold Volume-up or Volume-down button •• Volume increases or decreases continuously while button is held •• Series of beeps sounds in earpiece until volume reaches maximum or minimum 3 C. Talk to Customers 1. Single-Lane Operation (one base station operating one speaker post) Push-To-Talk (PTT) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Press and hold A1 or A2 button to speak to customer. — Release to listen. Hands-Free (HF) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Touch and release A1 or A2 button to speak and listen to customer. ! Touch and release A1, A2 or B button to end communication with customer. You will hear a double beep in your headset. ! Touch and release A1 or A2 button to speak to the customer again. ! If customer drives away from speaker post or menu board, headset automatically stops transmitting. Auto Hands-Free (AHF) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Speak and listen to customer without pressing any buttons. ! Touch and release A1, A2 or B button to end communication with customer. You will hear a double beep in your headset. ! Touch and release A1 or A2 button to speak to the customer again. ! If customer drives away from speaker post or menu board, headset automatically stops transmitting. 2. Dual-Lane Operation (two base stations operating two speaker posts) Push-To-Talk (PTT) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Press and hold A1 button to speak to customer in Lane 1 or A2 button to speak to customer in Lane 2. — Release to listen. Hands-Free (HF) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Touch and release A1 button for Lane 1 or A2 for Lane 2, to speak and listen to customer. ! Touch and release A1, A2 (depending on lane) or B button to end communication with customer. You will hear a double beep in your headset. ! Touch and release A1 button for Lane 1 or A2 for Lane 2, to speak to the customer again. ! To change lanes, touch and release the opposite A button. ! If customer drives away from speaker post or menu board, headset automatically stops transmitting. Auto Hands-Free (AHF) Mode: ! Alert tone (double beep) sounds, then customer can be heard at speaker post or menu board. ! Adjust customer’s voice level in headset if necessary. ! Speak and listen to customer without pressing any buttons. ! Touch and release A1, A2 (depending on lane) or B button to end communication with customer. You will hear a double beep in your headset. ! Touch and release A1 button for Lane 1 or A2 for Lane 2, to speak to the customer again. ! To change lanes, touch and release the opposite A button. ! If customer drives away from speaker post or menu board, headset automatically stops transmitting. 4 b. Battery Replacement •• Place end of battery into battery com- partment, with metal contacts downward •• Press top of battery into battery compart- ment until it snaps in place under battery- release button D. Talk to Other Crew Members •• Press and hold B button to speak to other crew members wearing HS400s •• Release to listen E. Change and Charge Batteries If you hear “…

Text truncated - open the document above for the full version.

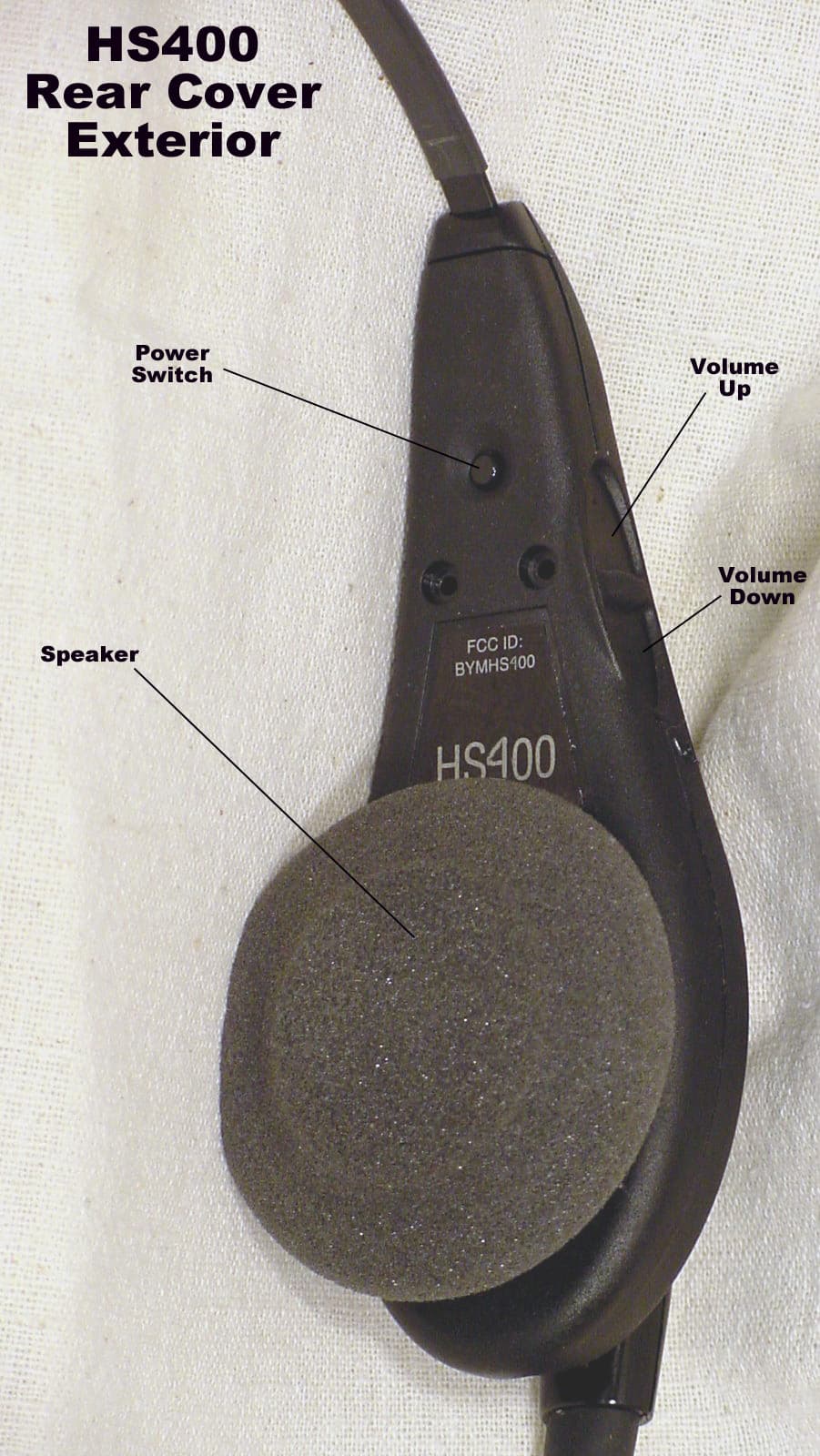

March 4, 2003 14110 Stowe Drive Poway, California 92064 Corporate Phone: (858) 535-6000 / Fax: (858) 452-7207 Figure 1 HS400 FCC ID Label. The Part 15 compliance statement does not appear on product, but rather is in the product manual. Figure 2 HS400 FCC ID label Location
