BYMXCVR2G4Spread Spectrum Transceiver Module

Internal Label option 1: Internal Label option 2: The exterior of the end product shall be labeled as follows: Product ID Label: FCC Part 15 Label: INFORMATION TO USER This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. • •• • Reorient or relocate the receiving antenna • •• • Increase the separation between the equipment and receiver • •• • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • •• • Consult the dealer or an experienced radio/TV technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Hereby, HM Electronics, Inc. declares that the DX100 is in compliance with the essential requirements and other relevant provisions of R&TTE Directive 1999/5/EC. This product operates in the 2400 to 2483.5 MHz frequency range. The use of this frequency range is not yet harmonized between all countries. Some countries may restrict the use of a portion of this band or impose other restriction relating to power level or use. You should contact your Spectrum authority to determine possible restrictions. MANDATORY SAFETY INSTRUCTIONS FOR INSTALLERS AND USERS Use only manufacturer or dealer supplied antennas. The Federal Communications Commission has adopted a safety standard for human exposure to RF (Radio Frequency) energy, which is below the OSHA (Occupational Safety and Health Act) limits. These instructions also meet Industry Canada RSS-GEN 7.14 The term “IC:” before the certification number signifies that the Industry Canada technical specifications were met. Base Station Antenna minimum safe distance: 7.9 inches (20 cm) at 100% duty cycle. Base Station Antenna gain: This device has been designed to operate with an antenna having a maximum gain of up to 2dBi. The required antenna impedance is 50Ohms. Antenna mounting: The antenna(s) used for the base transmitter must be installed to provide a separation distance of at least 7.9 inches (20 cm) from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. Antenna substitution: Do not substitute any antenna for the one supplied by the manufacturer or radio dealer. You may be exposing person or persons to excess radio frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. WARNING: Maintain a separation distance from the base station transmit antenna to a person(s) of at least 7.9 inches (20 cm) at 100% duty cycle. You, as the qualified end-user of this radio device must control the exposure conditions of bystanders to ensure the minimum separation distance (above) is maintained between the antenna and nearby persons for satisfying RF exposure compliance. The operation of this transmitter must satisfy the requirements of Occupational/Controlled Exposure Environment, for work-related use. Transmit only when person(s) are at least the minimum distance from the properly installed, externally mounted antenna.

1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The assembly XCVR2G includes its own RF shielding. Pls see photographs. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The module is a digital audio transmitter under microprocessor control. There is no possibility for the user to provide any inputs to create over-modulation or excessive data rates. 3. The modular transmitter must have its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. This assembly includes an LDO which powers all parts of this assembly. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). Any antenna used with the module must be approved with the module, either at the time of initial authorization or through a Class II permissive change. The “professional installation” provision of Section 15.203 may not be applied to modules. The antennas are attached to the board through a cable. The antennas themselves are through a reverse TNC connection. Antennas are supplied by HME at all times. The same cable assembly (used during the test) will be used at all times. In addition, the module will be used on HME products only . 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). The unit was tested by Nemko in stand-alone form. Part of the casing (plastic) was used to provide realistic mounting for the antennas. Power was supplied through a desktop power supply to a supporting board which in turn provided power to the module. Power supply used in this testing is the one that will be shipped with the final product. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see attached photographs. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. There will be no installation of this module by outside personnel. This module will be used on HME products only. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. For exposure compliance, please see MPE prediction exhibit. Installation manual assures antenna…

Text truncated - open the document above for the full version.

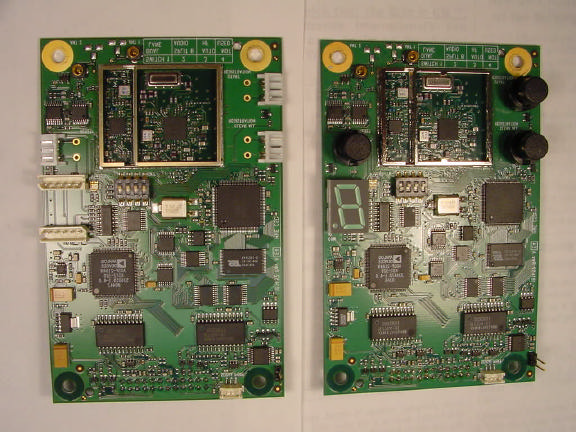

Two variations of the same model: differences non RF in function.

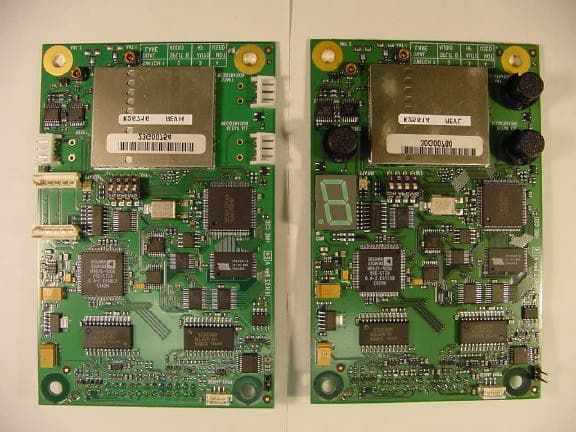

Two variations of the same model: differences non RF in function.

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 18.68 (dBm) Maximum peak output power at antenna input terminal: 73.8 (mW) Antenna gain(typical): 2 (dBi) Maximum antenna gain: 1.58 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2400 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.02327 (mW/cm^2) Maximum allowable antenna gain: 18.3 (dBi) Margin of Compliance: 16.33 2 4 R PG S π =

Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 CERTIFICATION TEST REPORT PART 15.247, SUBPART C RSS-210 - LOW POWER LICENSE EXEMPT RADIO- COMMUNICATION DEVICES (ALL FREQUENCY BANDS) DECLARATION OF CONFORMANCE PROCEDURES TEST REPORT For The Transceiver Model: XCVR2G4 FCC ID#: BYMXCVR2G4 PREPARED FOR: HME 14110 Stowe Drive Poway, CA 92064 PREPARED ON 9-12-05 REPORT NUMBER: 2005 080640-FCC PROJECT NUMBER: 25-640-HME Total Pages: 1 Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 DOCUMENT HISTORY REVISION DATE COMMENTS - 9-12-05 Prepared By: A. LAUDANI - 9-12-05 Initial Release: F. Fleury 10-28-05 Revised By: A. LAUDANI NOTE: Nemko USA, Inc. hereby makes the following statements so as to conform to Chapter 10 (Test Reports) Requirements of ANSI C63.4 (2003) “Methods and Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz”: o The unit described in this report was received at Nemko USA, Inc.'s facilities on March 11, 2004. Testing was performed on the unit described in this report on March 11, 2004 to March 16, 2004. o The Test Results reported herein apply only to the Unit actually tested, and to substantially identical Units. o This report does not imply the endorsement of the Federal Communications Commission (FCC), NVLAP or any other government agency. This Report is the property of Nemko USA, Inc., and shall not be reproduced, except in full, without prior written approval of Nemko USA, Inc. However, all ownership rights are hereby returned unconditionally to HME, and approval is hereby granted to HME and its employees and agents to reproduce all or part of this report for any legitimate business purpose without further reference to Nemko USA, Inc. Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 TABLE OF CONTENTS DOCUMENT HISTORY...................................................................................................................................2 CERTIFICATION..............................................................................................................................................5 1. ADMINISTRATIVE DATA AND TEST SUMMARY..........................................................................6 1.1.ADMINISTRATIVE DATA...................................................................................................................................6 1.2.TEST SUMMARY..............................................................................................................................................6 2. SYSTEM CONFIGURATION.................................................................................................................7 2.1.SYSTEM COMPONENTS AND POWER CABLES...................................................................................................7 2.2.DEVICE INTERCONNECTION AND I/O CABLES..................................................................................................7 2.3.DESIGN MODIFICATIONS FOR COMPLIANCE.....................................................................................................8 2.4.DESIGN MODIFICATIONS FOR COMPLIANCE.....................................................................................................8 3. DESCRIPTION OF TEST SITE AND EQUIPMENT...........................................................................9 3.1.DESCRIPTION OF TEST SITE.............................................................................................................................9 4. DESCRIPTION OF TESTING METHODS.........................................................................................10 4.1.INTRODUCTION..............................................................................................................................................10 4.2.CONFIGURATION AND METHODS OF MEASUREMENTS FOR RADIATED EMISSIONS.........................................16 5. TEST RESULTS......................................................................................................................................19 5.1. CFR 47 PART 15C §15.247 TEST RESULTS..............................................................................................22 TEST SETUP DIAGRAMS Figure 1. General EUT Test Setup Diagram....................................................................................................11 APPENDICES A. ADDITION CONDUCTED SPURIOUS PLOTS B. CONDUCTED & RADIATED EMISSIONS MEASUREMENT UNCERTAINTIES........................................................26 C. NEMKO USA, INC.’S TEST EQUIPMENT & FACILITIES CALIBRATION PROGRAM..............................................28 Nemko USA, Inc. 11696 Sorrento Valley Rd., Suite F San Diego, CA 92121-1024 Phone (858) 755-5525 Fax (858) 452-1810 CERTIFICATION Nemko USA, Inc., an independent Electromagnetic Compatibility (EMC) Test Laboratory, produced this Test Report and performed the Radio Frequency Interference (RFI) testing and data evaluation contained herein. Nemko USA, Inc.’s measurement facility is currently registered with the United States Federal Communications Commission (FCC) in accordance with the provisions of 47 United States Code (CFR) Part 2, Subpart I, Section 2.948(a). A current description of Nemko USA, Inc.’s measurement facility is on file with the FCC. Nemko USA Inc. has additionally satisfied the FCC that it complies with the requirements set forth in 47 CFR Part 2, Subpart I, Section 2.948(d) regarding the accreditation of EMC laboratories. The RFI testing, test data collection and test data evaluation were accomplished in accordance with the ANSI C63.4-2003 Standard, and in accordance with the applicable sections of the FCC rules (47 CFR Parts 2 and 15). The testing was also accomplished in accordance with Industry Canada…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: BYMBASE6000 Test report no.: G0M20306-7970-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMSSTORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBHPHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 1 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1General information 1.1Notes 1.2Testing laboratory 1.3Details of approval holder 1.4Application details 1.5Test item 1.6Test standards 2Technical test 2.1Summary of test results 2.2Test environment 2.3Test equipment utilized 2.4General Test Procedure 3Test Results ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 2 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1General Information 1.1Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 25.08.2003N. Kaspar DateETS-Lab.NameSignature Technical responsibility for area of testing: 25.08.2003Dr. Genz DateETSNameSignature ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 3 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 66 1.2.2Details of accreditation status A CCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY:BLUETOOTH QUALIFICATION REVIEW BOARD (BQRF) I NDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA A CCREDITEDCertificate Number: 1983-01 1.3Details of approval holder Name: HM Electronics, Inc. Street: 14110 Stowe Drive Town: 92064 Poway, CA Country: USA Telephone: +1 858 535 6098 Fax: +1 858 535 6019 Contact: Mr. Thomas P. Riches Telephone: +1 858 535 6098 E-mail: [email protected] ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 4 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4Application details Date of receipt of application: 25.06.2003 Date of receipt of test item: 25.06.2003 Date of test: 27.06.2003-04.07.2003 1.5Test item Description of test item: Wireless 6000 Type identification: Base 6000 Serial number: Test model without serial number. Photos: See annex Technical data Frequency band: 2.4 – 2.4835GHz Frequency ( ch A): 2.401920 GHz Frequency (ch B): 2.441664 GHz Frequency (ch C): 2.481408 GHz TransmitterVnom Antenna 1 Power (ch A) :Conducted: 18,24 dBm Power (ch B) :Conducted: 18,68 dBm Power (ch C) :Conducted: 18,60 dBm Antenna 1Vnom Vnom –15%Vnom +15% Power (chA) :Radiated: 18,96 dBm Radiated: 18,79 dBm Radiated: 18,81 dBm Power (ch B) :Radiated: 19,40 dBm Radiated: 19,35 dBm Radiated: 19,28 dBm Power (ch C) :Radiated: 19,41 dBm Radiated: 19,69 dBm Radiated: 19,75 dBm Antenna 2Vnom Vnom –15%Vnom +15% Power (chA) :Radiated: 13,08 dBm Radiated: 13,09 dBm Radiated: 13,20 dBm Power (ch B) :Radiated: 12,61 dBm Radiated: 12,97 dBm Radiated: 12,93 dBm Power (ch C) :Radiated: 14,62 dBm Radiated: 14,48 dBm Radiated: 14,35 dBm Antenna 1: external Antenna (see add. information)Antenna gain:2 dBi Antenna 2: external Antenna (see add. information) Power supply : 16V DCAC/DC Adaptor (HM Electronics Part No. 760117) Operating mode: duplex Type of modulation: FHSS ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 5 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Manufacturer: (if applicable) Name: Street: Town: Country: Additional information:The EUT uses an Antenna equipment with an unique connector (Inverser TNC-Adapter), which can not be replaced by standard antenna jack or electric connector, it uses a permanently affix external antenna. ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 6 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2Test environment Temperature: 23 o C Relative humidity content: 20 ...75 % Air pressure: 86 ...103 kPa Details of power supply: 16 V AC Extrem conditions parameters:: test voltage - extrememin :13,6 V, AC max:18,4 V, AC ETS Dr. Genz GmbH, GermanyRegistration number: G0M20306-7970-P-15Page 7 of 28 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3Test equipment utilized No.Measurement device:Type:Manufacturer: ETS 0001Test receiverESHS 10Rohde&Schwarz ETS 0002Test receiverESVPRohde&Schwarz ETS 0003Test receiverESVS 10Rohde&Schwarz ETS 0004Spectrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005Test receiverSMV 11MEB ETS 0006Test receiver systemSME 12MEB ETS 0007Spectrum analyzerPSA-65AAvc…
