C8LBM7X50W Transceiver

M7X Transceiver and M7R Receiver User Documentation M7X and M7RPage ii Handbook Title:M7X Transceiver and M7R Receiver User Documentation Handbook Part Number:31-370000M7 Handbook Version:1.0D Date of Issue:November 2007 Equipment Modification LevelNil Published By:Park Air Systems Northfields Market Deeping Peterborough PE6 8UE England Telephone:From UK, 01778 345434 From outside UK, 44 1778 345434 Fax:From UK, 01778 342877 From outside UK, 44 1778 342877 www.parkairsystems.com Errata Any errors found in this handbook are promulgated through the Park Air FTP network. Any user can access this information by logging on to: ftp.parkairsystems.com When logged on, select the public (Pub) folder, then the Handbook Errata Sheets folder, and then select the required equipment model. [Adobe Acrobat™ must be loaded on your PC to use this facility] M7X and M7RPage iii Health and Safety Warnings A warning is used to indicate possible danger to personnel. Throughout Park Air handbooks, warnings are indicated by the following symbols: Cautions A caution is used to indicate possible danger to the equipment. Indicates electrical danger to personnel.WARNING Indicates a hazardous material. WARNING Indicates a non-ionizing radiation hazard. WARNING Indicates a specified danger to personnel. WARNING Indicates the presence of electrostatic sensitive devices (ESSD). Caution Indicates a specified danger to the equipment. Caution M7X and M7RPage iv Approvals and Regulations The following approvals and regulations apply to the M7X Transceiver and M7R Receiver: Federal Communications Commission (FCC) Regulations This transceiver complies with Part 15 and Part 87 of the FCC rules. Operation is subject to the condition that the transceiver does not cause harmful interference. You are required to obtain a station license before transmitting from your transceiver. This equipment is licensed only for operation in the VHF aeronautical frequency band between 118 and 136.975 MHz using amplitude modulation (AM) and 25 kHz channel spacing. The transceiver’s power output should not exceed the output necessary for satisfactory technical operation, taking account of local conditions and the area to be covered. The transceiver’s frequency and parameters should be checked by authorized service personnel before use and yearly (or more frequently) thereafter. M7X and M7RPage v List of Abbreviations The following list gives the standard abbreviations used in Park Air user documentation. Aampere acalternating current AGCautomatic gain control ALCautomatic level control AMamplitude modulation ATCair traffic control BERbit error rate BITbuilt-in test bpsbits per second Ccelsius CASchannel associated signalling CCEcontrol centre equipment CDcompact disk CSMAcarrier sense multiple access dBdecibel dcdirect current DSBdouble sideband D8PSKdifferentially encoded 8-phase shift keying E1-RICE1-radio interconnect ESDelectrostatic sensitive device E-BITexternal bit signal Figfigure FMfrequency modulation FPfrequency preset ggramme HPAhigh power amplifier Hzhertz IFintermediate frequency kkilo kbits/skilobits per second kgkilogramme kHzkilohertz LCDliquid crystal display LEDlight emitting diode LRUline replaceable unit Mmega mmetre mAmilliamp MARCmulti-access remote control Mbits/smegabits per second MHzmegahertz mmmillimetre msmillisecond MSKminimum shift keying mWmilliwatt NBnarrow-band n/cnormally closed n/onormally open PApower amplifier PCpersonal computer PCBprinted circuit board pk-pkpeak-to-peak ppmparts per million PSUpower supply unit PTTpress to transmit RCMSremote control and monitoring system RFradio frequency RF PAradio frequency power amplifier RSSIradio signal strength indication TDMAtime division multiple access TStime slot UHFultra high frequency Vvolt VAvolt-ampere VCCSvoice control and communication switch VFPvirtual front panel VHFvery high frequency M7X and M7RPage vi VOGADvoice-operated gain adjusting device Wwatt WBwideband WPwaveform profile Contents Page M7X and M7RPage vii Health and Safety iii Approvals and Regulations iv List of Abbreviations v Overview Introduction 1-2 Models and Part Numbers 1-3 Options 1-3 What’s In the Box 1-3 Accessories 1-3 Radio Operation 1-4 Local Operation 1-4 Local Operation Using an Extended Control Head 1-4 Remote Operation Using an M7 Controller 1-5 Remote Operation Using Compatible Control Equipment 1-5 Waveform Profiles and Frequency Presets 1-5 Security Profiles 1-5 Built-In Test 1-6 Power Supply 1-6 M7 Construction 1-6 Specification General Specification 2-2 Input Supplies 2-3 Dimensions and Weight 2-4 Dimensions 2-4 Weight 2-4 Environmental 2-5 Transmit Characteristics 2-6 Receive Characteristics 2-7 Optional Guard Receiver 2-8 Interfaces 2-9 Front Panel 2-9 Rear Panel Facilities 2-9 M7X and M7RPage viii Contents (continued) Page Operation Introduction 3-2 Switching On 3-3 Control Head Key Functions 3-4 Tuning the Radio 3-7 Waveform Profiles 3-8 Frequency Presets 3-9 Log In if Security is Applied 3-10 Tuning Using the Current Waveform Profile 3-12 Tuning by Recalling a Stored Waveform Profile 3-14 Tuning by Recalling a Stored Frequency Preset 3-17 Front Panel Display for 25 kHz and 8.33 kHz Channel Spacing 3-19 Front Panel Display for 25 kHz and 12.5 kHz Channel Spacing 3-20 Maritime Channels 3-21 Configuring the Radio 3-22 Select Between Transceiver, Transmitter or Receiver Operation 3-27 Restricting the Radio’s Frequency Range 3-29 Creating and Storing a Waveform Profile 3-32 Creating and Storing a Frequency Preset 3-36 Security 3-40 Installation Warnings and Cautions 4-2 Introduction 4-4 Initial Inspection of the Radio 4-4 Fit the Radio into an Equipment Cabinet 4-5 Extending the Control Head 4-7 Selecting the Required Antenna Option 4-9 M7X Transceiver 4-9 M7R Receiver 4-9 Changing the Configuration 4-10 Connecting the Antenna(s) 4-12 Connect the Chassis Stud 4-13 Connecting the Input Supply 4-13 Connecting the dc Input Supply 4-14 Connecting the ac Input Supply 4-15 Control…

Text truncated - open the document above for the full version.

M7X and M7RPage 3-35Operation Back to Menu Table 3-5 Example Waveform Profile Radio Parameters ParameterAM-VoiceMaritimeDefault SettingSetting Range RF power output 50 W (AM-Voice) 100 W (Maritime) Between 1 and 50 W (1 W steps) AM-Voice Between 1 and 100 W (1 W steps) Maritime Squelch level-102 dBm Between -60 and -110 dBm (1 dB steps) Audio AGCOnOn or Off Squelch noise compensation OnOn or Off Squelch carrier override OffOn or Off Transmit timeout180 s 0 to 600 s (5 s steps). Note that 0 s is Off (no timeout). MuteOnOn or Off RF power delayOffOn or Off Automatic level control OnOn or Off Offset carrier 0kHz +8, +7.5, +7.3, +5, +4, +2.5 (kHz) 0 -8, -7.5, -7.3, -5, -4, -2.5 (kHz) Operation mode ShipShip or shore Operation format InternationalInternational or American M7X and M7RPage 3-36Operation Back to Menu Creating and Storing a Frequency Preset Up to 400 frequency presets, designated FP1 to FP400, can be stored in the radio ready for immediate recall. A frequency preset stores a valid operating frequency plus an associated Waveform Profile; for example, 121.500 MHz operating with Waveform Profile WP5. When the radio is received from Park Air, all 400 Frequency Presets are set to 118.000 MHz operating with the default Waveform Profile WP1. The Frequency Preset designations are factory set to be FP1 to FP400. These designations can be edited by the user to any name up to 8 characters long. To create and store a frequency preset: (1)From the Home screen (Fig 3-39) press Key 2 to display the list of frequency presets (Fig 3-40). Fig 3-39 Home Screen (2)Pressing Key 9 to scroll up, or Key 10 to scroll down, highlight the frequency preset to be edited then press Key 12 – Edit to display the Frequency Preset Edit screen (Fig 3-41). Fig 3-40 List of Frequency Presets M7X and M7RPage 3-37Operation Back to Menu Fig 3-41 Frequency Preset Edit Screen (3)The first parameter that can be changed is the Name. A frequency preset can have any name up to eight characters long. In this example, the default designation FP1 is being changed to ‘Approach’ as shown in Fig 3-42. To change the name, press Key 2 – Change. The new name can be entered using the alphanumeric keypad. (4)When the new name has been entered, press Key 13 – Select. You are returned to the Frequency Preset Edit screen (Fig 3-41). Fig 3-42 Edit Frequency Preset Name M7X and M7RPage 3-38Operation Back to Menu (5)The next parameter is to attach a previously stored Waveform profile to the frequency preset. Press Key 3 – Change (Fig 3-41). Pressing Key 9 to scroll up, or Key 10 to scroll down, highlight the required waveform profile (Fig 3-43), then press Key 13 – Select. Fig 3-43 Select Waveform Profile (6)From the Frequency Preset Edit screen, press Key 4 – Change to select the required Frequency (Fig 3-44). Using the keypad, enter the required frequency. [Note that any offset frequency is a parameter of the waveform profile; the operating frequency should not include any offset.] If a Maritime waveform profile is selected, a channel selection is required as shown in Fig 3-45. Fig 3-44 Select Frequency (7)When the correct frequency (or channel) is shown, press Key 13 – Select. The frequency preset is now set up. Repeat this procedure for other frequency presets. M7X and M7RPage 3-39Operation Back to Menu Fig 3-45 Frequency Preset – Select Maritime Channel Channels are only available when using the Maritime waveform. Each channel stores separate predefined transmit and receive maritime VHF frequencies. Channels cannot be altered by the user. The radio can be set to either ‘Ship’ or ‘Shore’, which swaps the stored transmit and receive frequencies. Also the ‘International’ or ‘American’ frequency sets can be selected. The factory default is ‘Ship’, ‘International’, Channel 16. M7X and M7RPage 3-40Operation Back to Menu Security The radio has a security feature that allows certain operations, for example, changing the radio’s configuration settings, to be performed only after a 4-digit PIN number has been entered. The radio has three security profiles: ‰Security Profile A (SPA). SPA limits access to defined radio functions via the front panel and associated M7 remote controllers ‰Security Profile B (SPB). SPB limits access to defined radio functions via the front panel and associated M7 remote controllers ‰Security Profile Z (SPZ). SPZ limits access to defined radio functions via its interfaces (not including the interface to M7 remote controllers). The example given on the following pages show how to set security so that: (1)Personnel with knowledge of the Security Profile A PIN: ‰can change frequency by recalling stored frequency presets from the radio or associated M7 remote controller ‰cannot recall waveform profiles ‰cannot change the radio’s configuration settings. (2)Personnel with knowledge of the Security Profile B PIN: ‰can change frequency by recalling stored frequency presets from the radio or associated M7 remote controller ‰can change frequency by recalling stored waveform profiles from the radio or associated M7 remote controller ‰cannot change the radio’s configuration settings. (3)The radio’s configuration settings cannot be changed from any remotely connected equipment (except the M7 remote controller). The administrator has no security restrictions. M7X and M7RPage 3-41Operation Back to Menu To define the security profiles: This procedure should be completed only by the system administrator. (1)From the Home screen (Fig 3-46) press Key 6 – Security to display the Security screen (Fig 3-47). Fig 3-46 Home Screen – Security Set Up (2)The Security screen shows the restrictions applicable to profiles SPA, SPB and SPZ. A restriction is indicated by a cross () and no restriction is indicated by a tick (). The example shown in Fig 3-47 has no security restrictions. To set up the profiles press Key 6 – Enable Security. Fig 3-47 Security Screen (Example A) Press Key 6 to display the Security screen M7X and …

Text truncated - open the document above for the full version.

M7X and M7RPage 5-7Maintenance Back to Menu Unscheduled Maintenance The unscheduled maintenance detailed in this documentation describes diagnosis using the Built-In-Test facility and rectification by module replacement. An M7 radio weighs up to 26 kg. A minimum of two people should be used to lift the radio. Special consideration should be given if the radio has to be lifted at height, for example from the top of an equipment cabinet. Failure to take the necessary precautions can result in injury to personnel. All procedures given in this topic assume that the faulty radio has been removed from its operational position and placed on a suitable work-bench. This equipment contains devices sensitive to electrostatic discharge. Precautions applicable to handling such equipment, including anti-static work surfaces and protection using wrist straps connected to earth, should always be taken. Tools and Test Equipment The following tools and test equipment will be required to perform the unscheduled maintenance procedures detailed in this documentation: (1)Torx Screwdriver, size T10. (2)Torx Screwdriver, size T15. (3)Torx Screwdriver, size T20. (4)Frequency counter able to measure 10.000 000 MHz. (when replacing the Processor module). Part Numbers Part numbers for the modules and other replaceable items are listed in Table 5-1. WARNING Heavy Item Caution ESDs M7X and M7RPage 5-8Maintenance Back to Menu Table 5-1 Part Numbers DescriptionPark Air Part NumberNotes Modules: PSUB68-70000701 Processor moduleB68-70000711 RF control moduleB68-70000712 Control headB68-70000714 Interface moduleB68-70000715 RF PAB68-70000716Transceiver only RF switchB68-70000735Receiver only Guard receiver moduleB68-70000725Optional module Custom interface moduleAllocated for an individual user.Optional module Parts: Coaxial cables See separate list – Table 5-6 on page 5-38 Cable Lemo to USB17N12000021For use with DLA Heatsink fan 1 and 269S12833142H See Fig 5-7 on page 5-13 Main chassis fan69S12833142M See Fig 5-7 on page 5-13 Thermal pad for PSU46-00000615 Thermal pad for RF PA46-00000591 Fuse (F1) dc input, F30A 32V29-01460202 Fuse (F2) ac input, T10AH 250 V 29-01100102 M7X and M7RPage 5-9Maintenance Back to Menu Built-in-Test (BIT) The BIT facility continuously monitors key radio parameters and indicates BIT status at the Control Head. The Control Head’s BIT button lights to provide the indications shown in Fig 5-4. Fig 5-4 Control Head BIT Button Indications When the BIT system detects a fault, the BIT button lights as detailed in Fig 5-4. The button should then be pressed to display the BIT Monitor screen as shown in Fig 5-5. This screen indicates the faulty module or cable that needs replacing. The BIT also detects external environmental conditions that could lead to degraded performance of the radio; for example, high ambient temperature, high VSWR. When the BIT Monitor screen is displayed, use Key 9 and Key 10 to scroll through the list. The complete list, with reference to remedial action, is detailed in Table 5-2. BIT Button BIT Button Visual Indications: Green means that no fault has been detected Red means an internal fault has been detected Flashing red means an external warning has been detected Flashing green means an external warning has been detected and acknowledged by the operator M7X and M7RPage 5-10Maintenance Back to Menu Fig 5-5 BIT Monitor Screen Table 5-2 BIT Parameters ParameterMonitoring RangeRemedial Reference Processor moduleOK or Fault See Replacing the Processor Module on page 22. RF control moduleOK or Fault See Replacing the RF Control Module on page 24. RF PA moduleOK or FaultSee Replacing the RF PA on page 27. PSU moduleOK or FaultSee Replacing the PSU Module on page 33. Control head moduleOK or Fault or N/ASee Replacing the Control Head on page 15. Interface moduleOK or Fault See Replacing the Interface Module on page 26. Guard receiver moduleOK or Fault or N/A See Replacing the Guard Receiver Module on page 21. Custom interface moduleOK, Fault or N/A See Replacing the Custom Interface Module on page 20. Main chassis fanOK or Fault See Replacing a Fan on page 13.Heatsink fan 1OK or Fault Heatsink fan 2OK or Fault Receive RF cableOK or Fault See Replacing Faulty Cables on page 38. In this figure, Processor Module is highlighted; this is BIT Monitored Parameters 1 of 28 in the List. The Up and Down keys allow scrolling through all BIT Monitored Parameters. The number of BIT parameters that are monitored depends on the radio type, and the options that are fitted. The number 28 shown in this figure, is an example. M7X and M7RPage 5-11Maintenance Back to Menu Linearisation feedback cableOK or FaultSee Replacing Faulty Cables on page 38. Rx 90 MHz IF cableOK or FaultSee Replacing Faulty Cables on page 38. Tx 90 MHz IF cableOK or FaultSee Replacing Faulty Cables on page 38. Transmit drive cableOK or FaultSee Replacing Faulty Cables on page 38. 10 MHz reference inputOK, Fault or N/ASee Replacing Faulty Cables on page 38. Guard receiver RF cableOK, Fault or N/ASee Replacing Faulty Cables on page 38. DC supply OK, or Warning when operating from a dc supply that falls below 23 V AC supply OK, or Warning when the ac supply fails and operation switches to dc VSWROK or Warning (>3:1) Ambient temperatureOK or Warning (>55ºC) E-BIT(A)OK or Warning E-BIT(B)OK or Warning Table 5-2 BIT Parameters (Continued) ParameterMonitoring RangeRemedial Reference M7X and M7RPage 5-12Maintenance Back to Menu Removing the Top or Bottom Cover Ensure the input ac and dc supplies are disconnected before removing the top or bottom cover. Do not remove the top or bottom cover for at least one minute after switching off the radio. To remove the radio’s top or bottom cover: (1)Ensure that the input ac and dc supplies are disconnected from the radio. (2)Using a Torx T20 screwdriver, remove and retain the 30 screws that secure the cover to the chassis; see Fig 5-6. Fig 5-6 Top/Bottom Cover Securing Screws WARNING Dangerous Vol…

Text truncated - open the document above for the full version.

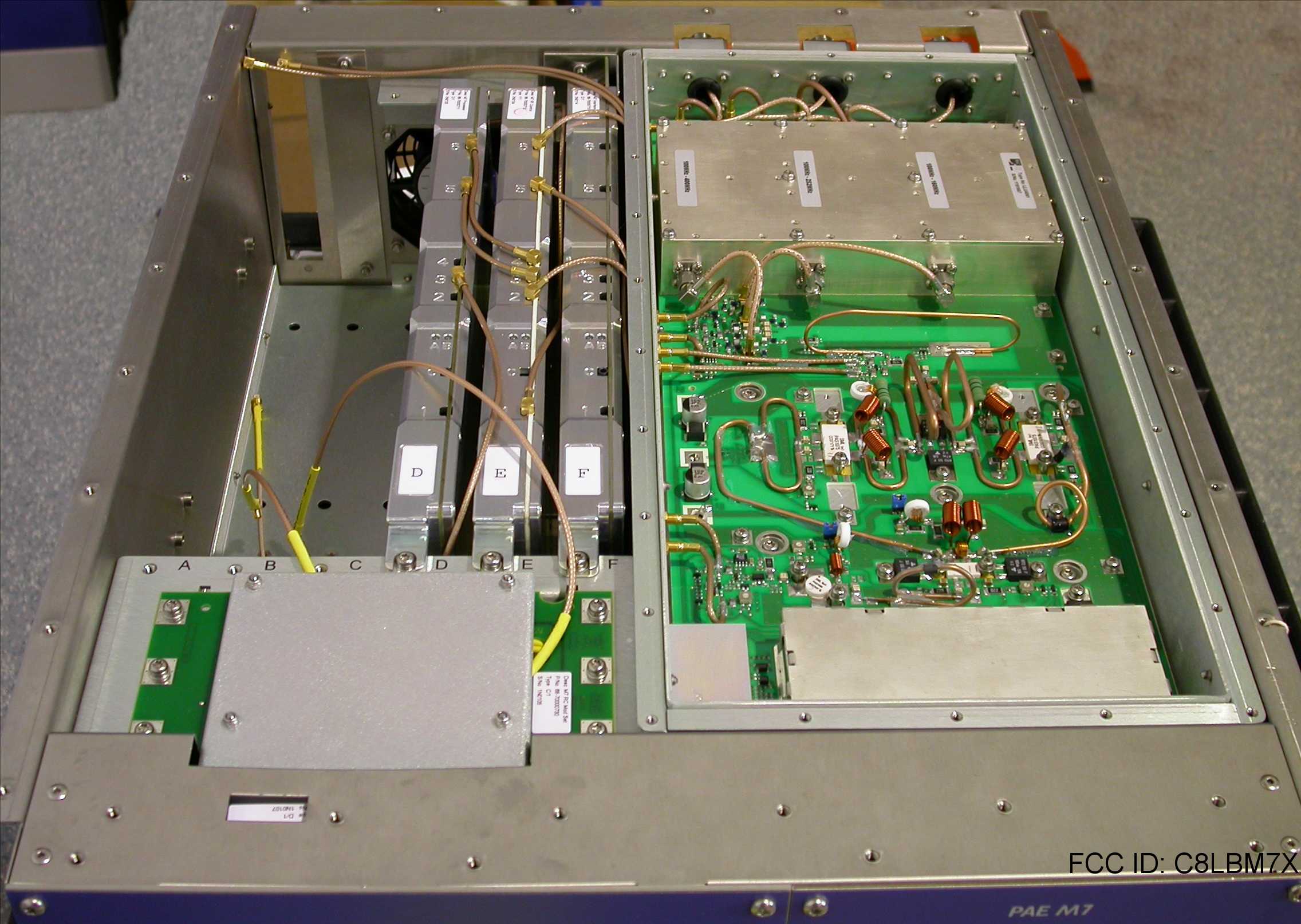

M7X and M7RPage 5-26Maintenance Back to Menu Replacing the Interface Module Ensure the input ac and dc supplies to the radio are disconnected before removing the top cover. Do not remove the radio’s top cover for at least one minute after switching off the radio. This equipment contains devices sensitive to electrostatic discharge. Precautions applicable to handling such equipment, including wearing a static protection wrist strap connected to earth, should always be taken. To replace the Interface module: (1)Remove the radio’s top cover as detailed on page 5-12. (2)Refer to Fig 5-14 on page 5-18 and identify the Interface module’s position (Module F). (3)Using a Torx T15 screwdriver, remove and retain the front and rear module securing screws (Fig 5-16 on page 5-19). (4)Carefully lift the module disconnecting it from its socket (Fig 5-15 on page 5-19). (5)Place the replacement module in position and press down to ensure it is fully located in the chassis socket. (6)Fit and tighten the front and rear module securing screws (Fig 5-16 on page 5-19). (7)Refit the radio’s top cover (see page 5-12). (8)Connect the radio to a PC using the Lemo to USB cable. (9)Reapply input power to the radio. (10) Download the Interface module software from the Park Air radio software CD. Instructions for downloading software are given under the heading ‘Data Loader Application’ starting on page 5-39. (11) The radio’s build state is stored in the Interface module. To restore this information, use the DLA Build State procedure given on page 5-43. WARNING Dangerous Voltage WARNING Dangerous Voltage Caution ESDs M7X and M7RPage 5-27Maintenance Back to Menu Replacing the RF PA Ensure the input ac and dc supplies to the radio are disconnected before removing the top cover. Do not remove the radio’s top cover for at least one minute after switching off the radio. Four semiconductor devices used in the RF PA contain the toxic material beryllium. Although no procedures in this documentation instruct semiconductor replacement, equipment covers are removed exposing the devices. Users should be aware that there could be a hazard should the output transistors become damaged. Fig 5-17 shows the RF PA; the four semiconductors containing beryllium are outlined and have the markings PAS1068, PAS1074 or PAS1075. Fig 5-17 Beryllium Hazard Components This equipment contains devices sensitive to electrostatic discharge. Precautions applicable to handling such equipment, including wearing a static protection wrist strap connected to earth, should always be taken. WARNING Dangerous Voltage WARNING Dangerous Voltage WARNING Beryllium Hazard Caution ESDs M7X and M7RPage 5-28Maintenance Back to Menu Removing the RF PA To remove the RF PA: (1)Remove the radio’s top cover as detailed on page 5-12. (2)Remove the Interface module as detailed on page 5-26. (3)Identify the RF PA cover, shown in Fig 5-18, and using a Torx T10 screwdriver, remove and retain the 26 securing screws (part number 36T46330060). Remove and retain the RF PA cover. Fig 5-18 RF PA Cover Securing Screws (4)Identify the seven M4 x 8mm pan head screws (Fig 5-19) that secure the module to the radio’s chassis. Using a Torx T15 screwdriver, remove and retain the seven screws (part number 36T63340080) and associated wavy washers. RC INTERFACE CUSTOM INTERFACE GUARD RECEIVER RF CONTROL PROCESSOR STANDARD INTERFACE RF PA Cover M3 x 6 mm countersunk (26 off) securing screws ABCDEF M7X and M7RPage 5-29Maintenance Back to Menu Fig 5-19 RF PA Module Securing Screws (5)At the RF PA, disconnect the coaxial cables listed in Table 5-5. Table 5-5 RF PA Coaxial Cables RF PA ConnectionCable Part NumberDestination CN4, Transmit drive17T11700020CN5, RF Control module CN5, Linearisation feedback17T11700021CN2, RF Control module CN6, Receive17T11700022CN6, RF Control module CN7, Guard receive17T11700026CN6, Guard receiver (if fitted) M4 x 8 mm pan head (7 off) securing screws Arrows indicate the M7X and M7RPage 5-30Maintenance Back to Menu (6)Looking from the rear of the radio, identify the RF PA 3-way power connector as shown in Fig 5-20. Separate the in-line connector. (7)Looking from the rear of the radio, identify the ribbon cable that connects from the RF PA module to a chassis mounted connector as shown in Fig 5-20. Disconnect the ribbon cable from the chassis connector. Fig 5-20 RF PA Power and Ribbon Cable Connections (8)Remove the RF PA from the chassis. (9)A thermal pad is fitted between the RF PA and the chassis (which is a heatsink). The old thermal pad should now be removed by peeling it off (see Fig 5-21). RF PA In-Line Power Connector RF PA Ribbon Cable Connector This photograph taken from the rear of the radio with the RF PA on the left. RF PA Module

M7X and M7RPage 5-37Maintenance Back to Menu Fig 5-28 PSU Thermal Pad Position (6)Turn the radio over so that access is from the top. (7)Connect the module’s two-wire power connector (Fig 5-24) and ribbon cable (Fig 5-25). (8)Connect the RF PA in-line power connector (Fig 5-20). (9)Replace the Interface module (page 5-26). (10) Refer to page 5-12 and refit the radio’s top cover. (11) Reapply input power to the radio. Thermal Pad fits on the raised area M7X and M7RPage 5-38Maintenance Back to Menu Replacing Faulty Cables The BIT system monitors the status of interconnecting coaxial cables as listed in Table 5-6. Should a BIT indication show a cable fault, a replacement cable as listed in the table should be fitted. Note: Cables listed in Table 5-6 showing a double asterix (**) are not fitted in the M7R receiver. Table 5-6 Monitored Coaxial Cables Displayed ParameterProvides Connection BetweenReplacement Cable Part Number Module and Connector (CN) Module and Connector (CN) Receive CableRF PA, CN6RF Control, CN617T11700022 Linearisation Feedback cable ** RF PA, CN5RF Control, CN217T11700021 Rx 90 MHz IF cableProcessor, CN5RF Control, CN317T11700023 Tx 90 MHz IF cableProcessor, CN6RF Control, CN417T11700019 Transmit Drive **RF PA, CN4RF Control, CN517T11700020 10 MHz Reference Input Rear panel 10 MHz Input connector RF Control, CN117T11700027 Guard Receiver cableRF PA, CN7Guard Receiver, CN617T11700026 M7X and M7RPage 5-39Maintenance Back to Menu Data Loader Application The Data Loader Application (DLA) is a Park Air software package, supplied on CD, that provides the ability to: ‰Set up, or amend radio settings (configuration, waveform profiles, frequency presets, frequency bands and IP configuration) via a PC or laptop running Microsoft Windows. ‰Save radio settings and use the saved file to download settings into other radios ‰Download any module software into the radio after a module has been replaced ‰Store the radio’s build state. Loading the Software To use the DLA, identify the interconnecting cable (part number 17N12000021) and connect it from the radio’s Microphone/Headset/Maintenance connector to the PC’s USB port. Then: ‰Insert the CD into your disk drive. The CD will autorun ‰If the CD does not autorun, run the CD file: Setup.exe ‰Follow the on screen instructions to install the software ‰When the DLA is ‘Run’, the DLA Start Page (Fig 5-29) is displayed. Fig 5-29 DLA Start Page M7X and M7RPage 5-40Maintenance Back to Menu Radio Config Settings Page The radio config settings page allows the configuration to be uploaded from a radio, or set and downloaded to a radio. The parameters are the same as those available from the radio’s front panel; refer to Topic 3 – Operation. To upload the Config settings from the radio, at the menu bar select: Get Settings and then Radio Config Settings. Fig 5-30 shows an empty page that is ready to be compiled. To manually make settings at the PC, select each field in turn and enter the required value. When complete, download into the radio by using the Set Settings drop-down menu (see below). If an invalid parameter is entered, a red exclamation mark (!) is returned when downloaded (because the example in Fig 5-30 is empty, all fields show the invalid symbol). Fig 5-30 Radio Config Settings Page Note: To make the illustration easier to read, Fig 5-30 shows only part of the Radio Config Settings page. [Grey fields cannot be downloaded; the value is uploaded from the radio.] All Settings Radio Config Settings Freq Bands IP Configuration Build State Waveform Profiles Frequency Presets All Settings (excluding Build State) Radio Config Settings Freq Bands IP Configuration Waveform Profiles Frequency Presets Build States Get Settings drop-down menuSet Settings drop-down menu M7X and M7RPage 5-41Maintenance Back to Menu Frequency Bands The frequency bands page allows the radio’s frequency range to be restricted. The parameters are the same as those available from the radio’s front panel; refer to Topic 3 – Operation. Select the required fields in turn and enter the required value. Stop Bands (grey fields) cannot be set at the DLA, they are (if used) returned from the radio. When the page has been set, use Freq Bands from the Set Settings drop-down menu to download the settings into the radio. Fig 5-31 Frequency Bands Page M7X and M7RPage 5-42Maintenance Back to Menu IP Configuration The IP configuration page (Fig 5-32) allows the same settings as those available from the radio’s front panel. To upload the IP Configuration settings from the radio, at the menu bar select: Get Settings and then IP Configuration. To set or amend settings at the DLA, select each field in turn and enter the required value. When the page has been set, use IP Configuration from the Set Settings drop-down menu to download the settings into the radio. If an invalid parameter is entered, a red exclamation mark (!) is returned when downloaded (because the example in Fig 5-32 is empty, all fields show the invalid symbol. Fig 5-32 IP Configuration Page All Settings Radio Config Settings Freq Bands IP Configuration Build State Waveform Profiles Frequency Presets All Settings (excluding Build State) Radio Config Settings Freq Bands IP Configuration Waveform Profiles Frequency Presets Build States Get Settings drop-down menuSet Settings drop-down menu M7X and M7RPage 5-43Maintenance Back to Menu Build State Page The build state page (Fig 5-33) shows information including the part number and serial number of the connected radio and all modules fitted within the radio. This information can be viewed only after ‘All Settings’ or ‘Build State’ has been activated from the ‘Get Settings’ drop-down menu (see below). Only the Radio settings (the white fields in Fig 5-33) can be set. Information regarding the modules is uploaded from the radios. Fig 5-33 Build State Page All Settings Radio Config Settings Freq Bands IP Configuration Build State Waveform Profiles Frequency Presets All Settings (exc…

Text truncated - open the document above for the full version.

M7X and M7RPage 5-31Maintenance Back to Menu Fig 5-21 Thermal Pad Removal Fig 5-22 RF PA Thermal Pad Position M7X and M7RPage 5-32Maintenance Back to Menu Refitting the RF PA To refit the RF PA into the radio: (1)After ensuring all surfaces are clean, fit a new thermal pad to the RF PA as shown in Fig 5-22. The thermal pad is naturally adhesive and is supplied with a protective film on both sides. Partially remove the protective film from one end and carefully position the pad before removing the film completely. As the film is being removed, ensure no air bubbles are trapped between the PSU surface and the film. (2)After the protective film has been removed from both sides of the thermal pad, carefully place the RF PA in position. (3)Using a Torx T15 screwdriver secure the RF PA using seven screws and associated wavy washers as shown in Fig 5-19. (4)Looking from the rear of the radio, identify the RF PA 3-way power connector as shown in Fig 5-20. Make the in-line connection. (5)Looking from the rear of the radio, identify the ribbon cable that connects from the RF PA module to a chassis mounted connector as shown in Fig 5-20. Connect the ribbon cable from the RF PA to the chassis connector. (6)At the RF PA, connect the coaxial c…

Text truncated - open the document above for the full version.
