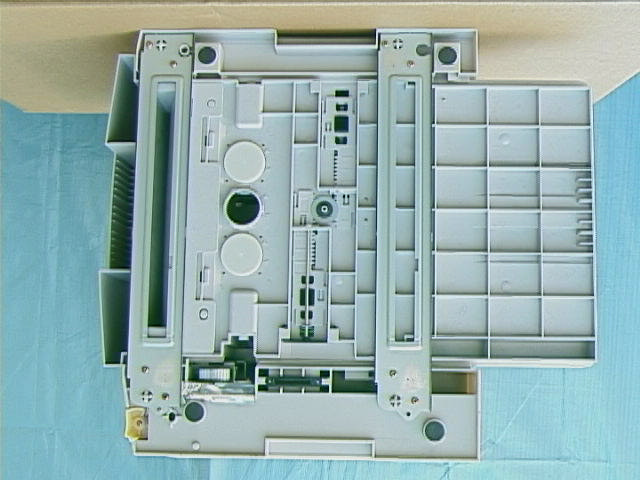

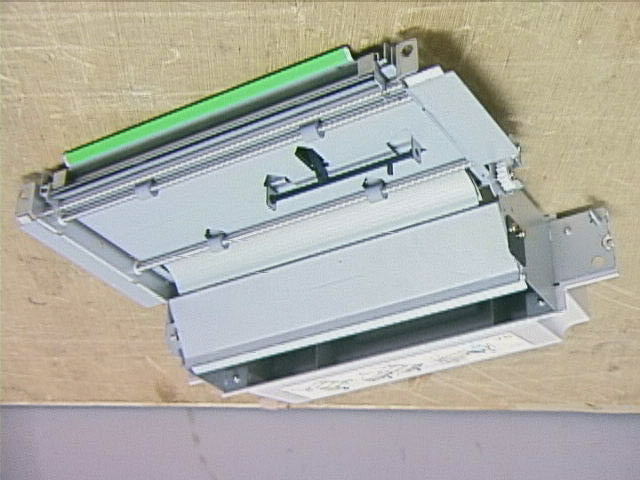

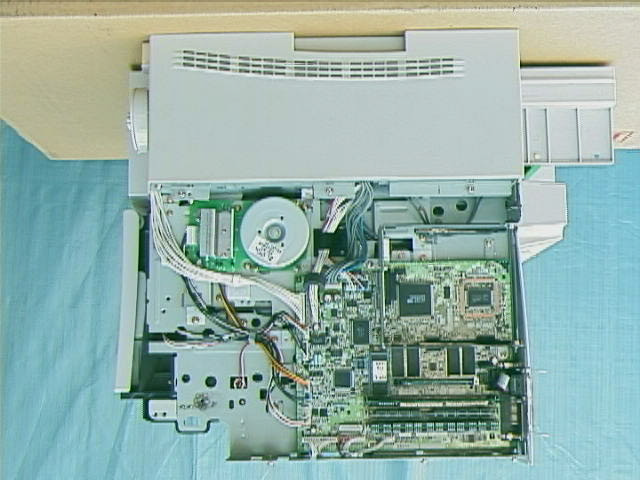

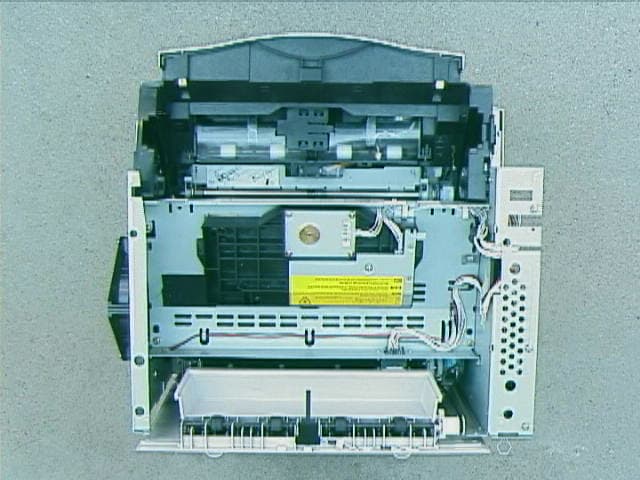

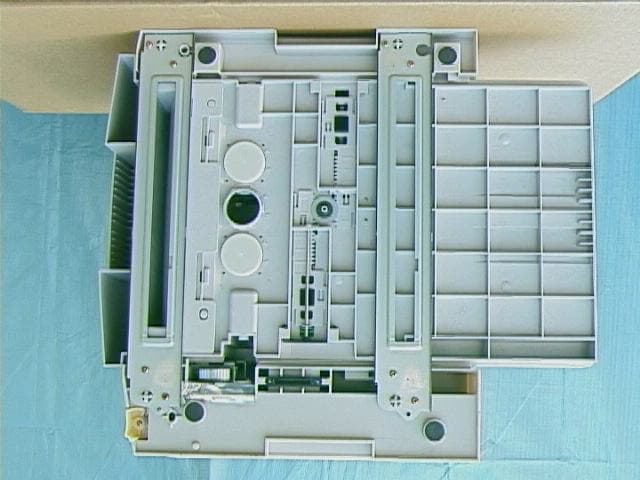

C9SDP050M33111A1

TM 12M MX USER’S MANUAL 12 ppm page printer User’s ManualFM-1 Federal Communications Commission Radio Frequency Interference Statement Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio / TV technician for help. FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notes • Testing of this equipment was performed on model number M33111A02. • The use of a non-shielded interface cable with the referenced device is prohibited. The length of the parallel interface cable must be 3meters (10 feet) or less. The length of the serial interface cable must be 15meters (50feet) or less. • The length of the power cord must be 3 meters (10 feet) or less. Laser Safety Information This printer has been designed and manufactured according to FDA regulations “title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968”, and is classified as class I laser product. Warning: Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Bescheinigung des Herstellers/Importeurs Hiermit wird bescheinigt, daß der • M33111B01/02 in Übereinstimmung mit den Bestimmungen der • EN 45014 (CE) funkenstört ist. Der Deutschen Bundespost wurde das Inverkehrbringen dieses Gerätes angezeight und die Berechtigung zur Überprüfung der Serie auf Einhaltung der Bestimmungen eingeräumt. • Maschinenlärminformationsverordnung 3. GSGV, 18.01.1991: Der höchste Schalldruckpegel beträgt 70 dB (A) oder weniger gemäß EN27779-1991. Notice to American Users Notice to Canadian Users Notice aux Utilisateurs Canadiens Hinweis für deutsche Benutzer FM-2User’s Manual In case that an Ethernet interface board is installed, this equipment complies with EMI regulations as follows: Notice to American Users Federal Communications Commission Radio Frequency Interference Statement Notice: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. FCC warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Notes • The use of a non-shielded interface cable with the referenced device is prohibited. The length of the parallel interface cable must be 3meters (10feet) or less. The length of the Ethernet interface cable must be 100meters (328feet) or less for type 10BASE-2 and 185 meters (607 feet) or less for type 10BASE-T. • The length of the power cord must be 3 meters (10 feet) or less. This class A digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la Classe A respecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Warning: This is a product which meets Class A of EN55022 and AS/NZS3548. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. Notice to European and Oceanian Users Notice to Canadian Users Notice aux Utilisateurs Canadiens User’s ManualFM-3 As an ENERGY STAR ® Partner, FUJITSU LIMITED has determined that this product meets the E NERGY STAR ® guidelines for energy efficiency. The International ENERGY STAR ® Office Equipment Program is an international program that promotes energy saving through the use of computers and other office equipments. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which business proprietors can participate voluntarily. The targeted products are office equipment such as computers, displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations. This product sold in Europe conforms to the standards in accordance with EC Directives. The copy of “Declaration of Conformity” is attached in the next page. CE Declaration FM-4User’s Manual Reseved User’s ManualFM-5 FUJITSU is a registered trademark of FUJITSU LIMITED. The following companies own the other trademarks used in this man…

Text truncated - open the document above for the full version.

T E S T R E P O R T REPORT NUMBER:AKL-399068 APPLICANT:FUJITSU LIMITED MODEL NUMBER:M33111A02 FCC ID:C9SDP050M33111A1 REGULATION:FCC Part15B Class B Canada ICES-003 Class B Conducted Emission Test Radiated Emission Test 3226, Yokokawa, Tatsuno-machi, Kamiina-gun Nagano-ken, 399-0511 Japan Tel.: +81 266 47 5311 Fax.: +81 266 47 5540 Akzo Kashima Limited EMC Division Nagano Site NVLAP accreditation is valid only FCC Part15(Digital Devices), CISPR22, and AS/NZS 3548 test reports. Akzo Kashima Report No. AKL-399068FCC ID : C9SDP050M33111A1Page 2 of 32 pages (Version 3.2) TABLE OF CONTENTS Page SECTION 1.TEST CERTIFICATION..........................................................................................3 SECTION 2.CONCLUSION.........................................................................................................4 SECTION 3.EQUIPMENT UNDER TEST..................................................................................5 SECTION 4.SUPPORT EQUIPMENT USED.............................................................................6 SECTION 5.CABLE (S) USED.....................................................................................................7 SECTION 6.CONSTRUCTION OF EQUIPMENT......................................................................8 SECTION 7.OPERATING CONDITIONS.................................................................................11 SECTION 8.TEST PROCEDURE(S)..........................................................................................12 SECTION 9.EVALUATION OF TEST RESULTS.....................................................................16 SECTION 10.PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP.......................................25 SECTION 11.INSTRUMENTS USED FOR FINAL TEST.........................................................29 SECTION 12.UNCERTAINTY OF MEASUREMENT................................................................30 SECTION 13.VALIDITY OF TEST REPORT..............................................................................31 SECTION 14.DESCRIPTION OF TEST LABORATORY...........................................................32 Akzo Kashima Report No. AKL-399068FCC ID : C9SDP050M33111A1Page 3 of 32 pages (Version 3.2) SECTION 1.TEST CERTIFICATION APPLICANT INFORMATION Company:FUJITSU LIMITED Address:Marunouchi Center Bldg. 6-1 Marunouchi 1-chome Chiyoda-ku Tokyo 100-0005 Japan Telephone number:+81 3 3215 5101 Fax number:+81 3 3216 9352 DESCRIPTION OF TEST ITEM Kind of equipment:Page Printer Condition of equipment:Pre-Production Type:Table-Top Trademark:FUJITSU FCC ID:C9SDP050M33111A1 Model number:M33111A02 Serial number:00065 TEST PERFORMED Location:Nagano No. 1 Test Site (FCC File No. : 31040/SIT) Test started:April 13, 1999 Test completed:April 14, 1999 Purpose of test:FCC Docket 87-389 and Canadian Interference-Causing Equipment Regulations Regulation:FCC Part15B Class B and Canada ICES-003 Class B Unintentional Radiators Test setup:ANSI C63.4-1992 Report file number:AKL-399068 Report issue date:April 20, 1999 Test engineer:Naohei Murakami Report approved by:Yoshio Kowase [Site Manager] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Akzo Kashima Report No. AKL-399068FCC ID : C9SDP050M33111A1Page 4 of 32 pages (Version 3.2) SECTION 2.CONCLUSION This test report clearly shows that the EUT is in compliance with the FCC Part 15B Class B specification and the Canada ICES-003 Class B specification. Traceability to national standards of test result is achieved by means of calibration traceability to national standards. The minimum margins to the limits are as follows: Conduction measurement USB interface mode6.3 dBat0.4500 MHz Radiation measurement USB interface mode 3.5 dBat193.84 MHz Note :See Section 9 for details. Akzo Kashima Report No. AKL-399068FCC ID : C9SDP050M33111A1Page 5 of 32 pages (Version 3.2) SECTION 3.EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following equipment. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks A)PrinterM33111A0200065C9SDP050M33111A1 FUJITSU LIMITED EUT B)RS-232C boardCA04339-C801NoneC9SDP050M33111Z1. FUJITSU LIMITED Option C)USB boardCA04339-C841NoneC9SDP050M33111Z2 FUJITSU LIMITED Option D)Memory expansion card CA04291-C857NoneN.A. FUJITSU LIMITED Option E)Memory expansion card CA04291-C857NoneN.A. FUJITSU LIMITED Option F)Emulation cardCA04291-C860NoneN.A. FUJITSU LIMITED Option G)Duplex unitCA04339-C750NoneN.A. FUJITSU LIMITED Option H)Paper feederCA04339-C74000065N.A. FUJITSU LIMITED Option Power ratings of EUT : AC 100-120V, 50/60 Hz, 5.0A DoC : Device for Declaration of Conformity 3.1 Port(s)/Connector(s) : Port nameConnector typeConnector pinRemarks Parallel interfaceAmphenol36 pinCentronics Serial interfaceD-sub9 pinRS-232C (standard) Serial interfaceD-sub25 pinRS-232C (optional) Serial interfaceUSB type B4 pinUSB 3.2 Oscillator(s)/Crystal(s) : OscillatorOperating frequencyBoard nameRemarks 30 MHz90 MHzController boardMain processor 30 MHzController boardMain LSI 45.60995 MHz11.402487 MHzController boardMain LSI 24 MHz24 MHzController boardMechanism control processor 24 MHzController boardMechanism control LSI 5.013504 MHz5.013504 MHzMotor driver boardMotor driver IC 48 MHz24 MHzUSB boardUSB interface processor 48 MHzUSB boardUSB interface LSI Akzo Kashima Report No. AKL-399068FCC ID : C9SDP050M33111A1Page 6 of 32 pages (Version 3.2) SECTION 4.SUPPORT EQUIPMENT USED The EUT was supported by the following equipment during the test. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks I)Computer8550-03190-5012094ANO9SA8550-SIBM J)KeyboardM1391401N.A.IBM K)CRT Display8512-00172-0071350ANO7NF8512IBM L)ModemC202A010539BKM552C202AEPSON M)PrinterM3359A002192C9S69NDP012A1FUJITSU LIMITED N)Compu…
