American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 20, 2005 RE: FCC ID: C9SDTA01TP400GSB_ATCB002871 Attention: Naoki Sakamoto / Hisayuki Kioka I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that there is no evidence in the SAR report that you turned the BT transmitter on during the highest SAR level. Please note that it is a requirement that with collocated transmitter where the dominant transmitter is required to have SAR evaluation that the non-dominant transmitter (the BT) is turned on during the highest SAR measurement in order to determine how the less dominant transmitter affects SAR. Please note that the less dominant transmitter is not allowed to affect SAR by more than 20% of that produced by the dominant transmitter. Please provide the measurement data for the configuration where the WLAN and BT transmitters are both turned on at the same time in the highest SAR configuration. Alternately, please provide evidence as to how simultaneous transmission is not possible. 2. Please note that as testing for body worn configuration was done without accessories, the manual needs to address the fact that SAR is only applicable for body worn accessories that do not contain metal. It is also generally accepted that the highest level SAR measured is place in the manual. Please note that as the device was tested in touch position, the separation distance does not need to be in the manual. Please correct the manual to address body worn accessories that do not contain metal and please include the highest Body SAR value in the manual. Please review the recommended wording for body worn accessories in OET65c and IEEE1528 and apply accordingly. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

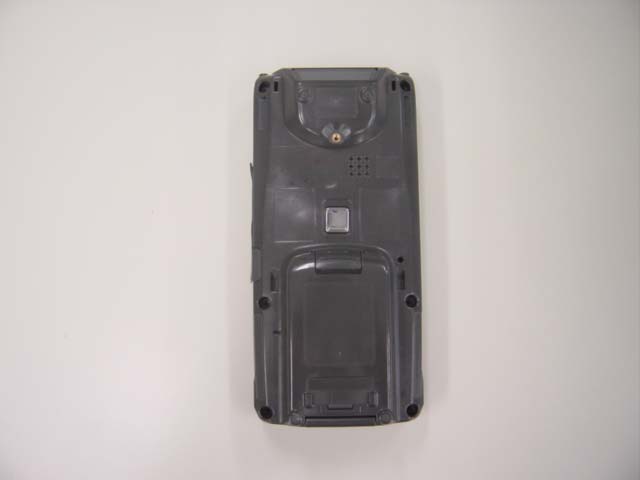

Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Front View of FHT401S3BW Rear View of FHT401S3BW Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Side (Left) View of FHT401S3BW Side (Right) View of FHT401S3BW Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Top View of FHT401S3BW Bottom View of FHT401S3BW

1 2 3 4 6 7 8 1 2 3 6 7 8 A B C D F A B C D F E FMV WORD KDXC-3503-1 01. 2

Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Front View of WLAN module without shielding Rear View of WLAN module without shielding Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Front View of WLAN module with shielding Rear View of WLAN module with shielding Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB WLAN module Installation descrition of WLAN module Antenna WLAN Antenna Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Front View of Bluetooth module without shielding Rear View of Bluetooth module without shielding Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB Front View of Bluetooth module without shielding Rear View of Bluetooth module without shielding Fujitsu Limited Model: FHT401S3BW FCC ID: C9SDTA01TP400GSB WLAN module Installation description of Bluetooth module Antenna Bluetooth antenna

Test report No. : 24KE0300-HO-5 Page : 1 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 MF058b(10.04.03) SAR EVALUATION REPORT Report No. : 24KE0300-HO-5 Applicant : FUJITSU LIMITED Type of Equipment : Handheld Computer Model No. : FHT401S3BW FCC ID : C9SDTA01TP400GSB Test standard : FCC47CFR 2.1093 FCC OET Bulletin 65, Supplement C Test Result : Complied Max SAR Measured : 0.125W/kg( Body, 2412MHz ) 1. This test report shall not be reproduced except full or partial, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the SAR profile. 4. The test results in this test report are traceable to the national or international standards. Date of test : August 03, 2004 Tested by : Miyo Ikuta Head Office EMC Lab. Approved by : Tetsuo Maeno Site Manager of Head Office EMC Lab. Test report No. : 24KE0300-HO-5 Page : 2 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test (E.U.T.) ............................................................................................. 4 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 6 SECTION 4 : Dosimetry assessment setup .................................................................................................. 6 SECTION 5 : Test system specifications.................................................................................................... 10 SECTION 6 : Test setup of EUT ................................................................................................................ 11 SECTION 7 : Measurement uncertainty ................................................................................................... 15 SECTION 8 : Simulated tissue liquid parameter...................................................................................... 16 SECTION 9 : System validation data ........................................................................................................ 18 SECTION 10 : Evaluation procedure ........................................................................................................ 19 SECTION 11 : Exposure limit .................................................................................................................... 20 SECTION 12 : SAR Measurement results................................................................................................. 21 SECTION 13 : Equipment & calibration information ............................................................................. 22 SECTION 14 : References........................................................................................................................... 23 APPENDIX 1 : Photographs of test setup................................................................................................ 24 APPENDIX 2 : SAR Measurement data .................................................................................................. 30 APPENDIX 3 : Validation Measurement data ........................................................................................39 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)............................................................. 41 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) ...................................... 50 Test report No. : 24KE0300-HO-5 Page : 3 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : FUJITSU LIMITED Brand Name : FUJITSU Address : 1-5-2 ,Higashishinbashi,Minato-ku,Tokyo,105-7123 Japan Telephone Number : +81-3-6252-2650 Facsimile Number : +81-3-6252-2920 Contact Person : Hisashi Hayasaka Test report No. : 24KE0300-HO-5 Page : 4 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 2 : Equipment under test (E.U.T.) 2.1 Identification of E.U.T. Applicant : FUJITSU LIMITED Type of Equipment : Handheld Computer Model No. : FHT401S3BW Serial No. : 47 00007 01A Country of Manufacture : JAPAN Receipt Date of Sample : July 27, 2004 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Battery option : Only one model with EUT Rating : DC3.6V Category Identified : Portable device Remarks : There are two models, FHT401S3BW and FHT401S3W for Handheld Computer of Fujitsu Limits. FHT401S3BW has IEEE802.11b WLAN module and Bluetooth module (Class 2) inside. FHT401S3W has IEEE802.11b WLAN module inside. FCC grant is obtained for each model, FHT401S3BW (FCC ID:C9SDTA01TP400GSB) and FHT401S3W(FCC ID:C9SDTA01TP400GS). The difference between two models is the existence of BT module only, and other EMC specifications of two models are identical. Therefore, all the tests were performed with the superior model: FHT401S3BW. In addition, BT module and WLAN module in FHT401S3BW do not transmit simultaneously in design and specification of the model. Test report No. : 24KE0300-HO-5 Page : 5 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383…

Text truncated - open the document above for the full version.

Test report No. : 24KE0300-HO-5 Page : 24 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 1 : Photographs of test setup Test report No. : 24KE0300-HO-5 Page : 25 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Front Touch Test report No. : 24KE0300-HO-5 Page : 26 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Back Touch Test report No. : 24KE0300-HO-5 Page : 27 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Top Touch Test report No. : 24KE0300-HO-5 Page : 28 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Right Side Touch Test report No. : 24KE0300-HO-5 Page : 29 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Left Side Touch

Test report No. : 24KE0300-HO-5 Page : 30 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 2 : SAR Measurement data Test report No. : 24KE0300-HO-5 Page : 31 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FHT401S3BW / Body / Front / DSSS / 2437MHz Crest factor: 1 Medium: M2450 (σ = 1.95 mho/m, ε r = 50.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1685; ConvF(4.3, 4.3, 4.3); Calibrated: 2003/10/10 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.0268 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.282 W/kg SAR(1 g) = 0.0426 mW/g; SAR(10 g) = 0.014 mW/g Maximum value of SAR = 0.0304 mW/g Reference Value = 1.02 V/m Power Drift = -0.1 dB Test Date = 08/03/04 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 24.1 degree.C , After 24.1 degree.C Test report No. : 24KE0300-HO-5 Page : 32 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FHT401S3BW/ Body / Back / DSSS / 2437MHz Crest factor: 1 Medium: M2450 (σ = 1.95 mho/m, ε r = 50.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1685; ConvF(4.3, 4.3, 4.3); Calibrated: 2003/10/10 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.00147 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0449 W/kg SAR(1 g) = 0.00114 mW/g; SAR(10 g) = 0.000904 mW/g Maximum value of SAR = 0.00156 mW/g Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0031 W/kg SAR(1 g) = 0.000814 mW/g; SAR(10 g) = 0.000587 mW/g Maximum value of SAR = 0.00146 mW/g Reference Value = 0.648 V/m Power Drift = -0.3 dB Test Date = 08/03/04 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 24.3 degree.C , After 24.3 degree.C Test report No. : 24KE0300-HO-5 Page : 33 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FHT401S3BW/ Body / Top / DSSS / 2437MHz Crest factor: 1 Medium: M2450 (σ = 1.95 mho/m, ε r = 50.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1685; ConvF(4.3, 4.3, 4.3); Calibrated: 2003/10/10 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.00445 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0446 W/kg SAR(1 g) = 0.0067 mW/g; SAR(10 g) = 0.00262 mW/g Maximum value of SAR = 0.00531 mW/g Reference Value = 0.557 V/m Power Drift = -0.009 dB Test Date = 08/03/04 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 24.1 degree.C , After 24.1 degree.C Test report No. : 24KE0300-HO-5 Page : 34 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FHT401S3BW/ Body / Right Side / DSSS / 2437MHz Crest factor: 1 Medium: M2450 (σ = 1.95 mho/m, ε r = 50.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1685; ConvF(4.3, 4.3, 4.3); Calibrated: 2003/10/10 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR = 0.0012 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.00135 W/kg SAR(1 g) = 0.000808 mW/g; SAR(10 g) = 0.000569 mW/g Maximum value of SAR = 0.00134 mW/g Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.00202 W/kg SAR(1 g) = 0.00115 mW/g; SAR(10 g) = 0.000646 mW/g Maximum value of SAR = 0.00194 mW/g Zoom Scan (5x5x7)/Cube 2: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.0014 W/kg SAR(1 g) = 0.000884 mW/g; SAR(10 g) = 0.000626 mW/g Maximum value of SAR = 0.00145 mW/g Reference Value = 0.37 V/m Power Drift = 0.4 dB Test Date = 08/03/04 Ambient Temperature = 24.5 degree.c Liquid Temperature = Before 24.2 degree.C , After 24.2 degree.C Test report No. : 24KE0300-HO-5 Page : 35 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 FHT401S3BW/ Body / Left side / DSSS / 2437MHz Crest factor: 1 Medium: M2450 (σ = 1.95 mho/m, ε r = 50.6, ρ = 1000 kg/m 3 ) Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6 - SN1685; ConvF(4.3, 4.3, 4.3); Calibrated: 2003/10/10 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Phantom: SAM 1196 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Area Scan (61x81x1): Measurem…

Text truncated - open the document above for the full version.

Test report No. : 24KE0300-HO-5 Page : 41 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713) Test report No. : 24KE0300-HO-5 Page : 42 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 43 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 44 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 45 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 46 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 47 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 48 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 49 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 50 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1685) Test report No. : 24KE0300-HO-5 Page : 51 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 52 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 53 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 54 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 55 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 56 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 57 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 58 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 59 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 60 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 Test report No. : 24KE0300-HO-5 Page : 61 of 61 Issued date : October 26, 2005 FCC ID : C9SDTA01TP400GSB UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124
