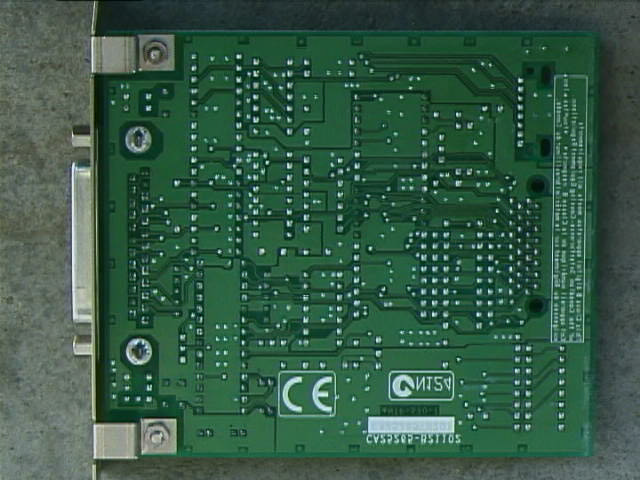

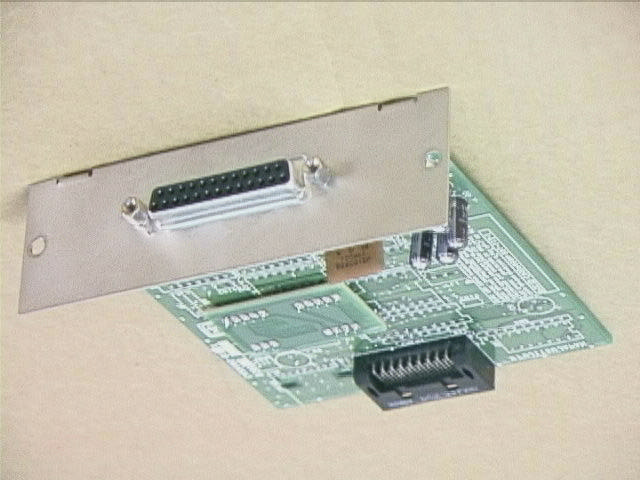

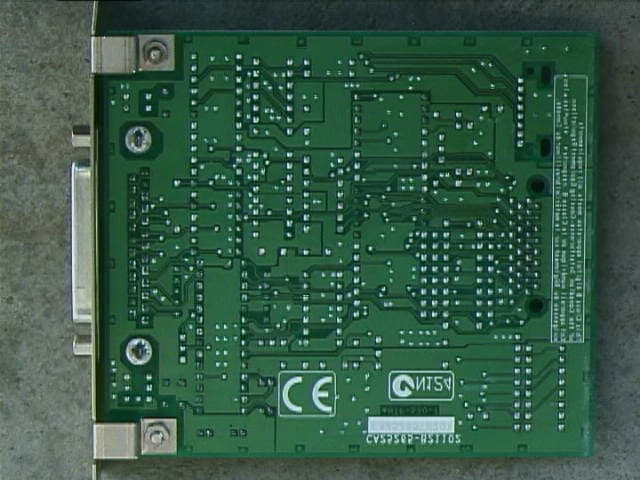

C9SDP050M33111Z1Serial interface board

T E S T R E P O R T REPORT NUMBER:AKL-399069 APPLICANT:FUJITSU LIMITED MODEL NUMBER:CA04339-C801 FCC ID:C9SDP050M33111Z1 REGULATION:FCC Part15B Class B Canada ICES-003 Class B Conducted Emission Test Radiated Emission Test 3226, Yokokawa, Tatsuno-machi, Kamiina-gun Nagano-ken, 399-0511 Japan Tel.: +81 266 47 5311 Fax.: +81 266 47 5540 Akzo Kashima Limited EMC Division Nagano Site NVLAP accreditation is valid only FCC Part15(Digital Devices), CISPR22, and AS/NZS 3548 test reports. Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 2 of 21 pages (Version 3.2) TABLE OF CONTENTS Page SECTION 1.TEST CERTIFICATION..........................................................................................3 SECTION 2.CONCLUSION.........................................................................................................4 SECTION 3.EQUIPMENT UNDER TEST..................................................................................5 SECTION 4.SUPPORT EQUIPMENT USED.............................................................................6 SECTION 5.CABLE (S) USED.....................................................................................................7 SECTION 6.CONSTRUCTION OF EQUIPMENT......................................................................8 SECTION 7.OPERATING CONDITIONS...................................................................................9 SECTION 8.TEST PROCEDURE(S)..........................................................................................10 SECTION 9.EVALUATION OF TEST RESULTS.....................................................................14 SECTION 10.PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP.......................................17 SECTION 11.INSTRUMENTS USED FOR FINAL TEST.........................................................18 SECTION 12.UNCERTAINTY OF MEASUREMENT................................................................19 SECTION 13.VALIDITY OF TEST REPORT..............................................................................20 SECTION 14.DESCRIPTION OF TEST LABORATORY...........................................................21 Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 3 of 21 pages (Version 3.2) SECTION 1.TEST CERTIFICATION APPLICANT INFORMATION Company:FUJITSU LIMITED Address:Marunouchi Center Bldg. 6-1 Marunouchi 1-chome Chiyoda-ku Tokyo 100-0005 Japan Telephone number:+81 3 3215 5101 Fax number:+81 3 3216 9352 DESCRIPTION OF TEST ITEM Kind of equipment:Serial interface board Condition of equipment:Production Type:Table-Top(Built-in type) Trademark:FUJITSU FCC ID:C9SDP050M33111Z1 Model number:CA04339-C801 Serial number:None TEST PERFORMED Location:Nagano No. 1 Test Site (FCC File No. : 31040/SIT) Test started:April 13, 1999 Test completed:April 14, 1999 Purpose of test:FCC Docket 87-389 and Canadian Interference-Causing Equipment Regulations Regulation:FCC Part15B Class B and Canada ICES-003 Class B Unintentional Radiators Test setup:ANSI C63.4-1992 Report file number:AKL-399069 Report issue date:April 20, 1999 Test engineer:Naohei Murakami Report approved by:Yoshio Kowase [Site Manager] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 4 of 21 pages (Version 3.2) SECTION 2.CONCLUSION This test report clearly shows that the EUT is in compliance with the FCC Part 15B Class B specification and the Canada ICES-003 Class B specification. Traceability to national standards of test result is achieved by means of calibration traceability to national standards. The minimum margins to the limits are as follows: Conduction measurement M33111A02 mode7.4 dBat0.4749 MHz Radiation measurement M33111A02 mode6.1 dBat47.60 MHz Note :See Section 9 for details. Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 5 of 21 pages (Version 3.2) SECTION 3.EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following equipment. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks A)Serial interface board CA04339-C801NoneC9SDP050M 33111Z1 FUJITSU LIMITED EUT Power ratings of EUT : DC 5V (Power for Printer AC 120V, 60 Hz) DoC : Device for Declaration of Conformity 3.1 Port(s)/Connector(s) : Port nameConnector typeConnector pinRemarks Serial interfaceD-sub25 pinRS-232C 3.2 Oscillator(s)/Crystal(s) : OscillatorOperating frequencyBoard nameRemarks None Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 6 of 21 pages (Version 3.2) SECTION 4.SUPPORT EQUIPMENT USED The EUT was supported by the following equipment during the test. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks B)PrinterM33111A0200065C9SDP050M33111 A1 FUJITSU LIMITED Install EUT C)Computer8550-03190-5012094ANO9SA8550-SIBM D)KeyboardM1391401N.A.IBM E)CRT Display8512-00172-0071350ANO7NF8512IBM F)PrinterM3359A002192C9S69NDP012A1FUJITSU LIMITED DoC :Device was tested and authorized under a Declaration of Conformity to the applicable FCC rules. Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 7 of 21 pages (Version 3.2) SECTION 5.CABLE (S) USED The following cable(s) was used for the test. Indication number in the following left side column corresponds to Section 6. NumberNameLengthShieldConnector 1)Centronics cable3.00 mYesMetal 2)RS-232C cable3.00 mYesMetal 3)Keyboard cable1.60 mYesMetal (Curl cord) 4)CRT Display cable1.60 mYesMetal 5)Power cord for Printer3.00 mNone 6)Power cord for Computer1.80 mNone 7)Power cord for CRT Display1.80 mNone 8)Power cord for Printer3.00 mNone Note : a.No ferrite core is attached to the outer cables. Akzo Kashima Report No. AKL-399069 FCC ID : C9SDP050M33111Z1Page 8 of 21 pages (Version 3.2) SECTION 6.CONSTRUCTION OF EQUIPMENT The construc…

Text truncated - open the document above for the full version.

T E S T R E P O R T REPORT NUMBER:AKL-399069 APPLICANT:FUJITSU LIMITED MODEL NUMBER:CA04339-C801 FCC ID:C9SDP050M33111Z1 REGULATION:FCC Part15B Class B Canada ICES-003 Class B Conducted Emission Test Radiated Emission Test 3226, Yokokawa, Tatsuno-machi, Kamiina-gun Nagano-ken, 399-0511 Japan Tel.: +81 266 47 5311 Fax.: +81 266 47 5540 Akzo Kashima Limited EMC Division Nagano Site NVLAP accreditation is valid only FCC Part15(Digital Devices), CISPR22, and AS/NZS 3548 test reports. Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 2 of 21 pages (Version 3.2) TABLE OF CONTENTS Page SECTION 1.TEST CERTIFICATION..........................................................................................3 SECTION 2.CONCLUSION.........................................................................................................4 SECTION 3.EQUIPMENT UNDER TEST..................................................................................5 SECTION 4.SUPPORT EQUIPMENT USED.............................................................................6 SECTION 5.CABLE (S) USED.....................................................................................................7 SECTION 6.CONSTRUCTION OF EQUIPMENT......................................................................8 SECTION 7.OPERATING CONDITIONS...................................................................................9 SECTION 8.TEST PROCEDURE(S)..........................................................................................10 SECTION 9.EVALUATION OF TEST RESULTS.....................................................................14 SECTION 10.PHOTOGRAPHS OF MAXIMUM EMISSION SET-UP.......................................17 SECTION 11.INSTRUMENTS USED FOR FINAL TEST.........................................................18 SECTION 12.UNCERTAINTY OF MEASUREMENT................................................................19 SECTION 13.VALIDITY OF TEST REPORT..............................................................................20 SECTION 14.DESCRIPTION OF TEST LABORATORY...........................................................21 Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 3 of 21 pages (Version 3.2) SECTION 1.TEST CERTIFICATION APPLICANT INFORMATION Company:FUJITSU LIMITED Address:Marunouchi Center Bldg. 6-1 Marunouchi 1-chome Chiyoda-ku Tokyo 100-0005 Japan Telephone number:+81 3 3215 5101 Fax number:+81 3 3216 9352 DESCRIPTION OF TEST ITEM Kind of equipment:Serial interface board Condition of equipment:Production Type:Table-Top(Built-in type) Trademark:FUJITSU FCC ID:C9SDP050M33111Z1 Model number:CA04339-C801 Serial number:None TEST PERFORMED Location:Nagano No. 1 Test Site (FCC File No. : 31040/SIT) Test started:April 13, 1999 Test completed:April 14, 1999 Purpose of test:FCC Docket 87-389 and Canadian Interference-Causing Equipment Regulations Regulation:FCC Part15B Class B and Canada ICES-003 Class B Unintentional Radiators Test setup:ANSI C63.4-1992 Report file number:AKL-399069 Report issue date:April 20, 1999 Test engineer:Naohei Murakami Report approved by:Yoshio Kowase [Site Manager] This equipment complies with above standard or regulation under the test condition or test configuration shown on this test report. Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 4 of 21 pages (Version 3.2) SECTION 2.CONCLUSION This test report clearly shows that the EUT is in compliance with the FCC Part 15B Class B specification and the Canada ICES-003 Class B specification. Traceability to national standards of test result is achieved by means of calibration traceability to national standards. The minimum margins to the limits are as follows: Conduction measurement M33111A02 mode7.4 dBat0.4749 MHz Radiation measurement M33111A02 mode6.1 dBat47.60 MHz Note :See Section 9 for details. Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 5 of 21 pages (Version 3.2) SECTION 3.EQUIPMENT UNDER TEST The equipment under test (EUT) consisted of the following equipment. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks A)Serial interface board CA04339-C801NoneC9SDP050M 33111Z1 FUJITSU LIMITED EUT Power ratings of EUT : DC 5V (Power for Printer AC 120V, 60 Hz) DoC : Device for Declaration of Conformity 3.1 Port(s)/Connector(s) : Port nameConnector typeConnector pinRemarks Serial interfaceD-sub25 pinRS-232C 3.2 Oscillator(s)/Crystal(s) : OscillatorOperating frequencyBoard nameRemarks None Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 6 of 21 pages (Version 3.2) SECTION 4.SUPPORT EQUIPMENT USED The EUT was supported by the following equipment during the test. Indication in the following left side column corresponds to Section 6. SymbolItemModel No.Serial No.FCC ID / DoCManufacturerRemarks B)PrinterM33111A0200065C9SDP050M33111 A1 FUJITSU LIMITED Install EUT C)Computer8550-03190-5012094ANO9SA8550-SIBM D)KeyboardM1391401N.A.IBM E)CRT Display8512-00172-0071350ANO7NF8512IBM F)PrinterM3359A002192C9S69NDP012A1FUJITSU LIMITED DoC :Device was tested and authorized under a Declaration of Conformity to the applicable FCC rules. Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 7 of 21 pages (Version 3.2) SECTION 5.CABLE (S) USED The following cable(s) was used for the test. Indication number in the following left side column corresponds to Section 6. NumberNameLengthShieldConnector 1)Centronics cable3.00 mYesMetal 2)RS-232C cable3.00 mYesMetal 3)Keyboard cable1.60 mYesMetal (Curl cord) 4)CRT Display cable1.60 mYesMetal 5)Power cord for Printer3.00 mNone 6)Power cord for Computer1.80 mNone 7)Power cord for CRT Display1.80 mNone 8)Power cord for Printer3.00 mNone Note : a.No ferrite core is attached to the outer cables. Akzo Kashima Report No. AKL-399069FCC ID : C9SDP050M33111Z1Page 8 of 21 pages (Version 3.2) SECTION 6.CONSTRUCTION OF EQUIPMENT The construction of…
