CCRAH2Wireless Microphone Transmitter

Table of Contents Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 1System Components . . . . . . . . . . . . . . . . . . . . . 3Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Wearing the AH2 Transmitter . . . . . . . . . . . . . . . . 7Guided Tour - AR2 Receiver . . . . . . . . . . . . . . . . . 8Guided Tour - AH2 Transmitter . . . . . . . . . . . . . . . 10AR2 Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 13AirLine Micro Channel Plan . . . . . . . . . . . . . . . . . 14 Samson Technologies Corp. v1.4 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON Fax: 631-784-2201 www.samsontech.com          Introduction Thank you for purchasing the Samson AirLine Micro Earset wireless system, a breakthrough in wireless microphone technology. Wireless systems were originally developed to eliminate cables. Samson took this one step further by creating the AH2 single ea rset transmitter, which provides unparalleled freedom of movement. The A irLine Micro features an integrated omni-directional micro- phone and flexible gooseneck boom, which always allows you to obtain the perfect position to pick up your voice, even during high-impact performance. The frequency response of the transmitter has been tailored for accurate and articulate vocal reproduc - tion. The AH2 transmitter is also water resistant, and designed with ex tra care to ensure that no moisture can accumulate duri ng performances. This makes the AH2 perfectly suited for aerobics instructors, and high-energy performers and presenters. Housed in a rugged aluminum chassis with retractable antennas, the AR2 provides the ultimate in portability and flexibility. Th e AR2 micro receiver features an 1/8” unbalanced audio output, with microphone or line level output, USB DC-input, and RF and Battery LED indicators. The included AR2D dock provides stability for the receiver, and facilitates ease of use. The AirLine Micro utilizes the latest in miniaturized electronic components, as well as lithium ion batteries, which result in Samson’s smallest and most comfortable wireless system, while preserving the high-quality audio you expect out of a Samson wireless device. The AirLine Micro system ensures clear, interruption-free performance by incorporating tone-key with auto-mute, which only allows the transmitter’s audio to pass through the receiver, and mutes the output if there is interference.The AirLine Micro system uses fully rechargeable Lithium Ion technology. The AirLine Micro AH2 transmitter and AR2 receiver fea - ture internal rechargeable batteries for 10 hours of batt ery operation. Both the AH2 and AR2 can be recharged with the included AC adaptor and USB Y-cable. The AR2 can be powered directly off of the AC adaptor, for continuous operation. The AH2 and AR2 can also be recharged by USB bus power when connected to any USB host-equipped device.         Introduction In this manual, you’ll find a detailed description of the features of your AirLine Micro Earset system, as well as a guided tou r of its components, step-by-step instructions for setting up and using your system, and full specifications. If your AirLine Micro Ears et system was purchased in the United States, you’ll also find a warranty card enclosed—don’t forget to fill it out and mail it! T his will enable you to receive online technical support and will allow us to send you updated information about this and other Samson products in the future. If your Airline Micro Earset system was purchased outside of the U.S., contact your local distributor f or war- ranty details. Also, be sure to check out our website (http://www.samsontech.com) for information about our full product line.SPECIAL NOTE for U.S. Purchasers: Should your Airline Micro Earset sy stem ever require servicing, a Return Authorization (RA)nu m- ber is necessary. Without this number, the unit will not be accepted for return. If your AirLine Micro Earset system was purcha sed in the United States, please call Samson at 1-800-372-6766 for an RA number prior to shipping your system. If possible, return the unit in its original carton and packing materials. If your AirLine Micro Earset system was purchased outside of the U.S., contact yo ur local distributor for information.BATTERY NOTE: Lithium-ion batteries are low maintenance and provide higher power in a lighter package when compared to NiCad (nickel-cadmium). All Lithium-ion batteries have a finite number of times they can be recharged, called a charge cycle. A charge cycle means using all of the battery’s power, but does not necessarily mean a single charge. The battery can be recharge d when needed, and does not need to be fully discharged (as compared to NiCad). Repetitive full discharges of the battery should be avoided. Lithium-ion batteries need to be used for maximum life and performance. If you are not using your wireless system ofte n, be sure to complete a full charge cycle at least every three months. If you need to replace your AH2 or AR2 battery please cont act Samson or your local distributor.          System Components AH2 Transmitter AR2 Receiver AR2D Dock Universal AC Adaptor 1/8” to 1/4” Audio Cable USB Y-Power Cable Carry Case Owners Manual Note: Universal AC Adaptor works from 100V - 240V. Plug adaptors snap into place and can be changed by sliding the button below the plug. Each system is shipped with one plug adaptor specific to the country where the system is purchased. Plug adaptors can be ordered through Samson. 3 Windscreens         Quick Start Please follow these basic procedures for setting up and using your AirLine Micro:1. For your AirLine Micro system to work correctly, both the receiver and transmitter must be set to the same channel. Remove all packing materials (save them in case your u…

Text truncated - open the document above for the full version.

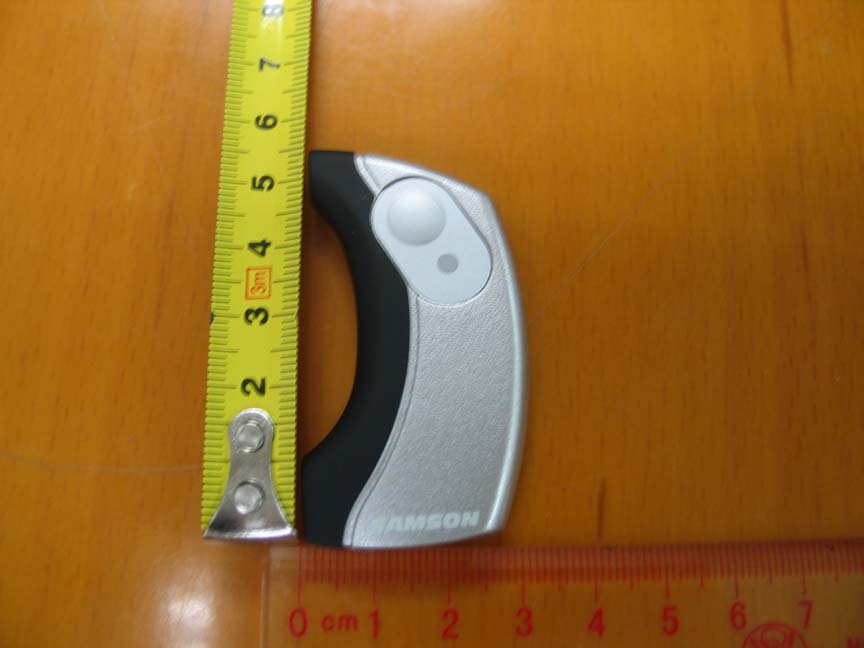

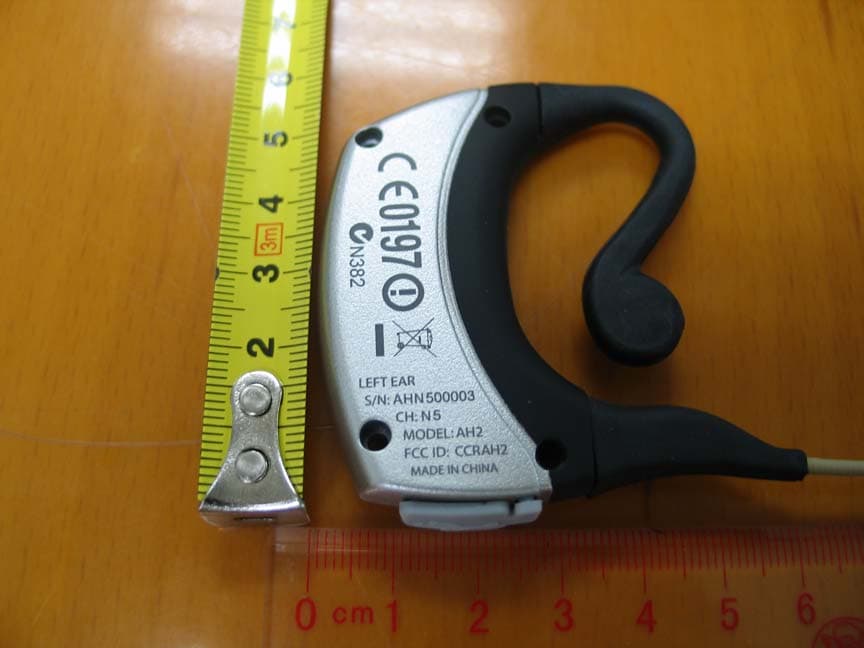

Label

Antenna

Operation Status Before Operation 3 Color LED AH2 Status Notes Off Depress More than 1sec Lights Green Normal Operation Feeding power to the circuit -> RF Transmission -> Mute Off -> AF On In Normal Operation or AFVolume Adjust Depress More than 1sec Off Off Audio Off -> RF Off -> Power Off, LED : Lights -> Blinks (1sec) -> Off In Operation (Audio On) Push 0.2-1sec Blinks Green Mute On In case the SW is depressed more than 1sec, the power shall be Off. LED : Light -> Blinks ( 1sec ) -> Of f In Operation (Mute On) Push 0.2-1sec Lights Green Audio On In case the SW is depressed more than 1sec, the power shall be Off. LED : Blinks -> Off In Operation N/A --- Blinks Blue Normal Operation+Battery Low Mute N/A --- Blinks Blue Mute On + Battery Low Ignore the Mute status indication AF Level Adjustment N/A --- Blinks Yellow AF Level Adjustment + Battery Low Follow the Level Adjustment Indications, Ignore the battery low status. Off Depress More than 5sec Blinks Yellow* Volume Adjustment Mode Power Off(Off) -> Level Adjustment Mode, * The speed of LED blink is the last level setting. Increase Gain Push 1 Time Blinks Yellow Increase Gain Increases the level by one step with one push of the SW. (Total 5 steps) At Maximum Level N/A --- Fastest Blinks Yellow Maximum Level Reach at the maximum level. Even AH2 is battery low, the LED keeps the fast blinks. Decrease Gain Push 1 Time Blinks Yellow Decrease Gain Decreases the level by one step with one push of the SW. (Total 5 steps) At Minimum Level N/A --- Slowest Blinks Yellow Minimum Level Reach at the minimum level. Even AH2 is battery low, the LED keeps the slowest blinks. Fix the AF Volume Level Neglected 10 sec Lights Normal Operation 10sec after without touching the SW, the level shall be fixed and back to normal operation. Either In Operation or PowerOff Neglected N/A Lights Blue Under Recharging While recharging system with 5V power is connected with AH2, all of AH2 functions are thesame as power off. Complete Recharging Neglected N/A Off Power Off While recharging system with 5V power is connected with AH2, all of AH2 functions are thesame as power off. LED Colors Colors Meanings Green Normal Operation Yellow AF Level Adjustment Blue Battery Status Recharging AH2 OPERATION DESCRIPTION Power On/Off Mute AF Volume Adjustment Battery Low SW Control ItemsStandardUnitConditions MinTypicalMax Product Standard3.43.74.2 Actual Operation3.23.75 2 Consumption Current3040mAPower Supply Voltage : 3.7V 3 RF Output Power5mW-4+3dB 4 Frequency Stability-3030kHz 5 Spurious1uW 6 Modulation FactorDeviation131517kHzINPUT 1kHz -20dBv / +-6dB/VRct 7 Input ImpedanceMIC2kohms 8 T.H.D.at Overall2%1kHz DEV=Which of 15kHz or 5kHz or 9 Audio Frequency Response 50Hz, 15kHz a t overall -3.53.5dBMOD. 1kHz INPUT -50dBv /25 oC Operating FrequenciesCH1 CH2 CH3 CH4 CH5 CH6 Frequency Type Modulation Type OSC System Pre-emphasis Noise Reduction Type Operating Distance Antenna Input Phantom Maximum Input Level Battery Battery Life (Alkaline) Battery charge Operating Temperature Controls Display (LED) Dimensions Weight Specifications 0 - 50 oC F3E Variable Reactance Modulation Utilizing microphone boom Microphone Permanently Attached -10dBv /VRct (TYP) 5 hours at 25 oC USB charger : 100mA/ 2-3H Optional AC Adapter charger : 200mA /1-2H W : 14mm, L : 177mm ,H : 58 mm(no Anntena included) Crystal SAW Oscillator 50usec approx. 23g Lithium polymer battery(3.7V/210mA/h) 1 x 3 color LED to indicate Battery, Normal Operation, Mute, Level Change, Recharging status Compander Type 100m from receiver in sight. One push switch for Power/VR/Mute 3V/3.2kDC/2.2kAC 645.500MHz 645.750MHz 642.375MHz 642.875MHz 644.125MHz 644.750MHz ＡＨ２ Wireless Transmitter Specifications Operating Power Voltage1V

1 of 7 版本：V1.9 SA+AH2 電子 No 零件編號 /Part No. 零件名称材料规格/型号 数量 (个/ 台机) 用途/位置备注 SUBAH2 主板 1 PCB0095PCB线路板 FR4四层板 1OZ铜 普通电金 49.7*26.7*1.2mm AH2data20100319.ZIP -01:利达 1 2 RES0070贴片电阻 RK73Z1ETTP 0Ω +50mΩ 0402 -01:KOA 0Ω +50mΩ 0402 -02:YAGEO 2 R31 R79 3 RES0071贴片电阻 RK73B1ETTP15Ω(J) 15Ω ±5% 0402 -01:KOA 15Ω ±5% 0402 -02:YAGEO 1 R51 4 RES0072贴片电阻 RK73B1ETTP68Ω(J) 68Ω ±5% 0402 -01:KOA 68Ω ±5% 0402 -02:YAGEO 1 R13 5 RES0073贴片电阻 RK73B1ETTP100Ω(J) 100Ω ±5% 0402 -01:KOA 100Ω ±5% 0402 -02:YAGEO 3 R36 R50 R68 6 RES0074贴片电阻 RK73B1ETTP150Ω(J) 150Ω ±5% 0402 -01:KOA 150Ω ±5% 0402 -02:YAGEO 1 R20 7 RES0075贴片电阻 RK73B1ETTP220Ω(J) 220Ω ±5% 0402 -01:KOA 220Ω ±5% 0402 -02:YAGEO 1 R15 8 RES0077贴片电阻 RK73B1ETTP1KΩ(J) 1K ±5% 0402 -01:KOA 1K ±5% 0402 -02:YAGEO 7 R8 R34 R45 R47 R48 R61 R96 9 RES0078贴片电阻 RK73B1ETTP1.2KΩ(J) 1.2K ±5% 0402 -01:KOA 1.2K ±5% 0402 -02:YAGEO 1 R12 10 RES0108贴片电阻 RK73B1ETTP1.8KΩ(J) 1.8K ±5% 0402 -01:KOA 1.8K ±5% 0402 -02:YAGEO 1 R27 11 RES0079贴片电阻 RK73B1ETTP2.2KΩ(J) 2.2K ±5% 0402 -01:KOA 2.2K ±5% 0402 -02:YAGEO 3 R6 R17 R60 12 RES0080贴片电阻 RK73B1ETTP3.3KΩ(J) 3.3K ±5% 0402 -01:KOA 3.3K ±5% 0402 -02:YAGEO 3 R16 R46 R76 13 RES0081贴片电阻 RK73B1ETTP4.3KΩ(J) 4.3K ±5% 0402 -01:KOA 4.3K ±5% 0402 -02:YAGEO 1 R93 產品物料清單 / Bill of Materials Model/產品型號: 2010-06-09 审核：制表：陈伟东 2 of 7 版本：V1.9 SA+AH2 電子 No 零件編號 /Part No. 零件名称材料规格/型号 数量 (个/ 台机) 用途/位置备注 產品物料清單 / Bill of Materials Model/產品型號: 14 RES0082贴片电阻 RK73B1ETTP4.7KΩ(J) 4.7K ±5% 0402 -01:KOA 4.7K ±5% 0402 -02:YAGEO 5 R30 R52 R71 R80 R81 15 RES0083贴片电阻 RK73B1ETTP5.1KΩ(J) 5.1K ±5% 0402 -01:KOA 5.1K ±5% 0402 -02:YAGEO 5 R11 R53 R57 R65 R70 16 RES0084贴片电阻 RK73B1ETTP6.8KΩ(J) 6.8K ±5% 0402 -01:KOA 6.8K ±5% 0402 -02:YAGEO 1 R37 17 RES0085贴片电阻 RK73B1ETTP8.2KΩ(J) 8.2K ±5% 0402 -01:KOA 8.2K ±5% 0402 -02:YAGEO 1 R40 18 RES0086贴片电阻 RK73B1ETTP10KΩ(J) 10K ±5% 0402 -01:KOA 10K ±5% 0402 -02:YAGEO 7 R18 R26 R54 R62 R72 R73 R99 19 RES0293贴片电阻 RK73B1ETTP11KΩ(J) 11K ±5% 0402 -01:KOA 11K ±5% 0402 -02:YAGEO 1 R90 20 RES0087贴片电阻 RK73B1ETTP12KΩ(J) 12K ±5% 0402 -01:KOA 12K ±5% 0402 -02:YAGEO 2 R41 R94 21 RES0088贴片电阻 RK73B1ETTP15KΩ(J) 15K ±5% 0402 -01:KOA 15K ±5% 0402 -02:YAGEO 1 R33 22 RES0089贴片电阻 RK73B1ETTP22KΩ(J) 22K ±5% 0402 -01:KOA 22K ±5% 0402 -02:YAGEO 4 R22 R23 R32 R77 23 RES0090贴片电阻 RK73B1ETTP33KΩ(J) 33K ±5% 0402 -01:KOA 33K ±5% 0402 -02:YAGEO 7 R19 R21 R24 R25 R28 R88 R89 24 RES0091贴片电阻 RK73B1ETTP43KΩ(J) 43K ±5% 0402 -01:KOA 43K ±5% 0402 -02:YAGEO 1 R58 25 RES0092贴片电阻 RK73B1ETTP47KΩ(J) 47K ±5% 0402 -01:KOA 47K ±5% 0402 -02:YAGEO 3 R82 R83 R97 26 RES0093贴片电阻 RK73B1ETTP51KΩ(J) 51K ±5% 0402 -01:KOA 51K ±5% 0402 -02:YAGEO 2 R43 R56 27 RES0094贴片电阻 RK73B1ETTP68KΩ(J) 68K ±5% 0402 -01:KOA 68K ±5% 0402 -02:YAGEO 1 R55 2010-06-09 审核：制表：陈伟东 3 of 7 版本：V1.9 SA+AH2 電子 No 零件編號 /Part No. 零件名称材料规格/型号 数量 (个/ 台机) 用途/位置备注 產品物料清單 / Bill of Materials Model/產品型號: 28 RES0095贴片电阻 RK73B1ETTP100KΩ(J) 100K ±5% 0402 -01:KOA 100K ±5% 0402 -02:YAGEO 16 R1 R2 R3 R4 R5 R9 R14 R35 R44 R59 R66 R67 R69 R78 R95 R98 29 RES0096贴片电阻 RK73B1ETTP470KΩ(J) 470K ±5% 0402 -01:KOA 470K ±5% 0402 -02:YAGEO 2 R42 R91 30 RES0097贴片电阻 RK73B1ETTP1MΩ(J) 1M ±5% 0402 -01:KOA 1M ±5% 0402 -02:YAGEO 8 R29 R38 R39 R49 R63 R74 R75 R92 31 RES0098贴片电阻 RK73B1ETTP2.2MΩ(J) 2.2M ±5% 0402 -01:KOA 2.2M ±5% 0402 -02:YAGEO 1 R10 32 CAP0046贴片电容 GRM1554C1H1R0BZ01D 1pF 50V ±0.1pF CK 0402 -01:MURATA 3 C32 C42 C53 33 CAP0048贴片电容 GRM1553C1H3R0BZ01D 3pF 50V ±0.1pF CJ 0402 -01:MURATA 2 C7 C20 34 CAP0049贴片电容 GRM1552C1H4R0BZ01D 4pF 50V ±0.1pF CH 0402 -01:MURATA 3 C34 C45 C54 35 CAP0050贴片电容 GRM1552C1H6R0BZ01D 6pF 50V ±0.1pF CH 0402 -01:MURATA 3 C5 C14 C55 36 CAP0051贴片电容 GRM1552C1H7R0BZ01D 7pF 50V ±0.1pF CH 0402 -01:MURATA 1 C10 37 CAP0052贴片电容 GRM1552C1H100JZ01D 10pF 50V ±5% CH 0402 -01:MURATA 1C6 38 CAP0053贴片电容 GRM1552C1H150JZ01D 15pF 50V ±5% CH 0402 -01:MURATA 2 C78 C80 39 CAP0054贴片电容 GRM1552C1H330JZ01D 33pF 50V ±5% CH 0402 -01:MURATA 2 C50 C64 40 CAP0055贴片电容 GRM1552C1H470JZ01D 47pF 50V ±5% CH 0402 -01:MURATA 5 C9 C30 C46 C75 C77 41 CAP0056贴片电容 UMK105CH101JV-F 100pF 50V ±5% CH 0402 -01:TAIYO YUDEN 9 C2 C3 C4 C8 C19 C24 C31 C36 C40 42 CAP0057贴片电容 GRM1552C1H121JA01D 120pF 50V ±5% CH 0402 -01:MURATA 1 C29 2010-06-09 审核：制表：陈伟东 4 of 7 版本：V1.9 SA+AH2 電子 No 零件編號 /Part No. 零件名称材料规格/型号 数量 (个/ 台机) 用途/位置备注 產品物料清單 / Bill of Materials Model/產品型號: 43 CAP0058贴片电容 GRM1552C1E221JA01D 220pF 25V ±5% CH 0402 -01:MURATA 1 C18 代用: CAP0120 GRM1552C1H2 21JA01D 220pF 50V ±5% CH 0402 -01:MURATA 44 CAP0059贴片电容 UMK105BJ221KV-F 220pF 50V ±10% X5R 0402 -01:TAIYO YUDEN 1 C51 45 CAP0060贴片电容 GRM1552C1H331JA01D 330pF 50V ±5% CH 0402 -01:MURATA 1 C70 46 CAP0061贴片电容 UMK105BJ102KV-F 1nF 50V ±10% X5R 0402 -01:TAIYO YUDEN 6 C16 C23 C28 C35 C43 C73 47 CAP0062贴片电容 GRM1552C1H102JA01D 1nF 50V ±5% CH 0402 -01:MURATA 1 C58 48 CAP0063贴片电容 GRM155B11H152KA01D 1.5nF 50V ±10% B 0402 -01:MURATA 1 C65 49 CAP0064贴片电容 GRM155B11H222KA01D 2.2nF 50V ±10% B 0402 -01:MURATA 1 C84 50 CAP0119贴片电容 GRM155B11H272KA01D 2.7nF 50V ±10% B 0402 -01:MURATA 1 C49 51 CAP0065贴片电容 GRM155B11H332KA01D 3.3nF 50V ±10% B 0402 -01:MURATA 1 C85 52 CAP0066贴片电容 GRM155B11E472KA01D 4.7nF 25V ±10% B 0402 -01:MURATA 3 C81 C82 C83 53 CAP0067贴片电容 TMK105BJ103KV-F 10nF 25V ±10% X5R 0402 -01:TAIYO YUDEN 3 C1 C26 C33 54 CAP0118贴片电容 GRM155B11A563KA01D 56nF 10V ±10% B 0402 -01:MURATA 3 C91 C92 C93 55 CAP0069贴片电容 LMK105BJ104KV-F 100nF 10V ±10% X5R 0402 -01:TAIYO YUDEN 9 C15 C37 C60 C62 C66 C69 C86 C87 C90 56 CAP0070贴片电容 JMK105F105ZV-F 1uF 6.3V +80%/-20% Y5V 0402 -01:TAIYO YUDEN 3 C71 C72 C74 57 CAP0071贴片电容 JMK105BJ105KV-F 1uF 6.3V ±10% X5R 0402 -01:TAIYO YUDEN 1 C89 58 CAP0072贴片电容 JMK107BJ475MA-T 4.7uF 6.3V ±20% X5R 0603 -01:TAIYO YUDEN 1 C25 59 CAP0073贴片电容 LMK212BJ106KG-T 10uF 10V ±10% X5R 0805 -01:TAIYO YUDEN 3 C27 C61 C88 2010-06-09 审核：制表：陈伟东 5 of 7 版本：V1.9 SA+AH2 電子 No 零件編號 /Part No. 零件名称材料规格/型号 数量 (个/ 台机) 用途/位置备注 產品物料清單 / Bill of Materials Model/產品型號: 60 CAP0074钽贴片电容 TEESVP1C105M8R 1uF 16V ±20% P 2*1.25*1.1mm -01:NEC TOKIN 3 C57 C68 C79 61 CAP0075钽贴片电容 TEESVP1A475M8R 4.7uF 10V ±20% P 2*1.25*1.1mm -01:NEC TOKIN 3 C39 C52 C56 62 CAP0076钽贴片电容 TEESVP0J1…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 17 von 34 Page 17 of 34 Note: While in Step 2, the EUT was placed in 3 orthogonal planes to find a maximum reading. Measurement result: Table 2: Measurement result of radiated output power at low, high channel Chann el Freq. (MHz) Polariza tion (V/H) Reading (SG) (dBm) Cable loss (dB) Antenna Gain(dB) Transmit power (dBm) Transmit power (mW) Limit (mW) V -18.364 5.0 -10 -33.364 0.0004 250 Low 642.375 H -4.574 5.0 -10 -19.574 0.0115 250 V -20.502 5.2 -10 -35.500 0.0003 250 High 645.750 H -4.439 5.2 -10 -19.437 0.0114 250 Note: SG means Signal Generator. Transmit power (dBm) = Reading(SG) (dBm) - Cable loss(dB) + Antenna Gain(dB) Transmit power (dBm) = 10Log(transmit power(mW)/1mW) RF-Exposure evaluation No SAR evaluation is required if the power is below the following threshold: Tunable Range Lowest Frequency [GHz] Highest Frequency [GHz] Center of Tunable Band [GHz] 60/f SAR imitation ased on Center of Band [mW] 0.6423 0.6457 0.6444 86.96 Maximum measured transmitter power: Transmit power Pout [mW] Maximum Antenna Gain [dBi] Pout EIRP [mW] 0.0115 0 0.0115 The threshold for SAR evaluation is 86.96 mW. The maximum TX output power is 0.0115 mW EIRP. Conclusion: SAR evaluation is not required since the maximum transmitter Pout (EIRP) is below the FCC threshold.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 2 von 34 Page 2 of 34 TEST SUMMARY 5.1 CONDUCTED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) RESULT: N/A 5.2 CONDUCTED SPURIOUS EMISSIONS MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) RESULT: N/A 5.3 RADIATED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) and RF-Exposure evaluation RESULT: Pass 5.4 SPURIOUS RADIATION MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(6)(III) RESULT: Pass 5.5 MODULATION CHARACTERISTICS MEASUREMENT RESULT: Pass 5.6 OCCUPIED BANDWIDTH FOR FCC PART 74 PER SECTION 74.861(E)(3), 74.861(E)(5) AND 74.861(E)(6) RESULT: Pass 5.7 FREQUENCY TOLERANCE FOR FCC PART 74 PER SECTION 74.861(E)(4) RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 3 von 34 Page 3 of 34 Contents 1 GENERAL REMARKS................................................................................................................ 5 1.1 COMPLEMENTARY MATERIALS................................................................................................ 5 2 TEST SITES.............................................................................................................................. 5 2.1 TEST FACILITIES...................................................................................................................... 5 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................. 6 2.3 TRACE ABILITY......................................................................................................................... 7 2.4 CALIBRATION........................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY................................................................................................ 7 2.6 LOCATION OF ORIGINAL DATA................................................................................................. 7 2.7 STATUS OF FACILITY USED FOR TESTING................................................................................ 7 3 GENERAL PRODUCT INFORMATION......................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE............................................................................... 8 3.2 RATINGS AND SYSTEM DETAILS.............................................................................................. 8 3.3 INDEPENDENT OPERATION MODES......................................................................................... 9 3.4 SUBMITTED DOCUMENTS......................................................................................................... 9 4 TEST SET-UP AND OPERATION MODE................................................................................... 10 4.1 PRINCIPLE OF CONFIGURATION SELECTION......................................................................... 10 4.2 TEST OPERATION AND TEST SOFTWARE.............................................................................. 10 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT.......................................................... 10 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................................................... 10 4.5 TEST SET-UP........................................................................................................................... 11 5 TEST RESULTS EMISSION.................................................................................................. 14 5.1 CONDUCTED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) 14 5.2 CONDUCTED SPURIOUS EMISSIONS MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1)...................................................................................................................................... 15 5.3 RADIATED POWER OUTPUT MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(1) AND RF-EXPOSURE EVALUATION...................................................................................................... 16 5.4 SPURIOUS RADIATION MEASUREMENT FOR FCC PART 74 PER SECTION 74.861(E)(6)(III)18 5.5 MODULATION CHARACTERISTICS MEASUREMENT................................................................ 22 Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 4 von 34 Page 4 of 34 5.6 OCCUPIED BANDWIDTH AND EMISSION MASK FOR FCC PART 74 PER SECTION 74.861(E)(3), 74.861(E)(5) AND 74.861(E)(6)....................................................................................................... 26 5.7 FREQUENCY TOLERANCE FOR FCC PART 74 PER SECTION 74.861(E)(4)........................ 27 6 PHOTOGRAPHS OF THE TEST SET-UP.................................................................................. 30 7 LIST OF TABLES..................................................................................................................... 34 8 LIST OF PHOTOGRAPHS......................................................................................................... 34 Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 5 von 34 Page 5 of 34 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities TÜV Rheinland (Guangdong) Ltd. EMC Laboratory Guangzhou Auto Market, Yuan Gang Section of Guangshan Road Guangzhou 510650 P. R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16023053 001 Seite 6 von 34 Page 6 of 34 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Equipment Manufacturer Type Serial No. Calibrated until TÜV Rheinland (Guangdong) Ltd. EMI Test Receiver Rohde & Schwarz ESCI-3 100216 16.Mar.2011 Spectrum Analyzer Rohde & Schwarz FSP30 100286 16.Mar.2011 Trilog-Broadband Antenna SCHWARZBECK MESS-…

Text truncated - open the document above for the full version.

Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 1 von 18 Page 1 of 18 Emission Mask: High frequency Unmodulated RF carrier Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 2 von 18 Page 2 of 18 Input Audio signal: 300Hz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 3 von 18 Page 3 of 18 Input Audio signal: 1 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 4 von 18 Page 4 of 18 Input Audio signal: 2.5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 5 von 18 Page 5 of 18 Input Audio signal: 5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 6 von 18 Page 6 of 18 Input Audio signal: 15 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 7 von 18 Page 7 of 18 Low frequency Unmodulated RF carrier Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 8 von 18 Page 8 of 18 Input Audio signal: 300Hz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 9 von 18 Page 9 of 18 Input Audio signal: 1 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 10 von 18 Page 10 of 18 Input Audio signal: 2.5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 11 von 18 Page 11 of 18 Input Audio signal: 5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 12 von 18 Page 12 of 18 Input Audio signal: 15 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 13 von 18 Page 13 of 18 99% emitted energy Occupied Bandwidth: High frequency 2.5kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 14 von 18 Page 14 of 18 5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 15 von 18 Page 15 of 18 15 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 16 von 18 Page 16 of 18 Low frequency 2.5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 17 von 18 Page 17 of 18 5 kHz Produkte Products Appendix 1 Prüfbericht - Nr.: Test Report No. 16023053 001 Seite 18 von 18 Page 18 of 18 15 kHz

1 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement below 1GHz Substitute antenna Photograph 2: Set-up for Radiation Measurement above 1GHz Substitute antenna
