CCRAL2Wireless Microphone Transmitter

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . .1 System Components . . . . . . . . . . . . . . . . . . . . .3 Quick Start . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 Guided Tour - AR2 Receiver . . . . . . . . . . . . . . . . .7 Guided Tour - AL2 Transmitter . . . . . . . . . . . . . . .9 AR2DT Dock . . . . . . . . . . . . . . . . . . . . . . . . . .12 AR2 Camera Mount . . . . . . . . . . . . . . . . . . . . . 13 Specifications . . . . . . . . . . . . . . . . . . . . . . . . .14 AirLine Micro Channel Plan . . . . . . . . . . . . . . . . 15 v1 .1 ©2010 Samson Technologies Corp . Table of Contents AirLine Micro Camera System Owners Manual1 Introduction Thank you for purchasing the Samson AirLine Micro Camera wireless system, a breakthrough in wireless microphone technology . It is perfectly suited for commercial videographers, corporate, as well as broadcast video professionals . The AirLine Micro utilizes the latest in miniaturized electronic components, as well as lithium-ion batteries, resulting in Samson’s smallest wireless system, while preserving the high-quality audio you expect from a Samson wireless device . The AirLine Micro system ensures clear, interruption-free perfor- mance by combining tone-key with auto-mute . This configuration allows only the transmitter’s audio to pass through the receiver, and mutes the output if there is any interference . The AirLine Micro Camera system is designed so that it can easily be integrated into your current video system, and comes with all of the necessary components to execute your video shoot or live broadcast . The system is comprised of one AL2 belt pack transmitter and one AR2 micro receiver, which are each housed in a durable aluminum chassis . The AR2 micro receiver features an 1/8” unbal- anced audio output, with microphone or line level output, USB DC-input, and RF and Battery LED indicators . The system also includes a mounting adaptor that fits into the standard hot shoe, enabling it to be attached to any video camera . The system also includes one 3 .5mm-3 .5mm and one 3 .5mm-XLR audio cable to connect to the audio input of your camera . Also included is an LM10 omni direc- tional lavaliere microphone that allows the performer the freedom to move around while maintaining outstanding audio clarity . The AirLine Micro system utilizes fully rechargeable lithium-ion battery technology . The included AL2 transmitter and AR2 receiver feature internal rechargeable batteries, each allowing 10 hours of battery operation . Both the AL2 and AR2 can be recharged with the included AC adaptor and USB Y-cable, or with the included AR2DT docking station, or by USB bus power when connected to any USB host-equipped device . The AR2 can alternatively be powered by the included AC adaptor, for continuous operation . AirLine Micro Camera System2 Introduction In this manual, you’ll find a detailed description of the features of your AirLine Micro Camera system, as well as a guided tour of its components, step-by-step instructions for setting up and using your system, and full specifications . If your AirLine Micro Camera system was purchased in the United States, you’ll also find a warranty card enclosed . Don’t forget to fill it out and mail it! This will enable you to receive online technical support, and will allow us to send you updated information about this and other Samson products . If your Airline Micro Camera system was purchased outside of the U .S ., contact your local distributor for warranty details . Also, be sure to visit our website (http://www .samsontech .com) for information about our full product line . Special Note for U .S . Purchasers: Should your Airline Micro Camera system ever require servicing, a Return Authorization (RA) number is necessary . Without this number, the unit will not be accepted for return . If your AirLine Micro Camera system was purchased in the United States, please call Samson at 1-800-372-6766 for an RA number prior to shipping your system . If possible, return the unit in its original carton and packing materials . If your AirLine Micro Camera system was purchased outside of the U .S ., contact your local dis- tributor for service information . Battery Notice: Lithium-ion batteries are low-maintenance, and provide increased power capabilities in a lighter package, compared with NiCad (nickel-cadmium) batteries . All lithium-ion batteries have a finite number of times that they can be recharged, called a charge cycle . A charge cycle means using all of a battery’s power, but does not necessarily mean a single charge . A lithium-ion battery can be recharged when needed, and does not need to be fully discharged (contrasted with a NiCad battery) before charging again . Repetitive full discharges of the battery should be avoided, as lithium-ion batteries need to be utilized continuously for maximum life and performance . If you are not using your wireless system often, be sure to complete a full charge cycle at least every three months . If you need to replace your AL2 or AR2 battery, please contact Samson, or your local distributor . AirLine Micro Camera System Owners Manual3 System Components Universal AC Adaptor1/8” to 1/8” Audio Cable1/8” to XLR Audio CableUSB Y-Power Cable Carrying CaseOwners Manual Note: Universal AC Adaptor works from 100V - 240V. Plug adaptors snap into place and can be changed by sliding the button below the plug. Each system is shipped with one plug adaptor specific to the country where the system is purchased. Addional adaptors can be ordered through Samson. AL2 TransmitterAR2 ReceiverAR2DT DockAR2 Camera MountLM10 Lavaliere Microphone3 Windscreens AirLine Micro Camera System4 Quick Start Please follow these basic procedures for setting up and using your AirLine Micro: 1 . For your AirLine Micro system to work properly, both the receiver and transmitter must be on the same channel . Remove all packing materials (save them in case your unit needs to …

Text truncated - open the document above for the full version.

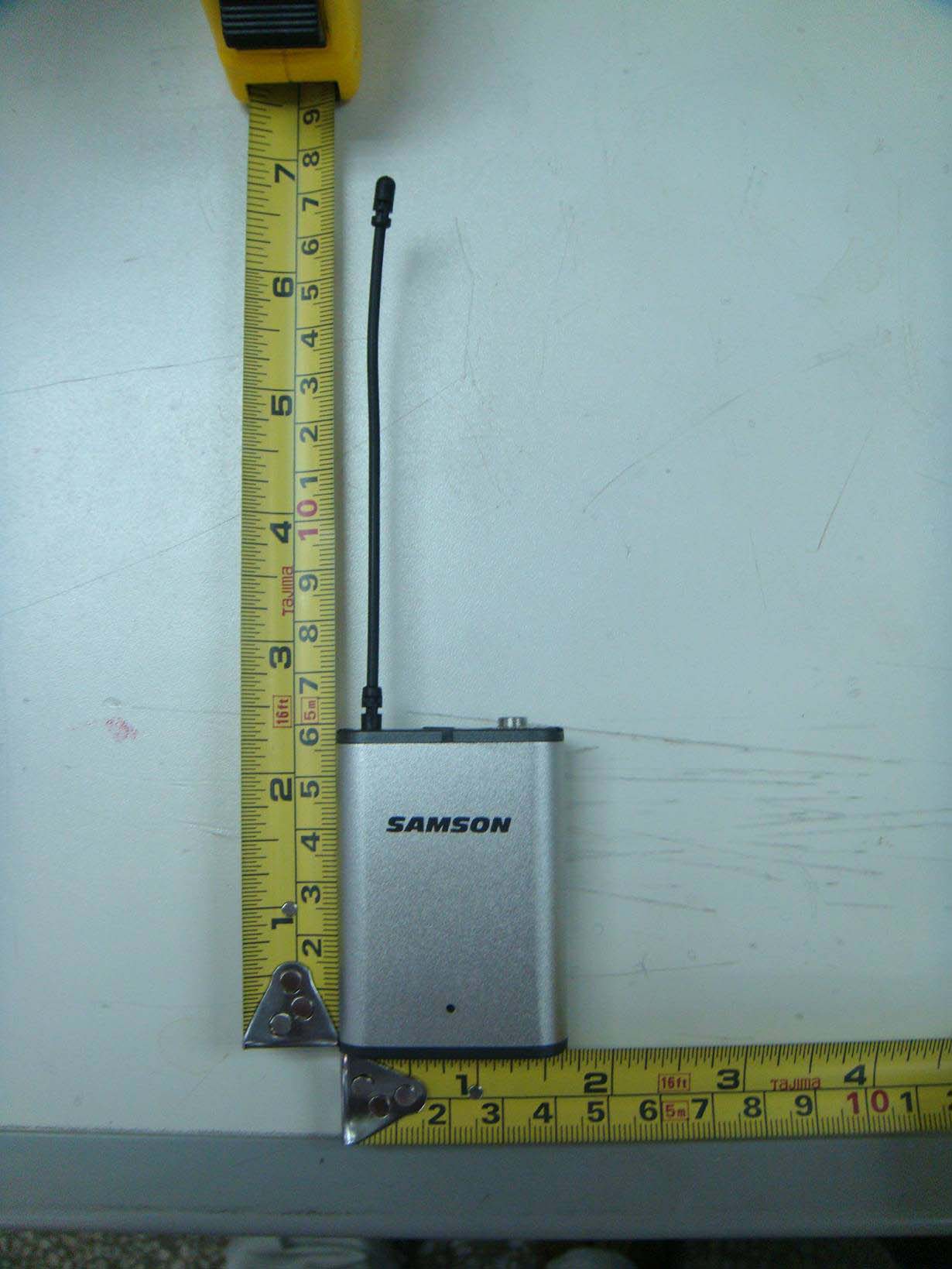

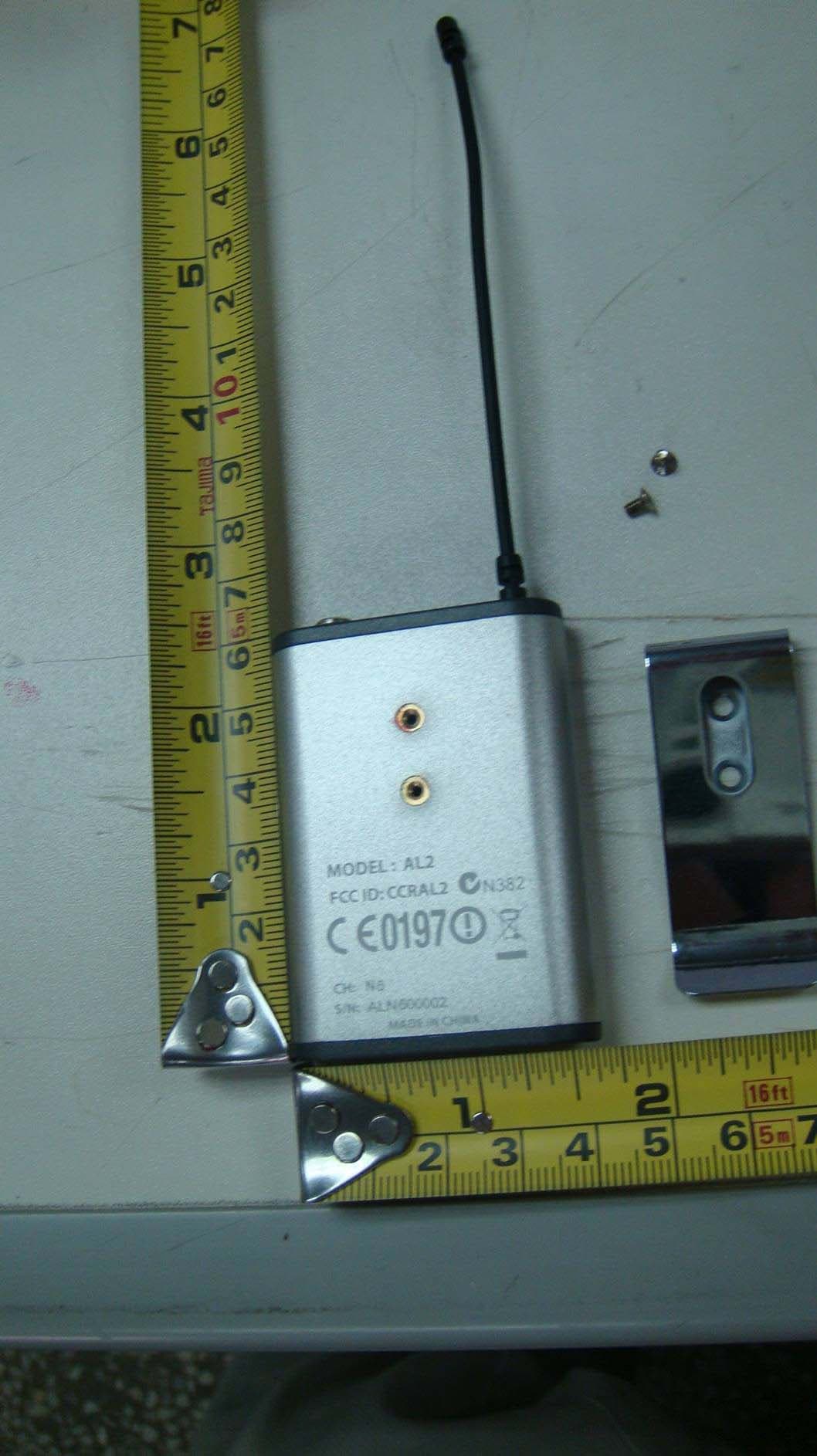

Label

Antenna

2010/3/25 Revised Operation Status Before Operation Top LED Bottom LED AL2 Status Notes Off Depress More than 1sec Lights Green Off Normal Operation Feeding power to the circuit -> RF Transmission -> Mute Off -> AF On, LED : Off -> Lights In Normal Operation or AF Volume Adjust Depress More than 1sec Off Off Off Audio Off -> RF Off -> Power Off, LED : Lights -> Blinks (1sec) -> Off In Operation (Audio On) Push 0.2-2sec Blinks Green Off Mute On In case the SW is depressed more than 2sec, the power shall be Off. LED : Light -> Blinks (1sec) -> Off In Operation (Mute On) Push 0.2-2sec Lights Green Off Audio On In case the SW is depressed more than 2sec, the power shall be Off. LED : Blinks (1sec) -> Off In Operation (Audio On) N/A --- Lights Red Off Sound Distorts In Operation (Mute On) N/A --- Lights Red Off No Sound Level Adjustment N/A --- Lights Red Off Sound Distorts In Operation N/A --- Lights Green Blinks Blue Normal Operation+Battery Low Mute N/A --- Blinks Green Blinks Blue Mute On + Battery Low Peak N/A --- Lights Red Blinks Blue Peak + Battery Low AF Level Adjustment N/A --- Blinks Yellow Blinks Blue AF Level Adjustment + Battery Low Off Depress More than 5sec Blinks Yellow* Off Volume Adjustment Mode Power Off ( Off ) -> Level Ad j ustment Mode ( Yellow ) * The s p eed of LED blink is the last level settin g Increase Gain Push 1 Time Blinks Yellow Off Increase Gain Increases the level by one step with one push of the SW. (Total 5 steps) At Maximum Level N/A --- Fast Blinks Yellow Off Maximum Level Reach at the maximum level. Even AL2 is battery low, the LED keeps the fast blinks. Decrease Gain Push 1 Time Blinks Yellow Off Decrease Gain Decreases the level by one step with one push of the SW. (Total 5 steps) At Minimum Level N/A --- Slow Blinks Yellow Off Minimum Level Reach at the minimum level. Even AL2 is battery low, the LED keeps the fast blinks. Fix the AF Volume Level Neglected 5 sec Lights Green Off Normal Operation 5sec after without touching the SW, the level shall be fixed and back to normal operation. Either In Operation or Power Off Neglected N/A Off Lights Blue Under Recharging While recharging system with 5V power is connected with AL2, all of AL2 functions are the same as po w Complete Recharging Neglected N/A Off Off Power Off While recharging system with 5V power is connected with AL2, all of AL2 functions are the same as po w LED Colors Colors Meanings Green Normal Operation Yellow AF Level Adjustment Red AF Peak Blue Battery Status AL2 OPERATION DESCRIPTION Battery Low AF Volume Adjustment Recharging SW Control Power On/Off Mute Peak

1 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement below 1GHz Substitute antenna Photograph 2: Set-up for Radiation Measurement above 1GHz Substitute antenna
