CCRAX1NAirline 77 Wirless Microphone Transmitter

U H F WIRELES S S YSTE M • AX1 Handheld Transmitter • CR77 Receiver OWNERS MANU A L T RANSM I TTER HANDHELD T RANSMITTER ENGLISH Introduction 3 QuickStart 4 Guided Tour - CR77 Receiver 6 Guided Tour - AX1 Handheld Transmitter Setting Up and Using Your AirLine System 11 Specications 51 Appendix A: Channel Plan 52 FRANCAIS Introduction 15 Prise en main 16 Visite guidée – Récepteur CR77 18 Visite guidée – Emetteur main AX1 21 Conguration et utilisation des systèmes AirLine 24 Spécications 51 Appendix A: Tableau de conversion de fréquence 52 Samson Technologies Corp. Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 516-364-3888 Table of Contents Copyright 2011, Samson Technologies Corp. DEUTSCHE Einleitung 27 Schneller Einstieg 28 Übersicht - Empfänger CR77 30 Übersicht - Hand-Sender AX1 33 Konguration und Betrieb der AirLine-Systeme 35 Technische Daten 51 Anhang A: Frequenzzuordnung der Empfangskanäle 52 ESPANOL Introducción 39 Arranque rápido 40 Recorrido guiado – Receptor CR77 42 Recorrido guiado – Transmisor manual AX1 45 Ajuste y uso de su sistema AirLine 47 Especicaciones 51 Apéndice A: Tabla de conversión de frecuencias 52 9 Welcome to Samson AirLine—the wireless system for the new millenium! Wireless microphone and instrument systems were originally developed to eliminate cables, providing unparalleled freedom of movement. AirLine takes this concept to a new level with transmitters so small, lightweight and aerodynamic, they are nearly invisible, providing a completely “hassle-free” user experience. To create the world’s smallest wireless transmitters, we developed new proprietary technology. Featuring miniaturized circuitry and the ability to operate on a single tiny AAA battery (with 14 hours typical battery life), these transmitters also feature significantly improved wireless reception and sound quality. Samson AirLine systems operate in the N, U and E bands UHF frequency range and contains a CR77 receiver (optimized for the production of professional audio tracks to accompany your video shoot or live broadcast). The AirLine UHF Microphone System contains an AX1 hand-held transmitter, which plugs into any standard wired dynamic microphone. In this manual, you’ll find a more detailed description of the features of all AirLine systems, as well as a guided tour through all components, step-by-step instructions for setting up your system and full specifications. If your AirLine system was purchased in the United States, you’ll also find a warranty card enclosed—don’t forget to fill it out and mail it! This will enable you to receive online technical support and will allow us to send you updated information about this and other Samson products in the future. If your AirLine system was purchased out- side of the U. S., contact your local distributor for warranty details. Also, be sure to check out our website (http://www.samsontech.com) for complete information about our full product line. SPECIAL NOTE for U.S. purchasers: Should your AirLine system ever require servicing, a Return Authorization number (RA) is necessary. Without this number, the unit will not be accepted. If your AirLine system was purchased in the United States, please call Samson at 1-800- 372-6766 for a Return Authorization number prior to shipping your system. If possible, return the unit in its original carton and packing materials. If your AirLine system was purchased outside of the U. S., contact your local distributor for information. Samson AirLine Introduction ENGLISH If you’ve had some prior experience using wireless systems, these QuickStart instructions will get you up and running with your AirLine sys- tem in a matter of minutes! Detailed instructions for setting up and using your AirLine system can be found on page 17 of this manual, and the “Guided Tour” sections on pages 6 - 16 provide full descriptions of all AirLine component controls and displays. 1. Make sure that the supplied receiver and AX1 transmitter are factory preset to the same channel. 2. Physically place the receiver where it will be used and extend its antenna(s) vertically. 3. Set the power switch to your transmitter to the “off” position (away from the arrow) and place a fresh battery in it. Then turn the trans- mitter back on momentarily; its LED will flash once and then go off if the battery is sufficiently strong. Once battery strength is verified, turn the transmitter off. 4. If you are using an AX1, plug its XLR connector into a wired dynamic microphone; make a good tight connection, using the supplied rubber gasket if necessary. 5. Turn your audio sy stem off and make the physical cable connection between the receiver’s balanced or unbalanced output jack (if nec- essary, both can be used simultaneously) and a mic level audio input of your amplifier or mixer. If your system contains a CR77 receiver, be sure to set its Audio Output Level switch correctly. 6. Turn the Volume, Level or AF Level knob on the receiver completely counterclockwise. Connect the supplied AC adapter to the receiver and plug it in , but leave its power off for the moment. 7. Turn on the receiver. If your system contains a CR77 receiver, its “Power” LED will light steadily red. Samson AirLine QuickStart ENGLISH 8. Turn on your transmitter. If your system contains either a CR77 , one of the "A/B Receiver" LEDs will be lit, showing you whether the (left) "A" or (right) "B" receiver is currently being used. The CR77 meter will also indicate the strength of the incoming RF signal. 9. Turn on your connected amplifier and/or mixer but keep its volume all the way down. . Set the Volume, Level or AF Level knob on the receiver fully clockwise; this is unity gain. 10. Speak or sing into your mic at a normal performance level while slowly raising the audio input control of your amplifier or mixer until the desired level is reached. If necessary, use the supplied plastic screwdriver to adjust the transmitter’s Gain trimpot in order to increase or decrease its signal level…

Text truncated - open the document above for the full version.

Sam Ash Music Corporation Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014.09.05 SUBJECT: FCC Application for CCRAX1N To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1.Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2.Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3.Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC complian ce info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer . Regards, Signature:(Must be signed by the person that is listed on the FCC Website) ................................................... Typed name and title: Don Albanese /Manager Applicant: Sam Ash Music Corporation Address: 262 Duffy Avenue Hicksville, NY 11801 United States

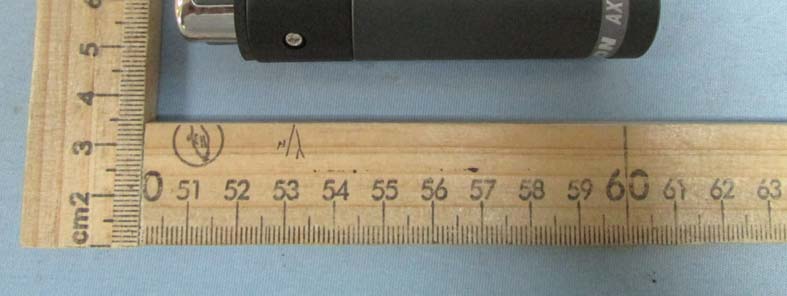

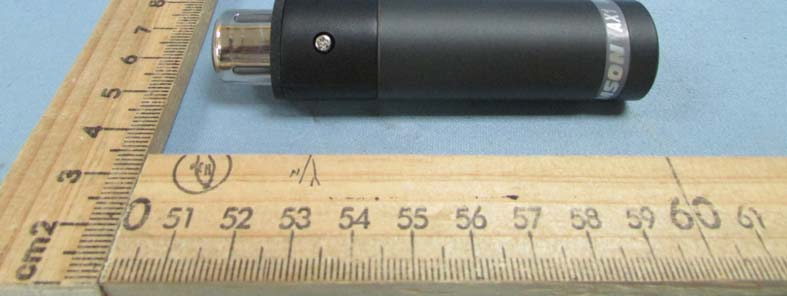

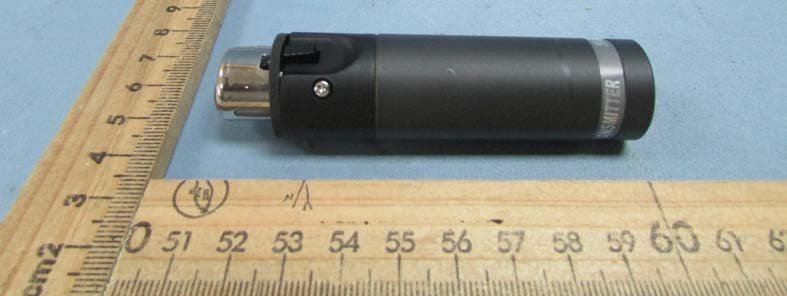

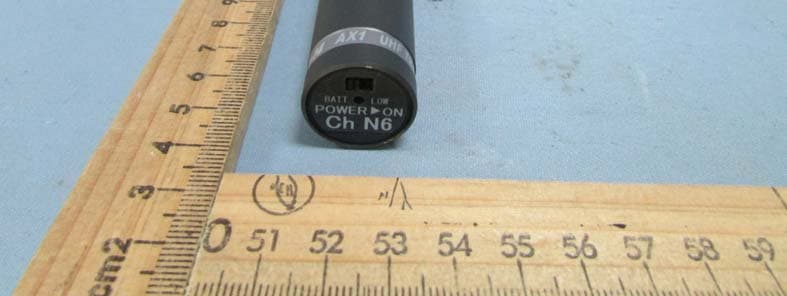

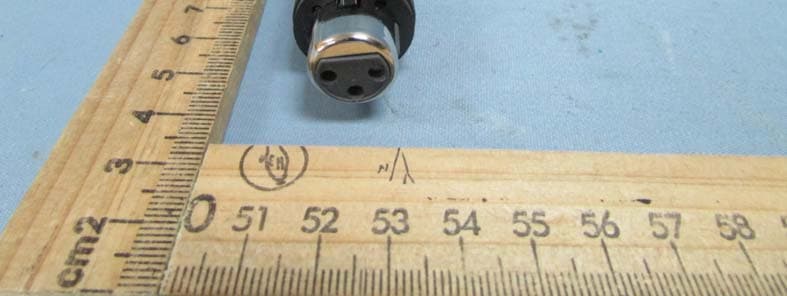

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs – Const ructional Details Model AX1 – Appearance View Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: AX1 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable.

FCC Label Sample for model: AX1 Model: AX1 FCC ID: CCRAX1N

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Model AX1 – Internal View ANT.(audio input port) Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

Tune up Procedure Model: AX1 Modulation: FM 642.375 MHz ~ 645.750 MHz: Channel Max output power Frequency tolerance 642.375MHz 5±2dBm ±10KHz 645.750 MHz 5±2dBm ±10KHz

Names of parts Amount Reference TEESVA0G336M8R 6 C1,C20,C22,C23,C24,C39 GRM1882C1H470JA01D 16 C3,C6,C7,C9,C10,C11,C13,C14, C15,C61,C62,C63,C64,C71,C72, C73 C1608CH1H121JT 1 C8 TEESVA1C106M8R 3 C16,C18,C19 GRM1882C1E102JA01D 2 C2,C17 TMCMA1E105MTRF 2 C26,C27 TMCMA0J156MTRF 3 C25,C32,C40 C1608CH1H471JT 3 C34,C35,C36 C1608JB1E103KT 1 C37 C1608JF1C104ZT 1 C38 C1608CH1H030CT 1 C41 GRM1884C1H1R0BZ01D 1 C42 C1608CH1H040CT 2 C43,C55 C1608CH1H060DT 2 C44,C53 TEESVC1A107M12R 1 C45 TEESVB20J476M8R 2 C46,C58 C1608CH1H330JT 1 C48 C1608JB1C273KT 1 C49 C1608CH1H151JT 1 C50 C1608JB1H123KT 1 C51 C1608CH1H020CT 1 C52 C1608CH1H070DT 1 C54 TEESVP0J475M8R 1 C56 C1608JB1H222KT 3 C28,C29,C57 TMCMA1C475MTRF 4 C30,C31,C68,C70 TEESVB20G157M8R 1 C69 KV1837KTR-G 1 D1 1SS362-TE85L,F 1 D2 1SS349-TE85L,F 1 D3 LL1608-FSLR10J 2 L1,L9 LLQ1608-F15NG 1 L3 LL1608-FSL10NJ 2 L4,L8 LL1608-FSL15NJ 2 L5,L6 #A921CY-101M=P3 1 L7 TLSU1008A(T04) 1 LED1 15240-R PCB(AX1) 1 PCB1 FH102A-TR-E(FH102-TR-E) 1 Q2 2SC5231A-8/9-TL-E(2SC5231-C) 1 Q3 2SA1832(Y)-TE85L,F 1 Q4 2SK879(Y)-TE85R,F 1 Q5 RK73B1JTTD33Ω(J) 1 R1 RK73B1JTTD470Ω(J) 1 R2 RK73B1JTTD1KΩ(J) 4 R3,R16,R17,R34 RK73B1JTTD18Ω(J) 1 R5 RK73B1JTTD24KΩ(J) 1 R7 RK73B1JTTD100KΩ(J) 3 R8,R24,R37 RK73B1JTTD6.8KΩ(J) 1 R9 RK73B1JTTD2KΩ(J) 1 R10 RK73B1JTTD2.2KΩ(J) 1 R12 RK73B1JTTD330Ω(J) 1 R13 RK73B1JTTD4.7KΩ(J) 1 R15 RK73B1JTTD22KΩ(J) 2 R19,R20 RK73B1JTTD36KΩ(J) 1 R23 RK73B1JTTD10KΩ(J)1 R26 RK73B1JTTD33KΩ(J)2 R21,R27 RK73B1JTTD8.2KΩ(J)1 R28 RK73B1JTTD4.3KΩ(J)3 R29,R30,R40 RK73B1JTTD100Ω(J)5 R4,R6,R32,R33,R43 RK73B1JTTD51KΩ(J)1 R35 RK73B1JTTD68KΩ(J)1 R36 RK73B1JTTD5.1KΩ(J)1 R39 RK73B1JTTD15Ω(J)1 R42 RK73B1JTTD3.3KΩ(J)2 R22,R44 RK73B1JTTD680Ω(J)2 R31,R49 SLHA12BP-041 SW1 #395-01001 T1 TK10690MTL 1 U1 TK11227CMCL 1 U2 XC6371A300 1 U3 TK17030AMTL 1 U4 XC61CN1102NR 1 U5 PVA2A473A01R001 VR2 PVA2A103A01R001 VR3 3314J-1-502E-LF1 VR4 NS-32R 642.375M 1 X1 NS-32R 642.875M 1 X1 NS-32R 644.125M 1 X1 NS-32R 644.750M 1 X1 NS-32R 645.500M 1 X1 NS-32R 645.750M 1 X1

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 30 TEST REPORT Reference No. .................... : WTS14S0917956E FCC ID ................................ : CCRAX1N Applicant ............................ : Sam Ash Music Corporation Address .............................. : 262 Duffy Avenue Hicksville, NY 11801 United States Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Airline 77 Wireless Microphone Transmitter Model No. ........................... : AX1 Standards ........................... : FCC CFR47 Part 74 Date of Receipt sample ..... : Aug. 30, 2014 Date of Test ........................ : Sep.01~10, 2014 Date of Issue ...................... : Sep. 10, 2014 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company.The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS14S0917956E Page 2 of 30 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Test Method Result RF Output Power 74.861(e)(1)(ii) TIA/EIA-603-C-2004 PASS Modulation Characteristics 2.1047(a) TIA/EIA-603-C-2004 PASS Occupied Bandwidth 2.1049(c)(1) TIA/EIA-603-C-2004 PASS Radiated Emissions 2.1053 & 74.861(e)(6) TIA/EIA-603-C-2004 PASS Spurious emissions at antenna terminals 2.1051 TIA/EIA-603-C-2004 PASS Frequencies Stability 2.1055(a)(1) TIA/EIA-603-C-2004 PASS Remark: PASS means that the test results complies with related requirements. N/A means that the test is not applicable for the EUT. Reference No.: WTS14S0917956E Page 3 of 30 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 5 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 5 4.2 DETAILS OF E.U.T. .......................................................................................................................................... 5 4.3 CHANNEL LIST ................................................................................................................................................. 5 4.4 TEST MODE ..................................................................................................................................................... 5 4.5 TEST FACILITY ................................................................................................................................................. 5 4.6 TEST LOCATION ............................................................................................................................................... 5 5 EQUIPMENT USED DURING TEST ................................................................................................................... 6 5.1 EQUIPMENTS LIST ........................................................................................................................................... 6 5.2 MEASUREMENT UNCERTAINTY ........................................................................................................................ 6 5.3 TEST EQUIPMENT CALIBRATION ...................................................................................................................... 6 6 RF OUTPUT POWER ............................................................................................................................................ 7 6.1 TEST PROCEDURE ........................................................................................................................................... 7 6.2 TEST RESULT ................................................................................................................................................... 7 7 MODULATION CHARACTERISTICS ................................................................................................................ 9 7.1 TEST PROCEDURE ............................................................................................................................................. 9 7.2 TEST RESULT ................................................................................................................................................ 10 8 OCCUPIED BANDWIDTH OF EMISSION ....................................................................................................... 12 8.1 TEST PROCEDURE ......................................................................................................................................... 12 8.2 TEST RESULT ................................................................................................................................................ 12 9…

Text truncated - open the document above for the full version.

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Photographs –Model AX1 Test Setup Photograph – Radiation Spurious Emission Test Setup 30MHz-1GHz Above 1GHz
