CCRUB7Wireless Microphone System

Professional UHF Wireless System OWNER'S MANUAL Important Safety Information 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug the apparatus during lightening storms, or when unused for long periods of time. 14. Refer all servicing to qualified personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus. 16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert. 17. Please keep a good ventilation environment around the entire unit. 18. The direct plug-in adapter is used as disconnect device, the disconnect device shall remain readily operable. 19. Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like. If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. Introduction Congratulations on purchasing the Samson Synth 7 wireless system. The Synth 7 is the ideal solution for the active per- former who needs a reliable, great sounding system for wireless applications. Synth 7 system features all-metal components with easy-to-read displays and advanced menu functions for seamless operation. The Synth 7 comes in five configurations. The vocal handheld system includes the UH7 handheld transmitter with a Q8 dynamic microphone capsule. The UB7 belt pack system can be configured with either the SE10 earset microphone, LM10 lavalier microphone, QV vocal headset microphone or a ¼” instrument cable. For travel or permanent installation, the Synth 7 includes a standard 19” rackmount kit. In these pages, you’ll find a detailed description of the features of the Synth 7 wireless system, step-by-step instructions for its setup and use, as well as full specifications. If your wireless system was purchased in the United States, you’ll also find a warranty card enclosed—don’t forget to fill it out and mail it in so that you can receive online technical support and so that we can send you updated information about this and other Samson products in the future. Also, be sure to check out our website (www.samsontech.com) for complete information about our full product line. We recommend you keep the following records for reference, as well as a copy of your sales receipt. Receiver Serial number: _________________________________________ Transmitter Serial number: ______________________________________ Date of purchase: ______________________________________________ Dealer name: __________________________________________________ With proper care and maintenance, your Synth 7 wireless system will operate trouble-free for many years. Should your wireless system ever require servicing, a Return Authorization (RA) number must be obtained before shipping your unit to Samson. Without this number, the unit will not be accepted. Please call Samson at 1-800-3SAMSON (1-800-372-6766) for an RA number prior to shipping your unit. Please retain the original packing materials and, if possible, return the unit in its original carton. If your Synth 7 system was purchased outside of the United States, contact your local distributor for warranty details and service information. • Professional true-diversity UHF wireless systems • Scan Mode and on screen spectrum analyzer finds optimal channels for interference-free performance • Pilot Tone Squelch/Auto Mute function eliminate RF noise when the transmitter is muted • Increased dynamic range to handle the hottest inputs • Full-color receiver LCD • Transmitter LCD indicates battery level and channel number • Transmitter offers up to 15 hours of continuous operation on two AA batteries • 300-foot operating range • All-metal, rack mountable components ensure roadworthy durability Features Quick Start In order for your wireless sy…

Text truncated - open the document above for the full version.

Sam Ash Music Corporation Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014.08.05 SUBJECT: FCC Application for CCRUB7 To Whom It May Concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer . Regards, Signature:(Must be signed by the person that is listed on the FCC Website) ................................................... Typed name and title: Don Albanese /Manager Applicant: Sam Ash Music Corporation Address: 262 Duffy Avenue Hicksville, NY 11801 United States

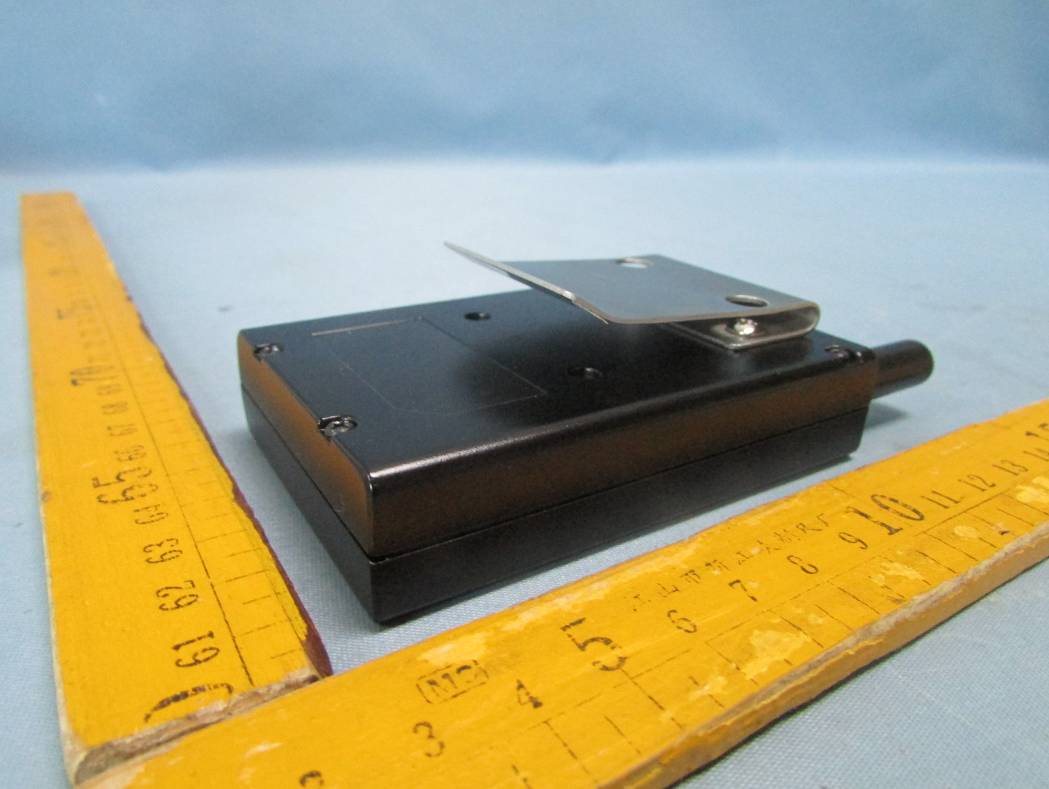

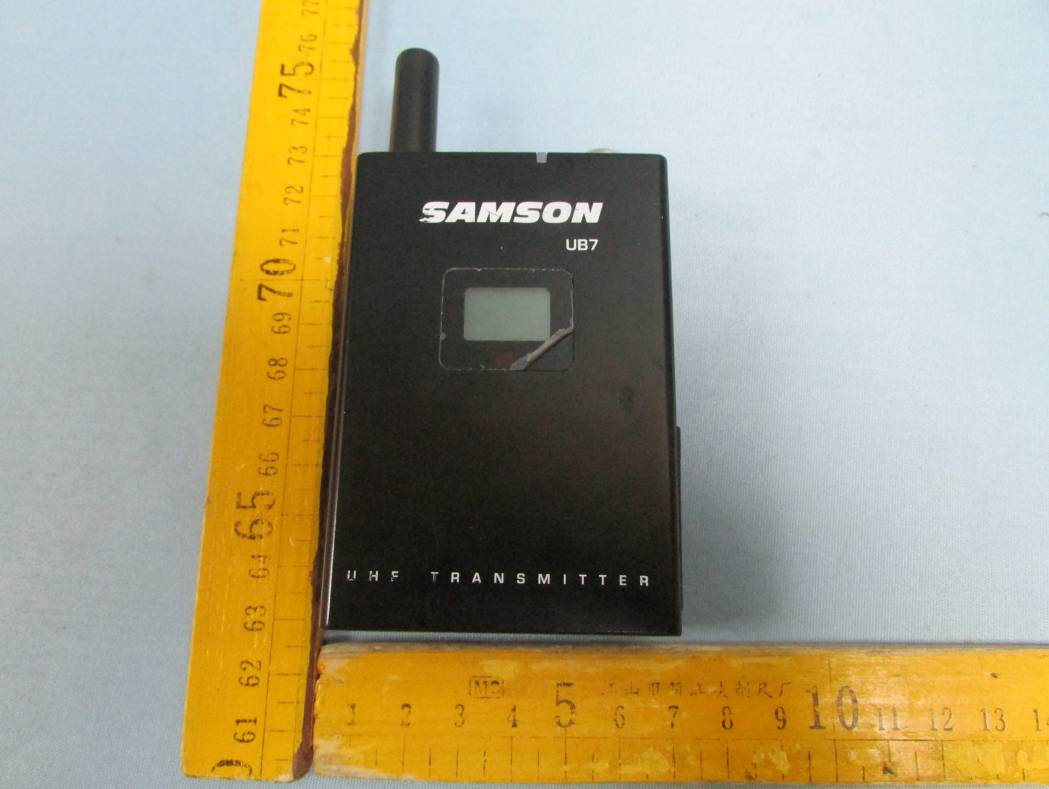

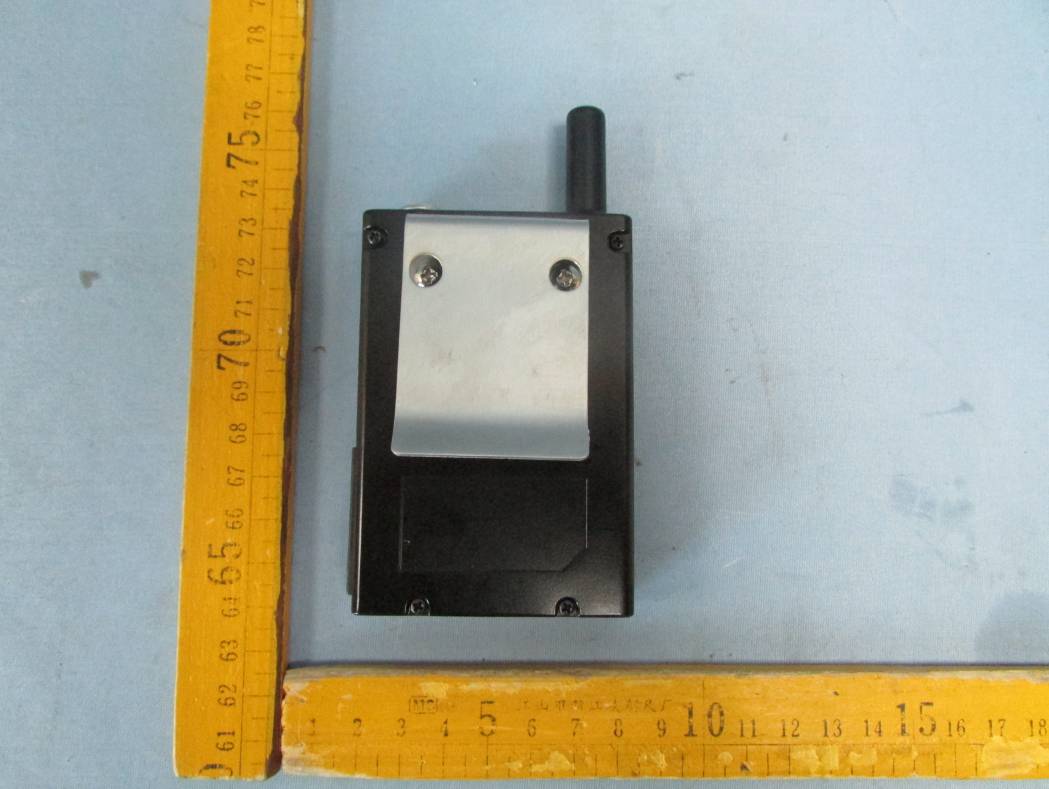

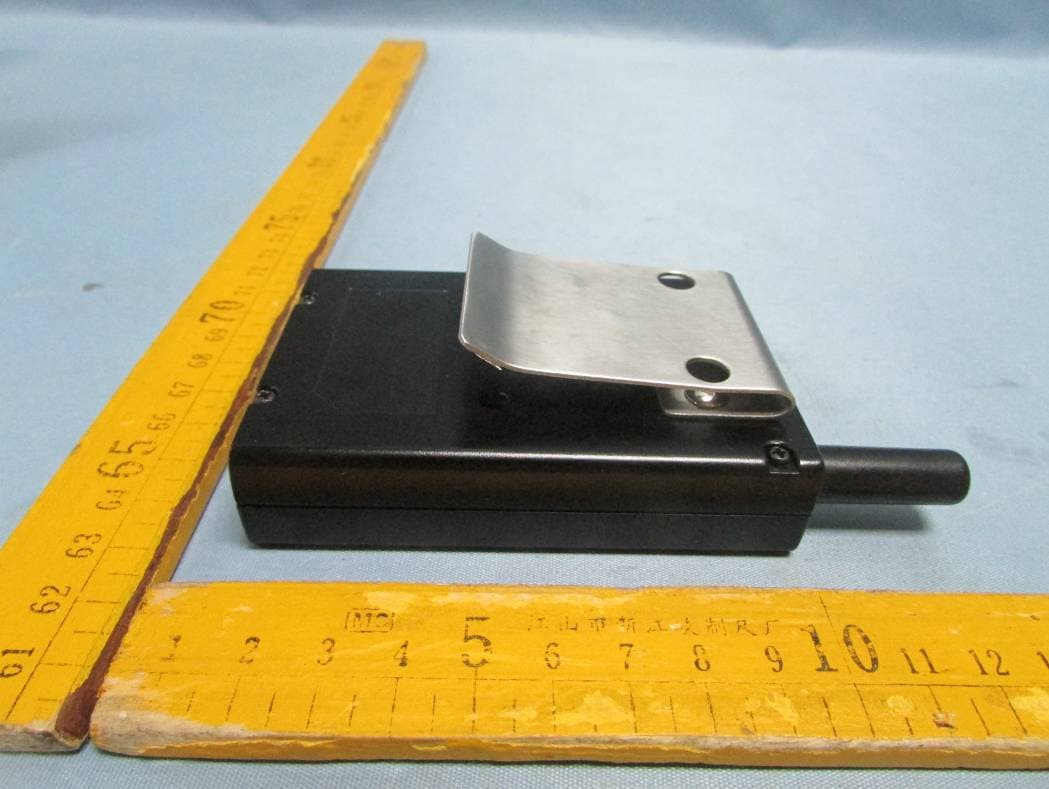

Page 1 of 3 Model TX:UB7 - External View Page 2 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 3 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

FCC Label Location for model: UB7 The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Sam Ash Music Corporation Model:UB7 FCC ID: CCRUB7

Page 1 of 3 Model TX:UB7 - Internal View Page 2 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn ANT RF Module Page 3 of 3 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn

CommentDesignatorQuantity 10KVR1, VR22 470PC80, C82, C833 3PC65, C922 10PFC861 104PC811 103PC3, C8, C30, C43, C48, C50, C52, C54, C57, C85, C95, C97, C10213 100PC17, C18, C60, C68, C89, C93, C101, C1038 102PC58, C62, C87, C90, C94, C996 5PC631 47PC781 103PC691 68PC771 1PC64, C66, C70, C72, C915 2PC761 4PC75, C1042 470PC51 8PC731 NCC16, C31, C98, C1004 39PC671 222PC45, C462 104PC7, C9, C21, C25, C36, C44, C47, C1058 30PC1, C22 22uFC121 150PC511 22PC39, C1092 223PC591 47PC23, C272 22RR811 10RR76, R86, R913 4K7R78, R802 180RR821 10KR1, R3, R4, R5, R6, R10, R25, R28, R63, R66, R69, R74, R87, R9314 22RR671 27KR841 1K5R721 180RR61, R70, R833 0RR58, R64, R903 12PR791 CommentDesignatorQuantity 47RR59, R772 102TL18, R57, R883 4K7R2, R22, R24, R954 1KR46, R56, R75, R854 100KR13, R39, R683 100RR8, R11, R21, R60, R735 NCR31, R942 47KR9, R65, R71, R924 220nHL91 2K2R12, R47, R49, R50, R53, R62, R967 22KR45, R48, R51, R544 510KR411 3.9KR551 560RR71 1K5R141 330TL41 56KR16, R302 3K9R331 15KR321 120KR191 7K5R201 180KR171 3K3R4313K3R431 5K6R29, R98, R993 12KR261 2M2R23, R272 10uFC4, C26, C40, C494 1UHL131 39NHL111 10NHL161 220NHL2, L14, L15, L174 100NHL121 2.5PL221 12NHL211 10NHL101 NCL201 15NHL191 1UHL6, L82 2.2UHL71 0RR181 10uFC22, C24, C28, C33, C55, C74, C84, C888 0.47uFC53, C712 22uFC19, C20, C32, C34, C565 CommentDesignatorQuantity 1uFC41, C1102 4.7uFC291 BTB0.8*4.0/20P52 47uFC6, C10, C113 100uFC13, C152 3-30PFCV11 NCCV21 4148D1, D2, D83 SS14D3, D42 BB149D5, D6, D73 IR LEDIR_11 ECB04-1210SRGC/ELED21 LCD-LEDLED11 PIC16F917 U11 50KRP11 UMX5NQ121 2SC4097Q1, Q2, Q6, Q9, Q13, Q186 2SC4097Q101 2SC4426Q111 2SA1577Q161 100UHL3, L52 'SK-12D01-EG3SW11 NJM4580U71 TL071U41 IRLML6402TRQ31 XC9105D095U31 APM2300AQ41 XC6371A501PRU21 BFG520/XQ14, Q15, Q173 UM6K34NQ71 NLM062U81 MB15E03SLU91 THAT4315U51 LCDLCD11 SWSW21 8MHzRY21 16.343MHz RY11

Modulation: FM 518MHz‐546.9MHz: Channel Max output powerFrequency tolerance 518MHz 10±2dBm ±25kHz 531.35MHz 10±2dBm ±25kHz 546.9MHz 10±dBm ±25kHz 638MHz‐666MHz: Channel Max output powerFrequency tolerance 638MHz 10±2dBm ±30kHz 652.075MHz 10±2dBm ±30kHz 666MHz 10±2dBm ±30kHz

Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn Page 1 of 47 TEST REPORT Reference No. .................... : WTS14S0715883E FCC ID ................................ : CCRUB7 Applicant ............................ : Sam Ash Music Corporation Address .............................. : 262 Duffy Avenue Hicksville, NY 11801 United States Manufacturer .................... : The same as above Address .............................. : The same as above Product Name .................... : Wireless Microphone System Model No. ........................... : UB7 Standards ........................... : FCC CFR47 Part 74 Date of Receipt sample ..... : Jul.04, 2014 Date of Test ........................ : Jul.15~31, 2014 Date of Issue ...................... : Aug.13, 2014 Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company.The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Prepared By: Waltek Services (Shenzhen) Co., Ltd. Address: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Testing location: 1/F., Fukangtai Building, West Baima Road, Songgang Street, Baoan District, Shenzhen, Guangdong, China Tel :+86-755-83551033 Fax:+86-755-83552400 Compiled by: Approved by: Zero Zhou / Project Engineer Philo Zhong / Manager Reference No.: WTS14S0715883E Page 2 of 47 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 2 Test Summary Test Items Test Requirement Test Method Result RF Output Power 74.861(e)(1)(ii) TIA/EIA-603-C-2004 PASS Modulation Characteristics 2.1047(a) TIA/EIA-603-C-2004 PASS Occupied Bandwidth 2.1049(c)(1) TIA/EIA-603-C-2004 PASS Radiated Emissions 2.1053 & 74.861(e)(6) TIA/EIA-603-C-2004 PASS Spurious emissions at antenna terminals 2.1051 TIA/EIA-603-C-2004 PASS Frequencies Stability 2.1055(a)(1) TIA/EIA-603-C-2004 PASS Remark: PASS means that the test results complies with related requirements. N/A means that the test is not applicable for the EUT. Reference No.: WTS14S0715883E Page 3 of 47 Waltek Services (Shenzhen) Co.,Ltd. http://www.waltek.com.cn 3 Contents Page 1 COVER PAGE ........................................................................................................................................................ 1 2 TEST SUMMARY ................................................................................................................................................... 2 3 CONTENTS ............................................................................................................................................................. 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 GENERAL DESCRIPTION OF E.U.T. ................................................................................................................. 4 4.2 DETAILS OF E.U.T. .......................................................................................................................................... 4 4.3 TEST FACILITY ................................................................................................................................................. 4 4.4 TEST LOCATION ............................................................................................................................................... 4 5 EQUIPMENT USED DURING TEST ................................................................................................................... 5 5.1 EQUIPMENTS LIST ........................................................................................................................................... 5 5.2 MEASUREMENT UNCERTAINTY ........................................................................................................................ 5 5.3 TEST EQUIPMENT CALIBRATION ...................................................................................................................... 5 6 RF OUTPUT POWER ............................................................................................................................................ 6 6.1 TEST PROCEDURE ........................................................................................................................................... 6 6.2 TEST RESULT ................................................................................................................................................... 6 7 MODULATION CHARACTERISTICS .............................................................................................................. 10 7.1 TEST PROCEDURE ........................................................................................................................................... 10 7.2 TEST RESULT ................................................................................................................................................ 11 8 OCCUPIED BANDWIDTH OF EMISSION ....................................................................................................... 13 8.1 TEST PROCEDURE ......................................................................................................................................... 13 8.2 TEST RESULT ................................................................................................................................................ 13 9 SPURIOUS EMISSIONS AT ANTENNA TERMINALS ................................................................................. 17 9.1 TEST PROCEDURE ......................................................................................................................................... 17 9.2 TEST DATA ....................................................…

Text truncated - open the document above for the full version.

Page: 1 of 2 Photographs –Model UB7 Test Setup Photograph – Radiation Spurious Emission Test Setup 8MHz ~30MHz 30MHz-1GHz Page 2 of 2 1 GHz~7 GHz
