CCRXP800Portable PA System with Bluetooth

Owner's Manual 800-WATT PORTABLE PA SYSTEM XP800 E PEDITION Copyright 2015 v1 Samson Technologies Corp. 45 Gilpin Avenue Hauppauge, New York 11788-8816 Phone: 1-800-3-SAMSON (1-800-372-6766) Fax: 631-784-2201 www.samsontech.com The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Samson Technologies is under license. Other trademarks and trade names are those of their respective owners.” 3 XP800 • Portable PA System Important Safety Information If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling. Private household in the 28 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one). For Countries not mentioned above, please contact your local authorities for a correct method of disposal. By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health. WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) AS THERE ARE NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of non-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance instructions in the literature accompanying the appliance. ATTENTION RISQUE DE CHOC ÉLECTRONIQUE - NE PAS OUVRIR CAUTION To prevent electric shock hazard, do not connect to mains power supply while grille is removed. 4 Important Safety Information 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at the plugs, convenience receptacles, and at the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug the apparatus during lightening, sort or when unused for long periods of time. 14. Refer all servicing to qualified personnel. Service is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and that no object filled with liquid such as vases shall be placed on the apparatus. 16. Caution-to prevent electrical shock, match wide blade plug wide slot fully insert. 17. Please keep a good ventilation environment around the entire unit. 18. POWER ON/OFF SWITCH: For products with a power switch, the power switch DOES NOT break the connection from the mains. 19. MAINS DISCONNECT: The plug should remain readily operable. For rack-mount or installation where plug is not accessible, an all-pole mains switch with a contact separation of at least 3mm in each pole shall be incorporated into the electrical installation of the rack or building. 5 XP800 • Portable PA System Important Safety Information FCC Notice 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the follow- ing two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compli- ance could void the user’s authority to operate the equipment. FCC Statement This equipment has been tested and found to comply with the limits for a Class B dig- ital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is conne…

Text truncated - open the document above for the full version.

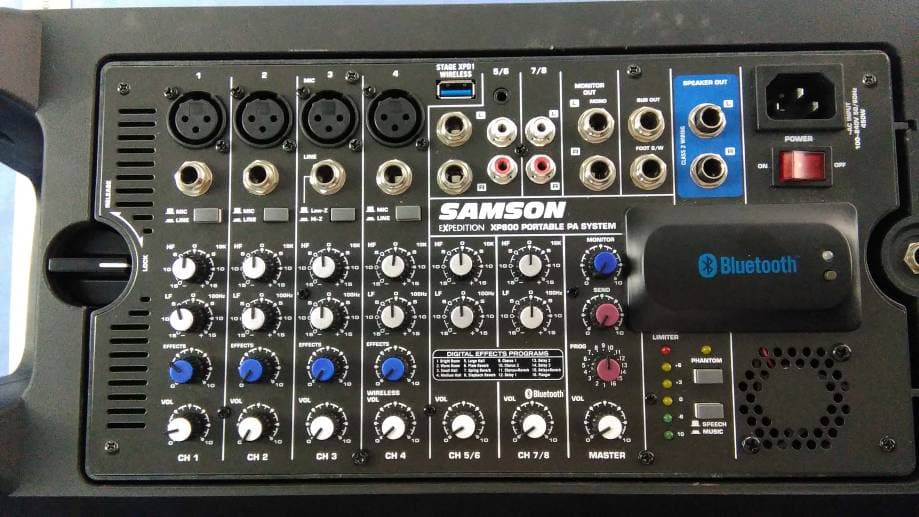

Report No.: C151015Z01 1 / 6 External Photos of EUT Report No.: C151015Z01 Page 2/6 Report No.: C151015Z01 Page 3/6 Report No.: C151015Z01 Page 4/6 Report No.: C151015Z01 Page 5/6 Report No.: C151015Z01 Page 6/6

Size: 79.5mm x 59.5mm Material:特多龍 T=0.08mm 黑底銀字 背面背膠 Size: 79.5mm x 39.5mm Material:特多龍 T=0.08mm 黑底銀字 背面背膠

Report No.: C151015Z01 1 / 7 Internal Photos of EUT Report No.: C151015Z01 Page 2/7 Report No.: C151015Z01 Page 3/7 RF Module Antenna Report No.: C151015Z01 Page 4/7 Report No.: C151015Z01 Page 5/7 Report No.: C151015Z01 Page 6/7 Report No.: C151015Z01 Page 7/7

Compliance Certification Services (Shenzhen) Inc. Report No: C151015Z01-RP1_MPE FCC ID: CCRXP800 Date of Issue: November 20, 2015 1 RADIO FREQUENCY EXPOSURE LIMIT Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See §15.247(b)(4) and §1.1307(b)(1) of this chapter. Conducted Power Results Bluetooth Mode Channel Frequency(MHz) Average Conducted Output Power (dBm) GFSK 00 2402 -4.94 39 2441 -3.91 78 2480 -3.38 8DPSK 00 2402 -8.35 39 2441 -7.12 78 2480 -6.45 π/4DQPSK 00 2402 -5.23 39 2441 -4.72 78 2480 -6.23 Manufacturing tolerance Bluetooth GFSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -4.0 -3.0 -3.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -8.0 -7.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 00 Channel 39 Channel 78 Target (dBm) -5.0 -4.0 -6.0 Tolerance ±(dB) 1.0 1.0 1.0 Compliance Certification Services (Shenzhen) Inc. Report No: C151015Z01-RP1_MPE FCC ID: CCRXP800 Date of Issue: November 20, 2015 2 EUT Specification EUT PORTABLE PA SYSTEM Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Bluetooth: 2.402GHz~ 2.480GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -1.94dBm (0.64mW) Antenna gain (Max) 1dBi (Numeric gain:1.26) Evaluation applied MPE Evaluation SAR Evaluation Note: 1. The maximum output power(including turn tolerance) is -1.94dBm (0.64mW) and maximum antenna gain is 3dBi 2. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. Compliance Certification Services (Shenzhen) Inc. Report No: C151015Z01-RP1_MPE FCC ID: CCRXP800 Date of Issue: November 20, 2015 3 TEST RESULT No non-compliance noted. Calculation Given 2 4d GP S    Equation 1 Where d = distance in cm P = Power in mW G = Numeric antenna gain S = Power Density in mW / cm 2 Maximum Permissible Exposure EUT Output Power=0.64.mW Numeric antenna gain=1.0 Substituting the MPE safe distance using d=20 cm into Equation 1 : Fields The power density S = 0.64  1.0/ (4∏  400) cm 2 = 1.27*e -4 mW/cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW / cm 2 even if the calculation indicates that the power density would be larger.)

Report No.: C151015Z01-RP1 FCC ID: CCRXP800 Page 1 / 61 FCC 47 CFR PART 15 SUBPART C TEST REPORT For PORTABLE PA SYSTEM Model: XP800 Brand: SAMSON Test Report Number: C151015Z01-RP1 Prepared for Sam Ash Music Corporation 262 Duffy Avenue Hicksville, NY 11801 United States Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. No.10-1, Mingkeda Logistics Park, No.18, Huanguan South Rd., Guan Lan Town, Baoan District, Shenzhen China TEL: 86-755-28055000 FAX: 86-755-28055221 Issued Date: November 20, 2015 E-Mail: [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services (Shenzhen) Inc. This document may be altered or revised by Compliance Certification Services (Shenzhen) Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NVLAP, NIST, CNAS or any government agencies. The test result of this report relate only to the tested sample identified in this report. 检 测 CNAS L4818 Report No.: C151015Z01-RP1 FCC ID: CCRXP800 Page 2 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 20, 2015 Initial Issue ALL Amzula Chen Report No.: C151015Z01-RP1 FCC ID: CCRXP800 Page 3 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ..................................................................................... 4 2. EUT DESCRIPTION .......................................................................................................... 5 3. TEST METHODOLOGY .................................................................................................... 6 3.1 DESCRIPTION OF TEST MODES ................................................................................. 6 4. FACILITIES AND ACCREDITATIONS ............................................................................. 7 4.1 FACILITIES .................................................................................................................... 7 4.2 ACCREDITATIONS ....................................................................................................... 7 4.3 MEASUREMENT UNCERTAINTY ................................................................................. 7 5. SETUP OF EQUIPMENT UNDER TEST .......................................................................... 8 5.1 SETUP CONFIGURATION OF EUT .............................................................................. 8 5.2 SUPPORT EQUIPMENT .............................................................................................. 8 6. FCC PART 15.247 REQUIREMENTS .............................................................................. 9 6.1 20DB BANDWIDTH ....................................................................................................... 9 6.2 ANTENNA GAIN .......................................................................................................... 14 6.3 PEAK POWER ............................................................................................................. 15 6.4 PEAK POWER SPECTRAL DENSITY ......................................................................... 17 6.5 BAND EDGES MEASUREMENT ................................................................................. 18 6.6 FREQUENCY SEPARATION ...................................................................................... 28 6.7 NUMBER OF HOPPING FREQUENCY ....................................................................... 31 6.8 TIME OF OCCUPANCY (DWELL TIME) ...................................................................... 33 6.9 SPURIOUS EMISSIONS ............................................................................................. 40 6.10 POWERLINE CONDUCTED EMISSIONS ................................................................. 58 Report No.: C151015Z01-RP1 FCC ID: CCRXP800 Page 4 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. TEST RESULT CERTIFICATION Product: PORTABLE PA SYSTEM Model: XP800 Brand: SAMSON Tested: October 15~November 19, 2015 Applicant: Sam Ash Music Corporation 262 Duffy Avenue Hicksville, NY 11801 United States Manufacturer: HANCHIH ELECTRONICS (SHENZHEN) CO.,LTD XINGYE FIRST ROAD 60#, FENGHUANG INDUSTRIAL DISTRICT, FUYONG TOWN, BAOAN COUNTY, SHENZHEN CITY, GUANGDONG PROVINCE, CHINA APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10:2013 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Sunday Hu Supervisor of EMC Dept. Compliance Certification Services (Shenzhen) Inc. Ruby Zhang Supervisor of Report Dept. Compliance Certification Services (Shenzhen) Inc. Report No.: C151015Z01-RP1 FCC ID: CCRXP800 Page 5 of 61 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 2. EUT DESCRIPTION Product PORTABLE PA SYSTEM Model Number XP800 Brand SAMSON Model Discrepancy N/A Identify Number C151015Z01-RP1 Received Date October 15, 2015 Power Supply 120Vac/60Hz Frequency Range 2402 ~ 2480 MHz Transmit Power GFSK : -1.94dBm /4-DQPSK: -2.96dBm 8DPSK : …

Text truncated - open the document above for the full version.

Report No.: C151015Z01-RP1 FCC ID : CCRXP800 Page 1 / 2 PHOTOGRAPHS OF THE TEST CONFIGURATION RADIATED EMISSION TEST Report No.: C151015Z01-RP1 FCC ID : CCRXP800 Page 2 / 2 CONDUCTED EMISSION TEST
