CFXTXR-1Ankle/Wrist Homing Transmitter

OWNER’S MANUAL MODEL CSTXR.1 FCC PART 90 TRACKING TRANSMITTER INTRODUCTION The Communications Specialists Model CSTXR.1 wrist or ankle mounted transmitter is used as a homing device to locate persons by Doppler positioning or triangulation. It is FCC Certified and must be used with a valid FCC license, issued for telemetry uses, under Part 90.259 of the Rules. It is programmed at the factory to operate in the 217- 220MHz band. Power output is 10mW. It uses a widely available CR2450 Lithium battery which operates the transmitter for more than 30 days. The CSTXR.1 utilizes a TCXO rather than a fragile crystal so it is almost indestructible. The case is completely waterproof and the transmitter module itself is also completely waterproof. ASSEMBLY AND BATTERY INSTALLATION Photo #1 1. Drop the transmitter module into the housing as shown in photo #1. 2. Place the battery on top of the transmitter module as shown in photo #2. The plus (+) side of the CR2450 battery is facing up as shown. If the battery is accidentally reversed, Photo #2 the transmitter will not operate but it will not be damaged. Just pop out the battery and reverse it to resume operation. 3. Place the battery cap over the + side of the battery and use the supplied tool to tighten it. FCC COMPLIANCE NOTICE In order to legally operate this transmitter, you must first meet the eligibility requirements of FCC Part 90.35. This means you must be engaged in a commercial or educational activity. Then you must have a valid FCC license yourself or be part of a for-profit or non-profit sharing agreement as detailed in 90.179 held by your equipment provider or someone else. If you choose to obtain your own FCC license, we will help you with the following required steps. We will recommend a License Administrator who will prepare your license application and submit it to a Frequency Coordinator. A few questions will need to be answered such as your company name, address, area of planned operation, etc. We will provide the technical information required such as frequencies requested, output power, emission type, etc. A separate fee will be required for the Administrator, Frequency Coordinator, and FCC. After your license is issued and equipment installed, the Administrator will notify the FCC that buildout is complete. Your license will normally be issued for a 10 year term. All operation is secondary to the fixed and mobile services. The FCC ID for this transmitter is CFXTXR-1. CAUTION: Any changes or modifications to this device could void the user’s authority to operate the equipment. CAUTION: This device may not be co-located or operated in conjunction with any other antenna or transmitter. WARRANTY The CSTXR.1 is warranted to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. Just return the unit to the factory and we will repair or replace it at no charge.

OWNER’S MANUAL MODEL CSTXR.1 LPRS TRACKING TRANSMITTER INTRODUCTION The Communications Specialists Model CSTXR.1 wrist or ankle mounted transmitter is used as a homing device to locate persons under authority or agreement with a law enforcement agency (federal, state, or local) having jurisdiction in the area where it is placed. It is programmed at the factory to transmit on any one of 200 individual narrowband channels in the Low Power Radio Service (LPRS). This allows 200 transmitters to be used simultaneously in an area for unprecedented flexibility. Power output is 10 mW. It uses a widely available CR2450 Lithium battery which operates the transmitter for more than 30 days. The CSTXR.1 utilizes a TCXO rather than a fragile crystal so it is almost indestructible. The case is completely waterproof and the transmitter module itself is also completely waterproof. Photo #1 ASSEMBLY AND BATTERY INSTALLATION 1. Drop the transmitter module into the housing as shown in photo #1. 2. Place the battery on top of the transmitter module as shown in photo #2. The plus (+) side of the CR2450 battery is facing up as shown. If the battery is accidentally reversed, Photo #2 the transmitter will not operate but it will not be damaged. Just pop out the battery and reverse it to resume operation. 3. Place the battery cap over the + side of the battery and use the supplied tool to tighten it. FCC COMPLIANCE NOTICE The CSTXR.1 transmitter (FCC ID CFXTXR-1) is authorized by rule under the Low Power Radio Service (47 C.F.R. Part 95) and must not cause harmful interference to TV reception or United States Navy SPASUR installations. You do not need an FCC license to operate this transmitter. This transmitter may only be used to provide: auditory assistance to persons with disabilities, persons who require language translation, or persons in educational settings; health care services to the ill; law enforcement tracking services under agreement with a law enforcement agency; or automated maritime telecommunications system (AMTS) network control communications. Two-way voice communications and all other types of uses not mentioned above are expressly prohibited. CAUTION: Any changes or modifications to this device could void the user's authority to operate the equipment. CHANNEL USE POLICY The channels authorized to LPRS systems by the FCC rules are available on a shared basis only and will not be assigned for the exclusive use of any entity. Those using LPRS transmitters must cooperate in the selection and use of channels in order to reduce interference and make the most effective use of the authorized facilities. Channels must be selected in an effort to avoid interference to other LPRS transmissions. WARRANTY The CSTXR.1 is warranted to be free of defects in materials and workmanship for a period of one (1) year from the date of purchase. Just return the unit to the factory and we will repair or replace it at no charge.

p1140015_FCC Part 90_Part 95 Rev 3.0 Date: April 28, 2011 Applicant: Communications Specialists, Inc. 426 W. Taft Ave Orange, CA 92865-4296 Attention of: Spence Porter, President Ph: (800) 854-0547 Fax: (714) 974-3420 E-mail: [email protected] Equipment: FCC ID: CSTXR.1 CFXTXR-1 FCC Rule Part 90/95 Attached is a copy of your Test Report per the testing standards requested. This report may not be reproduced, except in full, without written permission from Compliance Testing, LLC. Please retain a copy of this report for your archival records. The attached report indicates that the sample submitted for testing complied with relevant requirements of the pertinent standards we tested to. If you are seeking an FCC Grant or other Certification requiring approval from a regulatory authority via a Certification Body (TCB or FCB), you may submit this report along with your application for review. For EU, Production units meeting these standards can now be marketed after completion of the Manufacturer’s Declaration of Conformity (DoC) and application of the CE marking. Our invoice for services has been directed to your Accounts Payable Department, with a copy attached for your reference. Should anything need clarification, do not hesitate to call or FAX. It has been a pleasure to work with you and we do thank you for your order. Sincerely, Compliance Testing, LLC

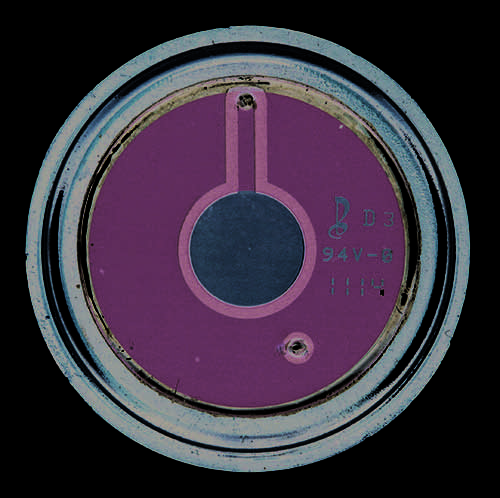

EXTERNAL VIEW EXTERNAL VIEW MAIN PCB CFXTXR-1 EXTERNAL VIEW ANTENNA PCB CFXTXR-1

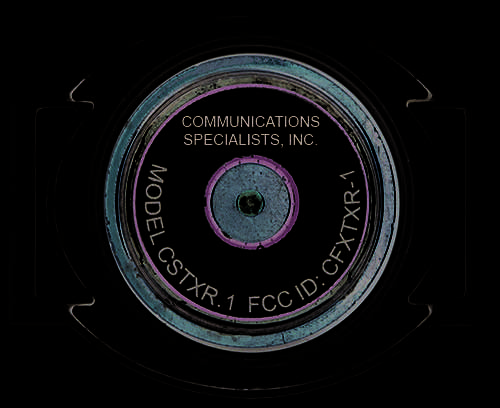

FCC ID LABEL ARTWORK AND LABEL LOCATION PERMANENTLY PRINTED ON LEXAN

INTERNAL VIEW MAIN PCB CFXTXR-1 INTERNAL VIEW ANTENNA PCB CFXTXR-1

Part 90.259(a)(8) 6.25kHz Channel Frequency Listing Frequency ( MHz ) 217.00625 217.01250 217.01875 217.02500 217.03125 217.03750 217.04375 217.05000 217.05625 217.06250 217.06875 217.07500 217.08125 217.08750 217.09375 217.10000 217.10625 217.11250 217.11875 217.12500 217.13125 217.13750 217.14375 217.15000 217.15625 217.16250 217.16875 217.17500 217.18125 217.18750 217.19375 217.20000 217.20625 217.21250 217.21875 217.22500 217.23125 217.23750 217.24375 217.25000 217.25625 217.26250 217.26875 217.27500 217.28125 217.28750 217.29375 217.30000 217.30625 217.31250 217.31875 217.32500 217.33125 217.33750 217.34375 217.35000 217.35625 217.36250 217.36875 217.37500 217.38125 217.38750 217.39375 217.40000 217.40625 217.41250 217.41875 217.42500 217.43125 217.43750 217.44375 217.45000 217.45625 217.46250 217.46875 217.47500 217.48125 217.48750 217.49375 217.50000 217.50625 217.51250 217.51875 217.52500 217.53125 217.53750 217.54375 217.55000 217.55625 217.56250 217.56875 217.57500 217.58125 217.58750 217.59375 217.60000 217.60625 217.61250 217.61875 217.62500 217.63125 217.63750 217.64375 217.65000 217.65625 217.66250 217.66875 217.67500 217.68125 217.68750 217.69375 217.70000 217.70625 217.71250 217.71875 217.72500 217.73125 217.73750 217.74375 217.75000 217.75625 217.76250 217.76875 217.77500 217.78125 217.78750 217.79375 217.80000 217.80625 217.81250 217.81875 217.82500 217.83125 217.83750 217.84375 217.85000 217.85625 217.86250 217.86875 217.87500 217.88125 217.88750 217.89375 217.90000 217.90625 217.91250 217.91875 217.92500 217.93125 217.93750 217.94375 217.95000 217.95625 217.96250 217.96875 217.97500 217.98125 217.98750 217.99375 218.00000 218.00625 218.01250 218.01875 218.02500 218.03125 218.03750 218.04375 218.05000 218.05625 218.06250 218.06875 218.07500 218.08125 218.08750 218.09375 218.10000 218.10625 218.11250 218.11875 218.12500 218.13125 218.13750 218.14375 218.15000 218.15625 218.16250 218.16875 218.17500 218.18125 218.18750 218.19375 218.20000 218.20625 218.21250 218.21875 218.22500 218.23125 218.23750 218.24375 218.25000 218.25625 218.26250 218.26875 218.27500 218.28125 218.28750 218.29375 218.30000 218.30625 218.31250 218.31875 218.32500 218.33125 218.33750 218.34375 218.35000 218.35625 218.36250 218.36875 218.37500 218.38125 218.38750 218.39375 218.40000 218.40625 218.41250 218.41875 218.42500 218.43125 218.43750 218.44375 218.45000 218.45625 218.46250 218.46875 218.47500 218.48125 218.48750 218.49375 218.50000 218.50625 218.51250 218.51875 218.52500 218.53125 218.53750 218.54375 218.55000 218.55625 218.56250 218.56875 218.57500 218.58125 218.58750 218.59375 218.60000 218.60625 218.61250 218.61875 218.62500 218.63125 218.63750 218.64375 218.65000 218.65625 218.66250 218.66875 218.67500 218.68125 218.68750 218.69375 218.70000 218.70625 218.71250 218.71875 218.72500 218.73125 218.73750 218.74375 218.75000 218.75625 218.76250 218.76875 218.77500 218.78125 218.78750 218.79375 218.80000 218.80625 218.81250 218.81875 218.82500 218.83125 218.83750 218.84375 218.85000 218.85625 218.86250 218.86875 218.87500 218.88125 218.88750 218.89375 218.90000 218.90625 218.91250 218.91875 218.92500 218.93125 218.93750 218.94375 218.95000 218.95625 218.96250 218.96875 218.97500 218.98125 218.98750 218.99375 219.00000 219.00625 219.01250 219.01875 219.02500 219.03125 219.03750 219.04375 219.05000 219.05625 219.06250 219.06875 219.07500 219.08125 219.08750 219.09375 219.10000 219.10625 219.11250 219.11875 219.12500 219.13125 219.13750 219.14375 219.15000 219.15625 219.16250 219.16875 219.17500 219.18125 219.18750 219.19375 219.20000 219.20625 219.21250 219.21875 219.22500 219.23125 219.23750 219.24375 219.25000 219.25625 219.26250 219.26875 219.27500 219.28125 219.28750 219.29375 219.30000 219.30625 219.31250 219.31875 219.32500 219.33125 219.33750 219.34375 219.35000 219.35625 219.36250 219.36875 219.37500 219.38125 219.38750 219.39375 219.40000 219.40625 219.41250 219.41875 219.42500 219.43125 219.43750 219.44375 219.45000 219.45625 219.46250 219.46875 219.47500 219.48125 219.48750 219.49375 219.50000 219.50625 219.51250 219.51875 219.52500 219.53125 219.53750 219.54375 219.55000 219.55625 219.56250 219.56875 219.57500 219.58125 219.58750 219.59375 219.60000 219.60625 219.61250 219.61875 219.62500 219.63125 219.63750 219.64375 219.65000 219.65625 219.66250 219.66875 219.67500 219.68125 219.68750 219.69375 219.70000 219.70625 219.71250 219.71875 219.72500 219.73125 219.73750 219.74375 219.75000 219.75625 219.76250 219.76875 219.77500 219.78125 219.78750 219.79375 219.80000 219.80625 219.81250 219.81875 219.82500 219.83125 219.83750 219.84375 219.85000 219.85625 219.86250 219.86875 219.87500 219.88125 219.88750 219.89375 219.90000 219.90625 219.91250 219.91875 219.92500 219.93125 219.93750 219.94375 219.95000 219.95625 219.96250 219.96875 219.97500 219.98125 219.98750 219.99375

Part 95.629(d)(1) Narrowband Channel Frequency Listing Channel #Frequency ( MHz ) 61216.0025 62216.0075 63216.0125 64216.0175 65216.0225 66216.0275 67216.0325 68216.0375 69216.0425 70216.0475 71216.0525 72216.0575 73216.0625 74216.0675 75216.0725 76216.0775 77216.0825 78216.0875 79216.0925 80216.0975 81216.1025 82216.1075 83216.1125 84216.1175 85216.1225 86216.1275 87216.1325 88216.1375 89216.1425 90216.1475 91216.1525 92216.1575 93216.1625 94216.1675 95216.1725 96216.1775 97216.1825 98216.1875 99216.1925 100216.1975 101216.2025 102216.2075 103216.2125 104216.2175 105216.2225 106216.2275 107216.2325 108216.2375 109216.2425 110216.2475 111216.2525 112216.2575 113216.2625 114216.2675 115216.2725 116216.2775 117216.2825 118216.2875 119216.2925 120216.2975 121216.3025 122216.3075 123216.3125 124216.3175 125216.3225 126216.3275 127216.3325 128216.3375 129216.3425 130216.3475 131216.3525 132216.3575 133216.3625 134216.3675 135216.3725 136216.3775 137216.3825 138216.3875 139216.3925 140216.3975 141216.4025 142216.4075 143216.4125 144216.4175 145216.4225 146216.4275 147216.4325 148216.4375 149216.4425 150216.4475 151216.4525 152216.4575 153216.4625 154216.4675 155216.4725 156216.4775 157216.4825 158216.4875 159216.4925 160216.4975 161216.5025 162216.5075 163216.5125 164216.5175 165216.5225 166216.5275 167216.5325 168216.5375 169216.5425 170216.5475 171216.5525 172216.5575 173216.5625 174216.5675 175216.5725 176216.5775 177216.5825 178216.5875 179216.5925 180216.5975 181216.6025 182216.6075 183216.6125 184216.6175 185216.6225 186216.6275 187216.6325 188216.6375 189216.6425 190216.6475 191216.6525 192216.6575 193216.6625 194216.6675 195216.6725 196216.6775 197216.6825 198216.6875 199216.6925 200216.6975 201216.7025 202216.7075 203216.7125 204216.7175 205216.7225 206216.7275 207216.7325 208216.7375 209216.7425 210216.7475 211216.7525 212216.7575 213216.7625 214216.7675 215216.7725 216216.7775 217216.7825 218216.7875 219216.7925 220216.7975 221216.8025 222216.8075 223216.8125 224216.8175 225216.8225 226216.8275 227216.8325 228216.8375 229216.8425 230216.8475 231216.8525 232216.8575 233216.8625 234216.8675 235216.8725 236216.8775 237216.8825 238216.8875 239216.8925 240216.8975 241216.9025 242216.9075 243216.9125 244216.9175 245216.9225 246216.9275 247216.9325 248216.9375 249216.9425 250216.9475 251216.9525 252216.9575 253216.9625 254216.9675 255216.9725 256216.9775 257216.9825 258216.9875 259216.9925 260216.9975

Compliance Testing 3356 N. San Marcos Place, Suite 107 Chandler, Arizona 85225-7176 (866) 311-3268 phone, (480) 926-3598 fax p1140015, d1140018 Rev 1.0 Date: April 29, 2011 Applicant: Communications Specialists, Inc. 426 W. Taft Ave Orange, CA 92865-4296 Attention of: Spence Porter (800)854-0547 [email protected] Equipment: CSTXR.1 FCC ID: CFXTXR-1 FCC Rules: Radio Frequency Radiation Exposure Limits 47 CFR 1.1307 RF Exposure Statement 1. Standard Applicable According to 1.1307 (b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a portable device. 2. Measurement Result Tuned Frequency MHz Output Power dBm Output Power mw Limit mw 216.003 -37.8 0.000166 278 216.997 -37.7 0.000170 278 219.997 -39.5 0.000112 278 This is a portable device and the max peak output power is -37.7 dBm (0.170 W). The peak output power is lower than the low threshold of 60/f GHz = (278 mW), For, d<2.5 cm general population category The SAR measurement is not necessary End of Report

p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 1 of 20 FCC CFR Part 90/95 Test Report Prepared for: Communications Specialists, Inc Model: CSTXR.1 Description: Ankle/Wrist Homing Transmitter FCC ID: CFXTXR-1 to Federal Communications Commission Rule Part 90 and 95 Date of Issue: April 28, 2011 On the behalf of the applicant: Communications Specialists, Inc. 426 W. Taft Ave Orange, CA 92865-4296 Attention of: Spence Porter, President Ph: (800) 854-0547 Fax: (714) 974-3420 E-mail: [email protected] Prepared by Compliance Testing, LLC 3356 N San Marcos Pl, Suite 107 Chandler, AZ 85225-7176 (866) 311-3268 phone / (480) 926-3598 fax www.compliancetesting.com Project No: p1140015 Greg Corbin Project Test Engineer p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 2 of 20 Test Report Revision History Revision Date Revised By Reason for Revision 1.0 April 28, 2011 Greg Corbin Original Document 2.0 May 3, 2011 Karen Springer FCC ID correction made on page 1 of 19 3.0 May 16, 2011 Greg Corbin Revised Radiated Output Power test method per TIA-603-C, section 2.2.17.2 p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 3 of 20 Table of Contents Description Page Test and Measurement Data ........................................................................................................................................... 6 Standard Test Conditions and Engineering Practices .................................................................................................... 7 Test Result Summary ...................................................................................................................................................... 8 Radiated Output Power ................................................................................................................................................... 9 Field Strength of Spurious Radiation ............................................................................................................................ 11 Frequency Stability (Temperature Variation) ................................................................................................................ 18 Frequency Stability (Voltage Variation) ......................................................................................................................... 19 Test Equipment Utilized ................................................................................................................................................ 20 p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 4 of 20 ILAC / A2LA Compliance Testing, LLC, has been accredited in accordance with the recognized International Standard ISO/IEC 17025:2005. This accreditation demonstrates technical competence for a defined scope and the operation of a laboratory quality management system (refer joint ISO-ILAC-IAF Communiqué dated January 2009) The tests results contained within this test report all fall within our scope of accreditation, unless noted in the table below Please refer to http://www.compliancetesting.com/labscope.html for current scope of accreditation. Testing Certificate Number: 2152.01 FCC OATS Reg, #933597 IC Reg. #2044A-1 Non-accredited tests contained in this report: N/A p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 5 of 20 The Applicant has been cautioned as to the following: 15.21: Information to the User The user’s manual or instruction manual for an intentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance cold void the user’s authority to operate the equipment. 15.27(a): Special Accessories Equipment marketed to a consumer must be capable of complying with the necessary regulations in the configuration in which the equipment is marketed. Where special accessories, such as shielded cables and/or special connectors are required to enable an unintentional or intentional radiator to comply with the emission limits in this part, the equipment must be marketed with, i.e. shipped and sold with, those special accessories. However, in lieu of shipping or packaging the special accessories with the unintentional or intentional radiator, the responsible party may employ other methods of ensuring that the special accessories are provided to the consumer, without additional charge. Information detailing any alternative method used to supply the special accessories for a grant of equipment authorization or retained in the verification records, as appropriate. The party responsible for the equipment, as detailed in § 2.909 of this chapter, shall ensure that these special accessories are provided with the equipment. The instruction manual for such devices shall include appropriate instructions on the first page of text concerned with the installation of the device that these special accessories must be used with the device. It is the responsibility of the user to use the needed special accessories supplied with the equipment. p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 6 of 20 Sub-part 2.1033(c)(14): Test and Measurement Data All tests and measurement data shown were performed in accordance with FCC Rules and Regulations, Volume II, Part 2, Sub-part J, Sections 2.947, 2.1033(c), 2.1041, 2.1046, 2.1047, 2.1079, 2.1051, 2.1053, 2.1055, 2.1057, and the following individual Parts: 90 and 95. p1140015_FCC Part 90_Part 95 Rev 3.0 Page: 7 of 20 Standard Test Conditions and Engineering Practices Except as noted herein, the following conditions and procedures were observed during the testing. In accordance with ANSI/C63.4-2009, and unless otherwise indicated in the specific measurement results, the ambient temperature of the actual EUT was maintained within the range of 10° to 40°C (50° to 104°F) unless the particular equipment requirements specify testing over a different temperature range. Also, unless otherwise indicated, the humidity levels were in the range of 10% to 90% relative humidity. Environmental Conditions Temperature Humidity 27.6 deg C 11.5 % M…

Text truncated - open the document above for the full version.

Page 1 of 2 Test Setup Photos: Communications Specialists Inc. FCC ID: CFXTXR-1 Radiated Emissions #1 Radiated Emissions #2 Page 2 of 2 Radiated Emissions #3
